Citation: WAN Xiao-rui, CHU Chun-yu, BAI Guo-qiang, GAO Shi-liang, MENG Xiu-hong, DUAN Lin-hai. Adsorption and mass transfer behavior of benzene on hierarchically structured Y by acid-base treatment[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(5): 634-640. shu

Adsorption and mass transfer behavior of benzene on hierarchically structured Y by acid-base treatment

Key Laboratory of Petrochemical Catalytic Science and Technology of Liaoning Province, Liaoning Shihua University, Fushun 113001, China

Corresponding author: DUAN Lin-hai, lhduan@126.com
Received Date: 16 December 2015
Revised Date: 28 February 2016

Fund Project: the National Natural Science Foundation of China 21476101

Figures(9)

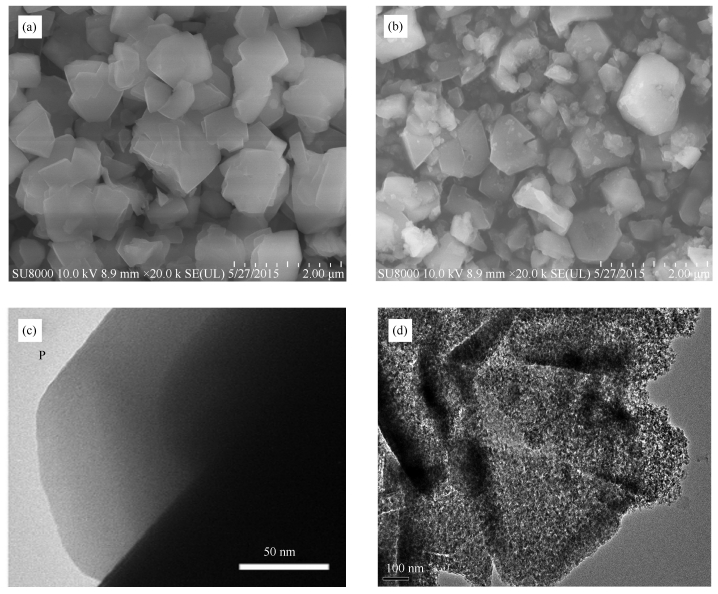

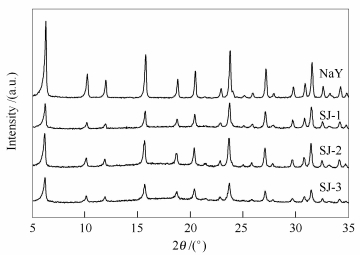

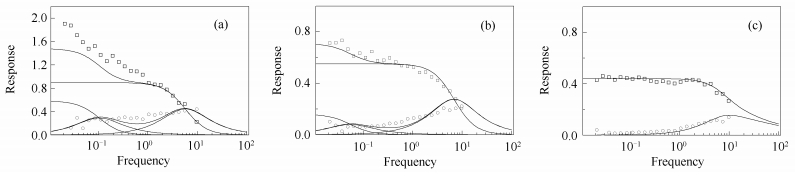

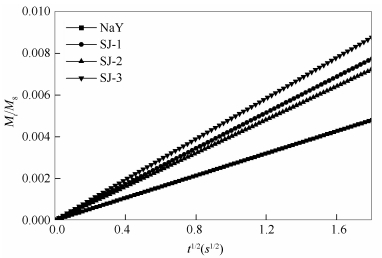

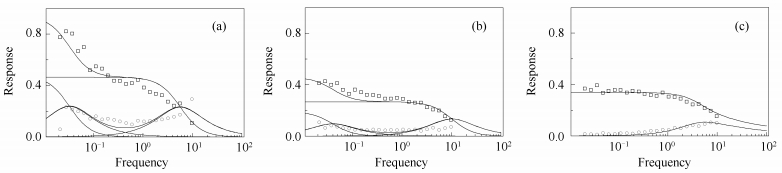

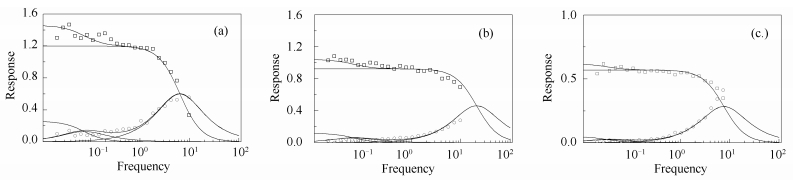

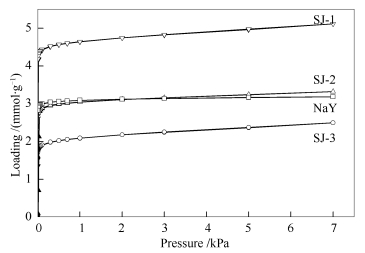

A series of hierarchical NaY zeolites with different pore size distribution were synthesized by sequential treatment with ethylenediaminetetraacetic acid and NaOH. The structural properties of the as-synthesized hierarchical NaY zeolites were characterized by X-ray diffraction, N₂ sorption, SEM and TEM. The adsorption and diffusion performances of benzene on NaY and hierarchical NaY zeolites were studied by frequency response (FR) and intelligent gravimetric analyser (IGA). It was found that the structure of NaY zeolite was remained by suitable acid and base treatment, but the connectivity in the pores was finely tailored. Mesoporous was introduced to reduce the molecular diffusion resistance in the pores, while the larger pore size and connectivity in the mesoporous was more beneficial to diffusion and accessibility of activity site. The adsorption of benzene on NaY was found to be the rate-controlling step. While, the limiting steps for the overall mass transfer processes in the hierarchical zeolites are the diffusion process in the length scale of micropore/mesopore and the mass transfer at the micropore-mesopore molecular exchange rather than the intracrystalline diffusion one in the micropores of the zeolite crystals.
- hierarchical porous Y,
- benzene,
- frequency response,
- adsorption and diffusion
1. [1]
  PARK D H, KIM S S, WANG H, PINAVAIA T J, PAPAPETROU M C, LAPPAS A A, TRIANTAFYLLIDIS K S. Selective petroleum refining over a zeolite catalyst with small intracrystal mesopores[J]. Angew Chem Int Ed Eng, 2009,48(41):7645-7648. doi: 10.1002/anie.v48:41
2. [2]
  FLEISCH T H, MEYERS B L, RAY G J, HALL J B, MARSHALL C L. Hydrothermal dealumination of faujasites[J]. J Catal, 1986,99(86):117-125.
3. [3]
  WANG Q L, GIANNETTO G, TORREALBA M, PEROT G, KAPPENSTEIN C, GUISNET M. Dealumination of zeolites Ⅱ. Kinetic study of the dealumination by hydrothermal treatment of a NH₄NaY zeolite[J]. J Catal, 1991,130(2):459-470. doi: 10.1016/0021-9517(91)90128-Q
4. [4]
  LIU Xing-yun, ZHANG Xu-zheng, LI Xuan-wen. NaY zeolite acid dealumination[J]. Chem Res Chin Univ, 1997,18(3):342-347.
5. [5]
  PU X, SHI L, LIU N W. Acid properties and catalysis of USY zeolite with different extra-framework aluminum concentration[J]. Microporous Mesoporous Mater, 2015,201:17-23. doi: 10.1016/j.micromeso.2014.08.056
6. [6]
  QIN Z X, SHEN B J, YU Z W, DENG F, ZHAO L, ZHOU S G, YUAN D L, GAO X H, WANG B J, ZHAO H J, LIU H H. A defect-based strategy for the preparation of mesoporous zeolite Y for high-performance catalytic cracking[J]. J Catal, 2013,298:102-111. doi: 10.1016/j.jcat.2012.11.023
7. [7]
  VERBOEKEND D, KELLER T C, MITCHELL S, PEREZ-RAMIREZ J. Hierarchical FAU-and LTA-type zeolites by post-synthetic design: A new generation of highly efficient base catalysts[J]. Adv Funct Mater, 2013,23(15):1923-1934. doi: 10.1002/adfm.v23.15
8. [8]
  VERBOEKEND D, VILE G, PEREZ-RAMIREZ J. Hierarchical Y and USY zeolites designed by post-synthetic strategies[J]. Adv Funct Mater, 2012,22(5):916-928. doi: 10.1002/adfm.v22.5
9. [9]
  TIAN F P, SHEN Q C, FU Z K, WU Y H, JIA C Y. Enhanced adsorption desulfurization performance over hierarchically structured zeolite Y[J]. Fuel Process Technol, 2014,128:176-182. doi: 10.1016/j.fuproc.2014.07.018
10. [10]
  SUN H Y, SUN L P, LI F, ZHANG L. Adsorption of benzothiophene from fuels on modified NaY zeolites[J]. Fuel Process Technol, 2015,134:284-289. doi: 10.1016/j.fuproc.2015.02.010
11. [11]
  ZHAO J, YIN Y C, LI Y, CHEN W Y, LIU B J. Synthesis and characterization of mesoporous zeolite Y by using block copolymers as templates[J]. Chem Eng J, 2016,284:405-411. doi: 10.1016/j.cej.2015.08.143
12. [12]
  KORTUNOV P, VASENKOV S, KARGER J, VALIULLIN R, GOTTSCHALK P, ELIA MF, PEREZ M, STOCKER M, DRESCHER B, MCELHINEY G, BERGER C, GLASER R, WEITKAMP J. The role of mesopores in intracrystalline transport in USY zeolite: PFG NMR diffusion study on various length scales[J]. J Am Chem Soc, 2005,127(37):13055-13059. doi: 10.1021/ja053134r
13. [13]
  QIN Z X, SHEN B J, GAO X H, LIN F, WANG B J, XU C M. Mesoporous Y zeolite with homogeneous aluminum distribution obtained by sequential desilication-dealumination and its performance in the catalytic cracking of cumene and 1, 3, 5-triisopropylbenzene[J]. J Catal, 2011,278(2):266-275. doi: 10.1016/j.jcat.2010.12.013
14. [14]
  BOURDIN V, GRAY P G, GRENIER P, TERRIER M F. An apparatus for adsorption dynamics studies using infrared measurement of the adsorbent temperature[J]. Rev Sci Instrum, 1998,69(5):2130-2136. doi: 10.1063/1.1148911
15. [15]
  SONG L J, SUN Z L, REES L V C. Studies of adsorption, diffusion and molecular simulation of cyclic hydrocarbons in MFI zeolites[J]. Stud Surf Sci Catal, 2001,135:3064-3072.
