Citation: LI Fan, ZHU Li-hua, XU Feng. Hydrogen production from methane/steam by dielectric barrier discharge plasma reforming[J]. Journal of Fuel Chemistry and Technology, ;2019, 47(5): 566-573. shu

Hydrogen production from methane/steam by dielectric barrier discharge plasma reforming

School of Safety Engineering and Technology, Heilongjiang University of Science and Technology, Harbin 150022, China

Corresponding author: XU Feng, xufeng79_79@163.com
Received Date: 20 November 2018
Revised Date: 11 March 2019

Fund Project: The project was supported by the National Natural Science Foundation of China(51874126) and Natural Science Foundation of Heilongjiang Province of China(E2018053)Natural Science Foundation of Heilongjiang Province of China E2018053the National Natural Science Foundation of China 51874126

Figures(6)

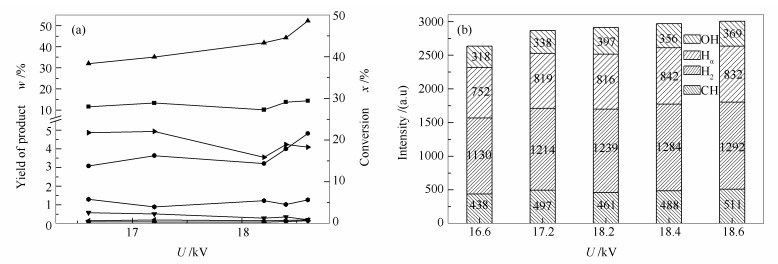

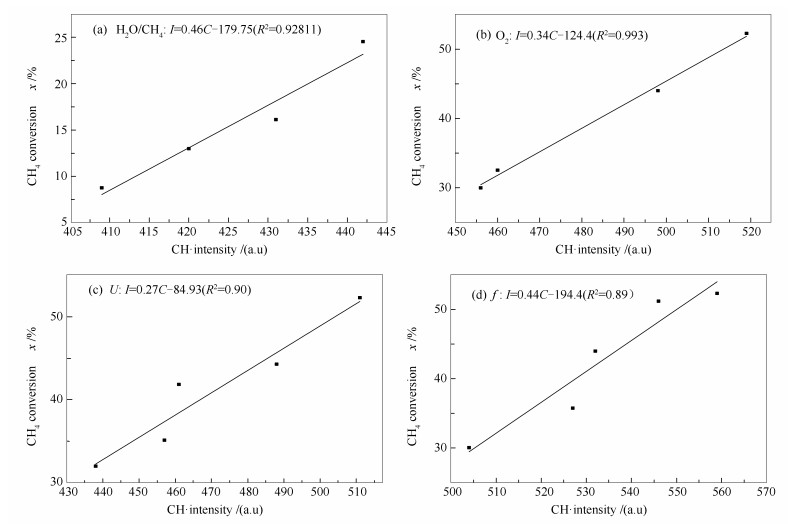

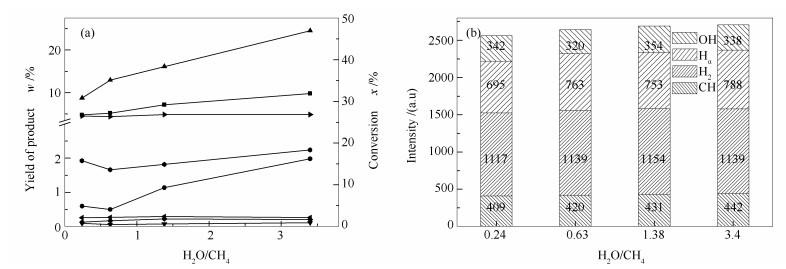

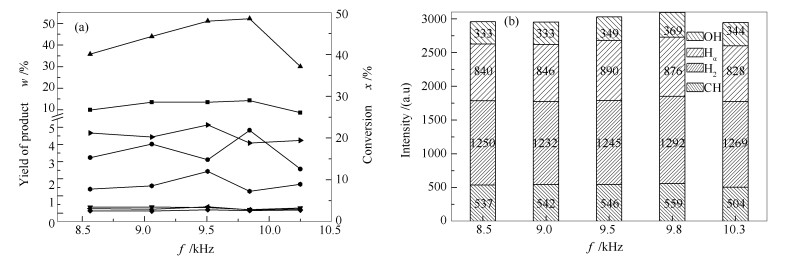

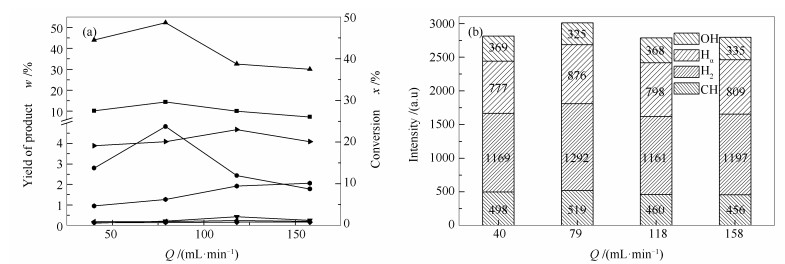

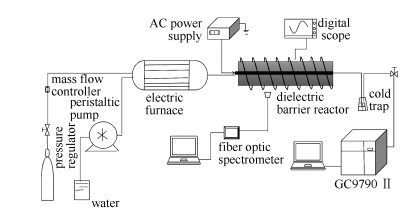

The hydrogen production by methane/steam reforming at atmospheric pressure was investigated by using a self-made dielectric barrier discharge experimental system.The effect of water/carbon ratio (steam/methane molar ratio), total gas flow, discharge voltage and discharge frequency on the methane conversion, hydrogen and other major product yields was examined.The experimental results show that the methane conversion rate and hydrogen yield increase with the increase of water carbon ratio and discharge voltage, and the methane conversion rate and hydrogen yield increase first and then decrease with the increase of total gas flow rate and discharge frequency. The maximum hydrogen yield (14.38%) can be obtained at the discharge voltage of 18.6 kV, discharge frequency of 9.8 kHz, water/carbon ratio of 3.4, and total reaction gas flow rate of 79 mL/min. In addition, The active group in the discharge process was diagnosed by in-situ emission spectroscopy, and the changing trend in the spectral signal intensity of CH·, OH·, H₂ and H_α active particles with the experimental parameters was obtained. The possible generation path of hydrogen is predicted by combining with the discharge mechanism.
- methane,
- steam,
- dielectric barrier discharge,
- hydrogen,
- water/carbon ratio
1. [1]
  WANG B W, LIU Y J, ZHANG X, XU S H. Hydrogen production from methanol through dielectric barrier discharge[J]. J Nat Gas Chem, 2011,5(2):209-214.
2. [2]
  PHILIP G R, VADIM A K, VICTOR E P, SERGEY D P, ALEXANDER V S, DMITRY I S, ALEXANDER N B. Conversion of methane by CO₂+H₂O+CH₄ plasma[J]. Appl Energy, 2015,148(C):159-168.
3. [3]
  SANCHES S G, HUERTAS FLORES J, PAIS DA SILVA M I. Influence of aging time on the microstructural characteristics of a Cu/ZnO based catalyst prepared by homogeneous precipitation for use in methanol steam reforming[J]. React Kinet Mech Catal, 2017,121(2):473-485. doi: 10.1007/s11144-017-1161-7
4. [4]
  QING Shao-jun, HOU Xiao-ning, LIU Ya-jie, WANG Lei, LI Lin-dong, GAO Zhi-xian. Catalytic performance of Cu-Ni-Al spinel for methanol steam reforming to hydrogen[J]. J Fuel Chem Technol, 2018,46(10):1210-1217. doi: 10.3969/j.issn.0253-2409.2018.10.008
5. [5]
  XIE Xin-shuo, YANG Wei-juan, SHI Wei, ZHANG Sheng-sheng, WANG Zhi-hua, ZHOU Jun-hu. Life cycle assessment of technologies for hydrogen productiona review[J]. Chem Ind Eng Prog, 2018,37(6):2147-2158.
6. [6]
  NAIR S A, NOZAKI T O, OKAZAKI K. Methane oxidative conversion pathways in a dielectric barrier discharge reactor-Investigation of gas phase mechanism[J]. Chem Eng J, 2007,132(1/3):85-95.
7. [7]
  INDARTO A, COOWANITWONG N, CHOI JAE-WOOK, LEE H, SONG H K. Kinetic modeling of plasma methane conversion in a dielectric[J]. Fuel Process Technol, 2008,89(2):214-219. doi: 10.1016/j.fuproc.2007.09.006
8. [8]
  SHAO Tao, YAN Ping. Atmospheric Gas Discharge and its Plasma Application[M]. Beijing:Science Press, 2015.
9. [9]
  QIAN Bo-zhang. A new plasma method for converting CO₂ and methane into higher value fuels and chemicals in one step[J]. Nat Gas Chem Ind, 2017,42(5)125.
10. [10]
  KHADIR N, KHODJA K, BELASRI A. Methane conversion using a dielectric barrier discharge reactor at atmospheric pressure for hydrogen[J]. Plasma Sci Technol, 2017,19(9):81-90.
11. [11]
  HU S H, WANG B W, LV Y J, YAN W J. Conversion of methane to C₂ hydrocarbons and hydrogen using a gliding arc reactor[J]. Plasma Sci Technol, 2013,15(6):555-561. doi: 10.1088/1009-0630/15/6/13
12. [12]
  SHIGERU K, KOHEI U, YASUSHI S, KAORU F, TOMOHIRO N, KEN O. Reaction mechanism of methane activation using non-equilibriumpulseddischarge at room temperature[J]. Fuel, 2003,82(18):2291-2297. doi: 10.1016/S0016-2361(03)00163-7
13. [13]
  WANG Hao, SONG Ling-jun, LI Xing-hu, YUE Li-meng. Hydrogen production from partial oxidation of methane by dielectric barrier discharge plasma reforming[J]. Acta Phys-Chim Sin, 2015,31(7):1406-1412.
14. [14]
  ZHANG Hao, ZHU Feng-sen, LI Xiao-dong, WU Ang-jian, BO Zheng, CEN Ke-fa. Rotating gliding arc plasma assisted hydrogen production from methane decomposition in argonr[J]. J Fuel Chem Technol, 2016,44(2):192-200. doi: 10.3969/j.issn.0253-2409.2016.02.009
15. [15]
  WANG Y F, TSAI C H, CHANG W Y, KUO Y M. Methane steam reforming for producing hydrogen in an atmospheric-pressure microwave plasma reactor[J]. Intl J Hydrogen Energy, 2010,35(1):135-140. doi: 10.1016/j.ijhydene.2009.10.088
16. [16]
  XU Feng, ZHU Li-hua, LI Chuang. Mechanism of activation and conversion of coalbed methane under cold plasma by optical emission spectroscopy[J]. Chin J Lumin, 2017,38(3):372-379.
17. [17]
  WEI Bo, LUO Zhong-yang, XU Fei, ZHAO Lei, GAO Xiang, CEN Ke-fa. Study of emission spectroscopy of OH radicals in pulsed corona discharge[J]. Spectrosc Spect Anal, 2010,30(2):293-296. doi: 10.3964/j.issn.1000-0593(2010)02-0293-04
18. [18]
  LUO Li-xia, WU Wei-dong, ZHU Yong-hong, TANG Yong-jian. Spectrum analysis of plasma in CH₄/H₂ and CH₄/He systems[J]. High Power Laser Part Beams, 2008,20(6):899-902.
19. [19]
  LIU Yong-wei. Study on methane-steam conversion with dielectric-barrier discharge[D]. Tianjin: Tianjin University, 2008.
20. [20]
  ZHAO G B, JOHN S, ZHANG J J, WANG L N. Methane conversion inpulsed corona discharge reactors[J]. Chem Eng J, 2006,125(2):67-79.
21. [21]
  YAN Wen-juan. Dielectric barrier pure plasma pure CH₄ conversion to low carbon hydrocarbons[D]. Tianjin: Tianjin University, 2008.
