Citation: LIU Yan-quan, CHEN Le-ming, JI Jie-qiang, ZHANG Wei-guo, WANG Qin-hui, ZHOU Qi, NIE Li. Distribution characteristics of alkali emission between gas and solid phase during Zhundong coal combustion[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(3): 314-320. shu

Distribution characteristics of alkali emission between gas and solid phase during Zhundong coal combustion

1.
State Key Laboratory of Clean Energy Utilization, Institute for Thermal Power Engineering, Zhejiang University, Hangzhou 310027, China
2.
Dongfang Boiler Group CO., LTD., Chengdu 611731, China

Corresponding author: CHEN Le-ming, lemingc@zju.edu.cn
Received Date: 11 September 2015
Revised Date: 1 December 2015

Fund Project: National Science & Technology Pillar Program 2015BAA04B00

Figures(7)

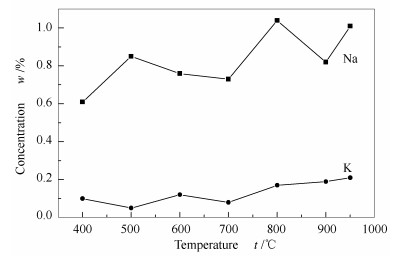

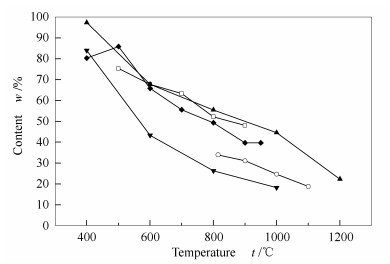

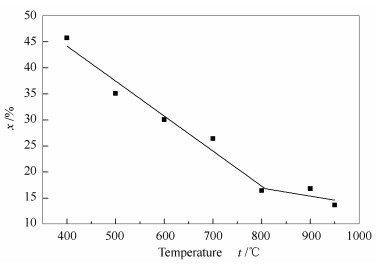

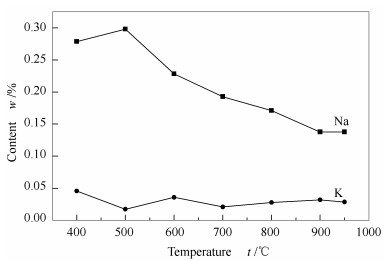

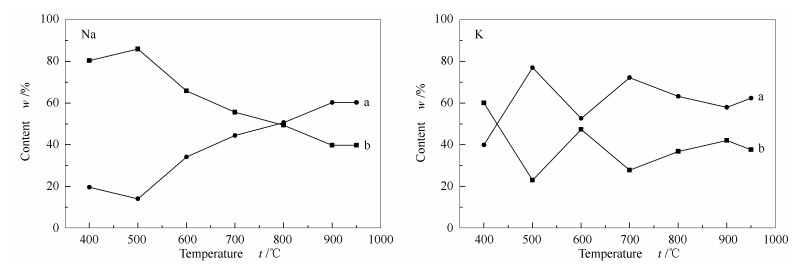

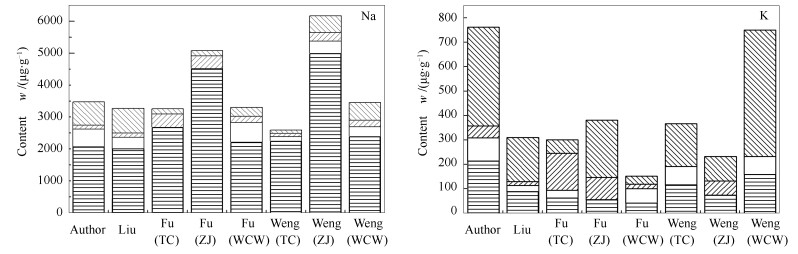

The sequence extraction method was used to analyze the content of alkali metals in different modes of occurrence in Zhundong coal. Most sodium in the coal is water-soluble one, accouting for 59%, while potassium exists mainly in the form of non-soluble aluminosilicates, accounting for 53%. The combustion experiments of Zhundong coal at the temperature ranging from 400 to 950℃ were carried out to study the distribution characteristics of alkali emission between the gas and the solid phase. The results show that the ash yield decreases with the increase in temperature. Sodium releases continuously from coal into the gas phase; However, the content of potassium in the gas phase is lower than that in the solid phase at 400℃, while the content of potassium in gas exceeds that in solid and basically remains the same when the temperature is higher than 500℃. The enrichment of alkali metals in solid occurs and increases with temperature. Moreover, the sodium in the gas phase mainly originates from water-soluble one, and potassium not only releases from soluble ones, but also from non-soluble aluminosilicates. According to the result of XRD, alkali metals will react with SiO₂ and Al₂O₃ to form low-melting-point albite and nepheline.
- Zhundong coal,
- alkali metals,
- emission
1. [1]
  ZHOU J B, ZHUANG X G, ALASTUEY A, QUEROL X, LI J H. Geochemistry and mineralogy of coal in the recently explored Zhundong large coal field in the Junggar basin, Xinjiang province, China[J]. Int J Coal Geol, 2010,82(1/2):51-67.
2. [2]
  LI Lu-ming. Design and application of 350MW supercritical boiler burning Zhundong coal[J]. Pow Syst Eng, 2014,30(2):39-41.
3. [3]
  SHIMOGORI M, MINE T, OHYATSU N, TAKARAYAMA N, MASTSUMURA Y. Effects of fine ash particles and alkali metals on ash deposition characteristics at the initial stage of ash deposition determined in 1.5MWth pilot plant tests[J]. Fuel, 2012,97(7):233-240.
4. [4]
  DONG Ming-gang. Prevention measures and the influence of slagging, fouling and corrosion of high-sodium coal on the heat surfaces of boilers[J]. Therm Power Gener, 2008,37(9):35-39.
5. [5]
  QIU Zhong, LIANG Jin-lin. Circulating fluidized bed boiler burning Xinjiang Wucaiwan area in Zhundong coal measures[J]. Appl Energy Technol, 2012(12):16-19.
6. [6]
  HAN Chun-li, ZHANG Jun, LIU Kun-lei, XU Yi-qian. Modes of occurrence of sodium in coals[J]. J Fuel Chem Technol, 1999,27(6):95-98.
7. [7]
  ZHANG Jun, HAN Chun-li, LIU Kun-lei, XU Yi-qian. Various forms of alkali metals in coal and its behavior during coal combustion[J]. J Eng Therm Energy Power, 1999,14(2):83-85.
8. [8]
  LI Yong, XIAO Jun. The occurrence and migration mechanism of alkal metals during coal-fired process and research progress[J]. Clean Coal Technol, 2005,11(1):39-44.
9. [9]
  FU Zi-wen, WANG Zhang-an, CHE De-fu, WENG Qing-song. Experimental study on the effect of ashing temperature on physicochemical properties of Zhundong coal ashes[J]. J Eng Thermophys, 2014,35(3):609-613.
10. [10]
  WANG Xue-bin, WEI Bo, ZHANG Li-meng, TAN Hou-zhang, XU Tong-mo. Effect of temperature and silicon additives on occurrence and transformation characteristics of alkali metal in Zhundong coal[J]. Therm Power Gener, 2014,43(8):84-88.
11. [11]
  LIU Da-hai, ZHANG Shou-yu, TU Sheng-kang, JIN Tao, SHI Da-zhong, SHI Deng-yu, PEI Yu-feng. Transformation and release of sodium in Wucaiwan coal during combustion[J]. Chem Ind Eng Prog, 2015,34(3):705-709.
12. [12]
  TAO Yu-jie, ZHANG Yan-wei, ZHOU Jun-hu, JING Xue-hui, LI Tao, LIU Jian-zhong, CEN Ke-fa. Mineral conversion regularity and release behavior of Na, Ca during Zhundong coal's combustion[J]. Proc CSEE, 2015,35(5):1169-1175.
13. [13]
  SMITH I W. The combustion rates of coal chars: A review[C]. Nineteenth Symposium (International) on Combustion, 1982, 19(1): 1045-1065.
14. [14]
  LIU Jing, WANG Zhi-hua, XIANG Fei-peng, HUANG Zhen-yu, LIU Jian-zhong, ZHOU Jun-hu, CEN Ke-fa. Modes of occurrence and transformation of alkali metals in Zhundong coal during combustion[J]. J Fuel Chem Technol, 2014,42(3):316-322.
15. [15]
  ZHANG J, HAN C L, YAN Z, LIU K L, XU Y Q, SHENG C D, PAN W P. The varying characterization of alkali metals (Na, K) from coal during the initial stage of coal combustion[J]. Energy Fuels, 2001,15(4):786-793. doi: 10.1021/ef000140u
16. [16]
  WENG Qing-song, WANG Zhang-an, CHE De-fu, FU Zi-wen. Alkali metals occurrence mode and its influence on combustion characteristics in Zhundong coals[J]. J Combust Sci Technol, 2014,20(3):216-221.
17. [17]
  FU Zi-wen, WANG Zhang-an, WENG Qing-song, CHE De-fu. Experimental investigation for effect of water washing on Zhundong coal properties[J]. J Xi'an Jiaotong Univ, 2014,48(3):54-60.
18. [18]
  ZHANG Jun, HAN Chun-li, YAN Zheng, YU Gang, LIU Kun-lei, XU Yi-qian. Experimental studies on the behavior of sodium of coal in the initial stage of combustion[J]. J Fuel Chem Technol, 2001,29(1):49-53.
19. [19]
  LUAN C, YOU C F, ZHANG D K. An experimental investigation into the characteristics and deposition mechanism of high-viscosity coal ash[J]. Fuel, 2014,119(3):14-20.
20. [20]
  RAASK E. Mineral impurities in coal combustion: Behavior, problems, and remedial measures[M]. Washington: Hemisphere Publishing Corporation, 1985.
21. [21]
  MA Yan, HUANG Zhen-yu, TANG Hui-ru, WANG Zhi-hua, ZHOU Jun-hu, CEN Ke-fa. Mineral conversion of Zhundong coal during ashing process and the effect of mineral additives on its ash fusion characteristics[J]. J Fuel Chem Technol, 2014,42(1):20-25.
