Citation: LIU Ya-jie, QING Shao-jun, HOU Xiao-ning, ZHANG Lei, GAO Zhi-xian, XIANG Hong-wei. Synthesis of Cu-Al spinels and its non-isothermal formation kinetics analysis[J]. Journal of Fuel Chemistry and Technology, ;2020, 48(3): 338-348. shu

Synthesis of Cu-Al spinels and its non-isothermal formation kinetics analysis

1.
College of Chemistry and Chemical Engineering, Jinzhong University, Jinzhong 030600, China
2.
Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China
3.
Liaoning Shihua University, Fushun 113001, China

Corresponding author: HOU Xiao-ning, houxn@sxicc.ac.cn GAO Zhi-xian, gaozx@lnpu.edu.cn
Received Date: 13 January 2020
Revised Date: 15 February 2020

Fund Project: The project was supported by the National Natural Science Foundation of China 21673270The project was supported by the National Natural Science Foundation of China (21673270), Scientific and Technologial Innovation Programs of Higher Education Institutions in Shanxi (2019L0880) and Ph. D. Research Funding of Jinzhong University (2019)Scientific and Technologial Innovation Programs of Higher Education Institutions in Shanxi 2019L0880Ph. D. Research Funding of Jinzhong University 2019

Figures(9)

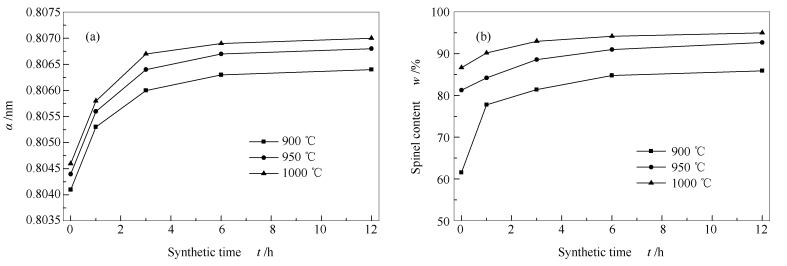

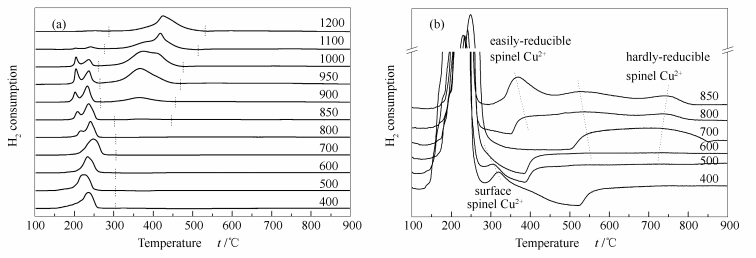

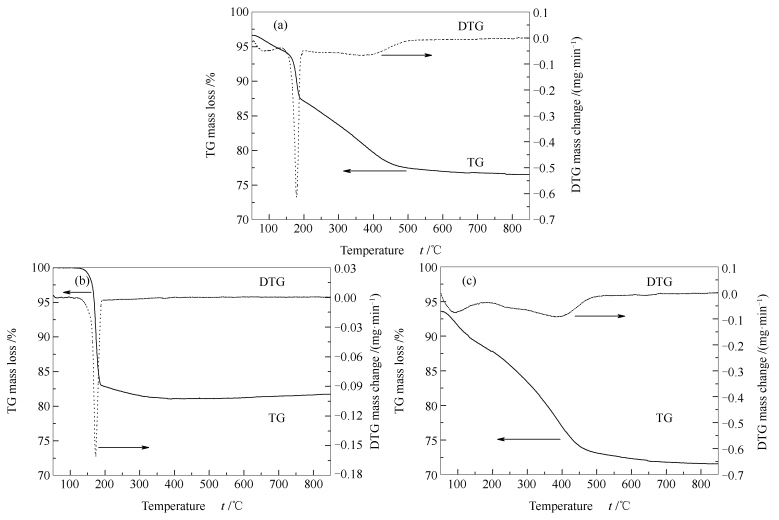

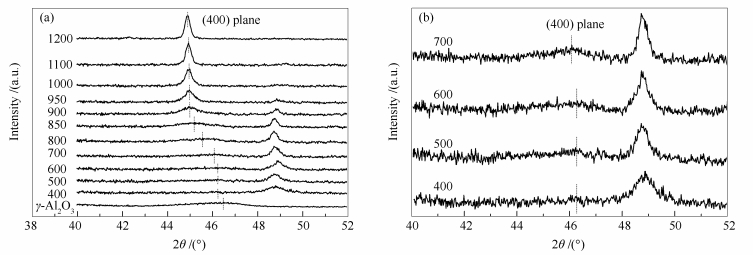

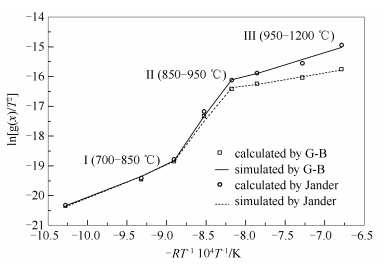

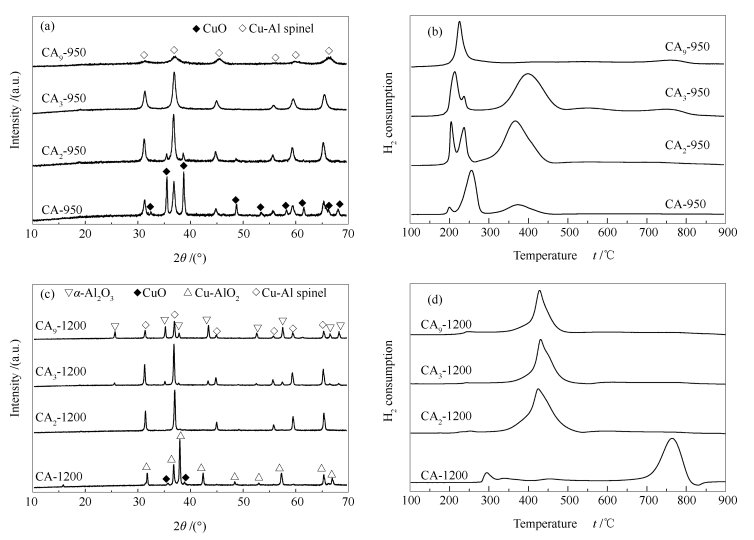

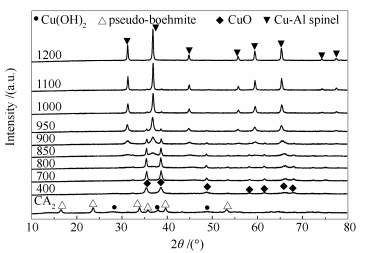

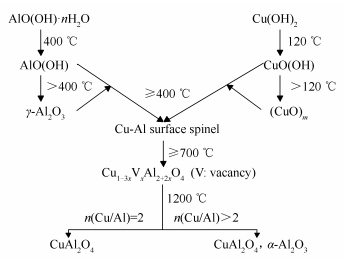

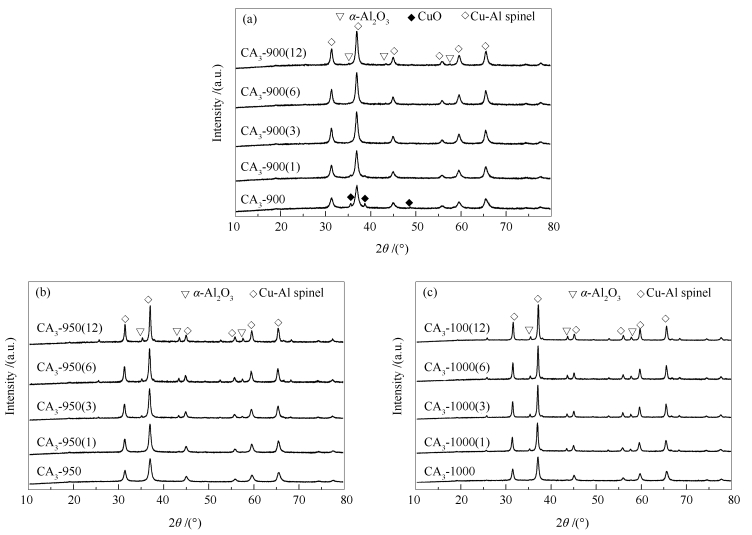

Cu-Al spinels were synthesized by a solid phase method using Cu(OH)₂ and pseudo-boehmite as the raw materials. The effects of synthesis temperature, synthesis time and Cu/Al molar ratio on the formation and properties of Cu-Al spinels were fully investigated by the thermogravimetry(TG/DTG), X-ray diffraction(XRD), H₂ temperature programmed reduction(H₂-TPR). The non-isothermal kinetics of Cu-Al spinel formation process were analyzed using Coats-Redfern method and two diffusion-controlled kinetic models. Characterization results showed that the Cu-Al surface spinels with unsaturated coordination formed easily at the temperature as low as 400℃, and the content of these surface spinel decreased sharply with the synthesis temperature rising. The hardly-reducible spinel Cu²⁺ species and easily-reducible spinel Cu²⁺ species were identified at the synthesis temperature of 700 and 800℃, respectively. The spinel content increased gradually with the synthesis temperature increasing, leading to the formation of Al-rich spinel solid solutions with different Cu/Al molar ratios. At a higher temperature of 1200℃, however, the formation of stoichiometric CuAl₂O₄ spinel was observed. Hence, the spinel reducibility varied dramatically with the synthesis temperature as illustrated by the drastic change of the molar ratio of hardly-reducible spinel Cu²⁺ species and easily-reducible spinel Cu²⁺ species. An appropriate excess of Al³⁺(Cu/Al=1:3) could result in the formation of spinel solid solution with more hardly-reducible spinel Cu²⁺ species, while an excess of Cu²⁺ would lead to the formation of delafossite-type CuAlO₂. Both samples owned low reducibility as compared to the stochiometric CuAl₂O₄ spinel. Besides, a longer synthesis time would favor the spinel formation as well but to a limited extent. Non-isothermal kinetics analysis showed that the formation process of Cu-Al spinel owned three kinetic regions in terms of synthesis temperature, namely 700-850, 850-950 and 950-1200℃, and the apparent activation energies were determined to be 85.2, 304.4 and 38.1 kJ/mol, respectively. The diffusion of reactants via product layer could be considered as an one-dimensional diffusion below 950℃, whereas it was more likely to be a three-dimensional diffusion above 950℃, indicating that the product layer became much thicker.
- Cu-Al spinel,
- solid phase method,
- synthetic conditions,
- non-isothermal kinetics
1. [1]
  XIONG Wen-hui, ZHANG Wen-chao, YU Chun-pei, SHEN Rui-qi, CHENG Jia, YE Jia-hai, QIN Zhi-chun. Preparation of nanoporous CoFe₂O₄ and its catalytic performance during the thermal decomposition of ammonium perchlorate[J]. Acta Phys Chim Sin, 2016,32(8):2093-2100.
2. [2]
  MAITI S, DAS D, PAL K, LORCA J, SOLER L, COLUSSI S, TROVARELLI A, PRIOLKAR K R, SARODE P R, ASAKURA K, SEIKH M M, GAYEN A. Methanol steam reforming behavior of sol-gel synthesized nanodimensional Cu_xFe_1-xAl₂O₄ hercynites[J]. Appl Catal A:Gen, 2019,570:73-83. doi: 10.1016/j.apcata.2018.11.011
3. [3]
  HOU X N, QING S J, LIU Y J, LI L D, GAO Z X, QIN Y. Enhancing effect of MgO modification of Cu-Al spinel oxide catalyst for methanol steam reforming[J]. Int J Hydrogen Energy, 2019,45(1):477-489.
4. [4]
  LIU Y J, QING S J, HOU X N, QIN F J, WANG X, GAO Z X, XIANG H W. Cu-Ni-Al spinel oxide as an efficient durable catalyst for methanol steam reforming[J]. ChemCatChem, 2018,10(24):5698-5706. doi: 10.1002/cctc.201801472
5. [5]
  WU J C, LI Y Z, YANG Y, ZHANG Q, YUN L, WU S W, ZHOU C Y, JIANG Z K, ZHAO X J. A heterogeneous single Cu catalyst of Cu atoms confined in the spinel lattice of MgAl₂O₄ with good catalytic activity and stability for NO reduction by CO[J]. J Mater Chem A, 2019,7(12):7202-7212. doi: 10.1039/C8TA11528A
6. [6]
  DU Cheng, GAO Xiao-hui, CHEN Wei. Recent developments in copper-based, non-noble metal electrocatalysts for the oxygen reduction reaction[J]. Chin J Catal, 2016,37(7):1049-1061.
7. [7]
  LIU Q, ZHANG X X, ZHANG B, LUO Y L, CUI G W, XIE F Y, SUN X P. Ambient N₂ fixation to NH₃ electrocatalyzed by a spinel Fe₃O₄ nanorod[J]. Nanoscale, 2018,10(30):14386-14389. doi: 10.1039/C8NR04524K
8. [8]
  CUI Bai, LIN Hong, LI Jian-bao, ZHAO Xiao-chong, LI Wen-di. Visible light induced photocatalytic activity of ZnCo₂O₄ nanoparticles[J]. Acta Phys Chim Sin, 2011,27(10):2411-2415. doi: 10.3866/PKU.WHXB20110937
9. [9]
  CHANDRASEKARAN S, BOWEN C, ZHANG P X, LI Z L, YUAN Q H, REN X Z, DENG L B. Spinel photocatalysts for environmental remediation, hydrogen generation, CO₂ reduction and photoelectrochemical water splitting[J]. J Mater Chem A, 2018,6(24):11078-11104. doi: 10.1039/C8TA03669A
10. [10]
  TATARCHUK T, AL-NAJAR, B, BOUOUDINA M, AHMED M A A. Catalytic and Photocatalytic Properties of Oxide Spinels:In Handbook of Ecomaterials[M]. 1nd ed. Cham:Springer International Publishing, 2018.
11. [11]
  QING Shao-jun, HOU Xiao-ning, LIU Ya-jie, WANG Lie, LI Lin-dong, GAO Zhi-xian. Catalytic performance of Cu-Ni-Al spinel for methanol steam reforming to hydrogen[J]. J Fuel Chem Technol, 2018,46(10):1210-1217. doi: 10.3969/j.issn.0253-2409.2018.10.008
12. [12]
  XI H J, HOU X N, LIU Y J, QING S J, GAO Z X. Cu-Al spinel oxide as an efficient catalyst for methanol steam reforming[J]. Angew Chem Int Ed Eng, 2014,53(44):11886-11889. doi: 10.1002/anie.201405213
13. [13]
  LI G J, GU C T, ZHU W B, WANG X F, YUAN X F, CUI Z J, WANG H L, GAO Z X. Hydrogen production from methanol decomposition using Cu-Al spinel catalysts[J]. J Clean Prod, 2018,183:415-423. doi: 10.1016/j.jclepro.2018.02.088
14. [14]
  YAHIRO H, NAKAYA K, YAMAMOTO T, SAIKI K, YAMAURA H. Effect of calcination temperature on the catalytic activity of copper supported on γ-alumina for the water-gas-shift reaction[J]. Catal Commun, 2006,7(4):228-231. doi: 10.1016/j.catcom.2005.11.004
15. [15]
  FAUNGNAWAKIJ K, KIKUCHI R, SHIMODA N, FUKUNAGA T, EGUCHI K. Effect of thermal treatment on activity and durability of CuFe₂O₄-Al₂O₃ composite catalysts for steam reforming of dimethyl ether[J]. Angew Chem Int Ed Eng, 2008,47(48):9314-9317. doi: 10.1002/anie.200802809
16. [16]
  SHIMIZU K, MAESHIMA H, YOSHIDA H, SATSUMA A, HATTORI T. Spectroscopic characterisation of Cu-Al₂O₃ catalysts for selective catalytic reduction of NO with propene[J]. Phys Chem Chem Phys, 2000,2(10):2435-2439. doi: 10.1039/b000943l
17. [17]
  MATSUKATA M, UEMIYA S, KIKUCHI E. Copper-alumina spinel catalysts for steam reforming of methanol[J]. Chem Lett, 1988,17(5):761-764. doi: 10.1246/cl.1988.761
18. [18]
  KIM T W, SONG M W, KOH H L, KIM K L. Surface properties and reactivity of Cu/γ-Al₂O₃ catalysts for NO reduction by C₃H₆:Influences of calcination temperatures and additives[J]. Appl Catal A:Gen, 2001,210(1/2):35-44.
19. [19]
  LI Guang-jun, XI Hong-juan, ZHANG Su-hong, GU Chuan-tao, QING Shao-jun, HOU Xiao-ning, GAO Zhi-xian. Catalytic characteristics of spinel CuM₂O₄(M=A1、Fe、Cr) for the stream reforming of methanol[J]. J Fuel Chem Technol, 2012,40(12):1466-1471. doi: 10.3969/j.issn.0253-2409.2012.12.009
20. [20]
  LIU Y J, QING S J, HOU X N, QIN F J, WANG X, GAO Z X, XIANG H W. Temperature dependence of Cu-Al spinel formation and its catalytic performance in methanol steam reforming[J]. Catal Sci Technol, 2017,7(21):5069-5078. doi: 10.1039/C7CY01236E
21. [21]
  LIU Y J, QINGS J, HOU X N, FENG G, ZHANG R B, WANG X, WANG S M, GAO Z X, XIANG H W. Synthesis and structural characterization of CuAl₂O₄ spinel with an unusual cation distribution[J]. J Mater Appl, 2018,7(2):82-89.
22. [22]
  VLAEV T, MARKOVSKA I G, LYUBCHEV L A. Non-isothermal kinetics of pyrolysis of rice husk[J]. Thermochim Acta, 2003,406(1/2):1-7.
23. [23]
  ÓRFĀO J J M, MARTINS F G. Kinetic analysis of thermogravimetric data obtained under linear temperature programming-a method based on calculations of the temperature integral by interpolation[J]. Thermochim Acta, 2002,390(1/2):195-211.
24. [24]
  STROHMEIER B R, LEYDEN D E, FIELD R S, HERCULES D M. Surface spectroscopic characterization of Cu/Al₂O₃ catalysts[J]. J Catal, 1985,94(2):514-530. doi: 10.1016/0021-9517(85)90216-7
25. [25]
  FURUHASHI H, INAGAKI M, NAKA S. Determination of cation distribution in spinels by X-ray diffraction method[J]. J Inorg Nucl Chem, 1973,35(8):3009-3014. doi: 10.1016/0022-1902(73)80531-7
26. [26]
  SEO J G, YOUN M H, CHUNG J S, SONG I K. Effect of calcination temperature of mesoporous nickel-alumina catalysts on their catalytic performance in hydrogen production by steam reforming of liquefied natural gas(LNG)[J]. J Ind Eng Chem, 2010,16(5):795-799. doi: 10.1016/j.jiec.2010.05.010
27. [27]
  ZHANG Yu-hong, XIONG Guo-xing, SHENG Shi-shan, LIU Sheng-lin, YANG Wei-shen. Interaction of NiO with γ-Al₂O₃ supporter of NiO/γ-Al₂O₃ catalysts[J]. Acta Phys-Chim Sin, 1999,15(8):735-741. doi: 10.3866/PKU.WHXB19990813
28. [28]
  GHARAGOZLOU M. Synthesis, characterization and influence of calcination temperature on magnetic properties of nanocrystalline spinel Co-ferrite prepared by polymeric precursor method[J]. J Alloys Compd, 2009,486(1/2):660-665.
29. [29]
  CABO M, PELLICER E, ROSSINYOL E, CASTELL O, SURIÑACH S, BARÓ M D. Mesoporous NiCo₂O₄ spinel:influence of calcination temperature over phase purity and thermal stability[J]. Cryst Growth Des, 2009,9(11):4814-4821. doi: 10.1021/cg900648q
30. [30]
  XIONG L L, XU Y L, ZHANG C, TAO T. Doping-coating surface modification of spinel LiMn₂O₄ cathode material with Al³⁺ for lithium-ion batteries[J]. Acta Phys Chim Sin, 2012,28(5):1177-1182. doi: 10.3866/PKU.WHXB201203092
31. [31]
  QING S J, HOU X N, LIU Y J, LI L D, WANG X, GAO Z X, FAN W B. Strategic use of CuAlO₂ as a sustained release catalyst for production of hydrogen from methanol steam reforming[J]. Chem Commun, 2018,54(86):12242-12245. doi: 10.1039/C8CC06600K
32. [32]
  JAMES T, PADMANABHAN M, WARRIER K G K, SUGUNAN S. CuAl₂O₄ formation and its effect on α-Al₂O₃ phase evolution on calcination of metal ion doped boehmite xerogels[J]. Mater Chem Phys, 2007,103(2/3):248-254.
33. [33]
  KHAWAM A, FLANAGAN D R. Solid-state kinetic models:Basics and mathematical fundamentals[J]. J Phys Chem B, 2006,110(35):17315-17328. doi: 10.1021/jp062746a
34. [34]
  CANIGLIA S, BARNA G L. Handbook of Industrial Refractories Technology: Pprinciples, Types, Properties and Applications[M]. William Andrew, 1992.
