Citation: Sun Na, Wang Haiyan, Wu Hailin, Yang Zhanxu, Wang Yujia. Hydroisomerization Properties of SAPO-11 Molecular Sieve Prepared by Targeting Agent Method[J]. Chemistry, ;2019, 82(4): 329-333. shu

Hydroisomerization Properties of SAPO-11 Molecular Sieve Prepared by Targeting Agent Method

Sun Na ^1,2 ,
Wang Haiyan ^1,2,, ,
Wu Hailin ² ,
Yang Zhanxu ² ,
Wang Yujia ²

1.
College of Chemical Engineering, China University of Petroleum, Qingdao 266580
2.
Chemical Engineering and Environmental Science, Liaoning Shihua University, Fushun 113001

Corresponding author: Wang Haiyan, fswhy@126.com
Received Date: 25 October 2018
Accepted Date: 22 December 2018

Figures(5)

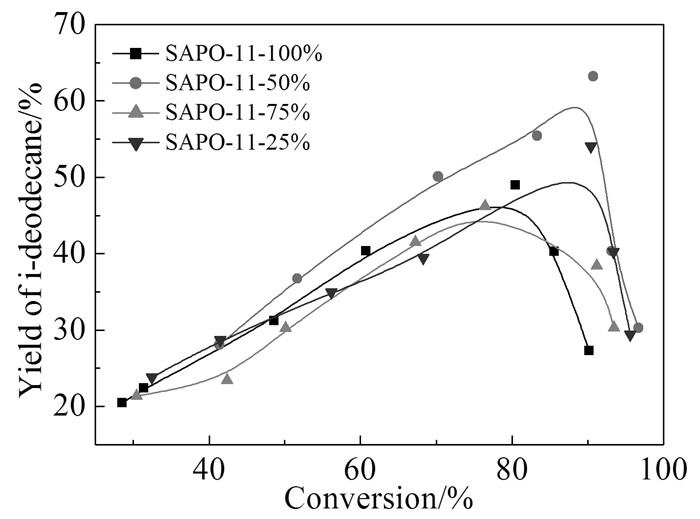

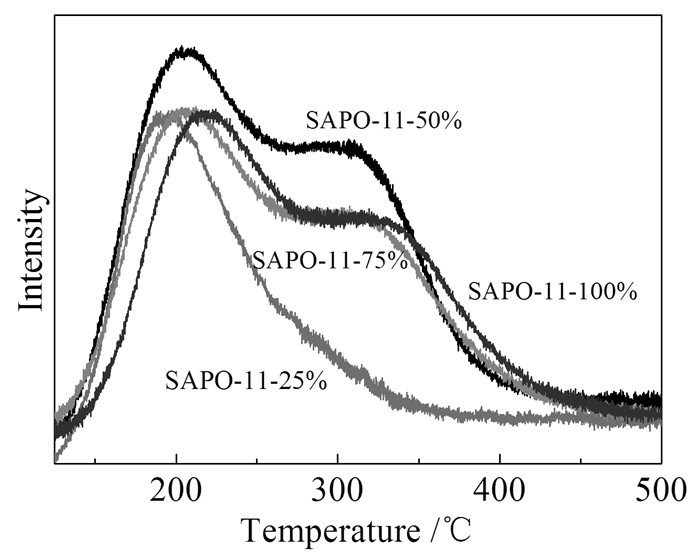

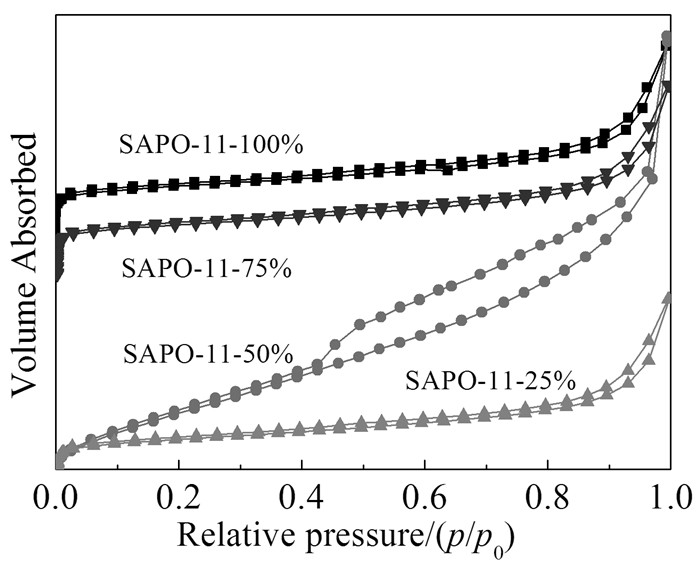

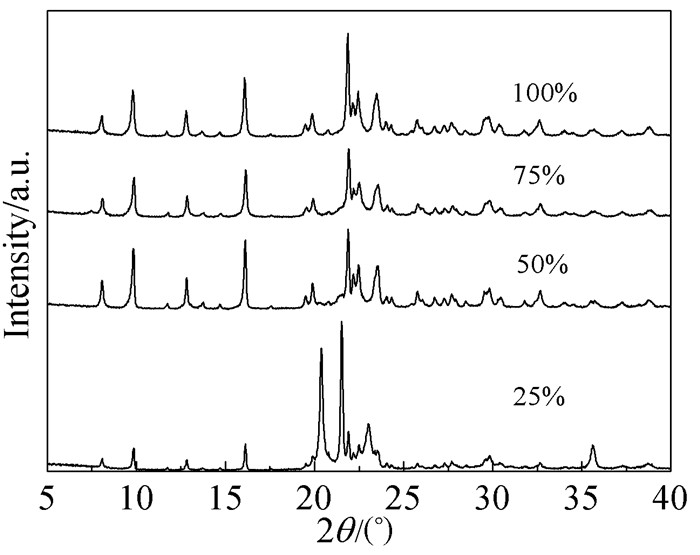

The small-grain mesoporous SAPO-11 molecular sieve was successfully prepared by the directing agent method under the condition that the amount of the template was halved. The crystal structure, elemental composition, surface area, pore volume, and acidity of the catalyst were thoroughly characterized. The catalytic hydroisomerization performance of SAPO-11 catalysts with 0.5(wt)% Pt loading was evaluated with n-dodecane as a material. The results showed that the size of SAPO-11 molecular sieve with reduced templating agent content is about 3μm, the mesoporous specific surface area is 113.3m²/g, the mesoporous pore volume is 0.328m³/g, and the isomer yield is 65.31%.
- Guiding agent method,
- Small grain,
- Mesoporous,
- SAPO-11 molecular sieve
1. [1]
2. [2]
  B M Lok, C A Messina, R L Patton. J. Am. Chem. Soc., 1984, 106(20): 6092~6093.
3. [3]
4. [4]
5. [5]
6. [6]
7. [7]
8. [8]
9. [9]
10. [10]
11. [11]
  Y Fan, H Xiao, G Shi et al. J. Catal., 2012, 285(1): 251~259.
12. [12]
  X Yang, T Lu, C Chen et al. Micropor. Mesopor. Mater., 2011, 144(1/3): 176~182.
13. [13]
14. [14]
  L Bing, T Peng, Q Yue et al. Chin. J. Catal., 2013, 34(3): 593~603.
15. [15]
16. [16]
  F Zhang, Y Liu, Q Sun et al. Chem. Commun., 2017, 53(36): 4942~4945.
17. [17]
18. [18]
  Y Kamimura, S Tanahashi, K Itabashi et al. J. Phys. Chem. C, 2011, 115(3): 744~750.
19. [19]
  C S Cundy, P A Cox. Micropor. Mesopor. Mater., 2003, 103(3): 663~702.
20. [20]
21. [21]
22. [22]
23. [23]
