Citation: WANG Li-hong, LI Rui, LIU Ying, HU Rui-sheng. Reaction mechanism of isoparaffin alkylation in the presence of ionic liquid[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(6): 738-744. shu

Reaction mechanism of isoparaffin alkylation in the presence of ionic liquid

School of Chemistry and Chemical Engineering, Inner Mongolia University, Hohhot 010021, China

Corresponding author: LIU Ying, celiuy@imu.edu.cn
Received Date: 30 December 2015
Revised Date: 9 April 2016

Figures(6)

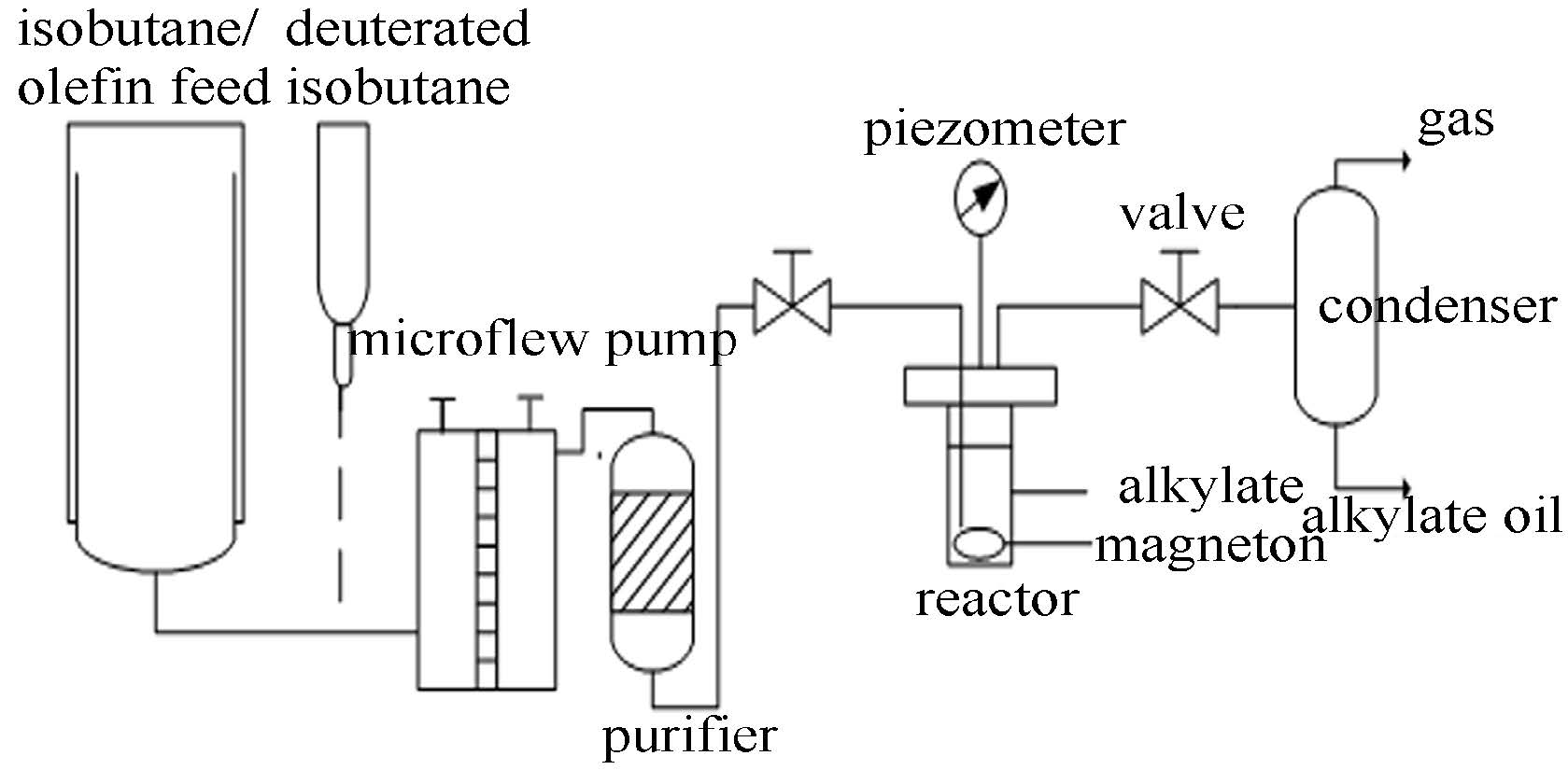

The alkylation of isobutane with butene catalyzed by [Et₃NH]Cl-AlCl₃-CuCl ionic liquid was carried out in a continuous stirred autoclave reactor; deuterated isobutane was used as an isotope tracer to investigate the reaction mechanism of alkylation. The results indicate that the induction period of alkylation catalyzed by Cl-AlCl₃-CuCl is less than 30min. Tri-methyl-pentanes are primarily produced from the self-alkylation of isobutane, the alkylation of isobutane with 2-butene and the cracking of C₁₂⁺ intermediates, whereas the undesired di-methyl-hexane is mainly formed from the addition reaction between sec-C₄⁺ and 2-butene.
- ionic liquids,
- isobutane,
- alkylation,
- reaction mechanism
1. [1]
  CORMA A, MARTINEZ A. Chemistry, catalysts and processes for isoparaffin-olefin alkylation[J]. Catal Rev-Sci Eng, 1993,35(4):483-570. doi: 10.1080/01614949308013916
2. [2]
  CHAUVIN Y, HIRSCHAUER A, OLIVIER H. Alkylation of isobutane with 2-butene using 1-butyl-3-methylimidazolium chloride-aluminium chloride molten salts as catalysts[J]. J Mol Catal, 1994,92(1):155-165.
3. [3]
  LIU S W, CHEN C G, YU F L, LI L, LIU Z G, YU S T, XIE C X, LIU F S. Alkylation of isobutane/isobutene using Bronsted-Lewis acidic ionic liquids as catalysts[J]. Fuel, 2015,159(6):803-809.
4. [4]
  CONG Y, LIU Y, HU R S. Isobutane/2-butene alkylation catalyzed by strong acids in the presence of ionic liquid additives[J]. Pet Sci Technol, 2014,32(6):1981-1987.
5. [5]
  CUI P, ZHAO G Y, REN H L, HUANG J, ZHANG S J. Ionic liquid enhanced alkylation of iso-butane and 1-butene[J]. Catal Today, 2013,200(1):30-35.
6. [6]
  OLIVIER-BOURBIGOU H, MAGNA L, MORVAN D. Ionic liquids and catalysis:Recent progress from knowledge to applications[J]. Appl Catal A:Gen, 2010,373:1-56. doi: 10.1016/j.apcata.2009.10.008
7. [7]
  HOFMANN J E, SCHRIESCHEIM A. Ionic reactions occurring during sulfuric acid catalyzed alkylation. I. Alkylation of Isobutane with Butenes[J]. J Am Chem Soc, 1962,84(6):953-957. doi: 10.1021/ja00865a015
8. [8]
  ALBRIGHT L F, LI K W. Alkylation of isobutane with light olefins using sulfuric acid. Reaction mechanism and comparison with HF alkylation[J]. Ind Eng Chem Proc Des Dev, 1970,9(3):447-454. doi: 10.1021/i260035a013
9. [9]
  OLAH G A, MATHEW T, GOEPPERT A, TOROK B, BUCSI I, LI X Y, WANG Q, MARINEZ E R, BATAMACK P, ANISZFELD R, PRAKASH G K. Ionic liquid and solid HF equivalent amine-poly (hydrogen fluoride) complexes effecting efficient environmentally friendly isobutane-isobutylene alkylation[J]. J Am Chem Soc, 2005,127(16):5964-5969. doi: 10.1021/ja0424878
10. [10]
  LIU Z C, MENG X H, ZHANG R, XU C M, DONG H, HU Y F. Reaction performance of isobutane alkylation catalyzed by a composite ionic liquid at a short contact time[J]. AIChE J, 2014,160(6):2244-2253.
11. [11]
  LIU Y, HU R S, XU C M, SU H Q. Alkylation of isobutene with 2-butene using composite ionic liquid catalysts[J]. Appl Catal A:Gen, 2008,346(1/2):189-193.
12. [12]
  LIU Ying, SUN Hong-juan, CONG Ying-nan, HU Rui-sheng. Study on the selectivity of isobutane/2-butene alkylation catalyzed by ionic liquid with Cu compound[J]. J Fuel Chem Technol, 2014,42(8):1010-1016.
13. [13]
  YOO K, NABOODIRI V V, VARMA R S. Ionic liquid-catalyzed alkylaton of isobutane with 2-butene[J]. J Catal, 2004,222(2):511-519. doi: 10.1016/j.jcat.2003.11.018
14. [14]
  LI K W, ECKERT R E, ALBRIGHT L F. Alkylation of isobutane with light olefins using sulfuric acid. Operating variables affecting both chemical and physical phenomena[J]. Ind Eng Chem Proc Des Dev, 1970,9(3):441-446. doi: 10.1021/i260035a012
15. [15]
  LI K W, ECKERT R E, ALBRIGHT L F. Alkylation of isobutane with light olefins using sulfuric acid. Operating variables affecting physical phenomena only[J]. Ind Eng Chem Proc Des Dev, 1970,9(3):434-440. doi: 10.1021/i260035a011
16. [16]
  STEWART T D, CALKINS W H. Evidence of an induction period in the alkylation of isobutane by 2-butene[J]. J Am Chem Soc, 1948,70(7):1006-1009.
17. [17]
  SCHILDER L, MAASS S, JESS A. Effective and intrinsic kinetics of liquid-phase isobutane/2-butene alkylation catalyzed by chloroaluminate ionic liquids[J]. Ind Eng Chem Res, 2013,52(5):1877-1885. doi: 10.1021/ie3028087
18. [18]
  SCHMERLING L. The mechanism of the alkylation of paraffins. Ⅱ. Alkylation of isobutane with propene, 1-butene and 2-butene[J]. J Am Chem Soc, 1946,68(2):275-281. doi: 10.1021/ja01206a038
19. [19]
  ALBRIGHT L F, KRANZ K. Alkylation of isobutane with pentenes using sulfuric acid as a catalyst:Chemistry and reaction mechanism[J]. Ind Eng Chem Res, 1992,31(2):475-481. doi: 10.1021/ie00002a004
20. [20]
  XING X Q, ZHAO G Y, CUI J Z, ZHANG S J. Isobutane alkylation using acidic ionic liquid catalysts[J]. Catal Commun, 2012,26:68-71. doi: 10.1016/j.catcom.2012.04.022
21. [21]
  BUI T L T, KORTH W, JESS A. Influence of acidity of modified chloroaluminate based ionic liquid catalysts on alkylation of iso-butene with butene-2[J]. Catal Commun, 2012,25(1):118-124.
22. [22]
  HE Yi-gong, SHU Xing-tian, LONG Jun. Carbenium ions and relative reaction mechanism[J]. Acta Pet Sin (Pet Process Sec), 2007,23(4):1-7.
23. [23]
  HOFMANN J E, SCHRIESCHEIM A. Ionic reactions occurring during sulfuric acid catalyzed alkylation. Ⅱ. Alkylation of isobutane with C¹⁴-labeled butenes[J]. J Am Chem Soc, 1962,84(6):957-961. doi: 10.1021/ja00865a016
