Citation: LI Qiang-lin, CHEN Zhuo, ZHOU Qun, DAI Li, LI Liang, WU Shi-yong. Shengli lignite liquefaction under syngas and complex solvent[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(3): 257-262. shu

Shengli lignite liquefaction under syngas and complex solvent

LI Qiang-lin ¹ ,
CHEN Zhuo ¹ ,
ZHOU Qun ¹ ,
DAI Li ¹ ,
LI Liang ¹ ,
WU Shi-yong ^1,2,*,,

1.
College of Resource & Environmental Engineering, Shanghai 200237, China
2.
Key Laboratory of Coal Gasification and Energy Chemical Engineering of Ministry of Education, East China University of Science and Technology, Shanghai 200237, China

Corresponding author: WU Shi-yong, wsy@ecust.edu.cn
Received Date: 8 July 2015
Revised Date: 21 December 2015

Fund Project: National Natural Science Foundation of China 21476079and the Fundamental Research Funds for the Central Universities WB1414014National Natural Science Foundation of China 21476080

Figures(5)

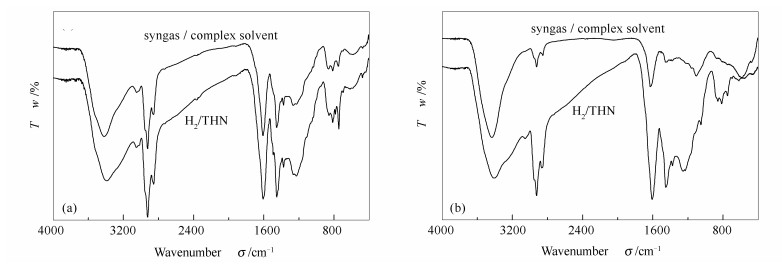

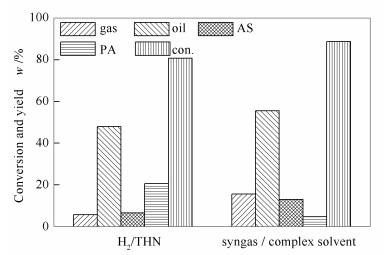

The liquefaction of Shengli lignite (SL) were studied in the system of syngas (H₂+CO) and complex solvent (H₂O+THN) and the system of hydrogen (H₂) and tetralin (THN). Asphaltene (AS) and preasphaltene (PA) from the two systems were characterized by FT-IR. The results show that both conversion and oil yield of Shengli lignite liquefaction in the (H₂+CO)/(H₂O+THN) system are significantly higher than those in the H₂/THN system. The conversion and oil yield under syngas (H₂:CO=1:1) and complex solvent (THN:H₂O=1:1) reach respectively 88.79% and 55.47% at 400℃, 4MPa and 30min. The differences in the conversion and oil yield between the (H₂+CO)/(H₂O+THN) and H₂/THN systems are 8.00% and 7.54%, respectively. This suggests that the water-gas shift reaction can produce active hydrogen in the (H₂+CO)/(H₂O+THN) system, which benefits the hydrogenation of SL and PA. Meanwhile, THN can stabilize the free radicals from SL pyrolysis and dissolve the products (AS and PA) from SL liquefaction. The synergistic effect of two factors results in the improvement of conversion and oil yield. This study shows that it is a new lignite liquefaction technology using the (H₂+CO)/(H₂O+THN) system.
- syngas,
- complex solvent,
- Shengli lignite,
- direct liquefaction
1. [1]
  YAO Long-kui, TANG Yun-qian. Chemical composition of resin from Shulan brown coal[J]. J Fuel Chem Technol, 2002,30(1):86-88.
2. [2]
  TAHIR M M, KHURSHID M, KHAN M Z, ABBASI M K, KAZMI M H. Lignite-derived humic acid effect on growth of wheat plants in different soils[J]. Pedosphere, 2011,21(1):124-131. doi: 10.1016/S1002-0160(10)60087-2
3. [3]
  TAY H, LI C. Changes in char reactivity and structure during the gasification of a Victorian brown coal: Comparison between gasification in O₂ and CO₂[J]. Fuel Process Technol, 2010,91(8):800-804. doi: 10.1016/j.fuproc.2009.10.016
4. [4]
  YAMAGUCHI D, SANDERSON P J, LIM S, AYE L. Supercritical water gasification of Victorian brown coal: Experimental characterisation[J]. Int J Hydrogen Energy, 2009,34(8):3342-3350. doi: 10.1016/j.ijhydene.2009.02.026
5. [5]
  LIANG Jie, FENG Yin-hui, ZHANG Yan-chun, GUO Han-bin. Technology for producing hydrogen through underground brown coal gasification[J]. J Chem Ind Eng, 2004,55:39-43.
6. [6]
  CHANG Li-ping, XIE Z L, XIE Ke-chang, LI Chun-zhu. Some factors influencing formation of HCN and NH₃ during pyrolysis of brown coal[J]. J Chem Ind Eng, 2003,54(6):863-867.
7. [7]
  FENG Lin-yong, LEI Ting, ZHANG Jia-min, ZHANG Yu-lin, LIU Zhi-bin, YANG Xian-wan. Study on lignite carbonization[J]. Yunnan Metal, 2007,36(6):29-32.
8. [8]
  DU Shu-feng, SHU Ge-ping. Brown coal direct liquefaction process of Japan[J]. Clean Coal Technol, 2001,7(3):34-37.
9. [9]
  XU Yao, ZHANG De-xiang, JIN Shan, ZHAO Aa-an, GAO Jin-sheng. Study in Shengli brown coal liquefaction in CO+H₂O system[J]. Chem Eng, 2010,38(3):95-98.
10. [10]
  SHUI Heng-fu, LIU Jian-long, WANG Zhi-cai, ZHANG De-xiang. Preliminary study on liquefaction properties of Xiaolingtan lignite under different atmospheres[J]. J Fuel Chem Technol, 2009,37(3):257-261. doi: 10.1016/S1872-5813(09)60019-0
11. [11]
  FENG Jie, LI Wen-ying, XIE Ke-chang. Research on coal structure using FT-IR[J]. J China Univ Min Technol, 2002,31(5):362-366.
12. [12]
  BAI Xiang-fei. Discussion on utilization and development of improving quality technology of lignite and low rank bituminous coal in china[J]. Coal Quality Technol, 2010(6):9-11.
13. [13]
  ZHAO Ye, WU Shi-yong, QIN Xiao-gang, LI Liang, WU You-qing, GAO Jin-sheng. Co-liquefaction properties of Shengli lignite and corn straw[J]. J East China Univ Sci Technol (Nat Sci Ed), 2014,40(4):414-420.
14. [14]
  HUANG Chuan-rong, WU Shi-yong, NIE Li, QIN Xiao-gang, WU You-qing, GAO Jin-sheng. Effects of iron-based catalysts on liquefaction of Shengli lignite[J]. J East China Univ Sci Technol (Nat Sci Ed), 2014,40(1):21-25.
15. [15]
  LU Yue-li, QIU Ji-liang. Study on coal liquefaction using syngas[J]. Coal Process Compr Util, 1996(2):34-36.
16. [16]
  NI Shuan-yue, GAO Jin-sheng, ZHU Zhi-pei. Investigation on the hydrogenation liquefaction of Chinese low-rank coals[J]. J Fuel Chem Technol, 1985,13(4):334-341.
