Citation: ZHANG Bo, ZHANG Hong, YANG Yun-fei, HU Guang-zhou, ZHANG Peng-qi, LUN Fei. Study on the influence of particle size on the ash melting behavior of Jincheng coal[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(12): 1430-1436. shu

Study on the influence of particle size on the ash melting behavior of Jincheng coal

1.
Qinhuangdao Entry-Exit Inspection and Inspection Bureau Coal Detection Technology Center, Qinhuangdao 066003, China
2.
School of Chemical Engineering and Technology, China University of Mining and Technology, Xuzhou 221116, China

Corresponding author: ZHANG Hong, hzhang@cumt.edu.cn
Received Date: 6 August 2018
Revised Date: 28 September 2018

Fund Project: The project was supported by the National Natural Science Foundation of China and Shanxi Low Carbon Coal Foundation(U1510106)the National Natural Science Foundation of China and Shanxi Low Carbon Coal Foundation U1510106

Figures(9)

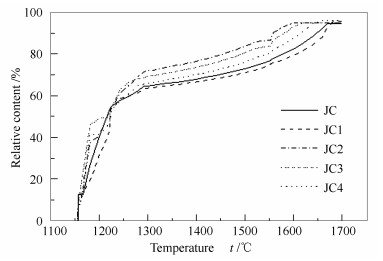

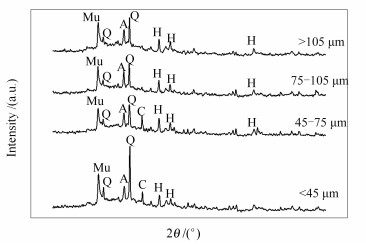

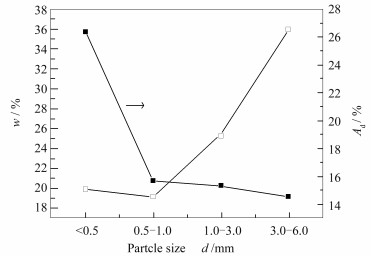

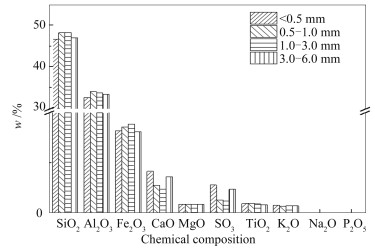

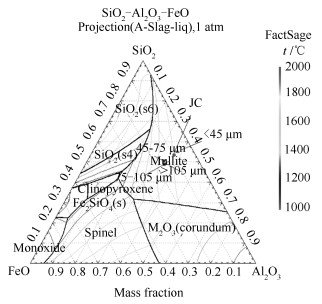

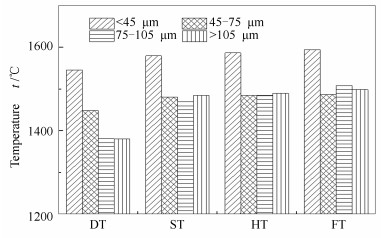

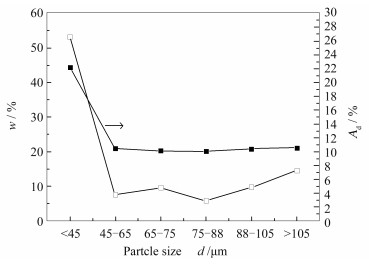

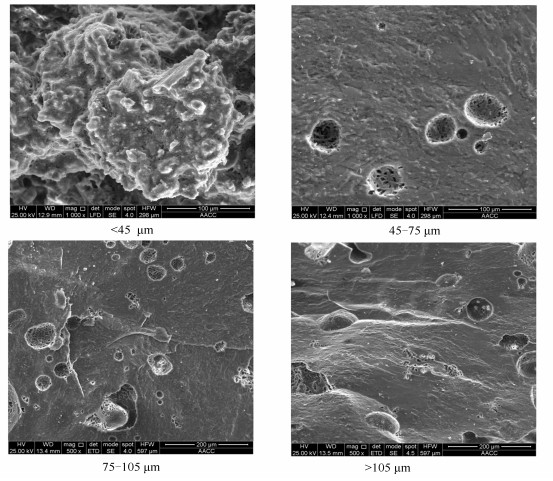

The slagging mechanism of the Jincheng coal in the ash-agglomerate fluidized bed gasification was explored. A typical Jincheng coal sampled from Shanxi, China was prepared into different particle size and the XRF, XRD, AFT, SEM and FactSage^TM were employed to study the influence of particle size on the ash content, chemical and mineral composition and ash fusibility. The results indicate that the ash chemical composition and AFTs vary little with size below 6 mm. For the pulverized samples below 0.2 mm, there are apparent differences in the chemical composition and mineral composition, especially in Fe₂O₃. Both AFT results and SEM observations show that the sample with particle size less than 45 μm has a significantly higher melting temperature than the other three samples. The slag contents calculated with FactSage^TM are consistent with the AFT results and SEM observations, which indicates that the change of ash melting behavior with particle size results from the change in chemical composition. The ternary phase diagram of SiO₂-Al₂O₃-Fe₂O₃ can be used successfully to explain the mechanism of the change of ash melting behavior with particle size for Jincheng coal.
- Jincheng coal,
- ash-agglomerate fluidized bed,
- ash fusion temperature,
- slagging
1. [1]
  CHEN Peng. Nature, Classification and Utilization of Coal in China[M]. Beijing:Chemical Industry Press, 2007.
2. [2]
  FANG Yi-tian, WANG Yang, MA Xiao-yun, HUANG Jie-jie, WU Jin-hu, CHENG Zhong-hu, CHEN Han-shi. New progress in research and development of pressurized large-scale coal gasification technology for ash fusion fluidized bed coal gasification technology[J]. Coal Chem, 2007,35(1):11-15. doi: 10.3969/j.issn.1005-9598.2007.01.003
3. [3]
  LI Feng-hai, HUANG Jie-jie, FANG Yi-tian, WANG Yang. Exploration on slagging mechanism of Jincheng anthracite during fluidized-bed gasification[J]. J Taiyuan Univ Technol, 2010,41(5):666-669.
4. [4]
  NARUSE I, KAMIHASHIRA D, KHAINIL , MIYAUCHI Y, KATO Y, YAMASHITA Y, TOMINAGA H. Fundamental ash deposition characteristics in pulverized coal reaction under high temperature conditions[J]. Fuel, 2005,84(4):405-410. doi: 10.1016/j.fuel.2004.09.007
5. [5]
  WU X, ZHANG Z, PIAO G, HEX , CHEN Y, KOBAYASHI N, MORI S, ITAYA Y. Behavior of mineral matters in chinese coal ash melting during char-CO₂/H₂O gasification reaction[J]. Energy Fuels, 2009,23(5):2420-2428. doi: 10.1021/ef801002n
6. [6]
  MATJIE RH, LI Z, WARD C R, FRENCH D. Chemical composition of glass and crystalline phases in coarse coal gasification ash[J]. Fuel, 2008,87(6):857-869. doi: 10.1016/j.fuel.2007.05.050
7. [7]
  WALL T F, CREELMAN R A, GUPTA R P, GUPTA S K, COIN C, LOWE A. Coal ash fusion temperatures-New characterization techniques, and implications for slagging and fouling[J]. Prog Energy Combust Sci, 1998,24(4):345-353. doi: 10.1016/S0360-1285(98)00010-0
8. [8]
  BARTELS M, LIN W, NIJENHUIS J. Agglomeration in fluidized beds at high temperatures:Mechanisms, detection and prevention[J]. Prog Energy Combust Sci, 2008,34(5):633-666. doi: 10.1016/j.pecs.2008.04.002
9. [9]
  ZHANG Hong, HU Guang-zhou, FANG Jia-xin, PU Wen-xiu, MO Yan-xue, HA Si, LI Ying. Study on the distribution of minerals in pulverized coals[J]. J Eng Therm, 2008,29(7):1231-1235. doi: 10.3321/j.issn:0253-231X.2008.07.041
10. [10]
  ZHANG H, MO Y, SUN M. Determination of the mineral distribution in pulverized coal using densitometry and laser particle sizing[J]. Energy Fuels, 2005,19(6):2261-2267. doi: 10.1021/ef050201u
11. [11]
  ZHANG Peng-qi, YANG Qi-qi, TU Ka-bin, WANG Yue-lun, WANG Zu-wei, LIU Lin-lin. Study on the uneven melting law of coal ash in Jincheng[J]. J Fuel Chem T echnol, 2018,46(1):8-14. doi: 10.3969/j.issn.0253-2409.2018.01.002
12. [12]
  BI Ke-jun. Discussion on improvement scheme of gas washing water treatment in ash fusion fluidized bed coal gasification unit[J]. Chem Fert Des, 2011,49(2):26-28. doi: 10.3969/j.issn.1004-8901.2011.02.005
13. [13]
  REINMÖLLER M, SCHREINER M, GUHL S, NEUROTH M, MEYER B. Formation and transformation of mineral phases in various fuels studied by different ashing methods[J]. Fuel, 2017,202:641-649. doi: 10.1016/j.fuel.2017.04.115
14. [14]
  CHAKRAVARTY S, MOHANTY A, BANERJEE A, TRIPATHY R, MANDAL G K, BASARIYA M R, SHARMA M. Composition, mineral matter characteristics and ash fusion behavior of some Indian coals[J]. Fuel, 2015,150:96-101. doi: 10.1016/j.fuel.2015.02.015
15. [15]
  REINMÖLLER M, KLINGER M, SCHREINER M. Relationship between ash fusion temperatures of ashes from hard coal, brown coal, and biomass and mineral phases under different atmospheres:A combined FactSage^TM computational and network theoretical approach[J]. Fuel, 2015,151:118-123. doi: 10.1016/j.fuel.2015.01.036
16. [16]
  LI F, LI Z, HUANG J, FANG Y. Understanding mineral behaviors during anthracite fluidized-bed gasification based on slag characteristics[J]. Appl Energy, 2014,131:279-287. doi: 10.1016/j.apenergy.2014.06.051
17. [17]
  ZHAO Bin, WANG Qing-gong, MO Qiang, QU Ting-ting, LU Jun-fu, YUE Guang-xi. Study on classification of coal particles in fluidized bed[J]. J China Univ Min Technol, 2014,43(4):678-683.
