Citation: WANG Qing, LI Chu-an, PAN Shuo, JIANG Jia-qi. A molecular simulation study on the adsorption of CH₄ and CO₂ on the mineral substances in oil shale[J]. Journal of Fuel Chemistry and Technology, ;2017, 45(11): 1310-1316. shu

A molecular simulation study on the adsorption of CH₄ and CO₂ on the mineral substances in oil shale

Engineering Research Centre of Ministry of Education for Comprehensive Utilization of Oil Shale, Northeast Dianli University, Jilin 132012, China

Corresponding author: WANG Qing, rlx888@126.com
Received Date: 7 June 2017
Revised Date: 2 August 2017

Fund Project: the National Natural Science Foundation of China 51276034the National Natural Science Foundation of China 51676032the Program for Changjiang Scholars and Innovative Research Team in University IRF17R19The project was supported by the National Natural Science Foundation of China (51676032, 51276034) and the Program for Changjiang Scholars and Innovative Research Team in University(IRF17R19)

Figures(4)

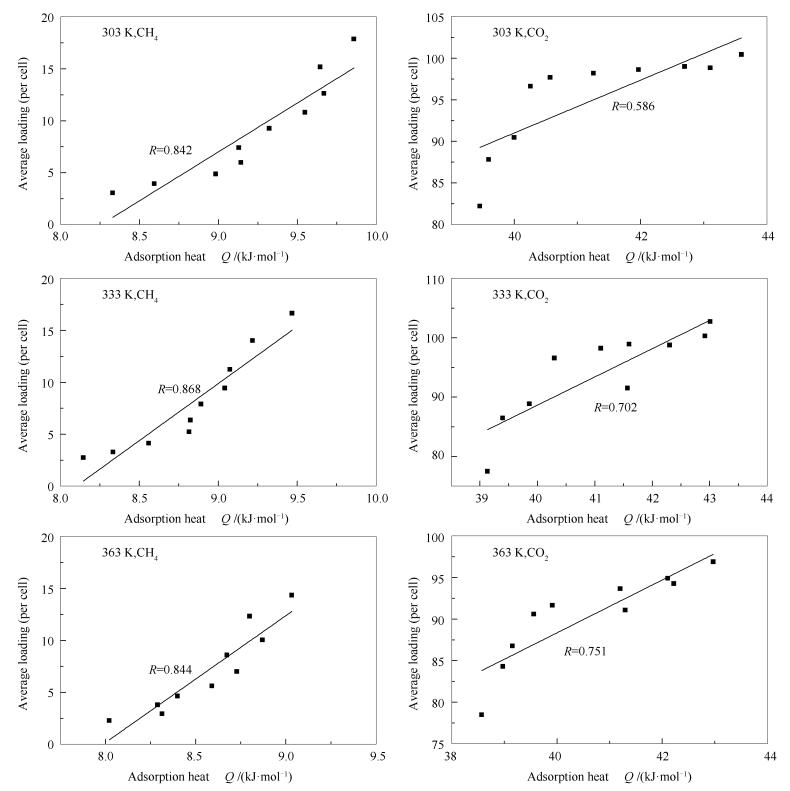

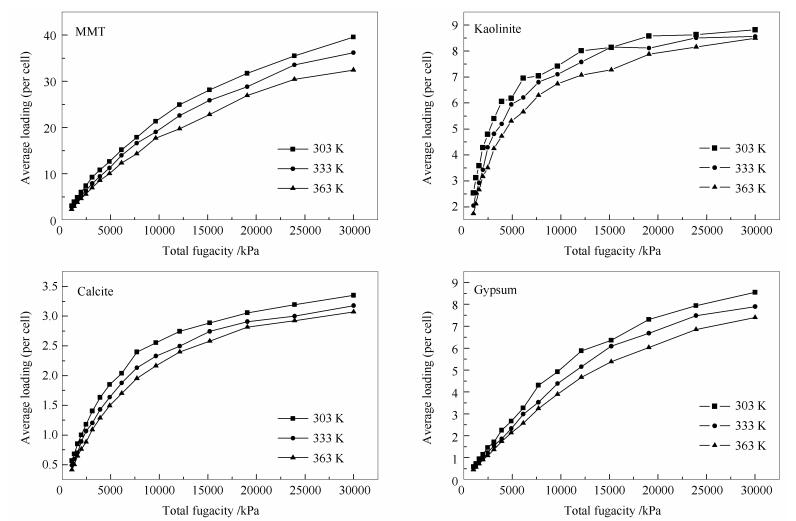

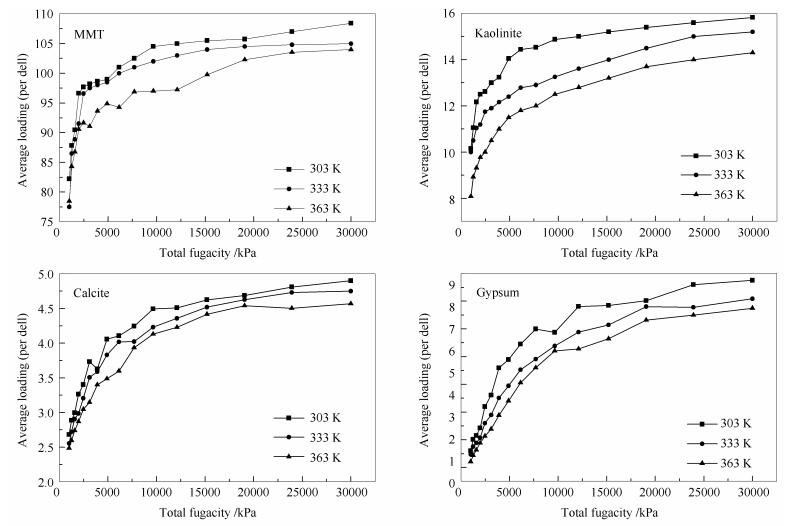

The models of montmorillonite, kaolinite, calcite and gypsum as the mineral substances in oil shale were built by using Materials Studio 2017 software; the adsorption of CH₄ and CO₂ on these mineral substances was then simulated by the GCMC and MD method. The results illustrated that the adsorption capacity of CH₄ and CO₂ on four mineral substances under the same temperature and pressure follows the order of montmorillonite > kaolinite > gypsum > calcite. The adsorption of single component CH₄ and CO₂ is in accordance with the Langmuir isotherm and the adsorption heats for both CH₄ and CO₂ on four mineral models all are less than 42 kJ/mol, suggesting that the adsorption belongs to physical category. With the increase of temperature, both the adsorption capacity and adsorption heat are reduced; there is a positive correlation between the adsorption heat and adsorption capacity for the CH₄ and CO₂ molecules.
- oil shale,
- mineral,
- molecular simulation,
- adsorption,
- CH₄,
- CO₂
1. [1]
  DENG S, WANG Z, GU Q. Extracting hydrocarbons from Huadian oil shale by sub-critical water[J]. Fuel Process Technol, 2011,92(5):1062-1067. doi: 10.1016/j.fuproc.2011.01.001
2. [2]
  YAO Zong-hui, ZHANG Ming-shan, ZENG Ling-bang. Analysis of the faults in the northern Ordos Basin[J]. Petrol Explor Dev, 2003,30(2):20-23.
3. [3]
  QIAN Jia-lin, WANG Jian-qiu, LI Shu-yuan. World oil shale[J]. Energy China, 2006,28(8):16-19.
4. [4]
  ZOU Yong-wen. Study on the basic characteristics of the Huadian oil shales and their semi-cokes[D]. Jilin:Northeast Electric Power University, 2010.
5. [5]
  JI Li-ming, QIU Jun-li, ZHANG Tong-wei. Experiments on methane adsorption of common clay minerals in shale[J]. Earth Sci:J China Univ Geosci, 2012,37(5):1043-1050.
6. [6]
  JI Li-ming, QIU Jun-li, XIA Yan-qing. Micro-pore characteristics and methane adsorption properties of common clay minerals by electron microscope scanning[J]. Acta Pet Sin, 2012,33(2):249-256. doi: 10.7623/syxb201202009
7. [7]
  SUN Ren-yuan, ZHANG Yun-fei, FAN Kun-kun. Molecular simulations of adsorption characteristics of clay minerals in shale[J]. J Chem Ind Eng, 2015,66(6):2118-2122.
8. [8]
  HOU Xin-juan, YANG Jian-li, LI Yong-wang. Quantum chemistry study on coal molecular structure[J]. J Fuel Chem Technol, 1999,27(s1):143-149.
9. [9]
  YANG X, ZHANG C. Structure and diffusion behavior of dense carbon dioxide fluid in clay-like slit pores by molecular dynamics simulation[J]. Chem Phys Lett, 2005,407(4):427-432.
10. [10]
  RU-Xin. Study on the experiment and molecular simulation of oil shale pyrolysis[D]. Jilin:Jilin University, 2013.
11. [11]
  WANG Mao-zhen, LIU Shao-bo, REN Yong-jun. Pore characteristics and methane adsorption of clay minerals in Shale gas reservoir[J]. Geol Rev, 2015,61(1):207-216.
12. [12]
  JIN Z, FIROOZABADI A. Methane and carbon dioxide adsorption in clay-like slit pores by Monte Carlo simulations[J]. Fluid Phase Equilib, 2013,360(1):456-465.
13. [13]
  SKIPPER N T. Monte Carlo simulation of interlayer molecular structure in swelling clay minerals. 1. methodology[J]. Clays Clay Miner, 1995,43(3):285-293. doi: 10.1346/CCMN
14. [14]
  LEVY J H, DAY S J, KILLINGLEY J S. Methane capacities of Bowen Basin coals related to coal properties[J]. Fuel, 1997,76(9):813-819. doi: 10.1016/S0016-2361(97)00078-1
15. [15]
  ASTASHOV A V, BELYI A A, BUNIN A V. Quasi-equilibrium swelling and structural parameters of coals[J]. Fuel, 2008,87(15/16):3455-3461.
16. [16]
  LIU Y, WILCOX J. Effects of surface heterogeneity on the adsorption of CO₂ in microporous carbons[J]. Environ Sci Technol, 2012,46(3)1940. doi: 10.1021/es204071g
17. [17]
  WANG Qin, SUN Bin, LIU Hong-peng. Analysis of mineral behavior during pyrolysis of oil shale[J]. J Fuel Chem Technol, 2013,41(2):163-168.
18. [18]
  JI L, ZHANG T, MILLIKEN K L. Experimental investigation of main controls to methane adsorption in clay-rich rocks[J]. Appl Geochem, 2012,27(12):2533-2545. doi: 10.1016/j.apgeochem.2012.08.027
19. [19]
  ROSS D J K, BUSTIN R M. The importance of shale composition and pore structure upon gas storage potential of shale gas reservoirs[J]. Mar Petrol Geol, 2009,26(6):916-927. doi: 10.1016/j.marpetgeo.2008.06.004
20. [20]
  BUSTIN R M, CLARKSON C R. Geological controls on coalbed methane reservoir capacity and gas content[J]. Int J Coal Geol, 1998,38(66):3-26.
21. [21]
  KROOSS B M, BERGEN F V, GENSTERBLUM Y. High-pressure methane and carbon dioxide adsorption on dry and moisture-equilibrated Pennsylvanian coals[J]. Int J Coal Geol, 2002,51(2):69-92. doi: 10.1016/S0166-5162(02)00078-2
22. [22]
  MASTALERZ M, GLUSKOTER H, RUPP J. Carbon dioxide and methane sorption in high volatile bituminous coals from Indiana, USA[J]. Int J Coal Geol, 2004,60(1):43-55. doi: 10.1016/j.coal.2004.04.001
23. [23]
  NODZEŃSKI A. Sorption and desorption of gases (CH₄, CO₂) on hard coal and active carbon at elevated pressures[J]. Fuel, 1998,77(11):1243-1246. doi: 10.1016/S0016-2361(98)00022-2
