Citation: OUYANG Qian, YANG Ni, YAO Jing-wen, HUANG Jin, ZHANG Yi, LIU Xue-jun. Research on the catalytic performance of supported Pt catalyst for hydrodeoxygenation of biodiesel[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(10): 1202-1209. shu

Research on the catalytic performance of supported Pt catalyst for hydrodeoxygenation of biodiesel

OUYANG Qian ¹ ,
YANG Ni ¹ ,
YAO Jing-wen ¹ ,
HUANG Jin ² ,
ZHANG Yi ¹ ,
LIU Xue-jun ^1,,

1.
Zhejiang Provincial Key Laboratory of Biofuel Utilization Technology, Biodiesel Laboratory of China Petroleum and Chemical Industry Federation, School of Chemical Engineering, Zhejiang University of Technology, Hangzhou 310014, China
2.
Zhejiang Pharmaceutical Co., Ltd. Changhai Biological Division, Shaoxing 312000, China

Corresponding author: LIU Xue-jun, zjutjjb@163.com
Received Date: 17 May 2018
Revised Date: 22 July 2018

Figures(6)

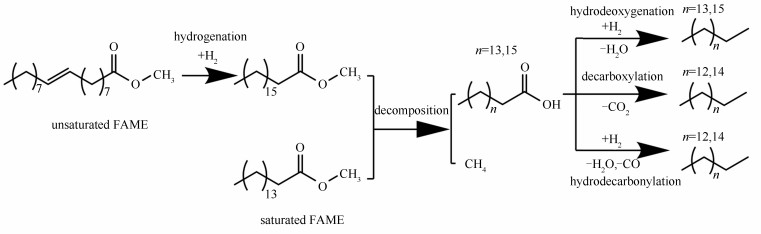

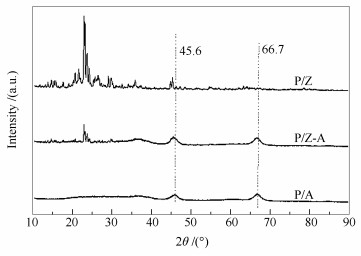

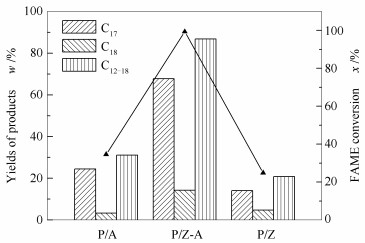

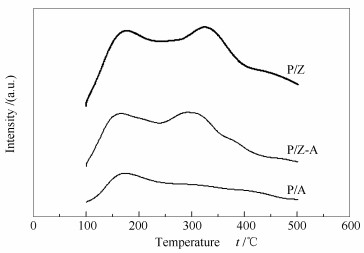

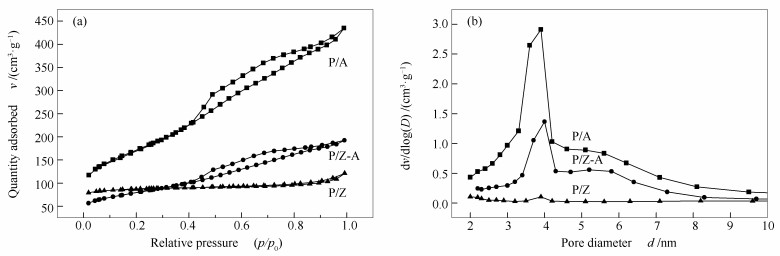

The Pt/Al₂O₃, Pt/Al₂O₃-ZSM-5 and Pt/ZSM-5 catalysts were prepared and characterized by XRD, BET, SEM and NH₃-TPD. The effects of crystal structure, acidity, pore size distribution and external shape of the three catalysts on the hydrodeoxygenation of fatty acid methyl esters were investigated under different reaction conditions. The results show that the Brønsted acidic sites and proportion of mesoporous volume were critical for the hydrodeoxygenation of fatty acid methyl esters. The Brønsted acidic site plays a major role in the C-O bond breakage of deoxygenation reaction, the mesopores improved the mass transfer efficiency of the entire reaction and avoided cracking of C_12-18 long chain alkanes. The hydrodeoxygenation activity of the three catalysts were as follow:Pt/Al₂O₃-ZSM-5>Pt/Al₂O₃>Pt/ZSM-5. The optimal reaction conditions were as follow:t=350 ℃, p=2 MPa, H₂/oil=1000, WHSV=0.5 h^-1. Under the optimal reaction conditions, the fatty acid methyl ester conversion of Pt/Al₂O₃-ZSM-5 was 99.4%, and the liquid yield of the target product was 86.8%.
- Pt/Al₂O₃-ZSM-5,
- hydrodeoxygenation,
- Brønsted acid,
- mesoporous volume,
- long chain alkanes
1. [1]
  ZHAO X H, WEI L, CHENG S Y, JULSON J. Review of heterogeneous catalysts for catalytically upgrading vegetable oils into hydrocarbon biofuels[J]. Catalysts, 2017,7(3):83-107.
2. [2]
  ZHANG S, YAN Y, LI T Z. Upgrading of liquid fuel from the pyrolysis of biomass[J]. Bioresource Technol, 2005,96(5):545-550. doi: 10.1016/j.biortech.2004.06.015
3. [3]
  HUBER G W, IBORRA S, CORMA A. Synthesis of transportation fuels from biomass:Chemistry, catalysts, and engineering[J]. Chem Rev, 2006,106(9):4044-4098. doi: 10.1021/cr068360d
4. [4]
  SHI Y C, XING E H, WU K J, WANG J L, YANG M D, WU Y L. Recent progress on upgrading of bio-oil to hydrocarbons over metal/zeolite bifunctional catalysts[J]. Catal Sci Technol, 2017,7(12):2385-2415. doi: 10.1039/C7CY00574A
5. [5]
  DICKERSON T, SORIA J. Catalytic fast pyrolysis:A Review[J]. Energies, 2013,6(1):514-538. doi: 10.3390/en6010514
6. [6]
  YANG Xiao-dong, WANG Xin-miao, GAO Shan-bin, WANG An-jie. Hydrodesulfurization performances of Pd catalysts supported on ZSM-5/MCM-41 composite zeolite[J]. Acta Chim Sin, 2017,75(5):479-484.
7. [7]
  ZUO Hua-liang, LIU Qi-ying, WANG Tie-jun, SHI Na, LIU Jian-guo, MA Long-long. Catalytic hydrodeoxygenation of vegetable oil over Ni catalysts to produce second-generation biodiesel[J]. J Fuel Chem Technol, 2012,40(9):1067-1073. doi: 10.3969/j.issn.0253-2409.2012.09.007
8. [8]
  ECHEANDIA S, PAWELEC B, BARRIO V L, ARIAS P L, CAMBRA J F, LORICERA C V, FIERRO J L G. Enhancement of phenol hydrodeoxygenation over Pd catalysts supported on mixed HY zeolite and Al₂O₃. An approach to O-removal from bio-oils[J]. Fuel, 2014,117(1):1061-1073.
9. [9]
  JI Y J, YANG H H, YAN W. Strategies to enhance the catalytic performance of ZSM-5 zeolite in hydrocarbon cracking:A Review[J]. Catalysts, 2017,7(12):367-397. doi: 10.3390/catal7120367
10. [10]
  CHENG S Y, WEI L, JULSON J, MUTHUKUMARAPPAN K, KHAREL P R. Upgrading pyrolysis bio-oil to hydrocarbon enriched biofuel over bifunctional Fe-Ni/HZSM-5 catalyst in supercritical methanol[J]. Fuel Process Technol, 2017,167(12):117-126.
11. [11]
  LIU J N, XIANG M, WU D F. Enhanced phenol hydrodeoxygenation over a Ni catalyst supported on a mixed mesoporous ZSM-5 zeolite and Al₂O₃[J]. Catal Lett, 2017,147(10):2498-2507. doi: 10.1007/s10562-017-2161-y
12. [12]
  KANG J C, CHENG K, ZHANG L, ZHANG Q H, DING J S, HUA W Q, LOU Y C, ZHAI Q G, WANG Y. Mesoporous zeolite-supported ruthenium nanoparticles as highly selective Fischer-Tropsch catalysts for the production of C_5-11 isoparaffins[J]. Angew Chem, 2011,123(22):5306-5309. doi: 10.1002/ange.v123.22
13. [13]
  CHEN N, GONG S F, SHIRAI H, WATANABE T, QIAN E W. Effects of Si/Al ratio and Pt loading on Pt/SAPO-11 catalysts in hydroconversion of Jatropha oil[J]. Appl Catal A:Gen, 2013,466(36):105-115.
14. [14]
  SANKARANARAYANAN T M, BERENGUER A, OCHOA-HERNáNDEZ C, MORENO I, JANA P, CORONADO J M, SERRANO D P, PIZARRO P. Hydrodeoxygenation of anisole as bio-oil model compound over supported Ni and Co catalysts:Effect of metal and support properties[J]. Catal Today, 2015,243(8):163-172.
15. [15]
  CHEN N, WANGN N N, REN Y X, TOMINAGA H, QIAN E W. Effect of surface modification with silica on the structure and activity of Pt/ZSM-22@SiO₂, catalysts in hydrodeoxygenation of methyl palmitate[J]. J Catal, 2017,345:124-134. doi: 10.1016/j.jcat.2016.09.005
16. [16]
  SRIFA A, FAUNGNAWAKIJ K, ITTHIBENCHAPONG V, VIRIYA-EMPIKUL N, CHARINPANITKUL T, ASSABUMRUNGRAT S. Production of bio-hydrogenated diesel by catalytic hydrotreating of palm oil over NiMoS₂/γ-Al₂O₃ catalyst[J]. Bioresouce Technol, 2014,158(X):81-90.
