Citation: XIONG Qing-an, LI Jia-zhou, LI Chun-yu, GUO Shuai, ZHAO Jian-tao, FANG Yi-tian. Migration and transformation behaviors of vanadium (V) with different occurrence modes during combustion of high sulfur petroleum coke[J]. Journal of Fuel Chemistry and Technology, ;2018, 46(2): 145-151. shu

Migration and transformation behaviors of vanadium (V) with different occurrence modes during combustion of high sulfur petroleum coke

1.
Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China

Corresponding author: ZHAO Jian-tao, zhaojt@sxicc.an.cn
Received Date: 22 September 2017
Revised Date: 2 January 2018

Fund Project: The project was supported by the National Natural Science Foundation of China (21576276, 21506241) and Strategic Priority Research Program of the Chinese Academy of Sciences (XDA07050100)the National Natural Science Foundation of China 21506241Strategic Priority Research Program of the Chinese Academy of Sciences XDA07050100the National Natural Science Foundation of China 21576276

Figures(8)

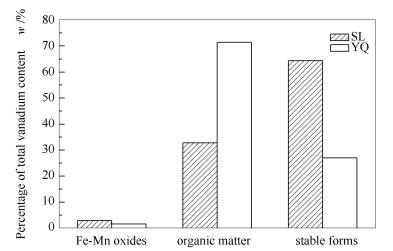

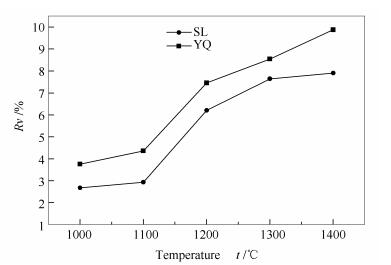

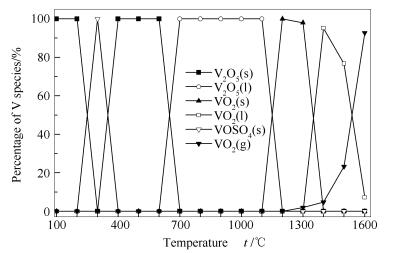

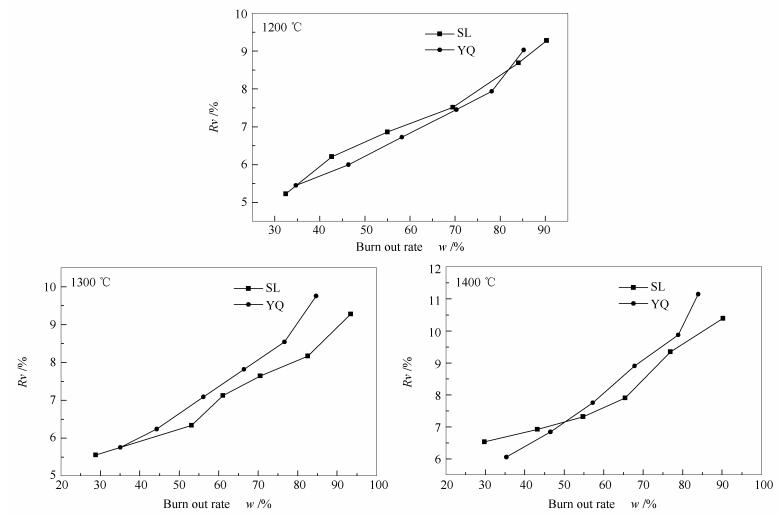

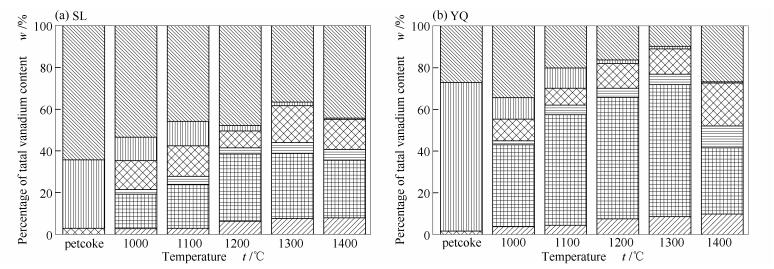

The occurrence modes and migration behavior of vanadium were investigated by sequential chemical extraction combined with ICP-OES during combustion of high-sulfur petroleum coke. The chemical reaction mechanism was discussed based on thermodynamic analysis. The vanadium in raw petroleum coke is mainly associated with organic matter and stable forms. With increasing temperature organic V disappear and the released vanadium could react with minerals such as Ca, K, Na, Fe to form different vanadium species including water soluble and ion exchange state, carbonates and Fe-Mn oxides. Steady-state vanadium is mainly combined with other minerals to form amorphous substance existing in petroleum coke. These amorphous substances might transform and release vanadium species at high combustion temperatures. The V volatility is correlated with temperature and burn out rate. The volatility may sharply rise because organic matter decomposed and released gaseous VO₂ above 1100℃.
- petroleum coke,
- combustion,
- vanadium,
- occurrence mode,
- migration behavior
1. [1]
  JIN Yan-chun. Supply and demand status and prediction of domestic petroleum coke market[J]. Econ Anal China Pet Chem Ind, 2016(3):57-60.
2. [2]
  BRYERS R W. Utilization of petroleum coke and petroleum coke/coal blends as a means of steam raising[J]. Fuel Process Technol, 1995,44(1/3):121-141.
3. [3]
  CHEN J, LU X. Progress of petroleum coke combusting in circulating fluidized bed boilers-A review and future perspectives[J]. Resour Conserv Recycl, 2007,49(3):203-216.
4. [4]
  ZYCHLINSKI L, BYCZKOWSKI J Z, KULKARNI A P. Toxic effects of long-term intratracheal administration of vanadium pentoxide in rats[J]. Arch Environ Contam Toxicol, 1991,20(3):295-298. doi: 10.1007/BF01064393
5. [5]
  KELEMEN S R, SISKIN M, GORBATY M L, FERRUGHELLI D T, KWIATEK P J, BROWN L D, EPPIG C P, KENNEDY R J. Delayed coker coke morphology fundamentals:Mechanistic implications based on XPS analysis of the composition of vanadium-and nickel-containing additives during coke formation[J]. Energy Fuels, 2007,21(2):927-940. doi: 10.1021/ef060493e
6. [6]
  AMORIM F A C, WELZ B, COSTA A C, LEPRI F G, VALE M G, FERREIRA S L. Determination of vanadium in petroleum and petroleum products using atomic spectrometric techniques[J]. Talanta, 2007,72(2):349-359. doi: 10.1016/j.talanta.2006.12.015
7. [7]
  ZULIANI J E, MIYATA T, MIZOGUCHI T, FENG J, KIRK D W, JIA C Q. Characterization of vanadium in oil sands fluid petroleum coke using electron microscopy[J]. Fuel, 2016,178:124-128. doi: 10.1016/j.fuel.2016.03.015
8. [8]
  CONN R. Environmental evaluation of CFB ash from petroleum coke[C]//Abstracts of Papers of the American Chemical Society. 115516TH ST, NW, WASHINGTON, DC 20036 USA: AMER CHEMICAL SOC, 1998, 216: U768-U768.
9. [9]
  JIA L, ANTHONY E J, CHARLAND J P. Investigation of vanadium compounds in ashes from a CFBC firing petroleum coke[J]. Energy Fuels, 2002,16(2):397-403. doi: 10.1021/ef010238o
10. [10]
  LI Y, ZHANG J, ZHAO Y, ZHENG C. Volatility and speciation of mercury during pyrolysis and gasification of five Chinese coals[J]. Energy Fuels, 2011,25(9):3988-3996. doi: 10.1021/ef2006904
11. [11]
  TESSIER A, CAMPBELL P G C, BISSON M. Sequential extraction procedure for the speciation of particulate trace metals[J]. Anal Chem, 1979,51(7):844-851. doi: 10.1021/ac50043a017
12. [12]
  LI J Z, ZHAO J T, FANG H B, LIU T, FANG Y T. Transformation behavior of vanadium in petroleum coke during high temperature CO₂-gasification[J]. Fuel, 2017,194:83-90. doi: 10.1016/j.fuel.2017.01.002
13. [13]
  SOROKINA T P, BULUCHEVSKAYA L A, POTAPENKO O V, DORONIN V P. Conversion of nickel and vanadium porphyrins under catalytic cracking conditions[J]. Petrol Chem, 2010,50(1):51-55. doi: 10.1134/S096554411001007X
14. [14]
  LI J Z, ZHAO J T, ZHANG L X, DAI X, FANG Y T. Predicting the vanadium speciation during petroleum coke combustion by thermodynamic equilibrium calculation[J]. J Therm Anal Calorim, :1-9.
15. [15]
  LEE J D. Concise Inorganic Chemistry[M]. Oxford:Blackwell Science Ltd. 1998, 979.
16. [16]
  BUNT J R, WAANDERS F B. Trace element behaviour in the Sasol-Lurgi fixed-bed dry-bottom gasifier. Part 2-The semi-volatile elements:Cu, Mo, Ni and Zn[J]. Fuel, 2009,88(6):961-969. doi: 10.1016/j.fuel.2008.10.041
