Citation: REN Jun-bin, LI Jun-guo, ZHANG Yong-qi, WANG Zhi-qing, LI Feng-hai, FANG Yi-tian. Influence factors for fusion characteristics of mixed ash between biomass and bituminous coal[J]. Journal of Fuel Chemistry and Technology, ;2017, 45(11): 1317-1322. shu

Influence factors for fusion characteristics of mixed ash between biomass and bituminous coal

1.
State Key Laboratory of Coal Conversion, Institute of Coal Chemistry, Chinese Academy of Sciences, Taiyuan 030001, China
2.
University of Chinese Academy of Sciences, Beijing 100049, China
3.
Department of Chemistry and Chemical Engineering, Heze University, Heze 274000, China

Corresponding author: ZHANG Yong-qi, zhangyq@sxicc.ac.cn
Received Date: 15 June 2017
Revised Date: 14 August 2017

Fund Project: the National Natural Science Foundation of China 21676289The project was supported by the National Natural Science Foundation of China (21506242, 21676289)the National Natural Science Foundation of China 21506242

Figures(5)

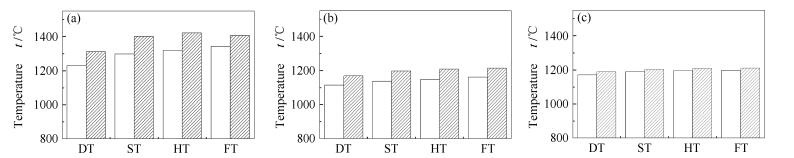

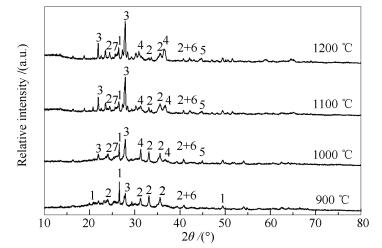

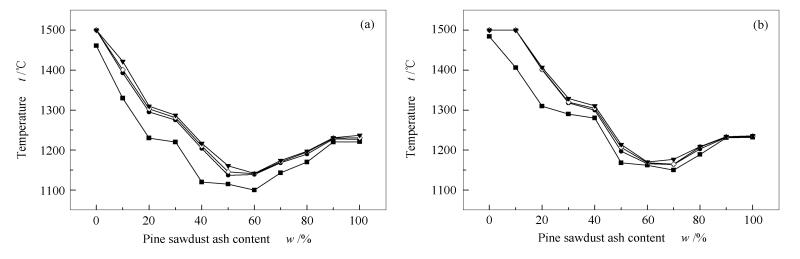

Effects of atmosphere, mixing ratio and residue carbon on ash fusion characteristics of biomass and bituminous coal were investigated. The pine sawdust ash was mixed with Wuhai bituminous coal ash at different mass ratios. The ash fusion temperatures (AFTS) of the mixed ash in different atmospheres were determined by ash-melting point measuring device. X-ray diffraction ray was used to investigate the reason for AFTs variation from the perspective of minerals evolution. The result shows that AFTs of mixed ash in weak reducing atmosphere is lower than that in oxidizing one due to formation of fayalite and hercynite. In addition, the difference in AFTs under reducing and oxidizing atmosphere is related to the content of Fe in the mixed ash. The increment of pine sawdust ash favors generation of gehlenite, akermanite and leucite ect., which can be classified as low temperature eutectics and help to reduce the AFTs of mixed ash. Moreover, the AFTs of the mixed ash increase initially and decrease afterwards and then increase again with the increment of residue carbon content in coal ash, due to formation of Fe-C eutectic (Fe_xC_y), local reducing atmosphere and skeleton action of residue carbon.
- biomass,
- mixed ash,
- ash fusibility characteristics,
- residue carbon,
- mineral evolution
1. [1]
  WU C Z, YIN X L, YUAN Z H, ZHOU Z Q, ZHUANG X S. The development of bioenergy technology in[J]. Energy, 2010,35(11):4445-4450. doi: 10.1016/j.energy.2009.04.006
2. [2]
  LIN Le-teng, ZHOU Shi-xue, WANG Wen-chao. Study on hydrogenating extraction of biomass[J]. J Shandong Univ Sci Technol (Nat Sci), 2005,24(3):109-112.
3. [3]
  ZHOU Shi-xue, GUO Jun-li, LIU Xi-hua, JIANG Hai-tao. Research on the removal of sulfur and nitrogen during co-pyrolysis of high sulfur and strong caking coal with biomass[J]. J Shandong Univ Sci Technol (Nat Sci), 2000,19(2):33-37.
4. [4]
  JEONG H J, PARK S S, HWANG J. Co-gasification of coal-biomass blended char with CO₂ at temperatures of 900-1100℃[J]. Fuel, 2014,116(116):465-470.
5. [5]
  LI S, CHEN X L, LIU A B, WANG L, YU G S. Study on co-pyrolysis characteristics of rice straw and Shenfu bituminous coal blends in a fixed bed reactor[J]. Bioresource Technol, 2014,155(2):252-257.
6. [6]
  REN H J, ZHANG Y G, FANG Y T, WANG Y. Co-gasification behavior of meat and bone meal char and coal char[J]. Fuel Process Technol, 2011,92(3):298-307. doi: 10.1016/j.fuproc.2010.09.013
7. [7]
  LI Zhen-zhu, LI Feng-hai, MA Ming-jie, HUANG Jie-jie, FANG Yi-tian. Review on co-gasification of biomass and coal in fluidized-bed[J]. Mod Chem Ind, 2014,34(7):12-15.
8. [8]
  XU Mei-ling, LI Feng-hai, LI Zhen-zhu. Regulatory mechanism of biomass on the ash fusion characteristics of the coal with a high fusion temperature[J]. Chem Eng, 2016,44(1):69-74.
9. [9]
  CHEN Xue-li, LIU Tao, LIU Xia, LIU Hai-feng. Effects of crop straw on coal ash fusion temperature and prediction of blend ash fusion temperature[J]. Proc Chin Soc Elect Eng, 2012,32(11):41-46.
10. [10]
  LI F H, XU M L, WANG T, FANG Y T, MA M J. An investigation on the fusibility characteristics of low-rank coals and biomass mixtures[J]. Fuel, 2015,158:884-890. doi: 10.1016/j.fuel.2015.06.010
11. [11]
  HAYKIRI-ACMA H, YAMAN S, KUCUKBAYRAK S, MORCALI M H. Does blending the ashes of chestnut shell and lignite create synergistic interaction on ash fusion temperatures[J]. Fuel Process Technol, 2015,140:165-171. doi: 10.1016/j.fuproc.2015.09.005
12. [12]
  HAYKIRI-ACMA H, YAMAN S, KUCUKBAYRAK S. Effect of biomass on temperatures of sintering and initial deformation of lignite ash[J]. Fuel, 2010,89(10):3063-3068. doi: 10.1016/j.fuel.2010.06.003
13. [13]
  CHEN M Q, YU D, WEI Y H. Evaluation on ash fusion behavior of eucalyptus bark/lignite blends[J]. Powder Technol, 2015,286:39-47. doi: 10.1016/j.powtec.2015.07.043
14. [14]
  FANG XI, JIA L. Experimental study on ash fusion characteristics of biomass[J]. Bioresource Technol, 2012,104(1)769.
15. [15]
  DAI Ai-jun. Research on influence of ash components in coal ash on ash fusibility[J]. Clean Coal Technol, 2007,13(5):23-26.
16. [16]
  CHEN Long, ZHANG Zhong-xiao, WU Xiao-jiang, CHEN Guo-yan. An experiment study on ash fusibility under weak deoxidation atmosphere and oxidation atmosphere[J]. Power System Eng, 2007,23(1):22-24.
17. [17]
  YIN Bing-yi. Study on the ash fusion property of biomass and coal blending[D]. Shandong:Shandong University, 2008.
18. [18]
  LI Wen, BAI Jin. Chemistry of Ash from Coal[M]. Beijing:Science Press, 2103, 266-267.
19. [19]
  LI Feng-hai, HUANG Jie-jie, FANG Yi-tian, WANG Yang. Research on the effect of the fusion characteristics of Xiaolongtan lignite[J]. Clean Coal Technol, 2010,16(6):49-53.
