Citation: TIAN Shu-xun, CHENG Ji-hong, DI Wei, CHEN Qiang, LONG Jun-ying, LUO Xi, HU Yun-jian, MENG Xiang-kun, SUN Shou-li, SUN Qi. Study on the selective hydrogenation of acetic acid to ethanol[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(7): 862-869. shu

Study on the selective hydrogenation of acetic acid to ethanol

National Institute of Clean-and-Low Carbon Energy, Beijing 102209, China

Corresponding author: TIAN Shu-xun, tianshuxun@nicenergy.com
Received Date: 5 January 2016
Revised Date: 1 April 2016

Fund Project: The project was supported by the Science and Technology Innovation Program of Shenhua Group 2014-NICF-5

Figures(8)

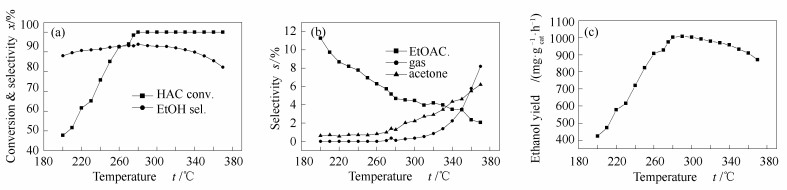

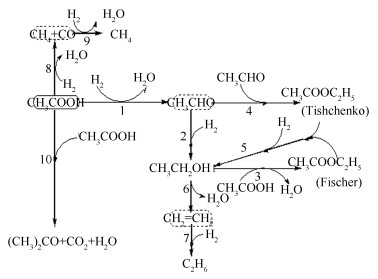

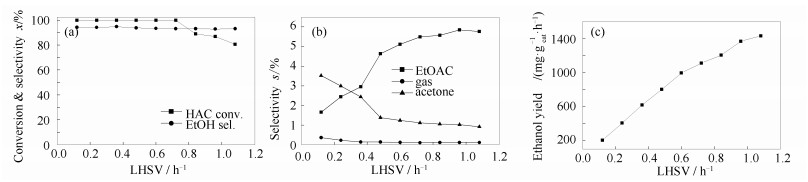

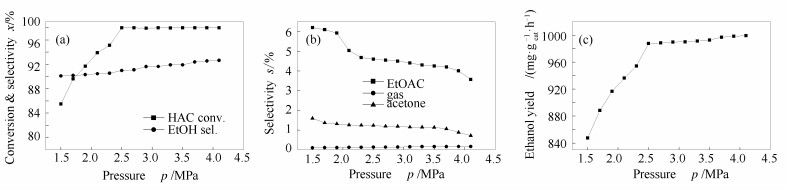

Effects of temperature, pressure, acetic acid (HAC) feeding rate and H₂/HAC (GHSV or H₂ flow) on the conversion of acetic acid, product selectivities and the productivity of ethanol in selective hydrogenation of acetic acid to ethanol were investigated in a fixed-bed reactor. The good stability of the lab-made catalyst was verified. The results show that the reaction rate of esterification and decarboxylation/ketonization are very fast. Selectivities of ethyl acetate and acetone are affected by the catalyst composition and reaction conditions. The hydrodecarbonylation of acetic acid to methane and the further conversion of ethanol can be avoided when the contact time of the reactants with the catalyst is less than 5 s. Optimum reaction conditions were found at 280 ℃, 2.5 MPa, LHSV=0.72 h^-1, H₂/HAC (mol ratio)=16, under which the selectivity of ethyl acetate could reach 6%.Life time test more than 900 h shows that the lab-made catalyst has a good potential for industrial application.
- selective hydrogenation of acetic acid,
- reaction conditions,
- selectivity,
- esterification,
- decarboxylation/ketonization reaction,
- hydrodecarbonylation
1. [1]
  CHEN Qing-ling, YANG Wei-min, TENG Jia-wei. Recent advances in coal to chemicals technology developed by SINOPEC[J]. Chin J Catal, 2013,34(1):217-224.
2. [2]
  SU Hui-bo, LIN Hai-long, LI Fan, JING Su-tong, WANG Wei. Mechanism study and analysis on emission reduction of pollutants with ethanol gasoline[J]. Chin J Environ Eng, 2015,9(2):823-829.
3. [3]
  PEPLOW M. Cellulosic ethanol fights for life[J]. Nature, 2014,7491:152-153.
4. [4]
  LIN Chen, TANG Li. Process and economic analysis of direct hydrogenation of acetic acid to ethanol[J]. Nat Gas Chem Ind, 2013,38(2):60-62.
5. [5]
  LI Zhen-yu, HUANG Ge-sheng, YANG Yan-xiang, LI Ding-jie. Analysis and development proposal on fuel grade alcohol production technique process[J]. Mod Chem Ind, 2011,31(8):1-5.
6. [6]
  ZHANG Yu-zhuo. Study on the strategy and development countermeasure of China clean energy[J]. Bull Chin Acad Sci, 2014,29(4):429-436.
7. [7]
  HU Zong-gui, LI Jing-wei, CHEN Wei-miao, SHAO Shou-yan, ZHU Gui-sheng, DING Yun-jie. Rh-Mn-Li/SiO₂ catalyst for CO hydrogenation to C₂ oxygenates: Effect of support silanization degree on its catalytic performance[J]. J Fuel Chem Technol, 2015,43(11):1380-1386.
8. [8]
  ZHANG Xin-ping, YU Xiao-fang, SUN Fan, GAO Zhen-ming, ZHANG Chun-lei. A two-dimension pseudo-homogeneous dispersion model of ethyl acetate hydrogenation to ethanol[J]. J Fudan Univ (Nat Sci), 2015,54(5):623-629.
9. [9]
  RACHMADY W, VANNICE M A. Acetic acid reduction by H₂ on bimetallic Pt-Fe catalysts[J]. J Catal, 2002,209(1):87-98. doi: 10.1006/jcat.2002.3623
10. [10]
  RACHMADY W, VANNICE M A. Acetic acid reduction to acetaldehyde over iron catalysts I.Kinetic behavior[J]. J Catal, 2002,208(1):158-169. doi: 10.1006/jcat.2002.3560
11. [11]
  RACHMADY W, VANNICE M A. Acetic acid reduction to acetaldehyde over iron catalysts Ⅰ.Characterization by MÖssbaoer spectroscopy, DRIFTS, TPD, and TPR[J]. J Catal, 2002,208(1):170-179. doi: 10.1006/jcat.2002.3561
12. [12]
  PESTMAN R, KOSTER R M, BOELLAARD E, KRAAN A M V D, PONEC V. Identification of the active sites in the selective hydrogenation of acetic acid to acetaldehyde on iron oxide catalyst[J]. J Catal, 1998,174(2):145-152.
13. [13]
  PESTMAN R, KOSTER R M, PIETERSE J A Z, PONEC V. Reactions of carboxylic acids on oxides 1.Selective hydrogenation of acetic acid to acetaldehyde[J]. J Catal, 1997,168(2):255-264. doi: 10.1006/jcat.1997.1623
14. [14]
  PESTMAN R, KOSTER R M, DUIJNE A V, PIETERSE J A Z, PONEE V. Reactions of carboxylic acids on oxides 2.Bimolecular reaction of aliphatic acids to ketones[J]. J Catal, 1997,168(2):265-272. doi: 10.1006/jcat.1997.1624
15. [15]
  XU Ye, CAO Su-feng, NING Chun-li, LI Yong-gang, XU Hua-long, ZHANG Chun-lei. The hydrogenation of acetic acid to ethanol over supported Pt-Sn bimetallic catalyst[J]. J Fudan Univ (Nat Sci), 2014,53(2):236-241.
16. [16]
  HU Ying-tao, DOU Mei, NAN Sui-fei. Effects of supporter on Pt-Sn Catalytic performance in selective hydrogenation of acetic acid to ethanol[J]. J Chem Eng Chin Univ, 2014,28(6):1281-1285.
17. [17]
  ONYESTYÁK G, HARNOS S, KASZONYI A, ŠTOLCOVÁ M, KALLÓ D. Acetic acid hydroconversion to ethanol over novel InNi/Al₂O₃ catalysts[J]. Catal Commun, 2012,27:159-163. doi: 10.1016/j.catcom.2012.07.021
18. [18]
  ONYESTYÁK G, HARNOS S, KLšBERT S, ŠTOLCOVÁ M, KASZONYI A, KALLÓ D. Selective reduction of acetic acid to ethanol over novel Cu₂In/Al₂O₃ catalyst[J]. Appl Catal A: Gen, 2013,464-465:313-321. doi: 10.1016/j.apcata.2013.05.042
19. [19]
  PESTMAN R, DUIJNE A V, PIETERSE J A Z, PONEC V. The formation of ketones and aldehydes from carboxylic acids, structure-activity relationship for two competitive reactions[J]. J Mol Catal A: Chem, 1995,103(3):175-180. doi: 10.1016/1381-1169(95)00138-7
