Citation: LI Xian-yu, GUO Qing-hua, DING Lu, YU Guang-suo. Investigation on catalytic gasification reaction characteristics of coal char with Na2CO3[J]. Journal of Fuel Chemistry and Technology, ;2016, 44(12): 1422-1429. shu

Investigation on catalytic gasification reaction characteristics of coal char with Na2CO3

  • 1.

    Key Laboratory of Coal Gasification and Energy Chemical Engineering of Ministry of Education, East China University of Science and Technology, Shanghai 200237, China

  • 2.

    Shanghai Engineering Research Center of Coal Gasification, Shanghai 200237, China

  • Corresponding author: YU Guang-suo, gsyu@ecust.edu.cn
  • Received Date: 23 August 2016
    Revised Date: 1 October 2016

Figures(5)

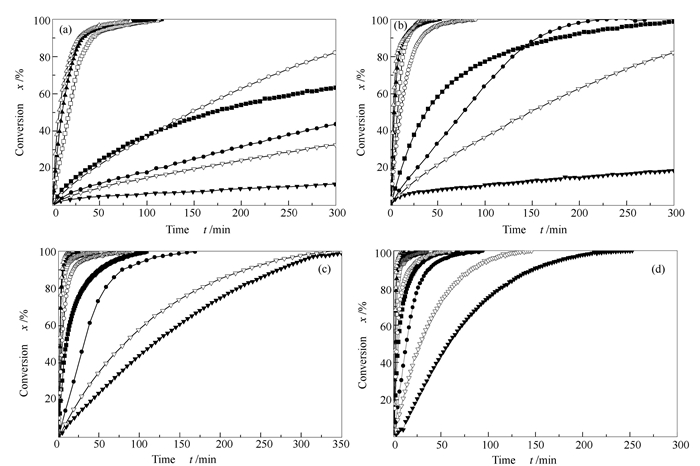

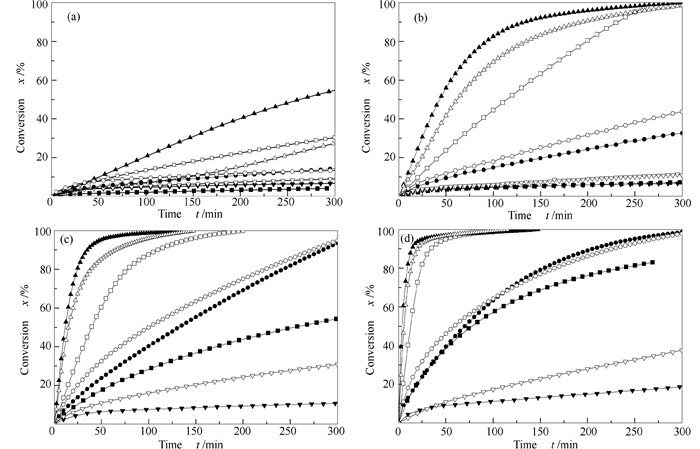

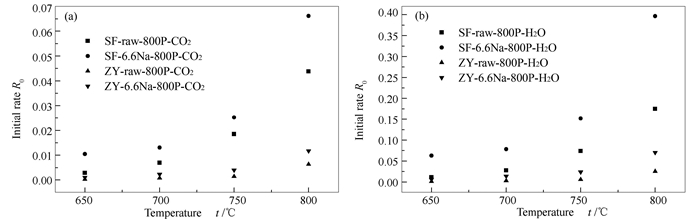

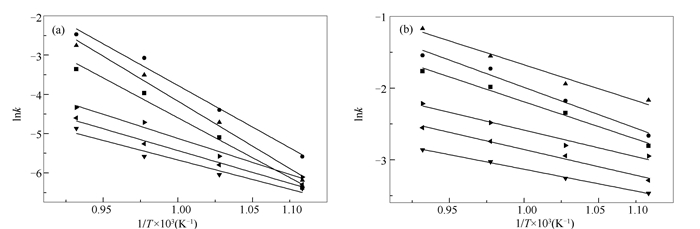

  • The coal char gasification experiments with Na2CO3 as catalyst was investigated on TGA. The pore structure and apparent structure evolution characteristics of char were studied by scanning electron microscopy and pore structure and specific surface area analyzer. The influence of temperature (650-800℃), gasification agent (steam, CO2) and sodium carbonate loadings (Na+ loading amounts 2.2%, 4.4%, 6.6%) on the gasification reactivity of Shenfu bituminous coal (SF) and Zunyi anthracite (ZY) were investigated. The results show that the loading of Na2CO3 stimulates the development of pore structure in pyrolysis process. In the atmosphere of CO2, there was a saturated catalyst capacity for SF and excessive catalyst loading could block internal pore structure of coal, leading to the decrease of gasification reactivity. ZY gasification reactivity increases with catalyst loading, and both SF and ZY gasification reactivity increase with the increase of temperature. In the atmosphere of steam, both SF and ZY gasification reactivity increase with the rise of catalyst loading and temperature. Na2CO3 is favorable for the decrease of reaction temperature and activation energy under the desired gasification rate.
  • 加载中
    1. [1]

      LI Shan. Developing status and research prospect of catalysts for coal catalytic gasification[J]. J Chem Ind Eng, 2013,34(5):10-15.

    2. [2]

      GAO Xu-xia, GUO Xiao-lei, GONG Xin. Characterization of slag from entrained-flow coal gasification[J]. J East China Univ Sci Technol (Nat Sci Ed), 2009,35(5):677-683.

    3. [3]

      MENG Lei, ZHOU Min, WANG Fen. Progress of research on catalyst for catalytic gasification of coal[J]. Gas Heat, 2010,30(4):B18-B22.

    4. [4]

      POPA T, FAN M H, ARGYLE M D, SLIMANE R B, BELL D A, TOWLER B F. Catalytic gasification of a Powder River Basin coal[J]. Fuel, 2013,103:161-170. doi: 10.1016/j.fuel.2012.08.049

    5. [5]

      MONTERROSO R, FAN M H, ZHANG F, GAO Y, POPA T, ARGYLE M D, TOELER B, SUN Q Y. Effects of an environmentally-friendly, inexpensive composite iron-sodium catalyst on coal gasification[J]. Fuel, 2014,116:341-349. doi: 10.1016/j.fuel.2013.08.003

    6. [6]

      KARIMI A, GRAY M R. Effectiveness and mobility of catalysts for gasification of bitumen coke[J]. Fuel, 2011,90(1):120-125. doi: 10.1016/j.fuel.2010.07.032

    7. [7]

      WANG Y, WANG Z, HUANG J, FANG Y. Catalytic gasification activity of Na2CO3 and comparison with K2CO3 for a high-aluminum coal char[J]. Energy Fuels, 2015,29(11):6988-6998. doi: 10.1021/acs.energyfuels.5b01537

    8. [8]

      CHEN Yan, ZHANG Ji-yu. Effects of catalyst loading of Na2CO3 on specific surface area and gasification characteristics of Fujian high-metamorphous anthracite[J]. CIESC J, 2011,62(10):2768-2775.

    9. [9]

      SAMS D A, SHADMAN F. Catalytic effect of potassium on the rate of char-CO2 gasification[J]. Fuel, 1983,62(8):880-882. doi: 10.1016/0016-2361(83)90153-9

    10. [10]

      CHEN Yan, ZHANG Ji-yu. Variation of specific surface area in catalytic gasification process of Fujian anthracite with Na2CO3 catalyst[J]. CIESC J, 2012,63(8):2443-2452.

    11. [11]

      WANG Xi-ming, WANG Xing-jun, CHEN Fan-min, LIU Hai-feng, YU Guang-suo, WANG Fu-chen. Catalytic gasification kinetics of coal with steam at mid-temperature[J]. J Fuel Chem Technol, 2013,41(10):1166-1172.

    12. [12]

      PANETH H R. The mechanism of self-diffusion in alkali metals[J]. Phys Rev, 1950,80(4):708-711. doi: 10.1103/PhysRev.80.708

    13. [13]

      GODAVARTY A, AGARWAL A. Distribution and catalytic activity of eutectic salts in steam gasification of coal[J]. Energy Fuels, 2000,14(3):558-565. doi: 10.1021/ef990156o

    14. [14]

      WEI X F, HUANG J J, LIU T F, FANG Y T, WANG Y. Transformation of alkali metals during pyrolysis and gasification of a lignite[J]. Energy Fuels, 2008,22(3):1840-1844. doi: 10.1021/ef7007858

    15. [15]

      KANG Shou-guo.Study on catalytic gasification reactivity of coal char supported with K2CO3[D].Tianjin:Hebei University of Technology, 2011.

    16. [16]

      GIL M V, RIAZA J, ÁLVAREZ L, PEVIDA C, RUBIERA F. Biomass devolatilization at high temperature under N2 and CO2:Char morphology and reactivity[J]. Energy, 2015,91:655-662. doi: 10.1016/j.energy.2015.08.074

    17. [17]

      LIU H, LUO C, KANEKO M, KATO S, KOJIMA T. Unification of gasification kinetics of char in CO2 at elevated temperatures with a modified random pore model[J]. Energy Fuels, 2003,17(4):961-97. doi: 10.1021/ef020231m
