Citation: ZHANG Dong-xu, SONG Hua, YUAN Dan-dan. Effect of synthesis conditions on the catalytic performance of phosphotungstic acid encapsulated metal-organic framework in the oxidative desulfurization[J]. Journal of Fuel Chemistry and Technology, ;2019, 47(2): 183-190. shu

Effect of synthesis conditions on the catalytic performance of phosphotungstic acid encapsulated metal-organic framework in the oxidative desulfurization

ZHANG Dong-xu ¹ ,
SONG Hua ^1,2,, ,
YUAN Dan-dan ^1,2

1.
College of Chemistry & Chemical Engineering, Northeast Petroleum University, Daqing 163318, China
2.
Provincial Key Laboratory of Oil & Gas Chemical Technology, Northeast Petroleum University, Daqing 163318, China

Corresponding author: SONG Hua, songhua2004@sina.com
Received Date: 26 November 2018
Revised Date: 23 December 2018

Fund Project: The project was supported by the Mentoring Project of China Petroleum and Chemical Industry Federation (2016-09-02)the Mentoring Project of China Petroleum and Chemical Industry Federation 2016-09-02

Figures(10)

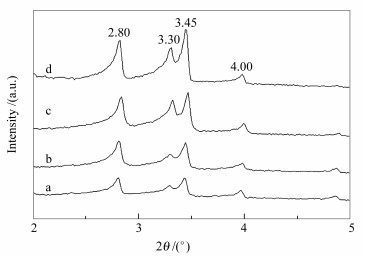

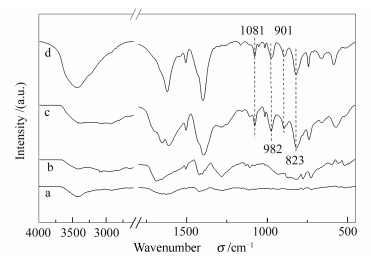

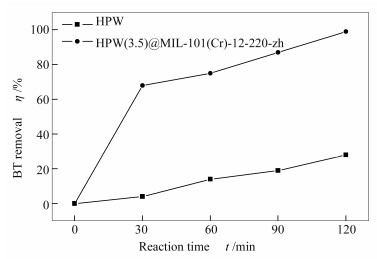

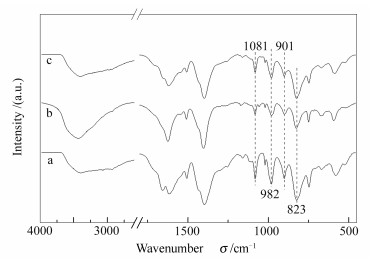

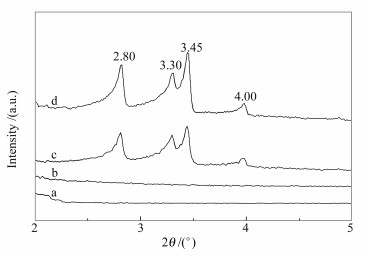

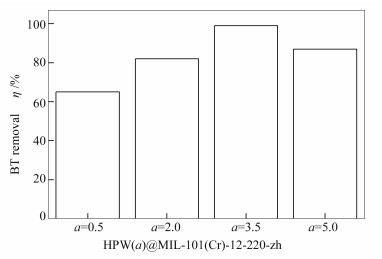

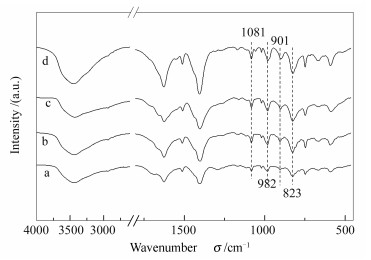

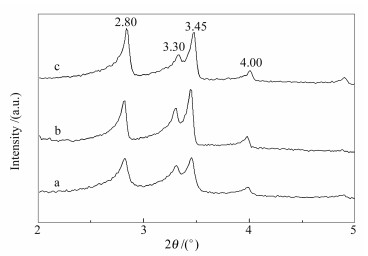

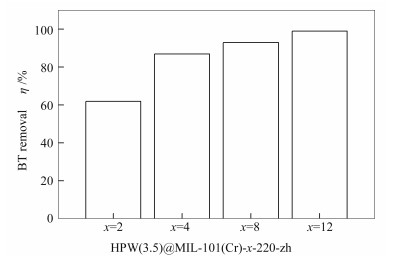

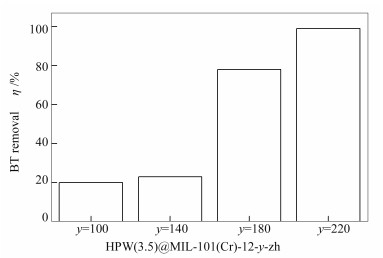

A series of phosphotungstic acid (HPW) encapsulated metal-organic HPW@MIL-101(Cr) catalysts, with high surface area and high activity in the oxidative desulfurization (ODS), were synthesized by one-step hydrothermal method and characterized by FT-IR, XRD and nitrogen physisorption. The influences of synthesis time, temperature, HPW loading, and acidity/alkalinity on the catalytic performance of HPW@MIL-101(Cr) in ODS were then investigated. The results indicated that the order degree of channels in HPW@MIL-101(Cr) is improved with the increase of synthesis time and temperature. The crystal structure of MIL-101(Cr) cannot be formed at a synthetic temperature below 140℃ and the channel order of HPW@MIL-101(Cr) decreases under an acidic synthetic environment. The catalytic activity of HPW@MIL-101(Cr) displays a trend of first increasing and then decreasing with the increase of HPW loading. The HPW@MIL-101(Cr) catalyst with a HPW loading of 3.5 g, synthesized at 220℃ under neutral environment for 12 h, exhibits the highest activity in ODS. At 50℃, with a catalyst dosage of 0.24 g, an model oil of 20 mL, and an O/S molar ratio of 8, the desulfurization rates over the HPW@MIL-101(Cr) catalyst towards benzothiophene, dibenzothiophene, and 4, 6-dimethyl dibenzothiophene after reaction for 120 min reach 99%, 100% and 99%, respectively; in particular, the desulfurization rate for benzothiophene is 2.4 times higher than that obtained over HPW.
- phosphotungstic acid,
- metal-organic framework,
- oxidative desulfurization performance,
- benzothiophene (BT)
1. [1]
  ZHU W S, LI H M, JIANG X, YAN Y S, LU J D, XIA J X. Oxidative desulfurization of fuels catalyzed by peroxotungsten and peroxomolybdenum complexes in ionic liquids[J]. Energy Fuels, 2007,21(5):2514-2516. doi: 10.1021/ef700310r
2. [2]
  HUANG D, WANG Y J, YANG L M, LUO G S. Chemical oxidation of dibenzothiophene with a directly combined amphiphilic catalyst for deep desulfurization[J]. Ind Eng Chem Res, 2006,45:1880-1885. doi: 10.1021/ie0513346
3. [3]
  CAMPOS-MARTIN J M, CAPEL-SANCHEZ M C, PEREZ-PRESAS P, FIERRO J L G. Oxidative processes of desulfurization of liquid fuels[J]. J Chem Technol Biotechnol, 2010,85:879-890. doi: 10.1002/jctb.v85:7
4. [4]
  KOMINTARACHAT C, TRAKARNPRUK W. Oxidative desulfurization using polyoxometalates[J]. Ind Eng Chem Res, 2006,45:1853-1856. doi: 10.1021/ie051199x
5. [5]
  YUAN D, SONG H, SONG H L, YOU M Y, WANG B H, LI F, HAO Y L, YU Q. Heterogeneous oxidative desulfurization for model fuels using novel PW-coupled polyionic liquids with carbon chains of different lengths[J]. J Taiwan Inst Chem E, 2017,76:83-88. doi: 10.1016/j.jtice.2017.04.013
6. [6]
  LI H M, HE L N, LU J D, ZHU W S, JIANG X, WANG Y, YOU Y S. Deep oxidative desulfurization of fuels catalyzed by phosphotungstic acid in ionic liquids at room temperature[J]. Energy Fuels, 2009,23:1354-1357. doi: 10.1021/ef800797n
7. [7]
  HU X F, LU Y K, DAI F N, LIU C G, LIU Y Q. Host-guest synthesis and encapsulation of phosphotungstic acid in MIL-101 via "bottle around ship":An effective catalyst for oxidative desulfurization[J]. Microporous Mesoporous Mater, 2013,170:36-44. doi: 10.1016/j.micromeso.2012.11.021
8. [8]
  ZHENG J J, JIAO Z B. Modified Bi₂WO₆ with metal-organic frameworks for enhanced photocatalytic activity under visible light[J]. J Colloid Interf Sci, 2017,488:234-239. doi: 10.1016/j.jcis.2016.11.007
9. [9]
  DING J W, WANG R. A new green system of HPW@MOFs catalyzed desulfurization using O₂ as oxidant[J]. Chin Chem Lett, 2016,27(5):655-658. doi: 10.1016/j.cclet.2016.03.005
10. [10]
  CHEN M, YAN J Q, TAN Y, LI Y F, WU Z M, PAN L S, LIU Y J. Hydroxyalkylation of phenol with formaldehyde to bisphenol F catalyzed by Keggin phosphotungstic acid encapsulated in metal-organic frameworks MIL-100(Fe or Cr) and MIL-101(Fe or Cr)[J]. Ind Eng Chem Res, 2015,54(47):11804-11813. doi: 10.1021/acs.iecr.5b02746
11. [11]
  ZHOU Z Y, CHENG B H, MA C, XU F, XIAO J, XIA Q B, LI Z. Flexible and mechanically-stable MIL-101(Cr)@PFs for efficient benzene vapor and CO₂ adsorption[J]. RSC Adv, 2015,5(114):94276-94282. doi: 10.1039/C5RA17270E
12. [12]
  YANG X, LIU J, FAN K, RONG L. Hydrocracking of jatropha oil over non-sulfided PTA-NiMo/ZSM-5 catalyst[J]. Sci Rep, 2017,741654. doi: 10.1038/srep41654
13. [13]
  WAN H, CHEN C, WU Z W, QUE Y G, FENG Y, WANG W, WANG L, GUAN G F, LIU X Q. Encapsulation of heteropolyanion-based ionic liquid within the metal-organic framework MIL-100(Fe) for biodiesel production[J]. ChemCatChem, 2015,7(3):441-449. doi: 10.1002/cctc.v7.3
14. [14]
  ZHU Y F, ZHU M Y, KANG L H, YU F, DAI B. Phosphotungstic acid supported on mesoporous graphitic carbon nitride as catalyst for oxidative desulfurization of fuel[J]. Ind Eng Chem Res, 2015,54(7):2040-2047. doi: 10.1021/ie504372p
