Citation: Qian Yong, Yang Po, Wang Jianjun, Hu Junwei, Dong Chong. Synthesis and Properties of A Novel Bis-Schiff Base Derived from 2-Furaldehyde and N-ethyl-3, 6-diaminocarbazole[J]. Chemistry, ;2017, 80(12): 1138-1142. shu

Synthesis and Properties of A Novel Bis-Schiff Base Derived from 2-Furaldehyde and N-ethyl-3, 6-diaminocarbazole

Qian Yong ^1,2, ,
Yang Po ¹ ,
Wang Jianjun ¹ ,
Hu Junwei ¹ ,
Dong Chong ¹

1.
School of Chemistry, Biology and Material Engineering, Suzhou University of Science and Technology, Suzhou 215009
2.
Jiangsu Key Laboratory of Environmental Functional Material, Suzhou 215009

Received Date: 7 April 2017
Accepted Date: 28 August 2017

Figures(6)

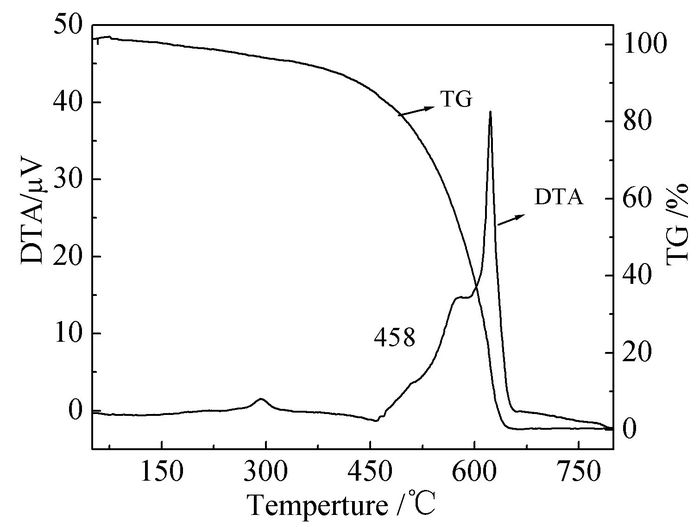

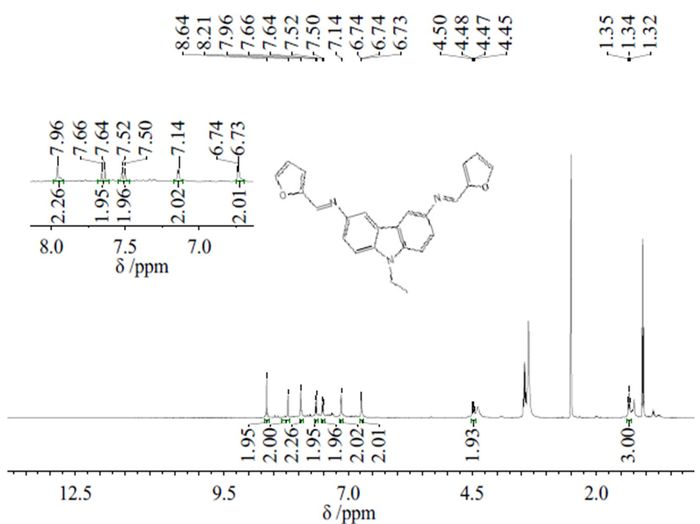

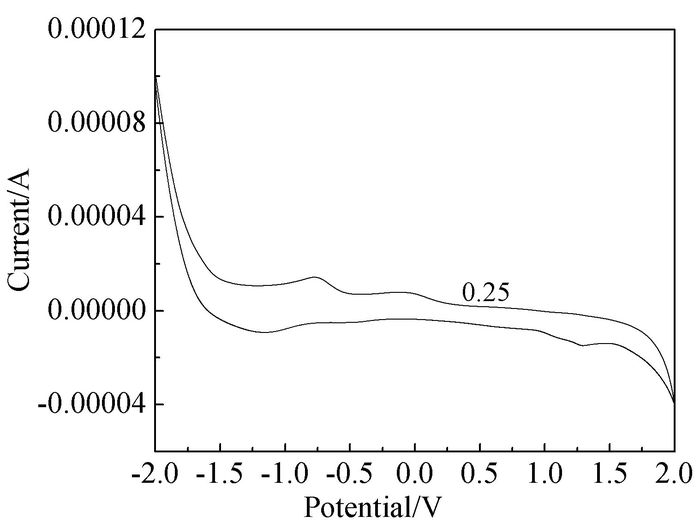

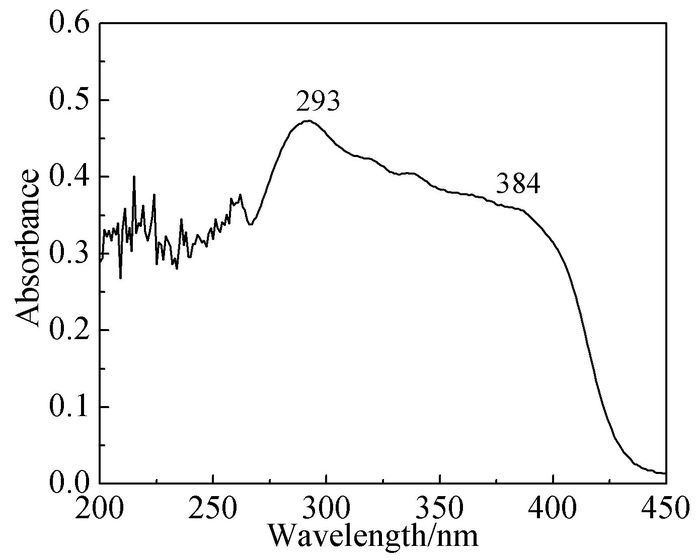

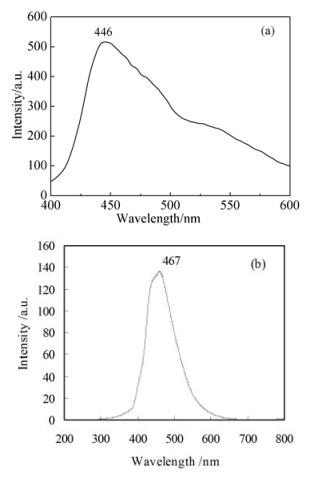

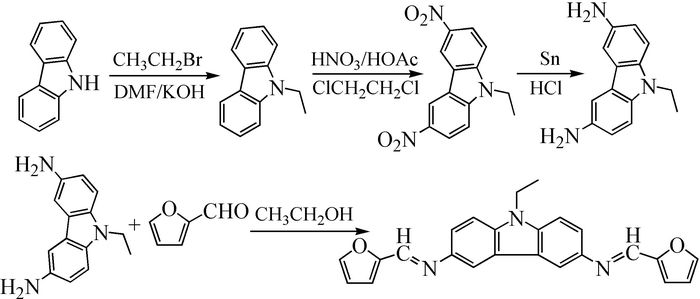

With carbazole as raw material, the intermediate N-ethyl-3, 6-diaminocarbazole was synthesized through N-alkyl substitution, nitration and reduction reaction successively. Then a novel bis-Schiff base N-ethyl-3, 6-bis(2-furalideneimino)carbazole was synthesized from 2-furaldehyde and N-ethyl-3, 6-diaminocarbazole with a yield of 72.36%. Its structure was characterized by elemental analysis, FTIR, UV-Vis, ¹H NMR and EIS-MS. Solution fluorescence, solid fluorescence spectroscopy, cyclic voltammetry (CV) and TG-DTA thermal analysis were used to study its optical properties, electrochemical properties and thermal stability. The results showed that the target compound has a strong and wide UV absorption band from 200nm to 400nm in the dilute solution of DMF, and a deep blue fluorescence emission peak at 446nm excited by 365nm. Solid fluorescence spectroscopy indicated that the Schiff base has an emission peak at 467nm, with a 21nm red shift compared to the solution fluorescence. The optical band gap (E_g), ionization potential (I_p) and electron affinity (E_A) of the target compound are 2.19, 4.99 and 2.80 eV, respectively, calculated from UV-Vis and CV test, which indicated that it has excellent hole and electron transporting performance. TG-DTA analysis showed that the target compound possess good thermal stability. This compound has potential applications in organic luminescence, hole injection and transport materials and electron transport materials.
- N-ethyl-3,
- 6-diaminocarbazole,
- Bis-Schiff basse,
- Luminescent material
1. [1]
  C W Tang, S A VanSlyke, C H Chen. J. Appl. Phys., 1989, 65(9):3610~3616.
2. [2]
  L H Chan, R H Lee, C E Hsieh et al. J. Am. Chem. Soc., 2002, 124(22):6469~6479.
3. [3]
  G M Farinola, R Ragni. Chem. Soc. Rev., 2011, 40(7):3467~3482.
4. [4]
  W Qin, Z Yang, Y Jiang et al. Chem. Mater., 2015, 27(11):3892~3901.
5. [5]
6. [6]
7. [7]
8. [8]
  F Dumur. Org. Electron., 2015, 25:345~361.
9. [9]
  A Bucinskas, D Volyniuk, Y Danyliv et al. RSC Adv., 2015, 5(95):78150~78159.
10. [10]
  M Reig, C Gozalvez, R Bujaldon et al. Dyes Pigments, 2017, 137:24~35.
11. [11]
  H Husu, R Siikanen, J Makitalo et al. Nano Lett., 2012, 12(2):673~677.
12. [12]
  Z S Wang, N Koumura, Y Cui et al. Chem. Mater., 2008, 20(12):3993~4003.
13. [13]
  M Reig, G Bubniene. W Cambarau et al. RSC Adv., 2016, 6(11):9247~9253.
14. [14]
  P Kotchapradist, N Prachumrak, R Tarsang et al. J. Mater. Chem. C, 2013, 1(32):4916~4924.
15. [15]
16. [16]
17. [17]
  S Kotowicz, M Siwy, M Filapek et al. J. Lumin., 2017, 183:458~469.
18. [18]
19. [19]
  E Puodziukynaite, E Burbulis, J V Grazulevicius et al. Synth. Met., 2008, 158(21-24):993~998.
20. [20]
21. [21]
  J H Lee, J W Park, S K Choi. Synth. Met., 1997, 88(1):31~35.
22. [22]
23. [23]
24. [24]
  Q Kong, D Zhu, Y Quan et al. Chem. Mater., 2007, 19(13):3309~3318.
25. [25]
  C Adachi, T Tsutsui, S Saito. Appl. Phys. Lett., 1989, 55(15):1489~1491.
26. [26]
27. [27]
  L Y Bian, G Sun, Y X Sun et al. J. Phys. Org. Chem., 2012, 25(12):1112~1118.
