Transition-Metal-Catalyzed Cycloadditions for the Synthesis of Eight-Membered Carbocycles: an Update from 2010 to 2020
Molecules containing eight-membered carbocycles exist widely in natural products. Many of these natural products have significant biological activities and some of them have been developed as useful drugs, such as anticancer drug taxol (from yew) and antibacterial drug retapamulin (a derivative from pleuromutilin). Thus, obtaining these natural products and their analogs for further investigation in medicinal chemistry, chemical biology and other related areas has become paramount. Considering that isolation of these molecules from natural resources usually affords very limited amounts of compounds, which prevents both direct extensive biological studies of these natural products and further derivatization of these molecules to obtain their analogs, chemical synthesis in most cases is the only way to achieve this goal. In addition, chemical synthesis can in principle provide "flexible" derivatized products compared to the "rigid" analogs that are directly transformed from natural products (Scheme 1, A). Furthermore, eight-mem- bered carbocycles are found in fragrant molecules and potential material molecules,  suggesting that the synthesis of these molecules are also important and valuable for our society (Scheme 1, B). Unfortunately, the synthesis of eight-membered carbocycles still poses significant challenges to synthetic chemists, which dramatically impedes further downstream investigations in various research fields that heavily rely on the use of these molecules.

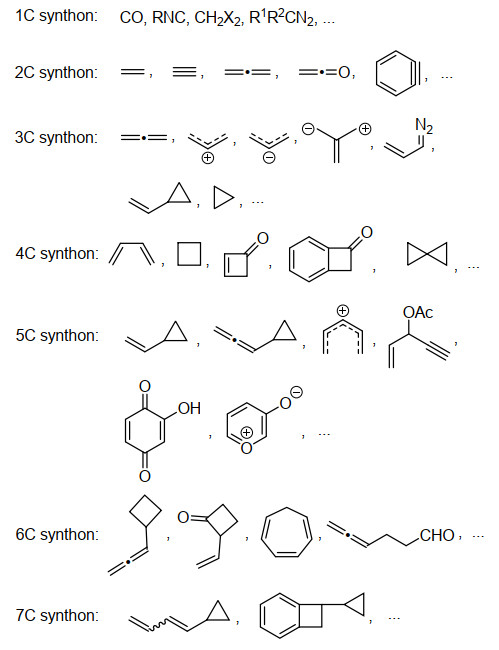

Highly efficient synthesis of ring compounds depends on both quantity (the number of reactions) and quality (the efficiency and scope of a reaction) of the cycloadditions in a chemist's arsenal, and the synthetic strategies/tactics, which are referred here to ways of applying non-cycloaddition reactions for ring formation. If there are many cycloaddition reactions with broad scope and high efficiency for building desired rings directly, chemists could then have many options to synthesize their target rings. For example, six- membered carbocycles can be achieved by many cycloaddition reactions such as Diels-Alder reaction,  metal- catalyzed cycloadditions such as [4+2],  [5+1],  [3+2+1] and [2+2+2] reactions to name a few. The synthetic strategies for ring formation include ring-closure, which uses reactions (such as intramolecular SN2 reactions, addition reactions, coupling reactions and RCM etc.), to make two functional groups at the two ends of a linear molecule to react and close the ring simultaneously, ring expansion/contraction and others. For synthesis of five- and six-membered carbocycles, there is a choice of many cycloaddition reactions and strategies. But for synthesis of eight-membered carbocycles, both the number of cycloadditions and the strategies are limited. This is reflected in a recent review from Li and coworkers. In their review paper, many elegant total syntheses of natural products with eight-membered carbocycles in the past ten years have been highlighted. But among them, only one metal-catalyzed- cycloaddition for eight-membered carbocycle synthesis, the Rh-catalyzed [5+2+1] cycloaddition, was applied for the total synthesis. The synthesis of other natural products in Li's review paper is mainly based on ring-closure strategy. Unfortunately, the ring-closure strategy is usually limited to molecules having appropriate conformations that can overcome enthalpy and entropy penalties associated with the synthesis of seven-, eight- and nine-membered rings. Therefore, ring-closure strategy is not general for achieving synthesis of eight-membered carbocycles. Furthermore, strategies other than ring-closure for eight-membered rings are very limited (for example, ring expansion for eight-membered carbocycles are not easy because seven-membered carbocycles are also difficult to access). In addition, the traditional pericyclic cycloadditions to eight- membered rings such as [4+4], [6+2] reactions under thermal reaction conditions are forbidden based on Woodward-Hoffman rules and frontier molecular orbital (FMO) theories, further increasing hurdles for the synthesis of eight-membered carbocycles compared to the synthesis of six-membered rings.
Therefore, the most powerful and direct approach to overcome the challenges of synthesizing eight-membered carbocycles is to develop new cycloaddition reactions. Transition-metal-catalyzed cycloadditions have evolved as powerful reactions to directly synthesize eight-membered carbocycles[1b-1c, 15] (Scheme 1, C). In 2010, we had reviewed this and summarized many outstanding progresses in this area. Ten years have passed since then. Here we want to update the progresses in this field aiming to highlight the development of new metal-catalyzed cycloadditions for eight-membered carbocycle synthesis, the applications on natural product synthesis using these cycloaddition reactions, together with some mechanistic studies of these reactions as well (Scheme 1, D). We want to point out here is that, the cycloaddition reactions catalyzed by transition metals acting as Lewis acids do not belong to the transition-metal-catalyzed cycloadditions and progresses in this direction are not included.
1. [4+4] cycloadditions

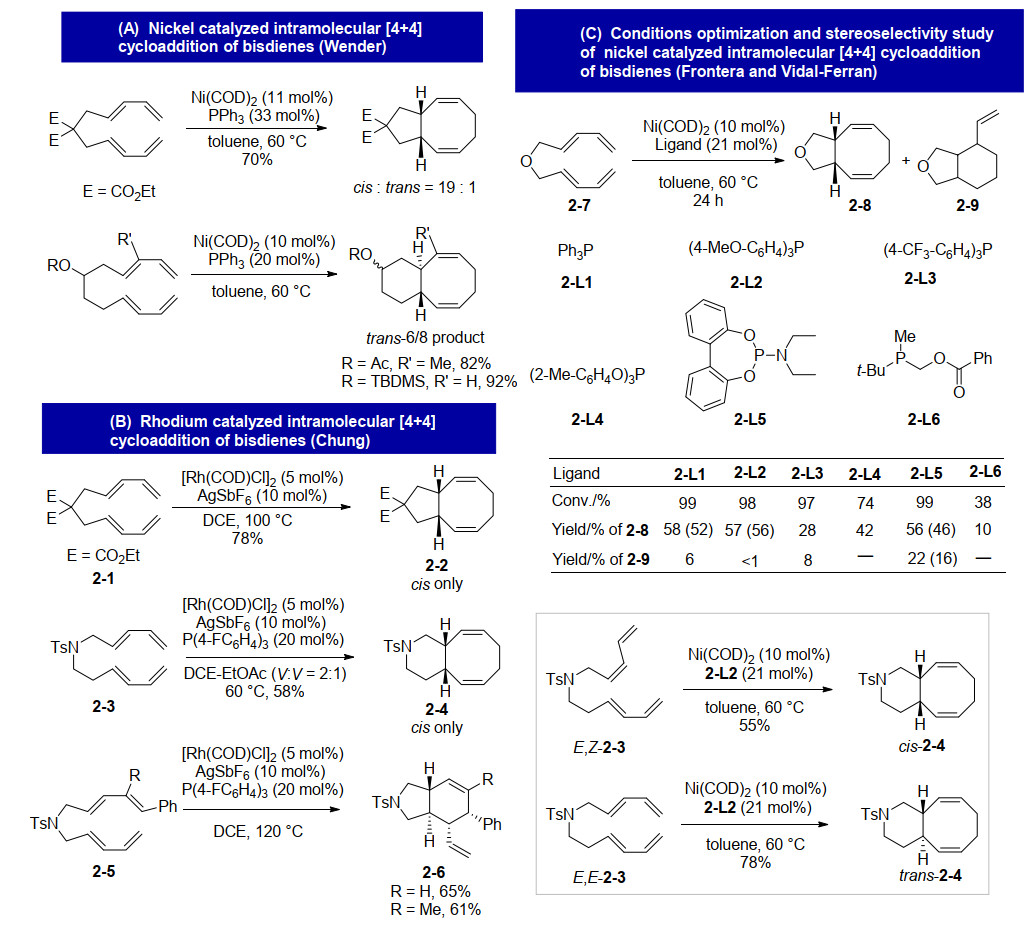

Since the first metal-catalyzed [4+4] cycloaddition of bisdienes was discovered by Ziegler and Reed,  various inter- and intramolecular [4+4] cycloadditions have been developed by using different catalysts. In 1986, Wender and coworkers reported a nickel-catalyzed intramolecular [4+4] cycloaddition of bisdienes to give cis-5/8 and trans-6/8 bicyclic products (Scheme 2, A). In 2016, Chung and coworkers reported a rhodium-catalyzed intramolecular [4+4] cycloaddition of bisdienes (Scheme 2, B). Different from Wender's [4+4] reaction, the Rh-catalyzed cycloaddition gave cis-5/8 and cis-6/8 bicycles, as demonstrated by the reactions of 2-1 and 2-3 to the [4+4] cycloadducts 2-2 and 2-4 respectively. It is interesting to find that substrate 2-5 with a phenyl substituent at the distal position of dienes gave [4+2] product 2-6, not [4+4] product. Density functional theory (DFT) studies further confirmed that the selectivity of [4+4] and [4+2] cycloadditions for bisdienes is determined by the trans or cis configuration of butadienyl group in the reaction intermediates.
In 2018, Frontera, Vidal-Ferran and coworkers carried out a detailed investigation of Wender's nickel-catalyzed [4+4] cycloaddition of bisdienes through experiments and DFT calculations (Scheme 2, C). They tested several phosphine ligands with different electronic effects, finding that electron-rich triarylphosphines were efficient ligands for the cycloadditions. The authors also investigated the stereoselectivity of the [4+4] cycloaddition. DFT calculations and experiments confirmed that the tether length between two diene moieties and the geometries of alkenes in the substrates influenced the configuration of products. If two dienes were linked by three atoms, the cycloadducts were cis-5/8 bicycles. When two dienes were linked by four atoms, the cycloadducts were either cis- or trans-6/8 bicycles, depending on the geometries of the diene moiety in the substrates. The E/Z-configured substrate, for example E, Z-2-3, generated cis-6/8 cycloadduct cis-2-4, whereas the E, E-configured substrate, for example, E, E-2-3, generated trans-6/8 product trans-2-4.
Intermolecular cyclodimerization or cross-[4+4] cycloaddition of two 1, 3-dienes provides a valuable method to construct eight-membered monocyclic carbocycles. In the early 1950s, chemists discovered that nickel complexes can catalyze the dimerization of butadienes. In the 1980s, iron complexes were applied to this reaction and an asymmetric version was realized when a chiral ligand was used. But for a long time, the structure and oxidation state of the active iron catalysts in such reactions have remained unknown, partly because various kinds of additional activating reagents were needed to activate the precatalysts. The lack of exact structure of real active species in reaction prevented chemists from developing more efficient catalysts which usually rely on the intensive studies of structure-activity relationship between catalysts and reaction efficiencies. In 2016, Ritter and coworkers prepared a new iron complex 3-2 and its structure was determined (Scheme 3, A).
Using 3-2 as catalyst, dimerization of butadiene to 1, 5-cyclooctadiene could be achieved in 12000 TON (turnover number) without any additional activating reagent (Scheme 3, B). They found that 3-2 had a high-spin (S＝3/2) Fe center, coupled antiferromagnetically to a ligand-based diimine radical. The authors proposed that Fe-COD ligand antibonding orbital was critical for facile ligand exchange process in the catalytic cycle. A plausible mechanism for this reaction is given in Scheme 3, C.

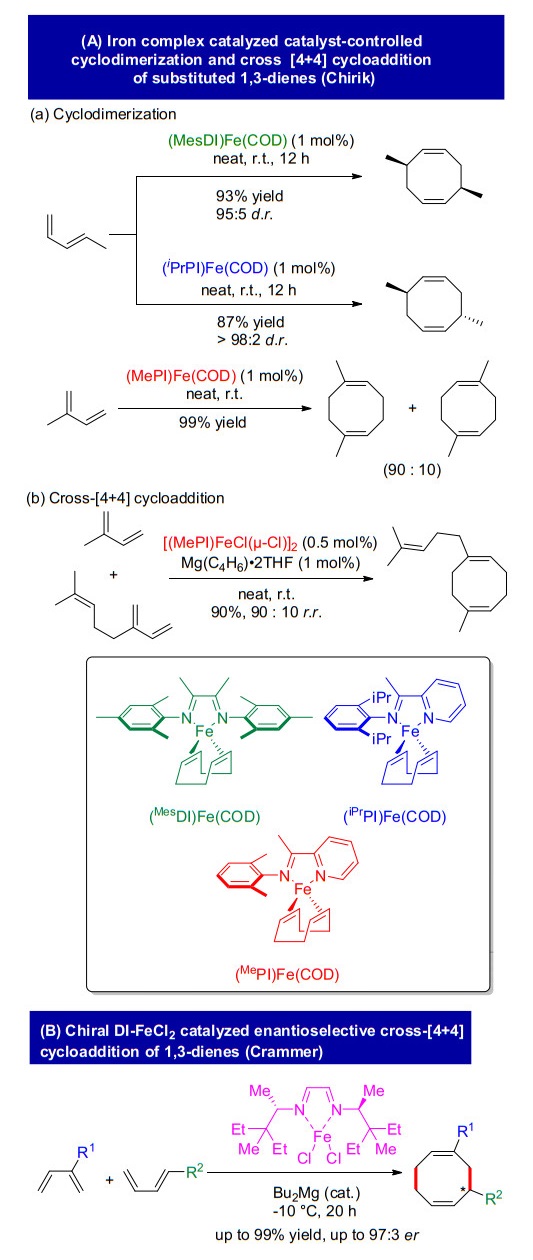

In 2019, Chirik and coworkers reported a family of iron complexes bearing bidentate ligands, finding that these iron complexes can catalyze the [4+4] cycloaddition of substituted 1, 3-dienes to afford disubstituted 1, 5-cyclooca- dienes, with good control of both chemo- and regio-sele- ctivities (Scheme 4, A). The structures of the precatalysts were determined and the active species were characterized by in situ spectroscopic measurements. Their results showed that an (imino)pyridine ligand radical anion is antiferromagnetically coupled with a high-spin iron(Ⅰ) center and this is the active catalyst in the reaction.
In 2020, an enantioselective chiral diamine-iron complex catalyzed cross-[4+4] cycloaddition of 1, 3-dienes with alkyl substituents to afford chiral functionalized cyclooctadienes (CODs) was reported by Crammer and coworkers (Scheme 4, B).[24a] More than 18 cycloadducts were obtained in good yields and high enantioselectivities, which were contradictory to tom Dieck' single example of asymmetric [4+4] reaction with a moderate enantio-sele- ctivity, also catalyzed by chiral diamine-iron complex.[24b] The key to the success of Crammer's asymmetric [4+4] reaction was attributed to the tailored bulky side arms in the chiral diamine-iron catalyst, which can reach a balanced performance of reactivity, chemo- and stereo-selectivities for the [4+4] reaction.

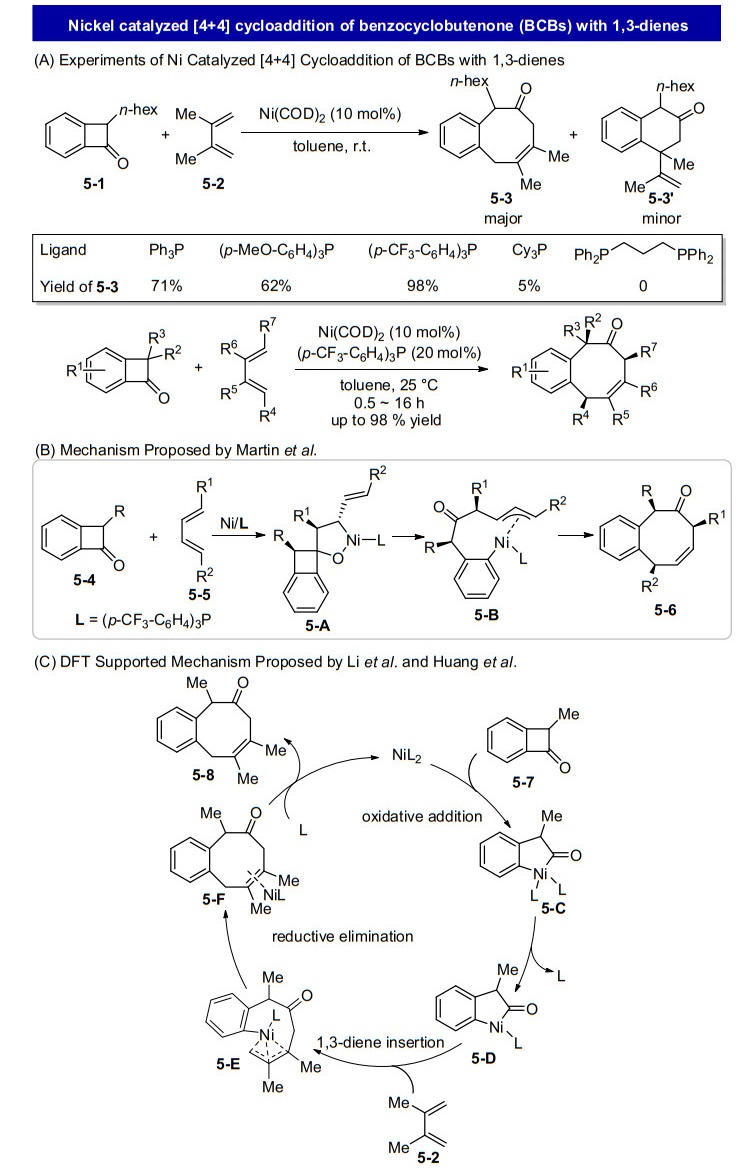

Metal-catalyzed C—C bond activation of strained three- and four-membered rings have been widely applied to develop transition-metal-catalyzed cycloadditions. Among these strained small rings, benzocyclobutenones (BCBs) have been well developed in these years. In 2015, Martin and coworkers reported a nickel-catalyzed [4+4] cy- cloaddition of BCBs with 1, 3-dienes to synthesize benzocyclooctadienones (Scheme 5). They optimized the reaction conditions by using BCB 5-1 and diene 5-2 as the substrates, Ni(COD)2 as the precatalyst, establishing that the electron-poor phosphine ligand, (p-CF3-C6H4)3P, was the best ligand for the reaction and the final product 5-3 was obtained in 98% yield under the optimal reaction conditions. More than a dozen of substrates were found suitable for the [4+4] cycloaddition. A plausible mechanism was proposed by the authors: an oxidative cyclometallation of carbonyl group of 5-4, diene 5-5 and nickel catalyst occurs to generate five-membered nickelacycle 5-A, followed by a β-carbon elimination to give seven-membered metallacycle, which might lead to the formation of putative π-allyl Ni(Ⅱ) metallacycle 5-B. Then intermediate 5-B undergoes reductive elimination to give the final benzocyclooctadienone product 5-6. But DFT calculations by Li et al. and Huang et al.,  did not support the originally proposed mechanism and a revised mechanism was proposed, which includes these steps: a direct oxidative addition of BCB 5-7 with nickel catalyst generates five-membered nickelacycle 5-C, then a concerted 1, 3-diene insertion into Ni—C bond of 5-D takes place. Finally, reductive elimination of 5-E affords the [4+4] cycloadduct 5-8.
2. [2+2+2+2] cycloadditions
The first [2+2+2+2] cycloaddition of acetylene to form cyclooctatetraene (COT) was achieved by using nickel complex as the catalyst. Since then, a variety of [2+2+ 2+2] cycloadditions of alkynes were developed. In 2007, a [2+2+2+2] cycloaddition of two diynes affording a tricyclic product with a COT ring was developed by Wender and coworkers. Besides, Zhao and coworkers found that two 1, 6-enynes could undergo [2+2+2+2] cycloaddition to give 1, 5-cyclooctadienes (CODs). In all these cycloadditions to form either COTs or CODs, nickel catalysts were necessary.

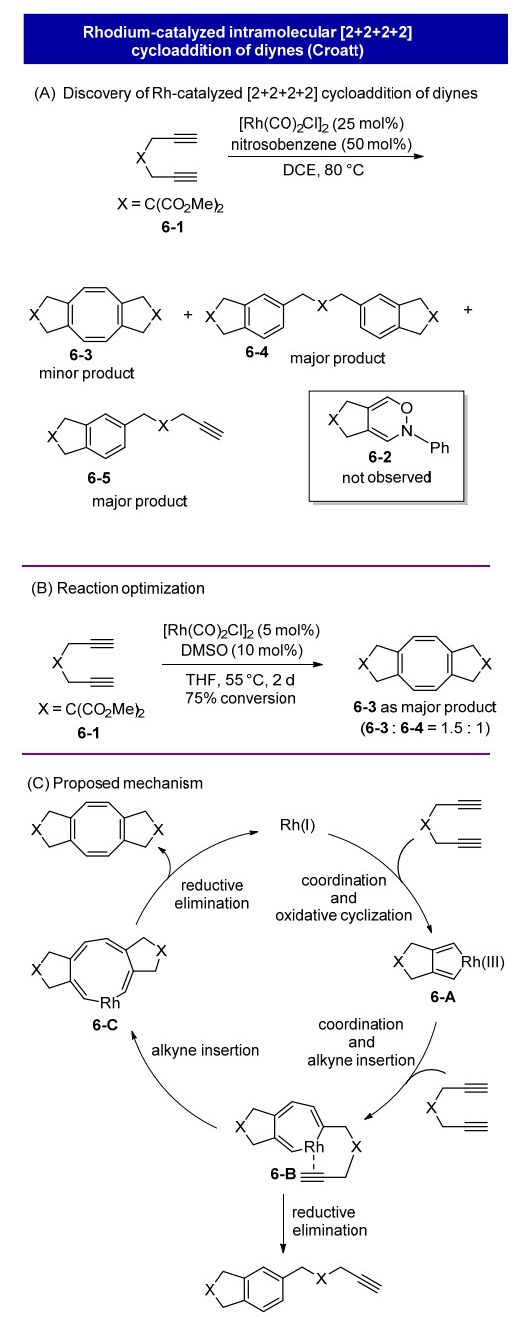

In 2014, Croatt and coworkers accidentally developed the first rhodium-catalyzed [2+2+2+2] cycloaddition of two diynes (Scheme 6). Originally they planned to synthesize oxazines from diynes and nitrosobenzene by using [Rh(CO)2Cl]2 as the catalyst. To their surprise, no desired product was obtained for substrate 6-1. Instead, substituted benzenes from [2+2+2] cycloaddition as the major products together with a small amount of COT from [2+ 2+2+2] cycloaddition as the minor product were generated. No COT was generated when nitrosobenzene was removed from the reaction system. After screening different polar compounds as the possible additives to improve the reaction yield, they found that dimethyl sulfoxide (DMSO) gave the best results. The optimal conditions for diyne substrates, are carrying out the [4+4] reaction in tetrahydrofuran (THF) or CDCl3 at 55 ℃ for 2 d, using 10 mol% [Rh(CO)2Cl]2 as the catalyst and 10 mol% DMSO as the additive. All the [4+4] reactions proceeded with 75% conversion and the ratio of COTs ([2+2+2+2] cycloadducts) to substituted benzenes ([2+2+2] cycloadducts) in final products was up to 1.4~1.5:1. The authors investigated the reaction mechanism by using ReactIR, proposing that DMSO might coordinate with the rhodium species and favor the third alkyne insert into the Rh—C bond in 6-B. Otherwise, 6-B could directly undergo reductive elimination to give [2+2+2] product. The authors also explained why adding DMSO slowed the reaction, hypothesizing that DMSO might increase the barrier for reductive elimination of rhodacycloheptatriene 6-B.
3. [4+2+2] cycloadditions
The first [4+2+2] cycloaddition to construct eight- membered carbocycles was discovered in 1970 by Carbonaro and coworkers,  using norbornadienes (NBDs) and dienes as the substrates and iron complex as the catalyst. Since then, various types of metal-catalyzed [4+2+2] cycloadditions have been developed.

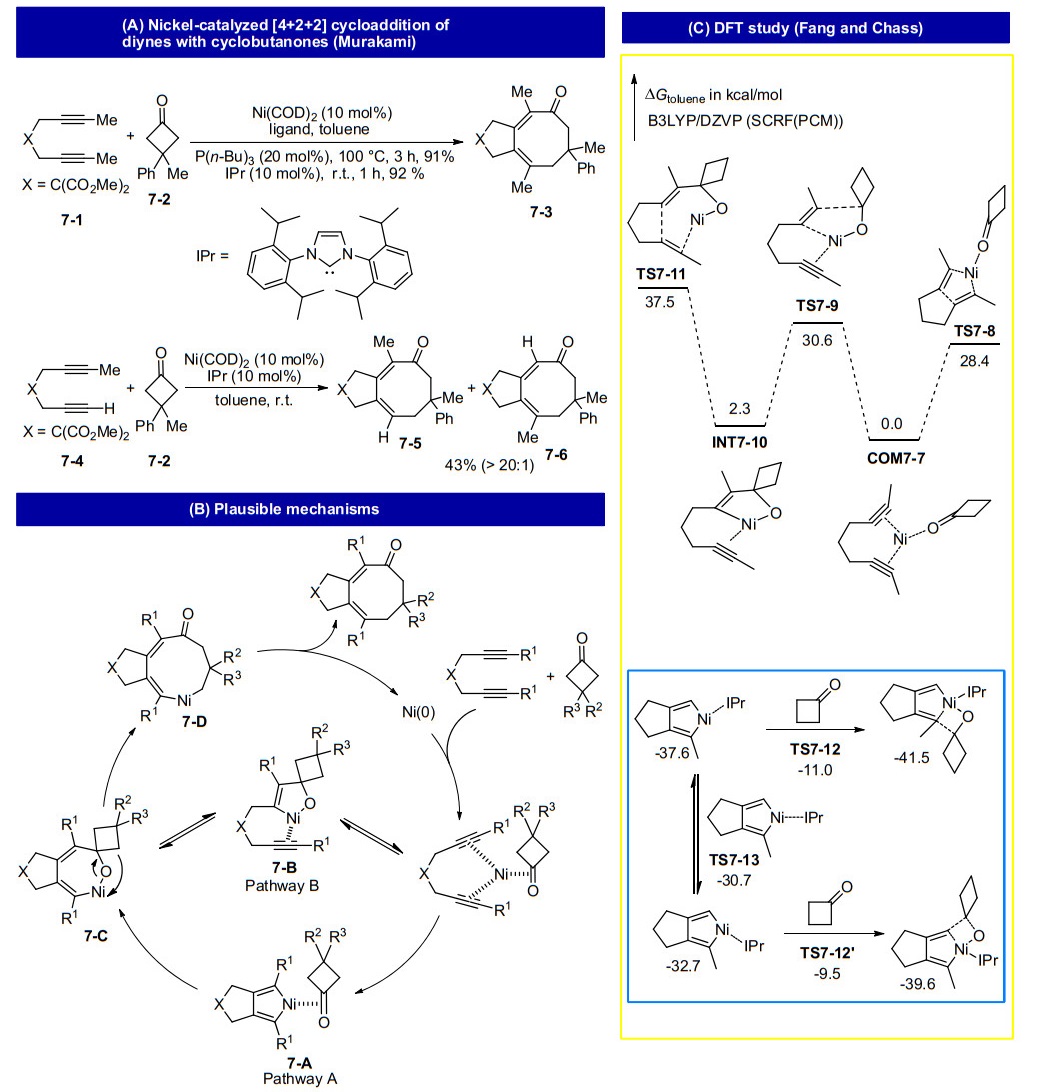

In 2006, Murakami and coworkers reported a nickel-catalyzed [4+2+2] cycloaddition of diynes with cyclobutanones (Scheme 7, A). They found that both the N-heterocyclic carbene (NHC) ligand IPr and phosphine ligand P(n-Bu)3 were effective for most substrates, with the former being better than the latter in terms of reactivity and selectivity. The authors proposed two plausible mechanisms for their [4+2+2] reaction, which are presented in Figure 7B. In 2012, Fang, Chass, and coworkers did DFT calculations, indicating that pathway A is more favored than pathway B (Scheme 7, C). The rate-determining steps (RDS) were the formations of oxanickelacycloheptadiene intermediates for both phosphine and NHC ligands, but the latter is favored by 1.6 kcal•mol-1 in terms of activation free energy. The reason for this different reactivity is due to the strong stability of NHC-Ni complex with electron-density circuit in the structure that could reduce the overall energy of whole potential energy surface. The regiochemistry was also studied by DFT calculations, establishing that carbonyl group prefers to insert into the more substituted C—Ni bond (Scheme 7, C).

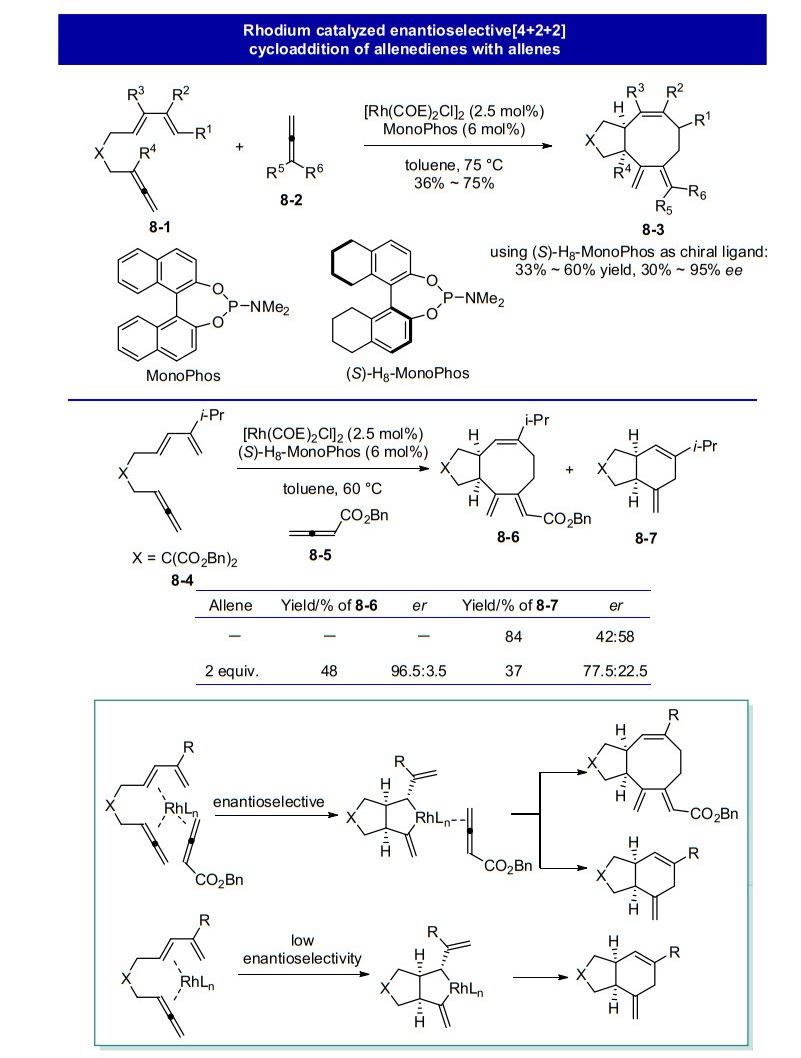

In 2015, Alexanian and coworkers developed a rhodium-catalyzed [4+2+2] cycloaddition of allenedienes 8-1 with allenes 8-2 that furnished fused cis-5/8 bicycles 8-3 (Scheme 8). The reactions proceeded smoothly in toluene at 75 ℃ by using 2.5 mol% [Rh(COE)2Cl]2 as the precatalyst and 6 mol% racemic MonoPhos as the ligand. Different kinds of substituents on allenedienes and allenes could be tolerated. Substrates containing different tether units (including C, N, O), substituents on the 1-, 2-, or 3-position of diene moieties and various functional groups can be tolerated and the corresponding cycloadducts were obtained in 36%~75% yields. Asymmetric version of this reaction was also achieved by using (S)-H8-MonoPhos as the chiral ligand, and the chiral cycloadducts were obtained in 30%~95% ee. This is the first example of a high enantioselective multicomponent cycloaddition for the synthesis of medium ring carbocycles. A [4+2] cycloaddition occurred as a side reaction when using chiral ligand and the authors found that allene 8-5 played an important role in this side reaction. The [4+2] cycloaddition proceeded in good yields without the presence of allene 8-5, but the enantioselectivity was poor in this case, suggesting that allenes were involved in the enantioselectivity determining step in both the [4+2+2] and [4+2] reactions when it was presented in the reaction system (Scheme 8).
In 2002, Gilbertson and coworkers reported the first [4+2+2] cycloaddition of dienynes with allenes catalyzed by a rhodium catalyst to afford bicyclic products containing an eight-membered carbocycle. In 2007, they expanded the scope of substrates for this reaction. In their work, the used catalyst was prepared by [Rh(NBD)Cl]2 (1.0 equiv.), (S, S)-Me-DuPhos (2.0 equiv.) and AgSbF6 (1.0 equiv.) (Scheme 9, A). The catalyst must be "aged" for the [4+2+2] cycloaddition. Even though this cycloaddition reaction was very effective, the exact composition of catalyst was not identified. This ambiguity prevented the authors from improving the reactivity and selectivity of the [4+2+2] reaction. In 2014, the authors again screened various ligands, finding that a rhodium-biphosphine monoxide complex 9-1 (Scheme 9, B), which was isolated and characterized by both NMR and single X-ray diffraction, was an effective catalyst for the [4+2+2] cycloaddition of dienynes with alkynes. This new catalyst 9-1 was very active because both acyclic and cyclic dienynes were proved to be successful substrates for the cycloaddition, even tricyclic cycloadduct from substrate 9-7 could also be generated in 97% yield (Scheme 9, B). If the third component of alkyne was absent in the reaction, a dimerization product 9-6 from dienyne substrate 9-5 was observed, in which one dienyne acted as the six-carbon synthon and another as the two-carbon synthon. A cross-cycloaddition occurred when extra terminal alkynes or acetylenes were added to the reaction system. Internal alkynes would not participate in this reaction. When a chiral rhodium catalyst, [(Rh(NBD)(S, S)-Me-BozPhos)]SbF6, was used, the enantioselectivity of this reaction was modest (ca. 30% ee), but diastereomeric ratio of this reaction was pretty good, which was higher than 20:1. A general mechanism, which includes ligand exchange, oxidative cyclometallation, alkyne coordination, insertion and reductive elimination, was proposed by the authors (Scheme 9, C).

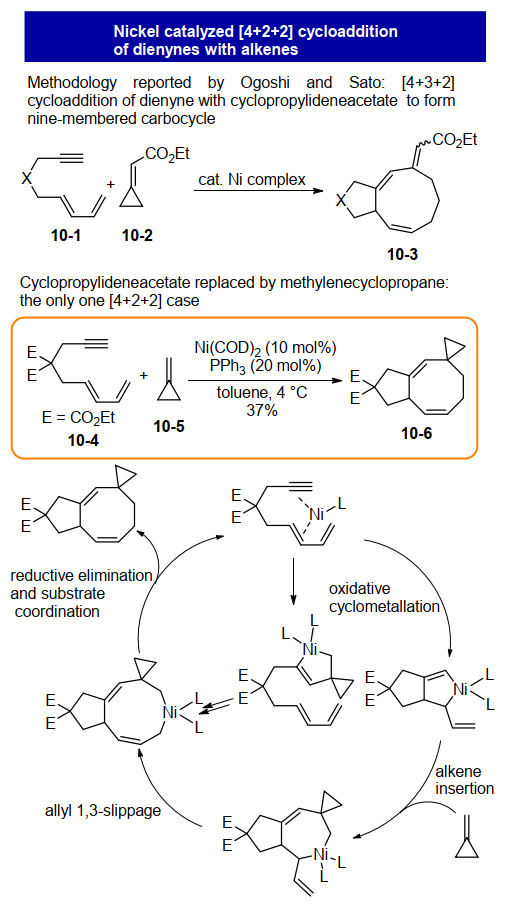

[4+2+2] cycloadditions of enynes with dienes,  dienynes with alkynes, [39-40] trienes with alkynes and diynes with dienes have been reported. In 2013, Ogoshi, Sato, and coworkers discovered the first case of [4+2+2] cycloaddition of dienyne 10-4 with methylenecyclopropane 10-5 (Scheme 10). In their study, nickel-catalyzed [4+3+2] cycloaddition of ethyl cyclopropylideneacetate 10-2 with dienyne 10-1 was achieved to form nine-mem- bered carbocycle 10-3, and only in one case eight-mem- bered ring compound was observed. When 1, 8-dienyne substrate and methylenecyclopropane (10.0 equiv.) were treated in toluene at 4 ℃, by using Ni(COD)2 (10 mol%) and PPh3 (20 mol%) as catalyst, cycloadduct 10-6 containing eight-membered ring was generated, even though the yield was only 37%. The authors proposed two plausible mechanisms for this [4+2+2] cycloaddition, and pathway A (shown in black) was hypothesized to be more possible than pathway B (shown in blue).
4. (Formal) [5+3] cycloadditions

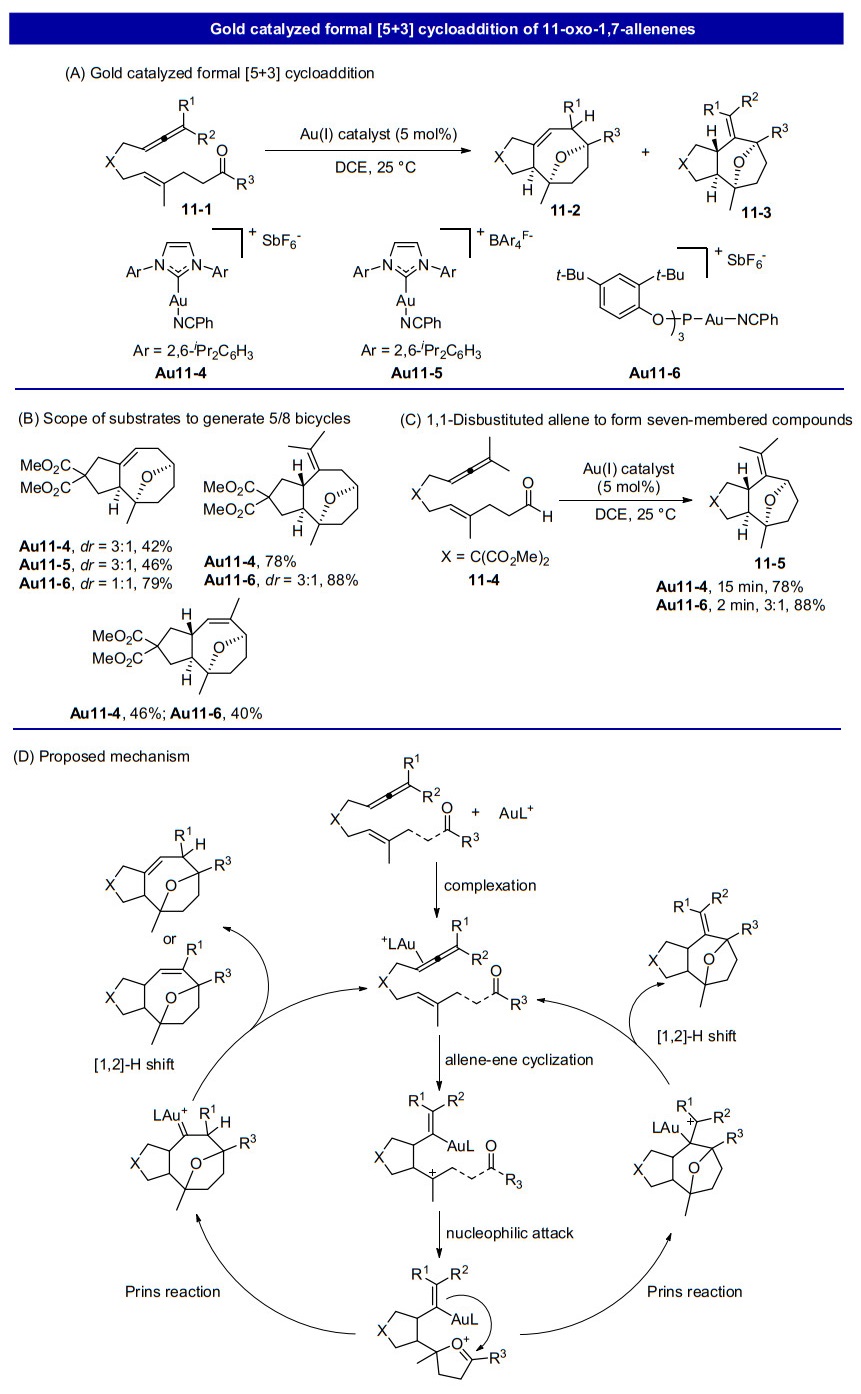

Compared with other types of cycloadditions, [5+3] cycloaddition was rarely reported. In 2016, Echavarren and coworkers reported a gold-catalyzed intramolecular hetero-[3+2+2] cycloaddition of 11-oxo-1, 7-allenenes 11-1 to build oxepane-embedded tricyclic molecules. Because three carbon atoms linked the alkene unit and carbonyl unit in the substrates, eight-membered carbocycles were generated at the same time. This reaction can be regarded as a formal "all carbon [5+3] cycloaddition" (Scheme 11, A). The substrates 11-oxo-1, 7-allenenes 11-1, when treated with 5 mol% gold catalyst (Au11-4, or Au11-5, or Au11-6) in DCM at 25 ℃, gave the corresponding tricyclic molecules in 40%〜87% yields (Scheme 11, B). Only in case of using substrate with 1, 1-dialkyl-substituted allene, seven-membered ring compound 11-5 was formed (Scheme 11, C). The authors proposed the plausible mechanism (Scheme 11, D). First, the alkene unit in the substrate attacks the gold-activated allene unit to generate carbocation. Then, the carbocation is trapped intra- or intermolecularly by a carbonyl group to form an oxonium cation, which is then followed by a selective Prins reaction to generate an oxo-bridged 5/8 or 5/7 intermediate. Finally, a [1, 2]-H shift of Au carbene gives the final product.
5. [6+2] cycloadditions
Since the first metal-mediated [6+2] cycloaddition of cycloheptatriene-iron tricarbonyl complex and dimethyl acetylenedicarbornate was reported by Pettit and coworkers in 1974,  [6+2] cycloadditions have been further developed for the synthesis of various eight-membered carbocycles. These reactions include cycloadditions of 1, 3, 5- trienes, such as cycloheptatriene (CHT), cyclooctatriene (COT), and cyclooctatetraene (COTT) with alkenes, alkynes and allenes. Different metals could catalyze this transformation, such as Fe, Ti, Mo, Cr, Co and Pt. In the past ten years, D'yakonov and coworkers did a series of investigations and developed several [6+2] cycloadditions of different trienes and trienophiles.

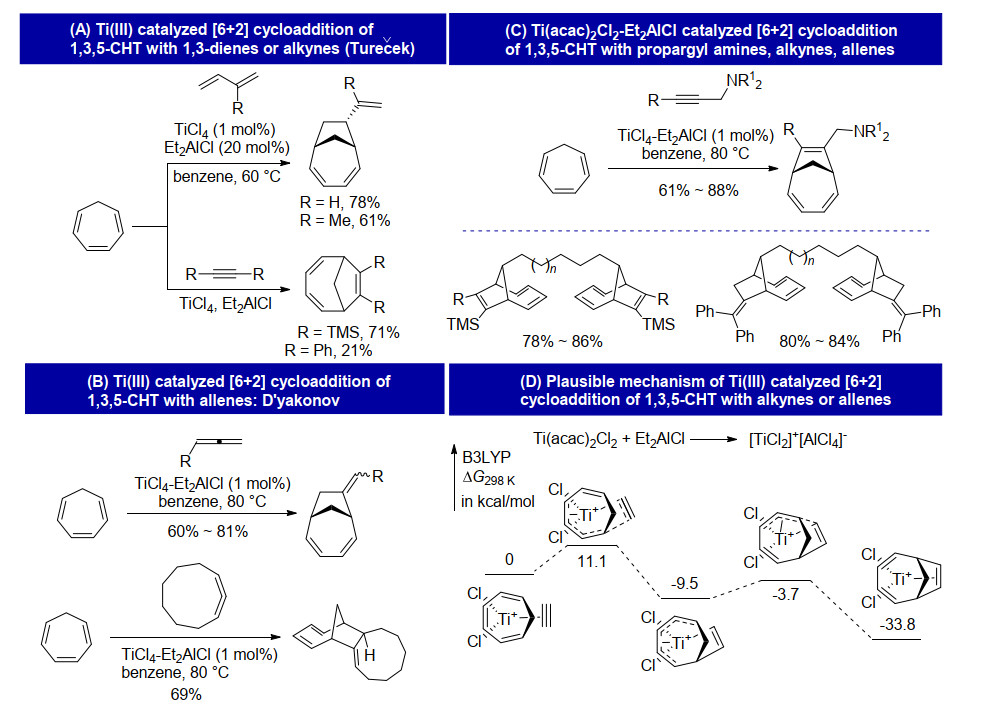

The combination of TiCl4-Et2AlCl was proved to be efficient for catalyzing [6+2] cycloadditions of 1, 3, 5-CHT with 1, 3-dienes, norborna-2, 5-dienes, and acetylenes, as reported by Tureček and coworkers (Scheme 12, A). In 2011, D'yakonov used the same catalytic system to achieve the cycloaddition of 1, 3, 5-CHT with allenes (Scheme 12, B). The authors investigated the scope of substrates, finding that both 1-substituted allenes and 1, 1-disubstituted allenes could give the desired [6+2] cycloadducts when reacted with CHT. It is worthy to mention that, cyclic allenes worked well for this reaction, generating the corresponding fused bicyclic products containing an eight-membered ring. Besides, α, ω-diallenes and α, ω- diynes could also react with 1, 3, 5-CHT to afford bis(endo- bicyclo[4.2.1]nona-2, 4-dienes) and bis(trimethylsilyl-endo- bicyclo[4.2.1]nona-2, 4, 7-trienes) with polymethylene linkers.
In 2013, D'yakonov and coworkers improved this [6+2] transformation (Scheme 12, C). Ti(acac)2Cl2 or (RO)2TiCl2 was used to replace TiCl4, and the reaction became more efficient, as judged by their observations that not only allenes, but also disubstituted acetylenes, propargyl amines, norbornadienes, and isoprene could be employed as two-carbon synthons in the [6+2] cycloadditions. It should be noted that, only Ti(acac)2Cl2-Et2AlCl could catalyze the [6+2] cycloaddition of 1, 3, 5-CHT with propargyl amines. TiCl4 or (RO)2TiCl2 as catalyst in combination with the organoaluminum reducing agents cannot give the desired cycloadducts for this [6+2] reaction. In the follow-up work, the authors studied the scope of substrates of this reaction and proposed a plausible mechanism based on their DFT calculations (Scheme 12, D). Firstly, the Ti(Ⅳ) is reduced by organoaluminum to generated TiCl2+, a Ti(Ⅲ) species. Then, oxidative cyclometallation of CHT-Ti coordinated complex with alkyne or allene takes place. After that, reductive elimination reaction gives rise to the cycloadduct-Ti(Ⅲ) complex. Finally, ligand exchange reaction releases the product and catalyst which then enters the next catalytic cycle.

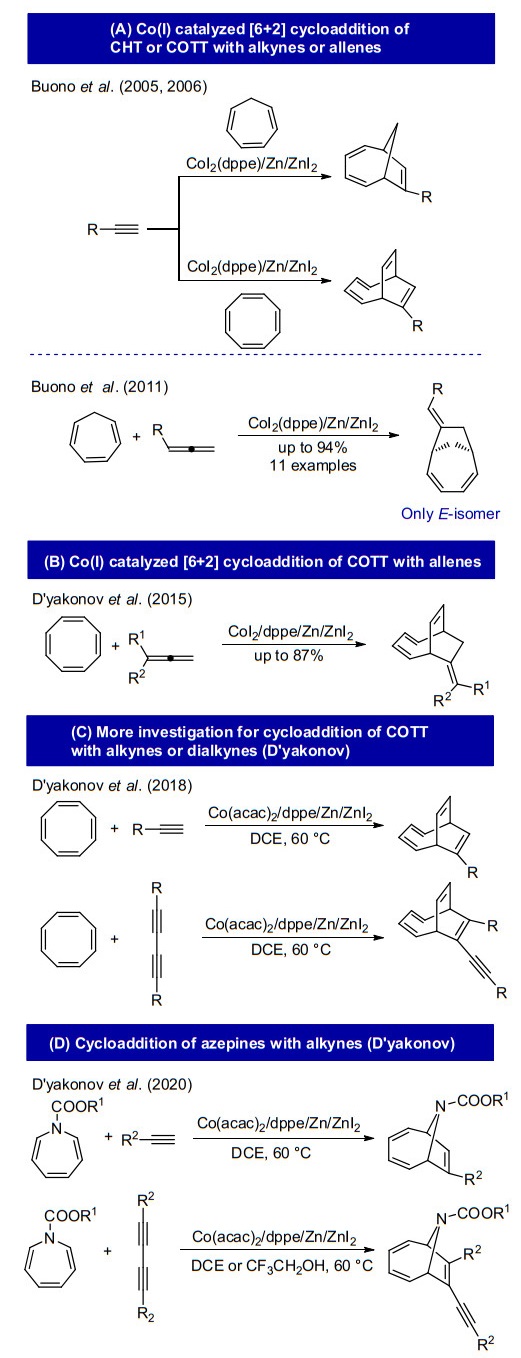

Not only Ti catalyst but also cobalt complex could catalyze [6+2] cycloadditions of CHT with unsaturated carbon-carbon bonds (Scheme 13). In 2005, Buono and coworkers reported the first cobalt-catalyzed [6+2] cycloaddition of CHT with alkynes to construct eight-membered carbocycles. A catalytic system consisting of CoI2(dppe), Zn and ZnI2 was used to realize the reaction. A Co(Ⅰ) species, which was generated from the reduction of Co(Ⅱ) by Zn, was proposed as the active catalyst. In 2006, they reported similar cycloadditions that COTT or COT could react with alkynes to give bicyclo[4.2.2]deca- 2, 4, 7, 9-tetra(tri)enes. By using the same catalytic system, Buono et al. realized the cycloaddition of CHT with allene in 2011. In this case, only E-isomers were observed in the reaction (Scheme 13, A).
Inspired by Buonos' work, D'yakonov and coworkers expanded the scope of substrates. In 2015 and 2016, they reported the [6+2] cycloaddition of COTT with allenes under the same conditions as that reported by Buono in 2005 (Scheme 13, B). The reaction gave the corresponding products in good yields. In 2018, D'yakonov et al. disclosed more results about [6+2] cycloaddition of COTT with alkynes (or diynes) catalyzed by Co(Ⅰ). In this work, Co(acac)2 was used to replace CoI2 (Scheme 13, C). In 2020, [6+2] cycloaddition of azepines with alkynes or dialkynes was also reported (Scheme 13, D).
In 2011, Sato and coworkers reported an intramolecular rhodium-catalyzed [6+2] cycloaddition of 4-allenals with alkynes or alkenes (Scheme 14, A). When the substrate, alkyne-4-allenal 14-1 was treated with 10 mol% [Rh(IMes)(COD)]ClO4, the [6+2] cycloaddition occurred to generate 5/8 product 14-2 or 6/7 product 14-3, or both, depending on the reaction conditions. It was also found that cyclization of enantiomerically enriched (S)-14-1 (94% ee) gave cyclic ketone derivative (S)-14-2 in a high yield, with reasonable chirality transfer from substrate to product (86% ee). A plausible mechanism was proposed by the authors (Scheme 14, B). First, intermediate 14-C is formed through a Rh(Ⅰ)-catalyzed hydroacylation. Then intermediate 14-E is generated by a π-allyl slippage. Finally, alkyne or alkene insertion and reductive elimination take place to give the final bicyclic product. In 2012, Sato et al. developed an intermolecular version of this [6+2] cycloaddition by applying [Rh(SIMes)(COD)]ClO4 instead of [Rh(IMes)-(COD)]ClO4 as the catalyst, and more than 20 substrates underwent the desired reactions in good reaction yields (Scheme 14, C).

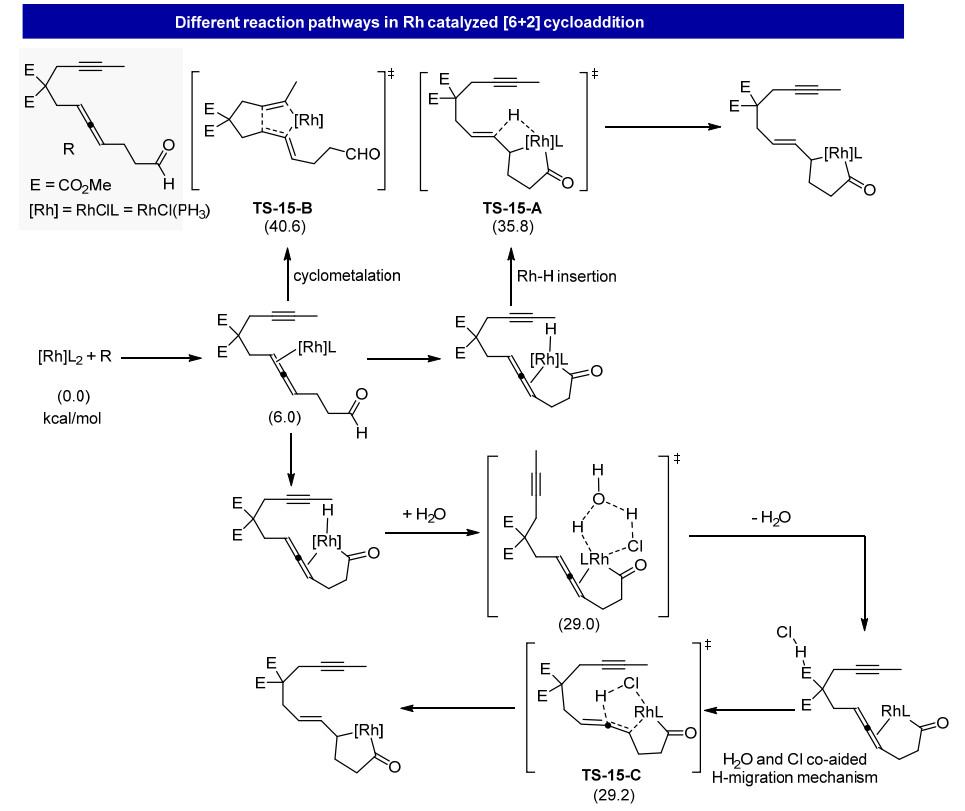

In 2014, Bi and coworkers proposed a new mechanism based on their DFT calculations (Scheme 15). Their DFT calculations were initially planned to investigate the regioselectivity of Sato's [6+2] reaction: when Rh(PPh3)3Cl was used, the product was 5/8 bicycle, whereas using Rh(dppe)ClO4 as the catalyst, 6/7 bicycle was the only product formed (Scheme 14, A). The DFT results showed that, when Rh(PPh3)3Cl was used as the catalyst, the overall activation barrier was 35.8 kcal•mol-1, which is too high for this reaction to occur. A new mechanism involving H-migration from the metal to allenic carbon was then proposed by Bi and coworkers, but the overall activation barrier from R+RhL2 to TS15-B was also as high as 40.6 kcal•mol-1. Therefore, Bi and coworkers proposed that a trace amount of water in the solvent could aid H-migration to reduce the activation energy, which was inspired by studies of Yu and other researchers' of water-catalyzed proton shift mechanisms. DFT results showed that, the new mechanism, in which H2O and Cl both act as the mediators to help the hydrogen transfer is reasonable. As shown in Scheme 15, the overall barrier via TS-15-C is 29.2 kcal•mol-1. Besides, the authors discovered that a trace amount of water also played an important role for the formation of 6/7 bicycles when the Rh(dppe)ClO4 was used as catalyst. More details of mechanistic insights can be found in their original study.

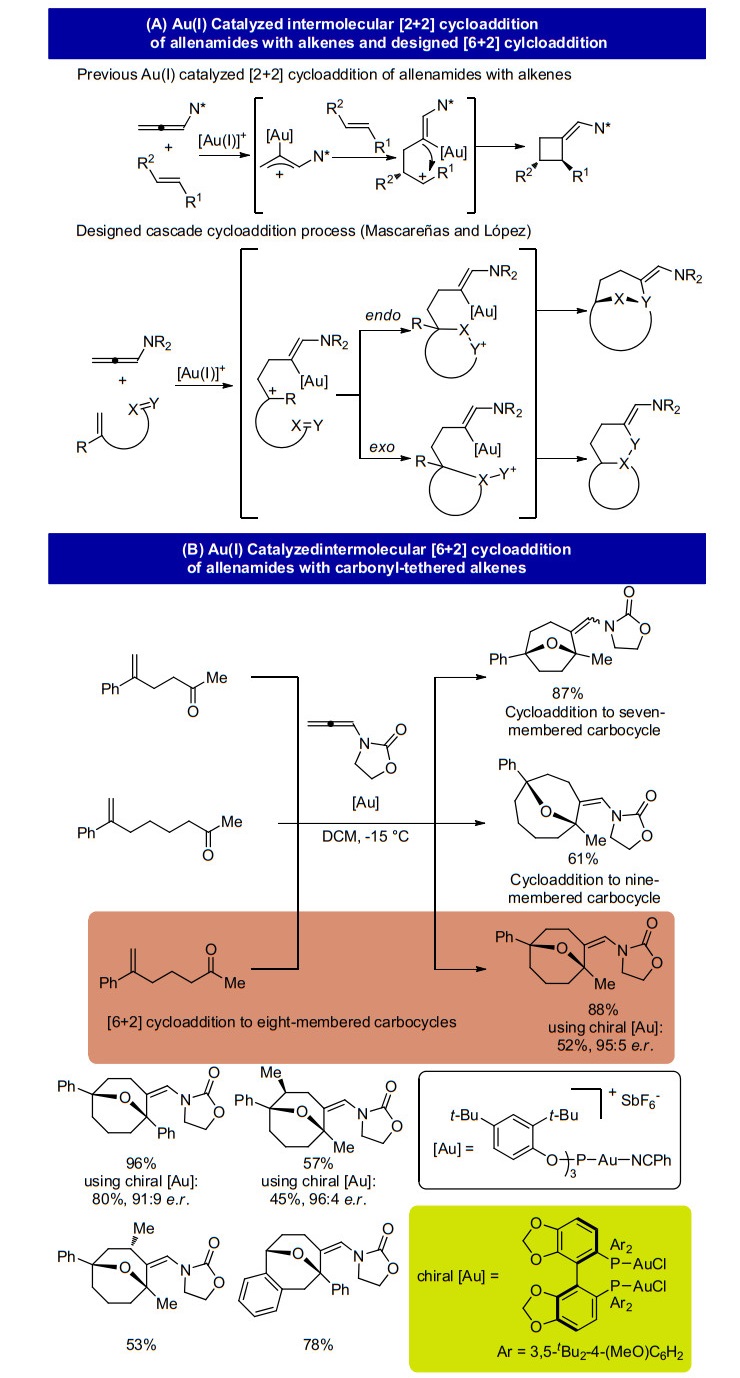

In 2013, Mascareñas, López, and coworkers reported a gold(Ⅰ)-catalyzed intermolecular formal [6+2] cycloaddition of allenamides with carbonyl-tethered alkenes. Inspired by previously reported gold-catalyzed [2+2] cycloaddition of allenamides with alkenes,  the authors designed a cascade cycloaddition process (Scheme 16, A). It is proposed that the allenamide is activated by Au(Ⅰ), which is followed by alkene addition. Then, a cascade cyclization leads to the final oxa-bridged medium-size carbocycles. The ring size in the product (seven-, eight- or nine- membered ring) is determined by the length of the linker between alkene moiety and carbonyl moiety. When the alkene and carbonyl is tethered by three carbons, a formal [6+2] cycloaddition occurs, giving the corresponding eight-membered carbocycles in good yields. When a chiral gold catalyst was used, this reaction was developed to its asymmetric version (Scheme 16, B).

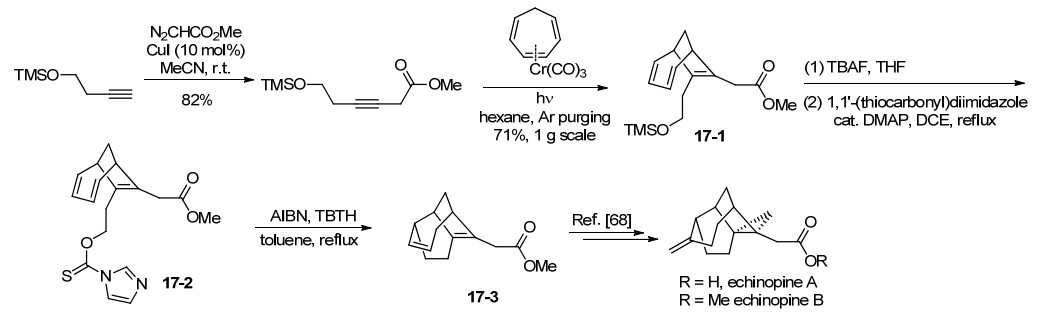

In addition to the above mentioned reaction development for metal-catalyzed [6+2] cycloadditions, there was also an application of a previous [6+2] reaction in natural product synthesis. Since 1991, Rigby and coworkers developed several Cr-involved [6+2] cycloadditions of CHT with alkynes to synthesize bridged eight-membered carbocycles and applied them to natural product synthesis. In 2015, Misra, Rigby and coworkers reported a formal synthesis of Echinopines A and B by using [6+2] cycloaddition of Cr(CO)3-CHT with alkyne as a key step to synthesize 17-1 with the [4.2.1] bicyclic skeleton (Scheme 17). Then a sequential radical cyclization process was used to reach 17-3, from which the final natural products could be synthesized by using literature transformations.
6. [7+1] cycloadditions

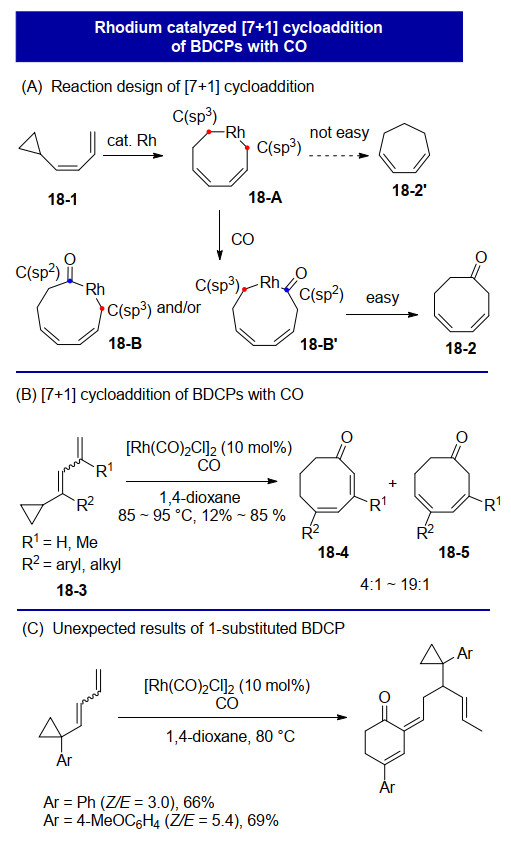

In 2011, Yu and coworkers developed the first [7+1] cycloaddition of buta-1, 3-dienylcycloprapnes (BDCPs) 18-3 with carbon monoxide to construct substituted cyclooctadienones 18-4 and 18-5, by using [Rh(CO)2Cl]2 as the catalyst (Scheme 18). This work was inspired by rhodium catalyzed [5+2+1] cycloaddition of ene-vinyl- cyclopropanes (ene-VCPs) with carbon monoxide, which was also discovered by the Yu group in 2007. They proposed that BDCPs undergoes cyclometallation and C-C cleavage of the cyclopropane to give eight-membered rhodacycle 18-B. Then CO insertion and reductive elimination give rise to the [7+1] products. As expected, when BDCPs 18-3 were treated with [Rh(CO)2Cl]2 (10 mol%) in 1, 4-dioxane at 85~95 ℃ under carbon monoxide atmosphere, the corresponding eight-membered cycloadducts were generated. In the [7+1] cycloaddition, the conjugated products 18-4 were the major products, which were isomerized from the initially generated non-conjugated products 18-5 from the [7+1] cycloaddition, as shown by the proposed mechanism in Scheme 18. It was noteworthy that 1-substituted BDCPs did not give the [7+1] cycloadducts but generated substituted cyclohexenones, which were generated from the [5+1] cycloaddition of the VCP moiety of BDCPs with carbon monoxide.

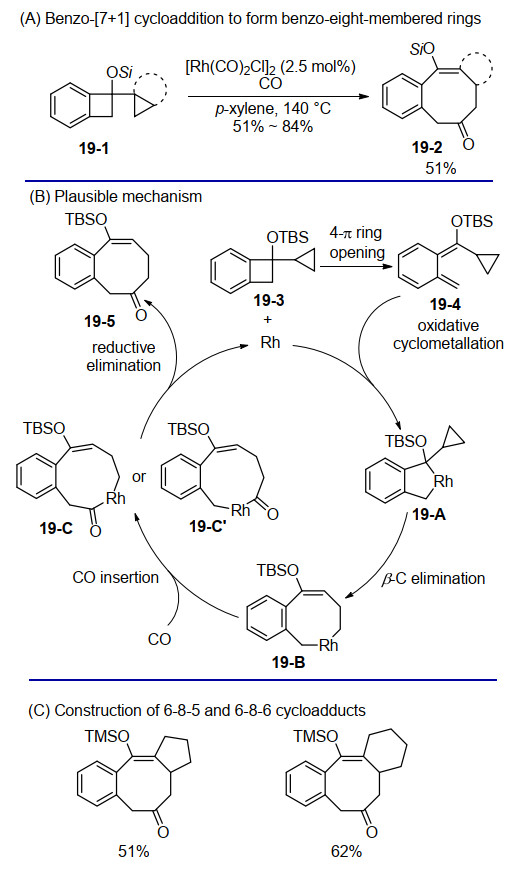

In 2014, Yu and coworkers developed a rhodium-catalyzed benzo-[7+1] cycloaddition (Scheme 19). They proposed that cyclopropyl-benzocyclobutenes (CP-BCBs) 19-1 can be converted under high temperature to BDCP intermediates, which could then undergo [7+1] cycloaddition, as the same as that shown in Scheme 18.They proposed that the resulting BDCP 19-4, resulting from 19-3 by 4-π electrocyclic ring-opening, first undergoes rhodium-mediated cyclization to form rhodacyclopentane 19-A. Then, a benzorhodacyclooctene species 19-B is generated through a, β-carbon elimination. The final cycloadduct 19-5 can then be generated through carbon monoxide insertion into the C-Rh bond and reductive elimination. The reaction was efficient to generate aryl fused eight-membered ring compounds in high yields. Both 6/8/5 and 6/8/6 tricyclic molecules could also be obtained in moderate yields by this reaction.
7. [5+2+1] cycloadditions

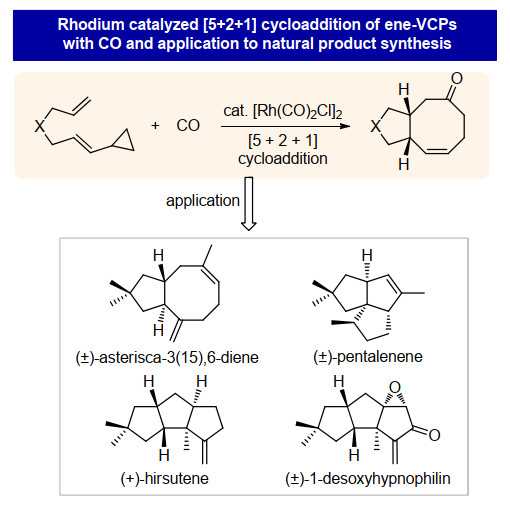

Wender and coworkers reported the first three- component [5+2+1] cycloaddition of VCPs, alkynes, and CO to form eight-membered carbocycle in 2002. In 2007, Yu and coworkers developed computationally and experimentally a two-component [5+2+1] cycloaddition of ene-VCPs with CO by using rhodium catalyst, which can be applied to the construction of cis-5/8 bicycles, trans-6/8 bicycles, 5/8/5 and 6/8/5 tricycles (Scheme 20). This reaction has great potential in synthesizing various eight-membered carbocycles, considering that this reaction provides two common functional groups for further transformations, the alkene and carbonyl groups, in the final cycloadducts. This reaction has been applied in the synthesis of several natural products by Yu and coworkers,  including asterisca-3(15), 6-diene,  pentalenene,  hirsutene and 1-desoxylhypnophilin. Since 2010, Yu and coworkers completed another two syntheses of natural products by using [5+2+1] cycloaddition as the key reaction, which are illustrated in what follows.

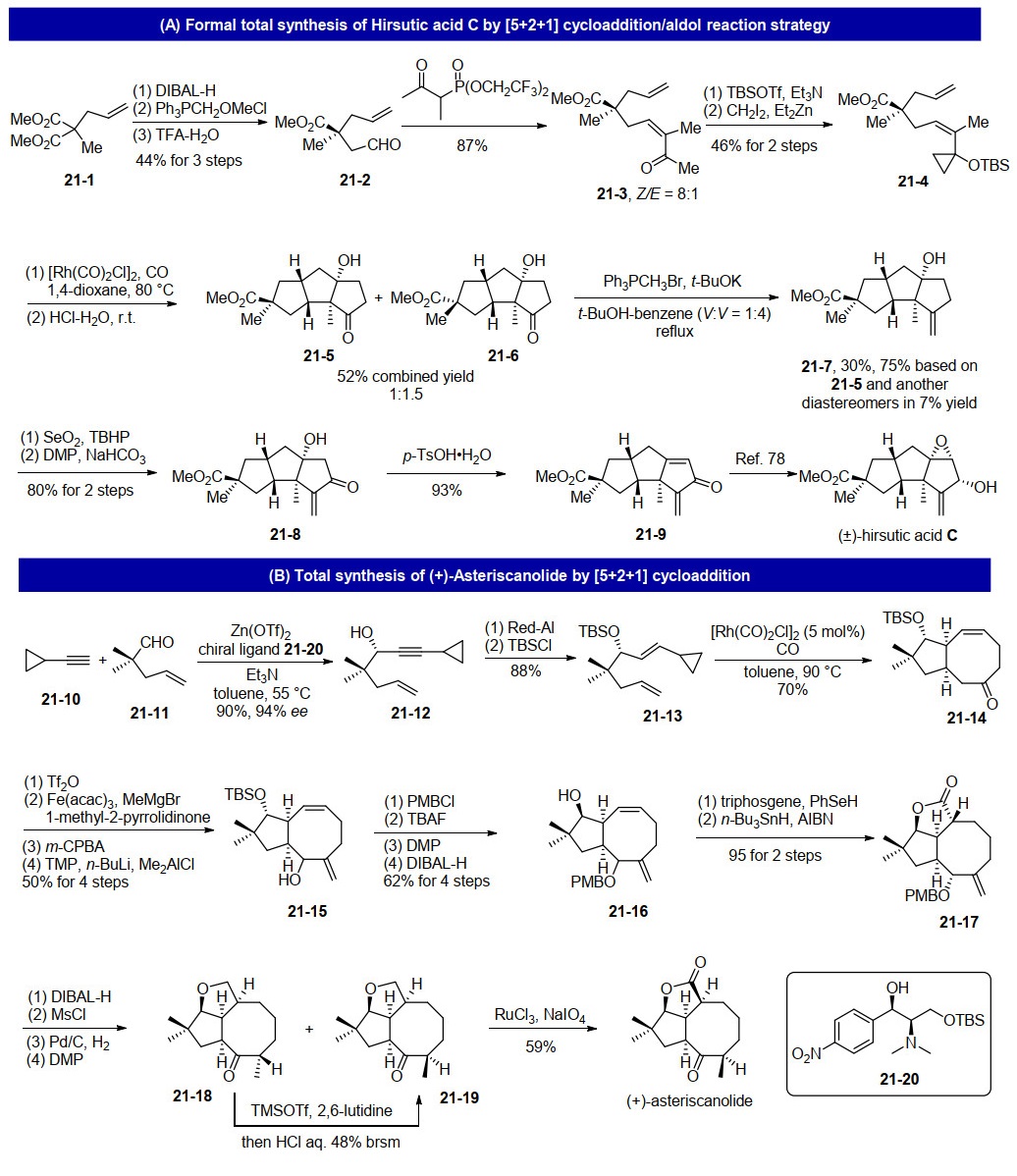

In 2010, Yu and coworkers reported a formal synthesis of hirsutic acid C (Scheme 21, A). An efficient tandem Rh-catalyzed [5+2+1] cycloaddition/intramolecular aldol reaction successfully took place to generate the fused 5/5/5 cycloadduct 21-5 (and 21-6) possessing triquinane skeleton from a linear substrate. Compound 21-5 was converted to 21-7 through a Wittig reaction. Allylic oxidation of 21-7 using SeO2 and DMP, introduced a carbonyl group to the 5/5/5 tricyclic intermediate. Then dehydrogenation of 21-8 to form 21-9 was realized by adding TsOH, achieving the formal synthesis of hirsutic acid C, because compound 21-9 can be converted to the final natural product, as demonstrated by Schuda et al., Ikegami et al., and Banwell et al.
In 2011, Yu and coworkers reported the asymmetric total synthesis of (+)-asteriscanolide using rhodium-catalyzed [5+2+1] cycloaddition of ene-VCPs with CO as the key step (Scheme 21, B). Chiral substrate 21-13 could be synthesized in 3 steps from easily accessible starting compounds. Then cis-5/8 bicycle 21-14 was generated in 70% yield by a [5+2+1] cycloaddition. Compound 21-15 was synthesized from 21-14 in 4 steps, including enol trifluo- romethanesulphonylation, coupling reaction, epoxidation, and ring opening of epoxide under basic conditions. Stereochemical inversion of hydroxyl group was achieved through an oxidation-reduction sequence. Then, compound 21-16 was treated with triphosgene and PhSeH to afford a selenocarbonate, which then via a radical cyclization gave the lactone 21-17. Unfortunately, this intermediate has an opposite carbon configuration compared with that in the target natural product. Due to this, the authors had to apply a reduction-dehydration-hydrogenation strategy to invert this wrong stereochemistry. Finally, RuCl3-NaIO4 oxidized the C-H bond of one methylene moiety of 21-19 to a carbonyl group, completing the asymmetric total synthesis of (+)-asteriscanolide.
8. Conclusions and perspectives
Here we summarize the progresses in the last ten years about the development of new transition-metal-catalyzed cycloadditions for the synthesis of eight-membered carbocycles, together with the applications of the previously established metal-catalyzed cycloadditions in the synthesis of natural products. It is clearly evident from these progresses that more extensive research is required in this area.
Firstly, only a limited number of new cycloaddition reactions have been developed during this period for the synthesis of eight-membered carbocycles. In principle, various eight-membered carbocycle embedded molecules, which can be either already known molecules or the probable molecules to be discovered in the future, can be synthesized by using the reactions reported in this review and the previous review. But some molecules could have either skeletons, or substitutions, or stereochemistry that cannot be matched by the known cycloaddition reactions. Consequently, many tedious functional group transformations have to be performed and this leads to low efficiency of synthesis. In our opinions, developing more new cycloaddition reactions is critical to overcome these challenges so that synthesis of any molecules with eight-membered carbocycles, with consideration of atom and step-economy as well as green chemistry, can be realized.
Secondly, applications of the transition-metal-catalyzed cycloadditions in the total synthesis of natural products and pharmaceuticals are few so far. There are many challenges in the synthesis of complex natural products. But usually building the skeleton of the target molecule is the most difficult step. The transition-metal-catalyzed cycloadditions in many cases could provide the most straightforward ways to the target frameworks. This means that combining these reactions with others could provide new and creative strategies for shortening the synthesis. We encourage more leading chemists to use the transition-metal-catalyzed cycloadditions in synthesis of biologically active natural products.
Before concluding this review, we would like to mention our thoughts on further development of transition-metal- catalyzed cycloadditions for the eight-membered carbocycle synthesis, which could be helpful to chemists in the frontiers of reaction development. One is to design and try more combination of various carbon synthons, transition metals, and ligands. Figure 1 lists some of the carbon synthons in cycloadditions. Furthermore, chemists need to develop more new carbon synthons to fill in Figure 1 so that many new combinations of carbon synthons, metals, ligands can be created and more possibilities to find new reactions can be realized. Certainly, serendipity is another opportunity to this aim, and we believe that many cycloaddition reactions will come out from hard-working and adventurous chemists in this field.
Dedicated to the 40th anniversary of Chinese Journal of Organic Chemistry and 70th anniversary of the Shanghai Institute of Organic Chemistry, Chinese Academy of Sciences.
(a) Petasis, N. A.; Patane, M. A. Tetrahedron 1992, 48, 5757.
(b) Mehta, G.; Singh, V. Chem. Rev. 1999, 99, 881.
(c) Yet, L. Chem. Rev. 2000, 100, 2963.
Suffness, M. Taxol:Science and Applications, CRC Press, Boca Raton, FL, 1995. http://www.cabdirect.org/abstracts/19950316216.html
(a) Tang, Y.-Z.; Liu, Y.-H.; Chen, J.-X. Mini-Rev. Med. Chem. 2012, 12, 53.
(b) Shang, R.; Wang, J.; Guo, W.; Liang, J. Curr. Top. Med. Chem. 2013, 13, 3013.
(c) Goethe, O.; Heuer, A.; Ma, X.; Wang, Z.; Herzon, S. B. Nat. Prod. Rep. 2019, 36, 220.
(a) Armanino, N.; Charpentier, J.; Flachsmann, F.; Goeke, A.; Liniger, M.; Kraft, P. Angew. Chem., Int. Ed. 2020, 59, 16310.
(b) Kraft, P.; Bajgrowicz, J. A.; Denis, C.; Fráter, G. Angew. Chem., Int. Ed. 2000, 39, 2980.
(c) Birkbeck, A. A. Challenges in the Synthesis of Natural and Non-Natural Volatiles. In The Chemistry and Biology of Volatiles, Ed.: Herrmann, A., John Wiley & Sons, Ltd., New York, 2010, pp. 173~193.
(d) Vesley, J. A.; Massie, S. N. US 3985769, 1976.
(e) Markert, T. WO 99/54430, 1998.
(f) Fráter, G.; Bajgrowicz, J. A.; Kraft, P. Tetrahedron 1998, 54, 7633.
(g) Granier, T.; Bajgrowicz, J. A.; Hanhart, A. US 7888309, 2011.
(a) Martinez, H.; Ren, N.; Matta, M. E.; Hillmyer, M. A. Polym. Chem. 2014, 5, 3507.
(b) Hill, A. R.; Balogh, J.; Moncho, S.; Su, H.-L.; Tuba, R.; Brothers, E. N.; Al-Hashimi, M.; Bazzi, H. S. J. Polym. Sci., Part A: Polym. Chem. 2017, 55, 3137.
For selected reviews for Diels-Alder reaction in synthesis, see:
(a) Nicolaou, K. C.; Snyder, S. A.; Montagnon, T. Vassilikogiannakis. G. Angew. Chem., Int. Ed. 2002, 41, 1668.
(b) Takao, K.-I.; Munakata, R.; Tadano, K.-I. Chem. Rev. 2005, 105, 4779.
(c) Wessig, P.; Müller, G. Chem. Rev. 2008, 108, 2051.
(d) Funel, J.-A.; Abele, S. Angew. Chem., Int. Ed. 2013, 52, 3822.
(e) Jiang, X.; Wang, R. Chem. Rev. 2013, 113, 5515.
(f) Heravi, M. M.; Vavsari, V. F. RSC Adv. 2015, 5, 50890.
(g) Yang, B.; Gao, S. Chem. Soc. Rev. 2018, 47, 7926.
(h) Tasdelen, M. A. Polym. Chem. 2011, 2, 2133.
Selected reviews for metal-catalyzed[4+2] reactions:
(a) Reymond, S.; Cossy, J. Chem. Rev. 2008, 108, 5359.
(b) Carmona, D.; Lamata, M. P.; Oro, L. A. Coord. Chem. Rev. 2000, 200~202, 717.
(c) Wender, P. A.; Smith, T. E. Tetrahedron 1998, 54, 1255.
(d) Frühauf, H.-W. Chem. Rev. 1997, 97, 523.
(e) Kagan, H. B.; Riant, O. Chem. Rev. 1992, 92, 1007.
(f) Robinson, J. E. Modern Rhodium-Catalyzed Organic Reactions; Ed.: Evans, P. A., Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany, 2005, pp. 241~262.
(a) Ben-Shoshan, R.; Sarel, S. J. Chem. Soc. D 1969, 883.
(b) Victor, R.; Ben-Shoshan, R.; Sarel, S. Tetrahedron Lett. 1970, 4253.
(c) Sarel, S. Acc. Chem. Res. 1978, 11, 204.
(d) Aumann, R. J. Am. Chem. Soc. 1974, 96, 2631.
(e) Taber, D. F.; Kanai, K.; Jiang, Q.; Bui, G. J. Am. Chem. Soc. 2000, 122, 6807.
(f) Taber, D. F.; Joshi, P. V.; Kanai, K. J. Org. Chem. 2004, 69, 2268.
(g) Kurahashi, T.; de Meijere, A. Synlett 2005, 2619.
(h) Iwasawa, N.; Owada, Y.; Matsuo, T. Chem. Lett. 1995, 115.
(i) Owada, Y.; Matsuo, T.; Iwasawa, N. Tetrahedron 1997, 53, 11069.
(j) Murakami, M.; Itami, K.; Ubukata, M.; Tsuji, I.; Ito, Y. J. Org. Chem. 1998, 63, 4.
(k) Shu, D.; Li, X.; Zhang, M.; Robichaux, P. J.; Tang, W. Angew. Chem., Int. Ed. 2011, 50, 1346.
(l) Grabowski, N. A.; Hughes, R. P.; Jaynes, B. S.; Rheingold, A. L. J. Chem. Soc., Chem. Commun. 1986, 1694.
(m) Cho, S. H.; Liebeskind, L. S. J. Org. Chem. 1987, 52, 2631.
(n) Semmelhack, M. F.; Ho, S.; Steigerwald, M.; Lee, M. C. J. Am. Chem. Soc. 1987, 109, 4397.
(o) Brancour, C.; Fukuyama, T.; Ohta, Y.; Ryu, I.; Dhimane, A.-L.; Fensterbank, L.; Malacria, M. Chem. Commun. 2010, 46, 5470.
(p) Jiang, G.-J.; Fu, X.-F.; Li, Q.; Yu, Z.-X. Org. Lett. 2012, 14, 692.
(q) Li, X.; Song, W.; Tang, W. J. Am. Chem. Soc. 2013, 135, 16797.
(r) Fukuyama, T.; Ohta, Y.; Brancour, C.; Miyagawa, K.; Ryu, I.; Dhimane, A.-L.; Fensterbank, L.; Malacria, M. Chem.-Eur. J. 2012, 18, 7243.
(s) Farley, C. M.; Sasakura, K.; Zhou, Y.-Y.; Kanale, V. V.; Uyeda, C. J. Am. Chem. Soc. 2020, 142, 4598.
(a) Jiao, L.; Lin, M.; Zhuo, L.-G.; Yu, Z.-X. Org. Lett. 2010, 12, 2528.
(b) Mazumder, S.; Shang, D.; Negru, D. E.; Baik, M.-H.; Evans, P. A. J. Am. Chem. Soc. 2012, 134, 20569.
(c) Kim, S.; Chung, Y. K. Org. Lett. 2014, 16, 4352.
(d) Wang, J.; Hong, B.; Hu, D.; Kadonaga, Y.; Tang, R.; Lei, X. J. Am. Chem. Soc. 2020, 142, 2238.
Selected reviews for metal-catalyzed[2+2+2] reactions:
(a) Vollhardt, K. P. C. Angew. Chem., Int. Ed. 1984, 23, 539.
(b) Chopade, P. R.; Louie, J. Adv. Synth. Catal. 2006, 348, 2307.
(c) Kotha, S.; Brahmachary, E.; Lahiri, K. Eur. J. Org. Chem. 2005, 4741.
(d) Domínguez, G.; Pérez-Castells, J. Chem. Soc. Rev. 2011, 40, 3430.
(e) Shibata, T.; Tsuchikama, K. Org. Biomol. Chem. 2008, 6, 1317.
(f) Li, C.; Zhang, H.; Feng, J.; Zhang, Y.; Wang, J. Org. Lett. 2010, 12, 3082.
(g) Shaw, M. H.; Melikhova, E. Y.; Kloer, D. P.; Whittingham, W. G.; Bower, J. F. J. Am. Chem. Soc. 2013, 135, 4992.
(a) Deiters, A.; Martin, S. F. Chem. Rev. 2004, 104, 2199.
(b) Grubbs, R. H.; Miller, S. J.; Fu, G. C. Acc. Chem. Res. 1995, 28, 446.
(c) Fürstner, A. Top. Catal. 1997, 4, 285.
(d) Donohoe, T. J.; Orr, A. J.; Bingham, M. Angew. Chem., Int. Ed. 2006, 45, 2664.
(e) Maier, M. E. Angew. Chem., Int. Ed. 2000, 39, 2073.
(f) Michaut, A.; Rodriguez, J. Angew. Chem., Int. Ed. 2006, 45, 5740.
Hu, Y.-J.; Li, L.-X.; Han, J.-C.; Min, L.; Li, C.-C. Chem. Rev. 2020, 120, 5910. doi: 10.1021/acs.chemrev.0c00045
(a) Liang, Y.; Jiang, X.; Yu, Z.-X. Chem. Commun. 2011, 47, 6659.
(b) Liang, Y.; Jiang, X.; Fu, X.-F.; Ye, S.; Wang, T.; Yuan, J.; Wang, Y.; Yu, Z.-X. Chem.-Asian J. 2012, 7, 593.
(a) Illuminati, G.; Mandolini, L. Acc. Chem. Res. 1981, 14, 95.
(b) Galli, C.; Mandolini, L. Eur. J. Org. Chem. 2000, 2000, 3117.
Lautens, M.; Klute, W.; Tam, W. Chem. Rev. 1996, 96, 49. doi: 10.1021/cr950016l
Yu, Z.-X.; Wang, Y.; Wang, Y. Chem.-Asian J. 2010, 5, 1072. doi: 10.1002/asia.200900712
(a) Reed, H. W. B. J. Chem. Soc. 1954, 1931.
(b) Ziegler, K.; Holzkamp, E.; Breil, H.; Martin, H. Angew. Chem. 1955, 67, 426.
Wender, P. A.; Ihle, N. C. J. Am. Chem. Soc. 1986, 108, 4678. doi: 10.1021/ja00275a085
Park, J. W.; Park, J. E.; Park, J. H.; Hong, M. R.; Kim, S. M.; Chung, Y. K.; Kim, C. H. Synlett 2016, 27, 455.
Llorente, N.; Fernández-Pérez, H.; Bauzá, A.; Frontera, A.; Vidal-Ferran, A. Catal. Sci. Technol. 2018, 8, 5251. doi: 10.1039/C8CY00684A
(a) tom Dieck, H.; Dietrich, J. Chem. Ber. 1984, 117, 694.
(b) tom Dieck, H.; Dietrich, J. Angew.Chem., Int. Ed. 1985, 24, 781.
(c) Mallien, M.; Haupt, E. T. K.; tom Dieck, H. Angew. Chem., Int. Ed. 1988, 27, 1062.
Lee, H.; Campbell, M. G.; Sánchez, R. H.; Börgel, J.; Raynaud, J.; Parker, S. E.; Ritter, T. Organometallics 2016, 35, 2923. doi: 10.1021/acs.organomet.6b00474
Kennedy, C. R.; Zhong, H. Y.; Macaulay, R. L.; Chirik, P. J. J. Am. Chem. Soc. 2019, 141, 8557. http://www.researchgate.net/publication/332911264_Regio-_and_Diastereoselective_Iron-Catalyzed_44-Cycloaddition_of_13-Dienes
(a) Braconi, E.; Götzinger, A. C.; Cramer, N. J. Am. Chem. Soc. 2020, 142, 19819.
(b) Baldenius, K.-U.; tom Dieck, H.; König, W. A.; Icheln, D.; Runge, T. Angew. Chem., Int. Ed. 1992, 31, 305.
Selected reviews for metal-catalyzed C-C bond activation of strained rings:
(a) Murakami, M.; Matsuda, T. Chem. Commun. 2011, 47, 1100.
(b) Ruhland, K. Eur. J. Org. Chem. 2012, 2012, 2683.
(c) Souillart, L.; Cramer, N. Chem. Rev. 2015, 115, 9410.
(d) Chen, F.; Wang, T.; Jiao, N. Chem. Rev. 2014, 114, 8613.
(e) Cleavage of Carbon-Carbon Single Bonds by Transition Metals, Eds.: Murakami, M.; Chatani, N., Wiley-VCH, Weinheim, Germany, 2016.
(f) Dong, G. C-C Bond Activation, In Topics in Current Chemistry, Eds.: Bayley, H.; Houk, K. N.; Hughes, G.; Hunter, C. A.; Ishihara, K.; Krische, M. J.; Lehn, J.-M.; Luque, R.; Olivucci, M.; Siegel, J. S.; Thiem, J.; Venturi, M.; Wong, C.-H.; Wong, H. N. C; You, S.-L.; Yam, V. W.-W.; Yan, C. Springer Verlag, Berlin and Heidelberg, Germany, 2014, DOI: 10.1007/978-3-642-55055-3.
(a) Evans, J. A.; Everitt, G. F.; Kemmitt, R. D. W.; Russell, D. R. J. Chem. Soc., Chem. Commun. 1973, 158.
(b) Liebeskind, L. S.; Baysdon, S. L.; South, M. S.; Blount, J. F. J. Organomet. Chem. 1980, 202, C73.
(c) Liebeskind, L. S.; Baysdon, S. L.; South, M. S.; Iyer, S.; Leeds, J. P. Tetrahedron 1985, 41, 5839.
(d) Huffman, M. A.; Liebeskind, L. S.; Pennington, W. T. Organometallics 1990, 9, 2194.
(e) Masuda, Y.; Hasegawa, M.; Yamashita, M.; Nozaki, K.; Ishida, N.; Murakami, M. J. Am. Chem. Soc. 2013, 135, 7142.
(f) Okumura, S.; Sun, F.; Ishida, N.; Murakami, M. J. Am. Chem. Soc. 2017, 139, 12414.
(g) Xu, T.; Dong, G. Angew. Chem., Int. Ed. 2012, 51, 7567.
(h) Xu, T.; Ko, H. M.; Savage, N. A.; Dong, G. J. Am. Chem. Soc. 2012, 134, 20005.
(i) Deng, L.; Chen, M.; Dong, G. J. Am. Chem. Soc. 2018, 140, 9652.
(j) Lu, G.; Fang, C.; Xu, T.; Dong, G.; Liu, P. J. Am. Chem. Soc. 2015, 137, 8274.
(k) Xu, T.; Savage, N. A.; Dong, G. Angew. Chem., Int. Ed. 2014, 53, 1891.
(l) Chen, P.-H.; Xu, T.; Dong, G. Angew. Chem., Int. Ed. 2014, 53, 1674.
(m) Sun, T. W.; Zhang, Y.; Qiu, B.; Wang, Y.; Qin, Y.; Dong, G.; Xu, T. Angew. Chem., Int. Ed. 2018, 57, 2859.
(n) Deng, L.; Xu, T.; Li, H.; Dong, G. J. Am. Chem. Soc. 2016, 138, 369.
(o) Chen, P.-H.; Sieber, J.; Senanayake, C. H.; Dong, G. Chem. Sci. 2015, 6, 5440.
(p) Zhu, Z.; Li, X.; Chen, S.; Chen, P.-H.; Billett, B. A.; Huang, Z.; Dong, G. ACS Catal. 2018, 8, 845.
(q) Xu, Z.-Y.; Zhang, S.-Q.; Liu, J.-R.; Chen, P.-P.; Li, X.; Yu, H.-Z.; Hong, X.; Fu, Y. Organometallics 2018, 37, 592.
(r) Bender, M.; Turnbull, B. W. H.; Ambler, B. R.; Krische, M. J. Science 2017, 357, 779.
(s) Ambler, B. R.; Turnbull, B. W. H.; Suravarapu, S. R.; Uteuliyev, M. M.; Huynh, N. O.; Krische, M. J. J. Am. Chem. Soc. 2018, 140, 9091.
(t) Deng, L.; Dong, G. Trends in Chem. 2020, 2, 183.
Juliá-Hernández, F.; Ziadi, A.; Nishimura, A.; Martin, R. Angew. Chem., Int. Ed. 2015, 54, 9537. doi: 10.1002/anie.201503461
Yang, S.; Xu, Y.; Li, J. Org. Lett. 2016, 18, 6244. doi: 10.1021/acs.orglett.6b02943
Zou, H.; Wang, Z.-L.; Huang G. Chem.-Eur J. 2017, 23, 12593. doi: 10.1002/chem.201702316
Reppe, W.; Schlichting, O.; Klager, K.; Toepel, T. Liebigs Ann. Chem. 1948, 560, 1. doi: 10.1002/jlac.19485600102
(a) Wender, P. A.; Christy, J. P. J. Am. Chem. Soc. 2007, 129, 13402.
(b) Wender, P. A.; Christy, J. P.; Lesser, A. B.; Gieseler, M. T. Angew. Chem., Int. Ed. 2009, 48, 7687.
Chai, Z.; Wang, H.-F.; Zhao, G. Synlett 2009, 11, 1785. http://www.researchgate.net/publication/239238177_Ni-Catalyzed_Carbocyclization_of_16-Enynes_Mediated_by_Dialkylzinc_Reagents_Me2Zn_or_Et2Zn_Makes_a_Difference
Nasrallah, D. J.; Croatt, M. P. Eur. J. Org. Chem. 2014, 2014, 3767. doi: 10.1002/ejoc.201402109
Greco, A.; Carbonar, A.; Dall'Asta, G. J. Org. Chem. 1970, 35, 271. doi: 10.1021/jo00826a067
Murakami, M.; Ashida, S.; Matsuda, T. J. Am. Chem. Soc. 2006, 128, 2166. doi: 10.1021/ja0552895
Tao, J.-Y.; Fang, D.-C.; Chass, G. A. Phys. Chem. Chem. Phys. 2012, 14, 6937. doi: 10.1039/c2cp40067g
Lainhart, B. C.; Alexanian, E. J. Org. Lett. 2015, 17, 1284. doi: 10.1021/acs.orglett.5b00267
Gilbertson, S. R.; DeBoef, B. J. Am. Chem. Soc. 2002, 124, 8784. doi: 10.1021/ja026536x
DeBoef, B.; Counts, W. R.; Gilbertson, S. R. J. Org. Chem. 2007, 72, 799. doi: 10.1021/jo0620462
Canlas, G. M. R.; Gilbertson, S. R. Chem. Commun. 2014, 50, 5007. doi: 10.1039/C4CC01320D
(a) Evans, P. A.; Robinson, J. E.; Baum, E. W.; Fazal, A. N. J. Am. Chem. Soc. 2002, 124, 8782.
(b) Evans, P. A.; Baum, E. W. J. Am. Chem. Soc. 2004, 126, 11150.
(c) Evans, P. A.; Baum, E. W.; Fazal, A. N.; Pink, M. Chem. Commun. 2005, 63.
Wender, P. A.; Christy, J. P. J. Am. Chem. Soc. 2006, 128, 5354. doi: 10.1021/ja060878b
(a) Hilt, G.; Janikowski, J. Angew. Chem., Int. Ed. 2008, 47, 5243.
(b) Varela, J. A.; Castedo, L.; Saá, C. Org. Lett. 2003, 5, 2841.
Yamasaki, R.; Ohashi, M.; Maeda, K.; Kitamura, T.; Nakagawa, M.; Kato, K.; Fujita, T.; Kamura, R.; Kinoshita, K.; Masu, H.; Azumaya, I.; Ogoshi, S.; Saito, S. Chem.-Eur J. 2013, 19, 3415. doi: 10.1002/chem.201204087
Jiménez, T.; Carreras, J.; Ceccon, J.; Echavarren, A. M. Org. Lett. 2016, 18, 1410. doi: 10.1021/acs.orglett.6b00342
Davis, R. E.; Dodds, T. A.; Hseu, T. H.; Wagnon, J. C.; Devon, T.; Tancrede, J.; McKennis, J. S.; Pettit, R. J. Am. Chem. Soc. 1974, 96, 7562. doi: 10.1021/ja00831a034
D'yakonov, V. A.; Kadikova, G. N.; Dzhemilev, U. M. Russ. Chem. Rev. 2018, 87, 797. doi: 10.1070/RCR4793
(a) Mach, K.; Antropiusová, H.; Sedmera, P.; Hanuš, V.; Tureček, F. J. Chem. Soc., Chem. Commun. 1983, 805.
(b) Mach, K.; Antropiusová, H.; Petrusová, L.; Hanuš, V.; Tureček, F.; Sedmera, P. Tetrahedron 1984, 40, 3295.
D'yakonov, V. A.; Kadikova, G. N.; Dzhemilev, U. M. Tetrahedron Lett. 2011, 52, 2780. doi: 10.1016/j.tetlet.2011.03.131
D'yakonov, V. A.; Kadikova, G. N.; Khalilov, L. M.; Dzhemilev, U. M. Russ. J. Org. Chem. 2013, 49, 1139. doi: 10.1134/S1070428013080071
Dzhemilev, U. M.; Kadikova, G. N.; Kolokol'tsev, D. I.; D'yakonov, V. A. Tetrahedron 2013, 69, 4609. doi: 10.1016/j.tet.2013.04.019
(a) D'yakonov, V. A.; Kadikova, G. N.; Kolokol'tsev, D. I.; Ramazanov, I. R.; Dzhemilev, U. M. J. Organomet. Chem. 2015, 794, 23.
(b) D'yakonov, V. A.; Kadikova, G. N.; Kolokol'tsev, D. I.; Ramazanov, I. R.; Dzhemilev, U. M. Eur. J. Org. Chem. 2015, 2015, 4464.
(c) D'yakonov, V. A.; Kadikova, G. N.; Nasretdinov, R. N.; Kolokol'tsev, D. I.; Dzhemilev, U. M. Tetrahedron Lett. 2017, 58, 1714.
(d) D'yakonov, V. A.; Kadikova, G. N.; Khalilov, L. M.; Dzhemilev, U. M. Russ. J. Org. Chem. 2018, 54, 832.
Achard, M.; Tenaglia, A.; Buono, G. Org. Lett. 2005, 7, 2353. doi: 10.1021/ol050618j
Achard, M.; Mosrin, M.; Tenaglia, A.; Buono, G. J. Org. Chem. 2006, 71, 2907. doi: 10.1021/jo052630v
Clavier, H.; Le Jeune, K.; de Riggi, I.; Tenaglia, A.; Buono, G. Org. Lett. 2011, 13, 308. doi: 10.1021/ol102783x
(a) D'yakonov, V. A.; Kadikova, G. N.; Gazizullina, G. F.; Khalilov, L. M.; Dzhemilev, U. M. Tetrahedron Lett. 2015, 56, 2005.
(b) D'yakonov, V. A.; Kadikova, G. N.; Gazizullina, G. F.; Dzhemilev, U. M. Russ. Chem. Bull. 2016, 65, 200.
D'yakonov, V. A.; Kadikova, G. N.; Gazizullina, G. F.; Dzhemilev, U. M. ChemistrySelect 2018, 3, 6221. doi: 10.1002/slct.201801028
(a) D'yakonov, V. A.; Kadikova, G. N.; Nasretdinov, R. N.; Dzhemileva, L. U.; Dzhemilev, U. M. Eur. J. Org. Chem. 2020, 623.
(b) Kadikova, G. N.; D'yakonov, V. A.; Nasretdinov, R. N.; Dzhemileva, L. U.; Dzhemilev, U. M. Mendeleev Commun. 2020, 30, 318.
Oonishi, Y.; Hosotani, A.; Sato, Y. J. Am. Chem. Soc. 2011, 133, 10386. doi: 10.1021/ja203824v
Oonishi, Y.; Hosotani, A.; Sato, Y. Angew. Chem., Int. Ed. 2012, 51, 11548. doi: 10.1002/anie.201206508
Liu, T.; Han, L.; Han, S.; Bi, S. Organometallics 2015, 34, 280. doi: 10.1021/om501118e
(a) Xia, Y.; Liang, Y.; Chen, Y.; Wang, M.; Jiao, L.; Huang, F.; Liu, S.; Li, Y.; Yu, Z.-X. J. Am. Chem. Soc. 2007, 129, 3470.
(b) Shi, F.-Q.; Li, X.; Xia, Y.; Zhang, L.; Yu, Z.-X. J. Am. Chem. Soc. 2007, 129, 15503.
(c) Liang, Y.; Liu, S.; Xia, Y.; Li, Y.; Yu, Z.-X. Chem.-Eur J. 2008, 14, 4361.
(d) Liang, Y.; Zhou, H.; Yu, Z.-X. J. Am. Chem. Soc. 2009, 131, 17783.
(e) Liang, Y.; Liu, S.; Yu, Z.-X. Synlett 2009, 905.
(f) Mercier, E.; Fonovic, B.; Henry, C.; Kwon, O.; Dudding, T. Tetrahedron Lett. 2007, 48, 3617.
(g) González, I.; Pla-Quintana, A.; Roglans, A.; Dachs, A.; Solà, M.; Parella, T.; Farjas, J.; Roura, P.; Lloveras, V.; Vidal-Gancedo, J. Chem. Commun. 2010, 46, 2944.
(h) Zhao, L.; Wen, M.; Wang, Z.-X. Eur. J. Org. Chem. 2012, 19, 3587.
Faustino, H.; Alonso, I.; Mascareñas, J. L.; López, F. Angew. Chem., Int. Ed. 2013, 52, 6526. doi: 10.1002/anie.201302713
Faustino, H.; Bernal, P.; Castedo, L.; López, F.; Mascareñas, J. L. Adv. Synth. Catal. 2012, 354, 1658. doi: 10.1002/adsc.201200047
(a) Rigby, J. H.; Henshilwood, J. A. J. Am. Chem. Soc. 1991, 113, 5122.
(b) Rigby, J. H.; Ateeq, H. S.; Charles, N. R.; Henshilwood, J. A.; Short, K. M.; Sugathapala, P. M. Tetrahedron 1993, 49, 5495.
(c) Rigby, J. H.; Ahmed, G.; Ferguson, M. D. Tetrahedron Lett. 1993, 34, 5397.
(d) Rigby, J. H.; Sandanayaka, V. P. Tetrahedron Lett. 1993, 34, 935.
(e) Rigby, J. H.; Pigge, F. C.; Ferguson, M. D. Tetrahedron Lett. 1994, 35, 8131.
(f) Rigby, J. H.; Sugathapala, P.; Heeg, M. J. J. Am. Chem. Soc. 1995, 117, 8851.
(g) Rigby, J. H.; Kondratenko, M. A.; Fiedler, C. Org. Lett. 2000, 2, 3917.
(h) Rigby, J. H.; Laurent, S. B.; Kamal, Z.; Heeg, M. J. Org. Lett. 2008, 10, 5609.
Rigby, J. H.; Kirova-Snover, M. Tetrahedron Lett. 1997, 38, 8153. doi: 10.1016/S0040-4039(97)10221-0
De, S.; Misra, S.; Rigby, J. H. Org. Lett. 2015, 17, 3230. doi: 10.1021/acs.orglett.5b01326
Magauer, T.; Mulzer, J.; Tiefenbacher, K. Org. Lett. 2009, 11, 5306. doi: 10.1021/ol902263k
Yao, Z.-K.; Li, J.; Yu, Z.-X. Org. Lett. 2011, 13, 134. doi: 10.1021/ol102700m
Wang, Y.; Wang, J.; Su, J.; Huang, F.; Jiao, L.; Liang, Y.; Yang, D.; Zhang, S.; Wender, P. A.; Yu, Z.-X. J. Am. Chem. Soc. 2007, 129, 10060. doi: 10.1021/ja072505w
Jiang, G.-J.; Fu, X.-F.; Li, Q.; Yu, Z.-X. Org. Lett. 2012, 14, 692. doi: 10.1021/ol2031526
Fu, X.-F.; Xiang, Y.; Yu, Z.-X. Chem.-Eur J. 2015, 21, 4242. doi: 10.1002/chem.201405712
Wender, P. A.; Gamber, G. G.; Hubbard, R. D.; Zhang, L. J. Am. Chem. Soc. 2002, 124, 2876. doi: 10.1021/ja0176301
Wang, Y.; Yu, Z.-X. Acc. Chem. Res. 2015, 48, 2288. doi: 10.1021/acs.accounts.5b00037
Fan, X.; Zhuo, L.-G.; Tu, Y. Q.; Yu, Z.-X. Tetrahedron 2009, 65, 4709. doi: 10.1016/j.tet.2009.04.020
Jiao, L.; Yuan, C.; Yu, Z.-X. J. Am. Chem. Soc. 2008, 130, 4421. doi: 10.1021/ja7100449
Yuan, C.; Jiao, L.; Yu, Z.-X. Tetrahedron Lett. 2010, 51, 5674. doi: 10.1016/j.tetlet.2010.08.028
(a) Schuda, P. F.; Phillips, J. L.; Morgan, T. M. J. Org. Chem. 1986, 51, 2742.
(b) Nishida, M.; Iseki, K.; Shibasaki, M.; Ikegami, S. Chem. Pharm. Bull. 1990, 38, 3230.
(c) Banwell, M. G.; Austin, K. A. B.; Willis, A. C. Tetrahedron 2007, 63, 6388.
Fan, X.; Liu, C.-H.; Yu, Z.-X. Rhodium(Ⅰ)-Catalyzed Cycloadditions Involving Vinylcyclopropanes and Their Derivatives. In Rhodium Catalysis in Organic Synthesis, Ed.:Tanaka, K., Wiley-VCH, Weinheim, Germany, 2019, pp. 229~276.
- PDF下载量: 22
- 文章访问数: 2179
- HTML全文浏览量: 379
