• 1.   Introduction

  Quinoline-containing cyclic compounds are important nitrogen-containing heteroaromatics and are prevalent key structural motifs in bioactive natural products, synthetic drugs and materials.^[1~9] Consequently, the development of mild and efficient methods for their construction is a hot topic in organic synthesis and pharmaceutical chemi- stry.^[10~13] In view of the abundance and accessibility of quinoline N-oxides, the direct C-2 functionalization of quinoline N-oxides is an attractive alternative compared with these reported methods.^[14~17] Recently, an environmental-friendly method for the clean preparation of various quinolin-2-yl substituted ureas from the reaction of quinoline N-oxides and carbodiimides was presented by He's group.^[18] The first example of a metal and reductant-free deoxygenative sulfonylation of quinoline N-oxides with sodium sulfinates was also realized by this group. In this reaction, sodium sulfinates play dual roles of an oxidant and activating reagent.^[19] Cui's group showed an approach to polyheterocycles bearing furoquinoline and C-2-male-imi- de-substituted quinoline via tandem reactions between quinoline N-oxides and maleimides.^[20] The cross-dehydro- genative coupling of quinoline N-oxides with 1, 3-azoles was also developed by Cui and coworkers. The desired products were isolated in good to excellent yields.^[21] Hartwig's group found that N-heterocyclic trifluoromethyl ethers could be efficiently synthesized via the reaction of N-oxides with trifluoromethyl or higher perfluoroalkyl triflate.^[22] The reactions of quinoline N-oxide with other substrates such as terminal alkyne, ^[23] alcohols, ^[24] H-phos- phonates^[25] and so on^[26~30] were also reported in recent years.

  On the other hand, the direct functionalization of C(sp³)-H bond has attracted wide research interest both in academic laboratories and chemical industries.^[31~38] Among these reactions, the functionalization of C(sp³)-H bonds adjacent to oxygen of alcohols was particularly powerful.^[39~43] For examples, in 2013, Cui's group described a strategy for the direct alkylation of quinoline N-oxides with ethers. Quinoline-containing heterocyclic molecules in moderate to excellent yields could be obtained.^[44] Li's group described a Fe-catalyzed cross-dehydrogenative-coupling reaction of ketone esters with ether for C-C bond formation.^[45] Ethers such as 1, 4-dioxane were also good substrates to react with carboxylic acids^[46] and 2-hydroxyacetophenone.^[47] The cross-coup- ling of pyridine N-oxides and ethers was described by Wang group.^[48] However, new versatile and practical methods for the functionalization of C(sp³)-H bond are still highly desired. In line with our interest in C-H bond activation and functionalization of heterocyclic compounds.^[49~55] Herein, we describe the cross coupling reaction of quinoline N-oxide and C(sp³)-H bonds adjacent to oxygen of ether.

  1.   Results and discussion

  At the beginning of our investigation, the reaction of quinoline 1-oxide with 1, 4-dioxane was chosen as a model reaction. The results are summarized in Table 1. It was found that the reaction could generate the corresponding product in 65% yield when tert-butyl hydroperoxide (TBHP, 5.0~6.0 mol/L in decane) was used as oxidant (Table 1, Entry 1). However, TBHP (70% in H₂O) did not work in the model reaction (Table 1, Entry 2). Di-tert-butyl peroxide (DTBP) was the most effective oxidant for this reaction and the desired product could be isolated in 73% yield (Table 1, Entry 3). Other oxidants such as dicumyl peroxide (DCP), tert-butyl peroxybenzoate (TBPB), 2, 3- dicyano-5, 6-dichlorobenzoquinone (DDQ), K₂S₂O₈, Na₂- S₂O₈ and (NH₄)₂S₂O₈ were less effective (Table 1, Entries 4~9). When the equivalent of 1, 4-dioxane was doubled, the yield of the desired product was elevated to 89% (Table 1, Entry 10). We next turned our attention to investigate the effect of additives on the reaction. To our disappointment, all the additives we examined led to slower reactions (Table 1, Entries 11~14).

  Table 1



  Table 1.  Optimization of the reaction conditions^a

  下载: 导出CSV

  Entry	Oxidant (3 equiv.)	Additives (1 euqiv.)	Yield/%
  1	TBHP	-	65
  2b	TBHP	-	Trace
  3	DTBP	-	73
  4	DCP	-	Trace
  5	TBPB	-	12
  6	DDQ	-	Trace
  7	K2S2O8	-	Trace
  8	Na2S2O8	-	Trace
  9	(NH4)2S2O8	-	Trace
  10c	DTBP	-	89
  11c	DTBP	K2CO3	40
  12c	DTBP	t-BuOK	21
  13c	DTBP	Na2CO3	61
  14c	DTBP	DBU	62
  a Reaction conditions: 1a (0.2 mmol), 2a (1.0 mL), oxidant (3.0 equiv.), additives (1 equiv.), 100 ℃, 24 h. b TBHP (70% in H2O). c 2a (2.0 mL).

  Under the optimized reaction conditions, the scope of quinoline N-oxides and ethers was examined and the results were summarized in Table 2. To our delight, substituted quinoline N-oxides with a wide range of synthetically valuable functional groups underwent a coupling reaction to form the desired products in good to excellent yields (3a~3g). Either electron-donating or electron-withdrawing groups are well tolerated in this system. It should be noted that 6-fluoroquinoline 1-oxide also reacted smoothly with dioxane and provided the desired product with 81% yield (3e). The reaction of N-oxides with various ethers was also investigated (3h~3r). It can be seen that tetrahydro-2H-pyran, tetrahydrofuran and tetrahydrothiophene all underwent a coupling reaction smoothly with N-oxides. To our disappointment, chain ethers, such as tert-butyl methyl ether and ether were not compatible in this transformation. The same excellent results were also obtained when this method was performed at a gram scale using quinolin N-oxide as substrate (Scheme 1). This example clearly demonstrates the preparative utility of this newly developed method.

  Table 2



  Table 2.  Reaction scope^a

  下载: 导出CSV

  Scheme 1



  Scheme 1.  A gram-scale preparation of 3a

  下载: 全尺寸图片 幻灯片

  A control experiment was designed and performed to acquire some insight into mechanism of the coupling reaction. When 2 equiv. of TEMPO were added as the radical scavengers under standard conditions, the coupling reaction was suppressed, suggesting that a free-radical pathway was involved in the catalytic cycle (Scheme 2).

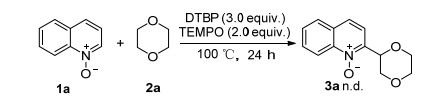

  Scheme 2



  Scheme 2.  Investigation of mechanism

  下载: 全尺寸图片 幻灯片

  On the basis of above-mentioned experiment results and previous reports, ^[56~58] a proposed reaction mechanism was described in Scheme 3. Firstly, tert-butoxy radical (A) was generated via homolytic cleavage of dibutylperoxide (DTBP). Then the reaction of A with dioxane occurred to afford the radical B. Next the radical D was generated from the addition reaction of radical B with quinoline N-oxide. Finally, the intermediate D followed by deprotonation to afford the desired product E. It is worth noting that intermediate C which was generated from the reaction of TEMPO with radical B has been confirmed by HRMS.

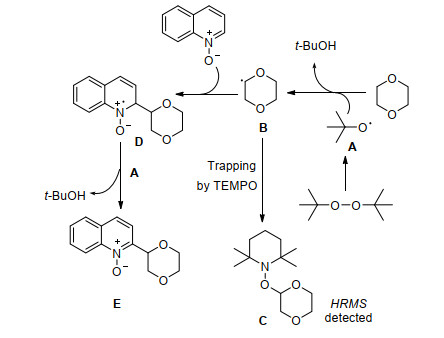

  Scheme 3



  Scheme 3.  Proposed mechanism

  下载: 全尺寸图片 幻灯片

  2.   Conclusions

  In conclusion, we have demonstrated an inexpensive method for the metal-free C-2 alkylation of N-oxides with ethers. A series of desired products were obtained in good to excellent yields. The developed transformation could also be performed in gram-scale which made this reaction have good potential in synthetic chemistry. Mechanism investigation revealed that a radical process was involved in this procedure. Further investigation of the reaction mechanism and its applications are underway in our laboratory.

  3.   Experimental

  2.1   Instruments and reagents

  NMR spectra were recorded at 500 MHz for protons on a BRUKER AVANCE Ⅲ HD spectrometers. ¹H NMR chemical shifts (δ) are relative to TMS (δ=0.0). Chemical shifts for ¹³C NMR spectra are reported from tetramethylsilane with the solvent as the internal standard. All major chemicals and solvents were obtained from commercial sources and used without further purification.

  2.2   Synthesis of 2-(1, 4-dioxan-2-yl)quinoline 1-oxide (3)

  A sealable reaction tube equipped with a magnetic stirrer bar was charged with quinoline N-oxide (0.2 mmol), 1, 4-dioxane (2 mL) and DTBP (3.0 equiv.). The reaction vessel was carried out 100 ℃. After completion, it was diluted with ethyl acetate, and washed with water. After the solvent was removed under reduced pressure, the residue was purified by column chromatography on silica gel to afford the corresponding product 3.

  2-(1, 4-Dioxan-2-yl)quinoline 1-oxide (3a)^[59]: ¹H NMR (500 MHz, CDCl₃) δ: 8.74 (d, J=8.8 Hz, 1H), 7.86 (d, J=8.1 Hz, 1H), 7.82~7.74 (m, 2H), 7.67~7.60 (m, 2H), 5.56 (dd, J=9.5, 2.7 Hz, 1H), 4.60 (dd, J=11.1, 2.7 Hz, 1H), 4.11~3.97 (m, 2H), 3.93~3.84 (m, 1H), 3.77 (ddd, J=11.7, 10.3, 4.1 Hz, 1H), 3.33 (dd, J=11.1, 9.5 Hz, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 145.4, 141.3, 130.5, 129.5, 128.5, 128.1, 125.7, 119.4, 119.3, 73.0, 68.0, 67.3, 66.6.

  2-(1, 4-Dioxan-2-yl)-6-methylquinoline 1-oxide (3b)^[59]: ¹H NMR (500 MHz, CDCl₃) δ: 8.61 (d, J=8.8 Hz, 1H), 7.68 (d, J=8.7 Hz, 1H), 7.63~7.54 (m, 3H), 5.55 (dd, J=9.5, 2.6 Hz, 1H), 4.58 (dd, J=11.1, 2.6 Hz, 1H), 4.03 (dt, J=10.8, 5.4 Hz, 2H), 3.87 (dd, J=11.3, 1.8 Hz, 1H), 3.77 (ddd, J=11.7, 10.4, 4.1 Hz, 1H), 3.34 (s, 1H), 2.55 (s, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 144.6, 139.9, 138.7, 132.6, 129.7, 126.99, 125.2, 119.3, 119.2, 73.0, 68.2, 67.33, 7.57, 21.4.

  2-(1, 4-Dioxan-2-yl)-3-methylquinoline 1-oxide (3c): ¹H NMR (500 MHz, CDCl₃) δ: 8.67 (d, J=8.7 Hz, 1H), 7.78~7.64 (m, 2H), 7.58 (t, J=7.1 Hz, 1H), 7.50 (s, 1H), 6.11 (dd, J=10.1, 2.9 Hz, 1H), 4.16 (dd, J=11.2, 2.8 Hz, 1H), 4.03~3.92 (m, 2H), 3.89~3.72 (m, 3H), 2.71 (s, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 144.7, 139.9, 131.9, 129.7, 128.9, 128.6, 127.2, 127.1, 119.9, 74.6, 67.3, 66.50, 66.0, 20.5. HRMS calcd for C₁₄H₁₆O₃N [M+H]⁺ 246.11281, found 246.11247.

  2-(1, 4-Dioxan-2-yl)-6-methoxyquinoline 1-oxide (3d): ¹H NMR (500 MHz, CDCl₃) δ: 8.63 (d, J=9.5 Hz, 1H), 7.66 (d, J=8.8 Hz, 1H), 7.58 (d, J=8.7 Hz, 1H), 7.38 (dd, J=9.5, 2.6 Hz, 1H), 7.10 (d, J=2.6 Hz, 1H), 5.53 (dd, J=9.5, 2.6 Hz, 1H), 4.56 (dd, J=11.1, 2.6 Hz, 1H), 4.07~3.98 (m, 2H), 3.94 (s, 3H), 3.89~3.84 (m, 1H), 3.80~3.73 (m, 1H), 3.32 (dd, J=11.0, 9.6 Hz, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 159.3, 143.4, 137. 1, 130.9, 124.6, 122.6, 121.2, 119.8, 105.9, 72.9, 68.3, 67.3, 66.6, 55.7. HRMS calcd for C₁₄H₁₆O₄N [M+H]⁺ 262.10739, found 262.10738.

  2-(1, 4-Dioxan-2-yl)-6-fluoroquinoline 1-oxide (3e): ¹H NMR (500 MHz, CDCl₃) δ: 8.15 (d, J=8.6 Hz, 1H), 8.07 (dd, J=13.2, 8.0 Hz, 3H), 7.98 (d, J=9.3 Hz, 1H), 7.51 (t, J=7.4 Hz, 1H), 7.45 (t, J=7.6 Hz, 2H), 7.34 (dd, J=9.3, 2.7 Hz, 1H), 7.01 (d, J=2.7 Hz, 1H), 3.86 (s, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 162.8, 160.8, 145.0, 138.5, 130.7, 130.6, 124.9, 124.8, 122.6, 122.5, 120.6, 120.4, 120.2, 111.7, 111.5, 72.9, 67.9, 67.3, 66.6. HRMS calcd for C₁₃H₁₃O₃NF [M+H]⁺ 250.08759, found 250.08740.

  6-Chloro-2-(1, 4-dioxan-2-yl)quinoline 1-oxide (3f): ¹H NMR (500 MHz, CDCl₃) δ: 8.68 (d, J=9.3 Hz, 1H), 7.85 (d, J=2.1 Hz, 1H), 7.73~7.64 (m, 3H), 5.51 (dd, J=9.5, 2.7 Hz, 1H), 4.56 (dd, J=11.1, 2.6 Hz, 1H), 4.08~3.98 (m, 2H), 3.92~3.84 (m, 1H), 3.77 (ddd, J=11.8, 9.5, 4.9 Hz, 1H), 3.31 (dd, J=11.1, 9.5 Hz, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 145.7, 139.9, 134.7, 131.1, 130.2, 126.8, 124.3, 121.5, 120.6, 72.9, 67.9, 67.3, 66.6. HRMS calcd for C₁₃H₁₃O₃NCl [M+H]⁺ 266.05801, found 266.05785.

  2-(1, 4-Dioxan-2-yl)-6-(methoxycarbonyl)quinoline 1-oxide (3g): ¹H NMR (500 MHz, CDCl₃) δ: 8.77 (d, J=9.1 Hz, 1H), 8.61 (d, J=1.5 Hz, 1H), 8.34 (dd, J=9.1, 1.7 Hz, 1H), 7.86 (d, J=8.8 Hz, 1H), 7.71 (d, J=8.7 Hz, 1H), 5.54 (dd, J=9.4, 2.6 Hz, 1H), 4.59 (dd, J=11.1, 2.6 Hz, 1H), 4.06~4.02 (m, 2H), 4.01 (s, 3H), 3.90 (dd, J=11.4, 6.9 Hz, 1H), 3.77 (ddd, J=11.8, 9.4, 5.1 Hz, 1H), 3.33 (dd, J=11.0, 9.5 Hz, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 165.9, 147.4, 143.1, 130.9, 130.2, 129.9, 128.9, 126.2, 120.3, 120.1, 73.0, 67.8, 67.3, 66.6, 52.7. HRMS calcd for C₁₅H₁₆O₅N [M+H]⁺ 290.10257, found 290.10230.

  6-Methyl-2-(tetrahydrofuran-2-yl)quinoline 1-oxide (3h): ¹H NMR (500 MHz, CDCl₃) δ: 8.62 (d, J=8.9 Hz, 1H), 7.61 (dt, J=19.7, 8.8 Hz, 4H), 5.59 (dd, J=7.7, 5.8 Hz, 1H), 4.17 (dd, J=14.3, 6.9 Hz, 1H), 4.10~3.97 (m, 1H), 2.88~2.76 (m, 1H), 2.54 (s, 3H), 2.13~2.00 (m, 1H), 1.99~1.85 (m, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 150.1, 140.1, 138.2, 132.5, 129.5, 126.9, 125.2, 119.061, 118.5, 76.0, 69.3, 30.9, 25.8, 21.4. HRMS calcd for C₁₄H₁₆O₂N [M+H]⁺ 230.11797, found 230.11756.

  6-Chloro-2-(tetrahydrofuran-2-yl)quinoline 1-oxide (3i): ¹H NMR (500 MHz, CDCl₃) δ: 8.69 (d, J=9.3 Hz, 1H), 7.85 (d, J=2.1 Hz, 1H), 7.75~7.59 (m, 3H), 5.55 (dd, J=7.8, 5.8 Hz, 1H), 4.21~4.12 (m, 1H), 4.04 (dd, J=14.9, 6.7 Hz, 1H), 2.87~2.74 (m, 1H), 2.16~2.01 (m, 1H), 1.99~1.85 (m, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 151.2, 140.1, 134.3, 130.9, 130.1, 126.7, 124.3, 121.2, 119.9, 75.9, 69.4, 30.8, 25.8. HRMS calcd for C₁₃H₁₃O₂NCl [M+H]⁺ 250.06287, found 250.06293.

  6-Methoxy-2-(tetrahydrofuran-2-yl)quinoline 1-oxide (3j)^[59]: ¹H NMR (500 MHz, CDCl₃) δ: 8.64 (d, J=9.5 Hz, 1H), 7.64 (d, J=8.7 Hz, 1H), 7.55 (d, J=8.7 Hz, 1H), 7.37 (dd, J=9.5, 2.7 Hz, 1H), 7.11 (d, J=2.6 Hz, 1H), 5.57 (dd, J=7.7, 5.8 Hz, 1H), 4.17 (dd, J=13.7, 7.4 Hz, 1H), 4.10~3.99 (m, 1H), 3.94 (s, 3H), 2.85~2.76 (m, 1H), 2.14~2.00 (m, 1H), 1.99~1.86 (m, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 159.0, 148.8, 137.3, 130.7, 124.6, 122.4, 120.9, 119.0, 105.9, 75.9, 69.3, 55.67, 30.9, 25.8.

  6-Fluoro-2-(tetrahydrofuran-2-yl)quinoline 1-oxide (3k): ¹H NMR (500 MHz, CDCl₃) δ: 8.76 (dd, J=9.2, 5.2 Hz, 1H), 7.66 (dd, J=28.5, 8.8 Hz, 2H), 7.56~7.43 (m, 2H), 5.56 (dd, J=7.5, 5.9 Hz, 1H), 4.17 (dd, J=13.7, 7.3 Hz, 1H), 4.10~3.98 (m, 1H), 2.90~2.74 (m, 1H), 2.14~2.01 (m, 1H), 1.99~1.85 (m, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 162.6, 160.6, 150.4, 138.7, 130.4, 130.3, 124.7, 124.6, 122.4, 122.3, 120.1, 119.9, 119.8, 111.6, 111.4, 75.9, 69.3, 30.9, 25.8. HRMS calcd for C₁₃H₁₃O₂NF [M+H]⁺ 234.09282, found 234.09248.

  2-(Tetrahydrofuran-2-yl)quinoline 1-oxide (3l): ¹H NMR (500 MHz, CDCl₃) δ: 8.75 (d, J=8.8 Hz, 1H), 7.87 (d, J=8.1 Hz, 1H), 7.81~7.74 (m, 2H), 7.63 (dd, J=8.0, 5.7 Hz, 2H), 5.61 (dd, J=7.7, 5.8 Hz, 1H), 4.18 (dd, J=13.9, 7.2 Hz, 1H), 4.13~4.00 (m, 1H), 2.89~2.77 (m, 1H), 2.15~2.00 (m, 1H), 1.94 (dq, J=11.7, 7.9 Hz, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 151.2, 141.5, 130.4, 129.3, 128.1, 128.0, 125.9, 119.3, 118.5, 76.1, 69.4, 30.9, 25.8. HRMS calcd for C₁₃H₁₄O₂N [M+H]⁺ 216.10213, found 216.10191.

  6-(Methoxycarbonyl)-2-(tetrahydro-2H-pyran-2-yl)qui-noline 1-oxide (3m): ¹H NMR (500 MHz, CDCl₃) δ: 8.79 (d, J=9.1 Hz, 1H), 8.60 (d, J=1.7 Hz, 1H), 8.32 (dd, J=9.1, 1.8 Hz, 1H), 7.84 (d, J=8.8 Hz, 1H), 7.71 (d, J=8.7 Hz, 1H), 5.22 (dd, J=10.8, 1.9 Hz, 1H), 4.27~4.17 (m, 1H), 4.00 (s, 3H), 3.73 (td, J=11.8, 2.4 Hz, 1H), 2.50 (d, J=13.3 Hz, 1H), 1.97 (dd, J=10.5, 3.1 Hz, 1H), 1.90~1.70 (m, 2H), 1.70~1.59 (m, 2H); ¹³C NMR (126 MHz, CDCl₃) δ: 165.9, 151.8, 143.1, 130.9, 129.8, 129.7, 128.7, 126.3, 120.2, 120.1, 74.6, 69.1, 52.6, 28.9, 26.0, 23.4. HRMS calcd for C₁₆H₁₈O₄N [M+H]⁺ 288.12317, found 288.12303.

  2-(Tetrahydro-2H-pyran-2-yl)quinoline 1-oxide (3n): ¹H NMR (500 MHz, CDCl₃) δ: 8.76 (d, J=8.8 Hz, 1H), 7.85 (d, J=8.0 Hz, 1H), 7.76 (dd, J=12.2, 4.9 Hz, 2H), 7.67~7.59 (m, 2H), 5.25 (dd, J=10.8, 1.9 Hz, 1H), 4.25~4.16 (m, 1H), 3.74 (td, J=11.8, 2.4 Hz, 1H), 2.50 (d, J=13.2 Hz, 1H), 1.97 (dd, J=10.4, 3.1 Hz, 1H), 1.87~1.70 (m, 3H), 1.68~1.63 (m, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 149.9, 141.4, 130.3, 129.3, 128.1, 128.0, 125.9, 119.6, 119.1, 74.6, 69.1, 29.1, 26.1, 23.4. HRMS calcd for C₁₄H₁₆O₂N [M+H]⁺ 230.11784, found 230.11756.

  6-Chloro-2-(tetrahydro-2H-pyran-2-yl)quinoline 1-oxide (3o): ¹H NMR (500 MHz, CDCl₃) δ: 8.69 (d, J=9.3 Hz, 1H), 7.83 (d, J=2.2 Hz, 1H), 7.67 (q, J=2.1 Hz, 3H), 5.20 (dd, J=10.8, 2.0 Hz, 1H), 4.27~4.17 (m, 1H), 3.72 (td,

  J=11.8, 2.4 Hz, 1H), 2.47 (d, J=13.2 Hz, 1H), 2.00~1.93 (m, 1H), 1.89~1.69 (m, 3H), 1.68~1.62 (m, 1H); ¹³C NMR (126 MHz, CDCl₃) δ: 150.2, 139.9, 134.3, 130.9, 129.9, 126.7, 124.7, 121.6, 120.4, 74.4, 69.1, 28.9, 26.0, 23.3. HRMS calcd for C₁₄H₁₅O₂NCl [M+H]⁺ 264.07861, found 264.07858.

  2-(Tetrahydrothiophen-2-yl)quinoline 1-oxide (3p): ¹H NMR (500 MHz, CDCl₃) δ: 8.77 (d, J=8.8 Hz, 1H), 7.84 (d, J=8.0 Hz, 1H), 7.81~7.68 (m, 3H), 7.61 (ddd, J=8.1, 7.0, 1.1 Hz, 1H), 5.51~5.39 (m, 1H), 3.15~2.99 (m, 2H), 2.64~2.49 (m, 1H), 2.23~2.08 (m, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 150.1, 141.7, 130.4, 129.1, 128.2, 127.9, 125.1, 120.1, 119.9, 46.0, 35.2, 32.8, 30.7. HRMS calcd for C₁₃H₁₄ONS [M+H]⁺ 232.07901, found 232.07906.

  6-Chloro-2-(tetrahydrothiophen-2-yl)quinoline 1-oxide (3q): ¹H NMR (500 MHz, CDCl₃) δ: 8.71 (d, J=9.3 Hz, 1H), 7.82 (d, J=2.2 Hz, 1H), 7.76 (d, J=8.8 Hz, 1H), 7.67 (dd, J=9.3, 2.2 Hz, 1H), 7.61 (d, J=8.8 Hz, 1H), 5.49~5.28 (m, 1H), 3.12~3.00 (m, 2H), 2.59~2.45 (m, 1H), 2.24~2.10 (m, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 150.4, 140.2, 134.4, 131.1, 129.8, 126.6, 123.9, 121.8, 121.4, 45.9, 35.2, 32.8, 30.7. HRMS calcd for C₁₃H₁₃ONClS [M+H]⁺ 266.04016, found 266.04009.

  6-(Methoxycarbonyl)-2-(tetrahydrothiophen-2-yl)quino-line 1-oxide (3r): ¹H NMR (500 MHz, CDCl₃) δ: 8.81 (d, J=9.1 Hz, 1H), 8.59 (d, J=1.6 Hz, 1H), 8.32 (dd, J=9.1, 1.8 Hz, 1H), 7.81 (s, 2H), 5.42 (dd, J=6.8, 5.6 Hz, 1H), 4.00 (s, 3H), 3.08 (ddd, J=16.3, 7.9, 4.0 Hz, 2H), 2.57 (ddd, J=12.6, 7.3, 4.2 Hz, 1H), 2.26~2.11 (m, 3H); ¹³C NMR (126 MHz, CDCl₃) δ: 165.9, 152.1, 143.3, 130.9, 129.9, 129.8, 128.5, 125.8, 121.0, 120.5, 52.6, 46.0, 35.1, 32.9, 30.7. HRMS calcd for C₁₅H₁₆O₃NS [M+H]⁺ 290.08453, found 290.08454.

  Supporting Information ¹H NMR and ¹³C NMR spectra of compounds 3a~3r. The Supporting Information is available free of charge via the Internet at http://sioc-journal.cn.
