• 1.   Introduction

  In antiviral chemotherapy, chiral nucleosides analogs have played an important role, ^[1] however, because of arising viral resistances, many current chemotherapeutics have become less effective.^[2] For example, lamivudine^[2c] and emtricitabine have shown a strong inhibitory effect against HBV, however, drug resistance became increasingly prominent after their long-term use.^[3] Recently, the success of dual inhibitors has opened new avenues for circumventing viral resistances. Among the dual inhibitors, one type of inhibitors could be recognized by two different enzymes in the same, or different mechanistic pathways that are involved in the same disease.^[4] This would increase the chances for the effective inhibition of the virus replication. Furthermore, the dual inhibitors altered the classical way of thinking about the structures of nucleoside analogues as antiviral agents. We envisioned that a nucleoside drug could be possibly recognized by both purine- and pyrimidine-metabolizing enzymes if it contained the key structural features of the purine and pyrimidine nucleobases scaffolds. Accordingly, we selected N³-purine nucleoside as a crucial target compound because it resembled both purine and pyrimidine nucleoside and could be viewed as either N³-ribosylated purine or 5, 6-disubstituted pyrimidine, as shown in Figure 1. Despite the considerable efforts devoted to the research of chiral nucleoside analogs, ^{[5, 6]} the enantioselective preparation of N³-purine nucleosides is more challenging and less explored probably because of the difficulty in the formation of 3H-purine.^{[7, 8]} In 2009, Seley-Radtke et al.^[8a] synthesized several N³-purine nucleosides from an equivalent pyrimidine nucleoside using a multi-step procedure. Therefore, the development of general and practical methods for the enantioselective synthesis of N³-purine nucleosides is highly desirable.

  Figure 1

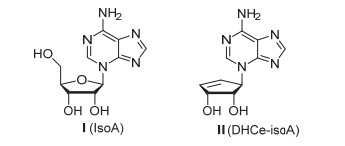

  Figure 1.  Examples of chiral carbocyclic N³-purine nucleosides

  下载: 全尺寸图片 幻灯片

  Dynamic kinetic resolution (DKR) via asymmetric transfer hydrogenation (ATH) has been extensively studied to produce the chiral β-aminocycloalkanols.^[9~11a] Especially, the synthesis of chiral β-heteroarylamino cycloalkanols has attracted considerable attention as building blocks in pharmaceutical drug synthesis.^[10] To date, ATH/ DKR for synthesis of enantiopure vicinal cycloalkanols along with various N-heteroaryls, such as benzimidazole, benzotriazole and 9H-purine, has been developed.^[11a] However, to the best of our knowledge, there is no report to synthesize chiral β-(purin-3-yl)cycloalkanols via the catalytic ATH/DKR. Herein, we proposed that the rac-α- (purin-3-yl)cyclopentones could be afforded via nucleophilic substitution of purines with α-chlorocycloalkanones in the presence of K₂CO₃ and 2, 2, 2-trifluoroethanol (TFE). Through the ATH/DKR of rac-α-(purin-3-yl)cyclopen- tones, a series of carbocyclic N³-purine nucleosides were produced with excellent yields and enantioselectivities (Scheme 1).

  Scheme 1

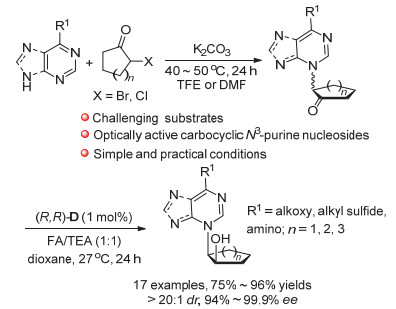

  Scheme 1.  Our strategy for the synthesis of chiral carbocyclic N³-purine nucleosides

  下载: 全尺寸图片 幻灯片

  2.   Results and discussion

  The ATH reaction of 2-(6-(diethylamino)-3H-purin-3- yl)cyclopentan-1-one (1a) was studied for optimizing reaction conditions, as shown in Table 1. On the basis of typically efficient catalysts for various ATH reactions, some chiral 1, 2-diamine-based Ru(Ⅱ) catalysts were examined for the hydrogenation of the model substrate. In the case of (R, R)-A and (R, R)-B as catalysts, yields of 91%~92% and 80%~85% ee were obtained (Table 1, Entries 1, 2). Low yield was observed by using Noyori's catalyst (R, R)-C with good enantioselectivity (26% yield, 81% ee, Table 1, Entry 3). When catalyst (R, R)-D was employed, the reaction proceeded well, affording the corresponding product 2a with 93% yield and 96% ee (Table 1, Entry 4). Subsequently, other solvents were further screened using (R, R)-D as the best catalyst, however, the obtained results were not further improved (Table 1, Entries 5~11). Therefore, we selected dioxane as the optimal solvent for subsequent studies. Further variation in the ratios of formic acid/triethylamine (FA/TEA) did not lead to improved results (Table 1, Entries 12, 13). Finally, the effect of catalyst loading was also investigated (Table 1, Entries 14, 15). Interestingly, the catalyst loading of 1 mol% was sufficient to produce a high yield of up to 93% without loss of ee (Table 1, Entry 14). Decreasing the catalyst loading to 0.5 mol% resulted in a decrease in the reactivity (85% yield, Table 1, Entry 15).

  Table 1



  Table 1.  Screening of reaction conditions^{a, b}

  下载: 导出CSV

  Entry	Catalyst (mol%)	Solvent	Temp./℃	Yieldc/%	eed/%
  1	(R, R)-A(2)	Dioxane	27	91	85
  2	(R, R)-B(2)	Dioxane	27	92	80
  3	(R, R)-C(2)	Dioxane	27	26	81
  4	(R, R)-D(2)	Dioxane	27	93	96
  5	(R, R)-D(2)	CHCl3	27	91	94
  6	(R, R)-D(2)	EtOAc	27	93	94
  7	(R, R)-D(2)	DCM	27	92	73
  8	(R, R)-D(2)	THF	27	95	93
  9	(R, R)-D(2)	CH3OH	27	92	69
  10	(R, R)-D(2)	Acetone	27	73	88
  11	(R, R)-D(2)	CH3CN	27	93	91
  12e	(R, R)-D(2)	Dioxane	27	91	96
  13f	(R, R)-D(2)	Dioxane	27	45	91
  14	(R, R)-D(1)	Dioxane	27	93	97
  15	(R, R)-D(0.5)	Dioxane	27	85	97
  a Unless otherwise noted, the reaction was performed with rac-α-(purin-3- yl)cyclopentone 1a (0.1 mmol), 70 μL of FA/TEA (molar ratio is 1:1) in solvent (1.0 mL) for 24 h. b > 20:1 dr. c Isolated yields. d Determined by chiral HPLC analysis. e FA/TEA (molar ratio is 2.5:1) was used. f FA/TEA (molar ratio is 0.2:1) was used.

  With the optimized reaction conditions in hand, a range of different rac-α-(purin-3-yl)cyclopentones were hydrogenated in the presence of catalyst (R, R)-D by using FA/TEA ((molar ratio is 1:1) as the hydrogen source (Table 2). In general, the reactions worked considerably well and a series of corresponding chiral carbocyclic nucleosides were obtained with high yields and excellent enantioselectivities. The configuration of carbocyclic nucleosides was determined to be (1R, 2S) by the X-ray analysis of 2a and 2b, and those of the other products were similarly assigned by analogy. When the substrate 1b bearing dimethylamino at the C6 on the purine was used, the reaction smoothly proceeded and delivered the corresponding product 2b with 95% yield and 99.9% ee. Substrates 1c~1f with increasingly bulky groups, such as pyrrolidino, piperidino, morpholino and azepano groups at the C6 of purine were evaluated and their reductions proceeded well in excellent yields and ee's (2c~2f, 87%~93% yields, 95%~99.9% ee). Obviously, the introduction of different amino into the purine skeleton appeared to have little effect on the reactivity and enantioselectivities, probably because the electron-donating effect of substituents is stronger than their steric hindrance effect. When the substrates having OEt or S(CH₂)₂CH₃ at the C6 of purine were reduced, the desired products 2g~2h were produced with 94%~95% yields and 94%~95% ee. Gratifyingly, in the case of cyclohexanone 1i, the hydrogenation reaction proceeded well with 91% yield and 99.9% ee.

  Table 2



  Table 2.  Substrate scope^a

  下载: 导出CSV

  Further investigation of substrate scope was focused on the rac-α-pyrimidyl cycloalkanones 3a~3h (Table 3). The configuration of these products was determined to be (1R, 2S) by the X-ray analysis of 6b, and those of the other products were similarly assigned by analogy.^[10b] When rac-α-pyrimidyl cycloalkanones 3a~3c bearing increasingly bulkier substituents, such as Me or Et at C5 of thymine skeleton were examined, excellent yields and enantioselectivities were obtained (4a~4c, 92%~96% yields, 95%~97% ee). Fortunately, removing the protecting group at N3 on the thymine skeleton had no noticeable effect on the yield and enantioselectivity (4d, 92% yield, 97% ee). When 4-ClC₆H₄CO was used as a protecting group at N3 on the thymine skeleton, excellent yield and enantioselectivity were still achieved (4e, 91% yield, 95% ee). Moreover, varying the carbocyclic ring size had no effect on the enantioselectivities (4f~4g, 97%~99% ee), although cycloheptanone caused yield to decrease to 75%. Furthermore, benzo-fused cyclopentone 3h was also efficiently reduced to the desired product 4h with 83% yield and 93% ee.

  Table 3



  Table 3.  Substrate scope^a

  下载: 导出CSV

  In light of the above results and our previous study on the asymmetric hydrogenation^{[11, 12]}, the possible transition state models were proposed (Scheme 2). The amine hydrido Ru complex easily forms a 6-membered pericyclic transition state with S-1b or S-3a, due to hydrogen bonds between the NH unit and the carbonyl oxygen atom. Meanwhile, the interaction between nucleoside base with the Ru atom could facilitate reactivity and stereoinduction.

  Scheme 2

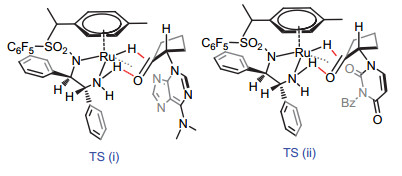

  Scheme 2.  The proposed transition state models

  下载: 全尺寸图片 幻灯片

  To further investigate the synthetic potential of the current methodology, a gram-scale reaction of 1a was conducted under the optimal conditions (Scheme 3a). The desired product was generated with 91% yield and the completely maintained enantioselectivity. Moreover, to evaluate the potential application of the synthesized nucleosides, some derivatization experiments on product 4b were also carried out (Scheme 3b). In the presence of diethylaminosulfurtrifluoride (DAST), 2'-F-modified carbocyclic nucleoside 5b was achieved with 51% yield and 93% ee. The mesylation of 2'-OH of product 4b was also performed, delivering the desired product 6b with 94% yield and 95% ee. Subsequently, a sulfur atom was introduced into the carbocycle of 6b through nucleophilic substitution using AcSK, and the chiral thionucleoside derivative 7b was obtained with 57% yield and 93% ee. Finally, the nucleophilic substitution of 6b with NaN₃ was performed, delivering the 2'-N₃-modified nucleoside 8b with 76% yield and 93% ee.

  Scheme 3

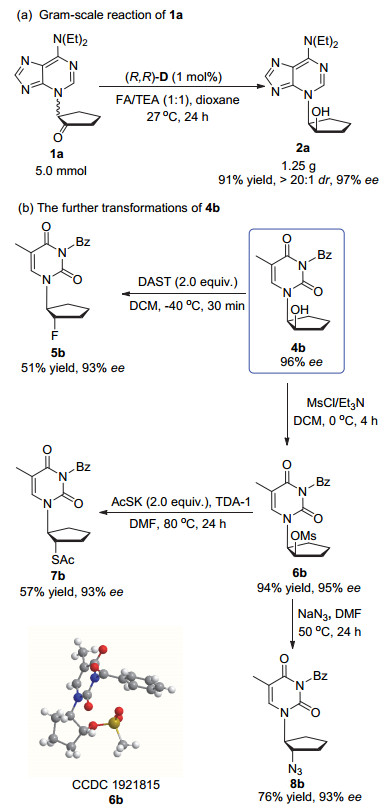

  Scheme 3.  Gram-scale reaction of 1a and the further transformations of 4b

  下载: 全尺寸图片 幻灯片

  3.   Conclusions

  An efficient ATH/DKR of rac-α-(purin-3-yl)cyclopen- tones to produce a wide range of carbocyclic N³-purine nucleosides has been developed in high yields and excellent stereoselectivities. Moreover, the catalytic system was suitable for rac-α-pyrimidinyl cyclopentones. Through further transformations of product, several 2'-F-, AcS-, N₃-modified carbocyclic nucleosides could be afforded with good to excellent yields and excellent enantioselectivities.

  4.   Experimental section

  4.1   Instrument and reagent

  ¹H NMR spectra were recorded on a Bruker Avance Ⅲ HD 600 or an Avance 400 MHz spectrometer. ¹³C NMR data were collected on commercial instruments (100 or 150 MHz) with complete proton decoupling. HRMS were obtained on a Bruker microToF Ⅱ Mass Spectrometer (ESI Source). Single crystal X-ray crystallography data were obtained on a Supernova Atlas S2 CCD detector. Melting point (m.p.) data were obtained on an X-5 micro melting point apparatus. All reagents were reagent grade quality and purchased from commercial sources unless otherwise indicated.

  4.2   General procedure for cyclopropanation reaction

  α-Substituted cycloalkanones (0.1 mmol), (R, R)-D (0.7 mg, 0.001 mmol), dioxane (1.0 mL) and FA/TEA (70 μL, 3.0 equiv.) were added to the reaction tube respectively. The mixture was stirred at 27 ℃ for 24 h. Subsequently, the reaction mixture was filtered and concentrated under reduced pressure. The residue was purified by flash column chromatography with dichloromethane/MeOH (V: V＝30:1) as the eluant to afford the corresponding product.

  4.3   Product structure characterization

  (1R, 2S)-2-(6-(Diethylamino)-3H-purin-3-yl)cyclopen-tan-1-ol (2a): 25.6 mg, 93% yield, 97% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝25:75, flow rate＝0.3 mL/min, λ＝250 nm, retention time: 13.391, 17.803 min. White solid, m.p. 92.7~97.9 ℃; [α]_D²⁰－61.77 (c 0.10, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 8.14 (s, 1H), 7.82~7.81 (m, 1H), 4.94~4.88 (m, 1H), 4.59~4.54 (m, 2H), 4.24~4.14 (m, 2H), 3.88~3.79 (m, 1H), 3.70~3.63 (m, 1H), 2.43~2.33 (m, 1H), 2.18~2.00 (m, 3H), 1.90~1.83 (m, 1H), 1.76~1.67 (m, 1H), 1.31~1.22 (m, 6H); ¹³C NMR (100 MHz, CDCl₃) δ: 152.2, 150.9, 150.0, 141.0, 120.1, 71.4, 63.9, 44.5, 43.4, 32.9, 26.9, 20.2, 14.2, 13.2; IR (KBr) ν: 3162, 2973, 1600, 1414, 1264, 1084, 775, 655 cm^－1; HRMS (ESI-TOF) calcd for C₁₄H₂₂N₅O [M+H]⁺ 276.1819, found 276.1817.

  (1R, 2S)-2-(6-(Dimethylamino)-3H-purin-3-yl)cyclo-pentan-1-ol (2b): 23.5 mg, 95% yield, 99.9% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝25:75, flow rate＝0.3 mL/min, λ＝250 nm, retention time: 15.524 min. White solid, m.p. 230.5~234.9 ℃; [α]_D²⁰－72.89 (c 0.58, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.14 (s, 1H), 7.59 (s, 1H), 4.86 (dt, J＝11.4, 5.4 Hz, 1H), 4.70 (d, J＝5.4 Hz, 1H), 3.54 (s, 3H), 3.26 (s, 3H), 2.39~2.31 (m, 1H), 2.27~2.21 (m, 1H), 2.09~2.02 (mm, 2H), 1.95~1.90 (m, 1H), 1.72~1.64 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 152.5, 152.1, 150.4, 140.3, 119.7, 70.1, 63.7, 39.7, 38.0, 32.8, 26.6, 20.5; IR (KBr) ν: 3172, 2919, 1603, 1415, 1162, 1096, 774, 656 cm^－1; HRMS (ESI-TOF) calcd for C₁₂H₁₈N₅O [M+H]⁺ 248.1506, found 248.1507.

  (1R, 2S)-2-(6-(pyrrolidin-1-yl)-3H-purin-3-yl)cyclopen-tan-1-ol (2c): 24.6 mg, 90% yield, 99.9% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝90:10, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 26.353 min. White solid, m.p. 105.4~110.1 ℃; [α]_D²⁰－198.60 (c 0.29, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 8.10 (s, 1H), 7.59 (s, 1H), 4.89~4.84 (m, 1H), 4.73~4.69 (m, 1H), 4.01~3.95 (m, 1H), 3.80~3.73 (m, 1H), 3.66~3.54 (m, 2H), 2.40~2.20 (m, 2H), 2.15~1.89 (m, 7H), 1.73~1.61 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 152.6, 150.5, 149.9, 140.6, 119.8, 69.9, 63.6, 48.8, 48.2, 32.7, 26.6, 26.3, 24.4, 20.5; IR (KBr) ν: 3396, 2956, 1606, 1402, 1183, 1047, 771, 649 cm^－1; HRMS (ESI-TOF) calcd for C₁₄H₂₀N₅O [M+H]⁺ 274.1662, found 274.1661.

  (1R, 2S)-2-(6-(piperidin-1-yl)-3H-purin-3-yl)cyclo-pentan-1-ol (2d): 26.7 mg, 93% yield, 95% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝25:75, flow rate＝0.3 mL/min, λ＝250 nm, retention time: 14.556, 18.992 min. White oil; [α]_D²⁰－108.91 (c 0.17, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.12 (s, 1H), 7.64 (s, 1H), 4.87~4.84 (m, 1H), 4.70~4.62 (m, 2H), 4.30 (s, 1H), 4.02 (s, 1H), 3.70~3.58 (m, 1H), 2.39~3.32 (m, 1H), 2.22~2.16 (m, 1H), 2.08~2.02 (m, 2H), 1.94~1.89 (m, 1H), 1.72~1.57 (m, 7H); ¹³C NMR (150 MHz, CDCl₃) δ: 151.5, 151.3, 150.8, 140.5, 119.5, 70.4, 63.7, 48.2, 45.7, 32.8, 26.8, 26.3, 24.6, 20.4; IR (KBr) ν: 3184, 2920, 1600, 1417, 1182, 1021, 774, 655 cm^－1; HRMS (ESI-TOF) calcd for C₁₅H₂₂N₅O [M+H]⁺ 288.1819, found 288.1819.

  (1R, 2S)-2-(6-Morpholino-3H-purin-3-yl)cyclopentan-1-ol (2e): 26.3 mg, 91% yield, 96% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝80:20, flow rate＝0.7 mL/min, λ＝250 nm, retention time: 10.246, 11.684 min. White solid, m.p. 177.2~181.3 ℃; [α]_D²⁰－110.98 (c 0.17, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.17 (s, 1H), 7.64 (s, 1H), 4.92~4.88 (m, 1H), 4.63~4.58 (m, 1H), 4.25~4.22 (m, 2H), 3.81~3.71 (m, 6H), 2.38~2.31 (m, 1H), 2.23~2.15 (m, 1H), 2.14~2.03 (m, 2H), 1.93~1.88 (m, 1H), 1.75~1.65 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 152.1, 151.3, 151.1, 140.6, 119.7, 70.3, 66.9, 63.8, 45.9, 32.9, 26.9, 20.4; IR (KBr) ν: 3079, 2865, 1598, 1420, 1180, 1113, 769, 653 cm^－1; HRMS (ESI-TOF) calcd for C₁₄H₂₀N₅O₂ [M+H]⁺ 290.1612, found 290.1612.

  (1R, 2S)-2-(6-(azepan-1-yl)-3H-purin-3-yl)cyclopentan-1-ol (2f): 26.2 mg, 87% yield, 96% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝25:75, flow rate＝0.3 mL/min, λ＝250 nm, retention time: 16.223, 21.363 min. White solid, m.p. 119.3~123.1 ℃; [α]_D²⁰－89.50 (c 0.11, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 8.12 (s, 1H), 7.67 (s, 1H), 4.91~4.85 (m, 1H), 4.67~4.64 (m, 1H), 4.57~4.51 (m, 1H), 4.28~4.22 (m, 1H), 3.90~3.84 (m, 1H), 3.52~3.45 (m, 1H), 2.43~2.33 (m, 1H), 2.24~2.17 (m, 1H), 2.10~2.03 (m, 2H), 1.95~1.88 (m, 1H), 1.86~1.74 (m, 4H), 1.73~1.65 (m, 1H), 1.61~1.39 (m, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 152.3, 151.9, 150.5, 140.6, 119.9, 70.7, 63.8, 50.3, 48.9, 32.9, 28.5, 27.6, 27.2, 26.7, 26.5, 20.4; IR (KBr) ν: 3188, 2920, 1599, 1416, 1182, 775, 656 cm^－1; HRMS (ESI-TOF) calcd for C₁₆H₂₄- N₅O [M+H]⁺ 302.1975, found 302.1975.

  (1R, 2S)-2-(6-Ethoxy-3H-purin-3-yl)cyclopentan-1-ol(2g): 23.3 mg, 94% yield, 95% ee. White solid, m.p. 215.0~218.9 ℃; [α]_D²⁰－133.66 (c 0.15, CH₂Cl₂); ¹H NMR (600 MHz, CD₃OD)δ: 8.75 (s, 1H), 8.08 (s, 1H), 5.24~5.20 (m, 1H), 4.79~4.75 (m, 2H), 4.47~4.46 (m, 1H), 2.56~2.49 (m, 1H), 2.30~2.25 (m, 1H), 2.23~2.17 (m, 1H), 2.15~2.09 (m, 1H), 1.93~1.80 (m, 2H), 1.52 (t, J＝7.2 Hz, 3H); ¹³C NMR (150 MHz, CD₃OD)δ: 161.2, 155.7, 155.4, 143.9, 123.8, 71.5, 65.7, 65.6, 33.7, 27.5, 21.1, 14.9; IR (KBr) ν: 3094, 2924, 1631, 1382, 1179, 1017, 779, 648 cm^－1; HRMS (ESI-TOF) calcd for C₁₂H₁₇N₄O₂ [M+H]⁺ 249.1346, found 249.1345.

  6-Ethoxy-3-((1S, 2R)-2-((trimethylsilyl)oxy)cyclo-pentyl)-3H-purine (2g'): 29.8 mg, 93% yield, 95% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propa- nol)＝90:10, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 9.483 min, 12.333 min. White solid, m.p. 219.0~222.6 ℃; [α]_D²⁰－66.13 (c 0.19, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.42 (s, 1H), 8.19 (s, 1H), 5.41~5.37 (m, 1H), 4.83~4.79 (m, 2H), 4.45 (t, J＝4.8 Hz, 1H), 2.42~2.35 (m, 1H), 2.27~2.22 (m, 1H), 2.15~2.08 (m, 2H), 1.86~1.78 (m, 2H), 1.53 (t, J＝6.6 Hz, 3H), －0.27 (s, 9H); ¹³C NMR (150 MHz, CDCl₃) δ: 159.6, 156.5, 155.1, 140.9, 123.5, 71.6, 65.1, 63.4, 33.7, 27.2, 20.5, 14.8, －0.5; HRMS (ESI-TOF) calcd for C₁₅H₂₅N₄O₂Si [M+ H]⁺ 321.1741, found 321.1745.

  (1R, 2S)-2-(6-(Propylthio)-3H-purin-3-yl)cyclopentan-1-ol (2h): 26.4 mg, 95% yield, 94% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝80:20, flow rate＝0.7 mL/min, λ＝250 nm, retention time: 8.400, 9.659 min. White solid, m.p. 176.9~182.6 ℃; [α]_D²⁰－189.29 (c 0.28, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.46 (s, 1H), 7.77 (s, 1H), 5.03 (dt, J＝12.0, 5.4 Hz, 1H), 4.86 (t, J＝5.4 Hz, 1H), 3.43 (dt, J＝13.2, 6.6 Hz, 1H), 3.09 (dt, J＝13.2, 6.6 Hz, 1H), 2.46 (p, J＝10.2 Hz, 1H), 2.32~2.26 (m, 1H), 2.17~2.10 (m, 4H), 1.80~1.69 (m, 3H), 1.04 (t, J＝7.2 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃) δ: 160.0, 157.4, 149.4, 139.6, 133.6, 69.5, 64.8, 32.9, 31.4, 26.9, 22.9, 20.7, 13.6; IR (KBr) ν: 3218, 2925, 1594, 1426, 1148, 986, 655 cm^－1; HRMS (ESI-TOF) calcd for C₁₃H₁₉- N₄OS [M+H]⁺ 279.1274, found 279.1272.

  (1R, 2S)-2-(6-(Diethylamino)-3H-purin-3-yl)cyclohexan-1-ol (2i): 26.3 mg, 91% yield, 99.9% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝90:10, flow rate＝0.4 mL/min, λ＝250 nm, retention time: 15.290 min. White solid, m.p. 172.2~175.7 ℃; [α]_D²⁰－36.68 (c 0.18, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 8.12 (s, 1H), 7.90 (s, 1H), 4.68~4.66 (m, 1H), 4.36~4.32 (m, 3H), 3.79~3.75 (m, 2H), 2.53 (q, J＝12.6 Hz, 1H), 1.98~1.96 (m, 2H), 1.85~1.78 (m, 1H), 1.74~1.69 (m, 2H), 1.56~1.47 (m, 2H), 1.35~1.24 (m, 6H); ¹³C NMR (100 MHz, CDCl₃) δ: 152.3, 151.4, 149.9, 141.0, 121.0, 67.5, 64.0, 44.3, 43.1, 33.2, 25.9, 25.5, 18.9, 14.2, 13.2; IR (KBr) ν: 3100, 2921, 1601, 1410, 1190, 776, 657 cm^－1; HRMS (ESI-TOF) calcd for C₁₅H₂₄N₅O [M+H]⁺ 290.1975, found 290.1978.

  3-Benzoyl-1-((1S, 2R)-2-hydroxycyclopentyl)pyrimi-dine-2, 4(1H, 3H)-dione (4a): 28.8 mg, 96% yield, 97% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propa- nol)＝80:20, flow rate＝0.8 mL/min, λ＝250 nm, retention time: 24.179, 36.556 min. White oil. [α]_D²⁰－49.40 (c 0.25, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 7.97~7.84 (m, 2H), 7.67~7.61 (m, 2H), 7.52~7.48 (m, 2H), 5.76 (d, J＝8.4 Hz, 1H), 4.74~4.68 (m, 1H), 4.34~4.31 (m, 1H), 2.04~1.97 (m, 4H), 1.77~1.63 (m, 2H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.3, 162.5, 150.7, 143.5, 135.2, 131.6, 130.7, 129.3, 100.8, 71.6, 59.4, 33.3, 26.6, 20.2; IR (KBr) ν: 3188, 2919, 1632, 1449, 1239, 975, 682 cm^－1; HRMS (ESI-TOF) calcd for C₁₆H₁₇N₂O₄ [M+H]⁺ 301.1183, found 301.1174.

  3-Benzoyl-1-((1S, 2R)-2-hydroxycyclopentyl)-5-methyl-pyrimidine-2, 4(1H, 3H)-dione (4b): 28.9 mg, 92% yield, 96% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝80:20, flow rate＝0.8 mL/min, λ＝250 nm, retention time: 20.420, 24.577 min. White solid, m.p. 86.1~90.7 ℃; [α]_D²⁰－73.98 (c 0.25, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.93 (d, J＝7.8 Hz, 2H), 7.63 (t, J＝7.2 Hz, 1H), 7.50~7.44 (m, 3H), 4.68 (d, J＝11.4 Hz, 1H), 4.32 (s, 1H), 2.20~2.17 (m, 1H), 2.07~1.94 (m, 6H), 1.74~1.63 (m, 2H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.5, 163.1, 150.8, 139.4, 135.1, 131.8, 130.6, 129.3, 109.3, 71.8, 59.3, 33.3, 26.5, 20.2, 12.8; IR (KBr) ν: 3461, 2956, 1742, 1632, 1439, 1254, 982, 763, 685cm^－1; HRMS (ESI-TOF) calcd for C₁₇H₁₉N₂O₄ (M+H)⁺ 315.1339, found 315.1330.

  3-Benzoyl-5-ethyl-1-((1S, 2R)-2-hydroxycyclopentyl)-pyrimidine-2, 4(1H, 3H)-dione (4c): 30.5 mg, 93% yield, 95% ee. HPLC CHIRALCEL ASH, V(n-hexane):V(2- propanol)＝70:30, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 7.970, 12.263 min. White solid, m.p. 154.3~156.3 ℃; [α]_D²⁰－38.33 (c 0.42, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.94~7.92 (m, 2H), 7.64~7.61 (m, 1H), 7.49~7.47 (m, 2H), 7.40~7.39 (m, 1H), 4.70~4.66 (m, 1H), 4.32~4.29 (m, 1H), 2.39~2.35 (m, 2H), 2.09~2.04 (m, 1H), 2.02~1.95 (m, 3H), 1.74~1.62 (m, 2H), 1.14 (t, J＝7.2 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.6, 162.7, 150.7, 138.7, 135.1, 131.8, 130.6, 129.2, 114.9, 71.8, 59.4, 33.3, 26.5, 20.3, 20.2, 12.9; IR (KBr) ν: 3395, 2921, 1739, 1628, 1441, 1255, 1180, 985, 759, 684 cm^－1; HRMS (ESI-TOF) calcd for C₁₈H₂₁N₂O₄ [M+H]⁺ 329.1496, found 329.1487.

  1-((1S, 2R)-2-Hydroxycyclopentyl)-5-methylpyrimidine-2, 4(1H, 3H)-dione (4d): 19.3 mg, 92% yield, 97% ee. HPLC CHIRALCEL IE, V(n-hexane):V(2-propanol)＝40:60, flow rate＝0.8 mL/min, λ＝250 nm, retention time: 14.717 min, 31.463 min. White solid, m.p. 202.1~204.5 ℃; [α]_D²⁰－37.74 (c 0.24, CH₂Cl₂); ¹H NMR (600 MHz, CD₃OD)δ: 7.54 (s, 1H), 4.65~4.61 (m, 1H), 4.23~4.21 (m, 1H), 2.10~1.99 (m, 2H), 1.98~1.91 (m, 2H), 1.89 (s, 3H), 1.75~1.63 (m, 2H); ¹³C NMR (150 MHz, CD₃OD)δ: 166.6, 153.6, 141.6, 109.5, 71.8, 60.6, 33.7, 27.1, 21.1, 12.4; IR (KBr) ν: 3173, 2920, 1644, 1469, 1275, 1050, 1013, 590 cm^－1; HRMS (ESI-TOF) calcd for C₁₀H₁₅N₂O₃ [M+H]⁺ 211.1077, found 211.1073.

  3-(4-Chlorobenzoyl)-1-((1S, 2R)-2-hydroxycyclopentyl)-5-methylpyrimidine-2, 4(1H, 3H)-dione (4e): 31.7 mg, 91% yield, 95% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝90:10, flow rate＝0.9 mL/min, λ＝250 nm, retention time: 17.014 min, 21.647 min. White oil.[α]_D²⁰－45.71 (c 0.21, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.88~7.86 (m, 2H), 7.47~7.44 (m, 3H), 4.70~4.66 (m, 1H), 4.34~4.32 (m, 1H), 2.08~1.99 (m, 4H), 1.96~1.94 (m, 3H), 1.77~1.71 (m, 1H), 1.69~1.63 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 168.7, 162.9, 150.7, 141.8, 139.4, 131.9, 130.3, 129.7, 109.3, 71.8, 59.3, 33.4, 26.5, 20.2, 12.8; IR (KBr) ν: 3393, 2921, 1743, 1634, 1438, 1251, 1091, 984, 766, 564 cm^－1; HRMS (ESI-TOF) calcd for C₁₇H₁₈ClN₂O₄ [M+H]⁺ 349.0950, found 349.0947.

  3-Benzoyl-1-((1S, 2R)-2-hydroxycyclohexyl)-5-methyl-pyrimidine-2, 4(1H, 3H)-dione (4f): 29.8 mg, 91% yield, 97% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝80:20, flow rate＝0.8 mL/min, λ＝250 nm, retention time: 16.242, 21.449 min. White oil. [α]_D²⁰－36.51 (c 0.15, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.92 (d, J＝7.8 Hz, 2H), 7.63 (t, J＝6.6 Hz, 1H), 7.49~7.47 (m, 3H), 4.53~4.50 (m, 1H), 4.17 (s, 1H), 2.15~2.08 (m, 1H), 1.96 (s, 3H), 1.94~1.92 (m, 1H), 1.86~1.84 (m, 1H), 1.66~1.62 (m, 3H), 1.54~1.52 (m, 1H), 1.49~1.42 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.5, 163.0, 150.4, 139.2, 135.0, 131.9, 130.5, 129.2, 109.2, 68.2, 57.2, 33.3, 25.7, 24.9, 18.8, 12.7; IR (KBr) ν: 2922, 2850, 1744, 1632, 1435, 1275, 977, 765, 685 cm^－1; HRMS (ESI-TOF) calcd for C₁₈H₂₁N₂O₄ [M+H]⁺ 329.1496, found 329.1488.

  3-Benzoyl-1-((1S, 2R)-2-hydroxycycloheptyl)-5-methyl-pyrimidine-2, 4(1H, 3H)-dione (4g): 25.7 mg, 75% yield, 99% ee. HPLC CHIRALCEL OD-H, n-hexane/2-propa- nol＝80/20, flow rate＝0.8 mL/min, λ＝250 nm, retention time: 15.426, 25.394 min. White oil. [α]_D²⁰－27.37 (c 0.13, CH₂Cl₂); ¹H NMR (400 MHz, CD₃OD)δ: 7.99~7.93 (m, 2H), 7.72 (t, J＝7.2 Hz, 1H), 7.63 (s, 1H), 7.56 (t, J＝7.2 Hz, 2H), 4.58~4.50 (m, 1H), 4.08~4.01 (m, 1H), 2.32~2.21 (m, 1H), 1.94 (s, 3H), 1.91~1.77 (m, 3H), 1.76~1.55 (m, 5H), 1.50~1.41 (m, 1H); ¹³C NMR (100 MHz, CD₃OD) δ: 170.6, 164.9, 151.4, 142.1, 136.3, 133.0, 131.5, 130.4, 110.0, 71.0, 61.5, 35.2, 28.8, 27.8, 26.9, 21.9, 12.4; IR (KBr) ν: 2921, 2851, 1744, 1632, 1438, 1254, 979, 763, 686 cm^－1; HRMS (ESI-TOF) calcd for C₁₉H₂₃- N₂O₄ [M+H]⁺ 343.1652, found 343.1645.

  3-Benzoyl-1-((1R, 2S)-1-hydroxy-2, 3-dihydro-1H-inden-2-yl)-5-methylpyrimidine-2, 4(1H, 3H)-dione (4h): 30.0 mg, 83% yield, 94% ee. HPLC CHIRALCEL IA, V(n-he- xane):V(2-propanol)＝80:20, flow rate＝0.6 mL/min, λ＝250 nm, retention time: 16.745, 19.076 min. White oil.[α]_D²⁰+60.09 (c 0.22, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.96~7.94 (m, 2H), 7.66~7.63 (m, 1H), 7.51~7.48 (m, 2H), 7.44~7.43 (m, 1H), 7.37~7.31 (m, 3H), 7.14 (s, 1H), 5.39~5.35 (m, 1H), 5.29~5.28 (m, 1H), 3.37~3.28 (m, 2H), 1.85 (d, J＝1.2 Hz, 3H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.3, 162.9, 151.1, 141.5, 139.1, 138.7, 135.2, 131.7, 130.6, 129.7, 129.3, 128.2, 125.5, 124.9, 110.0, 74.7, 57.9, 34.6, 12.8; IR (KBr) ν: 2921, 2850, 1743, 1633, 1440, 1229, 1178, 977, 755, 684 cm^－1; HRMS (ESI-TOF) calcd for C₂₁H₁₉N₂O₄ [M+H]⁺ 363.1339, found 363.1331.

  3-Benzoyl-1-((1S, 2S)-2-fluorocyclopentyl)-5-methyl-pyrimidine-2, 4(1H, 3H)-dione (5b): 16.1 mg, 51% yield, 93% ee. HPLC CHIRALCEL ID, V(n-hexane):V(2- ropa- nol)＝70:30, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 21.400, 22.387 min. White oil. [α]_D²⁰+9.02 (c 0.51, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.93~7.91 (m, 2H), 7.65 (t, J＝7.2 Hz, 1H), 7.50 (t, J＝7.8 Hz, 2H), 7.07 (s, 1H), 5.40~5.29 (m, 1H), 4.43~4.35 (m, 1H), 2.22~2.08 (m, 2H), 2.00~1.97 (m, 5H), 1.91~1.80 (m, 2H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.0, 162.9, 149.6, 139.7, 135.3, 131.6, 130.6, 129.3, 111.2, 97.5 (J＝179.7 Hz), 68.8 (J＝25.5 Hz), 31.9 (J＝22.5 Hz), 29.2 (J＝4.5 Hz), 22.4, 12.6; IR (KBr) ν: 2921, 2850, 1743, 1643, 1438, 1256, 1178, 977, 761, 685 cm^－1; HRMS (ESI-TOF) calcd for C₁₇H₁₈FN₂O₃ [M+H]⁺ 317.1296, found 317.1291.

  (1R, 2S)-2-(3-Benzoyl-5-methyl-2, 4-dioxo-3, 4-dihydro-pyrimidin-1(2H)-yl)cyclopentyl methanesulfonate (6b): 184 mg, 94% yield, 95% ee. HPLC CHIRALCEL IA, V(n-hexane):V(2-propanol)＝15:85, flow rate＝0.3 mL/min, λ＝250 nm, retention time: 18.571 min, 19.698 min. White solid, m.p. 140.4~142.5 ℃; [α]_D²⁰－57.58 (c 0.26, CH₂Cl₂); ¹H NMR (600 MHz, CDCl₃) δ: 7.94 (d, J＝7.8 Hz, 2H), 7.57 (t, J＝7.8 Hz, 1H), 7.42 (t, J＝7.8 Hz, 2H), 7.20 (s, 1H), 5.11 (t, J＝4.8 Hz, 1H), 4.71~4.67 (m, 1H), 2.89 (s, 3H), 2.15~1.97 (m, 5H), 1.91 (s, 3H), 1.72~1.66 (m, 1H); ¹³C NMR (150 MHz, CDCl₃) δ: 169.3, 162.8, 150.6, 137.2, 135.2 131.5, 130.9, 129.2, 110.3, 81.5, 58.6, 38.2, 30.7, 25.6, 19.9, 12.8; IR (KBr) ν: 2936, 1746, 1644, 1439, 1351, 1231, 1178, 970, 905, 797, 696 cm^－1; HRMS (ESI-TOF) calcd for C₁₈H₂₁N₂O₆S [M+H]⁺ 393.1115, found 393.1108.

  S-((1S, 2S)-2-(3-Benzoyl-5-methyl-2, 4-dioxo-3, 4-dihy-dropyrimidin-1(2H)-yl)cyclopentyl) ethanethioate (7b): 21.2 mg, 57% yield, 93% ee. HPLC CHIRALCEL OD-H, V(n-hexane):V(2-propanol)＝70:30, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 11.637, 16.467 min. Yellow oil.[α]_D²⁰－17.34 (c 0.37, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 7.99~7.96 (m, 2H), 7.65~7.61 (m, 1H), 7.50~7.46 (m, 2H), 7.11~7.10 (m, 1H), 4.71 (s, 1H), 3.95 (q, J＝9.2 Hz, 1H), 2.31 (s, 3H), 2.28~2.14 (m, 2H), 1.98 (d, J＝1.2 Hz, 3H), 1.95~1.82 (m, 3H), 1.73~1.65 (m, 1H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.8, 169.3, 162.9, 150.2, 137.2, 135.0, 131.8, 130.7, 129.2, 111.3, 45.6, 31.1, 30.7, 29.9, 22.8, 12.8; IR (KBr) ν: 2921, 1743, 1643, 1439, 1228, 1112, 988, 762, 685, 630 cm^－1; HRMS (ESI-TOF) calcd for C₁₉H₂₁N₂O₄S [M+H]⁺373.1217, found 373.1209.

  1-((1S, 2S)-2-Azidocyclopentyl)-5-methylpyrimidine-2, 4(1H, 3H)-dione (8b): 53.6 mg, 76% yield, 93% ee. HPLC CHIRALCEL ID, V(n-hexane):V(2-propanol)＝70:30, flow rate＝0.8 mL/min, λ＝256 nm, retention time: 24.443, 26.077 min. Yellow solid, m.p. 158.4~165.3 ℃; [α]_D²⁰+10.92 (c 0.20, CH₂Cl₂); ¹H NMR (400 MHz, CDCl₃) δ: 8.53 (s, 1H), 6.94~6.93 (m, 1H), 4.35 (q, J＝7.6 Hz, 1H), 4.14 (q, J＝7.6 Hz, 1H), 2.24~2.11 (m, 2H), 1.99~1.89 (m, 5H), 1.88~1.72 (m, 2H); ¹³C NMR (100 MHz, CDCl₃) δ: 163.5, 150.7, 138.3, 111.5, 64.9, 64.5, 29.9, 28.1, 21.3, 12.7; IR (KBr) ν: 2919, 2848, 2094, 1644, 1351, 1263, 1125, 903, 760, 595 cm^－1; HRMS (ESI- TOF) calcd for C₁₀H₁₄N₅O₂ [M+H]⁺ 236.1142, found 236.1151.

  Supporting Information  Experimental procedures, the synthesis method of the starting materials, and compound characterization data (PDF), X-ray data for compounds 2a (CIF), 2b (CIF), and 6b (CIF). The Supporting Information is available free of charge via the Internet at http://sioc-journal.cn/.



• 1. [1]

     (a) Zhou, H.; Zeng, X.; Ding, L.; Xie, Y.; Zhong, G. Org. Lett. 2015, 17, 2385.
     (b) Trost, B. M.; Madsen, R.; Guile, S. D.; Brown, B. J. Am. Chem. Soc. 2000, 122, 5947.
     (c) Kakuda, T. N. Clin. Ther. 2000, 22, 685.
     (d) Boutureira, O.; Matheu, M. I.; Díaz, Y.; Castillón, S. Chem. Soc. Rev. 2013, 42, 5056.
     (e) Forsman, J. J.; Leino, R. Chem. Rev. 2011, 111, 3334.
     (f) Lebreton, J.; Escudier, J.-M.; Arzel, Len, C. Chem. Rev. 2010, 110, 3371.
     (g) Amblard, F.; Cho, J. H.; Schinazi, R. F. Chem. Rev. 2009, 109, 4207.
     (h) Liu, Y.; Guo, X.; Bai, P. Chin. J. Org. Chem. 2014, 34, 2202 (in Chinese).
     (刘亚君, 郭翔海, 白鹏, 有机化学, 2014, 34, 2202.)
     (i) Fan, X.-S; Zhang, X.-Y.; Wang, X.; Qu, G.-R. Chin. J. Org. Chem. 2008, 28, 1888 (in Chinese).
     (范学森, 张新迎, 王霞, 渠桂荣, 有机化学, 2008, 28, 1888.)

  2. [2]

     (a) Barral, K.; Courcambeck, J.; Pèpe, G.; Balzarini, J.; Neyts, J.; Clercq, E. D.; Camplo, M. J. Med. Chem. 2005, 48, 450.
     (b) Keane, S. J.; Ford, A.; Mullins, N. D.; Maguire, N. M.; Legigan, T.; Balzarini, J.; Maguire, A. R. J. Org. Chem. 2015, 80, 2479.
     (c) Gai, X.; Song, W.; Heng, S.; Yang, W. Chin. J. Integr. Tradit. West. Med. Liver Dis. 2005, 15, 50 (in Chinese).
     (盖欣, 宋万玲, 桓树学, 杨文东, 中西医结合肝病杂志, 2005, 15, 50.)

  3. [3]

     (a) Hu, L.; Ren, Y.; Ramström, O. J. Org. Chem. 2015, 80, 8478.
     (b) Singh, U. S.; Mishra, R. C.; Shankar, R.; Chu, C. K. J. Org. Chem. 2014, 79, 3917.
     (c) Caso, M. F.; D'Alonzo, D.; D'Errico, S.; Palumbo, G.; Guaragna, A. Org. Lett. 2015 17, 2626.

  4. [4]

     (a) Silverman, R. B. The Organic Chemistry of Drug Design and Drug Action, Elsevier, Evanston, 2004.
     (b) Kompis, I. M.; Islam, K.; Then, R. L. Chem. Rev. 2005, 105, 583.
     (c) Lyon, M. A.; Ducruet, A. P.; Wipf, P.; Lazo, J. S. Nat. Rev. Drug Disc. 2002, 1, 961.
     (d) Gangjee, A.; Li, W.; Yang, J.; Kisliuk, R. L. J. Med. Chem. 2008, 51, 68.

  5. [5]

     (a) Jeong, L. S.; Lee, J. A. Antiviral Chem. Chemother. 2004, 15, 235.
     (b) Liu, Y.; Guo, X.; Bai, P. Chin. J. Org. Chem. 2014, 34, 2202.
     (c) Boutureira, O.; Matheu, M. I.; Díaz, Y.; Castillón, S. Chem. Soc. Rev. 2013, 42, 5056.

  6. [6]

     (a) Xie, M.-S.; Wang, Y.; Li, J.-P.; Du, C.; Zhang, Y.-Y.; Hao, E.-J.; Zhang, Y.-M.; Qu, G.-R.; Guo, H.-M. Chem. Commun. 2015, 51, 12451.
     (b) Huang, K.-X.; Xie, M.-S.; Zhang, Q.-Y.; Niu, H.-Y.; Qu, G.-R.; Guo, H.-M. Org. Lett. 2018, 20, 5398.
     (c) Wang, J.; Zhang, Q.-Y.; Xie, M.-S.; Wang, D.-C.; Qu, G.-R.; Guo, H.-M. Org. Lett. 2018, 20, 6578.
     (d) Gao, Y.-W.; Niu, H.; Zhang, Q.-Y.; Xie, M.; Qu, G.; Guo, H. Adv. Synth. Catal. 2018, 360, 2813.

  7. [7]

     (a) Bhat, B.; Neelima, N. J.; Leonard, H.; Robinson, A.; Wang, H.-J. J. Am. Chem. Soc. 1996, 118, 3065.
     (b) Leonard, N. J.; Laursenf, R. A. Biosci., Biotechnol., Biochem. 1965, 4, 354.

  8. [8]

     (a) Sadler, J. M.; Mosley, S. L.; Dorgan, K. M.; Zhou, Z. S.; Seley-Radtke, K. L. Bioorg. Med. Chem. 2009, 17, 5520.
     (b) Jiang, M. X.-W.; Warshakoon, N. C.; Miller, M. J. J. Org. Chem. 2005, 70, 2824.

  9. [9]

     (a) Tang, W.; Zhang, X. Chem. Rev. 2003, 103, 3029.
     (b) Liu, S.; Xie, J.-H.; Wang, L.-X.; Zhou, Q.-L. Angew. Chem. 2007, 119, 7650; Angew. Chem., Int. Ed. 2007, 46, 7506.
     (c) Liu, S.; Xie, J.-H.; Li, W.; Kong, W.-L.; Wang, L.-X.; Zhou, Q.-L. Org. Lett. 2009, 11, 4994.
     (d) Zhou, Q.; Xie, J.; Zhu, S.; Wang, L. Tianjin Sci. Technol. 2014, 41, 11 (in Chinese).
     (周其林, 谢建华, 朱守非, 王立新, 天津科技, 2014, 41, 11.)

  10. [10]

      (a) Zhang, Q.; Ma, B.-W.; Wang, Q.-.Q.; Wang, X.-X.; Hu, X.; Xie, M.-S.; Qu, G.-R.; Guo, H.-M. Org. Lett. 2014, 16, 2014.
      (b) Vyas, V. K.; Bhanage, B. M. Org. Lett. 2016, 18, 6436.
      (c) Matsunami, A.; Ikeda, M.; Nakamura, H.; Yoshida, M.; Kuwata, S.; Kayaki, Y. Org. Lett. 2018, 20, 5213.
      (d) Vyas, V. K.; Bhanage, B. M. Asian J. Org. Chem. 2018, 7, 346.
      (e) Liu, Q.; Wang, C.; Zhou, H.; Wang, O.; Lv, J.; Cao, Lu; Fu, Y. Org. Lett. 2018, 20, 971.

  11. [11]

      (a) Zhang, Y.-M.; Zhang, Q.-Y.; Wang, D.-C.; Xie, M.-S.; Qu, G.-R.; Guo, H.-M. Org. Lett. 2019, 21, 2998.
      (b) Sun, H.-L.; Chen, F.; Xie, M.-S.; Guo, H.-M.; Qu, G.-R.; He, Y.-M.; Fan, Q.-H. Org. Lett. 2016, 18, 2260.

  12. [12]

      (a) Chan, A. S. C.; Pluth, J. J.; Halpern, J. J. Am. Chem. Soc. 1980, 102, 5952.
      (b) Miyashita, A.; Yasuda, A.; Takaya, H.; Toriumi, K.; Ito, T.; Souchi, T.; Noyori, R. J. Am. Chem. Soc. 1980, 102, 7932.

•
