基于苯并吡喃腈-香豆素体系的近红外比率型荧光探针用于检测HeLa细胞中的过氧亚硝酸盐

陈宇 毕克英 郝瑞亭 谢萍 黄丽娜 王玉敏 张俊峰 徐锐 吴相华

引用本文: 陈宇, 毕克英, 郝瑞亭, 谢萍, 黄丽娜, 王玉敏, 张俊峰, 徐锐, 吴相华. 基于苯并吡喃腈-香豆素体系的近红外比率型荧光探针用于检测HeLa细胞中的过氧亚硝酸盐[J]. 有机化学, 2020, 40(2): 511-515. doi: 10.6023/cjoc201907048 shu
Citation:  Chen Yu, Bi Keying, Hao Ruiting, Xie Ping, Huang Lina, Wang Yumin, Zhang Junfeng, Xu Rui, Wu Xianghua. Near-Infrared Ratiometric Fluorescent Probe for Detection of Peroxynitrite in HeLa Cells Based on Dicyanomethylene-4H-pyran Coumarin System[J]. Chinese Journal of Organic Chemistry, 2020, 40(2): 511-515. doi: 10.6023/cjoc201907048 shu

基于苯并吡喃腈-香豆素体系的近红外比率型荧光探针用于检测HeLa细胞中的过氧亚硝酸盐

    通讯作者: 张俊峰, E-mail: junfengzhang78@126.com
  • 基金项目:

    国家自然科学基金(Nos.21262050,21302165,21672185,21867019,41561108,61774130,11474248)、云南省科学技术厅基金(Nos.2016FB020,2014HB008,2017HB019)以及云南师范大学研究生科研创新基金(No.Ysdyjs2019122)资助项目

摘要: 过氧亚硝酸根(ONOO-)是生物体内的一种重要的活性氧,与人体内的各种生理活动息息相关.利用苯并吡喃腈-香豆素体系,合成了一种用于ONOO-检测的近红外比率型荧光探针(E)-7-(二乙胺基)-3-(2-(苯并吡喃腈)乙烯基)-香豆素(DCCM).该探针在ONOO-存在下表现出强烈的响应,颜色从紫色变为浅粉色,最大发射峰蓝移217 nm,荧光颜色从淡紫色变为蓝色,能够直观地对溶液中的ONOO-进行监测.DCCM可以灵敏地检测ONOO-,最低检测限为6.0×10-7 mol·L-1,该探针被成功用于HeLa细胞中的ONOO-成像检测.

English

  • Peroxynitrite (ONOO) is an important reactive oxygen species (ROS) in living organisms.[1, 2] In living systems, peroxynitrite is produced by the diffusion-controlled reaction of nitric oxide (NO) and superoxide radicals (O2•-).[3] ONOO can react with a variety of biologically active species, such as genetic substances, lipids, proteins, iron-sulfur clusters and thiols because of its strong oxidability and reactive activity, thereby leading to cell necrosis and apoptosis.[4~6] The imbalance of ONOO is also associated with many diseases, such as cardiovascular disease, neurodegenerative disorders, Alzheimer's disease, diabetes, circulatory shock, inflammatory diseases and cancers.[7, 8] However, ONOO also plays a positive role, assisting the immune system to combat pathogens.[9, 10] Therefore, it is important to develop a method for rapid and efficient detection of ONOO in living organisms. Because peroxynitrite has a very short half-life (<10 ms), it is difficult to detect it in living cells by traditional analytical methods.[11, 12] Fluorescence imaging, which has a high sensitivity and strong selectivity, is an excellent method for real-time detection and monitoring of ONOO in living cells.[13, 14] Fluorescent probes for ONOO have been designed[15], however they are mainly intensity-type probes. Until now, few ratiometric fluorescent ONOO probes have been reported.[16] Ratiometric fluorescent probes, which detect the analytes using two different fluorescence signals, can eliminate most of the environmental fluorescence background, enabling more accurate tests in complex biological environments.[17~22] Therefore, there is a need for development of a ratiometric fluorescent probe which can be used to detect ONOO, and provide information on ONOO inside cells through fluorescence imaging. In this study, we have designed and synthesized a new near-infrared ratiometric fluorescent probe, DCCM (Scheme 1), based on dicyanomethylene-4H-pyran (DCM) and 7-(diethylamino)coumarin-3-formaldehyde, for the accurate detection of ONOO. The fluorophore, DCM, has a large Stokes shift, strong photostability and high fluorescent quantum yield, and is commonly used in near-infrared fluorescent probe.[23~27] The introduction of DCM leads to the formation of a strong push-pull electron system with the excellent electron donor 7-diethylamine coumarin, ensuring the maximum emission wavelength of the DCCM probe reaches 697 nm, in the near-infrared region. As a probe, DCCM exhibits a good response towards ONOO, with a significant color change from purple to light pink, along with fluorescence color changes from heliotrope to blue. DCCM also has good selectivity and sensitivity for the detection of ONOO, and has been successfully applied to biological imaging in HeLa cells.

    Scheme 1

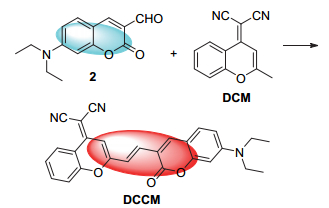

    Scheme 1.  Synthesis of probe DCCM

    First, the fluorescence spectrum of DCCM in different proportions N, N-dimethylformamide/4-(2-hydroxyethyl)- 1-piperazineethanesulfonic acid (DMF/HEPES) buffer solution (0.01 mol•L-1, pH=7.4) from 9:1 to 1:9 (V:V) was investigated. It was found that the DMF/HEPES buffer solution (V:V=9:1, 0.01 mol•L-1, pH=7.4) is most suitable for fluorescence detection because of its high fluorescence emission intensity at 697 nm. As shown in Figure 1, with increasing ONOO concentration, the intensity of the absorption peak at 535 nm gradually decreased, while an absorption peak at 390 nm progressively increased, accompanied by a color change of the solution, from purple to light pink (Figure 1a). As shown in Figure 1b, with higher concentration of ONOO, the fluorescence emission peak at 697 nm gradually decreases, with the appearance of a new emission peak at 480 nm. The fluorescent color of the solution changed from heliotrope to blue simultaneously. Notably, the fluorescence intensity response of the DCCM probe for ONOO has a strong linear correlation (R2=0.99) in the range of 0~5.6 μmol•L-1. Moreover, the detection limit for ONO- O by DCCM was calculated to be 6.0×10-7 mol•L-1. This data proves that DCCM probe has the same order of sensitivity compared with 224 nmol•L-1 of a recently reported ratiomatric fluorescent probe for ONOO detection.[28]

    图 1

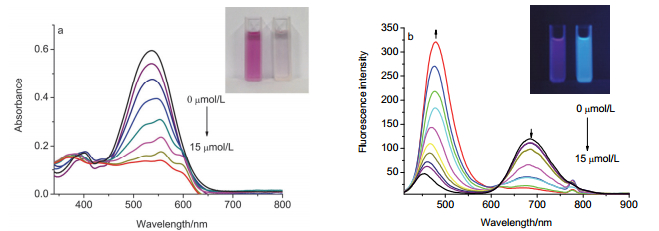

    Figure 1.  (a) UV-vis absorption spectra changes and (b) fluorescence spectra changes of probe DCCM (10 μmol•L-1) in DMF/HEPES buffer solution (V:V=9:1, 0.01 mol•L-1, pH=7.4) upon addition of increasing amount of ONOO (0~15 μmol•L-1) (λex=390 nm, slits 5 nm×5 nm

    An investigation of the UV-vis absorption and fluores-cence selectivity of DCCM for ONOO was carried out in the same DMF/HEPES buffer solution. The selectivity of DCCM probe was determined by comparing its response in the presence of various analytes including reactive oxygen species, reactive nitrogen species, reactive sulfur species, and metal ions, as well as amino acids. These experiments indicated that in the presence of other analytes, there was no change in the absorption or the fluorescent emission of DCCM, and the color of the DCCM solution was unaltered. Only with the addition of ONOO, the absorption peak was quenched and shifted from 535 nm to 390 nm (Figure 2a), and the fluorescent emission peak was shifted from 697 nm to 480 nm, with the emission color changing from heliotrope to blue (Figure 2b). Therefore, these results indicate that DCCM is highly selective and can detect ONOO without interference from other analytes.

    图 2

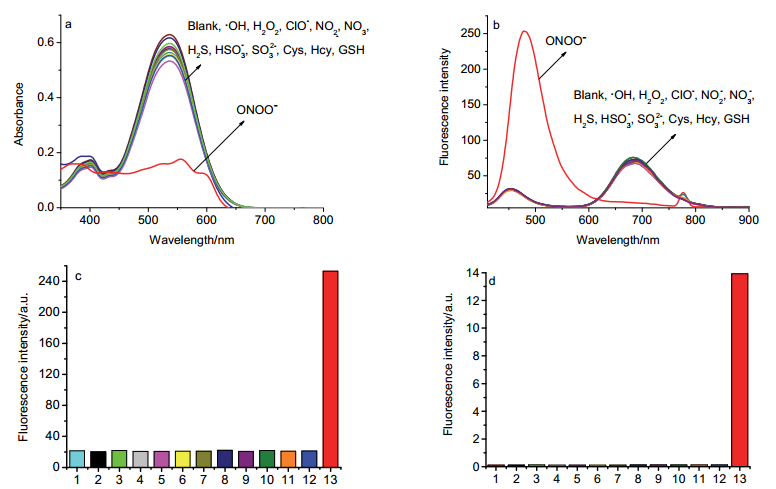

    Figure 2.  (a) UV-vis absorption spectrum, (b) fluorescence emission spectrum, (c) fluorescence intensity (F480) and (d) fluorescence intensity ratios (F480/F697) of probe DCCM (10 μmol•L-1) in the presence of various analytes in DMF/HEPES buffer solution (V:V=9:1, 0.01 mol•L-1, pH=7.4)1: Blank, 2: •OH, 3: H2O2, 4: ClO, 5:NO2- , 6:NO3- , 7: H2S, 8: HSO3-, 9: SO32-, 10: Cys, 11: Hcy, 12: GSH, 13: ONOO. 15 μmol•L-1. λex=390 nm, slits 5 nm×5 nm

    Based on a previous report, [3] a mechanism of interaction between DCCM and ONOO has been proposed (Scheme 2).

    Scheme 2

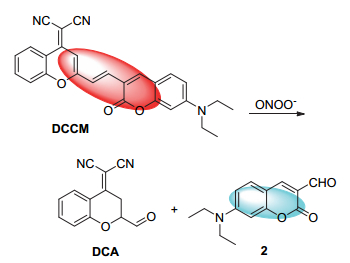

    Scheme 2.  Diagram of the reaction mechanism of probe DCCM and ONOO

    DCCM itself has a strong red fluorescence, but its double bond is broken by interacting with ONOO. This shifts the maximum fluorescence emission peak to 480 nm. It was preliminarily determined that the probe DCCM interacted with ONOO to generate a coumarin compound.Mass spectrometry was used to verify this reaction mechanism. First, DCCM itself was analyzed. The theoretical relative molecular mass of DCCM is [M+H]+m/z 436.1583, while the measured relative molecular mass was [M+H]+ m/z 436.1657. Then, in a DMF/HEPES buffer solution (V:V=9:1, 0.01 mol•L-1, pH=7.4), ONOO (15 μmol•L-1) was added to a DCCM (10 μmol•L-1) solution. After reacting for a while, mass spectrometry was performed on the products. As shown in Figure 3b, peaks at [M+H]+m/z 225.0079 and 246.1133 were observed after the reaction, indicating that DCCM reacts with ONOO to form a coumarin compound. The conversion rate of DCCM to coumarin 2 is relatively higher (88.9%) by comparing the DCCM (10 μmol/L) fluorescence emission intensity at 480 nm after the addition of ONOO (15 μmol•L-1) with coumarin 2 (10 μmol•L-1) in DMF/ HEPES buffer solution (V:V=9:1, 0.01 mol•L-1, pH=7.4).

    图 3

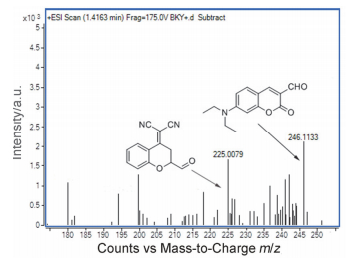

    Figure 3.  Mechanism mass spectrum after reaction of probe DCCM and ONOO

    Prior to being applied to cell imaging, MTS assay was performed to assess the biocompatibility of DCCM. After addition of DCCM (40 μmol•L-1), which was much higher than the concentration (6 μmol•L-1) for cell imaging, the cell survival rate was 97.83% after 48 h. This result indicated that DCCM had low cytotoxicity to HeLa cells. To research the application of DCCM as an imaging probe for ONOO in living cells, then DCCM was usedfor imaging ONOO in HeLa cells. The HeLa cells were incubated with 10 μmol•L-1 DCCM for 120 min, and then were exposed to ONOO (0, 2, 4 or 6 μmol•L-1) for another 60 min. As shown in Figure 4, the HeLa cells exhibited bright red fluorescence after incubation with DCCM for 120 min, but no blue fluorescence was observed in the blue channel. After the DCCM-loaded HeLa cells were treated with ONOO (2, 4, 6 μmol•L-1) for 60 min, the fluorescence in the red channel decreased gradually, and increased gradually in the blue channel. These results indicate that DCCM could be used to perform fluorescence imaging of ONOO in HeLa cells.

    图 4

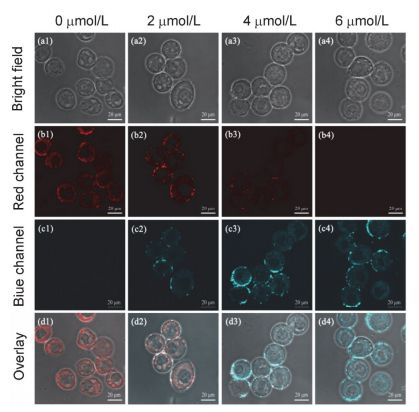

    Figure 4.  Confocal fluorescence images of probe DCCM in HeLa cells incubated with different concentrations of ONOOThe HeLa cells were incubated with probe DCCM (10 μmol•L-1) for 120 min, and then were fed with ONOO (0, 2, 4, 6 μmol•L-1) for another 60 min. (a1~a4) bright field map; (b1~b4) red light channel map; (c1~c4) blue light channel map; (d1~d4) superposition map. Images were received by collecting the emissions at 450~500 nm and the emissions at 650~700 nm upon excitation at 390 nm. Scale bar: 20 μm

    A near-infrared fluorescence probe for ONOO detection, DCCM, was synthesized using a simple aldol condensation reaction between DCM and 7-(diethylamino)- coumarin-3-formaldehyde. As a ONOO probe, DCCM displayed a remarkable colorimetric (from purple to light pink) and ratiometric fluorescence response (from heliotrope to blue) in the presence of ONOO. The mechanism of the reaction was shown to be the oxidation and breaking of a carbon-carbon double bond by ONOO. DCCM exhibited high selectivity and sensitivity for ONOO, as well as low limit of detection (6.0×10-7 mol•L-1). Also, DCCM was successfully used to measure the presence of peroxynitrite in HeLa cells. Based these results, we believe that this research provides a promising means for investigating the effect of ONOO in various physiological and pathological conditions.

    Unless otherwise indicated, all chemicals were purchased from Aladdin, Macklin and “9 Ding chem”, and used without further purification. The crude product was separated and purified in silica gel (300~400 mesh) columns to obtain probe DCCM. A stock solution of DCCM was made by dissolving an appropriate amount in 5 mL of DMF. UV-vis absorption spectra were measured at 25 ℃ using a UV-240ZPC spectrophotometer. Fluorescence emission spectra were measured at 25 ℃ with an F-4600 fluorescence spectrum analyzer spectrometer (slit: 5 nm). 1H NMR (400 MHz) and 13C NMR spectra (101 MHz) were obtained using a Bruker Avance spectrometer. ESI mass spectra were obtained using a Xevo TQ-S and Q- TOF mass spectrometer. Confocal imaging of ONOO in HeLa cells was carried out on a F100 fluorescence spectroscopy confocal microscope.

    Compounds 3, 2 and DCM were synthesized according to literature with commercially available starting materials.[29, 30]

    DCM (378 mg, 1.8 mmol) and compound 2 (414 mg, 1.6 mmol) were dissolved in 40 mL of toluene, then piperidine (0.6 mL) and acetic acid (0.6 mL) were added to the solution. The resulting mixture was refluxed for 4 h under nitrogen. After that, the mixture was cooled to room temperature and concentrated under vacuum, and the crude product was purified using silica gel column chromatography to isolate DCCM as a brown solid(330 mg, 46% yield). 1H NMR (500 MHz, CDCl3)δ: 8.94 (d, J=8.2 Hz, 1H), 7.83 (s, 1H), 7.75 (t, J=7.4 Hz, 1H), 7.60~7.53 (m, 2H), 7.47 (dd, J=15.0, 7.1 Hz, 1H), 7.41~7.36 (m, 2H), 6.90 (s, 1H), 6.68 (d, J=8.2 Hz, 1H), 6.55 (s, 1H), 3.49 (d, J=7.1 Hz, 4H), 1.28 (t, J=6.9 Hz, 6H). HRMS calcd for C27H22N3O3[M+H]+ 436.1661, found 436.1657. HRMS: calcd for C27H21N3O3Na[M+Na]+ 458.1481, found 458.1469. Fusing point is 167.7 ℃.

    HeLa cells were cultured in modified Eagle's medium (DMEM, Invitrogen) supplemented with 10% fetal bovine serum (FBS) at 37 ℃, in a 5% CO2 incubator. Two days before use, roughly 1.0×105 cells were inoculated onto a culture dish (37 ℃, 5% CO2). First, the dishes were rinsed several times with 4-(2-hydroxyethyl)-1-piperazineethane- sulfonic acid (HEPES) buffer. The cells were then incubated and probe DCCM (10 μmol•L-1) for 120 min in HEPES buffer solution, then washed with HEPES buffer and treated with ONOO (either 0, 2, 4, or 6 μmol•L-1) for 60 min. Fluorescence images were then collected using a confocal microscope with a 40× objective.

    Supporting Information Synthetic methods of probe DCCM.1H NMR and HR-MS spectra for compounds. The Supporting Information is available free of charge via the Internet at http://sioc-journal.cn/.
