咔唑桥连NCN齿形钯配合物催化的唑类C-H键直接芳基化反应

宋文越 饶小峰 卜庆青 刘宁

引用本文: 宋文越, 饶小峰, 卜庆青, 刘宁. 咔唑桥连NCN齿形钯配合物催化的唑类C-H键直接芳基化反应[J]. 有机化学, 2020, 40(2): 489-500. doi: 10.6023/cjoc201907035 shu
Citation:  Song Wen-Yue, Rao Xiaofeng, Bu Qingqing, Liu Ning. Carbazole-Bridged NCN-Pincer Palladium Complex Catalyzed Direct C-H Arylation Reaction of Azoles[J]. Chinese Journal of Organic Chemistry, 2020, 40(2): 489-500. doi: 10.6023/cjoc201907035 shu

咔唑桥连NCN齿形钯配合物催化的唑类C-H键直接芳基化反应

    通讯作者: 卜庆青, bqq880219@163.com; 刘宁, E-mail: ningliu@shzu.edu.cn
  • 基金项目:

    国家自然科学基金(No.U1603103)资助项目

摘要: 基于咔唑的强给电子能力合成了一种对空气稳定的齿形钯配合物催化剂(C1~C6).这种钯催化剂可高效催化唑类和溴代芳烃的直接芳基化反应,在空气条件下,碳酸钾为碱,无需其他添加剂,即取得了较好的催化活性与底物普适性.在相对温和的条件和催化剂用量为0.5 mol%时,即可实现噻唑与溴代芳烃直接芳基化反应顺利进行.值得一提的是,这是目前以KOAc为碱的反应体系中,反应活性最高的催化体系.

English

  • The palladium catalyzed direct arylation of heteroarenes with aryl halides is widely used in polymer chemistry, functional material synthesis, biological sciences, and natural product chemistry.[1~4] In recent years, direct arylation reactions have emerged as attractive alternatives to the traditional coupling reactions, which add costly chemical steps to the overall synthesis by pre-activation arenes.[5] Among the available methods, various types of palladium catalytic systems have been studied, including a ligand free pallidum catalyst system[6] or Pd(OAc)2 associated with some sterically demanding, electron-rich phosphines system.[7~11] Despite the significant progress has been achieved, some catalytic systems still suffer from disadvantages: poor substrate scope or high palladium loading. Recently, N-heterocyclic carbene ligand[12] and diimine ligand[13] palladium complexes catalyzed C—H arylation reactions have been reported, in which two catalytic systems made a significant progress in this area with K2CO3 as base and pivalate acid (PivOH) as additive.

    Research in the structure-activity relationship of previously reported palladium catalysts found that the strong donor strength and high steric hindrance demand of ligands are directly related to the catalytic activities of complexes.[12, 13] Carbazole is a strong electron-donating group and commonly used as ligand for metal complexes synthesis. A series of metal complexes based on carbazole skeleton are synthesized, such as ruthenium, [14] copper, [15] iridium, [16] platinum, [17] nickel, [18] and found widely applications in the advanced material synthesis.[19~21] However, the catalytic performance of carbazole-based metal complexes in the organic transformations was rarely investigated. In 2003, Nakada and co-workers[22] reported a new carbazole-based chiral ligand which can be used for the asymmetric Nozaki-Hiyama allylation and methallylation reaction. It indicates that carbazole has potential applications as a ligand in the field of catalysis. Then, Kunz and co-workers[23] synthesized a class of efficient carbazole-based rhdium complexes for selective rearrangement of terminal epoxides into methylketones. Based on previous studies, Gade and co-workers[24] described the synthesis of carbazole-based PNP type iron complexes, which was shown to be efficient in the hydrogenation of alkenes. Over the past few years, our group has successfully proved the unsymmetrical pyridine-bridged pincer-type scaffolds as effective ligands or catalysts for iron-catalyzed, and organocatalyzed the cycloaddition of epoxides with CO2, [25] as well as palladium complexes catalyzed the Suzuki cross-coupling reaction based on our group ligand.[26] Within our program on design and synthesis of unsymmetrical pyridine-bridged catalysts, [27] we have now developed a series of carbazole-pyridine-based palladium complexes, and found that these palladium complexes were efficient for direct arylation reaction of imidazole, thiazole and other N-hetero- cyclic compounds. The functional-group tolerance and substrate scope have also been studied. In addition, studies in this literature in direct arylation reaction using a single component KOAc as base.

    The preparation of carbazole-based palladium(II) complexes C1~C6 is shown in Scheme 1. Ligands L1~L6 were synthesized via continuous coupling of 2-hydroxy- carbazole with 2-fluoropyridines in N, N-dimethylform- amide (DMF) at 150 ℃ for 12 h with excellent yields, [27] followed by the reaction between ligands L1~L6 and PdCl2 in acetonitrile at 80 ℃. The palladium complexes C1~C6 were stable to air and moisture, even for 15 d under an air atmosphere. In order to understand the coordination form of the complexes, the molecular structure of C1 was confirmed by X-ray crystallography (Figure 1). The single crystal structure of C1 proves that the carbazole coordinated with palladium via the C—H bond activation on the carbazole ring.

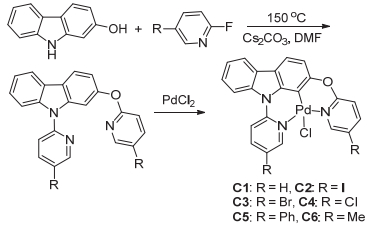

    Scheme 1

    Scheme 1.  Synthesis of carbazole-based palladium complexes C1~C6

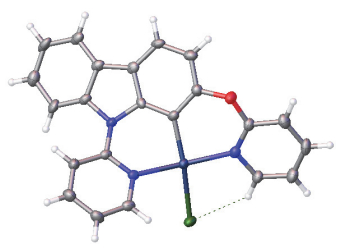

    图 1

    Figure 1.  X-ray structure of palladium complex C1

    In order to investigate the catalytic activity of palladium complexes C1~C6, the reaction of 1-methy-1H-imidazole 1a with 4-bromoacetophenone 2b was selected as a model reaction (Table 1). When the reaction was conducted in N, N-dimethylacetamide (DMA) using palladium complex C1 as catalyst and KOAc as base at 140 ℃, the desired arylated product 3b was isolated in 75% yield (Table 1, Entry 1). It is noteworthy that 1-methy-1H-imidazole underwent highly selective coupling at C-5 position rather than that of C-2 and C-4, which is consistent with the previously reported results.[12, 13, 28] Moreover, the palladium complexes C2~C5 which bearing electron-withdrawing group, such as iodide, bromide, chloride, and benzene were also investigated under the same reaction conditions, affording the desired product in the yields of 86%, 82%, 87%, and 84%, respectively (Table 1, Entries 2~5). To further explore the influence of substituents on the palladium complexes, the palladium complex C6 with electron-donating methyl group was also tested. The result showed that lower conversion of starting material 1a was observed compared with that of C2~C5 under the same reaction conditions, leading to the desired product in 65% yield (Table 1, Entry 6). The above results suggested that the electronic nature of substituents with palladium complexes has the effect on the catalytic efficiency. In addition, the influence of ligands in catalytic efficiency was also explored. Pd(OAc)2 and PdCl2 in the absence of ligands have been tested and moderate yields of 60% and 46% were obtained (Table 1, Entries 7, 8). However, the PdCl2 or Pd(OAc)2 in the presence of the commercial ligands such as PCy3, PPh3, 1, 10-phenanthroline and bipyridine has not improve the catalytic efficiency (Table 1, Entries 9~12), only PdCl2 in combination with bipyridine showed the relatively higher catalytic activity (Table 1, Entry 12). When our developed C4 palladium complex has been used as catalyst and a significant improvement was observed (Table 1, Entry 4). The compared experiments suggested that the rational design of catalysts plays an important role in tuning the catalytic activity.

    表 1

    Table 1.  Optimization of conditions for direct arylation reactiona
    下载: 导出CSV
    Entry Cat. (mol%) Solvent Base Temp./℃ Time/h Yield/%
    1 C1 (2) DMA KOAc 140 10 75
    2 C2 (2) DMA KOAc 140 10 86
    3 C3 (2) DMA KOAc 140 10 82
    4 C4 (2) DMA KOAc 140 10 87
    5 C5 (2) DMA KOAc 140 10 84
    6 C6 (2) DMA KOAc 140 10 65
    7 Pd(OAc)2 (2) DMA KOAc 140 10 60
    8 PdCl2 (2) DMA KOAc 140 10 46
    9 Pd(OAc)2/PCy3 (2) DMA KOAc 140 10 53
    10 Pd(OAc)2/PPh3 (2) DMA KOAc 140 10 52
    11 PdCl2/Phth (2) DMA KOAc 140 10 31
    12 PdCl2/Bipy (2) DMA KOAc 140 10 64
    14 C4 (2) DMA K2CO3 140 10 35
    15 C4 (2) DMA K3PO4 140 10 52
    16 C4 (2) DMA KF 140 10 46
    17 C4 (2) DMA KOtBu 140 10 Trace
    18 C4 (2) DMA LiOtBu 140 10 Trace
    19 C4 (2) DMA CsF 140 10 40
    20 C4 (2) DMA Cs2CO3 140 10 20
    21 C4 (2) DMF KOAc 140 10 30
    22 C4 (2) DMSO KOAc 140 10 60
    23 C4 (2) NMP KOAc 140 10 83
    24 C4 (2) Toluene KOAc 140 10 Trace
    25 C4 (2) Dioxane KOAc 140 10 Trace
    26 C4 (2) EG KOAc 140 10 10
    27 C4 (2) DMA KOAc 140 12 94
    28 C4 (1.5) DMA KOAc 140 12 93
    29 C4 (1) DMA KOAc 140 12 76
    30 C4 (1.5) DMA KOAc 130 12 75
    31 C4 (1.5) DMA KOAc 120 12 43
    32b C4 (1.5) DMA K2CO3 130 12 74
    a Reaction conditions: 4-bromoacetophenone (1.0 mmol), 1-methyl-1H-imidazole (2.0 mmol), catalyst (amount as indicated in this table), base (2.0 mmol), solvent (3.0 mL), under aerobic condition, isolated yield. b PivOH (0.3 mmol). Abbreviations: DMA, N, N-dimethylacetamide; DMF, N, N-dimethylformamide; DMSO, dimethyl sulfoxide; NMP, N-methyl-2-pyrrolidone; EG, Ethylene glycol; Phth, 1, 10-phenanthroline; Bipy, bipyridine.

    Next, the palladium complex C4 was employed as catalyst. A variety of bases were investigated (Table 1, Entries 14~20). K2CO3, K3PO4, KF and CsF gave moderate yields (Table 1, Entries 14~16, 19). However, KOtBu, LiOtBu, and Cs2CO3 in this reaction exhibited the poor results (Table 1, Entries 17~18, 20). KOAc was the most effective and gave desired arylation product 3b at C-5 position in 87% isolated yield (Table 1, Entry 4). The influence of solvent on direct C—H bond arylation of imidazole was further examined. Screening of solvents revealed that DMA was the best solvent (Table 1, Entry 4), whereas DMF, dimethyl sulfoxide (DMSO), toluene, dioxane and ethylene glycol (EG), gave poor to moderate product yield (Table 1, Entries 21, 22, 24~26). The good yield was obtained when the reaction was performed in NMP giving the desired product in 83% yield (Table 1, Entry 23). We also tried to extend the reaction time to 12 h and 94% yield of 3b was obtained (Table 1, Entry 27). There was no effect on the reaction when the loading of the catalyst C4 reduced from 2 mol% to 1.5 mol% (Table 1, Entries 27, 28), while catalytic efficiency was dramatically decreased when the catalyst loading lowed to 1 mol% (Table 1, Entry 29). The effect of temperature was also investigated in this reaction, the yield of 3b could reach to 75% when the temperature was lowered to 130 ℃, while catalytic efficiency was dramatically decreased when the temperature lowed to 120 ℃ (Table 1, Entries 30, 31). PivOH was usually used in the catalytic system as additive with K2CO3 as base in previous reports.[12a~12e, 13, 29] The binary system of K2CO3 and PivOH did not show an obvious improvement in the isolated yield compared with the reaction used KOAc as sole base under 130 ℃ (Table 1, Entries 30, 32).

    With the optimized reaction conditions in hand, the scope of midazoles and (hetero)aryl bromides for direct arylation catalyzed was investigated in Table 2. The electronic effect of the substituents of the aryl bromides is significant. The aryl bromides bearing electron-with- drawing group, such as acetyl, cyano, aldehyde, fluoro, chloro, and nitro (Table 2, 3b~3g), had relatively higher reactivity in comparison to those with the electron-dona- ting group (Table 2, 3h, 3i). The reactivity of meta-substituted aryl bromides was also investigated, and the corresponding products were obtained in 76% yield (Table 2, 3j). The effect of the steric influence on the aryl bromides was also studied, 2-methyl bromobenzene and 1-naphthyl bromide afforded products 3k and 3l in moderate yields of 55% and 58%.

    表 2

    Table 2.  Direct arylation of imbazole with (hetero)aryl bromidesa
    下载: 导出CSV

    Encouraged by the outstanding performance of C4 in the direct arylation with imidazoles of aryl bromide, various heteroaryl bromides were investigated for direct C—H bond arylation with 1-methy-1H-imidazole. The heteroaryl bromides bearing pyridine, isoquinoline, and quinolone, reacted with 1-methy-1H-imidazole to give excellent yields (Table 2, 3m~3r). When 2-bromo-5-methylthio- phene was selected as coupling partner, the desired product of 3s was afforded in low yield of 34%, while a higher yield of 76% could be obtained when the reaction time was prolonged to 24 h. Another challenging substrate of imidazole, 1, 2-dimethyl-1H-imidazole, was examined for direct C—H arylation with aryl and heteroaryl bromides. To our delight, 1, 2-dimethyl-1H-imidazole could smoothly reacted with aryl bromides and heteroaryl bromides to give desired products in moderate to excellent yields (Table 2, 4a~4o).

    To demonstrate the scope of established protocol, we sought to evaluate the feasibility of employing palladium complex of C4 catalyzed in direct arylation reaction of thiazoles with aryl bromides and heteroaryl bromides in Table 3. To our delight, at a low catalyst loading of 0.5 mol% under 120 ℃ for 10 h using KOAc as base without PivOH as additive, 4-methyl thiazoles and 2, 4-dimethyl thiazoles were first expored in the current standard conditions. Aryl bromides bearing electron-withdrawing group and electron-donating group as well as heteroaryl bromides, such as pyridine, quinolone and thiophene, were suitable for the coupling reaction with 4-methyl thiazoles and 2, 4-dimethyl thiazoles, giving the desired products in excellent yields (Table 3, 5a~5g, 6a~6k). As for other heteroaryl substrates, such as isoxazoles and pyrazole, the direct C—H bond arylation also worked well when reaction temperature increased to 130 ℃ and/or a high palladium loading of 1 mol% was used. (Table 3, 7a~7e, 8a~8d). To the best of our knowledge, the palladium complex C4/KOAc catalytic system is the most efficient catalysts based on one-component KOAc system.[6, 12f~12h, 30]

    表 3

    Table 3.  Direct arylation of azoles with (hetero)aryl bromidesa
    下载: 导出CSV

    In order to explore whether the reaction process occurs from Pd(0) to Pd(II) or from Pd(II) to Pd(IV), two control experiments were performed (Scheme 2), in which the combination of the ligand L4 with zero valence palladium sources such as Pd2(dba)3 and Pd(PPh3)4 were tested in the reaction of 1-methy-1H-imidazole with 4-bromoaceto- phenone under the optimized conditions and the product was obtained with 86% and 88% yields, respectively. The catalytic efficiency of palladium(0) sources is comparable to that of our developed palladium(II) catalytic system (Table 1, Entry 28). The results suggested that palladium(0) species is formed through the reduction of palladium(II) complex C4, which may be the active intermediate in this reaction. This is consistent with the previous reports.[12f, 12g]

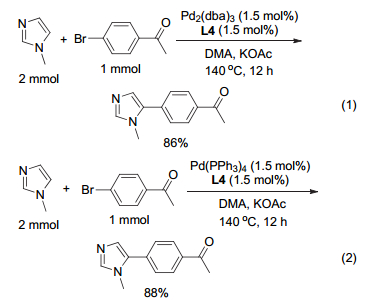

    Scheme 2

    Scheme 2.  Control experiments for reaction mechanism

    In summary, a new type of carbazole-based pincer palladium complexes C1~C6 were synthesized by a simple route. The catalysts containing electron-withdrawing group at pyridine ring showed more efficient than those containing electron-donating group at pyridine ring. The C4/ KOAc catalytic system allows wide scopes of a wide range of (hetero)aryl bromides and various azoles, together with excellent functional group tolerance, affording a series of N-arylated products in good to excellent yields. It is noteworthy that the direct C—H bond arylation for thiazoles smoothly proceeds to afford the coupling products in high yields under 120 ℃ when employing KOAc as sole base, even in the presence of low palladium loading of 0.5 mol%. The C4/KOAc catalytic system is most efficient for the arylation of thiazoles in the KOAc-based system. The strategy of catalyst design would provide insight to the design and synthesis of highly active catalysts for the direct C—H bond arylation.

    NMR spectra were recorded on a Bruker Avance III HD 400 spectrometer using tetrame thyl silane (TMS) as an internal standard (400 MHz for 1H NMR and 100 MHz for 13C NMR). Mass spectra (MS) were collected on a Bruker ultrafleXtreme mass spectrometer. Single crystal structure determination was conducted on a Bruker Smart APEX II diffractometer equipped with an APEX II CCD detector.

    2-Hydroxycarbazole (0.5 mmol), 2-fluoropyridine (1 mmol) and cesium carbonate (1 mmol) were added to a 25 mL flask bottle reactor, and 4 mL of DMF was added. The reaction was carried out at 150 ℃ for 12 h. After the reaction was completed, the reaction mixture was cooled to ambient temperature and 60 mL of sodium chloride solution was added. The mixture was diluted with dichloromethane (20 mL), followed by extraction three times with dichloromethane (20 mL×3). The organic layer was evaporated under reduced pressure. The crude products were purified by silica gel column chromatography using V(petroleum ether):V(ethyl acetate)=15:1 as eluent.[27]

    Carbazole-pyridine ligand (L1, 0.5 mmol) and palladium dichloride (0.5 mmol) were mixed in 3 mL of acetonitrile solvent. The reaction was carried out at 80 ℃ for 12 h. After completion of the reaction, the acetonitrile was evaporated under reduced pressure. The crude products were purified by silica gel column chromatography using V(dichloromethane):V(methanol)=30:1 as eluent. Pure yellow solid product C1 could be got with 90% yield.

    [9-(Pyridin-2-yl)-2-(pyridin-2-yloxy)-9H-carbazole] pa- lladium chloride (C1): 214 mg, yield 90%. Yellow solid, m.p. 271.2~271.5 ℃; 1H NMR (400 MHz, CDCl3) δ: 9.74 (d, J=6.0 Hz, 1H), 9.56 (d, J=6.4 Hz, 1H), 7.96~7.91 (m, 2H), 7.84~7.77 (m, 2H), 7.75~7.71 (m, 1H), 7.62 (d, J=8.4 Hz 1H), 7.43 (t, J=7.6 Hz, 1H), 7.34~7.31 (m, 1H), 7.25 (d, J=7.2 Hz, 1H), 7.04~6.96 (m, 3H); 13C NMR (100 MHz, CDCl3) δ: 159.1, 155.9, 153.4, 149.7, 148.3, 141.2, 139.8, 139.6, 139.1, 128.8, 125.8, 123.6, 120.9, 120.2, 118.5, 118.4, 117.1, 115.8, 115.3, 113.1, 106.1; HRMS (MALDI) calcd for C22H14N3OPd [M-Cl]+ 442.0172, found 442.0175.

    [9-(5-Iodopyridin-2-yl)-2-((5-iodopyridin-2-yl)oxy)-9H-carbazole] palladium chloride (C2): 327 mg, yield 90%. Yellow solid, m.p. 180.2~181.7 ℃; 1H NMR (400 MHz, CDCl3) δ: 10.02 (d, J=2.0 Hz, 1H), 9.86 (d, J=2.4 Hz, 1H), 8.07 (dd, J=8.8, 2.4 Hz, 1H), 8.03~7.99 (m, 2H), 7.85(d, J=8.4 Hz, 2H), 7.71 (d, J=8.4 Hz 1H), 7.53~7.49 (m, 1H), 7.41 (t, J=7.6 Hz, 1H), 7.09 (dd, J=8.8, 4.8 Hz, 2H); 13C NMR (100 MHz, CDCl3) δ: 160.9, 158.4, 158.2, 149.3, 149.2, 147.7, 147.5, 139.1, 138.7, 128.8, 126.0, 124.0, 121.0, 120.3, 117.3, 116.8, 115.6, 114.5, 113.1, 105.2, 82.4, 82.1; HRMS (MALDI) calcd for C22H12I2N3OPd [M-Cl]+ 693.8105, found 693.8102.

    [9-(5-Bromopyridin-2-yl)-2-((5-bromopyridin-2-yl)ox-y)-9H-carbazole] palladium chloride (C3): 283 mg, yield 90%. Yellow solid, m.p. 183.4~183.5 ℃; 1H NMR (400 MHz, CDCl3) δ: 9.20 (d, J=2.4 Hz, 1H), 9.74 (d, J=2.4 Hz, 1H), 8.00~7.92 (m, 3H), 7.89~7.85 (m, 2H), 7.70 (d, J8.0 Hz, 1H), 7.53~7.49 (m, 1H), 7.40 (t, J=7.6 Hz, 1H), 7.21 (d, J8.8 Hz, 1H), 7.09 (d, J=8.0 Hz, 1H); 13C NMR (100 MHz, CDCl3) δ: 157.8, 156.1, 153.3, 149.2, 147.0, 144.0, 142.4, 139.1, 138.8, 128.7, 126.0, 123.9, 120.9, 120.3, 117.2, 116.2, 115.6, 113.9, 113.1, 112.8, 112.4, 105.3; HRMS (MALDI) calcd for C22H12Br2N3OPd [M-Cl]+ 597.8382, found 597.8373.

    [9-(5-Chloropyridin-2-yl)-2-((5-chloropyridin-2-yl)ox-y)-9H-carbazole] palladium chloride (C4): 245 mg, yield 91%. Yellow solid, m.p. 202.2~203.5 ℃; 1H NMR (400 MHz, CDCl3) δ: 9.84 (d, J=2.4 Hz, 1H), 9.64 (d, J=2.8 Hz, 1H), 8.03~7.99 (m, 2H), 7.86 (d, J=8.0 Hz, 1H), 7.82 (dd, J=8.8, 2.4 Hz, 1H), 7.77 (dd, J=9.2, 2.8 Hz, 1H), 7.71 (d, J=8.4 Hz, 1H), 7.53~7.49 (m, 1H), 7.41 (t, J=7.2 Hz, 1H), 7.28 (s, 1H), 7.10 (d, J=8.0 Hz, 1H); 13C NMR (100 MHz, CDCl3) δ: 157.6, 154.0, 151.3, 149.4, 146.8, 141.4, 139.8, 139.3, 138.9, 128.8, 126.1, 125.8, 125.3, 124.0, 121.0, 120.4, 117.3, 115.8, 115.6, 113.5, 113.2, 105.6; HRMS (MALDI) calcd for C22H12Cl2N3OPd [M-Cl]+ 509.9392, found 511.9389.

    [9-(5-Phenylpyridin-2-yl)-2-((5-phenylpyridin-2-yl)ox-y)-9H-carbazole] palladium chloride (C5): 283.9 mg, yield 90%. Yellow solid, m.p. 190.2~190.5 ℃; 1H NMR (400 MHz, CDCl3) δ: 10.14 (d, J=2.4 Hz, 1H), 9.97 (d, J=2.4 Hz, 1H), 8.09~7.99 (m, 4H), 7.93 (d, J=8.0 Hz, 1H), 7.71 (d, J=8.0 Hz, 1H), 7.67~7.62 (m, 4H), 7.52~7.43 (m, 5H), 7.40~7.34 (m, 4H), 7.12 (d, J8.0 Hz, 1H); 13C NMR (100 MHz, CDCl3) δ: 157.9, 154.1, 151.4, 149.5, 146.8, 139.7, 139.5, 139.0, 137.8, 135.8, 135.6, 131.7, 131.1, 129.2, 128.8, 128.4, 128.3, 127.0, 126.8, 125.8, 123.5, 120.8, 120.1, 117.1, 115.7, 114.9, 113.0, 112.8, 105.6; HRMS (ESI) calcd for C34H22N3OPd [M-Cl]+594.0798, found 594.0815.

    [9-(5-Methylpyridin-2-yl)-2-((5-methylpyridin-2-yl)ox-y)-9H-carbazole] palladium chloride (C6): 230.2 mg, yield 91%. Yellow solid, m.p. 205.2~205.5 ℃; 1H NMR (400 MHz, CDCl3) δ: 9.55 (d, J=14.0 Hz, 1H), 9.38 (d, J=8.0 Hz, 1H), 7.95~7.73 (m, 3H), 7.64~7.41 (m, 4H), 7.35~7.29 (m, 1H), 7.16~7.09 (m, 1H), 7.02~6.94 (m, 1H), 2.29 (m, 6H); 13C NMR (100 MHz, CDCl3) δ: 157.4, 155.1, 152.3, 149.9, 146.2, 142.3, 140.7, 139.7, 139.0, 128.6, 128.1, 128.0, 125.6, 123.2, 120.7, 119.8, 116.9, 115.5, 114.4, 112.8, 112.3, 106.2, 17.7, 17.6; HRMS (ESI) calcd for C24H18N3OPd [M-Cl]+ 470.0485, found 470.0487.

    The direct C—H activation arylation reactions were carried out in the air. (Hetero)aryl bromide (1.0 mmol), azoles (2.0 mmol), carbazole-palladium complexes (0.5~1.5 mol%), base (2 mmol), and 3 mL of solvent were added into a 25 mL flask bottle reactor. The reaction was carried out at 120~140 ℃ for 10~12 h. Then, the mixture was cooled to room temperature and 60 mL of sodium chloride solution was added. The mixture was diluted with dichloromethane (20 mL), followed by extraction three times with dichloromethane (20 mL×3). The organic layer was dried with anhydrous magnesium sulfate, filtered, and evaporated under reduced pressure. The crude products were purified by silica gel column chromatography using ethyl acetate as eluent. The isolated yield of product was obtained based on the amount of (hetero)aryl bromide.

    1-Methyl-5-phenyl-1H-imidazole (3a):[12d] 1H NMR (400 MHz, CDCl3) δ: 7.48 (s, ArH, 1H), 7.42~7.31 (m, ArH, 5H), 7.07 (s, ArH, 1H), 3.62 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 139.1, 133.5, 129.8, 128.7, 128.5, 128.1, 127.9, 32.5.

    1-[4-(1-Methyl-1H-imidazol-5-yl)phenyl]ethan-1-one(3b):[12d] 1H NMR (400 MHz, CDCl3) δ: 8.00 (d, J=8.4 Hz, ArH, 2H), 7.55 (s, ArH, 1H), 7.49 (d, J=8.8 Hz, ArH, 2H), 7.19 (s, ArH, 1H), 3.71 (s, C(O)CH3, 3H), 2.61 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.4, 140.2, 136.1, 134.4, 132.4, 129.3, 128.8, 128.0, 32.9, 26.6.

    5-(4-Chlorophenyl)-1-methyl-1H-imidazole (3c):[6b]1H NMR (400 MHz, CDCl3) δ: 7.42 (s, ArH, 1H), 7.32~7.29 (m, ArH, 2H), 7.23~7.21 (m, ArH, 2H), 7.00 (s, ArH, 1H), 3.56 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 139.4, 133.9, 132.3, 129.6, 129.0, 128.3, 128.3, 32.5.

    4-(1-Methyl-1H-imidazol-5-yl)benzonitrile (3d):[6c]1H NMR (400 MHz, CDCl3) δ: 7.71 (d, J=8.4 Hz, ArH, 2H), 7.56 (s, ArH, 1H), 7.51 (d, J=8.8 Hz, ArH, 2H), 7.20 (s, CH3, 1H), 3.72 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 140.5, 134.4, 132.6, 131.7, 129.8, 128.3, 118.6, 111.3, 32.9.

    4-(1-Methyl-1H-imidazol-5-yl)benzaldehyde (3e):[12d] 1H NMR (400 MHz, CDCl3) δ: 9.89 (d, J=6.8 Hz, CHO, 1H), 7.80 (d, J=8.4 Hz, ArH, 2H), 7.46~7.44 (m, ArH, 3H), 7.10 (s, ArH, 1H), 3.63 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 191.5, 140.4, 135.7, 135.2, 132.2, 130.1, 129.6, 128.1, 33.0.

    1-Methyl-5-(4-nitrophenyl)-1H-imidazole (3f):[31]1H NMR (400 MHz, CDCl3) δ: 8.30 (d, J=8.8 Hz, ArH, 2H), 7.61~7.56 (m, ArH, 3H), 7.27 (s, ArH, 1H), 3.76 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 147.0, 140.9, 136.3, 131.4, 130.3, 128.3, 124.2, 33.1.

    5-(4-Fluorophenyl)-1-methyl-1H-imidazole (3g):[32]1H NMR (400 MHz, CDCl3) δ: 7.48 (s, ArH, 1H), 7.35~7.30 (m, ArH, 2H), 7.13~7.07 (m, ArH, 2H), 7.03 (s, ArH, 1H), 3.60 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 163.8, 161.3, 139.0, 132.5, 130.4 (d, J=8.2 Hz), 128.1, 125.9 (d, J=3.3 Hz), 115.9, 115.7, 32.4; 19F NMR (376 MHz, CDCl3) δ: -113.62.

    1-Methyl-5-(p-tolyl)-1H-imidazole (3h):[6c] 1H NMR (400 MHz, CDCl3) δ: 7.43 (s, ArH, 1H), 7.22 (d, J=8.0 Hz, ArH, 2H), 7.18 (d, J=8.4 Hz, ArH, 2H), 7.01 (s, ArH, 1H), 3.57 (s, CH3, 3H), 2.33 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 138.8, 137.7, 133.3, 129.3, 128.3, 127.6, 126.8, 32.3, 21.1.

    5-(4-Methoxyphenyl)-1-methyl-1H-imidazole (3i):[6c]1H NMR (400 MHz, CDCl3) δ: 7.51 (s, ArH, 1H), 7.30 (d, J=8.8 Hz, ArH, 2H), 7.03 (s, ArH, 1H), 6.96 (d, J=8.8 Hz, ArH, 2H), 3.84 (s, OCH3, 3H), 3.62 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 159.5, 138.6, 133.3, 130.0, 127.5, 122.2, 114.2, 55.4, 32.4.

    1-Methyl-5-(m-tolyl)-1H-imidazole (3j): 1H NMR (400 MHz, CDCl3) δ: 7.45 (s, ArH, 1H), 7.29~7.25 (m, ArH, 1H), 7.16~7.13 (m, ArH, 3H), 7.04 (s, ArH, 1H), 3.60 (s, CH3, 3H), 2.35 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 138.9, 138.4, 133.5, 129.7, 129.1, 128.6, 128.5, 127.9, 125.4, 32.5, 21.4; HRMS (ESI) calcd for C11H13N2 [M+H]+ 173.1073, found 173.1075.

    1-Methyl-5-(o-tolyl)-1H-imidazole (3k):[12c] 1H NMR (400 MHz, CDCl3) δ: 7.54 (s, ArH, 1H), 7.31~7.27 (m, ArH, 2H), 7.23~7.18 (m, ArH, 2H), 6.97 (s, ArH, 1H), 3.41 (s, CH3, 3H), 2.18 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 138.3, 138.0, 132.1, 131.1, 130.3, 129.2, 128.9, 128.2, 125.7, 31.7, 20.0.

    1-Methyl-5-(naphthalen-1-yl)-1H-imidazole (3l):[33]1H NMR (400 MHz, CDCl3) δ: 7.91~7.88 (m, ArH, 2H), 7.64 (d, J=7.6 Hz, ArH, 2H), 7.53~7.41 (m, ArH, 4H), 7.15 (s, ArH, 1H), 3.38 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 138.5, 133.7, 132.9, 131.2, 129.4, 129.3, 129.1, 128.4, 127.2, 126.8, 126.2, 125.5, 125.3, 32.0.

    3-(1-Methyl-1H-imidazol-5-yl)pyridine (3m):[11c] 1H NMR (400 MHz, CDCl3) δ: 8.54~8.51 (m, ArH, 1H), 8.47~8.43 (m, ArH, 1H), 7.59~7.55 (m, ArH, 1H), 7.43 (d, J=8.4 Hz, ArH, 1H), 7.25~7.21 (m, ArH, 1H), 7.02 (d, J=9.2 Hz, ArH, 1H), 3.54 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 148.9, 139.9, 135.4, 130.0, 128.9, 125.9, 123.5, 123.4, 32.6.

    2-Fluoro-5-(1-methyl-1H-imidazol-5-yl)pyridine (3n): 1H NMR (400 MHz, CDCl3) δ: 8.25 (d, J=2.4 Hz, ArH, 1H), 7.83~7.78 (m, ArH, 1H), 7.63 (s, ArH, 1H), 7.14 (s, ArH, 1H), 7.02 (dd, J=8.4, 3.2 Hz, ArH, 1H), 3.66 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.4, 162.0, 147.1 (d, J=14.9 Hz), 141.1 (d, J=8.0 Hz), 139.8, 128.9, 123.9 (d, J=4.7 Hz), 109.8 (d, J=37.5 Hz), 32.5; 19F NMR (376 MHz, CDCl3) δ: -68.24; HRMS (ESI) calcd for C9H9FN3 [M+H]+ 178.0775, found 178.0781.

    2-Chloro-5-(1-methyl-1H-imidazol-5-yl)pyridine(3o):[34]1H NMR (400 MHz, CDCl3) δ: 8.32 (s, ArH, 1H), 7.60 (d, J=8.4 Hz, ArH, 1H), 7.47 (s, ArH, 1H), 7.30 (d, J=8.4 Hz, ArH, 1H), 7.06 (s, ArH, 1H), 3.60 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.6, 148.5, 140.2, 138.1, 129.4, 128.7, 124.9, 124.3, 32.6.

    2-Methyl-5-(1-methyl-1H-imidazol-5-yl)pyridine (3p):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.45 (d, J=7.2 Hz, ArH, 1H), 7.53~7.44 (m, ArH, 2H), 7.14 (t, J=8.4 Hz, ArH, 1H), 7.03 (d, J=9.2 Hz, ArH, 1H), 3.58 (s, CH3, 3H), 2.52 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 158.0, 148.4, 139.6, 136.0, 130.1, 128.7, 123.1, 123.0, 32.5, 24.2.

    4-(1-Methyl-1H-imidazol-5-yl)isoquinoline (3q):[13c] 1H NMR (400 MHz, CDCl3) δ: 9.26 (s, ArH, 1H), 8.44 (s, ArH, 1H), 8.01 (d, J=8.0 Hz, ArH, 1H), 7.67~7.59 (m, ArH, 4H), 7.17 (s, ArH, 1H), 3.43 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 153.4, 144.6, 139.4, 135.4, 131.3, 130.5, 128.4, 128.1, 127.7, 124.4, 121.1, 32.2.

    3-(1-Methyl-1H-imidazol-5-yl)quinolone (3r):[31]1H NMR (400 MHz, CDCl3) δ: 8.91 (d, J=2.4 Hz, ArH, 1H), 8.08~8.06 (m, ArH, 2H), 7.78 (d, J8.0 Hz, ArH, 1H), 7.69~7.66 (m, ArH, 1H), 7.56~7.51 (m, ArH, 2H), 7.22 (s, ArH, 1H), 3.68 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.0, 147.2, 139.9, 134.2, 129.8, 129.3, 129.3, 127.8, 127.5, 127.3, 123.7, 123.0, 32.7.

    1-Methyl-5-(5-methylthiophen-2-yl)-1H-imidazole (3s):[12e] 1H NMR (400 MHz, CDCl3) δ: 7.48 (s, ArH, 1H), 7.12 (s, ArH, 1H), 6.86 (dd, J=3.6, 1.6 Hz, ArH, 1H), 6.74~6.73 (m, ArH, 1H), 3.68 (s, CH3, 3H), 2.50 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 140.7, 139.0, 128.9, 128.2, 127.1, 126.3, 125.7, 32.6, 15.2.

    5-(4-Chlorophenyl)-1, 2-dimethyl-1H-imidazole (4a):[12d] 1H NMR (400 MHz, CDCl3) δ: 7.31 (d, J=8.4 Hz, ArH, 2H), 7.20 (d, J=8.8 Hz, ArH, 2H), 6.87 (s, ArH, 1H), 3.43 (s, CH3, 3H), 2.36 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 146.3, 133.6, 132.4, 129.8, 129.1, 128.9, 126.2, 31.3, 13.7.

    1-[4-(1, 2-Dimethyl-1H-imidazol-5-yl)phenyl]ethan-1-one (4b):[12d] 1H NMR (400 MHz, CDCl3) δ: 7.98 (d, J=8.8 Hz, ArH, 2H), 7.43 (d, J=8.4 Hz, ArH, 2H), 7.03 (s, ArH, 1H), 3.55 (s, CH3, 3H), 2.59 (s, CH3, 3H), 2.43 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.4, 147.2, 135.8, 135.1, 132.6, 128.8, 128.0, 127.1, 31.7, 26.6, 13.7.

    4-(1, 2-Dimethyl-1H-imidazol-5-yl)benzonitrile (4c):[12d] 1H NMR (400 MHz, CDCl3) δ: 7.70 (d, J=8.4 Hz, ArH, 2H), 7.46 (d, J=8.8 Hz, ArH, 2H), 7.06 (s, ArH, 1H), 3.57 (s, CH3, 3H), 2.46 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 147.7, 135.1, 132.6, 131.9, 128.3, 127.8, 118.7, 110.9, 31.7, 13.8.

    4-(1, 2-dimethyl-1H-imidazol-5-yl)benzaldehyde (4d):[12d] 1H NMR (400 MHz, CDCl3) δ: 10.01 (s, CHO, 1H), 7.93~7.90 (m, ArH, 2H), 7.52 (d, J=8.4 Hz, ArH, 2H), 7.08 (s, ArH, 1H), 3.59 (s, CH3, 3H), 2.46 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 191.5, 147.6, 136.5, 135.0, 132.5, 130.2, 128.3, 127.8, 31.8, 13.8.

    1, 2-dimethyl-5-(4-nitrophenyl)-1H-imidazole (4e):[6c]1H NMR (400 MHz, CDCl3) δ: 8.27 (d, J=8.8 Hz, ArH, 2H), 7.52 (d, J=8.8 Hz, ArH, 2H), 7.12 (s, ArH, 1H), 3.61 (s, CH3, 3H), 2.47 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 148.1, 146.7, 137.0, 131.6, 128.4, 128.2, 124.2, 31.8, 13.8.

    1, 2-Dimethyl-5-(p-tolyl)-1H-imidazole (4f):[6c]1H NMR (400 MHz, CDCl3) δ: 7.22 (s, ArH, 4H), 6.91 (s, ArH, 1H), 3.48 (s, CH3, 3H), 2.42 (s, CH3, 3H), 2.37 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 145.7, 137.5, 133.6, 129.4, 128.6, 127.7, 125.6, 31.3, 21.2, 13.8.

    1, 2-Dimethyl-5-(m-tolyl)-1H-imidazole (4g): 1H NMR (400 MHz, CDCl3) δ: 7.29~7.25 (m, ArH, 1H), 7.14~7.11 (m, ArH, 3H), 6.91 (d, J=1.6 Hz, ArH, 1H), 3.48 (s, CH3, 3H), 2.41 (s, CH3, 3H), 2.36 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 145.8, 138.4, 133.7, 130.5, 129.3, 128.5, 128.4, 125.8, 125.6, 31.3, 21.5, 13.7; HRMS (ESI) calcd for C12H15N2 [M+H]+ 187.1230, found 187.1229.

    1, 2-Dimethyl-5-(naphthalen-1-yl)-1H-imidazole (4h):[35] 1H NMR (400 MHz, CDCl3) δ: 7.91~7.89 (m, ArH, 2H), 7.68 (d, J=8.4 Hz, ArH, 1H), 7.54~7.41 (m, ArH, 4H), 7.02 (s, ArH, 1H), 3.27 (s, CH3, 3H), 2.50 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 145.5, 133.7, 133.0, 131.1, 129.1, 129.0, 128.4, 128.1, 127.2, 126.7, 126.1, 125.7, 125.3, 31.0, 13.8.

    3-(1, 2-Dimethyl-1H-imidazol-5-yl)pyridine (4i):[6c]1H NMR (400 MHz, CDCl3) δ: 8.88~8.85 (m, ArH, 1H), 8.83~8.79 (m, ArH, 1H), 7.93~7.88 (m, ArH, 1H), 7.62~7.57 (m, ArH, 1H), 7.25 (d, J=8.4 Hz, ArH, 1H), 3.77 (s, CH3, 3H), 2.68 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 149.1, 148.6, 146.9, 135.5, 130.0, 127.0, 126.6, 123.4, 31.3, 13.7.

    5-(1, 2-Dimethyl-1H-imidazol-5-yl)-2-fluoropyridine(4j):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.21 (d, J=2.4 Hz, ArH, 1H), 7.78~7.74 (m, ArH, 1H), 7.02~6.99 (m, ArH, 2H), 3.50 (s, CH3, 3H), 2.45 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.2 (d, J=239.4 Hz), 147.2, 147.0 (d, J=9.5 Hz), 141.2 (d, J=8.1 Hz), 128.8, 127.1, 124.8 (d, J=4.7 Hz), 109.9 (d, J=37.4 Hz), 31.3, 13.7; 19F NMR (376 MHz, CDCl3) δ: -68.72.

    2-Chloro-5-(1, 2-dimethyl-1H-imidazol-5-yl)pyridine(4k):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.38 (dd, J=2.4, 0.8 Hz, ArH, 1H), 7.62 (dd, J=8.4, 2.8 Hz, ArH, 1H), 7.37 (dd, J=8.4, 0.8 Hz, ArH, 1H), 7.00 (s, ArH, 1H), 3.51 (s, CH3, 3H), 2.44 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.5, 148.7, 147.3, 138.3, 128.8, 127.4, 125.6, 124.3, 31.4, 13.7.

    4-(1, 2-Dimethyl-1H-imidazol-5-yl)isoquinoline (4l):[6c]1H NMR (400 MHz, CDCl3) δ: 9.26 (s, ArH, 1H), 8.44 (s, ArH, 1H), 8.02 (d, J=8.0 Hz, ArH, 1H), 7.70~7.61 (m, ArH, 3H), 7.05 (s, ArH, 1H), 3.31 (s, CH3, 3H), 2.49 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 153.2, 146.5, 144.7, 135.5, 131.2, 128.4, 128.4, 128.1, 127.7, 124.6, 121.9, 31.2, 13.8.

    3-(1, 2-Dimethyl-1H-imidazol-5-yl)quinolone (4m):[35]1H NMR (400 MHz, CDCl3) δ: 9.05 (d, J=2.0 Hz, ArH, 1H), 8.23 (d, J=8.0 Hz, ArH, 1H), 8.17 (s, ArH, 1H), 7.93 (d, J=8.0 Hz, ArH, 1H), 7.83~7.80 (m, ArH, 1H), 7.69~7.65 (m, ArH, 1H), 7.26 (s, ArH, 1H), 3.69 (s, CH3, 3H), 2.59 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.0, 146.8, 133.7, 130.0, 129.4, 129.0, 127.7, 127.4, 127.1, 127.0, 123.6, 31.3, 13.5.

    1, 2-Dimethyl-5-(thiophen-2-yl)-1H-imidazole (4n):[31]1H NMR (400 MHz, CDCl3) δ: 7.31 (dd, J=5.2, 1.2 Hz, ArH, 1H), 7.07 (dd, J=5.2, 3.6 Hz, ArH, 1H), 7.02~7.01 (m, ArH, 2H), 3.54 (s, CH3, 3H), 2.41 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 146.3, 131.4, 127.5, 127.2, 126.2, 125.8, 124.7, 31.2, 13.7.

    1, 2-Dimethyl-5-(5-methylthiophen-2-yl)-1H-imidazole(4o):[12e] 1H NMR (400 MHz, CDCl3) δ: 6.95 (s, ArH, 1H), 6.79: (d, J=3.2 Hz, ArH, 1H), 6.71~6.70 (m, ArH, 1H), 3.52 (s, CH3, 3H), 2.47 (s, CH3, 3H), 2.39 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 146.0, 140.5, 129.0, 126.9, 126.8, 126.3, 125.6, 31.2, 15.2, 13.7.

    1-(4-(4-Methylthiazol-5-yl)phenyl)ethan-1-one (5a):[36] 1H NMR (400 MHz, CDCl3) δ: 8.61 (s, ArH, 1H), 7.88 (d, J=8.4 Hz, ArH, 2H), 7.41 (d, J=8.4 Hz, ArH, 2H), 2.50 (s, CH3, 3H), 2.45 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.2, 151.1, 149.5, 136.8, 136.1, 130.8, 129.2, 128.7, 26.6, 16.4.

    4-(4-Methylthiazol-5-yl)benzonitrile (5b):[36]1H NMR (400 MHz, CDCl3) δ: 8.75 (s, ArH, 1H), 7.71 (d, J=8.4 Hz, ArH, 2H), 7.55 (d, J=8.8 Hz, ArH, 2H), 2.56 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 151.6, 150.1, 136.9, 132.5, 130.1, 129.7, 118.5, 111.5, 16.4.

    4-Methyl-5-(p-tolyl)thiazole (5c):[37] 1H NMR (400 MHz, CDCl3) δ: 8.65 (s, ArH, 1H), 7.33 (d, J8.4 Hz, ArH, 2H), 7.23 (d, J=8.0 Hz, ArH, 2H), 2.53 (s, CH3, 3H), 2.39 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.0, 148.2, 137.9, 132.0, 129.4, 129.2, 129.0, 21.2, 16.1.

    4-Methyl-5-(pyridin-3-yl)thiazole (5d):[13b] 1H NMR (400 MHz, CDCl3) δ: 8.72 (s, ArH, 1H), 8.68 (d, J=1.6 Hz, ArH, 1H), 8.56 (dd, J=4.8, 1.6 Hz, ArH, 1H), 7.73~7.70 (m, ArH, 1H), 7.35~7.31 (m, ArH, 1H), 2.51 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 151.3, 149.8, 149.8, 149.0, 136.4, 128.3, 128.1, 123.4, 16.0.

    5-(6-Chloropyridin-3-yl)-4-methylthiazole (5e):[13b] 1H NMR (400 MHz, CDCl3) δ: 8.69 (s, ArH, 1H), 8.39 (d, J2.4 Hz, ArH, 1H), 7.64 (dd, J=8.0, 2.4 Hz, ArH, 1H), 7.32 (d, J=8.4 Hz, ArH, 1H), 2.45 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 151.5, 150.8, 150.2, 149.4, 139.0, 127.2, 126.7, 124.2, 16.0.

    4-Methyl-5-(6-methylpyridin-3-yl)thiazole (5f):[13b] 1H NMR (400 MHz, CDCl3) δ: 8.69 (s, ArH, 1H), 8.55 (d, J=2.0 Hz, ArH, 1H), 7.60 (dd, J=8.0, 2.4 Hz, ArH, 1H), 7.19 (d, J=8.0 Hz, ArH, 1H), 2.57 (s, CH3, 3H), 2.49 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 158.0, 150.9, 149.5, 149.0, 136.8, 128.2, 125.2, 123.1, 24.2, 15.9.

    4-Methyl-5-(5-methylthiophen-2-yl)thiazole (5g):[13b] 1H NMR (400 MHz, CDCl3) δ: 8.57 (s, ArH, 1H), 6.93 (d, J=3.6 Hz, ArH, 1H), 6.72 (d, J=3.6 Hz, ArH, 1H), 2.59 (s, CH3, 3H), 2.50 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 149.5, 148.4, 141.0, 130.8, 127.1, 126.0, 125.9, 16.5, 15.3.

    1-[4-(2, 4-Dimethylthiazol-5-yl)phenyl]ethan-1-one (6a):[13a] 1H NMR (400 MHz, CDCl3) δ: 7.99~7.96 (m, ArH, 2H), 7.51~7.48 (m, ArH, 2H), 2.69 (s, CH3, 3H), 2.61 (s, CH3, 3H), 2.49 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.3, 164.3, 148.3, 137.2, 135.8, 130.3, 129.0, 128.7, 26.6, 19.2, 16.4.

    4-(2, 4-Dimethylthiazol-5-yl)benzaldehyde (6b):[36]1H NMR (400 MHz, CDCl3) δ: 10.01 (s, CHO, 1H), 7.90 (d, J=8.4 Hz, ArH, 2H), 7.56 (d, J=8.0 Hz, ArH, 2H), 2.69 (s, CH3, 3H), 2.49 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 191.5, 164.7, 148.6, 138.6, 135.1, 130.2, 130.0, 129.4, 19.2, 16.4.

    4-(2, 4-Dimethylthiazol-5-yl)benzonitrile (6c):[36]1H NMR (400 MHz, CDCl3) δ: 7.67 (d, J=8.4 Hz, ArH, 2H), 7.49 (d, J=8.0 Hz, ArH, 2H), 2.68 (s, CH3, 3H), 2.46 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.8, 148.8, 137.2, 132.4, 129.5, 129.4, 118.6, 111.0, 19.2, 16.4.

    2, 4-Dimethyl-5-(p-tolyl)thiazole (6d):[36]1H NMR (400 MHz, CDCl3) δ: 7.30 (d, J=8.0 Hz, ArH, 2H), 7.21 (d, J=8.0 Hz, ArH, 2H), 2.68 (s, CH3, 3H), 2.44 (s, CH3, 3H), 2.38 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 162.9, 146.7, 137.5, 131.4, 129.4, 129.3, 129.0, 21.2, 19.1, 16.0.

    2, 4-Dimethyl-5-(m-tolyl)thiazole (6e):[13a] 1H NMR (400 MHz, CDCl3) δ: 7.31~7.27 (m, ArH, 1H), 7.20 (d, J=7.2 Hz, ArH, 2H), 7.13 (d, J=7.6 Hz, ArH, 1H), 2.68 (s, CH3, 3H), 2.45 (s, CH3, 3H), 2.38 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 163.1, 146.9, 138.3, 132.2, 131.5, 129.9, 128.5, 128.4, 126.2, 21.4, 19.1, 16.1.

    5-(6-Chloropyridin-3-yl)-2, 4-dimethylthiazole (6f): 1H NMR (400 MHz, CDCl3) δ: 8.37 (d, J=2.4 Hz, ArH, 1H), 7.61 (dd, J=8.0, 2.4 Hz, ArH, 1H), 7.31 (d, J=8.0 Hz, ArH, 1H), 2.63 (s, CH3, 3H), 2.38 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.7, 150.4, 149.3, 148.8, 138.8, 127.6, 126.1, 124.1, 19.2, 16.0.

    2, 4-Dimethyl-5-(quinolin-3-yl)thiazole (6g): 1H NMR (400 MHz, CDCl3) δ 8.96 (d, J=2.4 Hz, ArH, 1H), 8.13~8.10 (m, ArH, 2H), 7.82 (dd, J=8.4, 1.2 Hz, ArH, 1H), 7.74~7.70 (m, ArH, 1H), 7.59~7.55 (m, ArH, 1H), 2.71 (s, CH3, 3H), 2.51 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.5, 150.6, 148.7, 147.0, 135.3, 129.9, 129.3, 127.8, 127.7, 127.6, 127.4, 125.8, 19.2, 16.1.

    2, 4-Dimethyl-5-(pyridin-3-yl)thiazole (6h):[13b] 1H NMR (400 MHz, CDCl3) δ: 8.64~8.61 (m, ArH, 1H), 8.53~8.50 (m, ArH, 1H), 7.68~7.63 (m, ArH, 1H), 7.32~7.25 (m, ArH, 1H), 2.66 (s, CH3, 3H), 2.42 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.3, 149.6, 148.6, 148.4, 136.1, 128.6, 127.4, 123.3, 19.1, 16.0.

    2, 4-Dimethyl-5-(6-methylpyridin-3-yl)thiazole (6i): 1H NMR (400 MHz, CDCl3) δ: 8.54 (d, J=2.0 Hz, ArH, 1H), 7.59 (dd, J=8.0, 2.4 Hz, ArH, 1H), 7.19 (d, J=8.0 Hz, ArH, 1H), 2.68 (s, CH3, 3H), 2.58 (s, CH3, 3H), 2.43 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164, 0, 157.6, 148.9, 148.1, 136.6, 127.6, 125.6, 123.0, 24.2, 19.2, 15.9; HRMS (ESI) calcd for C11H12N2S [M+H]+ 205.0794, found 205.0802.

    2, 4-Dimethyl-5-(thiophen-2-yl)thiazole (6j):[13b] 1H NMR (400 MHz, CDCl3) δ: 7.31~7.30 (m, ArH, 1H), 7.08~7.04 (m, ArH, 2H), 2.65 (s, CH3, 3H), 2.52 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 163.0, 147.8, 133.7, 127.5, 126.6, 125.7, 124.9, 19.1, 16.5.

    2, 4-Dimethyl-5-(5-methylthiophen-2-yl)thiazole(6k):[13b] 1H NMR (400 MHz, CDCl3) δ: 6.85 (d, J=3.6 Hz, ArH, 1H), 6.70~6.69 (m, ArH, 1H), 2.64 (s, CH3, 3H), 2.50 (s, CH3, 6H); 13C NMR (100 MHz, CDCl3) δ: 162.6, 147.1, 140.4, 131.3, 126.6, 125.7, 125.3, 19.0, 16.4, 15.3.

    1-[4-(3, 5-Dimethylisoxazol-4-yl)phenyl]ethan-1-one(7a):[38]1H NMR (400 MHz, CDCl3) δ: 7.99~7.97 (m, ArH, 2H), 7.32 (d, J=8.4 Hz, ArH, 2H), 2.57 (s, CH3, 3H), 2.37 (s, CH3, 3H), 2.23 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.3, 165.8, 158.2, 136.0, 135.4, 129.0, 128.8, 115.8, 26.6, 11.6, 10.8.

    4-(3, 5-Dimethylisoxazol-4-yl)benzonitrile (7b):[39]1H NMR (400 MHz, CDCl3) δ: 7.74 (d, J=8.8 Hz, ArH, 2H), 7.38 (d, J=8.4 Hz, ArH, 2H), 2.43 (s, CH3, 3H), 2.28 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 166.1, 158.1, 135.5, 132.6, 129.6, 118.5, 115.4, 111.4, 11.7, 10.9.

    3, 5-Dimethyl-4-(p-tolyl)isoxazole (7c):[40]1H NMR (400 MHz, CDCl3) δ: 7.18 (d, J=8.4 Hz, ArH, 2H), 7.07 (d, J=8.0 Hz, ArH, 2H), 2.32 (s, CH3, 6H), 2.19 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 164.0, 157.8, 136.3, 128.5, 127.9, 126.4, 115.5, 20.2, 10.5, 9.8.

    3, 5-Dimethyl-4-(6-methylpyridin-3-yl)isoxazole(7d):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.35 (s, ArH, 1H), 7.43 (dd, J=8.0, 2.0 Hz, ArH, 1H), 7.19 (d, J=8.0 Hz, ArH, 1H), 2.54 (s, CH3, 3H), 2.34 (s, CH3, 3H), 2.20 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 165.8, 158.6, 157.6, 149.1, 136.6, 123.4, 123.2, 113.4, 24.2, 11.5, 10.7.

    4-(6-Chloropyridin-3-yl)-3, 5-dimethylisoxazole (7e):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.30 (d, J=2.4 Hz, ArH, 1H), 7.55 (dd, J=8.0, 2.4 Hz, ArH, 1H), 7.41 (d, J8.4 Hz, ArH, 1H), 2.41 (s, CH3, 3H), 2.26 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 166.3, 158.3, 150.7, 149.6, 139.0, 125.5, 124.5, 112.4, 11.6, 10.7.

    1-[4-(4-Bromo-1-methyl-1H-pyrazol-5-yl)phenyl]ethan-1-one (8a):[12e] 1H NMR (400 MHz, CDCl3) δ: 8.05 (d, J=8.4 Hz, ArH, 2H), 7.50 (d, J=6.8 Hz, ArH, 3H), 3.80 (s, CH3, 3H), 2.62 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 197.3, 140.1, 139.5, 137.3, 133.0, 130.0, 128.6, 93.9, 38.5, 26.7.

    4-(4-Bromo-1-methyl-1H-pyrazol-5-yl)benzonitrile (8b):[30b] 1H NMR (400 MHz, CDCl3) δ: 7.80 (d, J=8.4 Hz, ArH, 2H), 7.55 (d, J=7.2 Hz, ArH, 3H), 3.83 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 139.6, 139.3, 133.0, 132.5, 130.5, 118.2, 113.1, 94.2, 38.6.

    4-Bromo-1-methyl-5-(p-tolyl)-1H-pyrazole (8c): 1H NMR (400 MHz, CDCl3) δ: 7.52 (s, ArH, 1H), 7.32~7.28 (m, ArH, 4H), 3.80 (s, CH3, 3H), 2.43 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 141.3, 139.3, 139.1, 129.7, 129.5, 125.4, 93.3, 38.3, 21.4.

    3-(4-Bromo-1-methyl-1H-pyrazol-5-yl)pyridine (8d):[30b] 1H NMR (400 MHz, CDCl3) δ: 8.71 (d, J=9.6 Hz, ArH, 2H), 7.79 (d, J=8.0 Hz, ArH, 1H), 7.57 (s, ArH, 1H), 7.48 (dd, J=7.6, 4.8 Hz, ArH, 1H), 3.85 (s, CH3, 3H); 13C NMR (100 MHz, CDCl3) δ: 150.2, 139.5, 138.0, 137.3, 124.9, 123.6, 94.4, 38.5.

    Supporting Information The single crystal structure data of the palladium complex C1 (CCDC 1934922). The 1H NMR and 13C NMR spectra of substrates and palladium complexes. The Supporting Information is available free of charge via the Internet at http://sioc-journal.cn/.
