Citation: Wen Ting, Kang Meng, Chen Zhanguo. Synthesis of 4, 5-Dihydropyrrole from γ-Nitro-nitrile[J]. Chinese Journal of Organic Chemistry, ;2019, 39(11): 3162-3168. doi: 10.6023/cjoc201905031 shu

Synthesis of 4, 5-Dihydropyrrole from γ-Nitro-nitrile

Key Laboratory of Macromolecular Science of Shaanxi Province, School of Chemistry and Chemical Engineering, Shaanxi Normal University, Xi'an 710119

Corresponding author: Chen Zhanguo, chzhg@snnu.edu.cn
Received Date: 14 May 2019
Revised Date: 28 June 2019
Available Online: 17 November 2019
Fund Project: Project supported by the Natural Science Foundation of Shaanxi Province (No. 2009JM2011)the Natural Science Foundation of Shaanxi Province 2009JM2011

Figures(4)

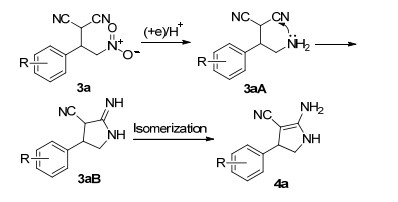

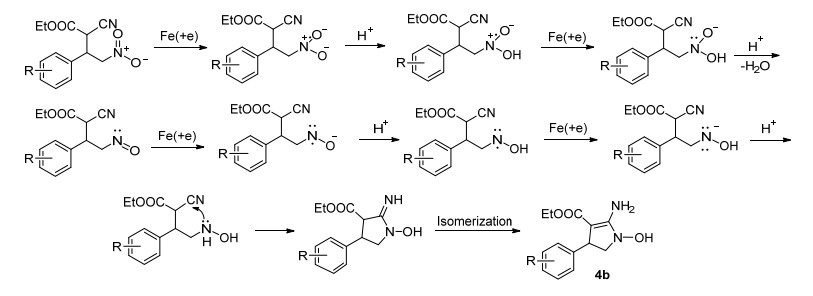

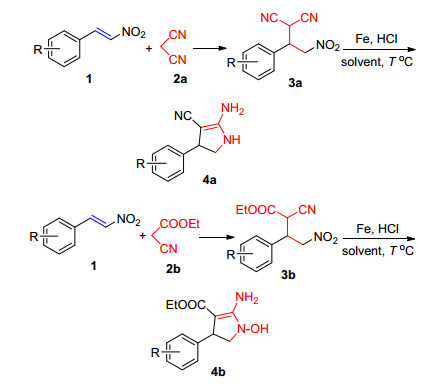

A new method for the synthesis of 4, 5-dihydropyrrole derivatives from γ-nitro-nitriles is described. In this procedure, the nitro groups of nitro-nitriles were reduced into aminoes under Fe+HCl systerm in methanol at 30℃ firstly. And then the amino-groups reacted with cyano groups to form target compounds via intramolecular nucleophilic addition reaction and rearrangement reaction. Under the optimized conditions, all γ-nitro-nitriles can be easily converted into 4, 5-dihydropyrrole derivatives in satisfactory yield. It shows that the reaction has better universality. Based on the experimental results, the possible reaction mechanism was proposed.
- 4, 5-dihydropyrrole derivative,
- γ-nitro-nitrile,
- malonitrile,
- ethyl cyanoacetate
1. [1]
  (a) Fattorusso, E.; Taglialatela-Scafati, O. Modern Alkaloids: Structure, Isolation, Synthesis and Biology, Wiley-VCH Verlag Gmb H & Co. K GaA, Weinheim, 2008.
  (b) Castellano, S.; Fiji, H. D. G.; Kinderman, S. S.; Watanabe, M.; deLeon, P.; Tamanoi, F.; Kwon, O. J. Am. Chem. Soc. 2007, 129, 5843.
  (c) Carmeli, S.; Moore, R. E.; Patterson, G. M. L. Tetrahedron 1991, 47, 2087.
  (d) Marti, C.; Carreira, E. M. J. Am. Chem. Soc. 2005, 127, 11505.
2. [2]
  (a) Katz, J. D.; Overman, L. E. Tetrahedron 2004, 60, 9559.
  (b) Pathak, T. P.; Sigman, M. S. Org. Lett. 2011, 13, 2774.
  (c) Bergner, I.; Wiebe, C.; Meyer, N.; Opatz, T. J. Org. Chem. 2009, 74, 8243.
  (d) Ritthiwigrom, T.; Willis, A. C.; Pyne, S. G. J. Org. Chem. 2010, 75, 815.
  (e) Evans, P. J. Org. Chem. 2007, 72, 1830.
  (f) Pichon, N.; Harrison-Marchand, A.; Mailliet, P.; Maddaluno, J. J. Org. Chem. 2004, 69, 7220.
  (g) Herzon, S. B.; Myers, A. G. J. Am. Chem. Soc. 2005, 127, 5342.
  (h) Donohoe, T. J.; Rigby, C. L.; Thomas, R. E.; Nieuwenhuys, W. F.; Bhatti, F. L.; Cowley, A. R.; Bhalay, G.; Linney, I. D. J. Org. Chem. 2006, 71, 6298.
3. [3]
  (a) Shi, F.; Luo, S.-W.; Tao, Z.-L.; He, L.; Yu, J.; Tu, S.-J.; Gong, L.-Z. Org. Lett. 2011, 13, 4680.
  (b) Sun, W.; Ma, X.; Hong, L.; Wang, R. J. Org. Chem. 2011, 76, 7826.
  (c) Sawadjoon, S.; Samec, J. S. M. Org. Biomol. Chem. 2011, 9, 2548.
  (d) Ishikawa, S.; Noguchi, F.; Kamimura, A. J. Org. Chem. 2010, 75, 3578.
  (e) Zhang, Y.; Raines, A. J.; Flowers, R. A. Ⅱ J. Org. Chem. 2004, 69, 6267.
  (f) Flogel, O.; Amombo, M. G. O.; Reissig, H.-U.; Zahan, G.; Brudgam, I.; Hartl, H. Chem.-Eur. J. 2003, 9, 1405.
  (g) Verniest, G.; Claessens, S.; Bombeke, F.; Van Thienen, T.; De Kimpe, N. Tetrahedron 2005, 61, 2879.
4. [4]
  (a) Novikov, M. S.; Khlebnikov, A. F.; Shevchenko, M. V.; Kostikov, R. R.; Vidovic, D. Russ. J. Org. Chem. 2005, 41, 1496.
  (b) Chen, M.-J.; Chang, S.-T.; Liu, R.-S. Tetrahedron 2000, 56, 5029.
  (c) Ghorai, M. K.; Tiwari, D. P. J. Org. Chem. 2013, 78, 2617.
5. [5]
  Alberti, A.; Carloni, P.; Eberson, L.; Greci, L.; Stipa, P. J. Chem. Soc., Perkin Trans. 2 1997, 887
6. [6]
  (a) Guo, S. H.; Mi, X. L. Tetrahedron Lett. 2017, 58, 2881.
  (b) Ashokkumar, V.; Siva, A. Org. Biomol. Chem. 2015, 13, 10216.
  (c) Azad, C. S.; Khan, I. A.; Narula, A. K. Org. Biomol. Chem. 2016, 14, 11454.
  (d) Dong, W. K.; Xu, D. C.; Xie, J. W. Chin. J. Chem. 2012, 30, 1771.
  (e) Kotrusz, P.; Toma, S.; Schmalz, H.-G.; Adler, A. Eur. J. Org. Chem. 2000, 7, 1577.
7. [7]
8. [8]
  Halimehjani, A. Z.; Karimi, N.; Saidi, M. R. Synth. Commun. 2013, 43, 744. doi: 10.1080/00397911.2011.608479
9. [9]
  Shibatomi, K.; Zhang, Y.; Yamamoto, H. Chem.-Asian J. 2008, 3, 1581. doi: 10.1002/asia.200800087
