Citation: Wang Tieshi, Chen Jianjun, Ye Lin, Zhang Aiying, Feng Zengguo. Synthesis of Tritertbutylphosphinimine Phenoxy Titanium Complexes and Their Catalytic Performance to Ethylene Polymerization[J]. Chinese Journal of Organic Chemistry, ;2018, 38(6): 1544-1548. doi: 10.6023/cjoc201801004 shu

Synthesis of Tritertbutylphosphinimine Phenoxy Titanium Complexes and Their Catalytic Performance to Ethylene Polymerization

Wang Tieshi ^a ,
Chen Jianjun ^b ,
Ye Lin ^a,b ,
Zhang Aiying ^a,b ,
Feng Zengguo ^a,b,,

a.
School of Materials Science and Engineering, Beijing Institute of Technology, Beijing 100081
b.
Sinopec Yanshan Branch, Beijing Research Institute of Chemical Industry, Beijing 102500
c.
Beijing Key Laboratory of Construction Tailorable Advanced Functional Materials and Green Applications, Beijing 100081

Corresponding author: Feng Zengguo, sainfeng@bit.edu.cn
Received Date: 4 January 2018
Revised Date: 9 February 2018
Available Online: 8 June 2018
Fund Project: Project supported by the Technology Development Project of China Petroleum & Chemical Corporation (Sinopec) (No. 214002)the Technology Development Project of China Petroleum & Chemical Corporation (Sinopec) 214002

Figures(4)

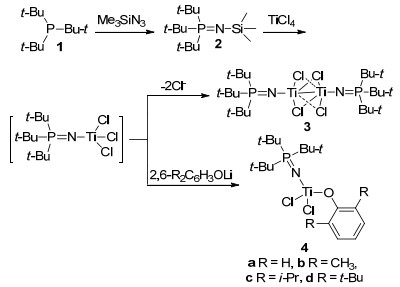

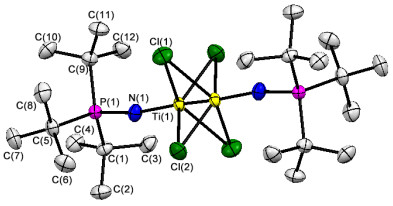

Tritertbutylphosphinimine phenoxy titanium complexes (t-Bu₃)PNTi(OAr)Cl₂ [Ar=C₆H₅(4a), 2, 6-Me₂C₆H₃ (4b), 2, 6-i-Pr₂C₆H₃ (4c) and 2, 6-t-Bu₂C₆H₃ (4d)] were synthesized via the reaction of corresponding substituted phenol lithium salts with tritertbutylphosphinimine trichloride titanium (3). The compounds were characterized by means of ¹H NMR, ¹³C NMR, ³¹P NMR spectroscopic and elemental analyses, and the molecular structures of 3, 4b and 4d were further confirmed by single-crystal X-ray diffraction analysis. When activated with methylaluminoxane (MAO), 4a~4d displayed not only high catalytic activities, but also increasing performances on ethylene polymerization with increasing the sterical hindrance of substituents. Furthermore, 4c depicted a good thermal stability, with which the polyethylene products of different molecular weights and molecular weight distributions can be obtained by tuning the polymerization conditions.
- tritertbutylphosphinimine,
- substituted phenoxy,
- titanium complex,
- ethylene polymerization
1. [1]
  Britovsek G. J. P., Gibson V. C., Wass D. F.Angew. Chem., 1999, 111:448. doi: 10.1002/(ISSN)1521-3757
2. [2]
  Valente A., Mortreux A., Visseaux M., Zinck P.Chem. Rev., 2013, 113:3836. doi: 10.1021/cr300289z
3. [3]
  Stehling U., Diebold J., Kirsten R., Roll W., Brintzinger H.-H., Jungling S., Mulhaupt R., Langhauser F.Organometallics, 1994, 13:964. doi: 10.1021/om00015a033
4. [4]
  Resconi L., Balboni D., Baruzzi G., Fiori C., Guidotti S.Organometallics, 2000, 19:420. doi: 10.1021/om990487o
5. [5]
  Ewen J. A., Jones R. L., Elder M. J., Rheingold A. L., Liable-Sands L. M.J. Am. Chem. Soc., 1998, 120:10786. doi: 10.1021/ja9823215
6. [6]
  Chen J. J., Wang T. S., Tang Z. W., Xu Y. B., Xu L., Cao M. S., Feng, Z, G.Acta Polym. Sin., 2017, 1294(in Chinese).
7. [7]
  Yamasaki H., Kimura K., Nakano M., Ushioda T.Chem. Lett., 1999, 1311.
8. [8]
  Su B. Y., Jia P. Y., Wang Y. Z., Li Y. N., Huang H., Li Q. D.Chin. J. Org. Chem., 2016, 36:2344(in Chinese).
9. [9]
  Kang X. H., Zhou G. L., Wang X. B., Qu J. P., Hou Z. M., Luo Y.Organometallics, 2016, 35:913. doi: 10.1021/acs.organomet.6b00081
10. [10]
  Xu S., Liang C. C., Lv Z. W., Zhu Y. L., Zhang C., Mi P. K.Chin. J. Org. Chem., 2017, 37:1284(in Chinese).
11. [11]
  Qi C. H., Zhang S. B.Appl. Organomet. Chem., 2006, 20:70. doi: 10.1002/(ISSN)1099-0739
12. [12]
  Liu K., Wu Q., Gao W., Mu Y., Ye L.Eur. J. Inorg. Chem., 2011, 12:1901.
13. [13]
  Liu Q. Y., Gao R., Hou J. X., Sun W. H.Chin. J. Org. Chem., 2013, 33:808(in Chinese).
14. [14]
  Nomura K., Liu J.Dalton Trans., 2011, 7666.
15. [15]
  Kakinuki K., Fujiki M., Nomura K.Macromolecules, 2009, 42:4585. doi: 10.1021/ma900576v
16. [16]
  Nomura K., Pengoubol S., Apisuk W.RSC Adv., 2016, 6:16203. doi: 10.1039/C5RA27797C
17. [17]
  Hu W. Q., Sun X. L., Wang C., Gao Y., Tang Y., Shi L. P., Xia W., Sun J., Dai H. L., Li X. Q., Yao X. L., Wang X. R.Organometallics, 2004, 23:1684. doi: 10.1021/om0303808
18. [18]
  Stephan D. W., Guerin F., Spence R. E...v. H.; Koch L., Gao X. L., Brown S. J., Swabey J. W., Wang Q. Y., Xu W., Zoricak P., Harrison D. G.Organometallics, 1999, 18:2046. doi: 10.1021/om981026q
19. [19]
  Stephan D. W., Stewart J. C., Guerin F., Spence R. E.v. H.; Xu W., Harrison D. G.Organometallics, 1999, 18:1116. doi: 10.1021/om980955e
20. [20]
  Stephan D. W.Organometallics, 2005, 24:2548. doi: 10.1021/om050096b
21. [21]
  Yue N., Hollink E., Guerin F., Stephan D. W.Organometallics, 2001, 20:4424. doi: 10.1021/om010433q
22. [22]
  Hollink E., Stewart J. C., Wei P. R., Stephan D. W.Dalton Trans., 2003, 3968.
23. [23]
  Hollink E., Stewart J. C., Wei P. R., Stephan D. W.Can. J. Chem., 2004, 82:1304. doi: 10.1139/v04-062
24. [24]
  Yuan S. F., Wang L. J., Zhang Q. Y., Sun W. H.Prog. Chem., 2017, 29:1462(in Chinese).
25. [25]
  Fenwick A. E., Phomphrai K., Thorn M. G., Vilardo J. S., Trefun C. A., Hanna B., Fanwick P. E., Rothwell I. P.Organometallics, 2004, 23:2146. doi: 10.1021/om0341404
26. [26]
  Phomphrai K., Fenwick A. E., Sharma S., Fanwick P. E., Caruthers J. M., Delgass W. N., Abu-Omar M. M., Rothwell I. P.Organometallics 2006, 25, 214. doi: 10.1021/om0507272
27. [27]
  Nomura K., Naga N., Miki M., Yanagi K.Macromolecules, 1998, 31:7588. doi: 10.1021/ma980690f
28. [28]
  Yan Q., Yang W. H., Chen L. Q., Wang L., Redshaw C., Sun W. H.J. Organomet. Chem., 2014, 753:34. doi: 10.1016/j.jorganchem.2013.12.021
29. [29]
  Lv Y., Wang S. C., Wu B., Zheng Q. T., Han G. Q., Sun H. D.Acta Acad. Med. Sin., 1999, 21:1(in Chinese). doi: 10.3321/j.issn:1000-503X.1999.01.001
