• 1.   Introduction

  Chalcones, consisting of two aromatic rings through a three-carbon α, β-unsaturated carbonyl system, is an exceptional chemical template having important biological activities, including antitumor, anti-inflammatory, antioxidant, antimicrobial, anti-tubercular and antiplatelet properties.^[1~5] The anti-inflammatory and anticancer activities of chalcones have been investigated extensively for more than several decades.^[6~8]

  Moreover, there were some reports describing the possible mechanistic basis of the cytotoxic or anti-inflammatory activity. Chalcones exert anticancer activities through multiple mechanisms including cell cycle disruption, inhibition of angiogenesis, induction of apoptosis and tubulin polymerization.^[9~11] In addition, chalcone derivatives show anti-inflammatory properties by inhibition of secretory phospholipase A2 and COX, proinflammatory cytokines production, and production of reactive oxygen species (ROS).^[12~14]

  Literature on structure-activity relationship (SAR) analysis of chalcones highlights the employment of pronged strategies including structural modification of both aryl rings, replacement of aryl rings with heteroaryl scaffolds, and molecular hybridization through conjugation with other pharmacologically moieties. Recently, we have reported the synthesis of a series of novel hybrid compounds of chalcone and N-heterocycles and their potential anti-inflammatory and antitumor activities.^[15] Especially, the hybrid compounds between chalcone and substituted piperazine displayed potential anti-tumor activities^[16] (Figure 1).

  Figure 1

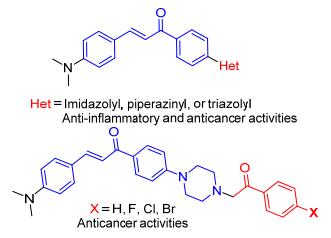

  Figure 1.  Synthetic biological chalcone compounds

  下载: 全尺寸图片 幻灯片

  In order to keep in view of the biological importance of chalcone-piperazine hybrids, we were interested in synthesizing a number of novel chalcone derivatives bearing various substituted groups on aryl rings. Herein, we reported the synthesis of a series of novel substituted chalcone-piperazine compounds. The design strategy of new compounds was shown in Eq. 1. These derivatives were evaluated for their in vitro anti-inflammatory activity in lipopolysaccharide (LPS)-stimulated RAW-264.7 macrophages and anti-tumor activity against a panel of human tumor cell lines by methyl thiazolyl tetrazolium (MTT) assay, with the aim of developing new potential biological active agents. We also discussed the preliminary SAR of anti-inflammatory and anti-tumor activities.

  (1)

  2.   Results and discussion

  2.1   Chemistry

  The general synthetic route used to synthesize hybrid compounds is outlined in Scheme 1. Treatment of commercially substituted benzaldehyde with 4-fluoro acetophenone gave the chalcone compound 1 in the presence of 20% KOH in EtOH. Then, the key piperazine substituted chalcone intermediate 2 was prepared by substitution with piperazine from compound 1 in the presence of K₂CO₃ at 120 ℃ in N, N-dimetylformamide (DMF). Starting from desired intermediate 2, a series of substituted chalcone-piperazine hybrids were synthesized by treatment of compound 2 with a number of available α-bromoketone or α-bromo ethyl acetate. In order to compare the biological activities and get further discuss toward the structure and activity relationship (SAR), various tertiary amines 3~25 were prepared. Comparative data for new hybrid derivatives with respective to structures, melting point and yield were provided in Table 1. All of the synthesized compounds were characterized by ¹H NMR, ¹³C NMR and HRMS analysis as well.

  Scheme 1

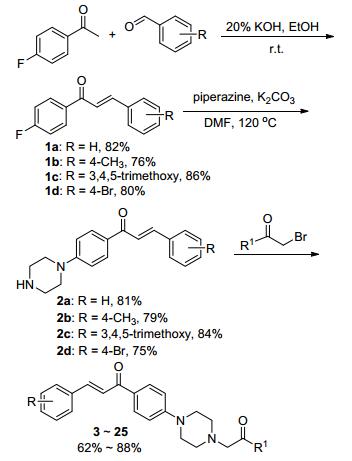

  Scheme 1.  Synthetic routes of chalcone-piperazine compounds

  下载: 全尺寸图片 幻灯片

  Table 1



  Table 1.  Structures and yields of compounds

  下载: 导出CSV

  Compd.	R	R1	m.p.a/℃	Yieldb/%
  3	H	Ethoxy	147~149	90
  4	H	H3	168~170	82
  5	H	Phenyl	177~179	76
  6	H	4-Fluorophenyl	186~188	69
  7	H	4-Chlorophenyl	196~198	73
  8	H	4-Bromophenyl	174~176	81
  9	H	4-Methylphenyl	172~174	78
  10	3, 4, 5-Trimethoxy	Ethoxy	138~140	92
  11	3, 4, 5-Trimethoxy	CH3	153~155	84
  12	3, 4, 5-Trimethoxy	Phenyl	168~170	70
  13	3, 4, 5-Trimethoxy	4-Fluorophenyl	181~183	66
  14	3, 4, 5-Trimethoxy	4-Chlorophenyl	169~171	72
  15	3, 4, 5-Trimethoxy	4-Bromophenyl	153~155	83
  16	3, 4, 5-Trimethoxy	4-Methylphenyl	141~143	66
  17	3, 4, 5-Trimethoxy	4-Methoxyphenyl	132~134	84
  18	3, 4, 5-Trimethoxy	4-2-Naphthyl	177~179	60
  19	4-CH3	Ethoxy	141~143	85
  20	4-CH3	CH3	165~167	84
  21	4-CH3	Phenyl	173~175	65
  22	4-CH3	4-Methylphenyl	199~201	72
  23	4-Br	Ethoxy	182~184	88
  24	4-Br	CH3	204~206	83
  25	4-Br	4-Methylphenyl	180~182	76
  a Melting point was uncorrected. b Yields represented isolated yields.

  1.2   Biological evaluation

  1.2.1   Anti-inflammatory activity

  In vitro anti-inflammatory activities of synthetic substituted chalcone-piperazine compounds were investigated in LPS-induced RAW 264.7 on the generation of NO.^[17] The results of title compounds were summarized in Table 2. As shown in Table 2, the substituents of the core ring and the NH group of piperazine ring had an obvious influence on anti-inflammatory activities. To our delight, replacement of electron-donating group increased the anti-inflammatory activity (trimethoxy), and the substituents of NH group had an obvious influence against the generation of NO. On the whole, methyl ketone substituent contributed to better activity, but aryl ketone substituents led to weaker activity (CH₃COCH₂ > ArCOCH₂). For example, compounds 4, 11, 12, 14 and 16 showed satisfied anti-inflammatory activity on the generation of NO (IC₅₀ < 10 μmol/L). In addition, compounds 6, 13, 15, 17, 20 and 25 displayed potent anti-inflammatory activity (IC₅₀ < 20 μmol/L). Among all synthetic compounds, hybrid 11 was found to be the most potent anti-inflammatory agent (IC₅₀＝3.81 μmol/L).

  Table 2



  Table 2.  Anti-inflammatory activities of compounds^a

  下载: 导出CSV

  Compd.	IC50/(mol•L－1)
  3	> 50
  4	9.43
  5	32.07
  6	15.88
  7	25.58
  8	> 50
  9	> 50
  10	> 50
  11	3.81
  12	7.47
  13	18.30
  14	9.53
  15	16.38
  16	6.26
  17	19.25
  18	> 50
  19	> 50
  20	11.85
  21	36.04
  22	> 50
  23	> 50
  24	25.24
  25	13.80
  a Values represent the concentration required to produce 50% inhibition of the response

  1.2.2   Cytotoxic activity

  Cytotoxic activity of novel synthesized derivatives was evaluated against human lung cancer cell line A549, human cervical carcinoma Hela, human ovarian cancer cell line sk-ov-3 and human normal liver cell L02 by MTT assay, using cisplatin as the reference drug.^[18] The anti-tumor results of hybrids were summarized in Table 3.

  Table 3



  Table 3.  In vitro cytotoxic activities [IC₅₀/(μmol•L^－1)] of title compounds^a

  下载: 导出CSV

  Compd.	A549	Hela	sk-ov-3	L02
  3	> 50	> 50	> 50	> 50
  4	> 50	> 50	> 50	> 50
  5	> 50	> 50	> 50	> 50
  6	> 50	14.13±1.22	12.07±1.28	> 50
  7	2.35±0.24	0.39±0.02	3.16±0.64	> 50
  8	0.18±0.03	> 50	19.74±1.72	> 50
  9	> 50	13.76±1.54	> 50	24.27±1.92
  10	> 50	> 50	> 50	> 50
  11	> 50	> 50	> 50	> 50
  12	> 50	8.14±1.16	> 50	> 50
  13	> 50	18.23±2.02	19.81±1.86	> 50
  14	> 50	0.45±0.04	0.92±0.20	28.08±3.02
  15	3.83±0.91	1.06±0.27	12.60±1.32	23.22±1.66
  16	> 50	0.06±0.01	34.62±3.85	> 50
  17	> 50	18.93±1.82	> 50	> 50
  18	> 50	> 50	> 50	> 50
  19	> 50	> 50	> 50	> 50
  20	> 50	> 50	> 50	> 50
  21	5.15±0.57	2.31±0.42	9.55±1.12	> 50
  22	> 50	> 50	> 50	> 50
  23	> 50	> 50	0.37±0.04	> 50
  24	12.36±0.98	1.74±0.34	5.52±0.66	3.82±0.44
  25	0.54±0.11	0.05±0.01	9.12±1.26	33.24±2.72
  Cisplatin	11.54±1.15	20.52±1.84	5.68±0.82	> 50
  a Cytotoxicity as IC50 values for each cell line, the concentration of compound that inhibit 50% of the cell growth measured by MTT assay.

  From the activity data, we could observed that the structures of compounds had an obvious influence on anticancer activities. There were four series of substituents of core benzene ring, including H, methyl, trimethoxy and Br. To explore the structure-activity relationships (SAR), various substituents (CH₃COCH₂, CH₂CO₂C₂H₅ and ArCOCH₂) were introduced into the NH group. In generally, derivatives containing halide exhibited more sensitive to anticancer activities on three tested cancer cell lines. For example, compounds 6, 7, 8, 14, 15, 21, 24 and 25 showed selected anticancer activity against tumor cell lines. Among all synthesized derivatives, compound 8 displayed the best inhibitory activity for A549 (IC₅₀＝0.18 μmol/L), compound 25 showed the most potent cytotoxic activity against Hela (IC₅₀＝0.05 μmol/L) and compound 23 displayed the best antitumor activity for sk-ov-3 (IC₅₀＝0.37 μmol/L), respectively. Moreover, to compare the anticancer activity of cancer cells and normal cells, we evaluated the cytotoxic activity of compounds against human normal liver cell L02. According to the result, it is found that most hybrids were non-sensitive to L02. Compound 25 showed most cytotoxic activity (IC₅₀＝3.82 μmol/L), and compounds 9, 14 and 15 had weak inhibitory activity for L02 (IC₅₀ < 30 μmol/L).

  The biological results suggested that existence of substituents played an important role in the anti-inflammatory and cytotoxic activity of compounds. On one hand, electron-donating groups of phenyl ring had better inhibitory effect on the generation of NO, and 4-Br substituent exhibited more potent cytotoxic activity. On the other hand, the substituents of the NH group of piperazine ring also had an obvious influence on biological activities. Especially, CH₃COCH₂ group contributed better anti-inflammatory activity, and ArCOCH₂ led to potent anticancer activity. On the whole, the compounds bearing 4-Br (R) and Ar (R¹) led to better anticancer activity, and the compounds bearing R (trimethoxy) and methyl (R¹) contributed to better anti-inflammatory activity. The structure-activity relationship (SAR) results were summarized in Figure 2.

  Figure 2

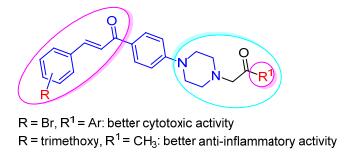

  Figure 2.  Structure-activity relationship of title compounds

  下载: 全尺寸图片 幻灯片

  3.   Conclusions

  In summary, a series of novel substituted chalcone-piperazine derivatives have been synthesized and screened in vitro anti-inflammatory and cytotoxic activity. The results demonstrated that the substituents of the core ring and the NH group of piperazine ring had an obvious influence on biological activities. Especially, derivative 11 showed better inhibitory effect on the generation of NO (IC₅₀＝3.81 μmol/L), and compound 25 displayed good cytotoxic activity against A549 and Hela (IC₅₀＝0.54 and 0.05 μmol/L, respectively), which was considered as the most potent active agents. Further research is currently undergoing and the results will be reported in due course.

  4.   Experimental

  4.1   General considerations

  Starting materials were analytically pure. Melting points were measured on a YANACO microscopic melting point meter and were uncorrected. ¹H NMR and ¹³C NMR spectra were recorded on a Bruker AV 400 spectrometer (Bruker, Switzerland), using TMS as internal standard and CDCl₃ as solvent, respectively. Thin layer chromatographic (TLC) analysis was carried out on silica gel plates GF₂₅₄. High-resolution mass spectra were performed on an ESI Q-TOF MS spectrometer (Agilent, America).

  3.2   Synthesis

  3.2.1   General procedure for the synthesis of compounds 1a~1d

  To a solution of EtOH (20 mL), ArCHO (10 mmol) and 4-fluoroacetophenone (1.38 g, 10 mmol), was added 20% KOH (15 mL), and the mixture was left to react at room temperature overnight. The reaction was quenched by the addition of water (30 mL), the mixture was filtrated and the solid was dried to afford products. The characterization data of compounds 1a~1d was the same to References [19~21].

  3.2.2   General procedure for the preparation of compounds 2a~2d

  To a stirred solution of the compound 1 (10 mmol) and K₂CO₃ (2.76 g, 20 mmol) in dried N, N-dimethylformamide (DMF) (30 mL), piperazine (1.72 g, 20 mmol) was added and reaction mixture was stirred for 12 h at 120 ℃. After completion of the reaction as indicated by thin-layer chromatography (TLC), the reaction solution was cooled and quenched by the addition of dichloromethane (DCM) (50 mL). The organic layer was washed with water (20 mL×3) and dried by anhydrous sodium sulfate, concentrated in vacuo and purified by column chromatography to afford compounds.

  3.2.3   General procedure for the preparation of hybrid derivatives 3~25

  To a stirred solution of compound 2 (0.1 g) and K₂CO₃ (0.2 g) in dried DCM (10 mL), RX (1 mmol) was added and the reaction mixture was stirred for 5~24 h at room temperature. After completion of the reaction as indicated by TLC, the reaction was quenched by the addition of 5% NaOH (20 mL) and was extracted with DCM (10 mL×3). The organic layer was dried using anhydrous sodium sulfate, concentrated in vacuo and purified by column chromatography (1% MeOH/DCM) to afford title products.

  4'-(1-Piperazinyl)chalcone (2a): Pale yellow solid, m.p. 151~153 ℃; ¹H NMR (400 MHz, CDCl₃) δ: 8.02 (d, J＝8.9 Hz, 2H), 7.86 (dd, J＝3.2, 2.2 Hz, 1H), 7.83 (d, J＝15.6 Hz, 1H), 7.66 (d, J＝8.0 Hz, 2H), 7.60 (d, J＝15.6 Hz, 1H), 7.42 (d, J＝8.9 Hz, 2H), 6.93 (d, J＝9.0 Hz, 2H), 3.33~3.35 (m, 4H), 3.01~3.03 (m, 4H), 2.11 (s, 1H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.1, 154.5, 154.1, 143.1, 135.4, 130.7, 130.2, 130.1, 128.9, 128.3, 122.1, 113.5, 50.1, 48.4, 45.8; HRMS (ESI-TOF) calcd for C₁₉H₂₁N₂O (M+H)⁺ 293.1648, found 293.1648.

  4-Methyl-4'-(1-piperazinyl)chalcone (2b): Yellow solid, m.p. 159~161 ℃; ¹H NMR (400 MHz, CDCl₃) δ: 7.99 (dd, J＝2.0, 7.1 Hz, 2H), 7.77 (d, J＝15.6 Hz, 1H), 7.50~7.54 (m, 3H), 7.20 (d, J＝8.0 Hz, 2H), 6.90 (dd, J＝1.9, 7.2 Hz, 2H), 3.32 (t, J＝5.0 Hz, 4H), 3.02 (t, J＝5.2 Hz, 4H), 2.38 (s, 3H), 1.73 (s, 1H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.3, 154.6, 143.3, 140.6, 132.7, 130.7, 129.7, 128.5, 128.4, 121.1, 113.6, 48.6, 46.0, 21.6; HRMS (ESI-TOF) calcd for C₂₀H₂₃N₂O (M+H)⁺ 307.1805, found 307.1806.

  3, 4, 5-Trimethoxy-4'-(1-piperazinyl)chalcone (2c): Yellow solid, m.p. 162~164 ℃; ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (d, J＝8.8 Hz, 2H), 7.69 (d, J＝15.5 Hz, 1H), 7.42 (d, J＝15.5 Hz, 1H), 6.91 (d, J＝8.7 Hz, 2H), 6.85 (s, 2H), 3.91 (s, 9H), 3.90 (s, 3H), 3.89 (s, 3H), 3.34 (t, J＝4.8 Hz, 4H), 3.03 (t, J＝5.2 Hz, 4H), 2.02 (s, 1H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.1, 154.6, 153.6, 143.4, 131.0, 130.8, 128.4, 121.5, 113.6, 105.7, 61.1, 56.3, 48.5, 45.9; HRMS (ESI-TOF) calcd for C₂₂H₂₇N₂O₄ (M+H)⁺383.1965, found 383.1962.

  4-Bromo-4'-(1-piperazinyl)chalcone (2d): Pale yellow solid, m.p. 187~189 ℃; ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (dd, J＝1.9, 7.1 Hz, 2H), 7.69 (d, J＝15.6 Hz, 1H), 7.46~7.55 (m, 5H), 6.89 (d, J＝9.0 Hz, 2H), 3.33 (t, J＝5.0 Hz, 4H), 3.01 (t, J＝5.1 Hz, 4H), 1.83 (s, 1H); ¹³C NMR (100 MHz, CDCl₃) δ: 187.7, 154.6, 141.7, 134.4, 132.2, 130.8, 129.7, 128.0, 124.3, 122.7, 113.6, 113.5, 113.4, 48.4, 45.9; HRMS (ESI-TOF) calcd for C₁₉H₂₀BrN₂O (M+H)⁺371.0754, found 371.0754.

  4'-[N-(2-Oxo-2-ethoxyethyl)-1-piperazinyl]chalcone (3): ¹H NMR (400 MHz, CDCl₃) δ: 7.99 (d, J＝8.6 Hz, 2H), 7.78 (d, J＝15.6 Hz, 1H), 7.63 (dd, J＝1.6, 7.3 Hz, 2H), 7.55 (d, J＝15.6 Hz, 1H), 7.39 (d, J＝6.4 Hz, 3H), 6.90 (d, J＝8.8 Hz, 2H), 4.23 (q, J＝7.1 Hz, 2H), 3.43 (t, J＝4.6 Hz, 4H), 3.27 (s, 2H), 2.74 (t, J＝4.7 Hz, 4H), 1.28 (t, J＝7.1 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.1, 170.1, 154.1, 143.2, 135.4, 130.8, 130.2, 129.0, 128.5, 128.4, 122.2, 113.7, 60.9, 59.4, 52.7, 47.3, 14.4; HRMS (ESI-TOF) calcd for C₂₃H₂₇N₂O₃ (M+H)⁺ 379.2013, found 379.2016.

  4'-[N-(2-Oxopropyl)-1-piperazinyl]chalcone (4): ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (d, J＝8.8 Hz, 2H), 7.78 (d, J＝15.6 Hz, 1H), 7.63 (dd, J＝2.2 Hz, 7.8 Hz, 2H), 7.55 (d, J＝15.6 Hz, 1H), 7.39 (d, J＝6.4 Hz, 3H), 6.90 (d, J＝8.9 Hz, 2H), 3.42 (t, J＝4.9 Hz, 4H), 3.27 (s, 2H), 2.65 (t, J＝5.0 Hz, 4H), 1.27 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 206.0, 188.2, 154.1, 143.3, 135.4, 130.8, 130.2, 129.0, 128.5, 128.4, 122.1, 113.7, 68.0, 53.0, 47.2, 27.9; HRMS (ESI-TOF) calcd for C₂₂H₂₅N₂O₂ (M+H)⁺ 349.1911, found 349.1912.

  4'-[N-(2-Oxophenylethyl)-1-piperazinyl]chalcone (5): ¹H NMR (400 MHz, CDCl₃) δ: 7.99~8.03 (m, 4H), 7.79 (d, J＝15.6 Hz, 1H), 7.64 (dd, J＝2.2, 7.7 Hz, 2H), 7.54~7.59 (m, 2H), 7.47 (t, J＝7.9 Hz, 2H), 7.99~8.03 (m, 4H), 7.39~7.41 (m, 3H), 6.92 (d, J＝9.1 Hz, 2H), 3.90 (s, 2H), 3.47 (t, J＝5.0 Hz, 4H), 2.78 (t, J＝5.1 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 196.2, 188.2, 154.2, 143.3, 136.1, 135.5, 133.6, 130.8, 130.2, 129.0, 128.8, 128.5, 128.4, 128.2, 122.2, 113.7, 64.4, 53.2, 47.4; HRMS (ESI-TOF) calcd for C₂₇H₂₇N₂O₂ (M+H)⁺ 411.2068, found 411.2067.

  4'-[N-(4'-Fluoro-2-oxophenylethyl)-1-piperazinyl]chalk-one (6): ¹H NMR (400 MHz, CDCl₃) δ: 8.04~8.08 (dd, J＝5.4, 9.0 Hz, 2H), 7.99 (d, J＝9.0 Hz, 2H), 7.78 (d, J＝15.6 Hz, 1H), 7.63 (dd, J＝2.2, 7.6 Hz, 2H), 7.55 (d, J＝15.6 Hz, 1H), 7.38~7.40 (m, 3H), 7.13 (t, J＝8.7 Hz, 2H), 6.91 (d, J＝9.1 Hz, 2H), 3.84 (s, 2H), 3.44 (t, J＝5.0 Hz, 4H), 2.75 (t, J＝5.1 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 194.7, 188.2, 167.3, 164.7, 154.1, 143.3, 135.4, 132.4, 131.1, 131.0, 130.2, 129.0, 128.5, 128.4, 122.1, 116.0, 115.8, 113.7, 64.4, 53.2, 47.3; HRMS (ESI-TOF) calcd for C₂₇H₂₆N₂O₂F (M+H)⁺ 429.1973, found 429.1971.

  4'-[N-(4'-Chloro-2-oxophenylethyl)-1-piperazinyl]chalcone (7): ¹H NMR (400 MHz, CDCl₃) δ: 7.94~7.99 (m, 4H), 7.77 (d, J＝15.6 Hz, 1H), 7.62 (dd, J＝1.5, 7.2 Hz, 2H), 7.54 (d, J＝15.6 Hz, 1H), 7.37~7.43 (m, 5H), 6.89 (d, J＝8.9 Hz, 2H), 3.82 (s, 2H), 3.41 (t, J＝4.3 Hz, 4H), 2.73 (t, J＝4.2 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.1, 188.1, 154.1, 143.3, 140.0, 135.4, 134.2, 130.8, 130.2, 129.8, 129.0, 129.0, 128.5, 128.4, 122.1, 113.7, 64.4, 53.1, 47.3; HRMS (ESI-TOF) calcd for C₂₇H₂₆ClN₂O₂ (M+H)⁺ 445.1677, found 445.1678.

  4'-[N-(4'-Bromo-2-oxophenylethyl)-1-piperazinyl]chal-cone (8): ¹H NMR (400 MHz, CDCl₃) δ: 7.99 (d, J＝8.9 Hz, 2H), 7.88 (d, J＝8.6 Hz, 2H), 7.78 (d, J＝15.6 Hz, 1H), 7.54~7.64 (m, 5H), 7.37~7.41 (m, 3H), 6.90 (d, J＝9.0 Hz, 2H), 3.83 (s, 2H), 3.44 (t, J＝4.8 Hz, 4H), 2.75 (t, J＝5.0 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.3, 188.1, 154.1, 143.3, 135.4, 134.6, 132.0, 130.8, 130.2, 129.9, 129.0, 128.7, 128.5, 128.4, 122.1, 113.7, 64.4, 53.1, 47.3; HRMS (ESI-TOF) calcd for C27H25BrN2O2Na (M+Na)⁺ 511.0992, found 511.0996.

  4'-[N-(4'-Methyl-2-oxophenylethyl)-1-piperazinyl]chal-cone (9): ¹H NMR (400 MHz, CDCl₃) δ: 8.00 (d, J＝9.0 Hz, 2H), 7.91 (d, J＝8.2 Hz, 2H), 7.79 (d, J＝15.6 Hz, 1H), 7.64 (dd, J＝2.2, 7.8 Hz, 2H), 7.56 (d, J＝15.6 Hz, 1H), 7.39~7.41 (m, 3H), 7.26 (d, J＝8.0 Hz, 2H), 6.92 (d, J＝9.0 Hz, 2H), 3.86 (s, 2H), 3.46 (t, J＝4.9 Hz, 4H), 2.77 (t, J＝5.0 Hz, 4H), 2.41 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.8, 188.2, 154.2, 144.4, 143.2, 135.5, 133.6, 130.8, 130.2, 129.4, 129.0, 128.4, 128.4, 128.3, 122.2, 113.7, 64.2, 53.2, 47.3, 21.8; HRMS (ESI-TOF) calcd for C₂₈H₂₉N₂O₂ (M+H)⁺ 425.2220, found 425.2224.

  3, 4, 5-Trimethoxy-4'-[N-(2-oxo-2-ethoxyethyl)-1-pipera-zinyl]chalcone (10): ¹H NMR (400 MHz, CDCl₃) δ: 7.96 (d, J＝8.2 Hz, 2H), 7.66 (d, J＝15.5 Hz, 1H), 7.41 (d, J＝15.5 Hz, 1H), 6.88 (d, J＝8.5 Hz, 2H), 6.84 (d, J＝5.3 Hz, 2H), 4.20 (q, J＝7.0 Hz, 2H), 3.90 (s, 3H), 3.88 (s, 3H), 3.86 (s, 3H), 3.40 (t, J＝4.4 Hz, 4H), 3.25 (d, J＝5.6 Hz, 2H), 2.72 (t, J＝4.6 Hz, 4H), 1.26 (t, J＝6.2 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.0, 170.1, 154.0, 153.5, 143.32, 140.1, 130.9, 130.7, 128.4, 121.5, 113.6, 105.6, 61.0, 60.8, 59.3, 56.3, 52.6, 47.3, 14.3; HRMS (ESI-TOF) calcd for C₂₆H₃₃N₂O₆ (M+H)⁺ 469.2333, found 469.2332.

  3, 4, 5-Trimethoxy-4'-[N-(2-oxopropyl)-1-piperazinyl]chalcone (11): ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (d, J＝8.6 Hz, 2H), 7.69 (d, J＝15.5 Hz, 1H), 7.42 (d, J＝15.5 Hz, 1H), 6.90 (d, J＝8.7 Hz, 2H), 6.85 (s, 2H), 3.89 (s, 6H), 3.88 (s, 3H), 3.42 (t, J＝4.8 Hz, 4H), 3.27 (s, 2H), 2.65 (t, J＝4.7 Hz, 4H), 1.27 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 206.0, 188.1, 154.1, 153.6, 143.5, 131.0, 130.8, 128.5, 121.5, 113.7, 105.7, 68.0, 61.1, 56.35, 53.1, 47.3, 27.9; HRMS (ESI-TOF) calcd for C₂₅H₃₁N₂O₅ (M+H)⁺ 439.2226, found 439.2227.

  3, 4, 5-Trimethoxy-4'-[N-(2-oxophenylethyl)-1-pipera-zinyl]chalcone (12): ¹H NMR (400 MHz, CDCl₃) δ: 7.97~8.00 (m, 4H), 7.69 (d, J＝15.5 Hz, 1H), 7.55~7.59 (m, 1H), 7.41~7.47 (m, 3H), 6.90 (d, J＝9.0 Hz, 2H), 6.85 (s, 2H), 3.89 (s, 3H), 3.88 (s, 3H), 3.87 (s, 3H), 3.45 (t, J＝5.0 Hz, 4H), 2.77 (t, J＝5.0 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 196.1, 188.1, 154.1, 153.5, 143.4, 136.0, 133.5, 130.9, 130.7, 128.7, 128.4, 128.2, 122.5, 113.7, 105.6, 64.2, 61.0, 56.3, 53.2, 47.3; HRMS (ESI-TOF) calcd for C₃₀H₃₃N₂O₅ (M+H)⁺ 501.2384, found 501.2380.

  3, 4, 5-Trimethoxy-4'-[N-(4'-fluoro-2-oxophenylethyl)-1-piperazinyl]chalcone (13): ¹H NMR (400 MHz, CDCl₃) δ: 8.04~8.08 (m, 2H), 8.00 (d, J＝8.9 Hz, 2H), 7.70 (d, J＝15.5 Hz, 1H), 7.45 (d, J＝15.5 Hz, 1H), 7.13 (t, J＝8.6 Hz, 2H), 6.91 (d, J＝8.9 Hz, 2H), 6.86 (s, 2H), 3.92 (s, 3H), 3.90 (s, 3H), 3.89 (s, 3H), 3.85 (s, 2H), 3.43 (t, J＝4.4 Hz, 4H), 2.76 (t, J＝4.7 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 194.6, 188.0, 167.1, 164.6, 154.0, 153.5, 143.3, 140.1, 132.3, 131.0, 130.9, 130.8, 130.7, 128.4, 121.4, 115.9, 115.6, 113.6, 105.6, 64.3, 61.0, 56.2, 53.0, 47.2; HRMS (ESI-TOF) calcd for C₃₀H₃₂FN₂O₅ (M+H)⁺ 519.2290, found 519.2285.

  3, 4, 5-Trimethoxy-4'-[N-(4'-chloro-2-oxophenylethyl)-1-piperazinyl]chalcone (14): ¹H NMR (400 MHz, CDCl₃) δ: 7.92~7.98 (m, 4H), 7.67 (d, J＝15.5 Hz, 1H), 7.39~7.44 (m, 3H), 6.88 (d, J＝9.0 Hz, 2H), 6.83 (s, 2H), 3.89 (s, 3H), 3.88 (s, 3H), 3.86 (s, 3H), 3.81 (s, 2H), 3.41 (t, J＝4.8 Hz, 4H), 2.72 (t, J＝5.0 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.1, 188.0, 154.0, 153.5, 143.4, 139.9, 134.2, 130.8, 130.7, 129.7, 129.0, 128.4, 121.4, 113.6, 105.6, 64.3, 61.0, 56.3, 53.1, 47.2; HRMS (ESI-TOF) calcd for C₃₀H₃₂N₂O₅Cl (M+H)⁺ 535.1991, found 535.1994.

  3, 4, 5-Trimethoxy-4'-[N-(4'-bromo-2-oxophenylethyl)-1-piperazinyl]chalcone (15): ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (d, J＝8.7 Hz, 2H), 7.88 (d, J＝8.2 Hz, 2H), 7.68 (d, J＝15.5 Hz, 1H), 7.59 (d, J＝8.2 Hz, 2H), 7.42 (d, J＝15.5 Hz, 2H), 6.90 (d, J＝8.8 Hz, 2H), 6.85 (s, 2H), 3.89 (s, 6H), 3.88 (s, 3H), 3.83 (s, 2H), 3.43 (t, J＝4.8 Hz, 4H), 2.75 (t, J＝4.6 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.3, 188.1, 154.1, 153.6, 143.5, 134.6, 132.1, 130.9, 130.8, 129.8, 128.8, 128.6, 121.5, 113.7, 105.7, 64.4, 61.1, 56.3, 53.1, 47.3; HRMS (ESI-TOF) calcd for C₃₀H₃₁N₂O₂BrNa (M+Na)⁺ 601.1309, found 601.1304.

  3, 4, 5-Trimethoxy-4'-[N-(4'-methyl-2-oxophenylethyl)-1-piperazinyl]chalcone (16): ¹H NMR (400 MHz, CDCl₃) δ: 8.00 (d, J＝9.0 Hz, 2H), 7.91 (d, J＝8.2 Hz, 2H), 7.70 (d, J＝15.6 Hz, 1H), 7.43 (d, J＝15.6 Hz, 1H), 7.27 (t, J＝3.7 Hz, 2H), 6.93 (d, J＝9.0 Hz, 2H), 6.86 (s, 2H), 3.92 (s, 6H), 3.90 (s, 3H), 3.88 (s, 2H), 3.45~3.48 (m, 4H), 2.77~2.79 (m, 4H), 2.41 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.8, 188.2, 154.2, 153.6, 144.4, 143.4, 133.6, 131.0, 130.8, 129.4, 128.5, 128.3, 121.6, 113.7, 105.7, 64.2, 61.1, 56.4, 53.2, 47.4, 21.8; HRMS (ESI-TOF) calcd for C₃₁H₃₅N₂O₅ (M+H)⁺ 515.2540, found 515.2540.

  3, 4, 5-Trimethoxy-4'-[N-(4'-methoxy-2-oxophenyl-ethyl)-1-piperazinyl]chalcone (17): ¹H NMR (400 MHz, CDCl₃) δ: 7.99~8.04 (m, 4H), 7.72 (dd, J＝5.1, 15.5 Hz, 1H), 7.43 (dd, J＝4.0, 15.6 Hz, 1H), 6.90~6.96 (m, 4H), 6.87 (s, 2H), 3.92 (s, 6H), 3.90 (s, 3H), 3.88 (s, 1H), 3.87 (s, 2H), 3.85 (s, 1H), 3.79 (d, J＝5.0 Hz, 1H), 3.72 (d, J＝3.2 Hz, 1H), 3.55 (t, J＝4.8 Hz, 1H), 3.47 (t, J＝4.8 Hz, 2H), 3.35~3.42 (m, 2H), 2.81 (t, J＝5.1 Hz, 2H); ¹³C NMR (100 MHz, CDCl₃) δ: 194.5, 188.2, 163.9, 161.0, 154.1, 153.5, 143.5, 132.2, 130.8, 130.5, 121.5, 114.6, 113.9, 113.7, 105.8, 105.7, 63.9, 61.1, 56.3, 55.6, 55.5, 53.1, 47.2; HRMS (ESI-TOF) calcd for C₃₁H₃₅N₂O₆ (M+H)⁺ 531.2490, found 531.2490.

  3, 4, 5-Trimethoxy-4'-[N-(2-oxo-β-naphthalenylethyl)-1-piperazinyl]chalcone (18): ¹H NMR (400 MHz, CDCl₃) δ: 8.53 (s, 1H), 7.93~8.04 (m, 4H), 7.86 (t, J＝8.8 Hz, 2H), 7.69 (d, J＝15.5 Hz, 1H), 7.53~7.60 (m, 2H), 7.43 (d, J＝15.5 Hz, 1H), 6.90 (d, J＝9.0 Hz, 2H), 6.84 (s, 2H), 4.04 (s, 2H), 3.89 (s, 3H), 3.88 (s, 3H), 3.87 (s, 3H), 3.46 (t, J＝4.2 Hz, 4H), 2.80 (t, J＝4.8 Hz, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 196.0, 188.1, 154.1, 153.5, 143.3, 140.1, 135.8, 133.3, 132.5, 130.9, 130.7, 129.8, 129.6, 128.7, 128.6, 128.4, 127.9, 126.9, 123.8, 121.5, 113.6, 105.6, 64.3, 61.0, 56.3, 53.2, 47.3; HRMS (ESI-TOF) calcd for C₃₄H₃₅N₂O₅ (M+H)⁺ 551.2537, found 551.2540.

  4-Methyl-4'-[N-(2-oxo-2-ethoxyethyl)-1-piperazinyl]-chalcone (19): ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (d, J＝8.9 Hz, 2H), 7.75 (d, J＝15.6 Hz, 1H), 7.49~7.53 (m, 3H), 7.19 (d, J＝8.0 Hz, 2H), 6.89 (d, J＝8.9 Hz, 2H), 4.22 (q, J＝7.1 Hz, 2H), 3.41 (t, J＝4.9 Hz, 4H), 3.26 (s, 2H), 2.73 (t, J＝5.0 Hz, 4H), 2.37 (s, 3H), 1.27 (t, J＝7.1 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 188.2, 170.1, 154.0, 143.3, 140.6, 132.6, 130.7, 129.7, 128.6, 128.4, 121.1, 113.7, 60.8, 59.4, 52.6, 47.3, 21.6, 14.3; HRMS (ESI-TOF) calcd for C₂₄H₂₈N₂O₃Na (M+Na)⁺ 415.1992, found 415.1996.

  4-Methyl-4'-[N-(2-oxopropyl)-1-piperazinyl]chal-cone (20): ¹H NMR (400 MHz, CDCl₃) δ: 7.97 (d, J＝8.9 Hz, 2H), 7.75 (d, J＝15.6 Hz, 1H), 7.48~7.52 (m, 3H), 7.18 (d, J＝7.9 Hz, 2H), 6.88 (d, J＝9.0 Hz, 2H), 3.39 (t, J＝4.8 Hz, 4H), 3.24 (s, 2H), 2.62 (t, J＝5.0 Hz, 4H), 2.35 (s, 3H), 2.15 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 206.0, 188.2, 154.0, 143.3, 140.6, 132.6, 130.7, 129.7, 128.5, 128.3, 121.1, 113.6, 67.9, 53.0, 47.2, 27.8, 21.5; HRMS (ESI-TOF) calcd for C₂₃H₂₇N₂O₂ (M+H)⁺ 385.1884, found 385.1886.

  4-Methyl-4'-[N-(2-oxophenylethyl)-1-piperazinyl]chal-cone (21): ¹H NMR (400 MHz, CDCl₃) δ: 7.98~8.02 (m, 4H), 7.79 (d, J＝15.6 Hz, 1H), 7.45~7.58 (m, 6H), 7.22 (d, J＝8.0 Hz, 2H), 6.93 (d, J＝9.0 Hz, 2H), 3.90 (s, 2H), 3.48 (t, J＝5.2 Hz, 4H), 2.80 (t, J＝5.0 Hz, 4H), 2.38 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 196.2, 188.3, 154.1, 143.4, 140.6, 136.1, 133.5, 132.7, 130.7, 129.7, 128.8, 128.7, 128.4, 128.2, 121.2, 113.8, 64.3, 53.2, 47.4, 21.6; HRMS (ESI-TOF) calcd for C₂₈H₂₉N₂O₂ (M+H)⁺ 425.2224, found 425.2227.

  4-Methyl-4'-[N-(4'-methyl-2-oxophenylethyl)-1-pi-perazinyl]chalcone (22): ¹H NMR (400 MHz, CDCl₃) δ: 8.00 (d, J＝7.7 Hz, 1H), 7.90 (dd, J＝2.2, 6.5 Hz, 3H), 7.77 (d, J＝15.6 Hz, 1H), 7.54 (t, J＝2.2 Hz, 2H), 7.31 (d, J＝11.6 Hz, 1H), 7.20~7.27 (m, 4H), 7.03 (d, J＝7.5 Hz, 1H), 6.91 (d, J＝7.9 Hz, 1H), 6.82 (t, J＝7.4 Hz, 1H), 3.87 (d, J＝7.0 Hz, 2H), 3.41~3.47 (m, 4H), 2.74~2.79 (m, 4H), 2.41 (s, 3H), 2.38 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.8, 188.4, 154.1, 144.4, 143.4, 140.6, 137.5, 133.6, 132.7, 131.3, 130.8, 129.7, 129.5, 129.4, 129.1, 128.7, 128.4, 128.4, 126.6, 121.2, 113.7, 113.6, 64.2, 53.2, 53.2, 47.4, 47.2, 21.8, 21.6; HRMS (ESI-TOF) calcd for C₂₉H₃₁N₂O₂ (M+H)⁺ 439.2378, found 439.2380.

  4-Bromo-4'-[N-(2-oxo-2-ethoxyethyl)-1-piperazinyl]-chalcone (23): ¹H NMR (400 MHz, CDCl₃) δ: 7.95 (d, J＝9.0 Hz, 2H), 7.67 (d, J＝15.6 Hz, 1H), 7.44~7.53 (m, 5H), 6.87 (d, J＝9.1 Hz, 2H), 4.20 (q, J＝7.1 Hz, 2H), 3.40 (t, J＝4.9 Hz, 4H), 3.25 (s, 2H), 2.71 (t, J＝5.0 Hz, 4H), 1.26 (t, J＝7.1 Hz, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 187.6, 170.1, 154.1, 141.6, 134.3, 132.1, 130.7, 129.7, 128.1, 124.2, 122.6, 113.6, 60.8, 59.3, 52.55, 47.2, 14.3; HRMS (ESI-TOF) calcd for C₂₃H₂₆N₂O₃Br (M+H)⁺ 457.1121, found 457.1121.

  4-Bromo-4'-[N-(2-oxopropyl)-1-piperazinyl]chalcone-(24): ¹H NMR (400 MHz, CDCl₃) δ: 7.96 (d, J＝8.8 Hz, 2H), 7.69 (d, J＝15.6 Hz, 1H), 7.46~7.54 (m, 5H), 6.88 (d, J＝8.9 Hz, 2H), 3.42 (t, J＝5.0 Hz, 4H), 3.26 (s, 2H), 2.64 (t, J＝5.0 Hz, 4H), 2.17 (s, 3H); ¹³C NMR (100 MHz, CDCl₃) δ: 206.0, 187.7, 154.2, 141.7, 134.3, 132.2, 130.8, 129.9, 128.2, 124.3, 122.7, 113.6, 68.0, 53.0, 47.2, 27.9; HRMS (ESI-TOF) calcd for C₂₂H₂₄N₂O₂Br (M+H)⁺ 427.1016, found 427.1016.

  4-Bromo-4'-[N-(4'-methyl-2-oxophenylethyl)-1-pipera-zinyl]chalcone (25): ¹H NMR (400 MHz, CDCl₃) δ: 7.98 (dd, J＝2.6, 8.8 Hz, 2H), 7.90 (d, J＝5.3 Hz, 2H), 7.72 (dd, J＝2.6, 15.6 Hz, 1H), 7.50~7.56 (m, 4H), 7.25~7.33 (m, 4H), 6.92 (dd, J＝2.5, 8.9 Hz, 1H), 3.87 (d, J＝2.6 Hz, 2H), 3.47 (s, 4H), 2.78 (s, 3H), 2.41 (s, 4H); ¹³C NMR (100 MHz, CDCl₃) δ: 195.8, 187.9, 154.3, 144.5, 141.8, 134.5, 133.6, 132.2, 131.5, 131.0, 130.9, 130.0, 129.8, 129.5, 128.6, 128.4, 128.3, 122.8, 113.7, 64.2, 53.2, 47.3, 21.8; HRMS (ESI-TOF) calcd for C₂₈H₂₈N₂O₂Br (M+H)⁺ 503.1329, found 503.1326.

  4.3   Biological activity experiments

  4.3.1   Anti-inflammatory activity

  Murine RAW264.7 macrophages were plated in 96 well plate at a density of 1×10⁵ cells/well and stimulated with 1 μg/mL lipopolysaccharides (LPS) in the present or absence of various concentration of compound for 24 h. The production of NO was determined by assaying culture supernatant for NO^2－. 100 μL of supernatant was mixed with an equal volume of Griess reagent at room temperature for 10 min. Absorbance was measured at 540 nm in a microplate reader.

  4.3.2   Cytotoxic activity

  The assay was carried out using the method previously described. About 1×10⁴ cell/well were seeded into 96-well microtiter plates. After 24 h post-seeding, cells were treated with vehicle control or various concentrations of samples for 48 h. 20 μL of MTT solution (5 mg/mL) was added to each well and the tumor cells were incubated at 37 ℃ in a humidified atmosphere of 5% CO₂ air for 4 h. Upon removal of MTT/medium, 150 μL of dimethylsulfoxide (DMSO) was added to each well and the plate was agitated at oscillator for 5 min to dissolve the MTT-formazan. The assay plate was read at a wavelength of 570 nm using a microplate reader.

  Supporting Information The ¹H NMR, ¹³C NMR and HRMS spectra of compounds. The Supporting Information is available free of charge via the Internet at http://sioc-journal.cn.

• 1. [1]

     Go, M. L.; Wu, X.; Liu, X. L. Curr. Med. Chem. 2005, 12, 481. http://europepmc.org/abstract/med/15720256

  2. [2]

     Ducki, S. Anti-Cancer Agents Med. Chem. 2009, 9, 336. doi: 10.2174/1871520610909030336

  3. [3]

     Kamal, A.; Ramakrishna, G.; Raju, P.; Viswanath, A.; Ramaiah, M. J.; Balakishan, G.; Pal-Bhadra, M. Bioorg. Med. Chem. Lett. 2010, 20, 4865. doi: 10.1016/j.bmcl.2010.06.097

  4. [4]

     Atilaw, Y.; Duffy, S.; Heydenreich, M.; Muiva-Mutisya, L.; Avery, V. M.; Erdélyi, M.; Yenesew, A. Molecules 2017, 22, 318. doi: 10.3390/molecules22020318

  5. [5]

     Kucerova-Chlupacova, M.; Vyskovska-Tyllova, V.; Richterova-Finkova, L.; Kunes, J.; Buchta, V.; Vejsova, M.; Paterova, P.; Semelkova, L.; Jandourek, O.; Opletalova, V. Molecules 2016, 21, 1421. doi: 10.3390/molecules21111421

  6. [6]

     Singh, P.; Anand, A.; Kumar, V. Eur. J. Med. Chem. 2014, 85, 758. doi: 10.1016/j.ejmech.2014.08.033

  7. [7]

     Ritter, M.; Martins, R. M.; Dias, D.; Pereira, C. M. P. Lett. Org. Chem. 2014, 11, 498. doi: 10.2174/1570178611666140218004421

  8. [8]

     Burmaoglu, S.; Algul, O.; Anıl, D. A.; Gobek, A.; Duran, G. G.; Ersan, R. H.; Duran, N. Bioorg. Med. Chem. Lett. 2016, 26, 3172. doi: 10.1016/j.bmcl.2016.04.096

  9. [9]

     宰文静, 蒋盼盼, 张新迎, Philippe M. Loiseau, 郭胜海, 范学森, 有机化学, 2015, 35, 1335. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=yjhu201506017&dbname=CJFD&dbcode=CJFQZai, W. J.; Jiang, P. P.; Zhang, X. Y.; Loiseau, P. M.; Guo, S. H.; Fan, X. S. Chin. J. Org. Chem. 2015, 35, 1335 (in Chinese). http://kns.cnki.net/KCMS/detail/detail.aspx?filename=yjhu201506017&dbname=CJFD&dbcode=CJFQ

  10. [10]

      Srinivasan, B.; Johnson, T. E.; Lad, R.; Xing, C. J. Med. Chem. 2009, 52, 7228. doi: 10.1021/jm901278z

  11. [11]

      Yang, E. B.; Guo, Y. J.; Zhang, K.; Chen, Y. Z.; Mack, P. Biochim. Biophys. Acta 2001, 1550, 144. http://www.sciencedirect.com/science/article/pii/S016748380100276X

  12. [12]

      Bukhari, S. N.; Lauro, G.; Jantan, I.; Bifulco, G.; Amjad, M. W. Bioorg. Med. Chem. 2014, 22, 4151. doi: 10.1016/j.bmc.2014.05.052

  13. [13]

      林玉萍, 虎春艳, 郑喜, 王秀丽, 万春平, 毛泽伟, 有机化学, 2017, 37, 237. http://kns.cnki.net/KCMS/detail/detail.aspx?filename=yjhu201701029&dbname=CJFD&dbcode=CJFQLin, Y. P.; Hu, C. Y.; Zheng, X.; Wang, X. L.; Wan, C. P.; Mao, Z. W. Chin. J. Org. Chem. 2017, 37, 237 (in Chinese). http://kns.cnki.net/KCMS/detail/detail.aspx?filename=yjhu201701029&dbname=CJFD&dbcode=CJFQ

  14. [14]

      Yadav, V. R.; Prasad, S.; Sung, B.; Aggarwal, B. B. Int. Immunopharmacol. 2011, 11, 295. doi: 10.1016/j.intimp.2010.12.006

  15. [15]

      Mao, Z. W.; Zheng, X.; Lin, Y. P.; Hu, C. Y.; Wang, X. L.; Wan, C. P.; Rao, G. X. Bioorg. Med. Chem. Lett. 2016, 26, 3421. doi: 10.1016/j.bmcl.2016.06.055

  16. [16]

      Mao, Z. W.; Zheng, X.; Qi, Y.; Zhang, M. D.; Huang, Y.; Wan, C. P.; Rao, G. X. RSC Adv. 2016, 6, 7723. doi: 10.1039/C5RA20197G

  17. [17]

      Mao, Z. W.; Zheng, X.; Lin, Y. P.; Qi, Y.; Hu, C. Y.; Wan, C. P.; Rao, G. X. Heterocycles 2016, 92, 1102. doi: 10.3987/COM-16-13452

  18. [18]

      Ma, Y. L.; Zheng, X.; Gao, H.; Wan, C. P.; Rao, G. X.; Mao, Z. W. Molecules 2016, 21, 1684. doi: 10.3390/molecules21121684

  19. [19]

      Hall, M. J.; McDonnell, S. O.; Killoran, J.; O'Shea, D. F. J. Org. Chem. 2005, 70, 5571. doi: 10.1021/jo050696k

  20. [20]

      Montes-Avila, J.; Díaz-Camacho, S. P.; Sicairos-Félix, J.; Delgado-Vargas, F.; Rivero, I. A. Bioorg. Med. Chem. 2009, 17, 6780. doi: 10.1016/j.bmc.2009.02.052

  21. [21]

      Roman, B. I.; Ryck, T. D.; Dierickx, L.; Vanhoecke, B. W. A.; Katritzky, A. R.; Bracke, M.; Stevens, C. V. Bioorg. Med. Chem. 2012, 20, 4812. doi: 10.1016/j.bmc.2012.05.069

  22. [22]

      Qiu, K. M.; Wang, H. H.; Wang, L. M.; Luo, Y.; Yang, X. H.; Wang, X. M.; Zhu, H. L. Bioorg. Med. Chem. 2012, 20, 2010. doi: 10.1016/j.bmc.2012.01.051

•
