Citation: Gao Na, Wang Zhen, Wu Jin, Liu Chao, Wang Jinjun. Synthesis of Cyanided Chlorophyllous Chlorin Derivatives and Study on Their Photodynamic Activities[J]. Chinese Journal of Organic Chemistry, ;2016, 36(3): 580-589. doi: 10.6023/cjoc201506037 shu

Synthesis of Cyanided Chlorophyllous Chlorin Derivatives and Study on Their Photodynamic Activities

Gao Na ^a ,
Wang Zhen ^b ,
Wu Jin ^b ,
Liu Chao ^b ,
Wang Jinjun ^a,b,*,,

a.
Department of Food & Biological Engineering, Wenjing College, Yantai University, Yantai 264005
b.
College of Chemistry and Chemical Engineering, Yantai University, Yantai 264005

Corresponding author: Wang Jinjun, wjj1955@163.com
Received Date: 30 June 2015
Revised Date: 16 November 2015

Fund Project: the National Natural Science Foundations of China 21272048

Figures(4)

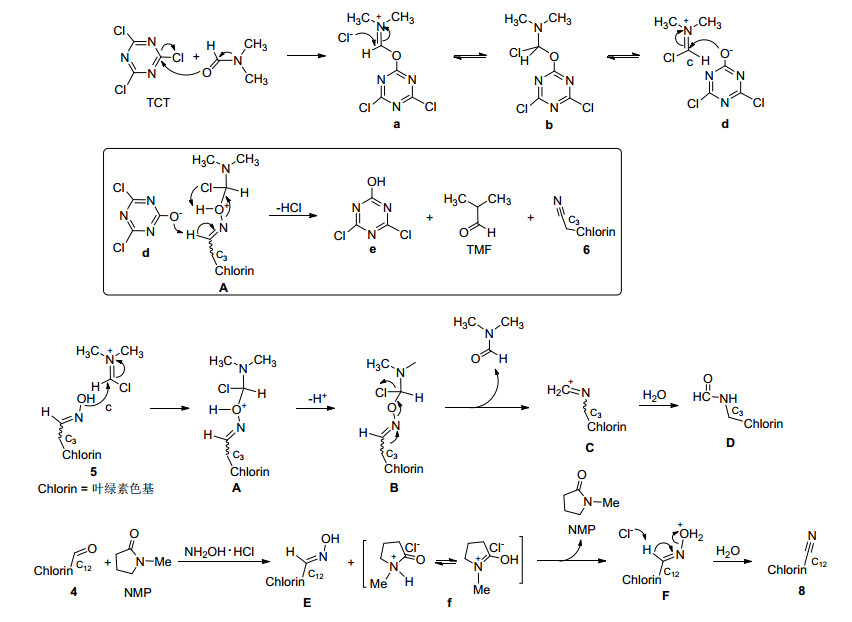

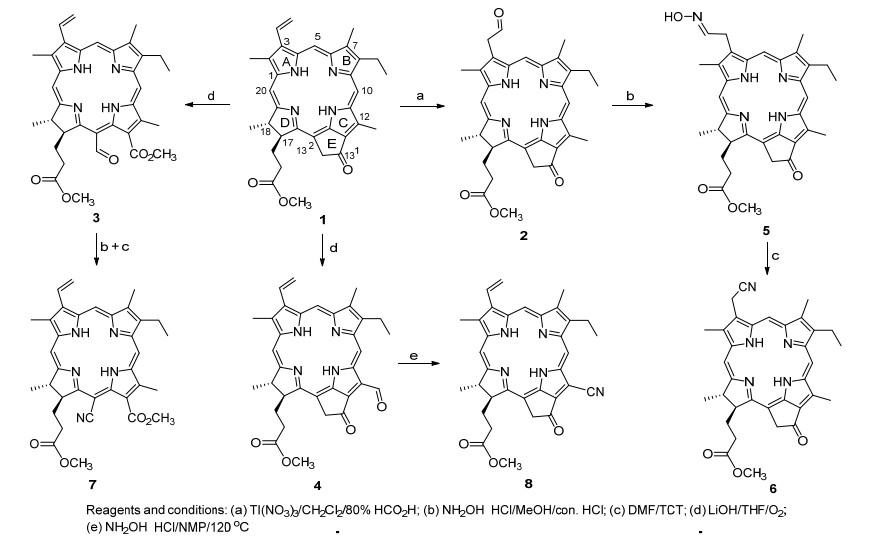

Pyropheophorbide-a methyl ester was used as a starting material, and its oxygenations were carried out by thaillum nitrate and air as oxidizing agent to introduce the formyl group and the formylmethyl group at 3-, 12-or 15-postion of chlorin periphery, respectively. After oximation these aldehyde groups were converted into cyano group under the reaction mediated from N, N-dimethylformamide and 2, 4, 6-trichloro-1, 3, 5-triazine. Dicyanomethylene moiety was established by Knoevenagel reaction of malononitrile with formyl group and 13¹-carbounyl group on the exocyclic ring. Mulcyano-substitutions on the chromophore were accomplished by further structure modifications. A series of unreported chlorins related to chlorophyll substituted with cyano-group were synthesized making use of cyanation at different positions on the periphery of chlorophyll degradation products. Their chemical structures were characterized by elemental analysis, UV, IR and¹H NMR spectra. The reaction mechanisms on the cyanation for the chlorophyllous chlorins were discussed and in vitro photodynamic activities of some new compounds were determined.
- chlorophyll-a,
- chlorin,
- chemical modification,
- cyanation reaction,
- photodynamic activity
1. [1]
  Liu, C.; Dobhal, M. P.; Ethirajan, M.; Missert, J. R.; Pandey, R. K.; Balasubramanian, S.; Sukumaran, D. K.; Zhang, M.; Kadish, K. M.; Ohkubo, K.; Fukuzumi, S. J. Am. Chem. Soc, 2008, 130, 14311.
  (b) Machida, S.; Isoda, Y.; Kunieda, M.; Tamiaki, H. Tetrahedron Lett. 2012, 53, 6277.
  (c) Fajer, J. Photosynth. Res. 2004, 80, 165.
  (d) Bruckner, C.; McCarthy, J. R.; Daniell, H. W.; Pendon, Z. D.; Iiagan, R. P.; Francis, T. M.; Ren, L.; Birge, R. R.; Frank, H. A. Chem. Phys. 2003, 294, 285.
2. [2]
  Chen, Y. H.; Li, G. L.; Pandey, R. K. Curr. Org. Chem. 2004, 8, 1105.
  (b) Wang, J.-J. Chin. J. Org. Chem. 2005, 25, 1353 (in Chinese).
  (王进军, 有机化学, 2005, 25, 1353.) (c) Gil, M.; Bieniaszl, M.; Seshadri, M.; Fisher, D.; Ciesielski, M. J.; Chen, Y.; Pandey, R. K.; Kozbor, D. Brit. J. Cancer 2011, 103(10), 1.
  (d) Ethirajan, M.; Joshi, P.; William, W. H.; Ohkubo, K.; Fukuzumi, S.; Pandey, R. K. Org. Lett, 2011, 8, 1956.
  (e) Bellnier, D. A.; Greco, W. R.; Loewen, G. M.; Nava, H.; Oseroff, A. R.; Pandey, R. K.; Tsuchida, T.; Dougherty, T. J. Cancer Res. 2003, 63, 1806;
3. [3]
  Ethirajan, M.; Joshi, P.; William, W. H.; Ohkubo, K.; Fukuzumi, S.; Pandey, R. K. Org. Lett. 2011, 13, 1956.
  (b) Pavlov, V. Y.; Ponomarev, G. V. Chem. Heterocycl. Compd. 2004, 40, 393.
  (c) Li, J.-Z.; Zhang, P.; Zhang, S.-G.; Yin, J.-G.; Wang, J.-J. Org. Biol. Chem. 2015, 13, 1992.
4. [4]
  Pandey, S. K.; Zheng, X.; Morgan, J.; Missert, J. R.; Liu, T.-H.; Shibata, M.; Bellnier, D. A.; Oseroff, A. R.; Henderson, B. W.; Dougherty, T. J.; Pandey, R. K. Mol. Pharm. 2007, 4, 448.
  (b) Kozyrey, A. N.; Chen, Y.-H.; Goswami, L. N.; Tabaczynaki, W. A.; Pandey, R. K. J. Org. Chem. 2006, 71, 1949.
  (c) Li, J.-Z.; Zhang, P.; Yao, N.-N.; Zhao, L.-L.; Wang, J, -J.; Shim, Y.-K. Tetrahedron Lett. 2014, 55, 1086
5. [5]
  Xu, X.-S.; Yao, N.-N.; Liu, Y.; Yin, J.-G.; Qi, C.-X.; Wang, J.-J. Chin. J. Org. Chem. 2014, 34, 938 (in Chinese).
  (徐希森, 姚楠楠, 刘洋, 殷军港, 祁彩霞, 王进军, 有机化学, 2014, 34, 938.)
  (b) Liu, Y.; Xu, X.-S.; Li, J.-Z.; Yin, J.-G.; Qi, C.-X.; Wang, J.-J. Chin. J. Org. Chem. 2014, 34, 552 (in Chinese).
  (刘洋, 徐希森, 李家柱, 殷军港, 祁彩霞, 王进军, 有机化学, 2014, 34, 552.)
  (c) Sasaki, S.; Mizutani, K.; Kunieda, M.; Tamiaki, H. Tetrahedron 2011, 67, 6065.
6. [6]
  Wang, J.-J.; Wang, P.; Li, J.-Z.; Jakus, J.; Shin, Y.-K. Bull. Korean Chem. Soc. 2011, 32, 3473.
  (b) Wang, J.-J.; Yin, Y.-F.; Yang, Z. J. Iran. Chem. Soc. 2013, 10, 583.
  (c) Wang, J.-J.; Ji, J.-Y.; Han, G. F.; Wu, X.-R.; Wang, L.-M.; Shin, Y.-K. Acta Chim. Sinica 2004, 62, 302 (in Chinese).
  (王进军, 纪建业, 韩光范, 邬旭然, 王鲁敏, 沈荣基, 化学学报, 2004, 62, 302.) (d) Luca, A. R.; Giacomelli, G.; Porcheddu, A. J. Org. Chem. 2002, 67, 6272.
7. [7]
  Ji, J.-Y.; Wang, L. M.; Jing, J.-R.; Han, G.-F.; Wang, J. J. Chin. J. Org. Chem. 2007, 27, 493 (in Chinese).
  (纪建业, 王鲁民, 荆济荣, 韩光范, 王进军, 有机化学, 2007, 27, 493.)
  (b) Wang, J.-J.; Li, J.-Z.; Li, Y.-W.; Jakus, J.; Shim, Y.-K. J. Porphyrins Phthalocyanines 2010, 14, 859.
  (c) Wang, J.-J.; Li, J.-Z.; Jakus. J.; Shim, Y. K. J. Porphyrins Phthalocyanines 2012, 16, 122.
  (d) Anilkumar, R.; Chandrsekhar, S. Tetrahedron Lett. 2001, 42, 5427.
8. [8]
  Zhang, Q. M.S. Thesis, Yantai University, Yantai, 2011 (in Chinese).
  (张千, 硕士论文, 烟台大学, 烟台, 2011.)
9. [9]
  Liu, Y. M.S. Thesis, Yantai University, Yantai, 2014 (in Chinese).
  (刘洋, 硕士论文, 烟台大学, 烟台, 2014.)
10. [10]
  Arisawa, M.; Yanaguchi, M. Org. Lett. 2001, 3, 311.
  (b) Kikugawa, Y.; Tsuji, C.; Miyazawa, E.; Sakamoto, T. Tetrahedron Lett. 2001, 42, 2337.
11. [11]
  Ji, J.-Y.; Yin, J.-G.; Zhang, Q.; Liu, C.; Qi, C.-X.; Wang, J. J. Chin. J. Org. Chem. 2014, 34, 2047 (in Chinese).
  (纪建业, 殷军港, 张千, 刘超, 祁彩霞, 王进军, 有机化学, 2014, 34, 2047.)
  (b) Wang, L.-M.; Wang, P.; Liu, C.; Jin, Y.-X.; Wang, J.-J. Chin. J. Org. Chem. 2012, 32, 1700 (in Chinese).
  (王鲁敏, 王朋, 刘超, 金英学, 王进军, 有机化学, 2012, 32, 1700.)
12. [12]
  Smith, K. M.; Gogg, D. A.; Simpson, D. J. J. Am. Chem. Soc. 1985, 107, 4946. doi: 10.1021/ja00303a021
