Citation: Guo Ying, Zhu Huaxin, Liu Guilin, Yan Huimin, Zhu Bingjie, Li Shuai, Sun Yajun, Li Guohua. Polymer Solar Cells with High Open-Circuit Voltage Based on Novel Barbell-Shaped Bifullerene Derivative as Acceptor[J]. Chinese Journal of Organic Chemistry, ;2015, 36(1): 172-178. doi: 10.6023/cjoc201506012 shu

Polymer Solar Cells with High Open-Circuit Voltage Based on Novel Barbell-Shaped Bifullerene Derivative as Acceptor

Guo Ying ^a,*,, ,
Zhu Huaxin ^a ,
Liu Guilin ^a ,
Yan Huimin ^a ,
Zhu Bingjie ^a ,
Li Shuai ^a ,
Sun Yajun ^a ,
Li Guohua ^a,b

a.
School of Science, Jiangnan University, Wuxi 214122
b.
Jiangsu Suntech Institute for Photovoltaic Technology, Wuxi 214028

Corresponding author: Guo Ying, iamguoying@aliyun.com
Received Date: 11 June 2015
Revised Date: 19 August 2015

Fund Project: the Fundamental Research Funds for the Central Universities JUSRP111A22

Figures(5)

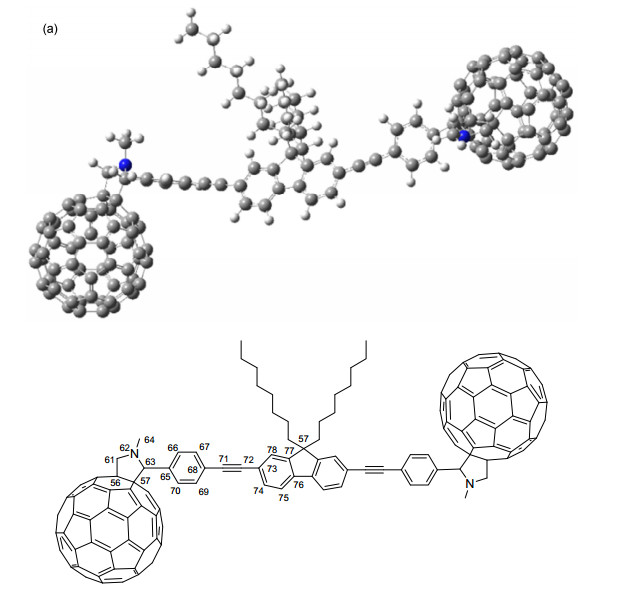

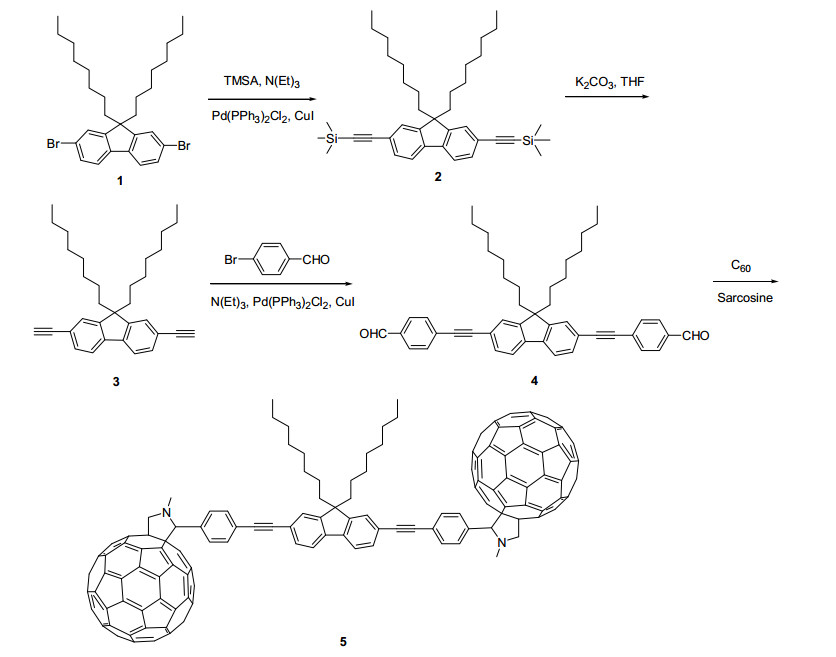

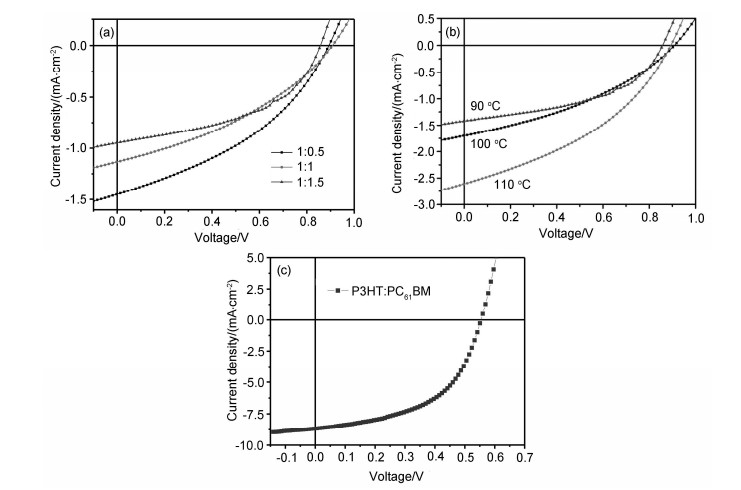

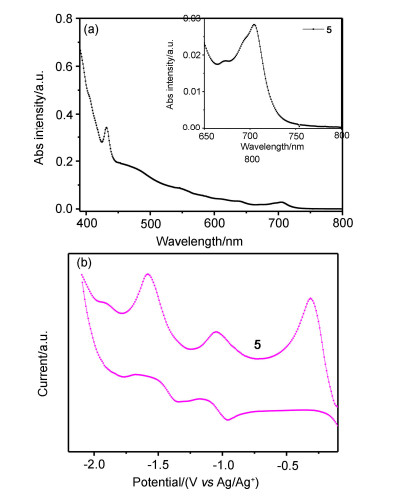

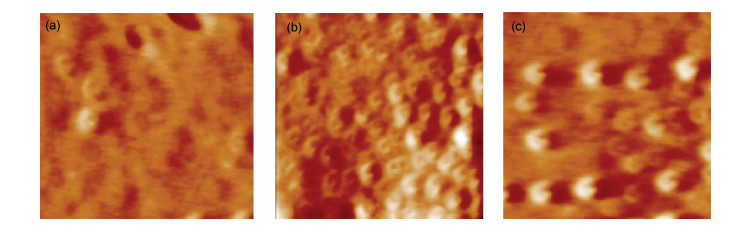

Polymer solar cells (PSCs) based on fullerene and its derivatives as acceptors are attracting extensive interest due to their advantages of wide materials, low cost and flexibility. The research of the accepting materials is considered to be a key factor to obtain high-efficiency PSCs, especially fullerene derivatives. In this regard, a novel barbell-shaped bifullerene derivative was designed and synthesized, and the structure was identified by ¹H NMR, ¹³C NMR, MS and element analysis. Its absorption, electrochemistry, and geometry were studied systematically by UV, CV and Gaussian. Results showed that the bifullerene derivative can be used as acceptor for PSCs. The solubility of the derivative was effectively changed by increasing the alkyl chain in the molecule. The PSCs were fabricated with the structure of ITO/PEDOT:PSS/P3HT:bifullerene derivative/Ca/Al. After optimization of the ratio of bifullerene derivative and P3HT, the cells with the optimized conditions show that the power conversion efficiency (PCE) was 1.01% with J_sc of 2.73 mA/cm² and V_oc of 0.89 V. It is noteworthy that the open-circuit voltage was up to 0.89 V, which is more than 0.3 V that of PC₆₀BM (V_oc＝0.56 V). Our result provides a feasible choice for PSCs with high open-circuit voltage.
- barbell-shaped bifullerene derivative,
- polymer solar cells,
- power conversion efficiency,
- open-circuit voltage
1. [1]
  Chen, L. M.; Hong, Z. R.; Li, G.; Yang, Y. Adv. Mater. 2009, 21, 1434 doi: 10.1002/adma.v21:14/15
2. [2]
  Qin, R. P.; Song, G. L.; Jaing, Y. R.; Bo, Z. S. Chem. J. Chin. Univ. 2012, 33, 828 (in Chinese).
3. [3]
  Yao, J. B.; Wang, Y. H.; Zhang, H. Z. Chem. Res. Chin. Univ. 2013, 29, 1185. doi: 10.1007/s40242-013-3152-1
4. [4]
  Sariciftci, N. S.; Smilowitz, L.; Heeger, A. J. Science 1992, 258, 1474. doi: 10.1126/science.258.5087.1474
5. [5]
  Zhao, H. Y.; Guo, X. Y.; Tian, H. K.; Li, C. Y.; Xie, Z. Y.; Geng, Y. H.; Wang, F. S. J. Mater.Chem. 2010, 20, 3092. doi: 10.1039/b925089a
6. [6]
  Choi, J. H.; Son, K. I.; Kim, T.; Kim, K.; Ohkubo, K.; Fukuzumi, S. J. Mater.Chem. 2010, 20, 475. doi: 10.1039/B916597E
7. [7]
  Chang, C. L.; Liang, C. W.; Syu, J. J.; Wang, L.; Leung, M. K. Sol.Energy Mater. Sol. Cells 2011, 95, 2371. doi: 10.1016/j.solmat.2011.04.008
8. [8]
  Deigado, J. L.; Martin, N.; de la Cruz P.; Langa, F. Chem. Soc.Rev. 2011, 40, 5232. doi: 10.1039/c1cs15105c
9. [9]
  Backer, S. A.; Sivula, K.; Kavulak, D. F.; Fréchet, J. M. J. Chem.Mater. 2007, 19, 2927. doi: 10.1021/cm070893v
10. [10]
  Lenes, M.; Wetzelaer, G. J. A. H.; Kooistra, F. B.; Veenstra, S. C.; Hummelen, J. C.; Blom, P. W. M. Adv.Mater. 2008, 20, 2116. doi: 10.1002/(ISSN)1521-4095
11. [11]
  Zhao, Y.; Zhang, F. L.; Zhang, M.; Ma, Y. G. Chem. Res. Chin. Univ. 2013, 29, 1193. doi: 10.1007/s40242-013-3122-7
12. [12]
  Zhang, C. Y.; Chen, S. C.; Xiao, Z.; Zuo, Q. Q.; Ding, L M. Org. Lett. 2012, 14, 1508. doi: 10.1021/ol3002392
13. [13]
  He, D.; Du, X. Y.; Xiao, Z.; Ding, L. M. Org. Lett. 2014, 16, 612. doi: 10.1021/ol4035275
14. [14]
  Sui, N.; Huang, T. H.; Wang, Y. H.; Zhang, H. Z. Chem. Res. Chin. Univ. 2014, 30, 513. doi: 10.1007/s40242-014-3478-3
15. [15]
  He, Y. J.; Zhao, G. J.; Peng, B.; Li, Y. F. Adv. Funct. Mater. 2010, 20, 3383.
  (b) Zhao, G. J.; He, Y. J.; Li, Y. F. Adv. Mater. 2010, 22, 4355.
16. [16]
  Wong, W.; Vak, W. H.; Singh, D.; Ren, T. B.; Yan, S. J.; Jones, C.; Liaw, D. J.; Lamb, I. I.; Holmes, R. N.; Org. Lett. 2010, 12, 5000. doi: 10.1021/ol102166m
17. [17]
  Lu, J. P.; Ding, J. F.; Alem, S.; Waklm, S.; Tse, S. C.; Tao, Y.; Stupak, J.; Li, J. J. J. Mater. Chem. 2011, 21, 4953 doi: 10.1039/c0jm04506c
18. [18]
  Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman, J. R.; Zakrzewski, V. G.; Montgomery, J. A.; Stratmann, R. E.; Burant, J. C.; Dapprich, S.; Daniels, A. D.; Kudin, K. N.; Strain, M. C.; Farkas, O.; Tomasi, J.; Barone, V.; Cossi, M.; Cammi, R.; Mennucci, B.; Pomelli, C.; Adamo, C.; Clifford, S.; Ochterski, J.; Peterson, G. A.; Ayala, P. Y.; Cui, Q.; Morokuma, K.; Malik, D. K.; Rabuk, A. D.; Raghavachari, K.; Foresman, J. B.; Cioslowski, J.; Ortiz, J. V.; Stefanov, B. B.; Liu, G.; Liashenko, A.; Piskorz, P.; Komaromi, I.; Gomperts, R.; Martin, R. L.; Fox, D. J.; Keith, T.; Al-Laham, M. A.; Peng, C. Y.; Nanayakkara, A.; Gonzalez, C.; Chalacombe, M.; Gill, P. M. W.; Johnson, B. G.; Chen, W.; Wong, M. W.; Andres, J. L.; Head-Gordon, M.; Replogle, E. S.; Pople, J. A. GAUSSIAN 2003, Gaussian, Inc., Pittsburgh, PA, 2003.
19. [19]
  Liu, S. J.; Zhang, K.; Lu, J. M.; Zhang, J.; Yip, H.-L.; Cao, Y. J. Am. Chem. Soc. 2013, 135, 15326 doi: 10.1021/ja408363c
20. [20]
  Maji, M. S.; Pfeifer, T.; Studer, A. Chem.-Eur. J. 2010, 16, 5872 doi: 10.1002/chem.201000236
21. [21]
  Ouyang, X. H.; Chen, D. C.; Zeng, S. M.; Zhang, X. Y.; Su, S. J.; Ge, Z. Y. J. Mater. Chem. 2012, 22, 23005 doi: 10.1039/c2jm34462a
