Citation: Jia Falong, Liu Juan, Zhang Lizhi. Copper Ions Promoted Aerobic Atrazine Degradation by Fe@Fe₂O₃ Nanowires[J]. Acta Chimica Sinica, ;2017, 75(6): 602-607. doi: 10.6023/A17010004 shu

Copper Ions Promoted Aerobic Atrazine Degradation by Fe@Fe₂O₃ Nanowires

Key Laboratory of Pesticide & Chemical Biology of Ministry of Education, College of Chemistry, Central China Normal University, Wuhan 430079

Corresponding author: Zhang Lizhi, zhanglz@mail.ccnu.edu.cn
Received Date: 4 January 2017

Fund Project: Natural Science Funds for Distinguished Young Scholars 21425728

Figures(7)

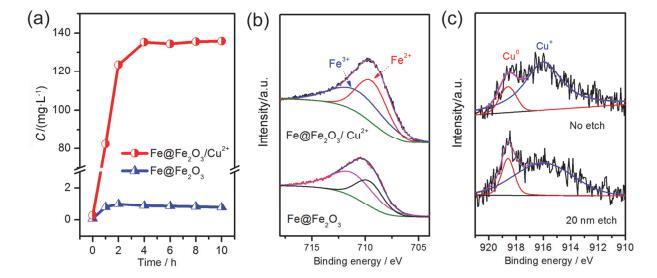

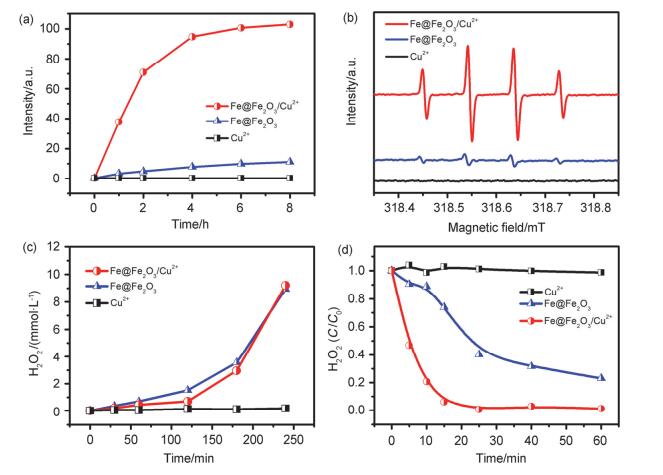

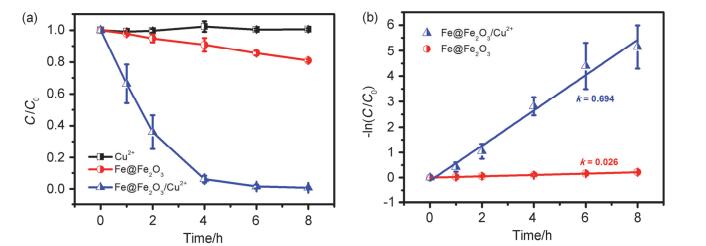

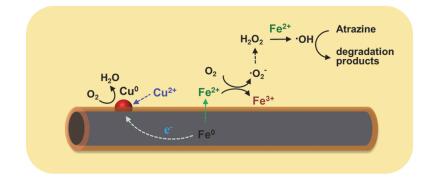

As a persistent chlorinated organic pollutant, Atrazine (2-chloro-4-(ethylamino)-6-isopropylamino-s-triazine) in the environment brings harm to natural environment as well as the human health. Since Atrazine is difficult to be degraded biologically, various strategies have been developed to realize efficient and environmentally-friendly removal of Atrazine. Recently, nanoscaled iron has been extensively applied for the remediation/treatment of wastewater contaminated with various organic and inorganic pollutants and exhibits superior activity than that of bulk iron. But its removal efficiency would decrease along with reaction time. In this study, we report that copper ions could efficiently promote atrazine degradation with Fe@Fe₂O₃ nanowires via the molecular oxygen activation processes. As indicated by the electron spin resonance analysis (ESR) and X-ray photoelectron spectroscopic analysis (XPS) results, the addition of Cu²⁺ ions could promote the release of dissolved Fe(Ⅱ) from Fe@Fe₂O₃. During the degradation process, the concentration of Fe(Ⅱ) in the solution with Cu²⁺ ions is maintained at a much higher level than that without Cu²⁺ ions. At the same time, Cu²⁺ ions were reduced to low valence states (Cu⁰), which further promoted the release of Fe²⁺. The generated Fe²⁺ would then activate the molecular oxygen via the single-electron or double-electron transfer route. As a result, more reactive oxygen species such as ·OH were generated to degrade atrazine. Under room temperature and aerobic condition, the Atrazine removal rate constant in Fe@Fe₂O₃/Cu²⁺ system was 0.694 h^-1, which was almost 23 times that in Fe@Fe₂O₃ system. Moreover, the Fe@Fe₂O₃/Cu²⁺ catalytic system also remains superior activity in the pH range of 2~5. The intermediates of atrazine degradation were detected and the atrazine degradation in the Fe@Fe₂O₃/Cu²⁺ catalytic system was accompanied with alkylic oxidation, dealkylation and dechlorination. This study provides a new way to enhance molecular oxygen activation by core-shell Fe@Fe₂O₃ nanowires, and also deepens our understanding of the molecular oxygen activation processes by Fe@Fe₂O₃ for the aerobic pollutant degradation.
- atrazine,
- degradation,
- Fe@Fe₂O₃ nanowires,
- molecular oxygen activation,
- copper ions
1. [1]
  Hayes, T. B.; Collins, A.; Lee, M.; Mendoza, M.; Noriega, N.; Stuart, A. A.; Vonk, A. Proc. Natl. Acad. Sci. U. S. A. 2002, 99, 5476. doi: 10.1073/pnas.082121499
2. [2]
  Dombek, T.; Dolan, E.; Schultz, J.; Klarup, D. Environ. Pollut. 2001, 111, 21. doi: 10.1016/S0269-7491(00)00033-6
3. [3]
  Rangsivek, R.; Jekel, M. Water Res. 2005, 39, 4153. doi: 10.1016/j.watres.2005.07.040
4. [4]
  Sun, Y.; Li, J.; Huang, T.; Guan, X. Water Res. 2016, 100, 277. doi: 10.1016/j.watres.2016.05.031
5. [5]
  Liu, N.; Zhao, Y. S.; Zhang, L. Y.; Liu, H.; Liu, P. China Environ. Sci. 2006, 26, 116. doi: 10.3321/j.issn:1000-6923.2006.01.025
6. [6]
  Chen, J. L.; Alabed, S. R.; Ryan, J. A.; Li, Z. J. Hazard. Mater. 2001, 83, 243. doi: 10.1016/S0304-3894(01)00193-5
7. [7]
  Boussahel, R.; Harik, D.; Mammar, M.; Lamara-Mohamed, S. Desalination 2007, 206, 369. doi: 10.1016/j.desal.2006.04.059
8. [8]
  Kim, G.; Jeong, W.; Choe, S. J. Hazard. Mater. 2008, 155, 502. doi: 10.1016/j.jhazmat.2007.11.092
9. [9]
  Liang, L.; Guan, X.; Shi, Z.; Li, J.; Wu, Y.; Tratnyek, P. G. Environ. Sci. Technol. 2014, 48, 6326. doi: 10.1021/es500958b
10. [10]
  Cheng, R.; Wang, J. L.; Zhang, W. X. Prog. Chem. 2006, 18, 93. doi: 10.3321/j.issn:1005-281X.2006.01.014
11. [11]
  Nagpal, V.; Bokare, A. D.; Chikate, R. C.; Rode, C. V.; Paknikar, K. M. J. Hazard. Mater. 2010, 175, 680. doi: 10.1016/j.jhazmat.2009.10.063
12. [12]
  Xu, X. H.; Wei, J. J.; Wang, D. H. China Environ. Sci. 2004, 24, 76. doi: 10.3321/j.issn:1000-6923.2004.01.018
13. [13]
  Zhang, W. X. J. Nanopart. Res. 2003, 5, 323. doi: 10.1023/A:1025520116015
14. [14]
  Li, Y.; Zhang, Y.; Li, J.; Zheng, X. Environ. Pollut. 2011, 159, 3744. doi: 10.1016/j.envpol.2011.07.016
15. [15]
  Ai, Z.; Gao, Z.; Zhang, L.; He, W.; Yin, J. J. Environ. Sci. Technol. 2013, 47, 5344. doi: 10.1021/es4005202
16. [16]
  Huang, Q.; Cao, M.; Ai, Z.; Zhang, L. Appl. Catal. B-Environ. 2015, 162, 319. doi: 10.1016/j.apcatb.2014.06.046
17. [17]
  Kettle, A. J.; Anderson, R. F.; Hampton, M. B.; Winterbourn, C. C. Biochemistry 2007, 46, 4888. doi: 10.1021/bi602587k
18. [18]
  Wang, L.; Cao, M.; Ai, Z.; Zhang, L. Environ. Sci. Technol. 2014, 48, 3354. doi: 10.1021/es404741x
19. [19]
  Mills, P.; Sullivan, J. J. Phys. D:Appl. Phys. 1983, 16, 723. doi: 10.1088/0022-3727/16/5/005
20. [20]
  Dean, J. A., Lange's Handbook of Chemistry, 13th ed., McGraw-Hill Book, New York, 1991.
21. [21]
  Dong, G.; Ai, Z.; Zhang, L. Water Res. 2014, 66C, 22.
22. [22]
  Yang, L.; He, J.; Zhang, Q.; Wang, Y. J. Catal. 2010, 276, 76. doi: 10.1016/j.jcat.2010.09.002
23. [23]
  Mudunkotuwa, I. A.; Pettibone, J. M.; Grassian, V. H. Environ. Sci. Technol. 2012, 46, 7001. doi: 10.1021/es203851d
24. [24]
  Du, C.; Gao, X.; Chen, W. Chin. J. Catal. 2016, 37, 1049.
