Citation: Zhao Ruinan, Hu Mancheng, Li Shuni, Zhai Quanguo, Jiang Yucheng. Immobilization of Chloroperoxidase in Metal Organic Framework and Its Catalytic Performance[J]. Acta Chimica Sinica, ;2017, 75(3): 293-299. doi: 10.6023/A16110593 shu

Immobilization of Chloroperoxidase in Metal Organic Framework and Its Catalytic Performance

Zhao Ruinan ^a ,
Hu Mancheng ^a,b ,
Li Shuni ^a,b ,
Zhai Quanguo ^a,b ,
Jiang Yucheng ^a,b,*,,

a.
School of Chemistry & Chemical Engineering, Shaanxi Normal University, Xi'an 710119
b.
Key Laboratory of Macromolecular Science of Shaanxi Province, Shaanxi Normal University, Xi'an 710119

Corresponding author: Jiang Yucheng, jyc@snnu.edu.cn
Received Date: 9 November 2016

Fund Project: the National Natural Science Foundation of China 21176150

Figures(14)

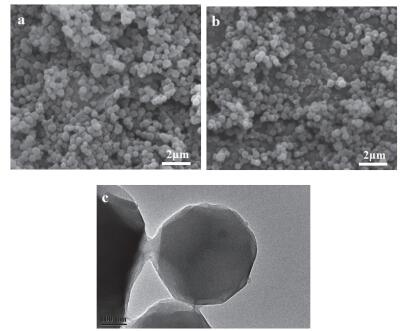

A rapid and efficient preparation of CPO@ZIF-8 by "one pot " method at 30℃ in aqueous solution is presented in this paper. The structure of zeolitic imidazolate frameworks (ZIF-8) was constructed while chloroperoxidase (CPO) was incorporated into the channel. Mild reaction conditions ensure maintaining the enzyme activity in the preparation of immobilized CPO. The synthesis of CPO@ZIF-8 was performed by mixing zinc nitrate solution and polyvinylpyrrolidone solution (PVP, M_w:10000, 10 mg/mL, 400 μL), chloroperoxidase (CPO) (0.214 mmol/L, 500 μL) and 2-methylimidazole (1.25 mol/L, 25 mL) and stirring for 15 min at 30℃, followed by washing and centrifuging for 3 cycles at 4℃ for 8 min. The structure of CPO@ZIF-8 was characterized by scanning electron microscope (SEM), transmission electron microscopy (TEM) and X-ray diffraction (XRD), indicating that the incorporation of enzyme molecules did not affect the crystal structure of ZIF-8. To further confirm the incorporation of enzyme into ZIF-8, CPO was labeled by fluorescent probes fluorescein isothiocyanate (FITC) and subjected to the same procedure to synthesize the FITC-CPO@ZIF-8. Confocal laser scanning microscopy (CLSM) proved that CPO was distributed evenly and embedded in the whole framework of CPO@ZIF-8. Compared with the method of preparing ZIF-8 firstly, and then immobilizing enzyme molecule by physical adsorption, the immobilization efficiency of enzyme was enhanced by introducing the enzyme into the whole framework, moreover, the catalytic efficiency of the immobilized CPO was increased due to high specific surface area of ZIF-8. The catalytic performance of the CPO@ZIF-8 was evaluated by the conversion rate of 2, 2'-azinobis-(3-ethylbenzthiazoline-6-sulphonate) (ABTS). The rigid shielding environment provided by the three-dimensional channel of ZIF-8 effectively improved the thermal stability, pH stability, and tolerance to organic solvents of the CPO@ZIF-8 under harsh reaction conditions compared with the free enzyme. When incubated at 50℃, 60℃, 70℃, 80℃ and 90℃ for 1 h, 97.1%, 87.8%, 80.2%, 68.1% and 41.5% of the activity of CPO@ZIF-8 were reserved. When incubated at 50℃, 60℃, 70℃ and 80℃ for 3 h, there were still 91.4%, 77.8%, 64.7% and 50.3% of the activity remained. The tolerance of CPO@ZIF-8 to organic solvent DMF, methanol and methyl cyanide was enhanced to 30%~40%.
- chloroperoxidase,
- metal-organic frameworks,
- immobilized enzyme,
- enzyme catalysis,
- stability
1. [1]
  Sheldon, R. A.; van Pelt, S. Chem. Soc. Rev. 2013, 42, 6223. doi: 10.1039/C3CS60075K
2. [2]
  Zucca, P.; Sanjust, E. Molecules 2014, 19, 14139. doi: 10.3390/molecules190914139
3. [3]
  Hanefeld, U.; Gardossi, L.; Magner, E. Chem. Soc. Rev. 2009, 38, 453. doi: 10.1039/B711564B
4. [4]
  Huang, W. G.; Sun, H. F.; Zhang, S. J. Acta Chim. Sinica 2016, 74(6), 518. (in Chinese). doi: 10.6023/A16030158
5. [5]
  Wu, X.; Hou, M.; Ge, J. Catal. Sci. Technol. 2015, 5, 5077. doi: 10.1039/C5CY01181G
6. [6]
  Mehta, J.; Bhardwaj, N.; Bhardwaj, S. K.; Kim, K.-H.; Deep, A. Coord. Chem. Rev. 2016, 322, 30. doi: 10.1016/j.ccr.2016.05.007
7. [7]
  Lykourinou, V.; Chen, Y.; Wang, X. S.; Meng, L.; Hoang, T.; Ming, L. J.; Musselman, R. L.; Ma, S. J. Am. Chem. Soc. 2011, 133, 10382. doi: 10.1021/ja2038003
8. [8]
  Liu, W. L.; Yang, N. S.; Chen, Y. T.; Lirio, S.; Wu, C. Y.; Lin, C. H.; Huang, H. Y. Chemistry 2015, 21, 115. doi: 10.1002/chem.201405252
9. [9]
  Chen, Y.; Lykourinou, V.; Vetromile, C.; Hoang, T.; Ming, L. J.; Larsen, R. W.; Ma, S. J. Am. Chem. Soc. 2012, 134, 13188. doi: 10.1021/ja305144x
10. [10]
  Li, P.; Moon, S. Y.; Guelta, M. A.; Harvey, S. P.; Hupp, J. T.; Farha, O. K. J. Am. Chem. Soc. 2016, 138, 8052 doi: 10.1021/jacs.6b03673
11. [11]
  Feng, D.; Liu, T. F.; Su, J.; Bosch, M.; Wei, Z.; Wan, W.; Yuan, D.; Chen, Y. P.; Wang, X.; Wang, K.; Lian, X.; Gu, Z. Y.; Park, J.; Zou, X.; Zhou, H. C. Nat. Commun. 2015, 6, 5979. doi: 10.1038/ncomms6979
12. [12]
  Jung, S.; Kim, Y.; Kim, S. J.; Kwon, T. H.; Huh, S.; Park, S. Chem. Commun. 2011, 47, 290.
13. [13]
  Wang, X.; Makal, T. A.; Zhou, H.-C. Aust. J. Chem. 2014, 67, 1629. doi: 10.1071/CH14104
14. [14]
  Liu, W. L.; Wu, C. Y.; Chen, C. Y.; Singco, B.; Lin, C. H.; Huang, H. Y. Chemistry 2014, 20, 8923
15. [15]
  Liu, W.-L.; Lo, S.-H.; Singco, B.; Yang, C.-C.; Huang, H.-Y.; Lin, C.-H. J. Mater. Chem. 2013, 1, 928. doi: 10.1039/c3tb00257h
16. [16]
  Nadar, S. S.; Rathod, V. K. Int. J. Biol. Macromol. 2017, 95, 511. doi: 10.1016/j.ijbiomac.2016.11.084
17. [17]
  Wang, X. L.; Ge, J.; Yang, C.; Hou, M.; Liu, Z. Chem. Commun. 2015, 51, 13408. doi: 10.1039/C5CC05136C
18. [18]
  Lyu, F. J.; Zhang, Y. F.; Zare, R.; Ge, J.; Liu, Z. Nano Lett. 2014, 14, 5761. doi: 10.1021/nl5026419
19. [19]
  Manoj, K. M.; Hager, L. P. Biochemistry 2008, 47, 2997. doi: 10.1021/bi7022656
20. [20]
  Wang, L. M.; Wu, J. Y.; Jiang, Y. C.; Hu, M. C.; Li, S. N.; Zhai, Q. G. Acta Chim. Sinica 2012, 70, 465(in Chinese). doi: 10.6023/A1106212
21. [21]
22. [22]
  Liu, L. X.; Zhang, J.; Tan, Y.; Jiang, Y. C.; Hu, M. C.; Li, S. N.; Zhai. Q. G. Chem. Eng. J. 2014, 244, 9. doi: 10.1016/j.cej.2014.01.063
23. [23]
  Muñoz-Guerrero, F. A.; Águila, S.; Vazquez-Duhalt, R.; Campos, C. H.; Torres, C. C.; Alderete, J. B. Catal. Commun. 2016, 77, 52. doi: 10.1016/j.catcom.2016.01.017
24. [24]
  Liu, M. M.; Lv, W. M.; Shi, X. F.; Fan, B. B.; Li, R. F. Chinese J. Inorg. Chem. 2014, 30, 579(in Chinese).
25. [25]
  Jian, M.; Liu, B.; Liu, R.; Qu, J.; Wang, H.; Zhang, X. RSC Adv. 2015, 5, 48433. doi: 10.1039/C5RA04033G
26. [26]
  Reszka, K. J.; Britigan, B. E. Arch. Biochem. Biophys. 2007, 466, 164. doi: 10.1016/j.abb.2007.06.027
27. [27]
  Manoj, k. m.; Baburaj, A.; Ephraim, B.; Pappachan, F.; Maviliparambathu, P. P.; Vijayan, U. K.; Narayanan, S. V.; Periasamy, K.; George, E. A.; Mathew, L. T. PloS one 2010, 5, 5.
28. [28]
  Manoj, K. M.; Hager, L. P. Biochemistry 2008, 47, 2997. doi: 10.1021/bi7022656
