Identification of Electrode Process in Large-Size Solid Oxide Fuel Cell

• Tonghui Cui ^1, ,
• Hangyue Li ^1, ,
• Zewei Lyu ^1, ,
• Yige Wang ^1, ,
• Minfang Han ^{1, ,} ,
• Zaihong Sun ^2, ,
• Kaihua Sun ^2,

• 1.

  Department of Energy and Power Engineering, State Key Laboratory of Control and Simulation of Power System and Generation Equipments, Tsinghua University, Beijing 100084, China

• 2.

  Equipments, Tsinghua University, Beijing 100084, China

Corresponding author: Minfang Han, hanminfang@tsinghua.edu.cn

• Received Date: 03 November 2020
  Accepted Date: 07 December 2020
  Revised Date: 07 December 2020
  Available Online: 15 August 2022
• Fund Project:

  the National Key R&D Program of China

  the Beijing Municipal Science and Technology Commission

  the Tsinghua University Initiative Scientific Research Program

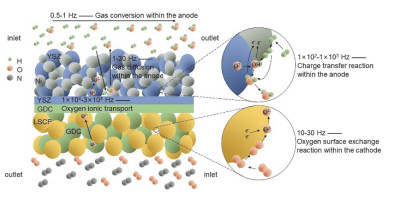

Abstract: Solid oxide fuel cell (SOFC) with high energy conversion efficiency, low pollutant emission, and good fuel adaptability has witnessed rapid development in recent years. However, the commercialization of SOFC remains limited by constraints of performance and stability. Electrochemical impedance spectroscopy (EIS) can distinguish ohmic impedance caused by ion transport from polarization impedance related to electrode reaction; it has been widely used in the research of performance and stability as an efficient on-line characterization technology. The physical/chemical processes involved in EIS overlap significantly and can be decomposed by the distribution of relaxation times (DRT) method which does not depend on prior assumptions. Since industrial large-size SOFC is vulnerable to the influence of inductance and disturbance when testing EIS, its EIS analysis is rarely studied and mostly based on the research results of cells with smaller electrode active area. To further elucidate the impedance spectrum of industrial large-size SOFC under actual working conditions, the EIS of industrial-size (10 cm × 10 cm) anode-supported planar SOFC was systematically tested over a broad temperature and anode/cathode gas composition range. First, the quality of the impedance data was examined by performing a Kramers-Kronig test. The residuals of real and imaginary data were within the range of ±1%, indicating good data quality. Then, the DRT method was adopted to parse the EIS data. By comparing and analyzing the DRT results under different conditions, the corresponding relationships between each characteristic peak in the DRT results and the specific electrode process in the SOFC were revealed. The characteristic frequencies were separated into 0.5-1, 1-30, 10-30, 1 × 10²-1 × 10³, and 1 × 10⁴-3 × 10⁴ Hz regions, corresponding to gas conversion within the anode, gas diffusion within the anode, oxygen surface exchange reaction within the cathode, charge-transfer reaction within the anode, and oxygen ionic transport process, respectively. In this study, the identification of each electrode process in industrial large-size SOFC is realized, indicate that the gas conversion process in large-size SOFC with larger active area and smaller flows cannot be ignored compared with the cells with smaller electrode active area. The method followed and the results obtained have a universal quality and can be applied to the in situ characterization, online monitoring, and degradation mechanism research of SOFC, thus laying a foundation for the optimization of the performance and stability.

Key words:
• Solid oxide fuel cell
•  /  Electrochemical impedance spectroscopy
•  /  Distribution of relaxation time
•  /  Large-size

• 1. [1]

     Hjalmarsson, P.; Sun, X.; Liu, Y. L.; Chen, M. J. Power Sources 2014, 262, 316. doi: 10.1016/j.jpowsour.2014.03.133

  2. [2]

     Fang, Q.; Frey, C. E.; Menzler, N. H.; Blum, L. J. Electrochem. Soc. 2018, 165 (2), F38. doi: 10.1149/2.0541802jes

  3. [3]

     Hauch, A.; Brodersen, K.; Chen, M.; Mogensen, M. B. Solid State Ionics 2016, 293, 27. doi: 10.1016/j.ssi.2016.06.003

  4. [4]

     Lyu, Z.; Wang, Y.; Zhang, Y.; Han, M. Chem. Eng. J. 2020, 393, 124755. doi: 10.1016/j.cej.2020.124755

  5. [5]

     Barfod, R.; Hagen, A.; Ramousse, S.; Hendriksen, P. V.; Mogensen, M. Fuel Cells 2006, 6 (2), 141. doi: 10.1002/fuce.200500113

  6. [6]

     Jensen, S. R. H. J.; Hauch, A.; Hendriksen, P. V.; Mogensen, M. J. Electrochem. Soc. 2009, 156 (6), B757. doi: 10.1149/1.3116247

  7. [7]

     Schichlein, H.; Müller, A. C.; Voigts, M.; Krügel, A.; Ivers-Tiffée, E. J. Appl. Electrochem. 2002, 32 (8), 875. doi: 10.1023/a:1020599525160

  8. [8]

     Leonide, A.; Sonn, V.; Weber, A.; Ivers-Tiffée, E. J. Electrochem. Soc. 2008, 155 (1), B36. doi: 10.1149/1.2801372

  9. [9]

     Endler, C.; Leonide, A.; Weber, A.; Tietz, F.; Ivers-Tiffée, E. J. Electrochem. Soc. 2010, 157 (2), B292. doi: 10.1149/1.3270047

  10. [10]

      Kromp, A.; Leonide, A.; Weber, A.; Ivers-Tiffée, E. J. Electrochem. Soc. 2011, 158 (8), B980. doi: 10.1149/1.3597177

  11. [11]

      Caliandro, P.; Nakajo, A.; Diethelm, S.; Van herle, J. J. Power Sources 2019, 436, 226838. doi: 10.1016/j.jpowsour.2019.226838

  12. [12]

      施王影, 贾川, 张永亮, 吕泽伟, 韩敏芳. 物理化学学报, 2019, 35 (5), 509. doi: 10.3866/PKU.WHXB201806071Shi, W. Y.; Jia, C.; Zhang, Y. L.; Lü, Z. W.; Han, M. F. Acta Phys. -Chim. Sin. 2019, 35 (5), 509. doi: 10.3866/PKU.WHXB201806071

  13. [13]

      Vinke, I. C.; de Haart, L. G. J.; Eichel, R. A. ECS Trans. 2019, 91 (1), 589. doi: 10.1149/09101.0589ecst

  14. [14]

      Fang, Q.; Blum, L.; Menzler, N. H. J. Electrochem. Soc. 2015, 162 (8), F907. doi: 10.1149/2.0941508jes

  15. [15]

      Sun, X.; Hendriksen, P. V.; Mogensen, M. B.; Chen, M. Fuel Cells 2019, 19 (6), 740. doi: 10.1002/fuce.201900081

  16. [16]

      Jia, C.; Chen, M.; Han, M. Int. J. Appl. Ceram. Technol. 2017, 14 (5), 1006. doi: 10.1111/ijac.12748

  17. [17]

      Sonn, V.; Leonide, A.; Ivers-Tiffée, E. J. Electrochem. Soc. 2008, 155 (7), B675. doi: 10.1149/1.2908860

  18. [18]

      Bessler, W. G.; Gewies, S. J. Electrochem. Soc. 2007, 154 (6), B548. doi: 10.1149/1.2720639

  19. [19]

      Fan, H.; Keane, M.; Singh, P.; Han, M. J. Power Sources 2014, 268, 634. doi: 10.1016/j.jpowsour.2014.03.080

  20. [20]

      Shi, W.; Lyu, Z.; Han, M. ECS Trans. 2019, 91 (1), 791. doi: 10.1149/09101.0791ecst

  21. [21]

      Bessler, W.; Warnatz, J.; Goodwin, D. Solid State Ionics 2007, 177 (39-40), 3371. doi: 10.1016/j.ssi.2006.10.020

  22. [22]

      Shri Prakash, B.; Senthil Kumar, S.; Aruna, S. T. Renew. Sust. Energy Rev. 2014, 36, 149. doi: 10.1016/j.rser.2014.04.043

  23. [23]

      Simrick, N. J.; Bieberle-Hütter, A.; Ryll, T. M.; Kilner, J. A.; Atkinson, A.; Rupp, J. L. M. Solid State Ionics 2012, 206, 7. doi: 10.1016/j.ssi.2011.10.029

  24. [24]

      Endler-Schuck, C.; Joos, J.; Niedrig, C.; Weber, A.; Ivers-Tiffée, E. Solid State Ionics 2015, 269, 67. doi: 10.1016/j.ssi.2014.11.018

  25. [25]

      Boukamp, B. Solid State Ionics 2004, 169 (1-4), 65. doi: 10.1016/j.ssi.2003.07.002

  26. [26]

      Schönleber, M.; Klotz, D.; Ivers-Tiffée, E. Electrochim. Acta 2014, 131, 20. doi: 10.1016/j.electacta.2014.01.034

  27. [27]

      Dittrich, L.; Nohl, M.; Jaekel, E. E.; Foit, S.; de Haart, L. G. J.; Eichel, R. A. J. Electrochem. Soc. 2019, 166 (13), F971. doi: 10.1149/2.0581913jes

  28. [28]

      Tong, X.; Ovtar, S.; Brodersen, K.; Hendriksen, P. V.; Chen, M. J. Power Sources 2020, 451, 227742. doi: 10.1016/j.jpowsour.2020.227742

  29. [29]

      王佳, 黄秋安, 李伟恒, 王娟, 庄全超, 张久俊. 电化学, 2020, 26, 607. doi: 10.13208/j.electrochem.200641Wang, J.; Huang, Q. A.; Li, W. H.; Wamg, J.; Zhuang, Q. C.; Zhang, J. J. J. Electrochem. 2020, 26, 607. doi: 10.13208/j.electrochem.200641

  30. [30]

      Primdahl, S.; Mogensen, M. J. Electrochem. Soc. 1998, 145 (7), 2431. doi: 10.1149/1.1838654

  31. [31]

      Leonide, A.; Apel, Y.; Ivers-Tiffee, E. ECS Trans. 2009, 19 (20), 81. doi: 10.1149/1.3247567

  32. [32]

      Primdahl, S.; Mogensen, M. J. Electrochem. Soc. 1999, 146 (8), 2827. doi: 10.1149/1.1392015

  33. [33]

      Hong, J.; Bhardwaj, A.; Bae, H.; Kim, I. H.; Song, S. J. J. Electrochem. Soc. 2020, 167 (11), 114504. doi: 10.1149/1945-7111/aba00f

  34. [34]

      Gewies, S.; Bessler, W. G. J. Electrochem. Soc. 2008, 155 (9), B937. doi: 10.1149/1.2943411

  35. [35]

      Sumi, H.; Shimada, H.; Yamaguchi, Y.; Yamaguchi, T.; Fujishiro, Y. Electrochim. Acta 2020, 339, 135913. doi: 10.1016/j.electacta.2020.135913

•
