English

Correlation between Li Plating Morphology and Reversibility of Li Metal Anode

• Huang Fanyang ^†, ,
• Jie Yulin ^†, ,
• Li Xinpeng ,
• Chen Yawei ,
• Cao Ruiguo ,
• Zhang Genqiang ,
• Jiao Shuhong ^,

• Hefei National Laboratory for Physical Sciences at the Microscale, Department of Materials Science and Engineering, CAS Key Laboratory of Materials for Energy Conversion, University of Science and Technology of China, Hefei 230026, China

Corresponding author: Jiao Shuhong. E-mail:jiaosh@ustc.edu.cn; Tel.: +86-551-63601807

• Received Date: 27 August 2020
  Accepted Date: 28 September 2020
  Revised Date: 27 September 2020
  Available Online: 15 January 2021
• Fund Project:

  The project was supported by the National Key Research and Development Program of China (2017YFA0402802, 2017YFA0206700), the National Natural Science Foundation of China (51902304, 21776265), the Anhui Provincial Natural Science Foundation (1908085ME122), the Fundamental Research Funds for the Central Universities, China (Wk2060140026)

• ^†These authors contribute equally to this work.

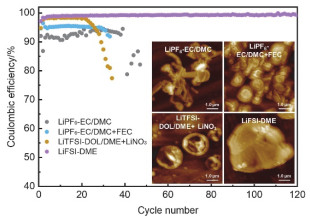

Abstract: Commercialization of high-energy rechargeable batteries can promote the rapid development of portable electronics and electric vehicles. Li metal batteries (LMBs) have attracted considerable attention owing to their high theoretical energy density. Li metal anodes (LMAs) used in LMBs suffer from the disadvantages of high reactivity, interface instability and dendrite growth, which impede the practical development of the LMBs. Coulombic efficiency (CE), which depends on the type of electrolyte used, is one of the key parameters for evaluating the reversibility of battery systems. Herein, we use atomic force microscopy (AFM) to study the initial plating stages and growth of the lithium metal in different electrolytes, such as 1 mol·L^-1 lithium hexafluorophosphate (LiPF₆)-ethylene carbonate/dimethyl carbonate (EC/DMC, 1 : 1, V/V), 1 mol·L^-1 LiPF₆-EC/DMC (1 : 1, V/V) + 5% (mass fraction, w) fluoroethylene carbonate (FEC), 1 mol·L^-1 lithium bis(trifluoromethanesulfonyl)imide (LiTFSI)-1, 3-dioxolane/dimethoxyethane (DOL/DME, 1 : 1, V/V) + 2% (w) lithium nitrate (LiNO₃), and 4 mol·L^-1 lithium bis(fluorosulfonyl)imide (LiFSI)-DME, and further investigate the correlation between the CE of LMA and Li plating morphology. There are two types of Li morphologies in these electrolytes: strip-like and particle-like morphology. Since the specific surface area of particle-like deposits is much smaller than that of strip-like deposits, the particle-like morphology facilitates higher CE. (1) In the conventional carbonate electrolyte (1 mol·L^-1 LiPF₆-EC/DMC), Li predominantly forms strip-like deposits with large specific surface area, consuming much active Li (due to the side reaction between Li and the electrolyte). The dendrite morphology of the Li deposits lead to the formation of dead Li during the stripping process, which results in low CE. (2) FEC, an effective additive often used in carbonate electrolyte, can induce the transformation of Li plating morphology from strip-like to particle-like morphology. Therefore, the CE in FEC-containing electrolytes has been significantly improved with stable electrode/electrolyte interphase and small specific surface area of deposited Li. (3) In ether electrolytes, which have better compatibility with LMAs than carbonate electrolytes, Li metal exhibits a particle-like morphology and achieves high CE. (4) In the highly concentrated electrolyte (4 mol·L^-1 LiFSI-DME), Li metal grows into large particles without dendrite formation, which hampers the parasitic side reactions, and further enhances CE.

Key words:
• Li metal anode
•  /  Coulombic efficiency
•  /  Plating morphology
•  /  Electrolyte
•  /  Atomic force microscopy

• 1. [1]

     Armand, M.; Tarascon, J. M. Nature 2008, 451, 652. doi: 10.1038/451652a

  2. [2]

     Cano, Z. P.; Banham, D.; Ye, S.; Hintennach, A.; Lu, J.; Fowler, M.; Chen, Z. W. Nat. Energy 2018, 3, 279. doi: 10.1038/s41560-018-0108-1

  3. [3]

     Choi, J. W.; Aurbach, D. Nat. Rev. Mater. 2016, 1, 16013. doi: 10.1038/natrevmats.2016.13

  4. [4]

     Pathak, R.; Chen, K.; Gurung, A.; Reza, K. M.; Bahrami, B.; Pokharel, J.; Baniya, A.; He, W.; Wu, F.; Zhou, Y.; et al. Nat. Commun. 2020, 11, 93. doi: 10.1038/s41467-019-13774-2

  5. [5]

     Yu, X.; Wang, L.; Ma, J.; Sun, X.; Zhou, X.; Cui, G. Adv. Energy Mater. 2020, 10, 1903939. doi: 10.1002/aenm.201903939

  6. [6]

     Lim, H. D.; Lee, B.; Bae, Y.; Park, H.; Ko, Y.; Kim, H.; Kim, J.; Kang, K. Chem. Soc. Rev. 2017, 46, 2873. doi: 10.1039/C6CS00929H

  7. [7]

     Asadi, M.; Sayahpour, B.; Abbasi, P.; Ngo, A. T.; Karis, K.; Jokisaari, J. R.; Liu, C.; Narayanan, B.; Gerard, M.; Yasaei, P.; et al. Nature 2018, 555, 502. doi: 10.1038/nature25984

  8. [8]

     Jung, J. W.; Cho, S. H.; Nam, J. S.; Kim, I. D. Energy Storage Mater. 2020, 24, 512. doi: 10.1016/j.ensm.2019.07.006

  9. [9]

     Yin, Y. X.; Xin, S.; Guo, Y. G.; Wan, L. J. Angew. Chem. Int. Ed. 2013, 52, 13186. doi: 10.1002/anie.201304762

  10. [10]

      Manthiram, A.; Fu, Y.; Chung, S. H.; Zu, C.; Su, Y. S. Chem. Rev. 2014, 114, 11751. doi: 10.1021/cr500062v

  11. [11]

      Seh, Z. W.; Sun, Y.; Zhang, Q.; Cui, Y. Chem. Soc. Rev. 2016, 45, 5605. doi: 10.1039/c5cs00410a

  12. [12]

      Cheng, X. B.; Zhang, R.; Zhao, C. Z.; Zhang, Q. Chem. Rev. 2017, 117, 10403. doi: 10.1021/acs.chemrev.7b00115

  13. [13]

      Sun, Y.; Liu, N.; Cui, Y. Nat. Energy 2016, 1, 16071. doi: 10.1038/nenergy.2016.71

  14. [14]

      刘凡凡, 张志文, 叶淑芬, 姚雨, 余彦.物理化学学报, 2021, 37, 2006021. doi: 10.3866/PKU.WHXB202006021Liu, F. F.; Zhang, Z. W.; Ye, S. F.; Yao, Y.; Yu, Y. Acta Phys. -Chim. Sin. 2021, 37, 2006021. doi: 10.3866/PKU.WHXB202006021

  15. [15]

      Duan, H.; Yin, Y. X.; Shi, Y.; Wang, P. F.; Zhang, X. D.; Yang, C. P.; Shi, J. L.; Wen, R.; Guo, Y. G.; Wan, L. J. J. Am. Chem. Soc. 2018, 140, 82. doi: 10.1021/jacs.7b10864

  16. [16]

      Jiao, S.; Zheng, J.; Li, Q.; Li, X.; Engelhard, M. H.; Cao, R.; Zhang, J. G.; Xu, W. Joule 2018, 2, 110. doi: 10.1016/j.joule.2017.10.007

  17. [17]

      Yan, C.; Cheng, X. B.; Yao, Y. X.; Shen, X.; Li, B. Q.; Li, W. J.; Zhang, R.; Huang, J. Q.; Li, H.; Zhang, Q. Adv. Mater. 2018, 30, e1804461. doi: 10.1002/adma.201804461

  18. [18]

      Chen, L.; Fan, X.; Ji, X.; Chen, J.; Hou, S.; Wang, C. Joule 2019, 3, 732. doi: 10.1016/j.joule.2018.11.025

  19. [19]

      Wood, K. N.; Noked, M.; Dasgupta, N. P. ACS Energy Lett. 2017, 2, 664. doi: 10.1021/acsenergylett.6b00650

  20. [20]

      Pang, Q.; Liang, X.; Shyamsunder, A.; Nazar, L. F. Joule 2017, 1, 871. doi: 10.1016/j.joule.2017.11.009

  21. [21]

      Ye, H.; Yin, Y. X.; Zhang, S. F.; Shi, Y.; Liu, L.; Zeng, X. X.; Wen, R.; Guo, Y. G.; Wan, L. J. Nano Energy 2017, 36, 411. doi: 10.1016/j.nanoen.2017.04.056

  22. [22]

      Zhang, Y.; Qian, J.; Xu, W.; Russell, S. M.; Chen, X.; Nasybulin, E.; Bhattacharya, P.; Engelhard, M. H.; Mei, D.; Cao, R.; et al. Nano Lett. 2014, 14, 6889. doi: 10.1021/nl5039117

  23. [23]

      Jie, Y.; Liu, X.; Lei, Z.; Wang, S.; Chen, Y.; Huang, F.; Cao, R.; Zhang, G.; Jiao, S. Angew. Chem. Int. Ed. 2020, 59, 3505. doi: 10.1002/anie.201914250

  24. [24]

      Zheng, G.; Lee, S. W.; Liang, Z.; Lee, H. W.; Yan, K.; Yao, H.; Wang, H.; Li, W.; Chu, S.; Cui, Y. Nat. Nanotechnol. 2014, 9, 618. doi: 10.1038/nnano.2014.152

  25. [25]

      Lan, X.; Ye, W.; Zheng, H.; Cheng, Y.; Zhang, Q.; Peng, D. L.; Wang, M. S. Nano Energy 2019, 66, 104178. doi: 10.1016/j.nanoen.2019.104178

  26. [26]

      Li, Y.; Li, Y.; Pei, A.; Yan, K.; Sun, Y.; Wu, C. L.; Joubert, L. M.; Chin, R.; Koh, A. L.; Yu, Y.; et al. Science 2017, 358, 506. doi: 10.1126/science.aam6014

  27. [27]

      Li, Y.; Huang, W.; Li, Y.; Pei, A.; Boyle, D. T.; Cui, Y. Joule 2018, 2, 2167. doi: 10.1016/j.joule.2018.08.004

  28. [28]

      Wang, X.; Zhang, M.; Alvarado, J.; Wang, S.; Sina, M.; Lu, B.; Bouwer, J.; Xu, W.; Xiao, J.; Zhang, J. G.; et al. Nano Lett. 2017, 17, 7606. doi: 10.1021/acs.nanolett.7b03606

  29. [29]

      Cao, X.; Ren, X.; Zou, L.; Engelhard, M. H.; Huang, W.; Wang, H.; Matthews, B. E.; Lee, H.; Niu, C.; Arey, B. W.; et al. Nat. Energy 2019, 4, 796. doi: 10.1038/s41560-019-0464-5

  30. [30]

      Pei, A.; Zheng, G.; Shi, F.; Li, Y.; Cui, Y. Nano Lett. 2017, 17, 1132. doi: 10.1021/acs.nanolett.6b04755

  31. [31]

      Chen, X.; Lai, J.; Shen, Y.; Chen, Q.; Chen, L. Adv. Mater. 2018, 30, e1802490. doi: 10.1002/adma.201802490

  32. [32]

      Wang, S.; Liu, Q.; Zhao, C.; Lv, F.; Qin, X.; Du, H.; Kang, F.; Li, B. Energy Environ. Mater. 2018, 1, 28. doi: 10.1002/eem2.12002

  33. [33]

      Zhao, W.; Song, W.; Cheong, L. Z.; Wang, D.; Li, H.; Besenbacher, F.; Huang, F.; Shen, C. Ultramicroscopy 2019, 204, 34. doi: 10.1016/j.ultramic.2019.05.004

  34. [34]

      Li, N. W.; Shi, Y.; Yin, Y. X.; Zeng, X. X.; Li, J. Y.; Li, C. J.; Wan, L. J.; Wen, R.; Guo, Y. G. Angew. Chem. Int. Ed. 2018, 57, 1505. doi: 10.1002/anie.201710806

  35. [35]

      Aurbach, D. J. Electrochem. Soc. 1997, 144, 3355. doi: 10.1149/1.1838018

  36. [36]

      Aurbach, D.; Cohen, Y. J. Electrochem. Soc. 1996, 143, 3525. doi: 10.1149/1.1837248

  37. [37]

      Han, Y.; Jie, Y.; Huang, F.; Chen, Y.; Lei, Z.; Zhang, G.; Ren, X.; Qin, L.; Cao, R.; Jiao, S. Adv. Funct. Mater. 2019, 29, 1904629. doi: 10.1002/adfm.201904629

  38. [38]

      Chen, S.; Zheng, J.; Mei, D.; Han, K. S.; Engelhard, M. H.; Zhao, W.; Xu, W.; Liu, J.; Zhang, J. G. Adv. Mater. 2018, 30, 1706102. doi: 10.1002/adma.201706102

  39. [39]

      Shi, F.; Pei, A.; Vailionis, A.; Xie, J.; Liu, B.; Zhao, J.; Gong, Y.; Cui, Y. Proc. Natl. Acad. Sci. U.S.A. 2017, 114, 12138. doi: 10.1073/pnas.1708224114

  40. [40]

      Qian, J.; Henderson, W. A.; Xu, W.; Bhattacharya, P.; Engelhard, M.; Borodin, O.; Zhang, J. G. Nat. Commun. 2015, 6, 6362. doi: 10.1038/ncomms7362

  41. [41]

      Yu, Z.; Wang, H.; Kong, X.; Huang, W.; Tsao, Y.; Mackanic, D. G.; Wang, K.; Wang, X.; Huang, W.; Choudhury, S.; et al. Nat. Energy 2020, 5, 526. doi: 10.1038/s41560-020-0634-5

  42. [42]

      Adams, B. D.; Zheng, J.; Ren, X.; Xu, W.; Zhang, J. G. Adv. Energy Mater. 2018, 8, 1702097. doi: 10.1002/aenm.201702097

  43. [43]

      Jie, Y.; Ren, X.; Cao, R.; Cai, W.; Jiao, S. Adv. Funct. Mater. 2020, 30, 1910777. doi: 10.1002/adfm.201910777

  44. [44]

      Xu, K. Chem. Rev. 2004, 104, 4303. doi: 10.1021/cr030203g

  45. [45]

      Wang, J.; Huang, W.; Pei, A.; Li, Y.; Shi, F.; Yu, X.; Cui, Y. Nature Energy 2019, 4, 664. doi: 10.1038/s41560-019-0413-3

  46. [46]

      Yan, K.; Wang, J.; Zhao, S.; Zhou, D.; Sun, B.; Cui, Y.; Wang, G. Angew. Chem. Int. Ed. 2019, 58, 11364. doi: 10.1002/anie.201905251

•
