ZnSe/MoO<sub>3</sub>/TiO<sub>2</sub>复合膜的制备及其光生阴极保护效应

引用本文: 王海鹏, 官自超, 王霞, 金飘, 许慧, 陈丽芳, 宋光铃, 杜荣归. ZnSe/MoO₃/TiO₂复合膜的制备及其光生阴极保护效应[J]. 物理化学学报, 2019, 35(11): 1232-1240. doi: 10.3866/PKU.WHXB201901025 shu

Citation: WANG Haipeng, GUAN Zichao, WANG Xia, JIN Piao, XU Hui, CHEN Lifang, SONG Guangling, DU Ronggui. Fabrication of a ZnSe/MoO₃/TiO₂ Composite Film Exhibiting Photocathodic Protection Effect[J]. Acta Physico-Chimica Sinica, 2019, 35(11): 1232-1240. doi: 10.3866/PKU.WHXB201901025 shu

ZnSe/MoO₃/TiO₂复合膜的制备及其光生阴极保护效应

王海鹏 ^1, ,
官自超 ^1, ,
王霞 ^1, ,
金飘 ^1, ,
许慧 ^1, ,
陈丽芳 ^1, ,
宋光铃 ^{2,
,} ,
杜荣归 ^{1,
,}

1.
厦门大学化学化工学院化学系，福建厦门 361005
2.
厦门大学材料学院，海洋材料腐蚀防护研究中心，福建厦门 361005

通讯作者: 宋光铃, guangling.song@hotmail.com; 杜荣归, rgdu@xmu.edu.cn

基金项目:

国家自然科学基金(21573182, 51731008, 51671163, 21621091, J1310024)资助项目

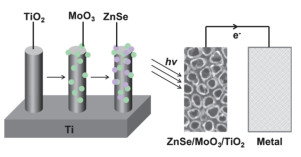

摘要: 针对TiO₂半导体不能有效吸收可见光，光电转换效率较低等问题，可通过对TiO₂半导体进行修饰和改性，制备TiO₂复合材料，提高其光电化学性能。因此，本工作以Ti表面制备的TiO₂纳米管膜为基础，分别应用循环伏安电沉积法和脉冲电沉积法在膜表面先后沉积MoO₃和ZnSe颗粒，获得具有级联能带结构的ZnSe/MoO₃/TiO₂纳米管复合膜，并将其应用于对403不锈钢(403SS)实施光生阴极保护。相较于纯TiO₂纳米管膜，紫外-可见(UV-Vis)吸收光谱和光致发光(PL)谱测试表明，ZnSe/MoO₃/TiO₂复合膜的吸收边红移，在可见光区具有良好的光吸收性能，光生载流子复合得到更有效抑制。光电化学测试表明，白光照射下，处于0.5 mol·L⁻¹ KOH溶液中的ZnSe/MoO₃/TiO₂复合膜的光电流密度达到了同条件下纯TiO₂膜的2倍，可使与之耦连的浸泡于0.5 mol·L⁻¹ NaCl溶液中的403SS电极电位下降470 mV，显示出良好的光生阴极保护效应。复合膜还具有一定的储能特性，在光照后又转为暗态的22.5 h内仍对403SS具有一定阴极保护作用。

关键词:

English

Fabrication of a ZnSe/MoO₃/TiO₂ Composite Film Exhibiting Photocathodic Protection Effect

WANG Haipeng ^1, ,
GUAN Zichao ^1, ,
WANG Xia ^1, ,
JIN Piao ^1, ,
XU Hui ^1, ,
CHEN Lifang ^1, ,
SONG Guangling ^{2,
,} ,
DU Ronggui ^{1,
,}

1.
Department of Chemistry, College of Chemistry and Chemical Engineering, Xiamen University, Xiamen 361005, Fujian Province, P. R. China
2.
Center for Marine Materials Corrosion and Protection, College of Materials, Xiamen University, Xiamen 361005, Fujian Province, P. R. China

Corresponding author: Emails: guangling.song@hotmail.com (S.G.), Tel.: +86-592-2189192 (S.G. & D.R.); Emails: rgdu@xmu.edu.cn (D.R.), Tel.: +86-592-2189192 (S.G. & D.R.)

Received Date: 09 January 2019
Accepted Date: 26 February 2019
Revised Date: 25 February 2019
Available Online: 15 November 2019
Fund Project:

The project was supported by the National Natural Science Foundation of China (21573182, 51731008, 51671163, 21621091, J1310024)

Abstract: TiO₂ is a semiconductor material with excellent photoelectrochemical properties that can provide photocathodic protection for metals. However, TiO₂ can only absorb ultraviolet (UV) light at wavelengths of < 380 nm because of its wide band gap. In addition, photo-induced electron-hole pairs in the TiO₂ semiconductor easily recombine, which leads to a low photoelectric conversion efficiency. Another shortcoming is that pure TiO₂ semiconductors cannot sustain photocathodic protection in the dark, which may limit their practical applications to provide photocathodic protection. To address these shortcomings, various modification methods have been established by preparing TiO₂ composite materials to improve their photoelectrochemical properties. In this study, a ZnSe- and MoO₃-modified TiO₂ nanotube composite film with charge storage ability was prepared to enhance its photocathodic protection effect on stainless steel. A TiO₂ nanotube array film was prepared on a Ti foil via anodic oxidation and then MoO₃ and ZnSe particles were deposited onto the film by cyclic voltammetry and pulse electrodeposition, respectively, to afford a ZnSe/MoO₃/TiO₂ nanotube composite film having a cascade band structure. Scanning electron microscopy observations showed that the TiO₂ film consisted of ordered nanotubes with an average inner diameter of approximately 100 nm and wall thickness of approximately 15 nm. This nanotube structure remained intact after MoO₃ and ZnSe particle deposition on the film. Energy dispersive spectroscopy, X-ray diffraction, and X-ray photoelectron spectroscopy analyses indicated that the prepared nanotube composite film was composed of ZnSe, MoO₃, and TiO₂. The UV-Vis absorption and photoluminescence spectra showed that the photoresponse of the composite film was extended to the visible light region and the photo-induced electron-hole pair recombination was reduced. Photoelectrochemical and electrochemical measurements indicated that the photocurrent intensity of the composite film in a 0.5 mol·L⁻¹ KOH solution was two-fold higher than that of the pure TiO₂ film. Under white light illumination, the ZnSe/MoO₃/TiO₂ composite film decreased the potential of the coupled 403 stainless steel (403SS) in a 0.5 mol·L⁻¹ NaCl solution by 470 mV (relative to the corrosion potential), demonstrating an effective photocathodic protection effect. It should be noted that the composite film exhibited a charge storage capability and could continuously provide cathodic protection for 22.5 h after illumination was stopped. In addition, electrochemical impedance spectroscopy results indicated that the composite film significantly decreased the charge transfer resistance of the coupled 403SS, highlighting the photocathodic protection effect on 430SS.

Key words:

1. [1]
  Chen, X. B.; Mao, S. S. Chem. Rev. 2007, 107, 2891. doi: 10.1021/cr0500535
2. [2]
  李欢欢, 陈润锋, 马琮, 张胜兰, 安众福, 黄维.物理化学学报, 2011, 27, 1017. doi: 10.3866/PKU.WHXB20110514Li, H. H.; Chen, R. F.; Ma, C.; Zhang, S. L.; An, Z. F.; Huang, W. Acta Phys. -Chim. Sin. 2011, 27, 1017. doi: 10.3866/PKU.WHXB20110514
3. [3]
  张剑芳, 王岩, 沈天阔, 舒霞, 崔接武, 陈忠, 吴玉程.物理化学学报, 2014, 30, 1535. doi: 10.3866/PKU.WHXB201405221Zhang, J. F.; Wang, Y.; Shen, T. K.; Shu, X.; Cui, J. W.; Chen, Z.; Wu, Y. C. Acta Phys. -Chim. Sin. 2014, 30, 1535. doi: 10.3866/PKU.WHXB201405221
4. [4]
  Liu, C. B.; Wang, L. L.; Tang, Y. H.; Luo, S. L.; Liu, Y. T.; Zhang, S. Q.; Zeng, Y. X.; Xu, Y. Z. Appl. Catal. B- Environ. 2015, 164, 1. doi: 10.1016/j.apcatb.2014.08.046
5. [5]
  Fujishima, A.; Honda, K. Natrue 1972, 238, 37. doi: 10.1038/238037a0
6. [6]
  Yuan, J. N.; Tsujikawa, S. J. Electrochem. Soc. 1995, 142, 3444. doi: 10.1149/1.2050002
7. [7]
  Ohko, Y.; Saitoh, S.; Tatsuma, T.; Fujishima, A. J. Electrochem. Soc. 2001, 148, B24. doi: 10.1149/1.1339030
8. [8]
  Park, H.; Kim, K. Y.; Choi, W. J. Phys. Chem. B 2002, 106, 4775. doi: 10.1021/jp025519r
9. [9]
  朱燕峰, 张娟, 张义永, 丁敏, 漆海清, 杜荣归, 林昌健.物理化学学报, 2012, 28, 393. doi: 10.3866/PKU.WHXB201112163Zhu, Y. F.; Zhang, J.; Zhang, Y. Y.; Ding, M.; Qi, H. Q.; Du, R. G.; Lin, C. J. Acta Phys. -Chim. Sin. 2012, 28, 393. doi: 10.3866/PKU.WHXB201112163
10. [10]
  Zhou, H. L.; Qu, Y. Q.; Zeid, T.; Duan, X. F. Energy Environ Sci. 2012, 5, 6732. doi: 10.1039/c2ee03447f
11. [11]
  Xu, H.; Ouyang, S. X.; Liu, L. Q.; Reunchan, P.; Umezawa, N.; Ye, J. H. J. Mater. Chem. A 2014, 2, 12642. doi: 10.1039/c4ta00941j
12. [12]
  Bai, H. W.; Liu, Z. Y.; Sun, D. D. J. Am. Ceram. Soc. 2013, 96, 942. doi: 10.1111/jace.12071
13. [13]
  Zhang, J.; Du, R. G.; Lin, Z. Q.; Zhu, Y. F.; Guo, Y.; Qi, H. Q.; Xu, L.; Lin, C. J. Electrochim. Acta 2012, 83, 59. doi: 10.1016/j.electacta.2012.07.120
14. [14]
  邹学军, 李新勇, 肇启东, 陈国华.高等学校化学学报, 2012, 33, 1046. doi: 10.3969/j.issn.0251-0790.2012.05.033Zou, X. J.; Li, X. Y.; Zhao, Q. D.; Chen, G. H. Chem. J. Chinese Univ. 2012, 33, 1046. doi: 10.3969/j.issn.0251-0790.2012.05.033
15. [15]
  Livraghi, S.; Paganini, M. C.; Giamello, E.; Selloni, A.; Valentin, C. D.; Pacchioni, G. J. Am. Chem. Soc. 2006, 128, 15666. doi: 10.1021/ja064164c
16. [16]
  Park, Y.; Kim, W.; Park, H.; Tachikawa, T.; Majima, T.; Choi, W. Appl. Catal. B- Environ. 2009, 91, 355. doi: 10.1016/j.apcatb.2009.06.001
17. [17]
  Zaleska, A.; Sobczak, J. W.; Grabowska, E.; Hupka, J. Appl. Catal. B- Environ. 2008, 78, 92. doi: 10.1016/j.apcatb.2007.09.005
18. [18]
  Huang, F. Z.; Li, Q.; Thorogood, G. J.; Cheng, Y. B.; Caruso, R. A. J. Mater. Chem. 2012, 22, 17128. doi: 10.1039/c2jm32409a
19. [19]
  Momeni, M. M.; Ghayeb, Y. J. Electroanal. Chem. 2015, 751, 43. doi: 10.1016/j.jelechem.2015.05.035
20. [20]
  Tatsuma, T.; Saitoh, S.; Ohko, Y.; Fujishima, A. Chem. Mater. 2001, 13, 2838. doi: 10.1021/cm010024k
21. [21]
  Hu, J.; Guan, Z. C.; Liang, Y.; Zhou, J. Z.; Liu, Q.; Wang, H. P.; Zhang, H.; Du, R. G. Corros. Sci. 2017, 125, 59. doi: 10.1016/j.corsci.2017.06.003
22. [22]
  Hou, Y.; Li, X. Y.; Zhao, Q. D.; Chen, G. H.; Raston, C. L. Environ. Sci. Technol. 2012, 46, 4042. doi: 10.1021/es204079d
23. [23]
  Zhang, N.; Zhang, Y. H.; Pan, X. Y.; Yang, M. Q.; Xu, Y. J. J. Phys. Chem. C 2012, 116, 18023. doi: 10.1021/jp303503c
24. [24]
  Kim, H.; Kim, J.; Kim, W.; Choi, W. J. Phys. Chem. C 2011, 115, 9797. doi: 10.1021/jp1122823
25. [25]
  Wang, C.; Wu, L. X.; Wang, H.; Zuo, W. H.; Li, Y. Y.; Liu, J. P. Adv. Funct. Mater. 2015, 25, 3524. doi: 10.1002/adfm.201500634
26. [26]
  Sun, S. P.; Liao, X. M.; Sun, Y.; Yin, G. F.; Yao, Y. D.; Huang, Z. B.; Pu, X. M. RSC Adv. 2017, 7, 22983. doi: 10.1039/c7ra01164d
27. [27]
  Ashok, A.; Vijayaraghavan, S. N.; Nair, S. V.; Shanmugam, M. RSC Adv. 2017, 7, 48853. doi: 10.1039/c7ra08988k
28. [28]
  Liu, Q.; Hu, J.; Liang, Y.; Guan, Z. C.; Zhang, H.; Wang, H. P.; Du, R. G. J. Electrochem. Soc. 2016, 163, C539. doi: 10.1149/2.0481609jes
29. [29]
  ThanhThuy, T. T.; Feng, H.; Cai, Q. Y. Chem. Eng. J. 2013, 223, 379. doi: 10.1016/j.cej.2013.03.025
30. [30]
  Nguyen, V.; Li, W. L.; Pham, V.; Wang, L. J.; Sheng, P. T.; Cai, Q. Y.; Grimes, C. J. Colloid Interface Sci. 2016, 462, 389. doi: 10.1016/j.jcis.2015.10.005
31. [31]
  Guan, Z. C.; Wang, H. P.; Wang, X.; Hu, J.; Du, R. G. Corros. Sci. 2018, 136, 60. doi: 10.1016/j.corsci.2018.02.048
32. [32]
  Zhu, L.; Peng, M. M.; Cho, K. Y.; Ye, S.; Sarkar, S.; Ullah, K.; Meng, Z. D.; Oh, W. C. J. Korean Ceram. Soc. 2013, 50, 504. doi: 10.4191/kcers.2013.50.6.504
33. [33]
  Zhai, C. Y.; Zhu, M. S.; Lu, Y. T.; Ren, F. F.; Wang, C. Q.; Du, Y. K.; Yang, P. Phys. Chem. Chem. Phys. 2014, 16, 14800. doi: 10.1039/c4cp01401d
34. [34]
  Lorenz, K.; Bauer, S.; Gutbrod, K.; Guggenbichler, J. P.; Schmuki, P.; Zollfrank, C. Biointerphases 2011, 6, 16. doi: 10.1116/1.3566544
35. [35]
  Guan, D. S.; Li, J. Y.; Gao, X. F.; Yuan, C. RSC Adv. 2014, 4, 4055. doi: 10.1039/c3ra44849e
36. [36]
  Antony, R. P.; Mathews, T.; Dash, S.; Tyagi, A. K.; Raj, B. Mater. Chem. Phys. 2012, 132, 957. doi: 10.1016/j.matchemphys.2011.12.041
37. [37]
  He, L. C.; Zhang, Y. A.; Zhang, S. L.; Zhou, X. T.; Lin, Z. X.; Guo, T. L. Mater. Technol. 2018, 33, 205. doi: 10.1080/10667857.2017.1396776
38. [38]
  Rengaraj, S.; Li, X. Z. Chemosphere 2007, 66, 930. doi: 10.1016/j.chemosphere.2006.06.007
39. [39]
  Jing, L. Q.; Qu, Y. C.; Wang, B. Q.; Li, S. D.; Jiang, B. J.; Yang, L. B.; Fu, W.; Fu, H. G.; Sun, J. Z. Sol. Energy Mater. Sol. Cells 2006, 90, 1773. doi: 10.1016/j.solmat.2005.11.007
40. [40]
  Wu, Z.; Wang, Y. Y.; Sun, L.; Mao, Y. X.; Wang, M. Y.; Lin, C. J. J. Mater. Chem. A 2014, 2, 8223. doi: 10.1039/c4ta00850b
41. [41]
  Cummings, C. Y.; Marken, F.; Peter, L. M.; Tahir, A. A.; Wijayantha, K. G. U. Chem. Commun. 2012, 48, 2027. doi: 10.1039/c2cc16382a
42. [42]
  Park, S. M.; Yoo, J. S. Anal. Chem. 2003, 75, 455A. doi: 10.1021/ac0313973
43. [43]
  Chen, W.; Du, R. G.; Ye, C. Q.; Zhu, Y. F.; Lin, C. J. Electrochim. Acta 2010, 55, 5677. doi: 10.1016/j.electacta.2010.05.003
44. [44]
  Hamadou, L.; Kadri, A.; Benbrahim, N. Appl. Surf. Sci. 2005, 252, 1510. doi: 10.1016/j.apsusc.2005.02.135
45. [45]
  Takahashi, Y.; Ngaotrakanwiwat, P.; Tatsuma, T. Electrochim. Acta 2004, 49, 2025. doi: 10.1016/j.electacta.2003.12.032
46. [46]
  Chitrada, K. C.; Gakhar, R.; Chidambaram, D.; Aston, E.; Raja, K. S. J. Electrochem. Soc. 2016, 163, H546. doi: 10.1149/2.0721607jes
