CoMFA Study on Anti-proliferative Activity of Fluoroquinolone Amide Derivatives

Hui FENG Jing-Pei CAO Chang-Jun FENG

Citation:  Hui FENG, Jing-Pei CAO, Chang-Jun FENG. CoMFA Study on Anti-proliferative Activity of Fluoroquinolone Amide Derivatives[J]. Chinese Journal of Structural Chemistry, 2022, 41(3): 2203241-2203247. doi: 10.14102/j.cnki.0254-5861.2011-3343 shu

CoMFA Study on Anti-proliferative Activity of Fluoroquinolone Amide Derivatives

English

  • Due to their extensive pharmacological activities, five-membered heterocyclic ketones especially rhodanine have become the dominant skeleton of medicinal chemistry and have been widely used in the construction of molecular chemical skeleton of new drugs. As for fluoroquinolone, the carboxyl group of C-3 site is not a necessary pharmacophore for anti-proliferative activity. However, if the C-3 amido group is used as the connecting chain to carry another pharmacophore with anti-proliferative activity, the combination of different pharmacophores and the superposition of activities can be realized, and as a result, its antibacterial activity can be effectively converted into anti-proliferative activity[1, 2]. Gao et al.[3] spliced the rhodanine α, β-unsaturated ketone skeleton with anti-proliferative fluoroquinolone skeleton using amido as the connecting chain to synthesize 18 fluoroquinolone (rhodanine α, β-unsaturated ketone) amide compounds, referred to as "fluoroquinolone amide derivatives, FQADs". Then, they used MTT method to determine the in vitro anti-proliferative activities of these compounds towards human hepatoma (Hep-3B) cells, human pancreatic cancer (Capan-1) cells and human leukemia (HL60) cells, which were expressed as IC50.hp, IC50.ca and IC50.hl, respectively or as a general term of IC50.i, in the unit of μ mol·dm-3.

    The early research methods of quantitative structure-activity relationship (QSAR) mainly involve two-dimensional structural information of molecules, which are known as 2D-QSAR[4-10]. At present, the three-dimensional structure properties of molecules are introduced into QSAR to develop "3D-QSAR" models[11-17]. Therefore, compared with traditional 2D-QSAR, 3D-QSAR methods can reflect the real image of the interaction between bioactive molecules and receptors more accurately, and reveal the mechanism of drug-receptor interaction more deeply. Furthermore, the fitting results of 3D-QSAR are generally better than 2D-QSAR. Recently, the comparative molecular field analysis (CoFMA) method[11-17] has been increasingly used in 3D-QSAR researches, because it not only contains clear physical and chemical information, but also indirectly reflects the non-bonding interaction between molecules and targets.

    In this paper, the 3D-QSAR model for anti-proliferative activity (pICi)[3] of FQADs was established by CoMFA method. An intuitive structure-activity isoelectric diagram was obtained to reveal the molecular structure factors affecting pICi and explore the microscopic mechanism of antiproliferative activity, which would provide theoretical reference for designing new and highly-efficient FQAD antiproliferative drugs.

    At present, computer-aided drug design can be divided into receptor-based and ligand-based methods. Since the crystal structure of FQADs receptor has not been analyzed yet, the ligand-based method was used to construct CoMFA model.

    The parent structure of 18 FQADs synthesized by Gao et al.[3] is presented in Fig. 1, with the corresponding substituents Ar shown below.

    Figure 1

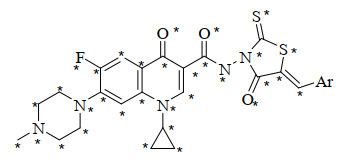

    Figure 1.  Basic structure of FQADs

    Ar: 1* = ph, 2 = 4-MeOph, 3 = 2-MeOph, 4 = 3, 4-(OCH2O)ph, 5* = 3, 4, 5-(MeO)3ph, 6 = 4-Meph, 7 = 4-Clph, 8 = 4-Fph, 9 = 4-NO2ph, 10 = 3-NO2ph, 11* = pyridine-4-yl, 12 = pyridine-3-yl, 13 = pyridine-2-yl, 14 = furan-2-yl, 15 = 4-HO2Cph, 16 = 3-HO2Cph, 17* = 4-NCph, 18 = 4-H2NSO2ph, 19* = 2-H2NSO2ph, 20* = 2, 3, 4-(H2NSO2)3ph, 21* = 2, 4-(HO2C)2ph, 22* = 2, 3, 4-(HO2C)3ph Note: (1) "*" represents the compounds in the test set. (2) 19~22 are the newly designed molecules.

    The IC50.i (i = hp, ca, hl, mol·dm-3) determined by MTT method is shown in Table 1. According to the basic principles of physical chemistry, a logarithmic relationship exists between the change of reaction free energy and the equilibrium concentration of components[18]. Therefore, pICi, i.e., the negative logarithm of IC50.i (pICi = –logIC50.i), was used in CoMFA model, and the specific values are listed in Table

    Table 1

    Table 1.  Comparison of Experimental and Calculated Anti-proliferative Activities (pICi) of FQADs
    DownLoad: CSV
    No. IC50, hp[3] pIChp IC50, ca[3] pICca IC50, hl[3] pIChl
    Exp. Cal. Exp. Cal. Exp. Cal.
    1 13.8 4.860 5.315 8.3 5.081 5.448 23.5 4.629 5.040
    2 17.4 4.760 4.754 12.5 4.903 4.897 25.6 4.592 4.582
    3 10.6 4.975 4.987 6.4 5.194 5.205 18.3 4.738 4.745
    4 16.3 4.788 4.809 7.7 5.114 5.127 23.8 4.624 4.636
    5 17.5 4.757 4.991 16.2 4.791 5.052 24.6 4.609 4.728
    6 21.6 4.666 4.664 12.3 4.910 4.877 28.4 4.547 4.556
    7 16.7 4.778 4.793 11.4 4.943 4.977 16.2 4.791 4.775
    8 6.3 5.201 5.173 4.3 5.367 5.338 10.4 4.983 4.999
    9 3.4 5.469 5.429 2.6 5.585 5.586 6.2 5.208 5.166
    10 2.8 5.553 5.568 2.1 5.678 5.692 6.7 5.174 5.189
    11 1.4 5.854 5.340 0.5 6.301 5.546 2.5 5.602 5.145
    12 2.0 5.699 5.704 0.7 6.155 6.138 2.8 5.553 5.541
    13 2.7 5.569 5.570 2.6 5.585 5.603 7.6 5.119 5.127
    14 5.8 5.237 5.235 4.0 5.398 5.398 6.2 5.208 5.208
    15 1.1 5.959 5.965 0.4 6.398 6.388 1.8 5.745 5.751
    16 1.8 5.745 5.730 0.8 6.097 6.082 2.1 5.678 5.666
    17 5.7 5.244 4.490 3.2 5.495 4.902 8.6 5.066 4.792
    18 0.8 6.097 6.114 0.3 6.523 6.543 1.6 5.796 5.816
    19 6.274 6.731 6.037
    20 6.152 6.649 5.871
    21 6.267 6.749 5.982
    22 6.627 6.627 5.979

    In this paper, Sybyl-x2.1.1, the latest molecular simulation software of Tripos Company, was used to establish CoMFA model of in vitro anti-proliferation activity (pICi) of FQADs on human Hep-3B, Capan-1 and HL60 cells. The key to modeling is to establish the bioactive (pharmacodynamic) conformation of drug molecules and to superpose compound molecules according to reasonable matching rules.

    In this study, the molecular conformation with the lowest energy was used instead of the bioactive conformation (pharmacodynamic conformation). Molecular structures were sketched by the sketch module in Sybyl-x2.1.1 software, which were then minimized with Tripos force field using the Gasteiger-Huckel charges and conjugated gradient method. Unless otherwise stated, all default parameters were used in CoMFA. As one of the most sensitive processes in CoMFA analysis, structural alignment directly determines the CoMFA model's prediction accuracy and the contour maps' reliability. Molecule 18 that has the most potent activity was used as a template molecule for alignment. DATABASE ALIGNMENT command in Sybyl was used to align all homologues to the template molecule by rotation and translation, so as to minimize RMSD (i.e., root-mean-square error) between atoms in the template and the homologue. The alignment results based on above strategy are shown in Fig. 2. Subsequently, these alignments were used to calculate probe interaction energy in CoMFA.

    Figure 2

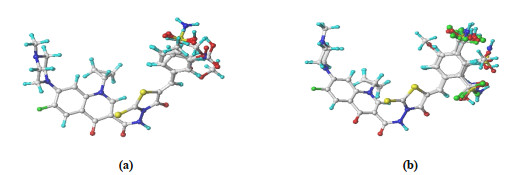

    Figure 2.  3D view of all aligned molecules for the training set (a) and test set (b)

    CoMFA model for biological activity (pICi)[3] of FQADs was established by 14 superposed training set molecules. The Steric (St) and Electrostatic fields (El) on each grid node around the superposed molecules were calculated using Tripos standard force field. The threshold (Cut off value) of field energy was set to 125.5 kJ⋅mol-1, and the default values were adopted for the other parameters.

    PLS (i.e., partial least squares) analysis was performed after the input of pICi into the dataset of the training set. First, the cross-validation correlation coefficient (Rcv2) and the optimal number (N) of component were determined by leave-one-out (LOO) cross-validation method. When Rcv2 > 0.3[19], the established model is statistically significant at the significance level of 5%, and its chance correlation probability is less than 5%, that is, the reliability of the model is 95%. Then, the robustness and statistical confidence of the 3D-QSAR models derived was further assessed by non-cross-validation correlation coefficient (R2) using non-cross-validation method. It is generally believed that the model with R2 > 0.9[20] gives a good fitting result, because it reveals structural factors that affect more than 90% of the biological activity. In addition, the statistical variance ratio (F) is also a test index to measure the significance level of QSAR model. Finally, the view of CoMFA module is adopted to provide the three-dimensional equipotential maps of stereo field and static electric field to directly reflect their contributions to biological activity.

    Based on CoMFA analysis, 3D-QSAR models of FQADs were established, which are given in Table 2 with the corresponding statistical parameters.

    Table 2

    Table 2.  Statistical Parameters of the CoMFA Models of the Training Set Molecules
    DownLoad: CSV
    Cell N Rcv2 R2 F SD St. (%) El. (%)
    Hep-3B 6 0.324 0.999 840.257 0.024 66.8 33.2
    Capan-1 6 0.381 0.999 920.732 0.027 61.4 38.6
    HL60 6 0.421 0.999 783.872 0.023 61.5 38.5
    Note: N denotes optimal number of the component, Rcv2 is the LOO cross-validation correlation coefficient, R2 means the non-cross-validation correlation coefficient, F refers to the Fisher ratio, SD shows the standard deviation of the regression, and St. and El. are the respective contributions of steric and electrostatic field

    High R2 (> 0.9[20]) and Rcv2 (> 0.3[19]) as well as small SD are obtained, indicating that the CoMFA models established are reliable and predictive. At the significance level of 99%, the F critical value (F0.01 (6, 8)) is only 6.37. The F values of the three models are much larger than 6.37, indicating that they are all statistically significant. Moreover, the contribution of steric field is greater than that of electrostatic field (61~67% vs. 33~39%). Therefore, the steric interaction of the ligand is a more important factor affecting the anti-proliferation activity.

    The anti-proliferative activity of the training set molecules is estimated by the established CoMFA models. It can be seen from Table 2 that the calculated values are largely consistent with the corresponding experimental values. In addition, the external test set was used to test the 3D-QSAR model's external prediction ability. Estimated values of anti-proliferative activities of the four compounds (see "pICi.cal." of No. 1, 5, 11 and 17 in Table 1) in the test set are very close to the corresponding experimental data, and therefore the 3D-QSAR models have good external prediction ability.

    Based on the equipotential diagram of force field coefficients obtained by CoMFA model, the important regions related to the activity are determined in three-dimensional steric and electrostatic fields to effectively explain the molecular structure characteristics of active compounds and the underlying molecular mechanisms of action.

    3.2.1   Steric contour map of pICi

    The stereogram of CoMFA model usually includes two regions, where the introduction of a large substituent in the green region or a small group in the yellow region is helpful to improve the activity of the compound.

    Fig. 3 gives the CoMFA steric contour map of pICi, with the most active compound 18 being the template molecule. The contour maps of pIChp, pICca and pIChl are very similar. First, there are two large green regions above the 4-position of the benzene ring, and thus introducing large-volume groups herein will enhance the anti-proliferative activity. For example, compounds 9, 15, 17 and 18 have larger pICi, because there is a larger substituent at the 4-position of benzene ring. Secondly, small yellow regions are observed at the 3- and 4-positions, suggesting that the presence of small-volume groups is beneficial to the improvement of anti-proliferative activity. For instance, pICi values of compounds 10 and 16 are smaller than those of compounds 9 and 15, respectively.

    Figure 3

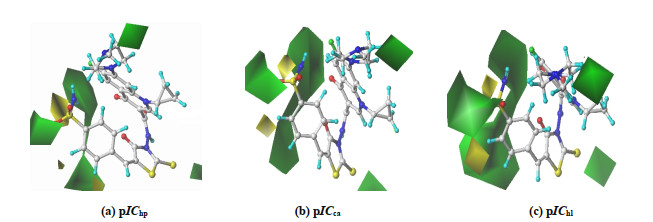

    Figure 3.  CoMFA steric contour maps with compound 18 as the template molecule: (a) pIChp; (b) pICca; (c) pIChl. Green and yellow color denotes sterically favored and disfavored areas, respectively
    3.2.2   Electrostatic contour map of pICi

    As for the contour map of electrostatic field, blue and red contours denote the regions that bioactivity will be increased by the presence of electron-donating and electron-withdrawing groups, respectively.

    Fig. 4 shows the CoMFA electrostatic contour map of pICi, with the most active compound 18 as the template molecule. As seen from Fig. 4, the contour maps of pIChp, pICca and pIChl are very similar, with a big blue area near the 4-site of the benzene ring and a red area far away. The electrostatic distribution of this shape coincides with the charge distribution of -NO2, -CO2H, -SO2NH2 and other groups, due to the following two reasons: The N, C and S atoms with small electronegativity are attached to the benzene ring at the 4-position, and the positive electronegativity is just in the blue region; Meanwhile, these atoms are bonded to the more electronegative O and N atoms, which are negatively charged in the red region. Therefore, the pICi of compounds 9, 10, 15, 16 and 18 containing -NO2, -CO2H and -SO2NH2 groups are all larger.

    Figure 4

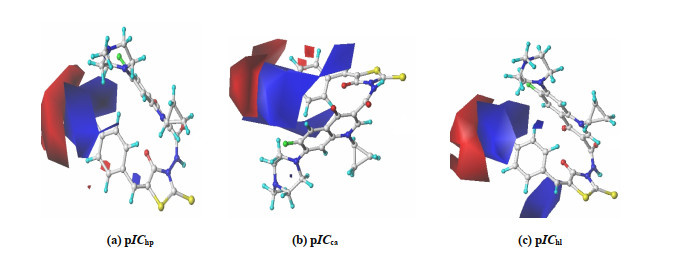

    Figure 4.  Contour maps of CoMFA electrostatic field with compound 18 as the template molecule: (a) pIChp; (b) pICca; (c) pIChl. The favorable sites for positively and negatively charged groups are depicted by steric blue/red polyhedra

    (a) pIChp (b) pICca (c) pIChl

    The 3D-QSAR model of the training set gives the contribution of stereoscopic and electrostatic fields to pICi (Table 2), which shows that stereoscopic effect has greater influence on anti-proliferative activity than the electrostatic one. Accordingly, the anti-proliferative mechanism of FQADs involves the hydrophobic interaction between FQADs and biological enzymes in cancer cells, the steric hindrance between groups attached to common skeleton and cavities in enzymes, and the associated Coulomb force and hydrogen bonding, the effects of which decrease in turn. The three-dimensional equipotential diagrams of the three CoMFA models are very similar, which indicates that FQADs have similar mechanisms for inhibiting the proliferation of human Hep-3B, Capan-1 and HL60 cells in vitro.

    One of the purposes of QSAR research is to design molecules according to the model and predict the activity of designed molecules with the model, so as to provide a theoretical basis for the design of new highly active molecules. It can be seen from the 3D-equipotential diagram in section 3.2 that the existence of bulky groups at the 2-, 3- and 4-sites of benzene ring and the presence of a positively charged central group near the 4-position and a negatively charged group far away will improve the in vitro inhibitory activity of FQADs. Based on this rule, four compounds (the last four in Table 1) were designed by introducing groups such as -CO2H and -SO2NH2 at the 2-, 3- and 4-sites of benzene ring. The pICi.cal. values of these four compounds estimated by the CoMFA model are larger than that of the template molecule 18, which indicates that they have stronger anti-proliferative activity than the template molecule. Thus, these four compounds are expected to be developed as new anti-proliferative drugs. Interestingly, the predicted value of No. 20 is lower than that of No. 19, because there is a large group attached to the 3-position (yellow area) of No. 20 molecule. Similar phenomenon was also observed in the No. 22 compound when comparing with the No. 21 one. However, No. 22 has a larger value than No. 21 in terms of pIChp, because the yellow area of 3-position is very small. Despite the large pICi.cal. values, the anti-proliferative activities of these compounds need to be further verified by clinical medical experiments.

    From this study, the following conclusions can be reached:

    (1) Comparative molecular force field method (CoMFA) was used to investigate the three-dimensional quantitative structure-activity relationship of in vitro anti-proliferative activity (pICi) of FQADs on human hepatoma (Hep-3B) cells, human pancreatic cancer (Capan-1) cells and human leukemia (HL60) cells, and three 3D-QSAR models with good correlation, stability and prediction ability were established.

    (2) The CoMFA model well explained the anti-proliferative mechanism of FQADs, which involved hydrophobic interaction, steric hindrance of substituent groups, Coulomb force and hydrogen bonding between FQADs and biological enzymes in cancer cells in a decreasing order of effect.

    (3) According to the similarity of three-dimensional equipotential diagrams of three CoMFA models, it is speculated that FQADs have similar inhibition mechanisms on the proliferation of human hepatoma Hep-3B, Capan-1 and HL60 cells in vitro are similar.

    (4) The four designed compounds have stronger anti-proliferative activity than the template molecules, and are expected to be developed as new anti-proliferative drugs of the same kind.


    1. [1]

      Gao, L. Z.; Xie, Y. S.; Li, T.; Huang, W. L.; Hu, G. Q. Synthesis, antiproliferative activity and SAR of C-3 oxadiazole sulfanyl-acetylhydrazone-substituted fluoroquinolone analogues. Acta Pharm. Sin. 2014, 49, 1694−1698.

    2. [2]

      Li, T.; Gao, L. Z.; Xie, Y. Y.; Feng, Y. F.; Yan, Q.; Wu, S. M.; Ni, L. L.; Zhao, H.; Huang, W. L.; Hu, G. Q. Synthesis and anti-proliferative activity of fluoroquinolone C-3 fused heterocyclic α, β-unsaturated ketones derived from ciprofloxacin. Acta Pharm. Sin. 2015, 50, 569−573.

    3. [3]

      Gao, L. Z.; Xie, Y. S.; Yan, Q.; Wu, S. M.; Ni, L. L.; Zhao, H.; Huang, W. L.; Hu, G. Q. Synthesis and anti-proliferative activity of fluoroquinolone(rhodanine unsaturated ketone) amide derivatives. Acta Pharm. Sin. 2015, 50, 1008−1012.

    4. [4]

      Abdulla, A. M.; Mei, Z.; Qiu, L.; Ju, X. H. Theoretical investigation on QSAR of (2-methyl-3-biphenylyl) methanol analogs as PD-L1 inhibitor. Chin. J. Chem. Phys. 2020, 33, 459–467. doi: 10.1063/1674-0068/cjcp1909168

    5. [5]

      Zheng, S. S.; Li, T. T.; Wang, J.; Hu, Y. J.; Zhang, H. X.; Zhao, S. X.; Zhao, Y. H.; Li, C. QSAR models for predicting the aqueous reaction rate constants of aromatic compounds with hydrated electrons. Environ. Chem. 2019, 38, 1005–1013.

    6. [6]

      Ding, R.; Chen, J. W.; Yu, Y.; Lin, J.; Wang, Z. Y.; Tang, W. H.; Li, X. H. Using ensemble learning algorithms to develop QSAR models on bioconcentration factors of organic chemicals in multispecies fish. Environ. Chem. 2021, 40, 1295–1304.

    7. [7]

      Lei, B.; Zang, Y. L.; Xue, Z. W.; Ge, Y. Q.; Li, W.; Zhai, Q.; Jiao, L. Ensemble hologram quantitative structure activity relationship model of the chromatographic retention index of aldehydes and ketones. Chin. J. Chromatogr. 2021, 39, 331–337. doi: 10.3724/SP.J.1123.2020.06011

    8. [8]

      Zheng, S. S.; Li, T. T.; Wang, J.; Hu, Y. J.; Zhang, H. X.; Zhao, S. X.; Zhao, Y. H.; Li, C. QSAR models for predicting the aqueous reaction rate constants of aromatic compounds with hydrated electrons. Environ. Chem. 2019, 38, 1005–1013.

    9. [9]

      Zeng, X. L.; Qu, R. J.; Feng, M. B.; Chen, J.; Wang, L. S.; Wang, Z. Y. Photodegradation of polyfluorinated dibenzo-p-dioxins (PFDDs) in organic solvents: experimental and theoretical studies. Environ. Sci. Tech. 2016, 50, 8128–8134. doi: 10.1021/acs.est.6b02682

    10. [10]

      Qu, R. J.; Liu, J. Q.; Li, C. G.; Wang, L. S.; Wang, Z. Y.; Wu, J. C. Experimental and theoretical insights into the photochemical decomposition of environmentally persistent perfluorocarboxylic acids. Water Res. 2016, 104, 34–43. doi: 10.1016/j.watres.2016.07.071

    11. [11]

      Feng, C. J. CoMFA model of inhibitory activity for nitrobenzene derivatives to photobacteria. J. Xuzhou Inst. Tech. (Nat. Sci. Ed. ) 2020, 35, 28–31.

    12. [12]

      Tong, J. B.; Qin, S. S.; Lei, S.; Wang, Y. A 3D-QSAR study of HIV-1 integrase inhibitors using RASMS and topomer CoMFA. Chin. J. Struct. Chem. 2019, 38, 867–881.

    13. [13]

      Shu, M.; Wu, T.; Wang, B. W.; Li, J.; Xu, C. M.; Lin, Z. H. 3D-QSAR and surflex docking studies of a series of alkaline phosphatase inhibitors. Chin. J. Struct. Chem. 2019, 38, 7–16.

    14. [14]

      Tong, J. B.; Zhan, P.; Bai, M.; Yao, T. Molecular modeling studies of human immunodeficiency virus type 1 protease inhibitors using three-dimensional quantitative structure-activity relationship, virtual screening, and docking simulations. J. Chemometr. 2016, 30, 523–536. doi: 10.1002/cem.2809

    15. [15]

      Feng, C. J. CoMFA model of herbicidal activity of phenyl-sulfonylured derivatives. J. Xuzhou Inst. Tech. (Nat. Sci. Ed. ) 2019, 34, 21–25.

    16. [16]

      Feng, H.; Feng, C. J. CoMFA model of anti-proliferative activity for fluoroquinolon-3-yl s-triazole sulfide-ketone derivatives and implications for molecular design. Chin. J. Struct. Chem. 2021, 40, 703–710.

    17. [17]

      Feng, H.; Feng, C. J. 3D-QSAR studies on the anti-tumor activity of N-aryl-salicylamide derivatives. Chin. J. Struct. Chem. 2019, 38, 1874–1880.

    18. [18]

      Guo, Z. R. Molecular Drug Design. Science Press, Beijing 2005, p20.

    19. [19]

      Hu, S. Q.; Mi, S. Q.; Jia, X. L.; Guo, A. L.; Chen, S. H.; Zhang, J.; Liu, X. Y. 3D-QSAR study and molecular design of benzimidazole derivatives as corrosion inhibitors. Chem. J. Chin. Univ. 2011, 32, 2402–2409.

    20. [20]

      Cramer, R. D.; Burce, J. D.; Patterson, D. E.; Frank, I. E. Cross-validation, boot strapping, and partial least squares compared with multiple regression in conventional QSAR study. Quant. Struct. -Act. Relat. 1988, 7, 18–25. doi: 10.1002/qsar.19880070105
