Manganese(Ⅱ) and Copper(Ⅰ) Compounds Based on Two Derivatives of Imidazo[1, 5-a]pyridine: Synthesis, Structures, Magnetic Properties, and Catalytic Activity

Qian ZHANG Yan-Feng CUI Xia-Mei ZHANG Ya-Hong LI Jin-Lei YAO

Citation:  Qian ZHANG, Yan-Feng CUI, Xia-Mei ZHANG, Ya-Hong LI, Jin-Lei YAO. Manganese(Ⅱ) and Copper(Ⅰ) Compounds Based on Two Derivatives of Imidazo[1, 5-a]pyridine: Synthesis, Structures, Magnetic Properties, and Catalytic Activity[J]. Chinese Journal of Structural Chemistry, 2022, 41(3): 2203148-2203154. doi: 10.14102/j.cnki.0254-5861.2011-3296 shu

Manganese(Ⅱ) and Copper(Ⅰ) Compounds Based on Two Derivatives of Imidazo[1, 5-a]pyridine: Synthesis, Structures, Magnetic Properties, and Catalytic Activity

English

  • The coordination complexes of manganese(Ⅱ) and copper(Ⅰ) ions have been the subject of intensive research owing to their aesthetically pleasing structures, and intriguing physicochemical properties which are closely relevant to the design of new magnetic[1-10] and catalytic[11-20] materials. Coordination compounds chelated by derivatives of imidazo-[1, 5-a]pyridine were widely investigated in recent years[21-23]. This series of ligands possess several nitrogen donors, and they are electron rich and highly conjugated. These features render them to be the suitable ligands for assembling versatile coordination complexes. Recent advances in this area revealed that the complexes supported by this series of ligands exhibited potential applications in DNA cleavage[24-25], catalysis[26-27], and photoluminescent materials[28-30]. Therefore, the development of efficient synthetic methodologies for both imidazo[1, 5-a]pyridine scaffolds and their complexes is of great importance.

    With the motivations for synthesizing manganese(Ⅱ) and copper(Ⅰ) coordination complexes, and comprehensively studying the magnetic properties and catalytic activity of these compounds, we carried out the reactions of manganese(Ⅱ) and copper(Ⅱ) salts with 2, 6-bis(imidazo[1, 5-a]-pyridin-3-yl)pyridine (bipp) and 3-(pyridin-2-yl)imidazo[1, 5-a]pyridine (pip). Two complexes with formulae [Mn(bipp)-(SO4)(H2O)]n (1) and [Cu(pip)2]ClO4 (2) were prepared (Scheme 1). The magnetic properties of 1 and catalytic activity of 2 toward ketalization reactions were investigated. Herein, the preparation and structures of compounds 1 and 2 were reported. The magnetic properties of 1 and catalytic behavior of 2 were also presented.

    Scheme 1

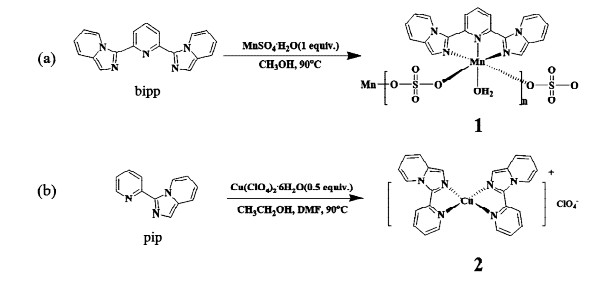

    Scheme 1.  Synthesis of compounds 1 (a) and 2 (b)

    All manipulations were conducted under solvothermal conditions in air. All solvents and reagents were available from chemical suppliers and used directly. 2, 6-Bis(imidazo-[1, 5-a]pyridin-3-yl)pyridine (bipp) and 3-(pyridin-2-yl)imidazo[1, 5-a]pyridine (pip) were prepared by following the reported procedures[21-23]. FT-IR spectroscopy studies were carried out on a Nicolet MagNa-IR 500 spectrometer with samples prepared as KBr disks. Elemental analyses of carbon, hydrogen and nitrogen atoms were performed with a Carlo-Erba EA1110 CHNO-S analyser. The magnetic susceptibilities of 1 were determined on an MPMS XL-7 SQUID magnetometer.

    2.2.1   Preparation of [Mn(bipp)(SO4)(H2O)]n (1)

    To a 10 mL thick glass tube were added MeOH (4 mL), bipp (0.1 mmol, 31 mg), and MnSO4·H2O (0.1 mmol, 17 mg). The tube was then sealed and heated to 90 ºС for 72 hours. Red block-shaped crystals of the product were obtained upon gradually cooling the reaction mixture to ambient temperature. These crystals were isolated, rinsed with MeOH and dried. The yield of the product was 95% calculated by MnSO4·H2O. Elemental analysis calcd. (%) for C19H15MnN5O5S: C, 47.51; H, 3.15; N, 14.58. Found (%): C, 47.59; H, 3.43; N, 14.63. Selected ATR IR data (cm−1): 3158 (w), 2159 (w), 1631 (w), 1604 (w), 1591 (m), 1573 (m), 1553 (m), 1482 (s), 1359 (m), 1308 (w), 1263 (m), 1256 (m), 1173 (w), 1134 (w), 1114 (m), 1071 (s), 1037 (m), 921 (w), 908 (m), 831 (m), 844 (w), 792 (m), 753 (m), 740 (m), 683 (s), 670 (s), 663 (m), 619 (m).

    2.2.2   Preparation of [Cu(pip)2]ClO4 (2)

    To a 10 mL thick glass tube were added MeOH (4 mL), DMF (1 mL), Cu(ClO4)2·6H2O (0.1 mmol, 17 mg) and pip (0.1 mmol, 20 mg). The tube was then sealed and heated to 90 ºС for 72 hours. Red block-shaped crystals of the product were obtained upon gradually cooling the reaction mixture to ambient temperature. These crystals were isolated, rinsed with EtOH and dried. The yield of the product was 70% calculated by Cu(ClO4)2·6H2O. Elemental analysis calcd. (%) for C24H18ClCuN6O4: C, 52.09; H, 3.28; N, 15.19. Found: C, 51.95; H, 3.21; N, 15.03. The main ATR IR data (cm−1): 1597 (m), 1474 (m), 1447 (w), 1407 (s), 1365 (m), 1260 (m), 1168 (m), 1084 (s), 1013 (w), 978 (w), 913 (w), 826 (w), 778 (m), 767 (m), 731 (m), 719 (m), 678 (m), 619 (m).

    To a 10 mL Schlenk flask were added ketone (1.4 mmol), ethylene glycol (1.4 mmol), toluene (1 mL) and compound 2 (2 mg). The reaction mixture was heated to reflux with a Dean-Stark being connected to the bottom of a condenser for 24 h. Then compound 2 was removed by filtration. The yields of the products were calculated by 1H NMR.

    Diffraction data measurements for these two compounds were carried out on a Bruker Smart Apex Ⅱ diffractometer at 296.15 K. SHELXS package was employed to solve the structures of 1 and 2[31]. All ordered non-hydrogen elements were refined anisotropically by full-matrix least-squares calculations against F2[32]. X-ray powder diffraction data were determined on a Rigaku D/Max-2500 diffractometer utilizing a graphite monochromator and a Cu-target tube.

    These two compounds were characterized by IR (Fig. S1), X-ray powder diffraction analysis (Fig. S3), and elemental analysis. The existence of the coordinated water in compound 1 was confirmed by measuring the TG curve (Fig. S2). The PXRD patterns of these two compounds (experimental and simulated PXRD patterns, Fig. S3) indicated that the phases of compounds 1 and 2 were pure. Compound 1 underwent several step weight loss. The first step from 25 to 225 ℃ was assigned to the removal of the coordinated H2O molecule (calcd.: 3.74%; found: ca. 3.75%), suggesting high thermal stability of 1.

    The structure refinement details and crystal data are listed in Table S1. The main interatomic distances and angles are collected in Table 1. The structures of 1 and 2 are presented in Figs. 1 and 2. The main crystallographic parameters are summarized in the following descriptions.

    Table 1

    Table 1.  Selected Bond Lengths (Å) and Bond Angles (°) for 1 and 2
    DownLoad: CSV
    Compound 1
    Bond Dist. Bond Dist. Bond Dist.
    Mn(1)–O(1) 2.1638(18) Mn(1)–N(3) 2.239(2) Mn(1)–O(3)1 2.1682(18)
    Mn(1)–N(1) 2.249(2) Mn(1)–O(2) 2.143(2) Mn(1)–N(2) 2.288(2)
    1 x, 3/2–y, 1/2+z
    Angle (°) Angle (°) Angle (°)
    O(1)–Mn(1)–O(3)1 168.53(7) O(2)–Mn(1)–N(3) 108.38(8) N(3)–Mn(1)–N(2) 71.38(7)
    O(1)–Mn(1)–N(3) 90.74(7) O(2)–Mn(1)–N(1) 108.72(8) N(1)–Mn(1)–N(2) 71.52(7)
    O(1)–Mn(1)–N(1) 93.14(7) O(2)–Mn(1)–N(2) 179.64(8) S(1)–O(1)–Mn(1) 134.40(11)
    O(1)–Mn(1)–N(2) 95.25(7) N(3)–Mn(1)–N(1) 142.90(7) S(1)–O(3)–Mn(1)2 141.53(11)
    O(3)1–Mn(1)–N(3) 90.24(8) O(2)–Mn(1)–O(3)1 83.84(7) O(2)–Mn(1)–O(1) 85.01(8)
    O(3)1–Mn(1)–N(1) 92.96(8) O(3)1–Mn(1)–N(2) 95.89(7)
    1 x, 3/2–y, 1/2+z; 2 x, 3/2–y, 1/2+z
    Compound 2
    Bond Dist. Bond Dist. Bond Dist.
    Cu(1)–N(1) 2.0758(15) Cu(1)–N(2) 2.0022(14) Cu(1)–N(3) 2.0275(14)
    Cu(1)–N(4) 2.0702(15)
    Angle (°) Angle (°) Angle (°)
    N(2)–Cu(1)–N(1) 80.67(6) N(3)–Cu(1)–N(1) 111.22(6) N(2)–Cu(1)–N(4) 111.87(6)
    N(2)–Cu(1)–N(3) 146.19(6) N(3)–Cu(1)–N(4) 81.66(6) N(4)–Cu(1)–N(1) 136.87(6)

    Figure 1

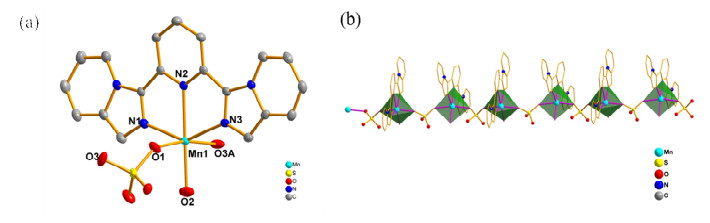

    Figure 1.  (a) Asymmetric unit of compound 1. (b) Molecular structure of 1 showing the chain-like configuration and coordination polyhedrons of the Mn ions. Symmetry codes: A: x, 3/2–y, 1/2+z

    Figure 2

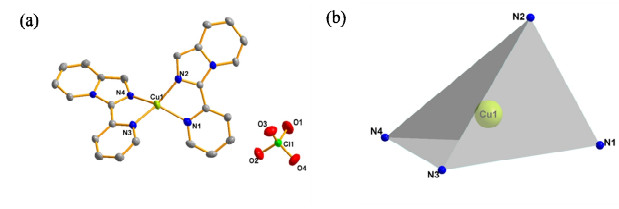

    Figure 2.  (a) Crystallographically determined structure of 2 with the ellipsoids of 30% probability level. (b) Coordination polyhedron of the CuI ion

    Compound 1 crystalizes in monoclinic space group P21/c. Mr = 480.36, a = 10.6615(6), b = 15.4762(8), c = 12.6476(7) Å, β =113.3130(10)°, Dc = 1.665 g/cm3, V = 1916.47(18) Å3, μ = 0.843 mm‑1, F(000) = 980, R = 0.0380, wR = 0.0977, and goodness-of-fit is 1.094. Each asymmetric unit contains one Mn ion, one bipp ligand, one SO42- group and a coordination water molecule (Fig. 1). The Mn center is coordinated by N1, N2 and N3 atoms from one bipp ligand, O1 and O3A atoms from two SO42- groups and O2 atom from coordinated H2O molecule, giving a [MnN3O3] core. Along the a axis, the adjacent Mn ions are bridged by one O-S-O unit from one SO42- anion. The Mn…Mn distance is 6.476 Å. Within compound 1, two similar mononuclear [Mn1A(bipp)(μ3-O)] and [Mn1B(bipp)(μ3-O)] units are bridged by the [MnN3O3] core in a mirror mode, leading to a chain structure of [Mn(bipp)(SO4)(H2O)]n (Fig. 1). The average Mn–N length is 2.259 Å, and it is larger than that of Mn–O distance (2.158 Å). The bond angles of the Mn ion from the axial position range from 71.38(7)° to 142.90(7)°, and bond angles from the bridged plane fall in the scope of 83.84(7)°~168.53(7)°. A slight distortion from the ideal octahedral structure with a CShM (continuous symmetry measurement) value of 3.237 was calculated by using SHAPE 2.1 software[33].

    Compound 2 crystalizes in triclinic space group P$\overline{1}$. Mr = 553.43, a = 7.3860(4), b = 10.5325(6), c = 14.5829(8) Å, α = 88.959(2)°, β =78.193(2)°, γ = 80.407(2)°, Dc = 1.679 g/cm3, V = 1094.77(10) Å3, μ = 1.168 mm‑1, F(000) = 564, R = 0.0322, wR = 0.0852, and goodness-of-fit is 1.050. Compound 2 is composed of one [Cu(pip)2]+ unit and one ClO4- counterion (Fig. 2). The CuI ion of [Cu(pip)2]+ unit is chelated by two pip ligands. Thus the CuI centre displays tetrahedron geometry. The distances of Cu–Npyridine bonds are 2.0758(14) and 2.0275(14) Å, respectively. The Cu–Nimidazole distances are 2.0702(15) and 2.0022(14) Å, respectively.

    Dc magnetic susceptibility values of 1 were determined between 1.8 and 300 K. The χmT product for two asymmetric units at 300 K is 8.04 cm3·K·mol-1 (Fig. 3). This number is smaller than that of expected. As the theoretical value for two non-interacted Mn ions is 8.75 cm3·K·mol-1 (g = 2.00, S = 5/2). Upon cooling from 300 to 70 K, the χmT value remains almost constant. With further cooling, the value of χmT sharply decreases to 1.56 cm3·K·mol-1 at 1.8 K, proving that Mn complex is antiferromagnetically coupled.

    Figure 3

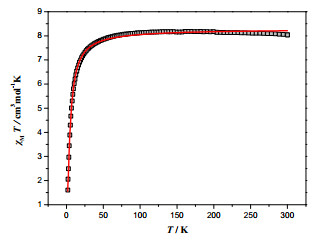

    Figure 3.  χMT products of 1 between 1.8 and 300 K at 1000 Oe. The solid line represents the fitted values based on the model[34]

    To quantitatively assess the antiferromagnetical couplings in complex 1, we fitted the interactions of compound 1 by using the classical spin Heisenberg model (1-J) for a Mn2 compound[34].

    Fitting the magnetic susceptibilities of 1 using the reported model[34] gave g = 1.95 and J = –0.34 cm-1. The negative J value indicated weakly antiferromagnetic Mn…Mn couplings.

    Having the crystal structures of 1 and 2 in hand, we next studied the catalytic behavior of compound 2 for the ketalization reactions of various ketones. Ketalization reaction is an efficient methodology to protect carbonyl moiety of ketones[35]. Typically, ketalization reaction is catalyzed by a Lewis acid. As the CuI ion of 2 is four-coordinated, it may serve as a Lewis acid to activate the oxygen of the carbonyl group.

    The protection of carbonyl groups of several ketones by ethylene glycol was conducted in toluene at 110 ℃. As can be seen in Table 2, when the substrates are aliphatic ketones, namely, acetone, 2-butanone, acetyl acetone and cyclohexanone (entries 1~3, 5), compound 2 can efficiently catalyze the reactions, generating the protected ketones with the yields of 88% (Fig. S6), 97% (Fig. S7), 97% (Fig. S8) and 99% (Fig. S10), respectively. The catalytic activity of complex 2 toward aromatic ketones is lower. It is found that a yield of only 5% (Fig. S9) was given for acetophenone.

    Table 2

    Table 2.  Ketalization of Ketones Catalysed by 2
    DownLoad: CSV
    Entry Ketone Product Cat. (mol%) Yield (%)
    1 0.2 88
    2 0.2 97
    3 0.2 97
    4 0.2 5
    5 0.2 99

    In conclusion, two complexes [Mn(bipp)(SO4)(H2O)]n (1) and [Cu(pip)2]ClO4 (2) were synthesized and characterized. They display diverse structures. The magnetic properties of compound 1 were studied, revealing antiferromagnetic interactions between metal centers. Compound 2 was able to catalyze the ketalization reactions of aliphatic and aromatic ketones. It exhibited high activity towards the ketalization of aliphatic ketones.


    1. [1]

      Rajnák, C.; Titiš, J.; Moncol, J.; Mičová, R.; Boča, R. Field-induced slow magnetic relaxation in a mononuclear manganese(Ⅱ) complex. Inorg. Chem. 2019, 58, 991−994. doi: 10.1021/acs.inorgchem.8b02675

    2. [2]

      Benniston, A. C.; Melnic, S.; Turta, C.; Arauzo, A. B.; Bartolomé, J.; Bartolomé, E.; Harringtonf, R. W.; Probertf, M. R. Preparation and properties of a calcium(Ⅱ)-based molecular chain decorated with manganese(Ⅱ) butterfly-like complexes. Dalton Trans. 2014, 43, 13349−13357. doi: 10.1039/C4DT01518E

    3. [3]

      Baron, V.; Gillon, B.; Sletten, J.; Mathoniere, C.; Codjovi, E.; Kahn, O. Interchain interactions and three-dimensional magnetic ordering in Mn(Ⅱ) Cu(Ⅱ) chain compounds; crystal structure and metamagnetic properties of MnCu(pbaOH)(H2O)3·2H2O, with pbaOH = 2-hydroxo-1, 3-propylenebis (oxamato). Inorg. Chim. Acta 1995, 235, 69−76. doi: 10.1016/0020-1693(95)90047-A

    4. [4]

      Uchida, K.; Cosquer, G.; Sugisaki, K.; Matsuoka, H.; Sato, K.; Breedlove, B. K.; Yamashita, M. Isostructural M(Ⅱ) complexes (M = Mn, Fe, Co) with field-induced slow magnetic relaxation for Mn and Co complexes. Dalton Trans. 2019, 48, 12023−12030. doi: 10.1039/C8DT02150C

    5. [5]

      Yang, E. C.; Chang, Y. Y.; Huang, S. Y.; Hong, L. X.; Lee, G. H.; Sheu, H. S.; Chang, C. K. Novel structures and magnetic properties of two [Mn2] complexes with 2, ​4-​di-​2-​pyridyl-​2, ​4-​pentanediol as the ligand. Magnetochemistry 2019, 5, 43. doi: 10.3390/magnetochemistry5030043

    6. [6]

      Yu, S. B.; Lippard, S. J.; Shweky, I.; Bino, A. Dinuclear manganese(Ⅱ) complexes with water and carboxylate bridges. Inorg. Chem. 1992, 31, 3502–3504. doi: 10.1021/ic00043a004

    7. [7]

      Zhang, S. L.; Li, S. S.; Zeng, S. Y.; Shi, Y.; Wang, D. Q.; Chen, L. Slow magnetic relaxation in O–Se–O bridged manganese(Ⅲ) Schiff base complexes. New J. Chem. 2020, 44, 2408–2413. doi: 10.1039/C9NJ05837K

    8. [8]

      Bagaia, R.; Christou, G. The Drosophila of single-molecule magnetism: [Mn12O12(O2CR)16(H2O)4]. Chem. Soc. Rev. 2009, 38, 1011–1026. doi: 10.1039/b811963e

    9. [9]

      Su, F.; Zhou, C. Y.; Han, C.; Wu, L. T.; Wu, X.; Sun, L.; Su, J.; Feng, S. S; Lu, L. P.; Zhu, M. L. Binuclear Mn2+ complexes of a biphenyltetracarboxylic acid with variable N-​donor ligands: syntheses, structures, and magnetic properties. Cystectomy 2018, 20, 1818–1831.

    10. [10]

      Akiyama, H., Kato, M.; Sasaki, S.; Tasaki, M.; Asao, E.; Kajikawa, M. Synthesis, and magnetic properties of a binuclear manganese(Ⅱ) complex with two manganese(Ⅱ) ions of C2-twisted octahedral geometry. Polyhedron 2016, 111, 32–37. doi: 10.1016/j.poly.2016.03.005

    11. [11]

      Jing, Y.; Zhang, X. M.; Cui, Y. F.; Li, D. W.; Sun, H.; Ge, Y.; Li, Y. H. Two copper complexes based on derivatives of imidazo[1, 5-a]pyridine: syntheses, structures, and catalytic properties. Chin. J. Struct. Chem. 2020, 39, 1057–1062.

    12. [12]

      Chan, C. K.; Tsai, Y. L.; Chang, M. Y. CuI mediated one-pot cycloacetalization/ketalization of o-carbonyl allylbenzenes: synthesis of benzobicyclo[3.2.1]octane core. Org. Lett. 2017, 19, 1870−1873. doi: 10.1021/acs.orglett.7b00630

    13. [13]

      Yang, H.; Liu, Y. L.; Hu D. D. Syntheses, structures, and catalytic activities of copper(Ⅰ) complexes with the ligand 2(4, 5-diphenyl-1H-imidazol-2-yl)­pyridine. Z. Anorg. Allg. Chem. 2014, 640, 394–397. doi: 10.1002/zaac.201300223

    14. [14]

      Han, Z. P.; Li, Y. H. Solvothermal synthesis, structure and catalytic activity of a mixed-valence CuI/CuII complex with 1-D chain structure. Inorg. Chem. Commun. 2012, 22, 73–76. doi: 10.1016/j.inoche.2012.05.023

    15. [15]

      Tan, X.; Li, L.; Zhang, J. Y.; Han, X. R.; Jiang, L.; Li, F. W.; Su, C. Y. Three-dimensional phosphine metal-organic frameworks assembled from Cu(Ⅰ) and pyridyl diphosphine. Chem. Mater. 2012, 24, 480–485. doi: 10.1021/cm202608f

    16. [16]

      Fan, W. T.; Yang, X. P.; Lv, H. P.; Wang, X. W.; Wang, Z. Chiral binaphthyl box-copper-catalyzed enantioselective tandem michael-ketalization annulations for optically active aryl and heteroaryl fused bicyclicnonanes. Org. Lett. 2020, 22, 3936−3941. doi: 10.1021/acs.orglett.0c01221

    17. [17]

      Ma, H. X.; Du, J.; Zhu, Z. M.; Lu, T.; Su, F.; Zhang, L. C. Controllable assembly, characterization and catalytic properties of a new strandberg-type organophosphotungstate. Dalton Trans. 2016, 45, 1631–1637. doi: 10.1039/C5DT04412J

    18. [18]

      Wang, J. P.; Ma, H. X.; Zhang, L. C.; You, W. S.; Zhu, Z. M. Two Strandberg-type organophosphomolybdates: synthesis, crystal structures and catalytic properties. Dalton Trans. 2014, 43, 17172–17176. doi: 10.1039/C4DT02571G

    19. [19]

      Tao, D. J.; Li, Z. M.; Cheng, Z.; Hu, N.; Chen, X. S. Kinetics study of the ketalization reaction of cyclohexanone with glycol using brønsted acidic ionic liquids as catalysts. Ind. Eng. Chem. Res. 2012, 51, 16263–16269. doi: 10.1021/ie302089s

    20. [20]

      Liu, J. H.; Wei, X. F.; Yu, Y. L.; Song, J. L.; Wang, X. Li, A.; Liu X. W.; Deng, W. Q. Uniform core-shell titanium phosphate nanospheres with orderly open nanopores: a highly active Brønsted acid catalyst. Chem. Commun. 2010, 46, 1670–1672. doi: 10.1039/b922100j

    21. [21]

      Deacon, G. B.; Junk, P. C.; Leary, S. G. Novel Heterobimetallic neodymium/calcium 8-quinolinolate complexes prepared directly from the metals. Z. Anorg. Allg. Chem. 2004, 630, 1541–1543. doi: 10.1002/zaac.200400164

    22. [22]

      Chen, Y. M.; Li, L.; Chen, Z.; Liu, Y. L.; Hu, H. L.; Chen, W. Q.; Liu, W.; Li. Y. H. Metal-mediated controllable creation of secondary, tertiary, and quaternary carbon centers: a powerful strategy for the synthesis of iron, cobalt, and copper complexes with in situ generated substituted 1-pyridineimidazo[1, 5-a]pyridine ligands. Inorg. Chem. 2012, 51, 9705−9713. doi: 10.1021/ic300949y

    23. [23]

      Chen, Y. M.; Li, L.; Cao, Y. Y.; Wu, J.; Gao, Q.; Li, Y. H. Cu-mediated controllable creation of tertiary and quaternary carbon centers: designed assembly and structures of a new class of copper complexes supported by in situ generated substituted 1-pyridineimidazo[1, 5-a]pyridine ligands. CrystEngComm 2013, 15, 2675−2681. doi: 10.1039/c3ce00012e

    24. [24]

      Mukherjee, A.; Dhar, S.; Nethaji, M.; Chakravarty, A. R. Ternary iron(Ⅱ) complex with an emissive imidazopyridine arm from Schiff base cyclizations and its oxidative DNA cleavage activity. Dalton Trans. 2005, 349–353.

    25. [25]

      Huq, F.; Abdullah, A.; Chowdhury, A.; Cheng, H.; Tayyem, H.; Beale, P. Studies on the synthesis and characterization, binding with DNA and activity of cis-bis{imidazo(1, 2-a)-pyridine}-dichloroplatinum(Ⅱ). Asian J. Chem. 2006, 18, 1637–1648.

    26. [26]

      Bluhm, M. E.; Ciesielski, M.; Görls, H.; Döring, M. Copper-catalyzed oxidative heterocyclization by atmospheric oxygen. Angew. Chem. Int. Ed. 2002, 41, 2962–2965. doi: 10.1002/1521-3773(20020816)41:16<2962::AID-ANIE2962>3.0.CO;2-6

    27. [27]

      Deacon, G. B.; Forsyth, C. M.; Junk, P. C.; Kynast, U.; Meyer, G.; Moore, J.; Sierau, J.; Urbatsch, A. Novel rare earth quinolinolate complexes. J. Alloys Compd. 2008, 451, 436–439. doi: 10.1016/j.jallcom.2007.04.253

    28. [28]

      Guckian, A. L.; Doering, M.; Ciesielski, M.; Walter, O.; Hjelm, J.; O'Boyle, N. M.; Henry, W.; Browne, W. R.; McGarvey, J. J.; Vos, J. G. Assessment of intercomponent interaction in phenylene bridged dinuclear ruthenium(Ⅱ) and osmium(Ⅱ) polypyridyl complexes. Dalton Trans. 2004, 3943–3949.

    29. [29]

      Volpi, G.; Garino, C.; Salassa, L.; Fiedler, J.; Hardcastle, K. I.; Gobetto, R.; Nervi, C. Cationic heteroleptic cyclometalated iridium complexes with 1-pyridylimidazo[1, 5-α]pyridine ligands: exploitation of an efficient intersystem crossing. Chem. Eur. J. 2009, 15, 6415–6427. doi: 10.1002/chem.200801474

    30. [30]

      Murai, T.; Nagaya, E.; Miyahara, K.; Shibahara, F.; Maruyama, T. Synthesis and characterization of boron complexes of imidazo[1, 5-a]pyridylalkyl alcohols. Chem. Lett. 2013, 42, 828–830. doi: 10.1246/cl.130274

    31. [31]

      Sheldrick, G. M. SHELXS-97, Program for Crystal Structure Solution. University of Göttingen Germany 1997.

    32. [32]

      Sheldrick, G. M. SHELXL-97, Program for the Refinement of Crystal Structures from Diffraction Data. University of Göttingen Germany 1997.

    33. [33]

      Casanova, D.; Llunell, M.; Alemany, P.; Alvarez, S. The rich stereochemistry of eight-vertex polyhedra: a continuous shape measures study. Chem. Eur. J. 2005, 11, 1479–1494. doi: 10.1002/chem.200400799

    34. [34]

      Kahn, O. Molecular Magnetism. VCH Publishers, Inc. 1993.

    35. [35]

      Fei, H. H.; Rogow, D. L.; Oliver, S. R. J. Reversible anion exchange and catalytic properties of two cationic metal-organic frameworks based on Cu(Ⅰ) and Ag(Ⅰ). J. Am. Chem. Soc. 2010, 132, 7202−7209. doi: 10.1021/ja102134c
