• 1. INTRODUCTION

  The assembly of coordination polymers (CPs) with versatile structures and potential applications has made a great progress. These CPs can be gra-dually applied in more and more realms such as fluorescent sensor,g as storage,catalysis and magnetic materials,etc^[1-6]. However,the regulating of CPs with charming topologies and desired pro-perties is still a big challenge^[7-9]. There are many factors that can influence the construction of CPs,especially,the selection of organic ligands and syn-thetic methods^[10-12].

  Terpyridyl derivatives are a kind of functional ligands to construct effectively new CPs. Many research groups have paid attention to this type of ligands and obtained lots of valuable CPs^{[13, 14]}. Our group also studied the coordination characteristics of these ligands and properties of CPs^{[15, 16]}. In order to furthercomplete this research,we select the rigid bridging ligand,4΄-(3-pyridyl)-3,2΄:6΄,3΄΄-terpy-ridine (L),as the main ligand to synthesize CPs with excellent properties. It is noted that L with large π conjugation structure is apt to form the π-π stacking interaction to reinforce the stability of structure. In this paper,two new CPs,namely,[ZnL( o-bdc)]_n (1) and [ZnL(m-bdc)]_n·nH₂O (2) have been obtained and their structure,luminescence and thermal stability have also been investigated in detail.

  2. EXPERIMENTAL

  2.1. Materials and general methods

  All chemicals and solvents purchased from commercial sources were of reagent grade and used as received without further purification. L ligand was synthesized according to the reported proce-dure^{[17, 18]}. Infrared spectra were collected on a Bruker EQUINOX 55 Fourier transform Infrared spectrometer using KBr pellets in the range of 400～ 4000 cm^-1. Elemental analyses for carbon,hydrogen and nitrogen were carried out with an elementar Vario EL elemental analyzer. Thermal gravimetry analysis (TGA) experiments were performed on a Universal V2.6 DTA system at a rate of 10 ℃/min in a nitrogenatmosphere. Powder X-ray diffraction (PXRD) measurements were measured on a Bruker D8ADVANCE X-ray powder diffractometer (Cu-Kα,1.5418 Å). Fluorescence spectra were obtained from a Hitachi F-4500 spectrophotometer atroom temperature.

  2.2. Syntheses of the compounds

  2.3. X-ray crystallography

  X-ray diffraction intensity data of compounds 1 and2 were collected on a Bruker Smart APEX-II CCD diffractometer equipped with graphite-mono-chromated Mo-Kα radiation (λ = 0.71073 Å) at 296(2) K. Data reduction was performed using the program Bruker SAINT. Empiricalabsorption correctionswere applied by the SADABS program. The structures were solved by dire ct methods of SHELXS-97 and refined by full-matrix least-squares technique on F² with anisotropic thermal parameters to describe the thermal motionsof all non-hydrogen atoms. The hydrogen atoms were generated geome-trically and refined isotropically through the riding model. For compound 1,the final R = 0.0426,wR =0.0986 (w = 1/[σ2(F_o²) + (0.0539P)² + 0.0000P], where P = (F_o² + 2F 2) /3) for 2875 observed reflections (I > 2σ(I)). (Δ/σ)_max = 0.001 and S = 0.992. For 2,the final R = 0.0499,wR = 0.1342 (w =1/[σ2(Fo ²) + (0.1000P²)+ 0.1259P],where P= (Fo²+ 2F_c²) /3) for 2659 observed reflections (I > 2σ(I)). (Δ/σ)_max = 0.001 and S = 0.933. The selected bond distances and bond angles are given in Table 1 for 1 and Table 2 for 2.

  2.2.2. [ZnL(m-bdc)]_n·nH₂O (2)

  The synthetic method of 2 is similar to that of 1, except that auxiliary ligand is replaced by H₂(m-bdc) (16.6 mg,0.1 mmol) and the mixture was heated at 160 ℃. Yellow block crystals of 2 were obtained. Yield 58% (based on L). Anal. Calcd. (%) for C₅₆H₃₆N₈O₁₀Zn₂: C,60.50; H,3.26; N,10.08%. Found (%): C,60.33; H,3.15; N,10.01%. IR (KBr,cm^-1): 3458(s),3238(m),2079(w),1616(s),1575(m),1481(m),1444(s),1390(s),1161(m),1124(s),825(m),800(m),744(m),725(m),696(m),621(s),482(m).

  2.2.1. [ZnL(o-bdc)]_n (1)

  A mixture of ZnCl₂ (13.6 mg,0.1 mmol),L (16.0 mg,0.05 mmol),H₂ (o-bdc) (16.6 mg,0.1 mmol) and H₂O (10 mL) were added to a Teflon-lined reactor (25 mL). The pH value was adjustedto 5.0 with 0.5 M NaOH solution after stirring for 30 minutes and heated at 180 ℃ for 3 days under autogenous pressure,then slowly cooled to room temperature. Yellow block crystals of 1 were collected. Yield 65% (based on L). Anal. Calcd. (%) for C₂₈H₁₈N₄O₄Zn: C,62.29; H,3.36; N,10.38%. Found (%): C,62.18; H,3.13; N,10.29%. IR (KBr,cm^-1): 3390(s),3078(m),2079(w),1612(s),1481(m),1390(s),1267(w),1197(m),1134(m),1024(m),835(m),802(m),702(s),642(m),472(w).

  3. RESULTS AND DISCUSSION

  3.1. Descriptionof the crystal structure

  3.2. PXRD and thermogravimetric analysis

  PXRD measurements for 1 and 2 have been carried out at room temperature. The experimental PXRD patterns are in agreement with the simulated ones from single-crystal X-ray diffractions (Fig. 3) ,whichindicate that the as-synthesized materials are pure products.

  Figure 3

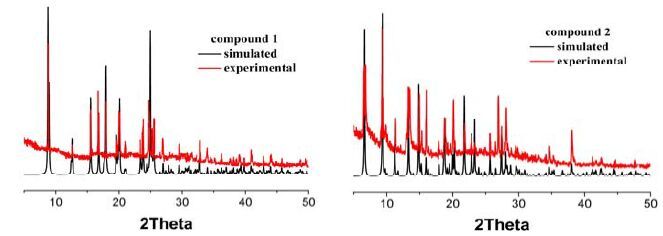

  Figure 3.  PXRD patternsof compounds 1 and2 simulated from X-raysingle-crystal structure and experiment

  DownLoad: Full-Size Img PowerPoint

  In order to study the thermal stability of com-pounds 1 and 2,thermal gravimetric(TG) experi-ments were measured. As shown in Fig. 4,com-pound 1 maintained stable in the temperature range of 20～ 300 ℃ ,then its framework started to collapse upon further heating. The initial weight loss of 30.27% (calcd.30.40%) can be ascribed to the decomposition of (o-bdc)^2- anions. The second weight loss of 57.82% (calcd.57.49%) can be assigned to the removal of L ligands. The final resi-dual weight can be attributed to zinc oxide (obsd.11.91%,calcd.12.11%). Compound 2 first lost its lattice water molecules with THE weight loss of 2.78% (calcd.3.23%) under 150 ℃. After that it began to decompose at 380 ℃ ,followed by a two-step weight loss due to the release of (o-bdc)^2- anions and L ligands.

  Figure 4

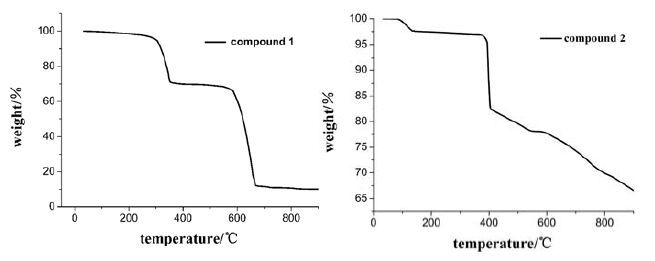

  Figure 4.  TGA curvesof compounds 1 and 2

  DownLoad: Full-Size Img PowerPoint

  3.3. Luminescentproperties

  The luminescent properties of L ligand and its zinc coordination polymers were investigated in the solid state at room temperature,and the emission spectra are shown in Fig. 5. The L ligand exhibitsan emission band at 422 nm upon excitation at 310 nm,whichcan be assigned to the π^*→π electronic transitions. Upon excitation at 300 nm,compounds 1 and 2 display intense emissionbands at 380 and 366 nmwhich may be ascribed to the ligand-to-metal charge transfer (LMCT). Moreover,compound 1 exhibits an intenseemission band at 417 nm which may be the intraligand transitions. The emission bands of 1 and 2 show blue shifts in comparison withL which may be attributed to the coordination interaction between L ligands and Zn₂₊ cations leading to the HOMO-LUMO energy gap increase. The enhancement of luminescence intensity for 1 and2 with respect to the free ligand may be due to the effectively increasing the rigidityof the coor-CHENG Y. et al.:Syntheses,Structures and Propertiesfor Zn^II Coordination polymers and reducing the energy loss of nonradiative decay of the intraligand when the ligating atoms of L coordinate to the Zn^II cen-ters^[19-21].

  Figure 5

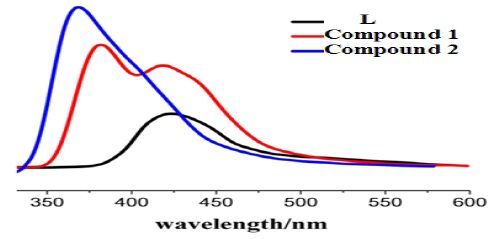

  Figure 5.  Solid-state emissionspectra of L and compounds1 and 2 at room temperature

  DownLoad: Full-Size Img PowerPoint

  3.1.2. [ZnL(m-bdc)]n·nH₂O (2)

  The crystal structure analysis shows that com-pound 2 features a classical 3D cds topological network. The asymmetric unit of 2 contains one Zn^II ion,one L ligand,one (m-bdc)^2- anion and one lattice water molecule. As depicted in Fig. 2a,Zn1 hexa-coordinates to four O atoms from the (m-bdc)^2- anions and two N atoms from the L ligands,leading to an octahedral coordination geometry with slight distortion. The ligating atoms of O(1) ,O(2C),O(3B) and O(4B) occupy the equatorial plane with the Zn-Obond lengths ranging from 2.023(3) to 2.455(4) Å. While N(1) and N(3A) locate on the axis positions with the average Zn-N bond lengths of 2.163(4) Å and N(1) -Zn(1) -N(3A) bond angle of 176.04(13) °. The N atoms of L link to the Zn ions to (a) build 1D wave chains,which further form a 2D layer structure via (m-bdc)^2- ions bridging to the Zn cations (Fig. 2b). It is interesting that (m-bdc)^2- anions adopted a μ₃-η₁:η₁:η² coordination mode coordinating to Zn^II of three different chains. Simultaneously,(m-bdc)^2- bridges to Zn^II cations,thus generating another kind of loop chains. Finally,theseloop chains connect to distinct 2D layers to form a 3D architecture. The carboxylates of co-ligands play a key role in expanding the structures. Topologically,the dinuc-lear Zn^II units sharing the same carboxylate groups of (m-bdc)^2- anions can be assigned as 4-connected nodes,and L ligands and (m-bdc)^2- ions as linkers,so the framework of 2 can be simplified as a classical cds network with point symbol of {6⁵.8}.

  Figure 2



  Figure 2.  (a) Coordination environment of Zn^II ion in 2. Hydrogenatoms are omitted for clarity (Symmetry codes:A = x,1-y,0.5+z; B = 0.5+x,0.5+y,z; C = -x,1-y,2-z). (b) View of the 2Dlayer structure. (c) View of the 3Darchitecture. (d) View of the topological network

  DownLoad: Full-Size Img PowerPoint

  3.1.1. [ZnL(o-bdc)]_n (1)

  X-ray single-crystaldiffraction analysis reveals that compound 1 is a 1D coordination chain. The asymmetric unit of 1 consists of one Zn^II ion,one L ligand,and one (o-bdc)^2- anion. As shown in Fig. 1a, Zn(1) is four-coordinated by two O atoms (O(1) and O(3B)) from (o-bdc)^2- anions andtwo N atoms (N1A and N(4) ) from L ligands,resulting in tetrahedral geometry. The Zn-N bond distances are 2.029(3) and 2.081(3) Å,and Zn-O bond distances are 1.937(2) and 1.941(2) Å,all in agreement with those in the similar Zn^II compounds^[17]. Four pyridyl rings ofL ligand are non-coplanar,and the outer pyridyl rings ar e twisted with respect to the central pyridyl ring.The dihedral angles regarding to the central pyridyl (N(2) ) are 18.71° (N1) ,10.91° (N(3) ) and 20.65° (N(4) ),respectively. The carboxylatesof (o-bdc)^2- anions bond to two Zn^II i ons,forming the loop units of [Zn2(o-bdc)2]. Then these units build 1D chains via L ligands bridging to the Zn^II cations (Fig. 1b). Unfortunately,two carboxylate groups chelate to Zn₂₊ leading to closed circles,which has no effect on the extension of structure. Finally,adjacent 1D chains construct a 2D structure through π-π stacking interaction (Fig. 1c). There is π-π stacking interaction between pyridyl (N(4) ) rings belonging to different chains with the centroid-centroid distance of 3.654 Å and centroid-plane distance of 3.648 Å,which contributes to stability of the structure.

  Figure 1

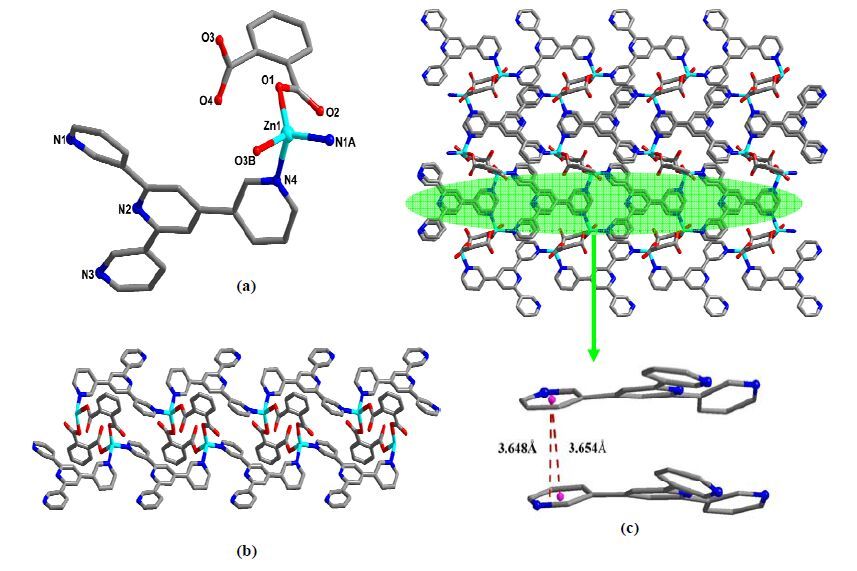

  Figure 1.  (a) Coordination environment of Zn^II ion in 1. The hydrogen atoms are omitted for clarity (Symmetry codes:A = x,-1+y,z; B = 1-x,1-y,1-z). (b) View of the 1Dchain. (c) View of the 2D supramolecularstructure and π-π stacking interaction

  DownLoad: Full-Size Img PowerPoint

  Table 1



  Table 1.  英文标题

  DownLoad: CSV

  Angle (°) Angle (°) Angle (°) O(3) #1-Zn(1) -O(1) 118.73(10) O(3) #1-Zn(1) -N(1) #2 104.98(11) O(1) -Zn(1) -N(1) #2 120.69(11)

  Bond	Dist	Bond	Dist	Bond	Dist
  Zn(1) -O(3) #1	1.937(2)	Zn(1) -O(1)	1.941(2)	Zn(1) -N(1) #2	2.029(3)
  Zn(1) -N(4)	2.081(3)	N(1) -Zn(1) #3	2.029(3)	O(3) -Zn(1) #1	1.937(2)
  O(3) #1-Zn(1) -N(4)	92.40(11)	O(1) -Zn(1) -N(4)	101.85(11)	N(1) #2-Zn(1) -N(4)	114.90(11)
  Symmetry transformation: #1: -x+1,-y+1,-z+1; #2: x,y-1,z; #3 x,y+1,z

  Table 2



  Table 2.  SelectedBond Lengths (Å)and Bond Angles (°) for 2

  DownLoad: CSV

  Angle (°) Angle (°) Angle (°) O(1) -Zn(1) -O(2) #1 124.63(12) O(1) -Zn(1) -O(3) #2 136.26(13) O(2) #1-Zn(1) -O(3) #2 99.10(13)

  Bond	Dist.	Bond	Dist.	Bond	Dist.
  Zn(1) -O(1)	2.023(3)	Zn(1) -O(2) #1	2.044(3)	Zn(1) -O(3) #2	2.054(3)
  Zn(1) -N(1)	2.156(4)	Zn(1) -N(3) #3	2.169(4)	Zn(1) -O(4) #2	2.455(4)
  O(1) -Zn(1) -N(1)	90.40(13)	O(2) #1-Zn(1) -N(1)	87.71(14)	O(3) #2-Zn(1) -N(1)	91.16(14)
  O(1) -Zn(1) -N(3) #3	90.16(14)	O(2) #1-Zn(1) -N(3) #3	88.74(14)	O(3) #2-Zn(1) -N(3) #3	91.15(14)
  N(1) -Zn(1) -N(3) #3	176.04(13)	O(1) -Zn(1) -O(4) #2	79.66(12)	O(2) #1-Zn(1) -O(4) #2	155.66(13)
  O(3) #2-Zn(1) -O(4) #2	56.61(12)	N(1) -Zn(1) -O(4) #2	90.96(15)	N(3) #3-Zn(1) -O(4) #2	93.00(15)
  Symmetry transformation: #1: -x,-y+1,-z+2; #2: x+1/2,y+1/2,z; #3: x,-y+1,z+1/2

  4. CONCLUSION

  In summary, two new zinc coordination polymers have been synthesized via introducing the dicar- boxylate auxiliary ligands. The syntheses, structures, characterizations and properties of 1 and 2 have been discussed in detail. In addition, the solid-state emission spectra and thermal stabilities have been investigated.

• 1. [1]

     Du M, Li C, Chen M, Ge Z, Wang X, Wang L, Liu C. Divergent kinetic and thermodynamic hydration of a porous Cu(II) coordination polymer with exclusive CO2 sorption selectivity[J]. J. Am. Chem. Soc., 2014, 136:  10906-10909. doi: 10.1021/ja506357n

  2. [2]

     Lu J. F, Min S. T, Ge H. G. Synthesis, crystal structures and properties of two-dimensional complexes constructed by dicarboxylate and bis(imidazole) co-ligands[J]. J. Chem. Res., 2014, 11:  726-730.

  3. [3]

     Luo G. G, Wu D. L, Wu J. H, Xia J. X, Liu L, Dai J. C. Direct observation of conformational change of adipate dianions encapsulated in water clusters[J]. CrystEngComm., 2012, 14:  5377-5380. doi: 10.1039/c2ce25200g

  4. [4]

     Férey G, Serre C. Large breathing effects in three-dimensional porous hybrid matter: facts, analyses, rules and consequences[J]. Chem. Soc. Rev., 2009, 38:  1380-1399. doi: 10.1039/b804302g

  5. [5]

     Wang Z. H, Wang D. F, Zhang T, Huang R. B, Zheng L. S. Synthesis, characterization, crystal structures and thermal and photoluminescence studies of dimethylpyrazine-carboxylate mixed ligand silver(I) coordination polymers with various multinuclear silver units[J]. CrystEngComm., 2014, 16:  5028-5039. doi: 10.1039/C4CE00072B

  6. [6]

     Shinde D. B, Kandambeth S, Pachfule P, Kumar R. R, Banerjee R. Bifunctional covalent organic frameworks with two dimensional organocatalytic micropores[J]. Chem. Commun., 2015, 51:  310-313. doi: 10.1039/C4CC07104B

  7. [7]

     Li Y. W, Li D. C, Xu J, Hao H. G, Wang S. N, Dou J. M, Hu T. L, Bu X. H. Structural modulation in two CuII-based MOFs by synergistic assembly involving the mixed-ligand synthetic strategy and the solvent effect[J]. Dalton Trans., 2014, 43:  15708-15712. doi: 10.1039/C4DT02321H

  8. [8]

     Qiao J. Z, Zhan M. S, Hu T. P. Syntheses, crystal structures, photoluminescent/magnetic properties of four new coordination polymers based on 2,3?,4,5?-biphenyltetracarboxylic acid[J]. RSC Adv., 2014, 4:  62285-62294.

  9. [9]

     Chang X, Zhao Y, Han M, Ma L, Wang L. Five Cd(II) coordination polymers based on 2,3?,5,5?-biphenyltetracarboxylic acid and N-donor coligands: syntheses, structures and fluorescent properties[J]. CrystEngComm., 2014, 16:  6417-6424. doi: 10.1039/c4ce00355a

  10. [10]

      Ding J. G, Yin C, Zheng L. Y, Han S. S, Li B. L, Wu B. Tuning cadmium coordination architectures using 1,4-bis(1,2,4-triazol-1-ylmethyl) benzene and sulfoisophthalate[J]. RSC Adv., 2014, 4:  24594-24600. doi: 10.1039/c4ra02291b

  11. [11]

      Pan M, Su C. Y. Coordination assembly of Borromean structures[J]. CrystEngComm., 2014, 16:  7847-7859. doi: 10.1039/C4CE00616J

  12. [12]

      Du M, Li C. P, Liu C. S, Fang S. M. Design and construction of coordination polymers with mixed-ligand synthetic strategy[J]. Coord. Chem. Rev., 2013, 257:  1282-1305. doi: 10.1016/j.ccr.2012.10.002

  13. [13]

      Heine J, Gunne J. S, Dehnen S. Formation of a strandlike polycatenane of icosahedral cages for reversible one-dimensional encapsulation of guests[J]. J. Am. Chem. Soc., 2011, 133:  10018-10021. doi: 10.1021/ja2030273

  14. [14]

      Hou L, Li D, Shi W. J, Yin Y. G, Ng S. W. Ligand-controlled mixed-valence copper rectangular grid-type coordination polymers based on pyridylterpyridine[J]. Inorg. Chem., 2005, 44:  7825-7832. doi: 10.1021/ic050558d

  15. [15]

      Gou L, Xu L. F, Hu H. M, Wang B. C, Chen X. L, Tang Z. X. NiII-CdII heterometallic coordination compounds constructed from metal-containing N,N?-rodlike building block (Ni(4?-(3-pyridyl)-2,2?:6?,2??- terpyridine)2)2+ cation[J]. Z. Anorg. Allg. Chem., 2008, 634:  1215-1220. doi: 10.1002/(ISSN)1521-3749

  16. [16]

      Li N, Gou L, Hu H. M, Chen S. H, Chen X. L, Wang B. C, Wu Q. R, Yang M. L, Xue G. L. The effect of organic acid on self-assembly process: syntheses and characterizations of six novel cadmium(II)/zinc(II) complexes derived from mixed ligands[J]. Inorg. Chim. Acta, 2009, 362:  3475-3483. doi: 10.1016/j.ica.2009.03.033

  17. [17]

      Yang X. L, Shangguan Y. Q, Hu H. M, Xu B, Wang B. C, Xie J, Yuan F, Yang M. L, Dong F. X, Xue G. L. Synthesis, crystal structures and luminescent properties of zinc(II) metal-organic frameworks constructed from terpyridyl derivative ligand[J]. J. Solid State Chem., 2014, 216:  13-22. doi: 10.1016/j.jssc.2014.04.017

  18. [18]

      Christopher B. S, Colin L. R, Alexandre N. S. Poly(ethyleneglycol) (PEG): a versatile reaction medium in gaining access to 4?-(pyridyl)-terpyridines[J]. Green Chem., 2005, 7:  650-654. doi: 10.1039/b507581p

  19. [19]

      Zhang X, Hou L, Liu B, Cui L, Wang Y. Y, Wu B. Syntheses, structures, and luminescent properties of six new zinc(II) coordination polymers constructed by flexible tetracarboxylate and various pyridine ligands[J]. Cryst. Growth Des., 2013, 13:  3177-3187. doi: 10.1021/cg400579w

  20. [20]

      Lu J. F, Shi J, Zheng N, Guo X. H, Ge H. G. Synthesis, crystal structure and luminescent property of a Ag(Ι) coordination polymer with a 3D sandwich-like framework[J]. Chin. J. Struct. Chem., 2016, 35:  293-297.

  21. [21]

      Si C. D, Hu D. C, Fan Y, Wu Y, Yao X. Q, Yang Y. X, Liu J. C. Seven coordination polymers derived from semirigid tetracarboxylic acids and N-donor ligands: topological structures, unusual magnetic properties, and photoluminescences[J]. Cryst. Growth Des., 2015, 15:  2419-2432. doi: 10.1021/acs.cgd.5b00205

•
