  1   INTRODUCTION

  Currently, extensive experimental and theoretical efforts have been devoted to crystal engineering of coordination compounds from predesigned bridging ligands and metal ions, because such hybrid materials display a variety of regulated architectures and thus many potential functions^[1-4]. The synthesis of coordination compounds by the judicious choice of organic spacers and metal centers can be an efficient method to obtain new types of luminescent materials, especially for d¹⁰ systems of metal centers^[5]. While, choosing appropriate ligand and analyzing its most stable structure are meaningful to build regulated architectures. As a family of popular organic ligands, triazole and its derivatives have been extensively developed in metallosupramolecular assemblies^[6]. The 3, 5-bis-pyridyl-¹H-1, 2, 4- triazole (Hbpt) serves as a N, N′-donor ligand and acts as a bridging ligand, thus mediating the exchange coupling^[7-12]. Furthermore, the prototropy and conjugation between the ¹H-1, 2, 4-triazole and pyridyl groups alter the electron density in different sections of the molecules, thus making the ligand more flexible^[13].

  As a result, we have chosen 3-(2-pyridyl)-5-(4- pyridyl)-¹H-1, 2, 4-triazole (2, 4′-Hbpt) as an organic ligand, which can be regarded as an excellent building block for the construction of new coordination compounds. Due to the flexible nature of the backbone, 2, 4′-Hbpt may exhibit two kinds of conformations (I and II) in different complexes to meet the requirements of coordination geometry (Scheme 1). In this work, a new Zn (II) coordination compound Zn (2, 4′-bpt)₂(H₂O) with conformation I of 2, 4′-Hbpt will be described. The compound has been structurally established by single-crystal X-ray diffraction analysis, and its thermal stability and fluorescence also have been presented. What’s more, theoretical calculation based on density functional theory (DFT) for 2, 4′-Hbpt is also employed to illuminate the stability and chemical reactivity of the ligand within different conformations, which corresponds with the experimental results of 2, 4′-Hbpt in the title complex.

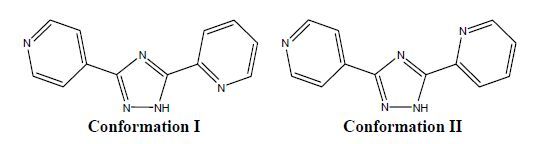

  Figure 1.  Two typical conformations of 2, 4′-Hbpt

  图选项

  下载全尺寸图像

  下载幻灯片

  2   EXPERIMENTAL

  2.1   Materials and measurements

  2, 4′-Hbpt was synthesized according to the Ref^[14]. 2, 4′-Hbpt was further proved by IR and elemental analysis. Anal. Calcd. for C₁₂H₉N₅ (%): C, 64.56; H, 4.06; N, 31.37. Found (%): C, 64.88; H, 4.56; N, 32.88. m.p: 260～261 ℃; IR (cm^-1, KBr): 3408(w), 3088(m), 1622(s), 1566(s), 1473(s), 1436(m), 1315(m), 1130(s), 1045(m), 993(m), 842(s), 804(m), 746(m), 684(w), 578(w).

  All commercially available chemicals were of reagent grade and used as received without further purification. Solvents were purified according to the standard methods prior to use. ¹H NMR spectra were taken with a Varian 400 spectrometer using tetramethylsilane (TMS) as an internal standard. Elemental analyses (C, H and N) were performed on a Vario EL III analyzer. Infrared spectra were obtained from KBr pellets on a BEQ VZNDX 550 FTIR instrument within the 400～4000 cm^-1 region. Thermogravimetric analysis was carried out on a TA Instruments NETZSCH STA 449 C simultaneous TGA at a heating rate of 10 ℃·min^-1 under hydrostatic air. The luminescent spectra for the powdered solid samples were recorded at room temperature on an F-7000 FL Spectrophotometer.

  2.2   Synthesis of complex 1

  A mixture containing ZnSO₄·7H₂O (17.3 mg, 0.06 mmol), 2, 4′-Hbpt (9.0 mg, 0.03 mmol) and water (6 mL) was sealed in a 10 mL Teflon-lined stainlesssteel vessel, heated at 140 ℃ for 4 days, and then cooled to room temperature at a rate of 5 ℃·h^-1. Colorless block crystals suitable for X-ray diffraction were obtained in 40% yield (based on Zn). Anal. Calcd. for C₂₄H₁₈ZnN₁₀O (%): C, 54.61; H, 3.44; N, 26.54. Found (%): C, 54.78; H, 3.52; N, 26.95. IR (cm^-1, KBr): 3390(w), 3080(w), 1602(s), 1573(m), 1525(m), 1465(s), 1413(m), 1263(m), 1165(m), 1031(s), 991(m), 835(s), 802(m), 750(m), 694(m), 617(w), 553(w).

  2.3   X-ray crystallography

  All diffraction data of complex 1 were collected on a Bruker/Siemens Smart Apex II CCD diffractometer with graphite-monochromated MoKα radiation (λ = 0.071073 nm) at 293(2) K. Cell parameters were retrieved using SMART software and refined using SAINTPLUS for all observed reflections. Data reduction and correction for Lp and decay were performed using the SAINTPLUS software. Absorption corrections were applied using SADABS. All structures were solved by direct methods using the SHELXS program of the SHELXTL-97 package and refined with SHELXL. For 2, a total of 6418 reflections were collected in the range of 2.85≤θ≤25.02°, of which 1966 were independent (R_int = 0.0893). The final R = 0.0581 and wR = 0.0898 for observed reflection with I > 2σ(I), R = 0.0911 and wR = 0.1065 for all data with (Δρ) _max = 0.472 and (Δρ) _min = -0.369 e·Å^-3. Hydrogen bonding geometry for the title complex is collected in Table 1.

  Table 1.  Hydrogen Bond Lengths (Å ) and Bond Angles (°) for Complex 1

  表选项

  导出Excel

  下载全尺寸表图像

  D-H…A	d (D-H)	d (H…A)	d (D…A)	∠(DHA)
  O (1)-H (1)…N (3) ii	0.78(4)	1.98(4)	2.716(4)	159(5)
  Symmetry transformations used to generate the equivalent atoms: x, -y+1, z-1/2

  Table 1.  Hydrogen Bond Lengths (Å ) and Bond Angles (°) for Complex 1

  3   RESULTS AND DISCUSSION

  3.1   Structural description

  Single-crystal X-ray diffraction indicates that complex 1 is a 0D motif. The asymmetric unit consists of one Zn (II) ion, two 2, 4′-bpt^- and one coordinated water molecule. The five-coordinated Zn (II) ion is surrounded by four nitrogen donors in the equatorial positions from two chelating pyridyl-triazolyl segments of different 2, 4′-Hbpt, as well as one oxygen atom in the axial position from water molecule to form a distort rectangular pyramid geometry (Fig. 1). 2, 4′-Hbpt adopts conformation I and the dihedral angles between the two pyridine planes and triazole are 13.62° and 4.18°, respectively. In addition, there is an intermolecular hydrogen bond between O (1) and N (3) (Table 2). The coordination array alternately connected by hydrogen bonds forms a corrugated 1D pattern along the [001] axis (Fig. 2).

  Figure 1.  Coordination environment of complex 1 (Hydrogen atoms are omitted for clarity). Symmetry code: ⁱ -x+1, y, -z+1/2

  图选项

  下载全尺寸图像

  下载幻灯片

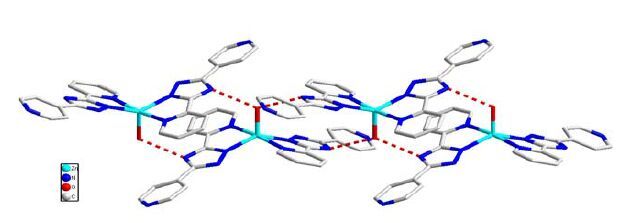

  Figure 2.  A corrugated 1D pattern directed by hydrogen bonding interaction between oxygen and nitrogen atoms (red dashed lines)

  图选项

  下载全尺寸图像

  下载幻灯片

  Table 2.  Experimental and Theoretical Pa rameters for the Ligand (Conformation I)

  表选项

  导出Excel

  下载全尺寸表图像

  N(2)-N(4)	1.356	1.362
  N(2)-C(16)	1.337	1.344
  N(4)-C(17)	1.354	1.344
  N(3)-C(16)	1.366	1.352
  N(3)-C(17)	1.326	1.334
  N(1)-C(23)	1.341	1.338
  N(1)-C(21)	1.339	1.331
  N(6)-C(15)	1.346	1.339
  N(6)-C(13)	1.336	1.341
  N(4)-N(2)-C(16)	102.25	103.14
  N(2)-N(4)-C(17)	110.87	107.46
  N(2)-C(16)-N(3)	114.29	115.07
  N(3)-C(17)-N(4)	110.29	112.89
  C(16)-N(3)-C(17)	102.31	101.44
  N(3)-C(16)-C(18)	123.24	123.38
  N(3)-C(17)-C(15)	128.18	128.23
  C(13)-N(6)-C(15)	117.46	118.16
  C(21)-N(1)-C(23)	116.64	115.5

  Table 2.  Experimental and Theoretical Pa rameters for the Ligand (Conformation I)

  3.2   Conformational analysis

  The conformation a molecule normally adopts has a deep influence on its physical and chemical properties^[15]. While among the calculating methods, DFT is a favorite one due to its great accuracy in reproducing the experimental values of molecular geometry, vibrational frequencies, atomic charges, dipole moment, thermodynamical properties, etc^[16-18]. So, the optimized geometrical parameters and vibrational frequencies for all structures of the conformational isomers from 2, 4′-Hbpt were calculated using DFT. The hybrid functional B₃LYP with the 6-31G (d) basis set was employed without any symmetry restriction. All computations are carried out with the GAUSSIAN 09 quantum chemistry program-package^[19].

  In this case, 6-31G (d) gives satisfying results, which differs from the observed parameters only by an average of 0.01 nm (Table 2), emphasizing a good choice of the level of theory^[20], so the following calculations and discussions are based on the optimized structure. The energies are -736.457618109 and -736.443960479 a.u. for conformations I and II, respectively. With the point of electron energy, conformation I is more stable than II. In addition, frontier molecular orbital has also been calculated. According to the frontier molecular orbital theory, the frontier orbitals and neighboring molecular orbitals play important roles in the stability of various conformations. The LUMO is an electron acceptor and represents the ability to obtain an electron (or electrons) whereas the HOMO represents the ability to donate an electron since it is the outermost molecular orbital with electrons^[21]. The DFT calculation indicates that I (and II) has 58 occupied molecular orbitals, as plotted in Fig. 3 (HOMO, LUMO). The value of the energy separation between the HOMO and LUMO was also calculated. The gap energy between the frontier molecular orbital energies is 0.3008 and 0.3001 a.u. for conformations I and II, respectively. The absolute value of the gap energy shows that conformation I can keep thermodynamic stability in the experimental conditions and not convert to other products^[22]. And it also reveals conformation I has higher chemical reactivity in coordination interaction than II. What’s more, parts of atomic charges for conformations I and II are presented in Fig. 4. The charges of the N1, N4 atoms of the 2, 4′-Hbpt (conformation I) are -0.4633 and -0.5206, respectively, indicating that N1 and N4 are prone to coordination with metal ions.

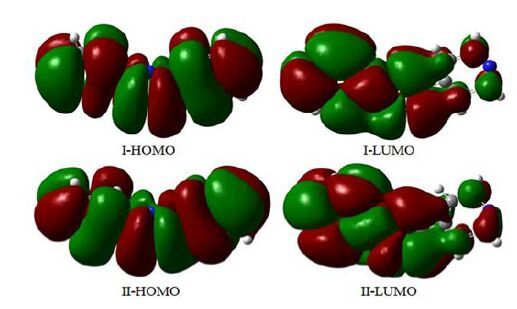

  Figure 3.  Atomic orbital composition of the frontier molecular orbital of conformations I and II obtained by the B₃LYP/6-31G (d) method

  图选项

  下载全尺寸图像

  下载幻灯片

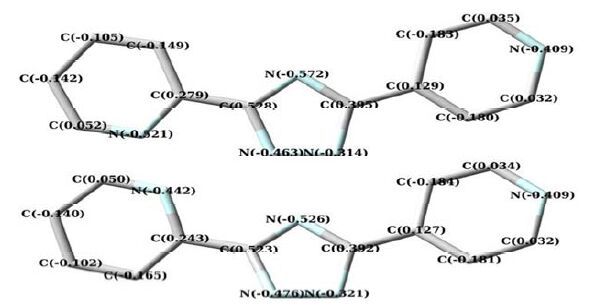

  Figure 4.  Charge distribution for conformations I and II

  图选项

  下载全尺寸图像

  下载幻灯片

  The conformation a molecule normally adopts also has a deep influence on its coordination modes. Compared with conformation I, there are few relevant reports for conformation II. The literature survey also reveals that the nitrogen atom in 2-pyridine and triazole rings of conformation I is prone to chelation with metal ions^[23-27], which is in agreement with the calculation results.

  3.3   Thermal stability

  Thermogravimetric experiment is conducted to study the thermal stability of the title complex, which is an important parameter for metal-organic framework materials. As shown in Fig. 5, the TGA curve of the title complex suggests two steps of weight loss. The first weight loss of 3.26% in the range of 80～150 ℃ corresponds to the complete loss of coordinated water molecule (calcd: 3.41%). The main framework remains intact until it is heated to ca. 240 ℃, and then releases all the ligands completely from 240 to 885 ℃, giving ZnO as the final decomposition product with residue percent of 15.36% (calcd: 15.42%). The residual sample was characterized by X-ray powder diffraction (XRPD) at room temperature (Fig. 6). It is seen that all diffraction peaks agree well with the standard diffraction data for ZnO (JCPDS card file No. 65-2880).

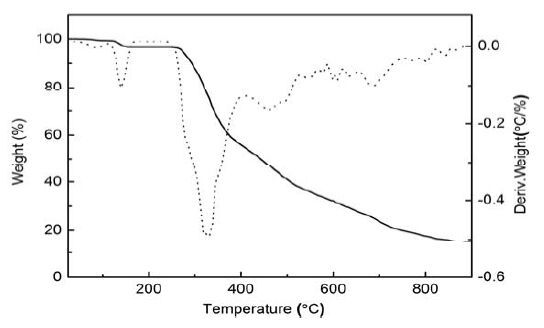

  Figure 5.  TGA curve of complex 1

  图选项

  下载全尺寸图像

  下载幻灯片

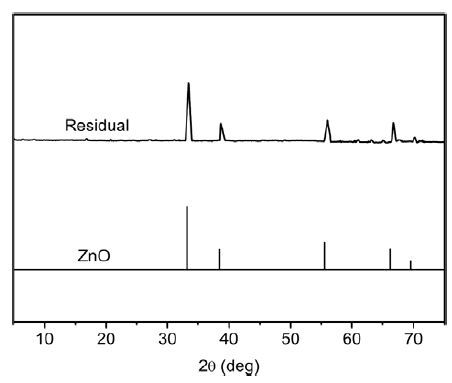

  Figure 6.  XPRD patterns of the residual and ZnO

  图选项

  下载全尺寸图像

  下载幻灯片

  3.4   Fluorescent properties

  It is well known that metal-organic coordination compounds with d¹⁰ metal configuration may have roles as good candidates for potential photoactive materials because their luminescence behaviors are closely associated with the central metal ions and the ligands coordinated with them^[28-30]. Taking into account the excellent luminescent properties of Zn (II) coordination compounds, the photoluminescent experiments for complex 1, as well as the free ligand, have been investigated in the solid state at room temperature (Fig. 7). For complex 1, two intense emission peaks occur at 394 and 473 nm (λex = 320 nm), respectively. To further analyze the nature of these emission bands, the photoluminescence property of the ligand 2, 4′-Hbpt has also been explored. The free 2, 4′-Hbpt molecule exhibits an intense and a weak emission peak at 365 and 503 nm (λ_ex = 320 nm), respectively. Thus, we can presume that the emission peaks at 394 nm for complex 1 should originate from the intraligand π-π^* transitions of 2, 4′-Hbpt. Furthermore, the added peak above 400 nm for complex 1 may be attributed to the ligand-to-metal charge transfer (LMCT) bands^[31].

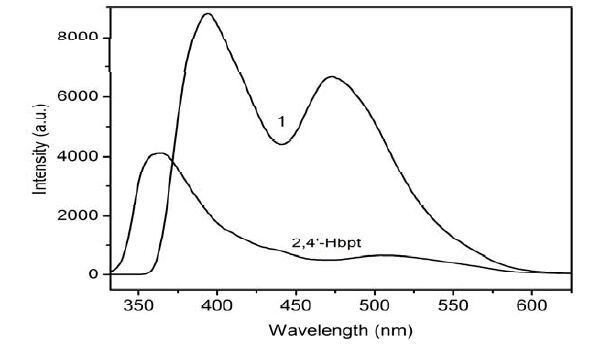

  Figure 7.  Emission spectra of 2, 4′-Hbpt and complex 1 in the solid state at room temperature

  图选项

  下载全尺寸图像

  下载幻灯片

  4   CONCLUSIONS

  In summary, a new complex Zn (2, 4′-bpt)₂(H₂O) is prepared under hydrothermal reactions. In the solid state, complex 1 showed strong photoluminescent properties. It indicates that complex 1 can be used as a potential optical material. Density functional theory is successfully applied to investigate the most optimized conformation, stability, molecular frontier orbital, and charge distribution of different conformations of the ligand, which corresponds with the experimental conformation of 2, 4′-Hbpt in the complex. Accordingly, our present findings with predicting the optimized conformation of the ligand will offer a possibility of controlling the formation of desired network structures.
