Citation: Xiao-Ling WU, Zi-Jian LI, Fang-Dong TANG, Nan QIAN, Xin-Xin CHU, Wei LIU. A Novel Fluorinated Metal-organic Framework for Xenon/Krypton Separation[J]. Chinese Journal of Structural Chemistry, ;2021, 40(1): 85-90. doi: 10.14102/j.cnki.0254–5861.2011–2776 shu

A Novel Fluorinated Metal-organic Framework for Xenon/Krypton Separation

Xiao-Ling WU ^a ,
Zi-Jian LI ^a ,
Fang-Dong TANG ^b ,
Nan QIAN ^a ,
Xin-Xin CHU ^a,, ,
Wei LIU ^a,,

a.
Shanghai Institute of Applied Physics, Chinese Academy of Science, Shanghai 201800, China
b.
Shanghai Institute of Measurement and Testing Technology, Shanghai 201203, China

Corresponding author: Xin-Xin CHU, Chuxinxin@sinap.ac.cn Wei LIU, Liuwei@sinap.ac.cn
Received Date: 24 February 2020
Accepted Date: 27 April 2020

Fund Project: the National Natural Science Foundation of China 51606210Young Potential Program of Shanghai Institute of Applied Physics, Chinese Academy of Science YX2019007Science and Technology Project of Shanghai Municipal Bureau of Quality and Technology Supervision 2017-01

Figures(5)

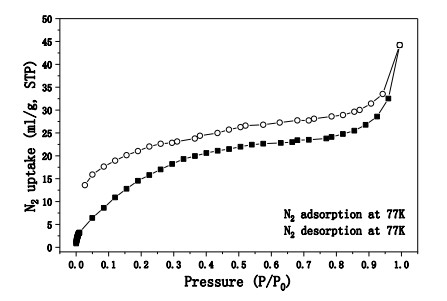

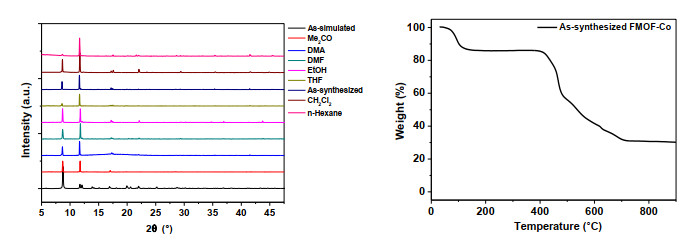

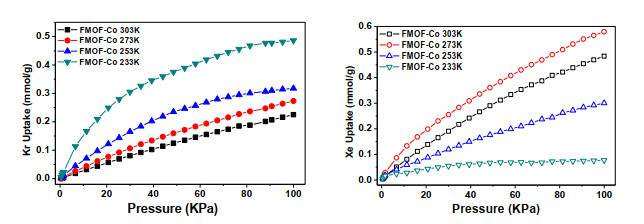

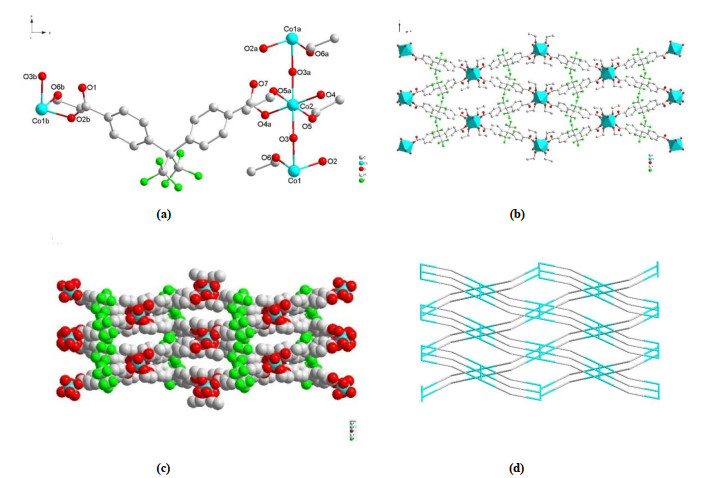

A porous metal-organic framework [C₂₁H₂₀CoF₆O₇] was synthesized with Co(CH₃COO)₂·4H₂O and CPHFP (2, 2'-bis(4-carboxyphenyl)hexafluoro-propane) under hydrothermal conditions. This FMOF-Co has been characterized by elemental analysis, infrared spectroscopy, thermogravimetric analysis, single-crystal and powder X-ray diffraction. The crystal is of monoclinic space group P2₁/n with a = 7.8911(2), b = 29.9053(8), c = 10.5811(3) Å, β = 90.193(10)°, V = 2499.70(12) Å³, Z = 4, M_r= 557.3, D_c= 1.481 g·cm^–3, F(000)= 1132, μ = 0.768 mm^–1, GOOF = 1.035, the final R = 0.0722 and wR = 0.2326 for 6347 observed reflections with I > 2σ(I). The structure of FMOF-Co is constructed form the linkage of Co(II) through CPHFP, forming a 3D net framework. The Kr and Xe uptake values are 0.225 and 0.484 mmol·g^–1 at 303 K (100 KPa) with their mol selectivity to be 0.46; while the Kr and Xe uptake values are 0.486 and 0.077 mmol·g^–1 at 233 K (100 KPa), with their mol separation being 6.29 at this condition.
- fluorinated MOFs,
- crystal structure,
- gas adsorption
1. [1]
  Smith, K. R.; Frumkin, H.; Balakrishnan, K.; Butler, C. D.; Chafe, Z. A.; Fairlie, I.; Kinney, P.; Kjellstrom, T.; Mauzerall, D. L.; McKone, T. E.; McMichael, A. J.; Schneider, M. Energy and human health. Annu. Rev. Public Health 2013, 34, 159–188. doi: 10.1146/annurev-publhealth-031912-114404
2. [2]
  Cullen, S. C.; Gross, E. G. The anesthetic properties of xenon in animals and human beings with additional observations on krypton. Science 1951, 113, 580–582. doi: 10.1126/science.113.2942.580
3. [3]
  Izumi, J.; Auerbach, S. M.; Carrodo, K. A.; Dutta, P. K. Waste gas treatment using zeolites in nuclear-related industries. In: (Eds. ). Handbook of Zeolites Science and Technology. Marcel Dekker: New York 2003.
4. [4]
  Kerry, F. G. Industrial Gas Handbook: Gas Separation and Purification; CRC Press: Boca Raton Florida 2007.
5. [5]
  Yang, R. T.; Adsorbents: fundamentals and Applications. John Wiley & Sons Inc. : Hoboken 2003.
6. [6]
  Rowsell, J. L. C.; Yaghi, O. M. Metal-organic frameworks: a new class of porous materials. Micropor. Mesopor. Mater. 2004, 73, 3–14. doi: 10.1016/j.micromeso.2004.03.034
7. [7]
  Férey, G. Hybrid porous solids: past, present, future. Chem. Soc. Rev. 2008, 37, 191–214. doi: 10.1039/B618320B
8. [8]
  Bae, Y. S.; Snurr, R. Q. Development and evaluation of porous materials for carbon dioxide separation and capture. Angew. Chem. Int. Ed. 2011, 50, 11586–11596. doi: 10.1002/anie.201101891
9. [9]
  Wang, M.; Zhuo, C.; He, L.; Lin, Q. P. Synthesis, crystal structure and gas adsorption of a trimeric nickel-based coordination polymer. Chin. J. Struct. Chem. 2019, 38, 345–350.
10. [10]
  Banerjee, D.; Simon, C. M.; Plonka, A. M.; Motkuri, R. K.; Liu, J.; Chen, X.; Smit, B.; Parise, J. B.; Haranczyk, M.; Thallapally, P. K. Metal-organic framework with optimally selective xenon adsorption and separation. Nature Communications 2016, 7, 11831. doi: 10.1038/ncomms11831
11. [11]
  Liu, J.; Thallapally, P. K.; Strachan, D. M. Metal-organic frameworks for removal of Xe and Kr from nuclear fuel reprocessing plants. Langmuir. 2012, 28, 11584–11589. doi: 10.1021/la301870n
12. [12]
  Thallapally, P. K.; Grate, J. W.; Motkuri, R. K. Facial xenon capture and release at room temperature using a metal-organic framework: a comparison with activated charcoal. Chem. Commun. 2012, 48, 347–349. doi: 10.1039/C1CC14685H
13. [13]
  Yang, C.; Wang, X. P.; Omary, M. A. Fluorous metal-organic frameworks for high-density gas adsorption. J. Am. Chem. Soc. 2007, 129, 15454–15455. doi: 10.1021/ja0775265
14. [14]
  Fernandez, C. A.; Thallapally, P. K.; Motkuri, R. K.; Nune, S. K.; Sumrak, J. C.; Liu, J. Gas-induced expansion and contraction of a fluorinated netak-organic framework. Cryst. Growth Des. 2010, 10, 1037–1039. doi: 10.1021/cg9014948
15. [15]
  Liu, Z. Q.; Stren, C. L.; Lambert, J. B. Metal-organic frameworks from dipodal and tripodal silicon-centered tetrahedral ligands. Organometallics 2009, 28, 84–93. doi: 10.1021/om800678g
16. [16]
  Thallapally, P. K.; Tian, J.; Kishan, M. R.; Fernandez, C. A.; Dalgarno, S. J.; McGrail, P. B.; Warren, J. E.; Atwood, J. L. Flexible (breathing) interpenetrated metal-organic frameworks for CO₂ separation applications. J. Am. Chem. Soc. 2008, 130, 16842–16843. doi: 10.1021/ja806391k
17. [17]
  Thallapally, P. K.; McGrail, B. P.; McGrail, P. B.; Dalgarno, S. J.; Atwood, J. L. Gas/solvent-induced transformation and expansion of a nonporous solid to 1: 1 host guest form. Cryst. Growth Des. 2008, 8, 2090–2092. doi: 10.1021/cg800347n
18. [18]
  Fernandez, C. A.; Liu, J.; Thallapally, P. K.; Strachan, D. M. Switching Kr/Xe selectivity with temperature in a metal-organic framework. J. Am. Chem. Soc. 2012, 134, 9046–9049. doi: 10.1021/ja302071t
19. [19]
  Sheldrick, G. M. SHELXS-97 and SHELXL-97, Program for X-ray Crystal Structures Solution and Refinement. University of Göttingen, Germany 1997.
