Citation: WANG Jianghui. Solving the Shutdown Corrosion Problem of Metal-Air Batteries via Kipp's Apparatus Principle[J]. Chinese Journal of Applied Chemistry, ;2020, 37(9): 1093-1098. doi: 10.11944/j.issn.1000-0518.2020.09.200077 shu

Solving the Shutdown Corrosion Problem of Metal-Air Batteries via Kipp's Apparatus Principle

WANG Jianghui ^,

College of Materials Science and Engieering, Anhui University of Technology, Ma'anshan, Anhui 243000, China

Corresponding author: WANG Jianghui, 2504434202@qq.com
Received Date: 19 March 2020
Revised Date: 1 June 2020
Accepted Date: 29 June 2020

Fund Project: the 2018 Anhui University of Technology Undergraduate Innovation and Entrepreneurship Training Program 201810360186Supported by the 2018 Anhui University of Technology Undergraduate Innovation and Entrepreneurship Training Program(No.201810360186)

Figures(6)

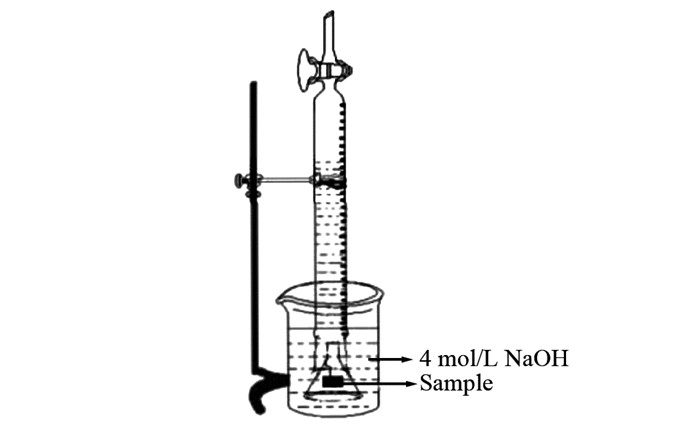

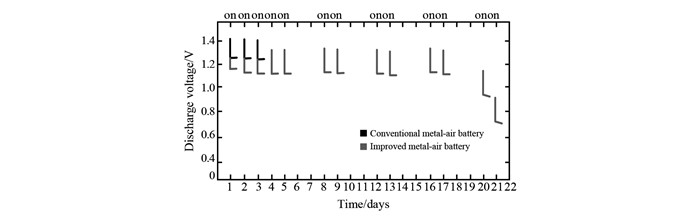

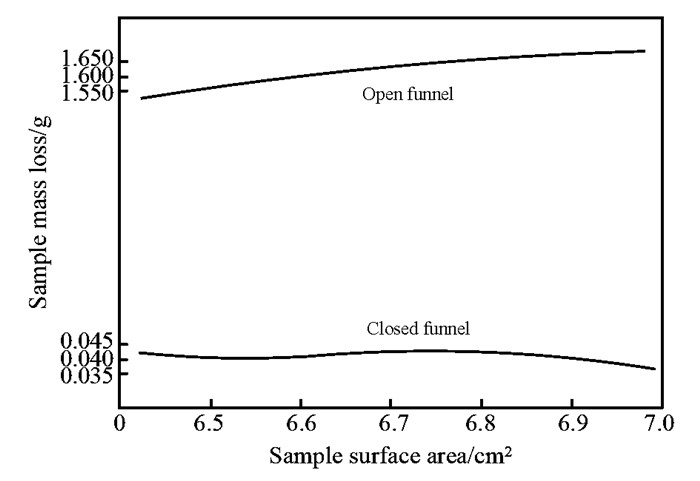

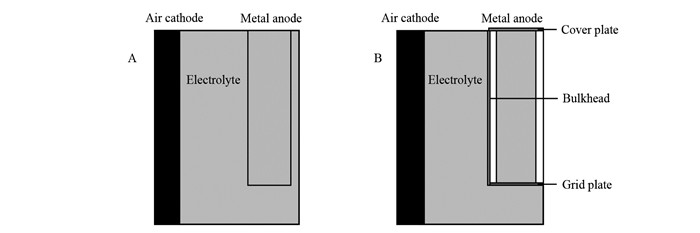

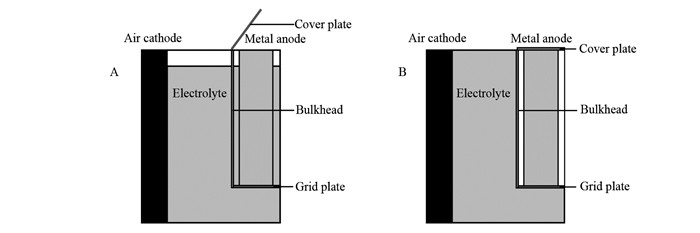

The metal anode of the metal-air battery is in contact with the electrolyte during the shutdown and the corrosion occurs, which seriously affects the shelf life of the metal-air battery. Through the simple improvement of the structure of the conventional metal-air battery, the shutdown corrosion problem of metal-air batteries is solved by using the Kipp's apparatus principle so that the metal-air battery can last longer. The single cells of metal-air battery before and after the structural improvement were constructed with aluminum foil as the metal anode and the intermittent constant current discharge was carried out to test the shutdown life of the battery. The shutdown corrosion situation of the anode was quantitatively studied by the mass loss experiment and the hydrogen evolution loss experiment. The results show that when 0.25 mm thick aluminum foil is used as the metal anode, the shutdown life of metal-air battery before and after structural improvement is 4 and 21 days, respectively. The anode corrosion rate of the improved metal-air battery is much slower than that of the conventional metal-air battery. For a single battery, only about 0.0380 g of aluminum is needed to generate the hydrogen required for solid-liquid separation, which is about 0.038% of the general commercial aluminum anode.
- metal-air batteries,
- shutdown corrosion,
- Kipp's apparatus principle,
- solid-liquid separation
1. [1]
  ZHU Mingjun, YUAN Zhenshan, SANG Lin. Advances in Metal/Air Batteries[J]. Power Technol, 2012,36(12):1953-1955.
2. [2]
  WANG Jiqiang. Battery Manual[M]. Version 3. Beijing:Chemical Industry Press, 2007:819(in Chinese).
3. [3]
  XU Yanfang, ZHENG Kewen. Development and Application of Metal/Air Batteries[J]. Ship Sci Technol, 2003,25(1):66-69.
4. [4]
  Kindler A, Matthies L. Micro-and Nanotechnology Sensors, Systems, and Applications VI[J]. Proc SPIE, 2014. doi: 10.1117/12.2051820
5. [5]
  C News. Electric Car with Massive Range in Demo by Phinergy, Alcoa[EB/OL]. 2014-06-09. www.cbc.ca/news/technology/electric-car-withmassive-range-in-demo-by-phinergy-alcoa-1.2664653.
6. [6]
  Sherman S B, Cano Z P, Fowler M. Range-extending Zinc-Air Battery for Electric Vehicle[J]. AIMS Energy, 2018,6:121-145. doi: 10.3934/energy.2018.1.121
7. [7]
  Rahman M A, Wang X, Wen C. High Energy Density Metal-Air Batteries:A Review[J]. J Electrochem Soc, 2013,160:A1759-A1771. doi: 10.1149/2.062310jes
8. [8]
  Li Y, Lu J. Metal-Air Batteries:Will They be the Future Electrochemical Energy Storage Device of Choice[J]. ACS Energy Lett, 2017,2:1370-1377. doi: 10.1021/acsenergylett.7b00119
9. [9]
  Lu L, Han X, Li J. A Review on the Key Issues for Lithium-Ion Battery Management in Electric Vehicles[J]. J Power Sources, 2013,226:272-288. doi: 10.1016/j.jpowsour.2012.10.060
10. [10]
  Egan D R, Leoen C P D, Wood R J K. Developments in Electrode Materials and Electrolytes for Aluminium-Air Batteries[J]. J Power Sources, 2013,236:293-310. doi: 10.1016/j.jpowsour.2013.01.141
11. [11]
  Zhang Z, Zuo C, Liu Z. All-Solid-State Al-Air Batteries with Polymer Alkaline Gel Electrolyte[J]. J Power Sources, 2014,251:470-475. doi: 10.1016/j.jpowsour.2013.11.020
12. [12]
  Revel R, Audichon T, Gonzalez S. Non-aqueous Aluminium-Air Battery Based on Ionic Liquid Electrolyte[J]. J Power Sources, 2014,272:415-421. doi: 10.1016/j.jpowsour.2014.08.056
