Citation: SUN Yinghua, YANG Meiling, MEI Zemin. Synthesis, Structure Characterization and Photoluminescence Property of a New Molybdenum-Vanadium Polyoxometalate[J]. Chinese Journal of Applied Chemistry, ;2018, 35(5): 589-593. doi: 10.11944/j.issn.1000-0518.2018.05.170263 shu

Synthesis, Structure Characterization and Photoluminescence Property of a New Molybdenum-Vanadium Polyoxometalate

Department College of Chemistry, Baicheng Normal University, Baicheng, Jilin 137000, China

Corresponding author: MEI Zemin, zeminmei@163.com
Received Date: 6 September 2017
Revised Date: 18 October 2017
Accepted Date: 18 October 2017

Fund Project: Supported by the Education Department of Jilin Province Science and Technology Research Projects During the 12th Five Year Plan(No.2013-389)the Education Department of Jilin Province Science and Technology Research Projects During the 12th Five Year Plan 2013-389

Figures(6)

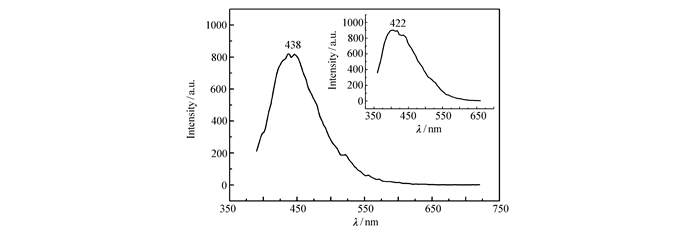

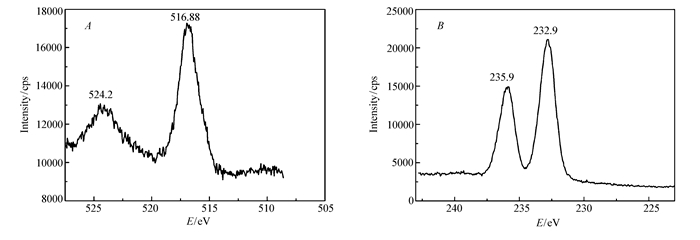

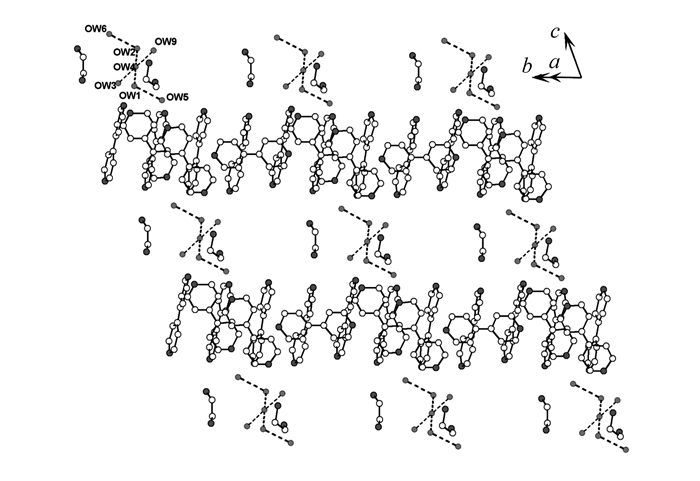

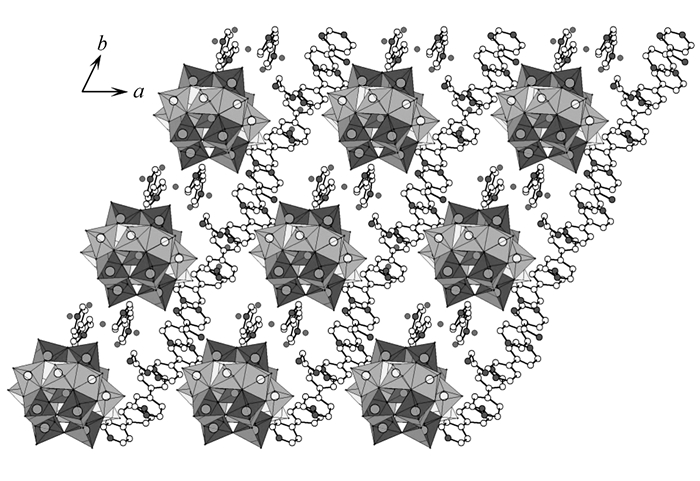

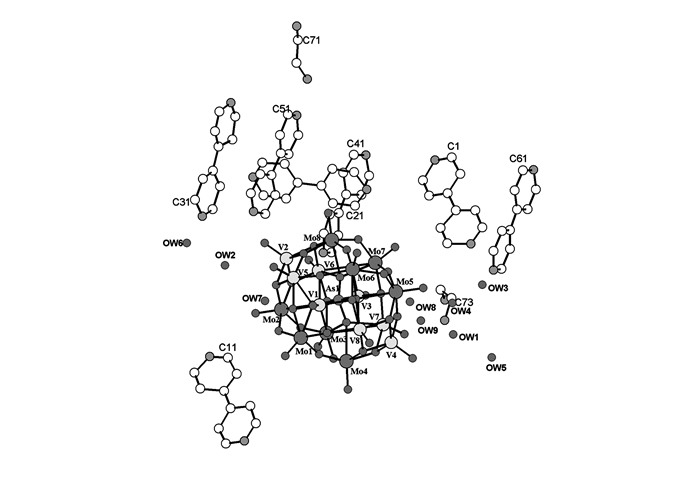

A new tetra-capped Keggin molybdenum-vanadium polyoxometalate[H₃Mo₈^ⅥV₈^ⅣO₄₀(AsO₄)](en)₂(4, 4-bipy)₇·9H₂O(en:ethylenediamine, bipy:bipyridine)(1) was prepared under hydrothermal conditions, and characterized by elemental analysis, FT-IR, X-ray photoelectron spectroscopy(XPS) and single crystal X-ray diffraction analysis. The title compound crystallized in a triclinic system, P1 space group, a=1.47395(5) nm, b=1.48172(6) nm, c=1.62881(7) nm, α=66.16(3)°, β=87.15(2)°, γ=63.42(1)°, V=2.8723(2) nm³, Z=1, R₁=0.0728, wR₂=0.2014. Compound 1 is composed of a tetra-capped Keggin polyoxoanion, 4, 4'-bipyridine, ethylenediamines and lattice water molecules. The rich hydrogen bonds among polyoxoanion and water molecules make the compound molecules forming three dimensional supramolecular array. The compound 1 exhibits strong fluorescent emission and may be an excellent candidate for potential photoactive materials.
- polyoxometalate,
- supramolecular,
- hydrothermal synthesis,
- fluorescent properties
1. [1]
  Pope M T, Müller A. Polyoxometalate Chemistry:An Old Field with New Dimensions in Several Disciplines[J]. Angew Chem Int Ed, 1991,30(1):34-48. doi: 10.1002/(ISSN)1521-3773
2. [2]
  M ller A, Roy S. En Route from the Mystery of Molybdenum Blue via Related Manipulatable Building Blocks to Aspects of Materials Science[J]. Coord Chem Rev, 2003,245(1/2):153-166.
3. [3]
  Dolbecq A, Dumas E, Mayer C R. Hybrid Organic-Inorganic Polyoxometalate Compounds:From Structural Diversity to Applications[J]. Chem Rev, 2010,110(10):6009-6048. doi: 10.1021/cr1000578
4. [4]
  Hou D, Hagen K S, Hill C L. Tridecavanadate, ,[V₁₃O₃₄]^3-, a New High-potential Isopolyoxovanadate[J]. J Am Chem Soc, 1992,114(14):5864-5865. doi: 10.1021/ja00040a061
5. [5]
  Liu C M, Zhang D Q, Zhu D B. Mixed Molybdenum-Vanadium Polyoxoanion-Bridged Trimetallic Nanocluster Complexes:Hydrothermal Syntheses and Crystal Structures of {Mo₆^ⅥMo₂^VV₈^ⅣO₄₀(PO₄)[Co(phen)₂(H₂O)]₂}[Co₂(phen)₂(OH)₂(H₂O)₄]_1/2 and {Mo₅^ⅥMo₃^VV₈^ⅣO₄₀(PO₄)[Co(phen)(en)(H₂O)]₂}[Co(phen)₃]·1.5H₂O[J]. Cryst Grow Des, 2003,3(3):363-368. doi: 10.1021/cg0200715
6. [6]
  Liu C M, Zhang D Q, Xiong M. A Novel Two-dimensional Mixed Molybdenum-Vanadium Polyoxometalate with Two Types of Cobalt(Ⅱ) Complex Fragments as Bridges[J]. Chem Commun, 2002(13):1416-1417. doi: 10.1039/b202540j
7. [7]
  Wang X L, Han Na, Lin H Y. pH and Amine-induced Various Octamolybdatebased Metal-Organic Complexes:Assembly, Structures and Properties[J]. Dalton Trans, 2014,43(5):2052-2060. doi: 10.1039/C3DT52494A
8. [8]
  Chen D Y, Sahasrabudhe A, Wang P. Synthesis and Properties of a Novel Quarternerized Imidazolium[α-PW₁₂O₄₀]^3- Salt as a Recoverable Photo-polymerization Catalyst[J]. Dalton Trans, 2013,42(29):10587-10596. doi: 10.1039/c3dt32916j
9. [9]
  Yang L, Ma P T, Zhang X Q. An Organic-Inorganic Hybrid Dy(Ⅲ)-containing Polyoxomolybdate Based on Functionalized Diphosphonate Ligands[J]. Inorg Chem Comm, 2013,35(9):5-8.
10. [10]
  Brown I D, Altermatt D. Bond-valence Parameters Obtained from a Systematic Analysis of the Inorganic Crystal Structure Database[J]. Acta Crystallogr, 1985,B41:244-247.
