Citation: LIU Jiajia, XIE Yicheng, XU Hujun. Synthesis and Properties of a Cationic Gemini Asphalt Emulsifier[J]. Chinese Journal of Applied Chemistry, ;2018, 35(5): 552-558. doi: 10.11944/j.issn.1000-0518.2018.05.170146 shu

Synthesis and Properties of a Cationic Gemini Asphalt Emulsifier

School of Chemical and Material Engineering, Jiangnan University, Wuxi, Jiangsu 214122, China

Corresponding author: XU Hujun, xu6209@163.com
Received Date: 8 May 2017
Revised Date: 27 June 2017
Accepted Date: 30 August 2017

Fund Project: Supported by the Jiangsu Provincial Prospective Joint Research Project of Industry-Academy-Research(No.BY2015019-35)the Jiangsu Provincial Prospective Joint Research Project of Industry-Academy-Research BY2015019-35

Figures(6)

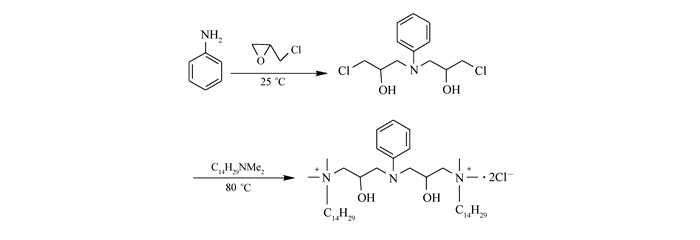

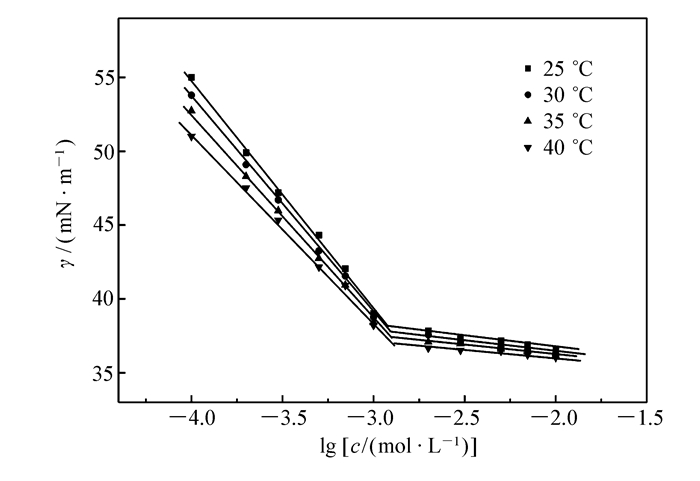

A cationic Gemini asphalt emulsifier with benzene ring(symbolized as G-T) was synthesized with aniline, epichlorohydrin and N, N-dimethyltetradecylamine by two steps. The product was characterized by Fourier transform infrared spectroscopy(FT-IR), mass spectroscopy, and proton nuclear magnetic resonance(¹H NMR) spectroscopy. The Krafft point, emulsifying power and performance of emulsified asphalt were studied. The critical micelle concentration(cmc) and surface tension(γ_cmc) of G-T were measured from 25℃ to 40℃ and thermodynamic parameters of the micellization were calculated. The results show that the Krafft point of G-T is below 0℃, and the stable time of the emulsified liquid is up to 309 s. The cmc and γ_cmc are 1.269×10^-3 mol/L and 38.33 mN/m at 25℃, respectively. With the rise of temperature, the cmc increases, the γ_cmc decreases, the maximum surface adsorption capacity(Γ_max) decreases and the minimum molecule area(A_min) increases. Emulsified asphalt test shows that G-T is a slow-crack asphalt emulsifier. The prepared emulsified asphalt meets the technical specifications of micro-surfacing.
- Gemini surfactants,
- surface tension,
- emulsifying properties,
- asphalt emulsifie
1. [1]
  Zana R. Gemini(dimeric) Surfactants[J]. Curr Opin Colloid Interface Sci, 1996,1(1):566-571.
2. [2]
  Menger F M, Keiper J S, Azov V. Gemini Surfactants with Acetylenic Spacers[J]. Langmuir, 2000,16(5):2062-2067. doi: 10.1021/la9910576
3. [3]
  ZHAO Jianxi. A New Generation of Surfactants:Geminis[J]. Prog Chem, 1999,11(4):348-357.
4. [4]
  Caillier L, Givenchy E, Levy R. Polymerizable Semi-fluorinated Gemini Surfactants Designed for Antimicrobial Materials[J]. J Colloid Interface Sci, 2009,332(1):201-207. doi: 10.1016/j.jcis.2008.12.038
5. [5]
  SUI Zhihui, LIN Guanfa, ZHU Youyi. The Preparation, Application and Development of Surfactants for Tertiary Oil Recovery[J]. Chem Ind Eng Prog, 2003,22(4):355-360.
6. [6]
  SHI Laishun, WAN Zhongyi, WANG Zhongyan. Synthesis and Properties of New Gemini Cationic Asphalt Emulsifier[J]. J Shandong Univ, 2007,37(3):122-126.
7. [7]
  SHI Laishun, ZHAO Yafeng, ZHANG Qingli. Synthesis and Properties of Gemini Cationic Asphalt Emulsifier[J]. Pet Asphalt, 2010,24(6):66-71.
8. [8]
  SHI Hang. Synthesis and Characterization of Novel Gemini Cationic Asphalt Emulsifier[J]. Chem Intermed, 2012(11):58-60.
9. [9]
  HU Zengfu. Production and Application of Emulsified Asphalt for Road[M]. Beijing:China Communications Press, 2012(in Chinese).
10. [10]
  Bales B L, Benrraou M, Zana R. Krafft Temperature and Micelle Ionization of Aqueous Solutions of Cesium Dodecyl Sulfate[J]. J Phys Chem B, 2002,106(35):9033-9035. doi: 10.1021/jp021297l
11. [11]
  Nudelman A. NMR Chemical Shifts of Common Laboratory Solvents as Trace Impurities[J]. J Org Chem, 1997,62(21):7512-7515. doi: 10.1021/jo971176v
12. [12]
  Zana R. Alkanediyl-α, ω-bis(dimethylalkylammonium bromide) Surfactants:Ⅱ.Krafft Temperature and Melting Temperature[J]. J Colloid Interface Sci, 2002,252(1):259-261. doi: 10.1006/jcis.2002.8457
13. [13]
  Zieliński R, Ikeda S, Nomura H. Effect of Temperature on Micelle Formation in Aqueous Solutions of Alkyltrimethylammonium Bromides[J]. J Colloid Interface Sci, 1989,129(1):175-184. doi: 10.1016/0021-9797(89)90428-1
14. [14]
  Di M A, Brinchi L, Di P P. Effect of Head Group Size, Temperature and Counterion Specificity on Cationic Micelles[J]. J Colloid Interface Sci, 2011,358(1):160-166. doi: 10.1016/j.jcis.2010.12.028
15. [15]
  Ministry of Communications Highway Science Research Institute. Technical Guide for Micro-surfacing and Slurry Seal[M]. Beijing:China Communications Press, 2006(in Chinese).
