Citation: Chen LU, Qinlong HONG, Haixia ZHANG, Jian ZHANG. Syntheses, structures, and properties of copper-iodine cluster-based boron imidazolate framework materials[J]. Chinese Journal of Inorganic Chemistry, ;2025, 41(1): 149-154. doi: 10.11862/CJIC.20240407 shu

Syntheses, structures, and properties of copper-iodine cluster-based boron imidazolate framework materials

Fujian Institute of Research on the Structure, Chinese Academy of Sciences, Fuzhou 350002, China

Corresponding author: Haixia ZHANG, zhanghaixia@fjirsm.ac.cn Jian ZHANG, zhj@fjirsm.ac.cn
Received Date: 30 October 2024
Revised Date: 27 December 2024

Figures(4)

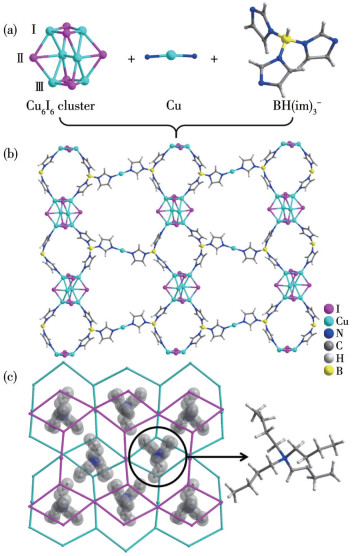

Two examples of copper-iodine cluster-based boron imidazolate framework (BIFs) were obtained using cuprous iodide, pre-synthesized boron imidazolate ligands, and quaternary ammonium salts. Their structures and properties were characterized. X-ray single crystal diffraction results show that [N(C₄H₉)₄]{Cu₆I₆[BH(im)₃]Cu[BH(im)₃]}·0.5CH₃OH (BIF-155, im=imidazolate) is a (3, 4)-connected two-dimensional layer network formed by alternately connecting four-connected Cu₆I₆ clusters, single core Cu atoms and triple-connected boron imidazolate ligands BH(im)₃^-. [N(C₄H₉)₄]{Cu₃I₃ [BH(im)₃]} (BIF-156) is a 3-connected two-dimensional layer network with fes topology obtained by connecting Cu₃I₃ clusters and BH(im)₃^- boronazole ligands. The corresponding crystals of the two compounds had good crystallinity. Under ultraviolet lamp illumination, the two showed different fluorescence properties, that is, BIF-155 emited red light and BIF-156 emited yellow light.
- copper iodide cluster,
- boron imidazolate framework,
- fluorescence
1. [1]
  ZHAO X, BU X H, WU T, ZHENG S T, WANG L, FENG P Y. Selective anion exchange with nanogated isoreticular positive metal-organic frameworks[J]. Nat. Commun., 2013, 4: 2344 doi: 10.1038/ncomms3344
2. [2]
  LI H L, EDDAOUDI M, O′KEEFFE M, YAGHI O M. Design and synthesis of an exceptionally stable and highly porous metal-organic framework[J]. Nature, 1999, 402: 276-279 doi: 10.1038/46248
3. [3]
  CAVKA J H, JAKOBSEN S, OLSBYE U, GUILLOU N, LAMBERTI C, BORDIGA S, LILLERUD K P. A new zirconium inorganic building brick forming metal organic frameworks with exceptional stability[J]. J. Am. Chem. Soc., 2008, 130(42): 13850-13851 doi: 10.1021/ja8057953
4. [4]
  LIU C H, FANG W H, ZHANG J. Synthetic strategies, diverse structures and properties of copper halide cluster-based materials[J]. Chinese J. Struct. Chem., 2020, 12: 2091-2101
5. [5]
  WU Y, XIE M, JIN J K, ZHANG Z Y, HAN H, TIAN Y P, XIAO Y Q, NING G H, LI D, JIANG X F. A copper iodide cluster-based metal-organic polyhedra for photocatalytic click chemistry[J]. Small Struct., 2022, 3(5): 2100155 doi: 10.1002/sstr.202100155
6. [6]
  PENG Q C, SI Y B, YUAN J W, YANG Q, GAO Z Y, LIU Y Y, WANG Z Y, LI K, ZANG S Q, TANG B Z. High performance dynamic X-ray flexible imaging realized using a copper iodide cluster-based MOF microcrystal scintillator[J]. Angew. Chem. ‒Int. Edit., 2023, 62(40): e202308194 doi: 10.1002/anie.202308194
7. [7]
  KANG Y, WANG F, ZHANG J, BU X H. Luminescent MTN-type cluster-organic framework with 2.6 nm cages[J]. J. Am. Chem. Soc., 2012, 134(43): 17881-17884 doi: 10.1021/ja308801n
8. [8]
  ZHANG J, WU T, ZHOU C, CHEN S M, FENG P Y, BU X H. Zeolitic boron imidazolate frameworks[J]. Angew. Chem. ‒Int. Edit., 2009, 8(14): 2542-2545
9. [9]
  ZHENG S T, WU T, ZHANG J, MINA C, RUBEN A N, FENG P Y, BU X H. Porous metal carboxylate boron imidazolate frameworks (MC-BIFs)[J]. Angew. Chem. ‒Int. Edit., 2010, 49(31): 5362-5366 doi: 10.1002/anie.201001675
10. [10]
  ZHANG H X, LIU M, WEN T, ZHANG J. Synthetic design of functional boron imidazolate frameworks[J]. Coord. Chem. Rev., 2016, 307(2): 255-266
11. [11]
  ZHANG H X, WANG F, YANG H, TAN Y X, ZHANG J, BU X H. Interrupted zeolite LTA and ATN-type boron imidazolate frameworks[J]. J. Am. Chem. Soc., 2011, 133(31): 11884-11887 doi: 10.1021/ja2040927
12. [12]
  WANG F, SHU Y B, BU X H, ZHANG J. Zeolitic boron imidazolate frameworks with 4-connected octahedral metal centers[J]. Chem. ‒Eur. J., 2012, 18(38): 11876-11879 doi: 10.1002/chem.201202377
13. [13]
  ZHANG H X, FU H R, LI H Y, ZHANG J, BU X H. Porous ctn-type boron imidazolate framework for gas storage and separation[J]. Chem. Eur. J., 2013, 19(35): 11527-11530 doi: 10.1002/chem.201301212
14. [14]
  ZHANG H X, LU C, ZHANG J. Recent applications of multifunctional boron imidazolate framework materials[J]. Acc. Mater. Res., 2023, 4(11): 995-1007 doi: 10.1021/accountsmr.3c00168
15. [15]
  ZHANG H X, LIU M, XU G L, LIU L Y, ZHANG J. Selectivity of CO₂ via pore space partition in zeolitic boron imidazolate frameworks[J]. Chem. Commun., 2016, 52(17): 3552-3555 doi: 10.1039/C6CC00185H
16. [16]
  YANG E, WANG L, ZHANG J. A luminescent neutral cadmium􀃭-boron􀃮-imidazolate framework with sql net[J]. CrystEngComm, 2014, 16: 2889-2891 doi: 10.1039/c3ce42604a
17. [17]
  WEN T, ZHENG Y, XU C C, ZHANG J, MIETEK J, QIAO S Z. A boron imidazolate framework with mechanochromic and electrocatalytic properties[J]. Mater. Horiz., 2018, 5(6): 1151-1155 doi: 10.1039/C8MH00859K
18. [18]
  ZHANG H X, HONG Q L, LI J, WANG F, HUANG X S, CHEN S M, TU W G, YU D S, XU R, ZHOU T H, ZHANG J. Isolated square-planar copper center in boron imidazolate nanocages for photocatalytic reduction of CO₂ to CO[J]. Angew. Chem. ‒Int. Edit., 2019, 58(34): 11752-11756 doi: 10.1002/anie.201905869
19. [19]
  SHAO P, ZHOU W, HONG Q L, YI L C, ZHENG L R, WANG W J, ZHANG H X, ZHANG W B, ZHANG J. Synthesis of a boron-imidazolate framework nanosheet with dimer copper units for CO₂ electroreduction to ethylene[J]. Angew. Chem. ‒Int. Edit., 2021, 60(30): 16687-16692 doi: 10.1002/anie.202106004
20. [20]
  WEN T, ZHANG D X, ZHANG H X, ZHANG H B, ZHANG J, LI D S. Redox-active Cu(Ⅰ) boron imidazolate framework for mechanochromic and catalytic applications[J]. Chem. Commun., 2014, 50: 8754-8756 doi: 10.1039/C4CC02057J
21. [21]
  WANG Z R, CHEN J Q, LI Q H, ZHANG H X, ZHANG J. Multicolor fluorescent lead-MOFs for white-light-emitting and anticounterfeiting applications[J]. Adv. Opt. Mater., 2023, 11(8): 2202743 doi: 10.1002/adom.202202743
