Effects of anions on the structural regulation of Zn-salen-modified metal-organic cage

State Key Laboratory of Fine Chemicals, Dalian University of Technology, Dalian, Liaoning 116024, China

Corresponding author: Chunying DUAN, cyduan@dlut.edu.cn
Received Date: 3 June 2024
Revised Date: 5 July 2024

Figures(7)

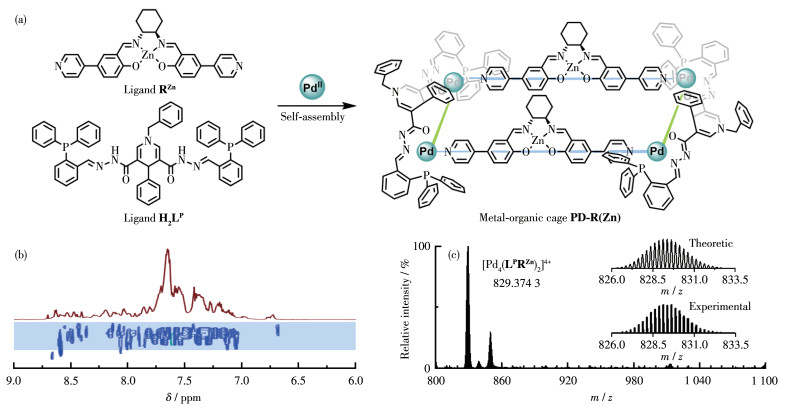

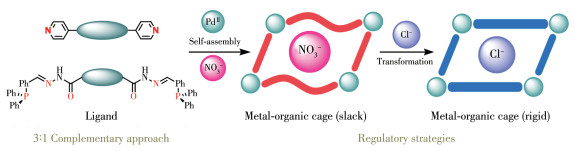

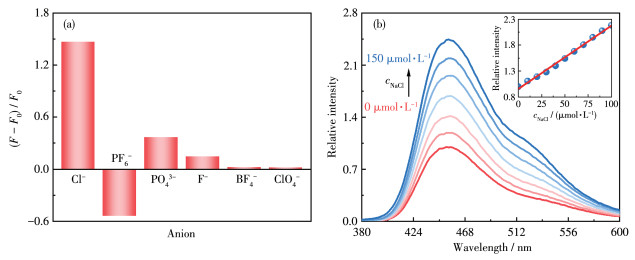

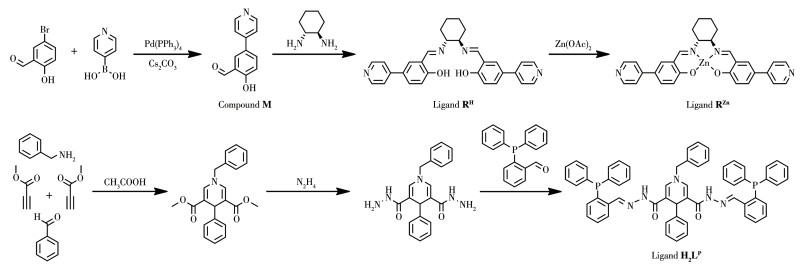

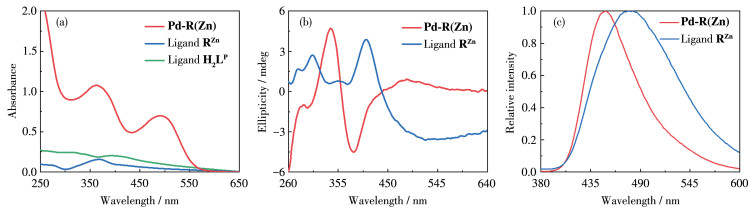

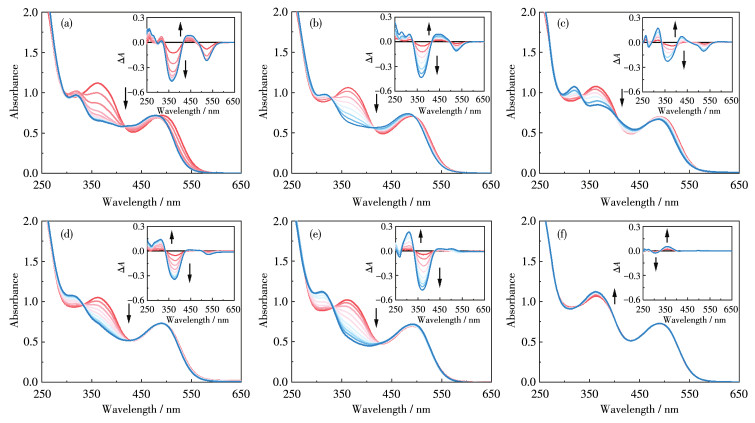

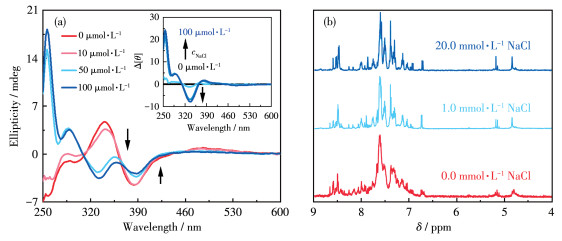

By virtue of a 3∶1 complementary coordination strategy, a chiral heteroleptic metal-organic cage that contains divergent functional units, Pd-R(Zn), was precisely constructed via self-assembly of monodentate variational Znsalen ligands R^Zn and NADH (reduced nicotinamide adenine dinucleotide) mimic modified tridentate ligands with square-planar Pd ions. UV-Vis and luminescence spectra experiments reveal that different anions could selectively interact with different sites of Zn-salen modified metal-organic cages to achieve the structural regulation of cage compound, by using the differentiated host-guest electrostatic interactions of counter ions with metal-organic hosts. Compared to other anions, the presence of chloride ions caused the most significant fluorescence emission enhancement of Pd-R(Zn), meanwhile, the UV-Vis absorption band attributed to the salen aromatic backbone showed an absorption decrease, and the metal-to-ligand induced peak displayed a blue shift effect. Circular dichroism and ¹H NMR spectra further demonstrate that the introduction of chloride anions is beneficial to keeping a more rigid scaffold.
