Citation: Siyu HOU, Weiyao LI, Jiadong LIU, Fei WANG, Wensi LIU, Jing YANG, Ying ZHANG. Preparation and catalytic performance of magnetic nano iron oxide by oxidation co-precipitation method[J]. Chinese Journal of Inorganic Chemistry, ;2024, 40(8): 1577-1582. doi: 10.11862/CJIC.20230469 shu

Preparation and catalytic performance of magnetic nano iron oxide by oxidation co-precipitation method

Shenyang Pharmaceutical University, Benxi, Liaoning 117004, China

Corresponding author: Ying ZHANG, zhangying@syphu.edu.cn
Received Date: 14 December 2023
Revised Date: 26 June 2024

Figures(4)

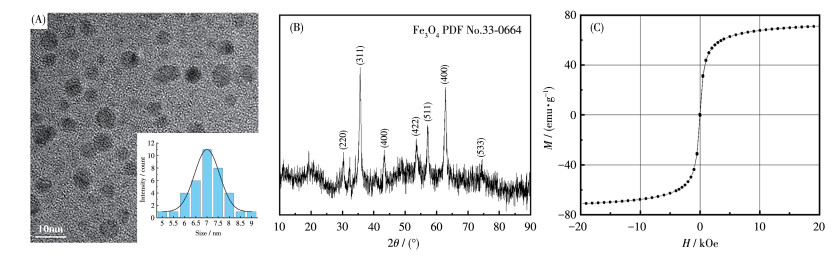

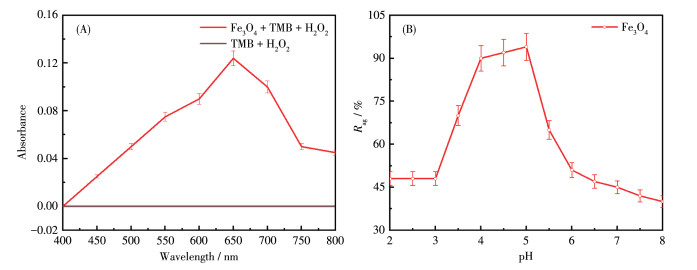

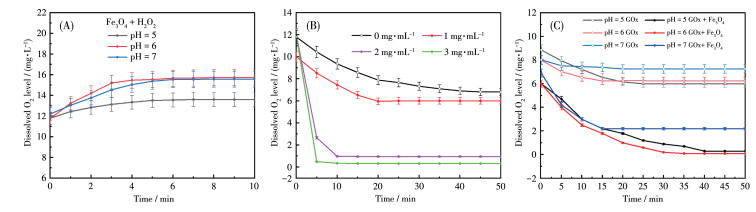

Iron oxide particles with a size of 7 nm were prepared by the oxidation co-precipitation method using Fe²⁺ as an iron source, 0.4% H₂O₂ as an oxidant, and NaOH as a precipitator. This experiment further simulated tumor starvation therapy in vitor: in 5 mL (10 μg·mL^-1) of glucose oxidase and 15 mL (5 mg·mL^-1) of glucose solution system, to explore the optimal conditions for the catalytic performance of catalase (CAT)-like and peroxidase (POD)-like of nano ferrous oxide. The results showed that under 1 mg·mL^-1, at pH=5.0, the CAT-like activity of nano Fe₃O₄ can promote an increase in the reaction rate and limit of glucose oxidation reaction; at pH=5.0, the POD-like activity of nano iron oxide was better. It can catalyze hydrogen peroxide to produce reactive oxygen species with high efficiency.
- nano iron oxide,
- oxidation co-precipitation method,
- catalytic performance,
- tumor starvation therapy,
- reactive oxygen species
1. [1]
  Mansour S F, Hemeda O M, Abdo M A, Nada W A. Improvement on the magnetic and dielectric of behaviour hard/soft ferrite nanocomposites[J]. J. Mol. Struct., 2018,1152:207-214. doi: 10.1016/j.molstruc.2017.09.089
2. [2]
  Das Talukdar A, Sarker S D, Patra J K. Advances in nanotechnology-based drug delivery systems. Amsterdam: Elsevier, 2022: 585-604
3. [3]
  GAO M, ZHANG T Q, LI J J, HU J Q, JIN M Y, ZHAO Y, WANG H Y, XUE C G. Preparation of magnetic chitosan/Fe₃O₄/graphene oxide adsorbent, and its polydye adsorption properties[J]. Chinese J. Inorg. Chem., 2019,39(4):723-734.
4. [4]
  Vargason A M, Anselmo A C, Mitragotri S. The evolution of commercial drug delivery technologies[J]. Nat. Biomed. Eng., 2021,5:951-967. doi: 10.1038/s41551-021-00698-w
5. [5]
  Dong H J, Du W, Dong J, Che R C, Kong F, Cheng W L, Ma M, Gu N, Zhang Y. Depletable peroxidase-like activity of Fe₃O₄ nanozymes accompanied with separate migration of electrons and iron ions[J]. Nat. Commun., 2022,13:133-139.
6. [6]
  Zhou Y F, Liu C, Yu Y, Yin M, Sun J L, Huang J, Chen N, Wang H, Fan C H, Song H Y. An organelle-specific nanozyme for diabetes care in genetically diet-induced models[J]. Adv. Mater., 2020,32:221-234.
7. [7]
  Dong H J, Fan Y Y, Zhang W, Gu N, Zhang Y. Catalytic mechanism and theoretical model of nano-enzymes[J]. Bioconjugate Chem., 2019,30:1273-1296. doi: 10.1021/acs.bioconjchem.9b00171
8. [8]
  LI J Y, Tong D D, LIN J S. Current status of cancer starvation therapy[J]. Journal of Zhejiang University(Medical Sciences), 2021,4:36-43.
9. [9]
  Scott E C, Baines A C, Gong Y T, Moore R, Pamuk G E, Saber H, Subedee A, Thompson M D, Xiao W M, Pazdur R, Rao V A, Schneider J, Beaver J A. Trends in the approval of cancer therapies by the FDA in the twenty-first century[J]. Nature Reviews Drug Discovery, 2023,22:625-640. doi: 10.1038/s41573-023-00723-4
10. [10]
  Chen L, Huang J H, Li X T, Huang M T, Zeng S T, Zheng J Y, Peng S Y, Li S Y. Progress of nanomaterials in photodynamic therapy of tumor[J]. Front. Bioeng. Biotechnol., 2022,10920162. doi: 10.3389/fbioe.2022.920162
11. [11]
  Zhang R Y, Zhang C, Chen C, Tian M G, Chau J H C, Li Z, Yang Y Z, Li X Q, Tang B Z. Autophagy-activated photosensitizer promoting cell mortality in cancer starvation therapy[J]. Adv. Sci., 2023,102301295.
12. [12]
  ZHANG H J. Preparation and Gas Sensitive Properties of Iron based Nano-oxides and Composites. Harbin: Harbin University of Science and Technology, 2019: 9-16
13. [13]
  ZHANG S H, YANG H R, ZHAO Y, LI Y Y, ZHAO X, WANG H, JI T J, NIE G J. Research progress on the nanodrug mediated regulation of tumor fibroblast-like cells for tumor therapy[J]. Chin. Sci. Bull., 2023,68(32):4373-4382.
14. [14]
  Cheng H C, Qiu Y J, XU Y, Chen L, Ma K L, Tao M Y, Frankiw L, Yin H L, Xie E R, Pan X L, Du J, Wang Z, Zhu W J, Chen L, Zhang L J, Li G D. Extracellular acidosis restricts one-carbon metabolism and preserves T cell stemness[J]. Nat. Metab., 2023,5:314-330.
15. [15]
  CHEN Y. Application of iron metal oxygen clusters in radiodynamics/immunotherapy. Shanghai: Shanghai Normal University, 2022: 9-11
16. [16]
  GAO M Y, ZHAO T T, JIANG Y, MA J Y, HAN Y H, LI Y Y, WANG T. pH-responsive/H₂O₂ self-supplying metal peroxides for tumor chemodynamic therapy[J]. Materials China, 2023,42(10):779-786.
17. [17]
  Zhao P Y, Li H Y, Bu W B. A forward vision for chemodynamic therapy: Issues and opportunities[J]. Angew. Chem. Int. Ed., 2023,62e202210415.
18. [18]
  LIANG R S, YAN Y F, CHEN J H, ZHENG Z K, YAN Z C, LI X Y. Antitumor mechanism of reactive oxygen species and its application in tumor therapy[J]. Chemistry of Life, 2023,43(4):501-509.
19. [19]
  ZHANG K, WU Y, ZHOU Y X. Mechanism of iron death in tumor[J]. Jiangsu. Medical Journal, 2022,48(6):629-633.
20. [20]
  ZHANG T T. Multifunctional nanoparticle: Combination of photothermal effect and reactive oxygen species generation for dual-modality cancer therapy and heterogenous expression of LOX family proteins. Jinan: Shandong University, 2021: 10-12
