Citation: Fu-Zhi LI, Zhen CHEN, Dan ZHANG, Ao-Kui SUN, Pu SHI, Quan-Guo HE. Preparation and Catalytic Performance of Co-Co₉S₈/N-Doped Ketjen Black Composite for Oxygen Reduction Reaction[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(9): 1579-1588. doi: 10.11862/CJIC.2021.180 shu

Preparation and Catalytic Performance of Co-Co₉S₈/N-Doped Ketjen Black Composite for Oxygen Reduction Reaction

Fu-Zhi LI ¹ ,
Zhen CHEN ¹ ,
Dan ZHANG ¹ ,
Ao-Kui SUN ¹ ,
Pu SHI ^1,, ,
Quan-Guo HE ^2,,

1.
College of Packaging and Materials, Hunan University of Technology, Zhuzhou, Hunan 412008, China
2.
College of Life Science and Chemistry, Hunan University of Technology, Zhuzhou, Hunan 412008, China

Corresponding author: Pu SHI, shipu1976@163.com Quan-Guo HE, hequanguo@hut.edu.cn
Received Date: 3 March 2021
Revised Date: 26 June 2021

Figures(10)

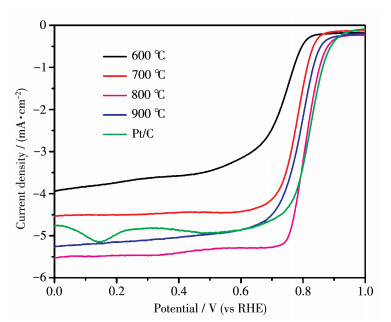

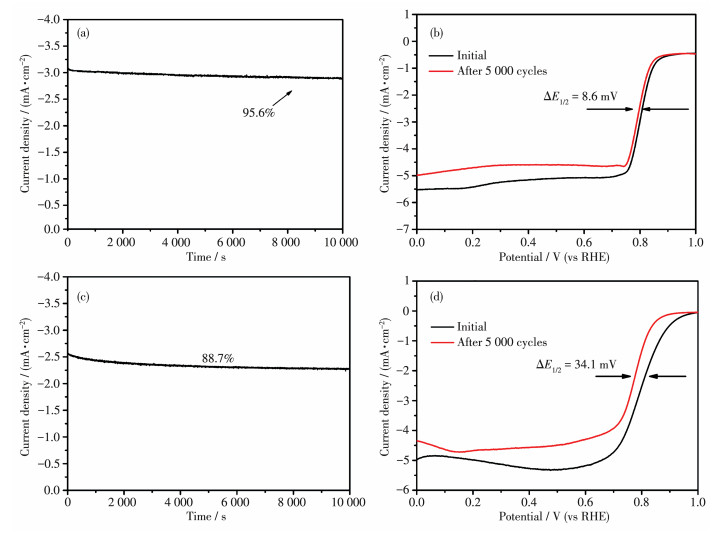

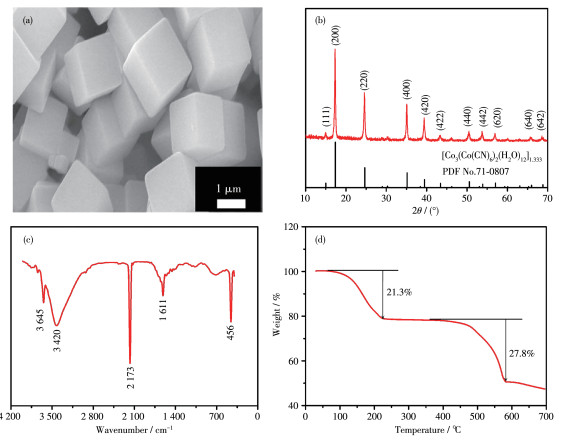

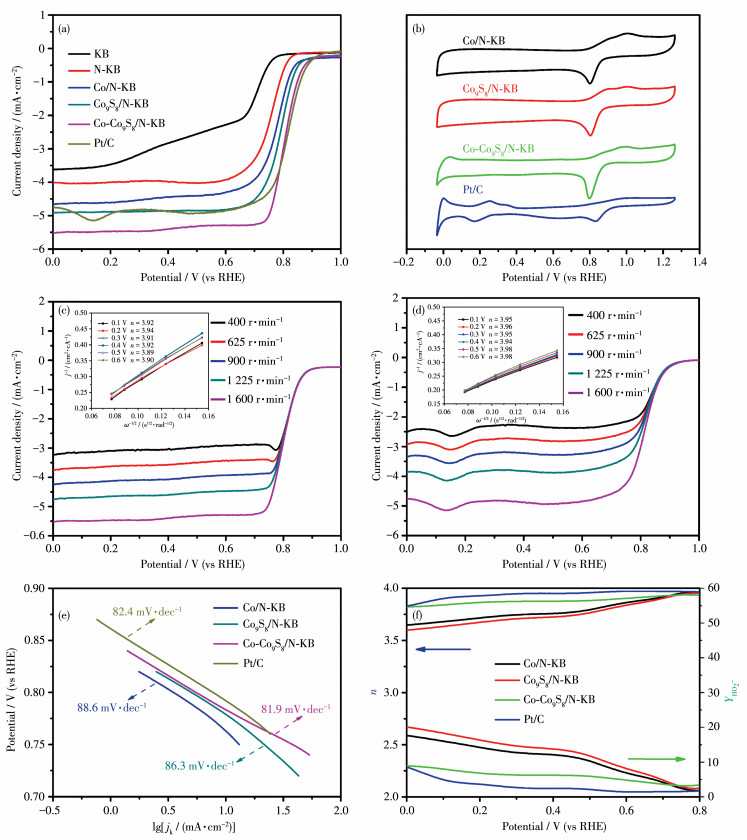

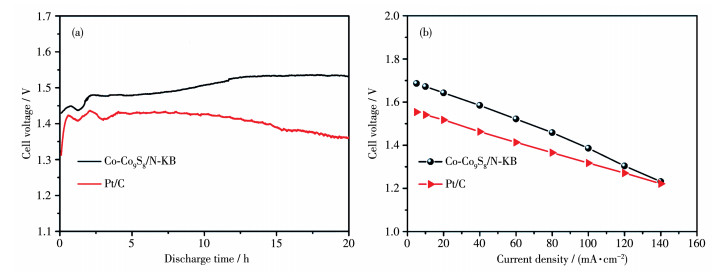

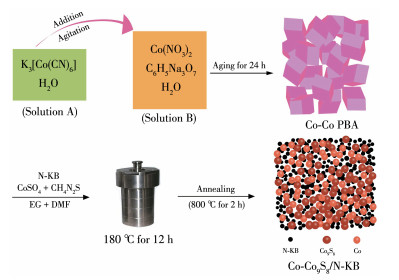

Co-Co₉S₈/N-KB composite catalyst supported by high conductivity carbon (nitrogen doped Ketjen black) and introduced by single metal for oxygen reduction reaction (ORR) was prepared using Prussian blue analogue as precursor through high temperature annealing technology. By comparison of different annealing temperatures, it is found that the catalyst gained at the annealing temperature of 800℃ showed the best catalytic activity for ORR. The initial potential and half-wave potential were 0.93 and 0.83 V respectively, comparable to commercial Pt/C, and the limit current density reached 5.7 mA·cm^-2, higher than that of Pt/C. After a long period of 10 000 s for chronoam-perometry experiment, the current density still retained at 95.6% of the initial, and the half-wave potential shifted just only 8.6 mV after 5 000 cycles subjected in a range of 0.5 to 1.0 V (vs RHE) during the accelerated durability test. In addition, in actual Al-air full battery applications, the discharge platform of Co-Co₉S₈/N-KB reached 1.53 V at a discharge density of 50 mA·cm^-2, higher than that of Pt/C.
- cobalt sulfide,
- aluminum-air battery,
- oxygen reduction reaction catalyst
1. [1]
  Ma J L, Wen J B, Gao J W, Li Q N. Electrochim. Acta, 2014, 129(6): 69-75
2. [2]
  Ferrando W A. J. Power Sources, 2004, 130(1/2): 309-314
3. [3]
  Lei B, Li G R, Gao X P. J. Mater. Chem. A, 2014, 2(11): 3919-3925 doi: 10.1039/c3ta14313a
4. [4]
  Huang S S, Zai J T, Ma D, Hu Z J, He Q Q, Wu M H, Chen D Y, Chen Z W, Qian X F. Electrochim. Acta, 2017, 241: 89-97 doi: 10.1016/j.electacta.2017.04.116
5. [5]
  Han C, Li Q, Wang D W, Lu Q Q, Xing Z C, Yang X R. Small, 2018, 14(17): 1703642 doi: 10.1002/smll.201703642
6. [6]
  Ding J T, Ji S, Wang H, Bruno G P, Wang R F. ChemCatChem, 2019, 11(3): 1026-1032 doi: 10.1002/cctc.201801618
7. [7]
  Zhao L, Zhang Y, Huang L B, Liu X Z, Zhang Q H, He C, Wu Z Y, Zhang L J, Wu J P, Yang W L, Gu L, Hu J S, Wan L J. Nat. Commun., 2019, 10(1): 1278-1288 doi: 10.1038/s41467-019-09290-y
8. [8]
  Yu X Y, Yu L, Wu H B, Lou X W. Angew. Chem. Int. Ed., 2015, 27(18): 5421-5425
9. [9]
  Hu M, Jiang J S, Ji R P, Zeng Y. CrystEngComm, 2009, 11(11): 2257-2259 doi: 10.1039/b911613n
10. [10]
  Hu L, Zhang P, Chen Q W, Mei J Y. RSC Adv., 2011, 1(8): 1574-1578 doi: 10.1039/c1ra00624j
11. [11]
  Sanetuntikul J, Shanmugam S. Nanoscale, 2015, 7(17): 7644-7650 doi: 10.1039/C5NR00311C
12. [12]
  Liu Y Y, Jiang H L, Zhu Y H, Yang X L, Li C Z. J. Mater. Chem. A, 2016, 4(5): 1694-1701 doi: 10.1039/C5TA10551J
13. [13]
  Ashok A, Kumar A, Ponraj J, Mansour S A. Electrochim. Acta, 2021, 368: 137642 doi: 10.1016/j.electacta.2020.137642
14. [14]
  Ren J C, Meng Q, Xu Z Y, Zhang X H, Chen J H. J. Electroanal. Chem., 2019, 836: 30-37 doi: 10.1016/j.jelechem.2019.01.049
15. [15]
  Wang Z D, Bai C K, Chen X Y, Wang B D, Sun H, Lu G L, Huang H, Liu Z N, Liang S, Zang H Y. Inorg. Chem. Front., 2019, 6(9): 2558-2565 doi: 10.1039/C9QI00796B
16. [16]
  Lu X F, Wu D J, Li R Z, Li Q, Ye S H, Tong Y X, Li G R. J. Mater. Chem. A, 2014, 2(13): 4706-4713 doi: 10.1039/C3TA14930G
17. [17]
  Choudhury T, Saied S O, Sullivan J L, Abbot A M. J. Phys. D: Appl. Phys., 1989, 22(8): 1185-1195 doi: 10.1088/0022-3727/22/8/026
18. [18]
19. [19]
  Li S S, Cong H P, Wang P, Yu S H. Nanoscale, 2014, 6(13): 7534-7541 doi: 10.1039/C4NR02101K
20. [20]
  He X B, Yin F X, Yuan S, Liu N, Huang X F. ChemElectroChem, 2016, 3(7): 1107-1115
21. [21]
  Xie W F, Li Z H, Jiang S, Li J B, Shao M F, Wei M. Chem. Eng. J., 2019, 373: 734-743 doi: 10.1016/j.cej.2019.04.066
22. [22]
  Wang Z, Ang J M, Zhang B W, Zhang Y F, Ma X Y D, Yan T, Liu J, Che B Y, Huang Y Z, Lu X H. Appl. Catal. B, 2019, 254: 26-36 doi: 10.1016/j.apcatb.2019.04.027
23. [23]
  Li J S, Zhou Z, Liu K, Li F Z, Peng Z G, Tang Y G, Wang H Y. J. Power Sources, 2017, 343(1): 30-38
