Citation: Yu SUN, Yun-Po SUN, Chun-Li LIU, Jian XIE, Xin-Bing ZHAO, Lü-Chao QIU, Jian MEI, Xiong-Wen XU, Jian TU. Scalable Preparation and Electrochemical Sodium-Storage Performance of Fe-Based Prussian Blue Cathode Material[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(6): 1037-1045. doi: 10.11862/CJIC.2021.116 shu

Scalable Preparation and Electrochemical Sodium-Storage Performance of Fe-Based Prussian Blue Cathode Material

Yu SUN ¹ ,
Yun-Po SUN ¹ ,
Chun-Li LIU ¹ ,
Jian XIE ^1,, ,
Xin-Bing ZHAO ¹ ,
Lü-Chao QIU ² ,
Jian MEI ² ,
Xiong-Wen XU ³ ,
Jian TU ³

1.
School of Materials Science and Engineering, Zhejiang University, Hangzhou 310027, China
2.
State Grid Zhejiang Electric Power Research Institute, Hangzhou 310014, China
3.
LI-FUN Technology Corporation Limited, Zhuzhou, Hunan 412000, China

Corresponding author: Jian XIE, xiejian1977@zju.edu.cn
Received Date: 8 January 2021
Revised Date: 26 March 2021

Figures(6)

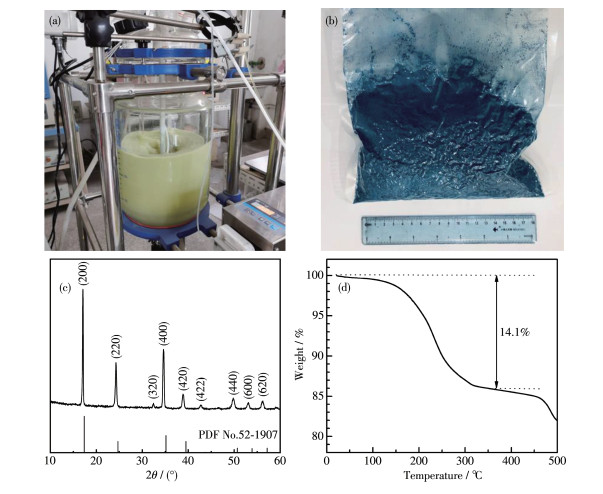

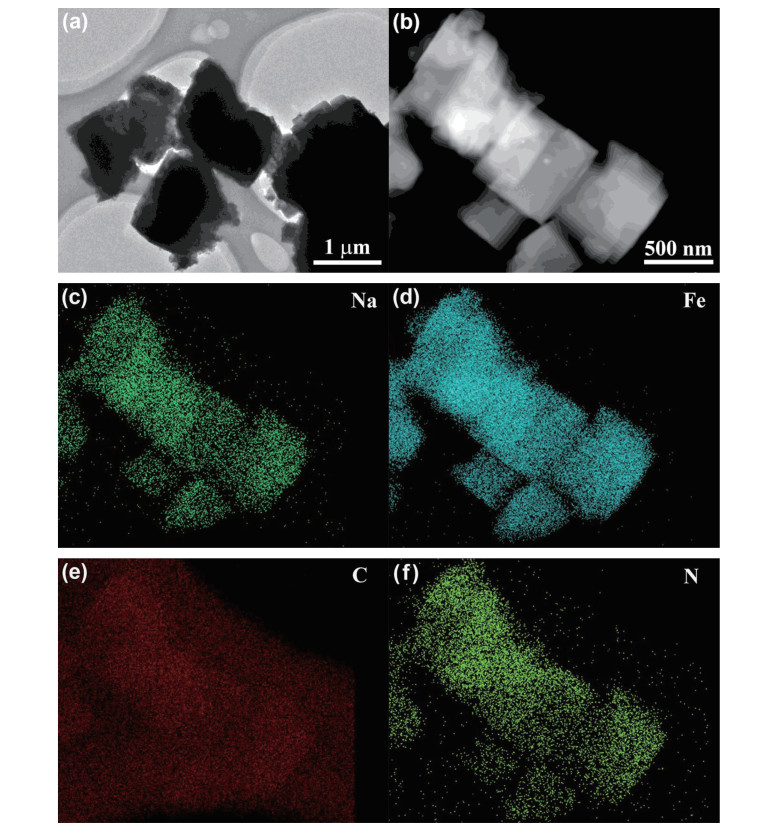

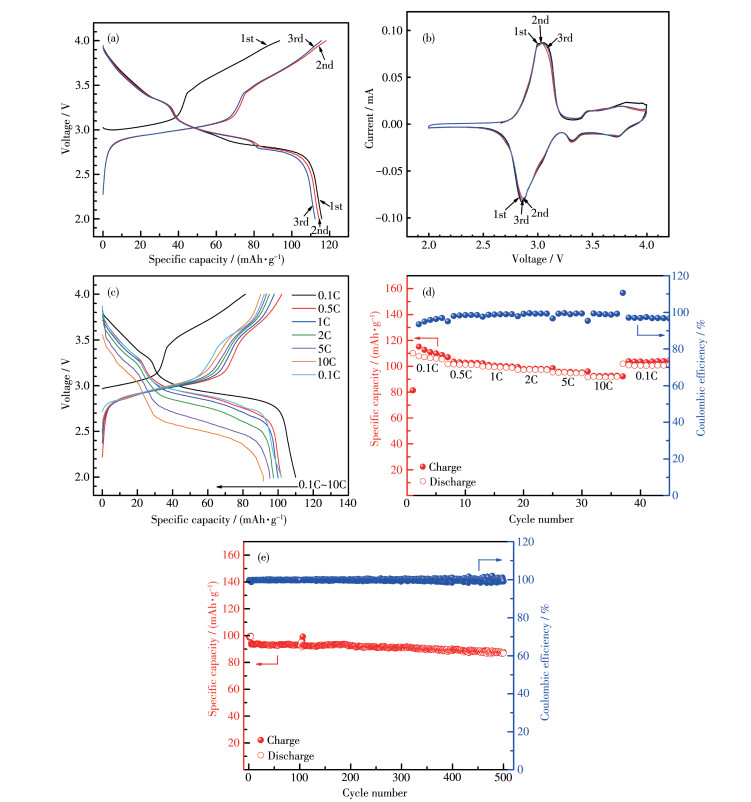

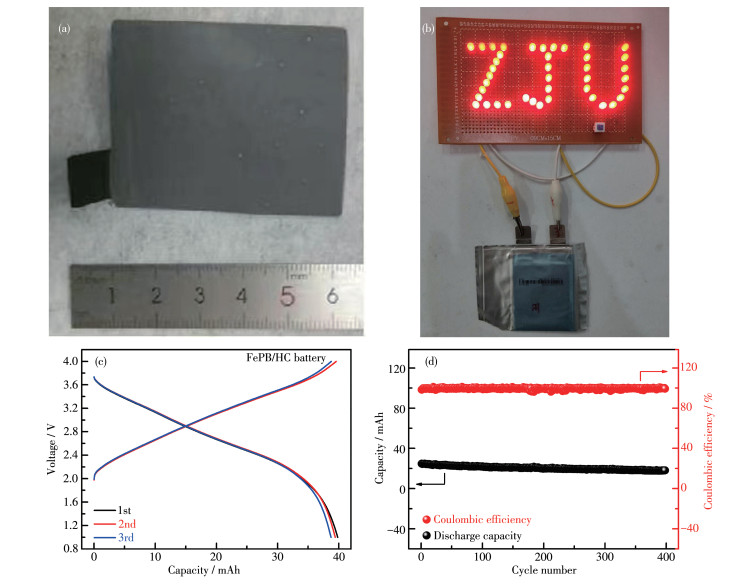

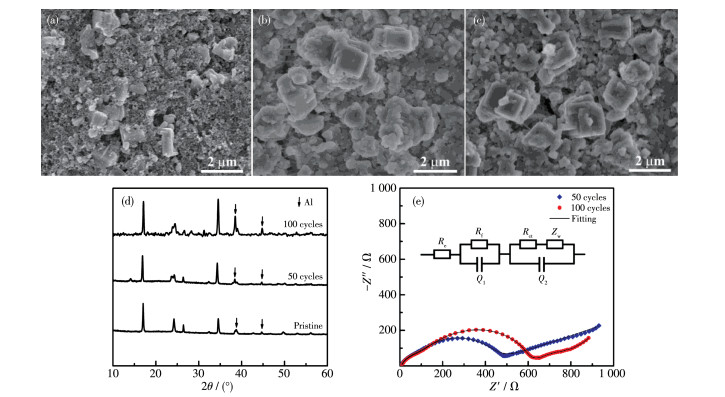

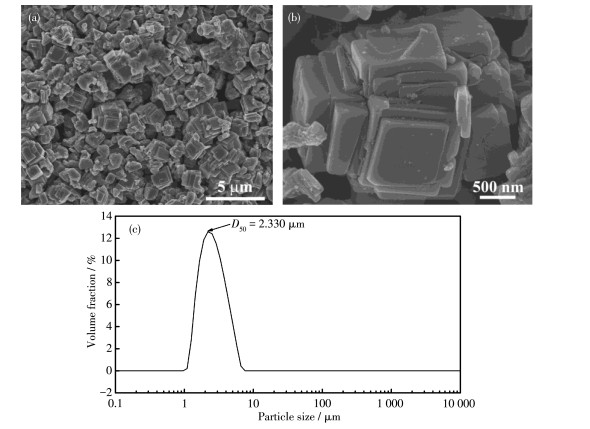

Fe-based Prussian blue material (FePB) was synthesized by coprecipitation method at room temperature using sodium citrate as chelating agent. A high yield of 500 g per preparation can be obtained by using a 20 L reactor and a Na₄Fe(CN)₆ precursor with a concentration up to 0.5 mol·L^-1. The results of electrochemical measurements indicate that the obtained FePB showed a high capacity, excellent rate capability and long cycle life. At 0.1C, the first discharge capacity of FePB reached 117 mAh·g^-1. At a current density as high as 10C, the FePB can still yield a discharge capacity of 92 mAh·g^-1. After 500 cycles at 1C, a specific capacity of 87 mAh·g^-1 still maintained with a retention of 89%. Pouch-type Na-ion full battery was fabricated using commercial hard carbon as anode and FePB as cathode, which exhibited a capacity retention of 75% after 400 cycles at 50 mA. The excellent electrochemical performance of the FePB is attributed to its high sodium content, low defect, border-rich microstructure and the unique open framework structure of the Prussian blue analogues.
- sodium ion battery,
- Prussian blue cathode,
- coprecipitation method,
- scalable preparation,
- electrochemistry,
- energy conversion
1. [1]
  Yang Z G, Zhang J L, Kintner Meyer M C W, Lu X C, Choi D, Lemmon J P, Liu J. Chem. Rev. , 2011, 111(5): 3577-3613 doi: 10.1021/cr100290v
2. [2]
  Hwang J Y, Myung S T, Sun Y K. Chem. Soc. Rev. , 2017, 46: 3529-3614 doi: 10.1039/C6CS00776G
3. [3]
  CHEN X, XU L, SHEN Z L, LIU S Y, LI H, WANG B, XIE J, JIANG Y Z, LIU H Z, SHENG P, ZHAO G Y. Chinese J. Inorg. Chem. , 2015, 31(9): 1739-1750
4. [4]
  Goodenough J B. Energy Storage Mater. , 2015, 1: 158-161 doi: 10.1016/j.ensm.2015.07.001
5. [5]
  Chu S, Cui Y, Liu N. Nat. Mater. , 2016, 16(1): 16-22
6. [6]
  SUN Y P, XIE J, ZHAO X B, ZHUANG D G, ZHANG G L. Chinese J. Inorg. Chem. , 2020, 36(1): 106-112
7. [7]
  Yabuuchi N, Kubota K, Dahbi M, Komaba S. Chem. Rev. , 2014, 114(23): 11636-11682 doi: 10.1021/cr500192f
8. [8]
  Han Y, Liu S Y, Cui L, Xu L, Xie J, Xia X K, Hao W K, Wang B, Li H, Gao J. Int. J. Miner. Metall. Mater. , 2018, 25(1): 88-93 doi: 10.1007/s12613-018-1550-6
9. [9]
  Chen M Z, Liu Q N, Wang S W, Wang E H, Guo X D, Chou S L. Adv. Energy Mater. , 2019, 9(14): 1803609 doi: 10.1002/aenm.201803609
10. [10]
  WANG Y, LIU W, GUO R, LUO Y, XIE J Y. Chinese J. Inorg. Chem. , 2018, 34(4): 750-756
11. [11]
  Wang P F, You Y, Yin Y X, Wang Y S, Wan L J, Gu L, Guo Y G. Angew. Chem. Int. Ed. , 2016, 55(26): 7445-7449 doi: 10.1002/anie.201602202
12. [12]
  Ding J J, Zhou Y N, Sun Q, Yu X Q, Yang X Q, Fu Z W. Electrochim. Acta, 2013, 87: 388-393 doi: 10.1016/j.electacta.2012.09.058
13. [13]
  Fu B, Zhou X, Wang Y P. J. Power Sources, 2016, 310: 102-108 doi: 10.1016/j.jpowsour.2016.01.101
14. [14]
  Fang Y J, Liu Q, Xiao L F, Ai X P, Yang H X, Cao Y L. ACS Appl. Mater. Interfaces, 2015, 7(32): 17977-17984 doi: 10.1021/acsami.5b04691
15. [15]
  Wu X Y, Wu C H, Wei C X, Hu L, Qian J F, Cao Y L, Ai X P, Wang J L, Yang H X. ACS Appl. Mater. Interfaces, 2016, 8(8): 5393-5399 doi: 10.1021/acsami.5b12620
16. [16]
  Wu X Y, Deng W W, Qian J F, Cao Y L, Ai X P, Yang H X. J. Mater. Chem. A, 2013, 1(35): 10130-10134 doi: 10.1039/c3ta12036h
17. [17]
  MEI J, ZENG T J, QIU L C, ZHANG J, LIU C L, XIE J, ZHAO X B. Chinese J. Inorg. Chem. , 2020, 36(5): 795-801
18. [18]
  Lu Y H, Wang L, Cheng J G, Goodenough J B. Chem. Commun. , 2012, 48(52): 6544-6546 doi: 10.1039/c2cc31777j
19. [19]
  Fang C, Huang Y H, Zhang W X, Han J T, Deng Z, Cao Y L, Yang H X. Adv. Energy Mater. , 2016, 6(5): 1501727 doi: 10.1002/aenm.201501727
20. [20]
  Qian J F, Wu C, Cao Y L, Ma Z F, Huang Y H, Ai X P, Yang H X. Adv. Energy Mater. , 2018, 8(17): 1702619 doi: 10.1002/aenm.201702619
21. [21]
  Wu X Y, Shao M M, Wu C H, Qian J F, Cao Y L, Ai X P, Yang H X. ACS Appl. Mater. Interface, 2016, 8(36): 23706-23712 doi: 10.1021/acsami.6b06880
22. [22]
  Peng J, Wang J S, Yi H C, Hu W J, Yu Y H, Yin J W, Shen Y, Liu Y, Luo J H, Xu Y, Wei P, Li Y Y, Jin Y, Ding Y, Miao L, Jiang J J, Han J T, Huang Y H. Adv. Energy Mater. , 2018, 8(11): 1702856 doi: 10.1002/aenm.201702856
23. [23]
  Xu Y, Chang M, Fang C, Liu Y, Qiu Y G, Qu M G, Peng J, Wei P, Deng Z, Sun S X, Sun X P, Li Q, Han J T, Huang Y H. ACS Appl. Mater. Interfaces, 2019, 11(33): 29985-29992 doi: 10.1021/acsami.9b10312
24. [24]
  Mullaliu A, Asenbauer J, Aquilanti G, Passerini S, Giorgetti M. Small Methods, 2020, 4(1): 1900529 doi: 10.1002/smtd.201900529
25. [25]
  Song J, Wang L, Lu Y H, Liu J, Guo B K, Xiao P H, Lee J J, Yang X Q, Henkelman G, Goodenough G B. J. Am. Chem. Soc. , 2015, 137(7): 2658-2664 doi: 10.1021/ja512383b
26. [26]
  Yan X M, Yang Y, Liu E S, Sun L Q, Wang H, Liao X Z, He Y S, Ma Z F. Electrochim. Acta, 2017, 225: 235-242 doi: 10.1016/j.electacta.2016.12.121
27. [27]
  Nai J W, Lou X W. Adv. Mater. , 2019, 31(38): 1706825 doi: 10.1002/adma.201706825
28. [28]
  Zhou A J, Cheng W J, Wang W, Zhao Q, Xie J, Zhang W X, Gao H C, Xie L G, Li J Z. Adv. Energy Mater. , 2021, 11(2): 2000943 doi: 10.1002/aenm.202000943
29. [29]
  Huang Y X, Xie M, Zhang J T, Wang Z H, Jiang Y, Xiao G H, Li S J, Li L, Wu F, Chen R J. Nano Energy, 2017, 39: 273-283 doi: 10.1016/j.nanoen.2017.07.005
30. [30]
  Shang T, Zhong X K, Zhang C F, Hu J Y, Medgyes B. Int. J. Miner. Metall. Mater. , 2021, 28(1): 98-110 doi: 10.1007/s12613-020-2086-0
1. [1]
  Yuyao Wang , Zhitao Cao , Zeyu Du , Xinxin Cao , Shuquan Liang . Research Progress of Iron-based Polyanionic Cathode Materials for Sodium-Ion Batteries. Acta Physico-Chimica Sinica, 2025, 41(4): 100035-0. doi: 10.3866/PKU.WHXB202406014
2. [2]
  Peicai Li , Xubin Wang , Qinghua Zhang , Bowen Wang , Xiaohui Rong , Yong-Sheng Hu , Zhongtao Li . High-rate and long-cycling P2-type cathode material for sodium-ion batteries. Acta Physico-Chimica Sinica, 2026, 42(5): 100214-0. doi: 10.1016/j.actphy.2025.100214
3. [3]
  Zilin Hu , Yaoshen Niu , Xiaohui Rong , Yongsheng Hu . Suppression of Voltage Decay through Ni³⁺ Barrier in Anionic-Redox Active Cathode for Na-Ion Batteries. Acta Physico-Chimica Sinica, 2024, 40(6): 2306005-0. doi: 10.3866/PKU.WHXB202306005
4. [4]
  Jianbao Mei , Bei Li , Shu Zhang , Dongdong Xiao , Pu Hu , Geng Zhang . Enhanced Performance of Ternary NASICON-Type Na_3.5−xMn_0.5V_1.5−xZr_x (PO₄)₃/C Cathodes for Sodium-Ion Batteries. Acta Physico-Chimica Sinica, 2024, 40(12): 2407023-0. doi: 10.3866/PKU.WHXB202407023
5. [5]
  Shan Zhao , Xu Liu , Haotian Guo , Zonglin Liu , Pengfei Wang , Jie Shu , Tingfeng Yi . Synergistic design of high-entropy P2/O3 biphasic cathodes for high-performance sodium-ion batteries. Acta Physico-Chimica Sinica, 2026, 42(1): 100129-0. doi: 10.1016/j.actphy.2025.100129
6. [6]
  Tinghui AN , Dong XIANG , Jiaqi LI , Jiawei WANG , Shuming YU , Nan WANG , Kedi CAI . Research progress on the application of laser synthesis technology for electrochemical functional materials. Chinese Journal of Inorganic Chemistry, 2025, 41(9): 1731-1754. doi: 10.11862/CJIC.20240412
7. [7]
  Linbao Zhang , Weisi Guo , Shuwen Wang , Ran Song , Ming Li . Electrochemical Oxidation of Sulfides to Sulfoxides. University Chemistry, 2024, 39(11): 204-209. doi: 10.3866/PKU.DXHX202401009
8. [8]
  Zhaoyu Wen , Na Han , Yanguang Li . Recent Progress towards the Production of H₂O₂ by Electrochemical Two-Electron Oxygen Reduction Reaction. Acta Physico-Chimica Sinica, 2024, 40(2): 2304001-0. doi: 10.3866/PKU.WHXB202304001
9. [9]
  Feng Lin , Zhongxin Jin , Caiying Li , Cheng Shao , Yang Xu , Fangze Li , Siqi Liu , Ruining Gu . Preparation and Electrochemical Properties of Nickel Foam-Supported Ni(OH)₂-NiMoO₄ Electrode Material. University Chemistry, 2025, 40(10): 225-232. doi: 10.12461/PKU.DXHX202412017
10. [10]
  Rongzhan LOU , Qiaoling KANG , Zhenchao BAI , Dongyun LI , Yang XU , Rui WANG , Qingyi LU . Research progress of sodium ion high entropy layered oxide cathode. Chinese Journal of Inorganic Chemistry, 2025, 41(12): 2411-2428. doi: 10.11862/CJIC.20250142
11. [11]
  Shuhui Li , Rongxiuyuan Huang , Yingming Pan . Electrochemical Synthesis of 2,5-Diphenyl-1,3,4-Oxadiazole: A Recommended Comprehensive Organic Chemistry Experiment. University Chemistry, 2025, 40(5): 357-365. doi: 10.12461/PKU.DXHX202407028
12. [12]
  Yu Guo , Zhiwei Huang , Yuqing Hu , Junzhe Li , Jie Xu . Recent Advances in Iron-based Heterostructure Anode Materials for Sodium Ion Batteries. Acta Physico-Chimica Sinica, 2025, 41(3): 100022-0. doi: 10.3866/PKU.WHXB202311015
13. [13]
  Zihan Lin , Wanzhen Lin , Fa-Jie Chen . Electrochemical Modifications of Native Peptides. University Chemistry, 2025, 40(3): 318-327. doi: 10.12461/PKU.DXHX202406089
14. [14]
  Wenhui Li , Yakun Tang , Yusheng Zhou , Yue Zhang , Wenhai Zhang , Qingtao Ma , Lang Liu , Sen Dong , Yuliang Cao . Enhanced sodium storage performance of asphalt-derived hard carbon through intramolecular oxidation for high-performance sodium-ion batteries. Acta Physico-Chimica Sinica, 2025, 41(10): 100119-0. doi: 10.1016/j.actphy.2025.100119
15. [15]
  Zhuo WANG , Xiaotong LI , Zhipeng HU , Junqiao PAN . Three-dimensional porous carbon decorated with nano bismuth particles: Preparation and sodium storage properties. Chinese Journal of Inorganic Chemistry, 2025, 41(2): 267-274. doi: 10.11862/CJIC.20240223
16. [16]
  Débora Ferreira dos Santos Morais , José Luis Tirado , Carlos Pérez-Vicente , Fabiana Villela da Motta , Pedro Lavela , Mauricio Bomio , Sergio Lavela . Unlocking the performance of sodium-ion batteries by coating Na₃V₂(PO₄)₃ with Nb₂O₅. Acta Physico-Chimica Sinica, 2026, 42(2): 100180-0. doi: 10.1016/j.actphy.2025.100180
17. [17]
  Zhicheng JU , Wenxuan FU , Baoyan WANG , Ao LUO , Jiangmin JIANG , Yueli SHI , Yongli CUI . MOF-derived nickel-cobalt bimetallic sulfide microspheres coated by carbon: Preparation and long cycling performance for sodium storage. Chinese Journal of Inorganic Chemistry, 2025, 41(4): 661-674. doi: 10.11862/CJIC.20240363
18. [18]
  Yongming Zhu , Huili Hu , Yuanchun Yu , Xudong Li , Peng Gao . Construction and Practice on New Form Stereoscopic Textbook of Electrochemistry for Energy Storage Science and Engineering: Taking Basic Course of Electrochemistry as an Example. University Chemistry, 2024, 39(8): 44-47. doi: 10.3866/PKU.DXHX202312086
19. [19]
  Cen Zhou , Biqiong Hong , Yiting Chen . Application of Electrochemical Techniques in Supramolecular Chemistry. University Chemistry, 2025, 40(3): 308-317. doi: 10.12461/PKU.DXHX202406086
20. [20]
  Kuaibing Wang , Feifei Mao , Weihua Zhang , Bo Lv . Design and Practice of a Comprehensive Teaching Experiment for Preparing Biomass Carbon Dots from Rice Husk. University Chemistry, 2025, 40(5): 342-350. doi: 10.12461/PKU.DXHX202407042

Get Citation

PDF

XML

Metrics

PDF Downloads(37)
Abstract views(2820)
HTML views(807)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142
