Citation: Fang DU, Shuai LIU, Jing-Jiu GU, Heng WANG, Bing LI. Effect of Mass Ratio of Ni and Co in Initial Solution on Oxygen Evolution Reaction Performance of Ni-Co-S-O/NF Catalyst in Alkaline Water Electrolysis[J]. Chinese Journal of Inorganic Chemistry, ;2021, 37(5): 929-936. doi: 10.11862/CJIC.2021.076 shu

Effect of Mass Ratio of Ni and Co in Initial Solution on Oxygen Evolution Reaction Performance of Ni-Co-S-O/NF Catalyst in Alkaline Water Electrolysis

Fang DU ¹ ,
Shuai LIU ¹ ,
Jing-Jiu GU ¹ ,
Heng WANG ¹ ,
Bing LI ^{1, 2,,}

1.
School of Mechanical and Power Engineering, East China University of Science and Technology, Shanghai 200237, China
2.
Collaborative Innovation Center of Clean Energy, Longyan University, Longyan, Fujian 364012, China

Corresponding author: Bing LI, bingli@ecust.edu.cn
Received Date: 24 November 2020
Revised Date: 20 January 2021

Figures(8)

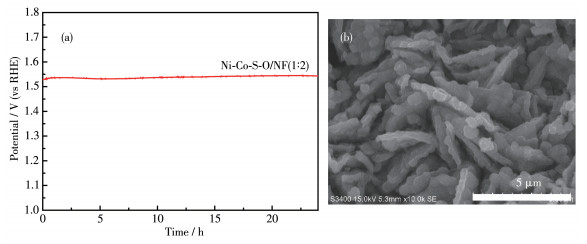

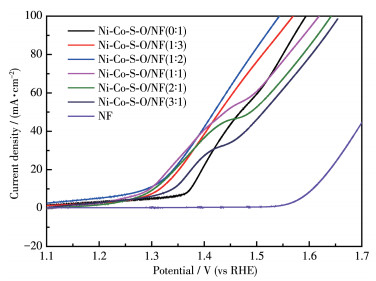

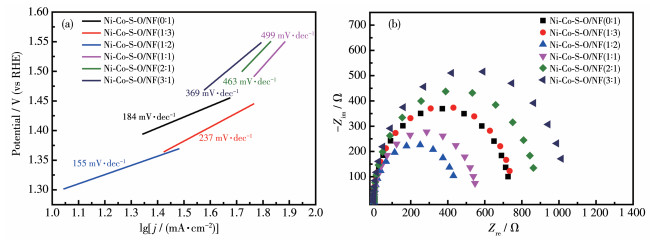

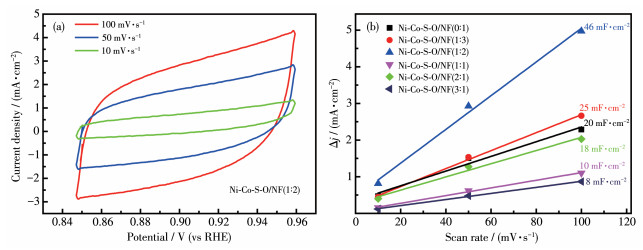

In this paper, the effect of mass ratio of Ni and Co (w_Ni: w_Co) in initial solution on the structure and properties of Ni-Co-S-O composite catalysts was studied. A three-dimensional petal-like and hierarchically connected nano-structured Ni-Co-S-O composite catalyst was obtained on a nickel foam (NF) substrate by a hydrothermal method. When w Ni: w_Co=1:2, the prepared Ni-Co-S-O/NF(1:2) catalyst has a larger electrochemically active area (ECSA) and the best oxygen evolution reaction (OER) catalytic performance in alkaline water electrolysis. In 1 mol·L^-1 KOH alkaline solution, Ni-Co-S-O/NF(1:2) only need 61 and 313 mV to achieve the current density of 10 and 100 mA·cm^-2 respectively. At the same time, its Tafel slope was 155 mV·dec^-1. After tested at a high current density of 100 mA·cm^-2 for 24 h in the alkaline solution, the Ni-Co-S-O/NF(1:2) could still maintain sheet structure and displayed a good durability.
- Ni-Co-S-O/NF catalyst,
- alkaline water electrolysis,
- oxygen evolution reaction,
- transition metal
1. [1]
  Yang J, Yu C, Fan X M, Liang S X, Li S F, Huang H W, Ling Z, Hao C, Qiu J S. Energy Environ. Sci. , 2016, 9(4): 1299-1370 doi: 10.1039/C5EE03633J
2. [2]
  Xu X, Song F, Hu X L. Nat. Commun. , 2016, 7(1): 12324 doi: 10.1038/ncomms12324
3. [3]
  Ouyang C B, Wang X, Wang C, Zhang X X, Wu J H, Ma Z L, Dou S, Wang S Y. Electrochim. Acta, 2015, 174: 297-301 doi: 10.1016/j.electacta.2015.05.186
4. [4]
  Wang L, Cao L L, Liu X K, Zhang W, Lin W, Shen X Y, Wang Y, Yao T. J. Phys. Chem. C, 2020, 124(5): 2756-2761 doi: 10.1021/acs.jpcc.9b09796
5. [5]
  Zhang C Y, Bhoyate B, Kahol P K, Siam K, Poudel T P, Mishra S R, Perez F, Gupta A, Gupta G, Gupta R K. ChemNanoMat, 2018, 4(12): 1240-1246 doi: 10.1002/cnma.201800301
6. [6]
  Guo P, Wu Y X, Lau W M, Lau W M, Liu H, Liu L M. J. Alloys Compd. , 2017, 723: 772-778 doi: 10.1016/j.jallcom.2017.06.299
7. [7]
  Deng Y H, Ye C, Tao B X, Chen G, Zhang Q, Luo H Q, Li N B. J. Power Sources, 2018, 397: 44-51 doi: 10.1016/j.jpowsour.2018.06.094
8. [8]
  Wang L, Liu W Z, Sangeetha T, Guo Z C, He Z W, Chen C, Gao L, Wang A J. Int. J. Hydrogen Energy, 2020, 45(11): 6583-6591 doi: 10.1016/j.ijhydene.2020.01.001
9. [9]
  Sivanantham A, Ganesan P, Shanmugam S. Adv. Funct. Mater. , 2016, 26(26): 4660-4672 doi: 10.1002/adfm.201670166
10. [10]
  Zhang F F, Ge Y C, Chu H, Dong P, Baines R, Pei Y, Ye M X, Shen J F. ACS Appl. Mater. Interfaces, 2018, 10(8): 7087-7095 doi: 10.1021/acsami.7b18403
11. [11]
  Liu T T, Sun C P, Asiri A M, He Y Q. Int. J. Hydrogen Energy, 2016, 41(18): 7264-7269 doi: 10.1016/j.ijhydene.2016.03.111
12. [12]
  Pu J, Cui F L, Chu S B, Wang T T, Sheng E H, Wang Z H. ACS Sustainable Chem. Eng. , 2014, 2(4): 809-815 doi: 10.1021/sc400472z
13. [13]
  Kong W, Lu C C, Zhang W, Pu J, Wang Z H. J. Mater. Chem. A, 2015, 3(23): 12452-12460 doi: 10.1039/C5TA02432C
14. [14]
  Yang J, Yu C, Fan X M, Qiu J S. Adv. Energy Mater. , 2014, 4(18): 11989-11993
15. [15]
  Grace A N, Ramachandran R, Vinoba M, Choi S Y, Chu D H, Yoon Y, Nam S C, Jeong S K. Electroanalysis, 2014, 26(1): 199-208 doi: 10.1002/elan.201300262
16. [16]
  Shen M X, Ruan C P, Chen Y, Jiang C H, Ai K L, Lu L H. ACS Appl. Mater. Interfaces, 2015, 7(2): 1207-1218 doi: 10.1021/am507033x
17. [17]
  Wang Y T, Wang T, Zhang R, Liu Q, Luo Y S, Cui G W, Lu S Y, Wang J H, Ma Y J, Sun X P. Inorg. Chem. , 2020, 59(14): 9491-9495 doi: 10.1021/acs.inorgchem.0c01927
18. [18]
  Xu L, Jiang Q Q, Xiao Z H, Li X Y, Huo J, Wang S Y, Dai L M. Angew. Chem. Int. Ed. , 2016, 55(17): 5277-5281 doi: 10.1002/anie.201600687
19. [19]
  Ming F W, Liang H F, Shi H H, Mei G, Xu X, Wang Z C. Electrochim. Acta, 2017, 250(1): 167-173
20. [20]
  Shao Y Y, Zhang S, Engelhard M H, Li G S, Shao G C, Wang Y, Liu J, Aksay I A, Liu Y H. J. Mater. Chem. , 2010, 20(35): 7491-7496 doi: 10.1039/c0jm00782j
21. [21]
  Morales-Guio C G, Liardet L, Hu X L. J. Am. Chem. Soc. , 2016, 138(28): 8946-8957 doi: 10.1021/jacs.6b05196
22. [22]
  Zhang Z Y, Wang X G, Cui G L, Zhang A H, Zhou X H, Xu H, Gu L. Nanoscale, 2014, 6: 3540-3544 doi: 10.1039/C3NR05885A
23. [23]
  Tang C, Cheng N Y, Pu Z H, Xing W, Sun X P. Angew. Chem. Int. Ed. , 2015, 54(32): 9351-9355 doi: 10.1002/anie.201503407
24. [24]
  Xiong X L, Ji Y Y, Xie M W, You C, Yang L, Liu Z A, Asiri A M, Sun X P. Electrochem. Commun. , 2018, 86: 161-165 doi: 10.1016/j.elecom.2017.12.008
