Citation: ZHONG Xin, HUANG Zi-Yang, ZHAO Meng-Yang. Preparation and Bioactivity Test in Vitro of HA/ZnO/SiO₂ Gradient Coating Materials[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(11): 2041-2047. doi: 10.11862/CJIC.2020.210 shu

Preparation and Bioactivity Test in Vitro of HA/ZnO/SiO₂ Gradient Coating Materials

College of Chemistry and Materials Science, Fujian Normal University, Fuzhou 350007, China

Corresponding author: HUANG Zi-Yang, zyhuang@fjnu.edu.cn
Received Date: 3 February 2020
Revised Date: 30 May 2020

Figures(12)

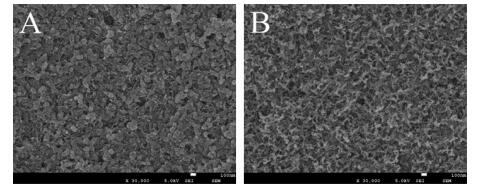

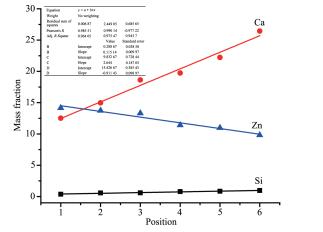

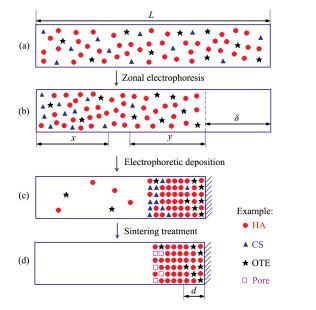

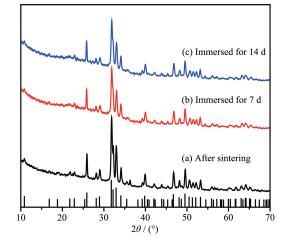

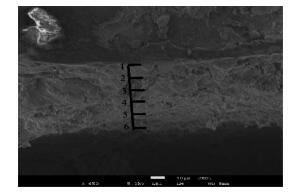

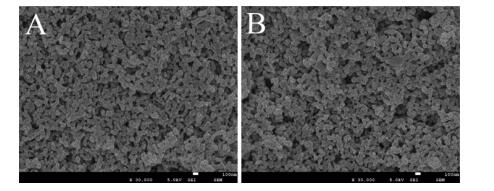

Hydroxyapatite (HA), chitosan (CS), ZnO and SiO₂ suspensions were distributed by zonal electrophoresis, and then HA/CS/ZnO/SiO₂ composite coating material on the Ti-based surface was obtained by electrophoretic deposition in a reverse electric field subsequently. An HA/ZnO/SiO₂ coating material (Z1) was fabricated by calcination at 710℃ for 2 h. At the same time, another HA/ZnO/SiO₂ coating material (E1) was directly prepared only by electrophoretic deposition for comparison. Both Si and Zn elements with a gradient distribution in the radial direction of the coating was found by X-ray energy spectrum analysis, which indicates that Z1 has certain gradient properties. Then, scanning electron microscope, powder X-ray diffraction and Fourier transform infrared spectroscopy were used to characterize the two coating materials. It was found that Z1 has more excellent properties than E1, mainly manifested in the bonding strength of Z1 and Ti substrate up to 31.2 MPa, and the degree of carbonated apatite on the surface of Z1 was more complete after 14 days of culture in HEPES simulated body fluid. In addition, the bacteriostatic effect test of Z1 showed that the bacteriostatic rates of Z1 powder against E. coli and S. aureus were up to 81.7% and 89.4%, respectively.
- hydroxyapatite/ZnO/SiO₂ gradient coating material,
- bonding strength,
- bacteriostatic property,
- in vitro bioactivity
1. [1]
  Shen X, Yang Z, McCool E N, et al. Trac-Trends Anal. Chem., 2019, 120:115644 doi: 10.1016/j.trac.2019.115644
2. [2]
  Sequeira D B, Seabra C M, Palma P J, et al. J. Funct. Biomater., 2018, 9(4):74 doi: 10.3390/jfb9040074
3. [3]
  Furko M, Jiang Y, Wilkins T, et al. Mater. Sci. Eng. C, 2016, 62:249-259 doi: 10.1016/j.msec.2016.01.060
4. [4]
  Golovanova O A, Zaits A Ⅴ. Inorg. Mater., 2018, 54(11):1124-1130 doi: 10.1134/S0020168518110067
5. [5]
  Sadat-Shojai M, Khorasani M T, Dinpanah-Khoshdargi E, et al. Acta Biomater., 2013, 9(8):7591-7621 doi: 10.1016/j.actbio.2013.04.012
6. [6]
  O'Hare P, Meenan B J, Burke G A, et al. Biomaterials, 2010, 31(3):515-522 doi: 10.1016/j.biomaterials.2009.09.067
7. [7]
  XU Fu-Qiu, CHEN Hua-Jun, DING Wu-Xiu. Chinese J. Inorg. Chem., 2013, 29(12):2582-2586
8. [8]
  Hendi A A. J. Alloys Compd., 2017, 712:147-151 doi: 10.1016/j.jallcom.2017.04.021
9. [9]
  Azari R, Rezaie H R, Khavandi A. Ceram. Int., 2019, 45(14):17545-17555 doi: 10.1016/j.ceramint.2019.05.317
10. [10]
  Zhao Y, Lu M, Fan Z, et al. J. Eur. Ceram. Soc., 2020, 40(3):798-810 doi: 10.1016/j.jeurceramsoc.2019.10.037
11. [11]
  WANG Yan-Ling, DING Hong, HE Wei, et al. Journal of Oral Science Research, 2019, 35(11):1070-1073
12. [12]
  Tayyaba Q, Shahzad M, Butt A Q, et al. Surf. Coat. Technol., 2019, 375:197-204 doi: 10.1016/j.surfcoat.2019.07.014
13. [13]
  Huey D J, Hu J C, Athanasiou K A. Science, 2012, 338(6109):917-921 doi: 10.1126/science.1222454
14. [14]
  Dzherayan T G, Vanifatova N G, Fadeeva Ⅰ Ⅴ, et al. J. Anal. Chem., 2015, 70(5):608-614 doi: 10.1134/S1061934815050032
15. [15]
  Dutta D. Electrophoresis, 2018, 39(5/6):760-769
16. [16]
  HUANG Zi-Yang, ZHANG Lan, LIANG Guang-Chao. Acta Chim. Sinica, 2012, 70(3):30-35
17. [17]
  Kim H, Camata R P, Chowdhury S, et al. Acta Biomater., 2010, 6(8):3234-3241 doi: 10.1016/j.actbio.2010.02.031
18. [18]
  Li G, Liang G, Zhao S, et al. Adv. Appl. Ceram., 2015, 114(3):164-174 doi: 10.1179/1743676114Y.0000000210
19. [19]
  Applerot G, Lipovsky A, Dror R, et al. Adv. Funct. Mater., 2009, 19(6):842-852 doi: 10.1002/adfm.200801081
20. [20]
  Ravichandran K, Snega S, Begum N J, et al. Superlattices Microstruct., 2014, 69:17-28 doi: 10.1016/j.spmi.2014.01.020
