Citation: LIU Hong-Juan, WEI Xiao-Kang, YI Rui, HUANG Chao, ZHU Bi-Xue. Synthesis and Methanol Vapor Adsorption of Hg(Ⅱ)/Cd(Ⅱ) Complexes Derived from a Bis-pyridylhydrazone Schiff Base[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(9): 1631-1638. doi: 10.11862/CJIC.2020.203 shu

Synthesis and Methanol Vapor Adsorption of Hg(Ⅱ)/Cd(Ⅱ) Complexes Derived from a Bis-pyridylhydrazone Schiff Base

Key Laboratory of Macrocycle and Supramolecular Chemistry, Guizhou University, Guiyang 550025, China

Corresponding author: ZHU Bi-Xue, bxzhu@gzu.edu.cn
Received Date: 6 January 2020
Revised Date: 24 May 2020

Figures(6)

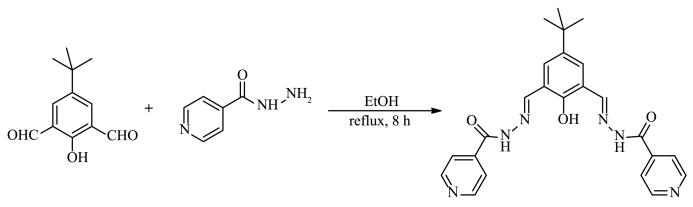

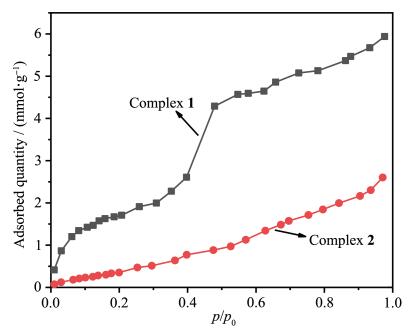

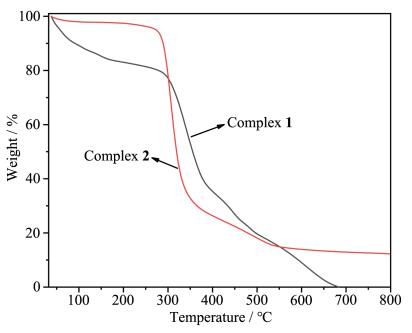

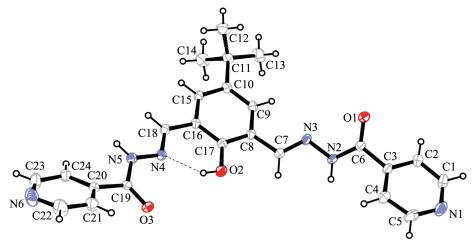

A bis-pyridyhylhydrazone Schiff base ligand (L) was synthesized and characterized by ¹H NMR, MS, FT-IR and elemental analysis. Two complexes, {[Cd(L)₂Cl₂]·2DMF·6H₂O}_n (1) and[Hg(L)Cl₂]_n (2), were synthesized from the reaction of the ligand with CdCl₂ and HgCl₂, respectively. The structures of the ligand and two complexes were determined via X-ray single crystal diffraction, which show that both of the two complexes have 1D-chain structures. Furthermore, the thermal stabilities and vapor adsorption for MeOH at room temperature were investigated. The results demonstrate that complex 2 has a better thermal stability than complex 1, while complex 1 has a better adsorption for MeOH because of its pore structures.
- pyridylhydrazone,
- complex,
- crystal structure,
- 1D chain,
- adsorption
1. [1]
  Pattanayak P, Pratihar J L, Patra D, et al. Inorg. Chim. Acta, 2014, 418:171-179 doi: 10.1016/j.ica.2014.04.021
2. [2]
  He H M, Song Y, Sun F X, et al. J. Mater. Chem. A, 2015, 3:16598-16603 doi: 10.1039/C5TA03537F
3. [3]
  Zhao N, Sun F X, Li P, et al. Inorg. Chem., 2017, 56:6938-6942 doi: 10.1021/acs.inorgchem.7b00436
4. [4]
  Wang X L, Xiong Y, Liu X X, et al. Polyhedron, 2018, 151:264-272 doi: 10.1016/j.poly.2018.05.050
5. [5]
  Xu L D, Hong M, Yang Y G, et al. J. Coord. Chem., 2016, 69(17):2598-2609 doi: 10.1080/00958972.2016.1217408
6. [6]
  Jayanthi E, Anusuya M, Bhuvanesh N S P, et al. J. Coord. Chem., 2015, 68(20):3551-3565 doi: 10.1080/00958972.2015.1077950
7. [7]
  Gao S P. Chin. J. Struct. Chem., 2012, 31(3):377-384
8. [8]
  Chen D M, Wu X F, Liu Y J, et al. Inorg. Chim. Acta, 2019, 494:181-186 doi: 10.1016/j.ica.2019.05.026
9. [9]
  Bikas R, Hosseini-Monfared H, Siczek M, et al. Inorg. Chem. Commun., 2015, 62:60-63 doi: 10.1016/j.inoche.2015.10.021
10. [10]
  ZHANG Nan, YUAN Juan, LIU Mei-Jiao, et al. Chinese J. Inorg. Chem., 2019, 11(35):2066-2072
11. [11]
  Khavasi H R, Kavand S. CrystEngComm, 2016, 18:4760-4764 doi: 10.1039/C6CE00838K
12. [12]
  Bikas R, Aleshkevych P, Hosseini-Monfared H, et al. Dalton Trans., 2015, 44:1782-1789 doi: 10.1039/C4DT03060E
13. [13]
  HAI Shi-Kun, LOU Shu-Fang, QIU Xiao-Yang. Chinese J. Inorg. Chem., 2016, 32(5):906-912
14. [14]
  Yin Z M, Zhang Y H, He J Q, et al. Chem. Commun., 2007:2599-2601
15. [15]
  Sun F, Yin Z, Sun C G, et al. Inorg. Chem. Commun., 2014, 43:78-80 doi: 10.1016/j.inoche.2014.02.007
16. [16]
  DONG Yi-Tian, TU Bo, XU Hong, et al. Chinese J. Inorg. Chem., 2017, 33(4):651-658
17. [17]
  CHEN Yan-Min, FENG Ying-Jian, CAI Ming-Yu, et al. Chinese J. Inorg. Chem., 2018, 34(1):123-128
18. [18]
  Huang C, Yi X M, Chen D M, et al. Inorg. Chim. Acta, 2018, 476:123-128 doi: 10.1016/j.ica.2018.01.028
19. [19]
  Li Y H, Zhao Y R, Chan W H, et al. Anal. Chem., 2015, 87:584-591 doi: 10.1021/ac503240x
20. [20]
  Sheldrick G M. Acta Crystallogr. Sect. C, 2015, C71:3-8
21. [21]
  Dolomanov O V, Bourhis L J, Gildea R J, et al. J. Appl. Cryst., 2009, 42:339-341 doi: 10.1107/S0021889808042726
