Citation: WANG Zhuang-Zhuang, LIU Sang-Xin, HOU Qi-Rui, ZHANG Li-Cui, ZHANG An-Ping, WU Ping, ZHU Xiao-Shu, WEI Shao-Hua, ZHOU Yi-Ming. Facile Synthesis and Sodium Storage Performance of N, Se-Co-doped Carbon Restricted NiSe Nanocrystalline Through a Two Step Direct Solid State Reaction[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(8): 1524-1534. doi: 10.11862/CJIC.2020.167 shu

Facile Synthesis and Sodium Storage Performance of N, Se-Co-doped Carbon Restricted NiSe Nanocrystalline Through a Two Step Direct Solid State Reaction

1.
Jiangsu Key Laboratory of New Power Batteries, School of Chemistry and Materials Science, Nanjing Normal University, Nanjing 210023, China
2.
Centre for Analysis and Testing, Nanjing Normal University, Nanjing 210023, China
3.
School of Chemistry and Chemical Engineering, Yancheng Institute of Technology, Yancheng, Jiangsu 224051, China

Corresponding author: ZHOU Yi-Ming, zhouyiming@njnu.edu.cn
Received Date: 10 March 2020
Revised Date: 17 May 2020

Figures(8)

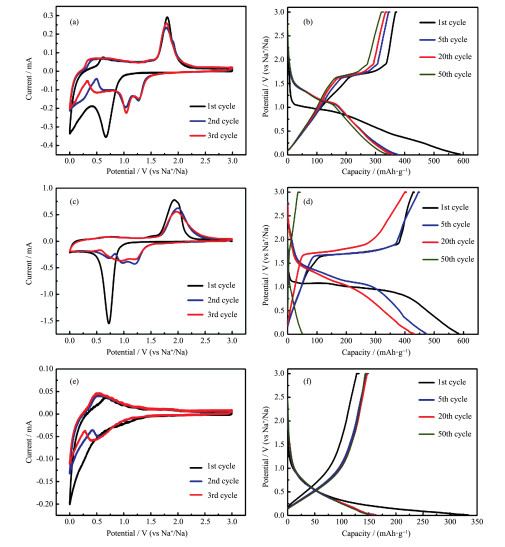

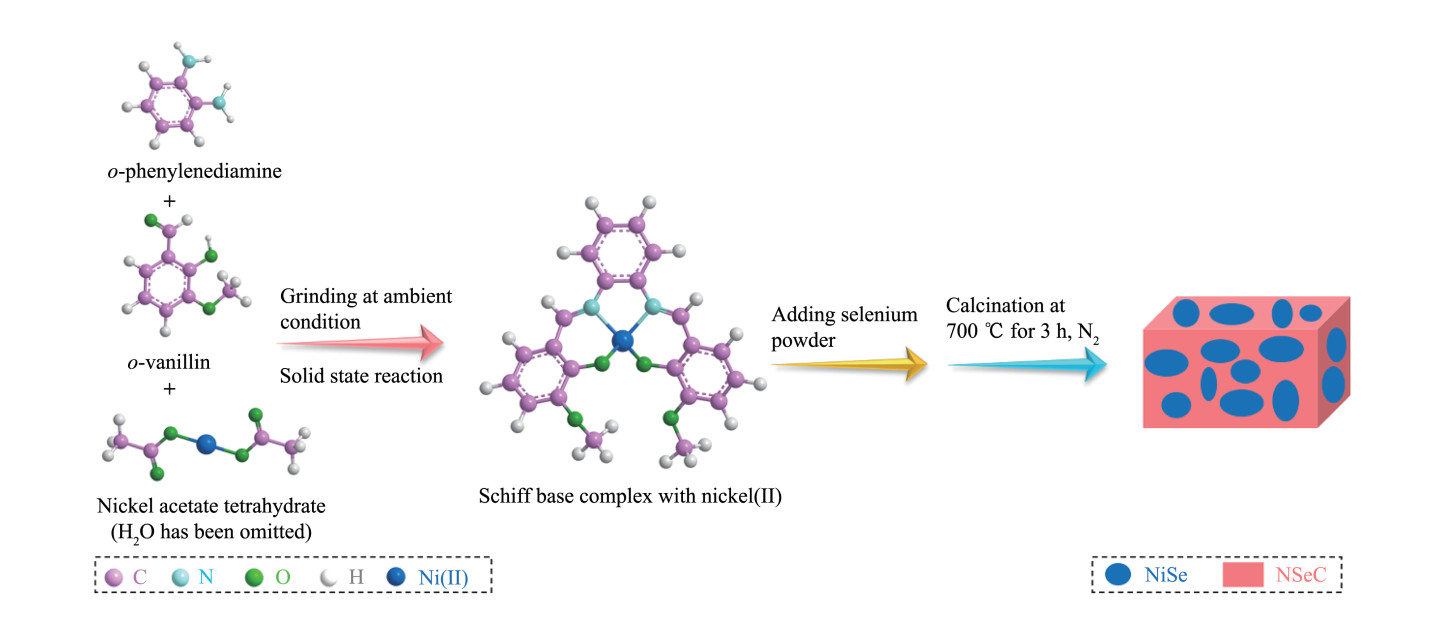

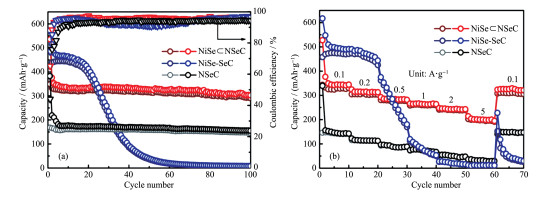

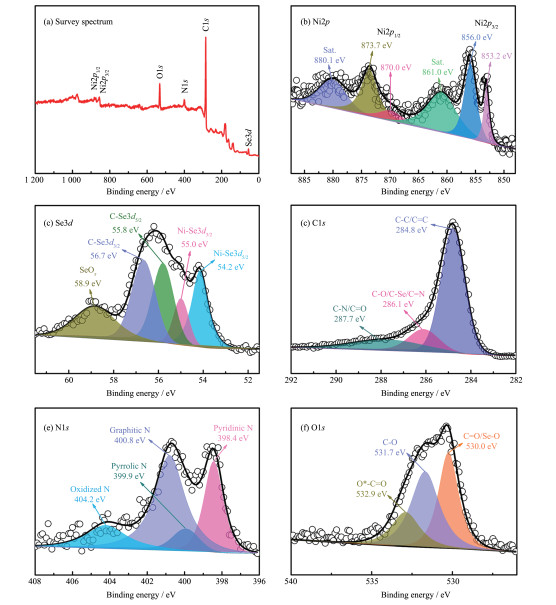

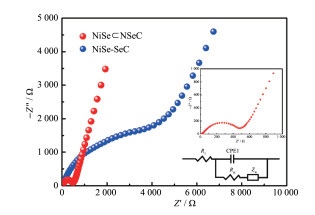

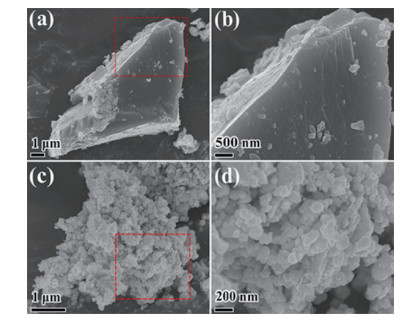

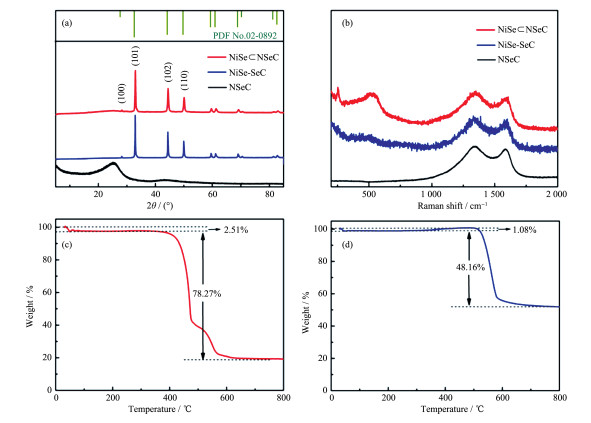

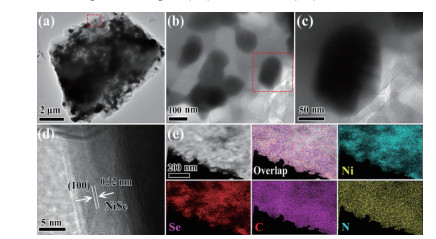

In this work, a very simple and cost-effective two-step solid state reaction method for the preparation of NiSe nanocrystalline restricted within N, Se-codoped carbon scaffold was presented. By directly grinding nickel acetate tetrahydrate, o-vanillin and o-phenylenediamine together with a molar ratio of 1:2:1 at room temperature, a self -assembly solid state reaction took place to give rise to a bis-Schiff base complex with Ni(Ⅱ). After subsequent annealing at 700℃ in the presence of selenium powder, simultaneous carbonization and selenization occurred, resulting in the in -situ formation of NiSe nanocrystalline (~100 nm) confined within an irregular N, Se-codoped carbon scaffold (denoted as NiSe⊂NSeC). By means of X-ray diffraction (XRD), scanning electron microscope (SEM), transmission electron microscope (TEM), X-ray photoelectron spectroscopy (XPS) and thermogravimetric analysis (TGA), the phase, morphology, composition and mass content for the NiSe ⊂ NSeC composite were identified. Its electrochemical sodium storage performance was tested by cyclic voltammetry, constant current charge and discharge cycling process, and electrochemical impedance spectrum. When tested as an anode material for sodium-ion batteries (SIBs), the NiSe⊂NSeC composite exhibited an impressive electrochemical sodium storage performance in terms of long-term cycling stability (291 mAh·g^-1 of charging capacity after 100 cycles at 0.1 A·g^-1, with a 88% of charging capacity retention compared with the first cycle) and excellent rate capability (197 mAh·g^-1 of charging capacity at 5 A·g^-1).
- NiSe nanocrystalline,
- carbon,
- N, Se-codoping,
- composite,
- two step solid-state reaction,
- anode material,
- sodium-ion batteries
1. [1]
  Chu S, Cui Y, Liu N. Nat. Mater., 2017, 16(1):16-22
2. [2]
  Dunn B, Kamath H, Tarascon J M. Science, 2011, 334(6058):928-935 doi: 10.1126/science.1212741
3. [3]
  Choi N S, Chen Z H, Freunberger S A, et al. Angew. Chem. Int. Ed., 2012, 51(40):9994-10024 doi: 10.1002/anie.201201429
4. [4]
  Simon P, Gogotsi Y, Dunn B. Science, 2014, 343(6176):1210-1211 doi: 10.1126/science.1249625
5. [5]
  Bruce P G, Freunberger S A, Hardwick L J, et al. Nat. Mater., 2012, 11(1):19-29
6. [6]
  Armand M, Tarascon J M. Nature, 2008, 451(7179):652-657 doi: 10.1038/451652a
7. [7]
  Yuan D D, He W, Pei F, et al. J. Mater. Chem. A, 2013, 1(12):3895-3899 doi: 10.1039/c3ta01430d
8. [8]
  Liu Y, He D D, Han R M, et al. Chem. Commun., 2017, 53(40):5569-5572 doi: 10.1039/C7CC02303K
9. [9]
  Li Y M, Lu Y X, Zhao C L, et al. Energy Storage Mater., 2017, 7:130-151 doi: 10.1016/j.ensm.2017.01.002
10. [10]
  Liu Y, Qiao Y, Lou X D, et al. ACS Appl. Mater. Interfaces, 2016, 8(23):14564-14571 doi: 10.1021/acsami.6b03089
11. [11]
  Xiong W, Wang Z Y, Zhang J Q, et al. Energy Storage Mater., 2017, 7:229-235 doi: 10.1016/j.ensm.2017.03.006
12. [12]
  Ortiz-Vitoriano N, Drewett N E, Gonzalo E, et al. Energy En-viron. Sci., 2017, 10(5):1051-1074
13. [13]
  Cui J, Yao S S, Kim J K. Energy Storage Mater., 2017, 7:64-114 doi: 10.1016/j.ensm.2016.12.005
14. [14]
  Ge P, Fouletier M. Solid State Ionics, 1988, 28-30:1172-1175 doi: 10.1016/0167-2738(88)90351-7
15. [15]
  Doeff M M, Ma Y P, Visco S J, et al. J. Electrochem. Soc., 1993, 140(12):L169-L170
16. [16]
  Stevens D A, Dahn J R. J. Electrochem. Soc., 2001, 148(8):A803-A811 doi: 10.1149/1.1379565
17. [17]
  Luo M H, Yu H X, Hu F Y, et al. Chem. Eng. J., 2020, 380:122557 doi: 10.1016/j.cej.2019.122557
18. [18]
  Ali Z, Zhang T, Asif M, et al. Mater. Today, 2020, DOI: 10.1016/j.mattod.2019.11.008
19. [19]
  Zhang Z, Shi X D, Yang X. Electrochim. Acta, 2016, 208:238-243 doi: 10.1016/j.electacta.2016.04.183
20. [20]
  Yang X M, Zhang J L, Wang Z G, et al. Small, 2018, 14(7):1702669 doi: 10.1002/smll.201702669
21. [21]
  Bai J, Xi B J, Mao H Z, et al. Adv. Mater., 2018, 30(35):1802310 doi: 10.1002/adma.201802310
22. [22]
  Ma Y F, Guo Q B, Yang M, et al. Energy Storage Mater., 2018, 13:134-141 doi: 10.1016/j.ensm.2018.01.005
23. [23]
  Yin B, Cao X X, Pan A Q, et al. Adv. Sci., 2018, 5(9):1800829 doi: 10.1002/advs.201800829
24. [24]
  Ye J C, Zang J, Tian Z W, et al. J. Mater. Chem. A, 2016, 4(34):13223-13227 doi: 10.1039/C6TA04592H
25. [25]
  Jin Z P, Nie H G, Yang Z, et al. Nanoscale, 2012, 4(20):6455-6460 doi: 10.1039/c2nr31858j
26. [26]
  Dong Y J, Wang W, Wang Y H, et al. J. Taiwan Inst. Chem. Eng., 2018, 93:500-508 doi: 10.1016/j.jtice.2018.08.028
27. [27]
  Zhu S H, Li Q D, Wei Q L, et al. ACS Appl. Mater. Interfaces, 2017, 9(1):311-316 doi: 10.1021/acsami.6b10143
28. [28]
  Park J S, Kang Y C. J. Mater. Chem. A, 2017, 5(18):8616-8623 doi: 10.1039/C7TA01088E
29. [29]
  Lu T, Dong S M, Zhang C J, et al. Coord. Chem. Rev., 2017, 332:75-99 doi: 10.1016/j.ccr.2016.11.005
30. [30]
  ZHOU Yi-Ming, XIN Xin-Quan. Chinese J. Inorg. Chem., 1999, 15(3):273-292 doi: 10.3321/j.issn:1001-4861.1999.03.001
31. [31]
  YANG Yu, JIA Dian-Zeng, GE Wei-Wei, et al. Chinese J. Inorg. Chem., 2004, 20(8):881-888 doi: 10.3321/j.issn:1001-4861.2004.08.001
32. [32]
  Li Y Z, Cao Y L, Jia D Z. J. Mater. Chem. A, 2014, 2(11):3761-3765 doi: 10.1039/c3ta14427e
33. [33]
  Wang Q, Ming M, Niu S, et al. Adv. Energy Mater., 2018, 8(31):1801698 doi: 10.1002/aenm.201801698
34. [34]
  Li F, Han G F, Noh H J, et al. Adv. Mater., 2018, 30(44):1803676 doi: 10.1002/adma.201803676
35. [35]
  Ye X R, Jia D Z, Yu J Q, et al. Adv. Mater., 1999, 11(11):941-942 doi: 10.1002/(SICI)1521-4095(199908)11:11<941::AID-ADMA941>3.0.CO;2-T
36. [36]
  Service R F. Science, 2008, 320(5883):1584-1585
37. [37]
  Patil S A, Shinde D V, Ahn D Y, et al. J. Mater. Chem. A, 2014, 2(33):13519-13526 doi: 10.1039/C4TA02267J
38. [38]
  Ou G, Xu Y S, Wen B, et al. Nat. Commun., 2018, 9(1):1302 doi: 10.1038/s41467-018-03765-0
39. [39]
  Tajik S, Dubal D P, Gomez-Romero P, et al. Int. J. Hydrogen Energy, 2017, 42(17):12384-12395 doi: 10.1016/j.ijhydene.2017.03.117
40. [40]
  Zhou Y M, Ye X R, Xin F B, et al. Transition Met. Chem., 1999, 24(1):118-120 doi: 10.1023/A:1006989707001
41. [41]
  Tian Y F, Ruan Y J, Zhang J Y, et al. Electrochim. Acta, 2017, 250:327-334 doi: 10.1016/j.electacta.2017.08.084
42. [42]
  Tuinstra F, Koenig J L. J. Chem. Phys., 1970, 53(3):1126-1130 doi: 10.1063/1.1674108
43. [43]
  Ferrari A C, Robertson J. Phys. Rev. B, 2000, 61(20):14095-14107 doi: 10.1103/PhysRevB.61.14095
44. [44]
  Stankovich S, Dikin D A, Piner R D, et al. Carbon, 2007, 45(7):1558-1565 doi: 10.1016/j.carbon.2007.02.034
45. [45]
  Shi W D, Zhang X, Che G B. Int. J. Hydrogen Energy, 2013, 38(17):7037-7045 doi: 10.1016/j.ijhydene.2013.03.145
46. [46]
  Murugadoss V, Lin J, Liu H, et al. Nanoscale, 2019, 11(38):17579-17589 doi: 10.1039/C9NR07060E
47. [47]
  Ruan Y J, Jiang J J, Wan H Z, et al. J. Power Sources, 2016, 301:122-130 doi: 10.1016/j.jpowsour.2015.09.116
48. [48]
  Luo C, Wang J J, Suo L M, et al. J. Mater. Chem. A, 2015, 3(2):555-561 doi: 10.1039/C4TA04611K
49. [49]
  Yun Y S, Yoon G, Park M, et al. NPG Asia Mater., 2016, 8(12):e338-e338 doi: 10.1038/am.2016.191
50. [50]
  Li H M, Qian X, Zhu C L, et al. J. Mater. Chem. A, 2017, 5(9):4513-4526 doi: 10.1039/C6TA10718D
51. [51]
  Wei X J, Tang C J, An Q Y, et al. Nano Res., 2017, 10(9):3202-3211 doi: 10.1007/s12274-017-1537-z
52. [52]
  Sheng Z H, Shao L, Chen J J, et al. ACS Nano, 2011, 5(6):4350-4358 doi: 10.1021/nn103584t
53. [53]
  Kang W W, Lin B P, Huang G X, et al. J. Mater. Sci.-Mater. Electron., 2018, 29(4):3340-3347 doi: 10.1007/s10854-017-8269-4
54. [54]
  Mi L W, Ding Q, Sun H, et al. CrystEngComm, 2013, 15(14):2624-2630 doi: 10.1039/c3ce26754g
55. [55]
  Zhang Y F, Pan A Q, Ding L, et al. ACS Appl. Mater. Inter-faces, 2017, 9(4):3624-3633 doi: 10.1021/acsami.6b13153
56. [56]
  Zhang K, Park M H, Zhou L M, et al. Adv. Funct. Mater., 2016, 26(37):6728-6735 doi: 10.1002/adfm.201602608
57. [57]
  Zhang Z A, Shi X D, Yang X. Electrochim. Acta, 2016, 208:238-243 doi: 10.1016/j.electacta.2016.04.183
58. [58]
  Cao X, Li A J, Yang Y, et al. RSC Adv., 2018, 8(45):25734-25744 doi: 10.1039/C8RA03479F
59. [59]
  Liu X B, Liu Y C, Feng M, et al. J. Mater. Chem. A, 2018, 6(46):23621-23627 doi: 10.1039/C8TA09247H
60. [60]
  Zhang G J, Liu K H, Liu S T, et al. J. Alloys Compd., 2018, 731:714-722 doi: 10.1016/j.jallcom.2017.10.094
61. [61]
  Jin J, Huang S Z, Liu J, et al. J. Mater. Chem. A, 2014, 2(25):9699-9708 doi: 10.1039/c4ta01775g
1. [1]
  Zhuo WANG , Xiaotong LI , Zhipeng HU , Junqiao PAN . Three-dimensional porous carbon decorated with nano bismuth particles: Preparation and sodium storage properties. Chinese Journal of Inorganic Chemistry, 2025, 41(2): 267-274. doi: 10.11862/CJIC.20240223
2. [2]
  Xue Xiao , Jiachun Li , Xiangtong Meng , Jieshan Qiu . Sulfur-Doped Carbon-Coated Fe_0.95S_1.05 Nanospheres as Anodes for High-Performance Sodium Storage. Acta Physico-Chimica Sinica, 2024, 40(6): 2307006-0. doi: 10.3866/PKU.WHXB202307006
3. [3]
  Yu Guo , Zhiwei Huang , Yuqing Hu , Junzhe Li , Jie Xu . Recent Advances in Iron-based Heterostructure Anode Materials for Sodium Ion Batteries. Acta Physico-Chimica Sinica, 2025, 41(3): 100022-0. doi: 10.3866/PKU.WHXB202311015
4. [4]
  Yuyao Wang , Zhitao Cao , Zeyu Du , Xinxin Cao , Shuquan Liang . Research Progress of Iron-based Polyanionic Cathode Materials for Sodium-Ion Batteries. Acta Physico-Chimica Sinica, 2025, 41(4): 100035-0. doi: 10.3866/PKU.WHXB202406014
5. [5]
  Xueyu Lin , Ruiqi Wang , Wujie Dong , Fuqiang Huang . Rational Design of Bimetallic Oxide Anodes for Superior Li⁺ Storage. Acta Physico-Chimica Sinica, 2025, 41(3): 100021-0. doi: 10.3866/PKU.WHXB202311005
6. [6]
  Peicai Li , Xubin Wang , Qinghua Zhang , Bowen Wang , Xiaohui Rong , Yong-Sheng Hu , Zhongtao Li . High-rate and long-cycling P2-type cathode material for sodium-ion batteries. Acta Physico-Chimica Sinica, 2026, 42(5): 100214-0. doi: 10.1016/j.actphy.2025.100214
7. [7]
  Zilin Hu , Yaoshen Niu , Xiaohui Rong , Yongsheng Hu . Suppression of Voltage Decay through Ni³⁺ Barrier in Anionic-Redox Active Cathode for Na-Ion Batteries. Acta Physico-Chimica Sinica, 2024, 40(6): 2306005-0. doi: 10.3866/PKU.WHXB202306005
8. [8]
  Wenhui Li , Yakun Tang , Yusheng Zhou , Yue Zhang , Wenhai Zhang , Qingtao Ma , Lang Liu , Sen Dong , Yuliang Cao . Enhanced sodium storage performance of asphalt-derived hard carbon through intramolecular oxidation for high-performance sodium-ion batteries. Acta Physico-Chimica Sinica, 2025, 41(10): 100119-0. doi: 10.1016/j.actphy.2025.100119
9. [9]
  Jianbao Mei , Bei Li , Shu Zhang , Dongdong Xiao , Pu Hu , Geng Zhang . Enhanced Performance of Ternary NASICON-Type Na_3.5−xMn_0.5V_1.5−xZr_x (PO₄)₃/C Cathodes for Sodium-Ion Batteries. Acta Physico-Chimica Sinica, 2024, 40(12): 2407023-0. doi: 10.3866/PKU.WHXB202407023
10. [10]
  Rongzhan LOU , Qiaoling KANG , Zhenchao BAI , Dongyun LI , Yang XU , Rui WANG , Qingyi LU . Research progress of sodium ion high entropy layered oxide cathode. Chinese Journal of Inorganic Chemistry, 2025, 41(12): 2411-2428. doi: 10.11862/CJIC.20250142
11. [11]
  Zhicheng JU , Wenxuan FU , Baoyan WANG , Ao LUO , Jiangmin JIANG , Yueli SHI , Yongli CUI . MOF-derived nickel-cobalt bimetallic sulfide microspheres coated by carbon: Preparation and long cycling performance for sodium storage. Chinese Journal of Inorganic Chemistry, 2025, 41(4): 661-674. doi: 10.11862/CJIC.20240363
12. [12]
  Shan Zhao , Xu Liu , Haotian Guo , Zonglin Liu , Pengfei Wang , Jie Shu , Tingfeng Yi . Synergistic design of high-entropy P2/O3 biphasic cathodes for high-performance sodium-ion batteries. Acta Physico-Chimica Sinica, 2026, 42(1): 100129-0. doi: 10.1016/j.actphy.2025.100129
13. [13]
  Xue Zhang , Zihan He , Yingqi Wu , Weilai Yu , Tao Liu . Corn-distillers-derived hard carbon: a sustainable high-rate, long-life anode for sodium-ion batteries. Acta Physico-Chimica Sinica, 2026, 42(5): 100199-0. doi: 10.1016/j.actphy.2025.100199
14. [14]
  Débora Ferreira dos Santos Morais , José Luis Tirado , Carlos Pérez-Vicente , Fabiana Villela da Motta , Pedro Lavela , Mauricio Bomio , Sergio Lavela . Unlocking the performance of sodium-ion batteries by coating Na₃V₂(PO₄)₃ with Nb₂O₅. Acta Physico-Chimica Sinica, 2026, 42(2): 100180-0. doi: 10.1016/j.actphy.2025.100180
15. [15]
  Zhuo Wang , Xue Bai , Kexin Zhang , Hongzhi Wang , Jiabao Dong , Yuan Gao , Bin Zhao . MOF-Templated Synthesis of Nitrogen-Doped Carbon for Enhanced Electrochemical Sodium Ion Storage and Removal. Acta Physico-Chimica Sinica, 2025, 41(3): 100026-0. doi: 10.3866/PKU.WHXB202405002
16. [16]
  Xiaotian ZHU , Fangding HUANG , Wenchang ZHU , Jianqing ZHAO . Layered oxide cathode for sodium-ion batteries: Surface and interface modification and suppressed gas generation effect. Chinese Journal of Inorganic Chemistry, 2025, 41(2): 254-266. doi: 10.11862/CJIC.20240260
17. [17]
  Qingtang ZHANG , Xiaoyu WU , Zheng WANG , Xiaomei WANG . Performance of nano Li₂FeSiO₄/C cathode material co-doped by potassium and chlorine ions. Chinese Journal of Inorganic Chemistry, 2024, 40(9): 1689-1696. doi: 10.11862/CJIC.20240115
18. [18]
  Jinyi Sun , Lin Ma , Yanjie Xi , Jing Wang . Preparation and Electrocatalytic Nitrogen Reduction Performance Study of Vanadium Nitride@Nitrogen-Doped Carbon Composite Nanomaterials: A Recommended Comprehensive Chemistry Experiment. University Chemistry, 2024, 39(4): 184-191. doi: 10.3866/PKU.DXHX202310094
19. [19]
  Shuang Wang , Xiaoqi Fu , Shanshan Yao . Synergistic optimization of ion migration and electron transfer in sodium-ion battery cathode materials. Acta Physico-Chimica Sinica, 2026, 42(5): 100206-0. doi: 10.1016/j.actphy.2025.100206
20. [20]
  Chaolin Mi , Yuying Qin , Xinli Huang , Yijie Luo , Zhiwei Zhang , Chengxiang Wang , Yuanchang Shi , Longwei Yin , Rutao Wang . Galvanic Replacement Synthesis of Graphene Coupled Amorphous Antimony Nanoparticles for High-Performance Sodium-Ion Capacitor. Acta Physico-Chimica Sinica, 2024, 40(5): 2306011-0. doi: 10.3866/PKU.WHXB202306011

Get Citation

PDF

XML

Metrics

PDF Downloads(7)
Abstract views(1915)
HTML views(188)

通讯作者: 陈斌, bchen63@163.com

1.
沈阳化工大学材料科学与工程学院沈阳 110142
