Citation: XU Zhong-Xuan, LI Li-Feng, BAI Xu-Ling. Helical Coordination Polymers Based on Tetra-coordinated Co(Ⅱ): Syntheses, Structures and Photocatalytic CO₂ Reduction Reaction[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(8): 1430-1436. doi: 10.11862/CJIC.2020.154 shu

Helical Coordination Polymers Based on Tetra-coordinated Co(Ⅱ): Syntheses, Structures and Photocatalytic CO₂ Reduction Reaction

School of Chemistry and Chemical Engineering, Zunyi Normal College, Zunyi, Guizhou 563002, China

Corresponding author: XU Zhong-Xuan, xuzhongxuan4201@163.com
Received Date: 20 November 2019
Revised Date: 27 March 2020

Figures(5)

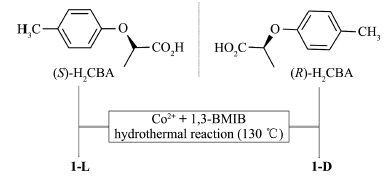

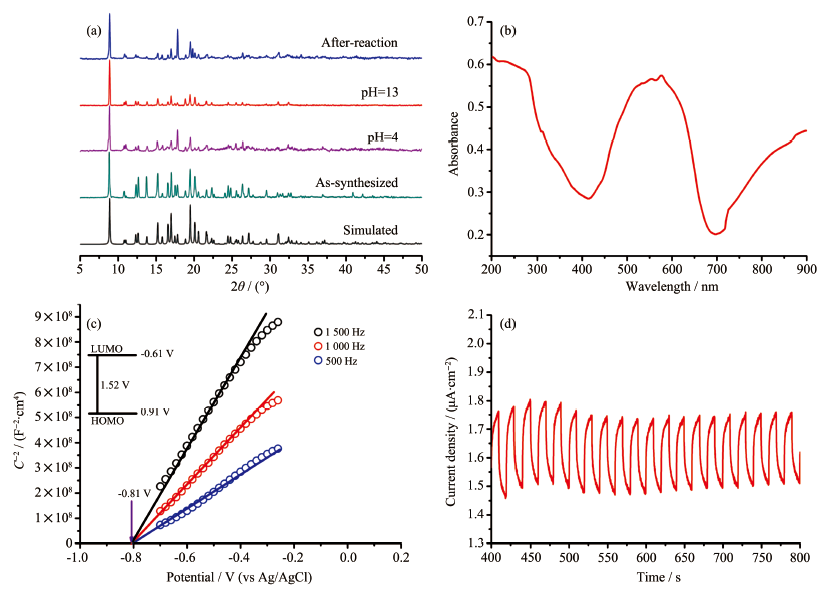

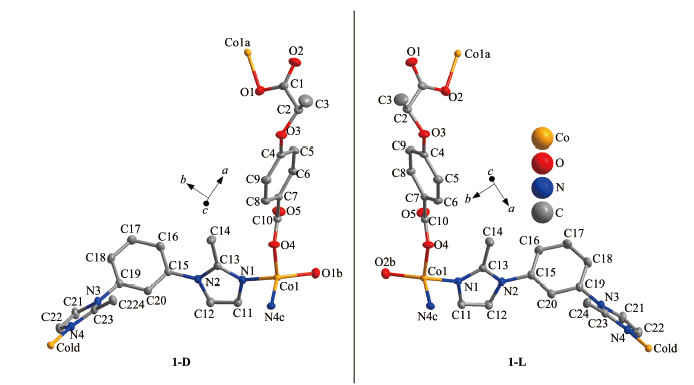

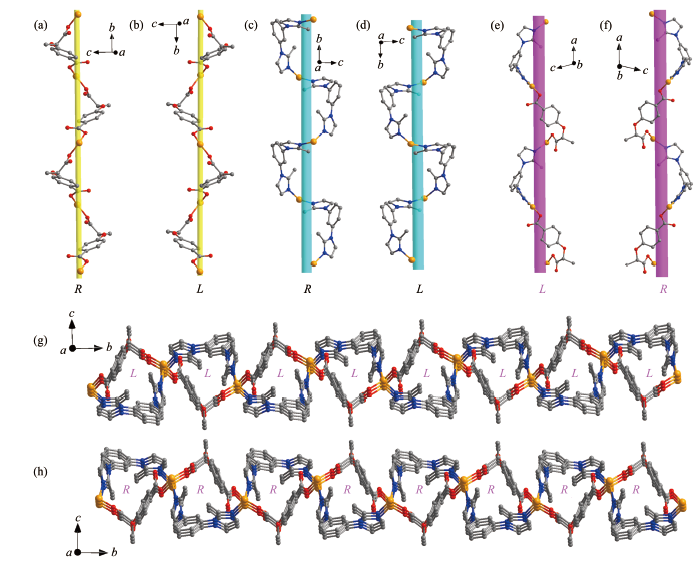

A pair of homochiral coordination polymers, {[Co((R)-CBA)(1, 3-BMIB)₂]·H₂O}_n (1-D, (R)-H₂CBA=(R)-4-(1-carboxyethoxy)benzoic acid, 1, 3-BMIB=1, 3-bis(2-methyl-1H-imidazol-1-yl)benzene) and {[Co((S)-CBA)(1, 3-BMIB)₂]·H₂O}_n (1-L), were prepared by mixing Co²⁺, 1, 3-BMIB and lactic acid derivates (R)-H₂CBA/(S)-H₂CBA under hydrothermal condition, respectively. X-ray crystallography reveals there are three types of helical chains constructed by tetra-coordinated Co(Ⅱ) centers, 1, 3-BMIB and/or CBA^2- ligands in complexes 1-D and 1-L. For unsaturated Co(Ⅱ) centers can act as catalytic active site, complex 1-D with high yield was further used for photo-catalytic research. Mott-Schottky measurements indicate that complex 1-D is a typical n-type semiconductor, while the UV-Vis spectrum confirmed that complex 1-D showed strong absorption in a range of 420~650 nm. Further more, complex 1-D has the small radius and the lowest resistance in charge transportation. Finally, complex 1-D realized photocatalytic reduction of CO₂ to CO with an evolution rate of 577.8 μmol·g^-1·h^-1 in the course of the experiment.
- coordination polymer,
- helical chain,
- tetra-coordinated Co(Ⅱ) center,
- photo-catalytic CO₂ reduction
1. [1]
  Fischer H, Wahlen M, Smith J, et al. Science., 1999, 283:1712-1714 doi: 10.1126/science.283.5408.1712
2. [2]
  Demicco R V, Lowenstein T K, Hardie L A. Geology, 2003, 31:793-796 doi: 10.1130/G19727.1
3. [3]
  Dry M E. Catal. Today, 2002, 71:227-241 doi: 10.1016/S0920-5861(01)00453-9
4. [4]
  Aresta M, Dibenedetto A. Dalton Trans., 2007, 28:2975-2992
5. [5]
  Guntern Y T, Pankhurst J R, Vavra J, et al. Angew. Chem. Int. Ed., 2019, 58:12632-12639 doi: 10.1002/anie.201905172
6. [6]
  White J L, Baruch M F, Pander J E, et al. Chem. Rev., 2015, 115:12888-12935 doi: 10.1021/acs.chemrev.5b00370
7. [7]
  Kumar B, Llorente M, Froehlich J, et al. Annu. Rev. Phys. Chem., 2012, 63:541-569 doi: 10.1146/annurev-physchem-032511-143759
8. [8]
  Schneider J, Matsuoka M, Takeuchi M, et al. Chem. Rev., 2014, 114:9919-9986 doi: 10.1021/cr5001892
9. [9]
  Stock N, Biswas S. Chem. Rev., 2012, 112:933-969 doi: 10.1021/cr200304e
10. [10]
  Valtchev V, Toshev L. Chem. Rev., 2013, 113:6734-6760 doi: 10.1021/cr300439k
11. [11]
  Yoon M, Srirambalaji R, Kim K, et al. Chem. Rev., 2012, 112:1196-1231 doi: 10.1021/cr2003147
12. [12]
  Wu Y P, Tian J W, Li B, et al. Angew. Chem. Int. Ed., 2019, 58:12185-12189 doi: 10.1002/anie.201907136
13. [13]
  Zhou W, Huang D D, Wu Y P, et al. Angew. Chem. Int. Ed., 2019, 58:4227-4231 doi: 10.1002/anie.201813634
14. [14]
  Wang C C, Zhang Y Q, Li J, et al. J. Mol. Struct., 2015, 1083:127-136 doi: 10.1016/j.molstruc.2014.11.036
15. [15]
  Wang X K, Liu J, Zhang L, et al. ACS Catal., 2019, 9:1726-1732 doi: 10.1021/acscatal.8b04887
16. [16]
  HE Peng-Chen, ZHOU Jian, ZHOU A-Wu, et al. Chem. J. Chinese Universities, 2019, 40:855-866 doi: 10.7503/cjcu20180688
17. [17]
  Zeng L, Guo X, He C, et al. ACS Catal., 2016, 6:7935-7947 doi: 10.1021/acscatal.6b02228
18. [18]
  Li R, Zhang W, Zhou K. Adv. Mater., 2018, 30:1705512 doi: 10.1002/adma.201705512
19. [19]
  Qin J, Yuan S, Zhang L, et al. J. Am. Chem. Soc., 2019, 141:2054-2060 doi: 10.1021/jacs.8b11042
20. [20]
  Xu Z, Ma Y, Zhang L. Inorg. Chem. Commun., 2016, 73:115-118 doi: 10.1016/j.inoche.2016.10.013
21. [21]
  Dolomanov O V, Bourhis L J, Gildea R J, et al. J. Appl. Crys-tallogr., 2009, 42:339-341 doi: 10.1107/S0021889808042726
22. [22]
  Sheldrick G M. Acta Crystallogr. Sect. C, 2015, C71:3-8
23. [23]
  Speck A L. Acta Crystallogr. Sect. C, 2015, C71:9-18
24. [24]
  Bourhis L J, Dolomanov O V, Gildea R J, et al. Acta Crystal-logr. Sect. A, 2015, A71:59-75
25. [25]
  Aexandrov E V, Blatov V A, Kochetkov A V, et al. CrystEng-Comm, 2011, 13:3947-3958 doi: 10.1039/c0ce00636j
26. [26]
  Zhang H X, Hong Q L, Li J, et al. Angew. Chem., 2019, 131:11878-11882 doi: 10.1002/ange.201905869
27. [27]
  Rahman M Z, Tapping P C, Kee T W, et al. Adv. Funct. Ma-ter., 2017, 27:1702384 doi: 10.1002/adfm.201702384
28. [28]
  Tong H, Ouyang S, Bi Y, et al. Adv. Mater., 2012, 24:229-251 doi: 10.1002/adma.201102752
