Citation: FENG Zhe, GAO Jian-Fei, LI Gang, ZHU Dun-Ru. Syntheses and Crystal Structures of Two Copper Complexes Based on Quinolyl and Pyridyl Substituted Triaryltriazoles[J]. Chinese Journal of Inorganic Chemistry, ;2020, 36(6): 1169-1175. doi: 10.11862/CJIC.2020.100 shu

Syntheses and Crystal Structures of Two Copper Complexes Based on Quinolyl and Pyridyl Substituted Triaryltriazoles

FENG Zhe ¹ ,
GAO Jian-Fei ¹ ,
LI Gang ¹ ,
ZHU Dun-Ru ^1,2,,

1.
College of Chemical Engineering, State Key Laboratory of Materials-Oriented Chemical Engineering, Nanjing Tech University, Nanjing 211816, China
2.
State Key Laboratory of Coordination Chemistry, Nanjing University, Nanjing 210023, China

Corresponding author: ZHU Dun-Ru, zhudr@njtech.edu.cn
Received Date: 22 January 2020
Revised Date: 7 March 2020

Figures(4)

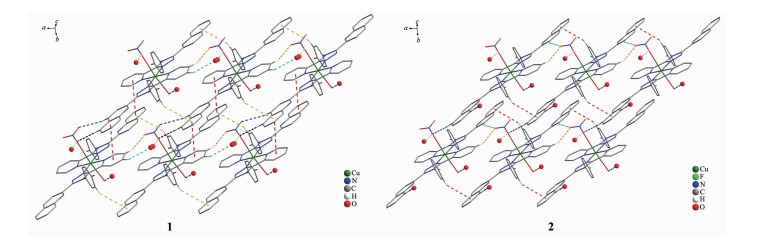

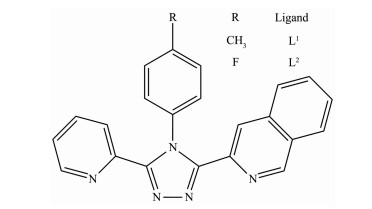

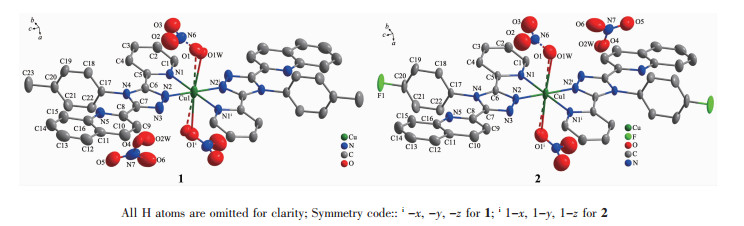

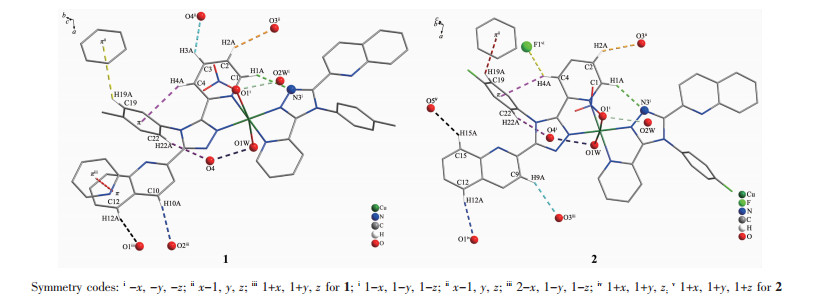

Two new copper(Ⅱ) complexes, trans-[Cu(L¹)₂(NO₃)(H₂O)]NO₃·H₂O (1) and trans-[Cu(L²)₂(NO₃)(H₂O)]NO₃·H₂O (2) (L¹=3-(2-pyridyl)-4-(p-methylphenyl)-5-(2-quinolyl)-1, 2, 4-triazole, L²=3-(2-pyridyl)-4-(p-fluorophenyl)-5-(2-quinolyl)-1, 2, 4-triazole), were synthesized and characterized by FT-IR, elemental analyses and single-crystal X-ray crystallography. Both 1 and 2 crystallize in triclinic system with space group P1. X-ray crystallography analysis reveals that the copper ion in 1 and 2 lies in a distorted octahedral environment [CuN₄O₂] with one nitrate and one water molecule, respectively in the trans-position. The L¹ or L² ligand coordinates with Cu(Ⅱ) via one pyridine N atom and one triazole N atom, while the quinolyl group does not take part in coordination. In 1 and 2 there are some intermolecular O-H…O, C-H…O and C-H…N hydrogen bonds and C-H…π interactions, connecting the mononuclear complexes to form a 3D framework.
- synthesis,
- Cu(Ⅱ) complex,
- crystal structure,
- triaryltriazole
1. [1]
  Klingele M H, Brooker S. Coord. Chem. Rev., 2003, 241:119-132 doi: 10.1016/S0010-8545(03)00049-3
2. [2]
  Kitchen J A, Brooker S. Coord. Chem. Rev., 2008, 252:2072-2092 doi: 10.1016/j.ccr.2007.11.010
3. [3]
  ZHU Dun-Ru, QI Li, CHENG Hui-Min, et al. Prog. Chem., 2009, 21:1187-1198
4. [4]
  Zhu D R, Xu Y, Yu Z, et al. Chem. Mater., 2002, 14:838-843 doi: 10.1021/cm010688u
5. [5]
  Shen G P, Qi L, Wang L, et al. Dalton Trans., 2013, 42:10144-10152 doi: 10.1039/c3dt50821h
6. [6]
  Klingele M H, Boyd P D W, Moubaraki B, et al. Eur. J. Inorg. Chem., 2006:573-589
7. [7]
  QI Li, ZHU Dun-Ru, XIE Da-Jing, et al. Chinese J. Inorg. Chem., 2008, 24:868-872 doi: 10.3321/j.issn:1001-4861.2008.06.005
8. [8]
  Zhou J, Yang J, Qi L, et al. Transition Met. Chem., 2007, 32:711-715 doi: 10.1007/s11243-007-0234-2
9. [9]
  Yang J, Bao W W, Ren X M, et al. J. Coord. Chem., 2009, 62:1809-1816 doi: 10.1080/00958970802709333
10. [10]
  Kitchen J A, Noble A, Brandt C D, et al. Inorg. Chem., 2008, 47:9450-9458 doi: 10.1021/ic801039j
11. [11]
  Kitchen J A, White N G, Boyd M, et al. Inorg. Chem., 2009, 48:6670-6679 doi: 10.1021/ic900634t
12. [12]
  Kitchen J A, Jameson G N L, Milway V A, et al. Dalton Trans., 2010, 39:7637-7639 doi: 10.1039/c0dt00716a
13. [13]
  Shen G P, Zhao J, Jiang J J, et al. J. Mol. Struct., 2011, 1002:159-166 doi: 10.1016/j.molstruc.2011.07.017
14. [14]
  Zhao J, Cheng H M, Shen G P, et al. J. Coord. Chem., 2011, 64:942-951 doi: 10.1080/00958972.2011.558897
15. [15]
  Chen L, Zhao J, Shen G P, et al. J. Coord. Chem., 2011, 64:3980-3991 doi: 10.1080/00958972.2011.634909
16. [16]
  SHEN Guo-Ping, ZHAO Jian, CHEN Lang, et al. Chinese J. Inorg. Chem., 2012, 28:159-163
17. [17]
  CHEN Lang, CHENG Hui-Min, JIANG Jing-Jing, et al. Chinese J. Inorg. Chem., 2012, 28:381-385
18. [18]
  JIANG Jing-Jing, CHEN Lang, ZHAO Jian, et al. Chinese J. Inorg. Chem., 2012, 28:1940-1944
19. [19]
  Zhao J, Shen G P, Zhang Y, et al. J. Heterocycl. Chem., 2012, 49:1114-1119 doi: 10.1002/jhet.949
20. [20]
  Jiang J J, Shen G P, He X, et al. J. Heterocycl. Chem., 2014, 51:1888-1892 doi: 10.1002/jhet.1894
21. [21]
  He X, Cao D Y, Jiang J J, et al. J. Coord. Chem., 2014, 67:227-235 doi: 10.1080/00958972.2013.877585
22. [22]
  Li B, Zhou Y F, Zhang S P, et al. J. Coord. Chem., 2016, 69:2647-2655 doi: 10.1080/00958972.2016.1214724
23. [23]
  Zhou Y F, Zhang S P, Feng Z, et al. J. Heterocyl. Chem., 2017, 54:2773-2780 doi: 10.1002/jhet.2880
24. [24]
  Zhang S P, Feng Z, Wu B, et al. J. Coord. Chem., 2018, 71:46-56 doi: 10.1080/00958972.2018.1425838
25. [25]
  Ivanova N V, Sviridov S I, Stepanov A E. Tetrahedron Lett., 2006, 47:8025-8027 doi: 10.1016/j.tetlet.2006.09.061
26. [26]
  Cheng H M, Zhu D R, Lu W. J. Heterocycl. Chem., 2010, 47:210-213
27. [27]
  Shen G P, Cao D Y, Jiang X Y, et al. Chin. J. Struct. Chem., 2013, 32:1153-1158
28. [28]
  Sheldrick G M. Acta Crystallogr. Sect. A, 2008, A64:112-122
29. [29]
  Lu W, Zhu D R, Xu Y, et al. Struct. Chem., 2010, 21:237-244 doi: 10.1007/s11224-009-9569-y
30. [30]
  LU Wei, XIE Da-Jing, WANG Zuo-Xiang, et al. Chinese J. Inorg. Chem., 2010, 26:717-720
31. [31]
  YU Zhu, BAI Jian, WANG Han-Hui, et al. Chinese J. Inorg. Chem., 2019, 35:1312-1320 doi: 10.11862/CJIC.2019.143
32. [32]
  Zhang Y, Wu Y, He X, et al. Acta Crystallogr. Sect. C, 2018, C74:256-262
